Metallography for reliable material assessment
Metallography provides precise microstructural insight to support quality assurance, failure analysis and material development by preparing and analysing samples through sample preparation, microscopy and etching techniques. Typical workflows such as embedding, grinding, polishing and chemical etching reveal grain structure, inclusions and phase boundaries, enabling engineers to assess hardness, strength and corrosion resistance in both production and R&D environments. As a complementary approach, on-site or ambulant metallography allows targeted investigations directly on components like pipes or turbines, improving process control and reducing downtime.

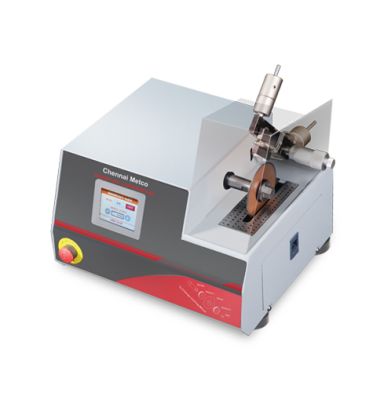

20-40 mm Cut Off Machine, 60–600 RPM, Touch Screen HMI, Micrometer 25 mm - Chennai Metco
Baincut LSS Precision Cut Off Machine by Chennai Metco The Baincut LSS is a precision cut off machine designed for accurate sectioning of hard and brittle materials, ideal for R&D and laboratory applications. Precise cuts up to 20 mm with 4" wheel Extended 30 mm capacity with 5" wheel Variable speed 60–600 RPM for versatile use Built-in stainless steel coolant tray for easy cleaning Colour touch HMI with preset programs Accurate sectioning for delicate materials The Baincut LSS delivers highly controlled, low-speed sectioning for small, hard components used in research and development. Its high-precision spindle and adjustable horizontal feed combine to minimise chipping and thermal stress, ensuring consistent, reproducible sections. This makes the machine particularly suitable for cutting high-quality brittle crystal and other sensitive substrates where dimensional accuracy matters. Efficient workflow with intuitive controls An advanced colour touch screen HMI provides preset programs and straightforward operation, reducing setup time and operator training. The continuously variable speed range of 60–600 RPM allows fine-tuning of cutting parameters, while the micrometer cross-feed offers precise lateral adjustment up to 25 mm. These features enable predictable results and shorter cycle times for routine laboratory tasks. Robust design that simplifies maintenance A built-in, removable stainless steel coolant tray supports effective cooling and easy cleaning, reducing downtime caused by residue build-up. The transparent splash guard improves safety without obstructing visibility, and the option for a rotating fixer increases cutting capacity up to 40 mm. Durable construction and clear service access help maintain long-term accuracy. Practical capabilities tailored to application needs Cutting options include a 4" wheel for up to 20 mm and a 5" wheel for up to 30 mm, with diamond blade compatibility up to 5" diameter. The down-feed facility with variable weights up to 400 grams enables controlled material penetration for delicate samples. Single-phase power compatibility (220 V/50 Hz or 110 V/60 Hz) offers installation flexibility across different lab environments. Support and consultation from the dealer METAV Werkzeuge, the dealer, offers extensive and competent advice for complex or high-value tools. Not sure whether this cutter meets specific requirements or need supplementary technical data? No problem – expert assistance is available. 📧 eMail: info@metav-werkzeuge.com ☎️ Telefon: +49 2822 7131930 ✔️ WhatsApp: +49 170 2837271 Choose Chennai Metco’s Baincut LSS for precise, reliable sectioning and contact METAV Werkzeuge for expert consultation via info@metav-werkzeuge.com or +49 2822 7131930 Technical Information Bezeichnung: Precision cut off machine - Baincut LSS Marke/Hersteller: Chennai Metco SKU: LSS003 Cutting capacity: up to 20 mm with 4" wheel; up to 30 mm with 5" wheel Rotating fixer: option to increase capacity to 40 mm Coolant tray: Built-in removable stainless steel re-circulation tray Down-feed: Variable weights up to 400 grams HMI: Colour touch screen with preset programs Speed range: Continuously variable 60–600 RPM Micrometer: Cross-feed adjustment up to 25 mm Splash guard: Transparent splash guard included Power: Single phase 220V/50Hz or 110V/60Hz Diamond blade size: Up to 5" diameter Dimensions: 400 mm x 300 mm x 250 mm Manufacturer: Chennai Metco, D12, Ambattur Industrial Estate, Chennai – 600 058 Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; info@metav-werkzeuge.com FAQ How suitable is the Baincut LSS for cutting brittle crystal samples? The Baincut LSS precision cut off machine by Chennai Metco is specifically designed for brittle and hard materials; its low-speed operation, precise spindle, and adjustable down-feed ensure minimal damage and high-quality sections. Can the Baincut LSS handle larger diameters with optional fixtures? Yes, the Baincut LSS from Chennai Metco offers an optional rotating fixer that increases cutting capacity to 40 mm, enabling work on larger specimens when required. What features on the Baincut LSS help reduce maintenance time? The Baincut LSS includes a removable stainless steel coolant tray and a transparent splash guard, both of which simplify cleaning and routine upkeep for efficient laboratory use. Is the control interface of the Baincut LSS suitable for non-specialist operators? The colour touch HMI on the Baincut LSS by Chennai Metco provides preset programs and an intuitive layout, allowing quick familiarisation even for operators with limited experience. Where can I get technical support or additional data for the Baincut LSS? For further technical details or personalised advice about the Baincut LSS, contact METAV Werkzeuge via info@metav-werkzeuge.com, telephone +49 2822 7131930, or WhatsApp +49 170 2837271.
25mm Carbide Rod Cutter Floor Model, Manual Z-Feed, 3 HP, 2800 rpm, 50L Coolant Recirculation, CE Compliant - Chennai Metco
The combination of a 3 HP (2.2 kW) cutting motor, a cutting range of 3–25 mm, and a 50-litre recirculating coolant with 100 µm filtration ensures high throughput and long service intervals; benefit from consistent rod preparation and reduced downtime. Order the BAINCUT – CMC Medium directly via Metav Werkzeuge or ask our consultants for application advice. BAINCUT – CMC Medium floor-model carbide and HSS rod cutter with 3 HP drive and 3–25 mm capacity The BAINCUT – CMC Medium is a robust floor-mounted cutter designed for accurate trimming of carbide and HSS rods in production and toolroom environments. Carbide & HSS rod cutting 3–25 mm 3 HP motor, 2.2 kW and 2800 rpm spindle 50 L recirculating coolant with 100 µm filter Pneumatic v‑block clamping with brass insert Productivity that keeps production moving Equipped with a 3 HP (2.2 kW) cutting motor and a 2800 rpm spindle, this cutter delivers steady power for repeatable cuts across a 3–25 mm diameter range. The use of an 8" or 10" diamond wheel provides durable cutting performance for both carbide and HSS rod, reducing wheel change frequency. The durable, corrosion-resistant cutting chamber and rust-proof FRP door system are designed to withstand daily production demands, which supports continuous operation and lowers the total cost of ownership through fewer interruptions. Cooling strategy that protects tools and material Two high-flow coolant circuits supply the cutting zone while two dedicated jets cool the cut-off wheel, preventing thermal damage and improving surface finish quality. An inbuilt movable recirculation tank (50 litres) with a 100 µm filter bag and a 0.18 kW recirculation pump reduces coolant consumption and simplifies maintenance. The large drain and manual wash attachment assist fast cleaning, meaning less machine downtime and consistent cutting conditions over extended runs. Accurate clamping and repeatable lengths for fewer rejects Work-holding is addressed with a V-block featuring a brass insert, pneumatic clamping and an adjustable pressure system, giving secure grip for small-diameter rods without deformation. The manual adjustable measurement stopper enables precise length settings from 0 mm up to 300 mm, supporting repeatable production batches and minimising rework. Together, these features improve first-pass yield and ensure component consistency across series. Intuitive operation and compliant safety for confident use An advanced control system with an intuitive user interface simplifies set-up and shortens operator learning time, while the manual Z‑movement handle gives direct control over cut execution. The machine includes a splash-proof, corrosion-resistant see-through hood for safe observation, a powerful LED work light and CE-aligned safety systems to meet workshop standards. Note that an air supply of minimum 5 bar is required for pneumatic clamping. Voltage is standard 415 V / 50 Hz with an optional 220 V / 60 Hz configuration for alternative installations. Contact Metav Werkzeuge today for precise specification matching and to discuss how the Chennai Metco BAINCUT – CMC Medium can be integrated into existing workflows; call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: CMCM028 Model: BAINCUT – CMC Medium Manufacturer: Chennai Metco SKU: CMCM028 Weight: approx. 220 kg Machine size (L x D x H): 800 mm x 850 mm x 1400 mm Facts Cutting capacity: 3 mm to 25 mm diameter Motor power: 3 HP (2.2 kW), 3 phase Spindle speed: 2800 rpm Spindle diameter: 31.75 mm (25.4 mm optional) Diamond wheel diameter: 200 mm (8") or 250 mm (10") Coolant tank capacity: 50 litres Coolant pump: 0.18 kW Adjustable stopper range: 0–300 mm Required air supply: minimum 5 bar Voltage: 415 V / 50 Hz (optional 220 V / 60 Hz) Special features Floor-model cutter for carbide and HSS rods Corrosion-resistant cutting chamber Rust-proof FRP door system Splash-proof, see-through hood Work-holding V-block with brass insert Pneumatic clamping with adjustable pressure Two high-flow coolant circuits and two wheel jets 100 µm filter bag facility Manual wash cleaning attachment with hanging hook Easy Flow special floor coating Powerful LED illumination CE-compliant safety systems FAQ What rods can be processed with this cutter? The Chennai Metco BAINCUT – CMC Medium is designed to cut carbide and HSS rods within a 3–25 mm diameter range and provides stable performance for both materials. Is a compressed air supply required? Yes, pneumatic clamping requires an air connection with a minimum of 5 bar to operate the clamping and pressure adjustment systems reliably. How does the coolant system reduce maintenance? The integrated 50-litre recirculation tank with a 100 µm filter bag and a dedicated pump recirculates coolant while trapping chips and debris, reducing coolant changes and simplifying upkeep for the BAINCUT – CMC Medium. Can the machine be adapted for different supply voltages? The standard configuration is 415 V / 50 Hz, and an optional 220 V / 60 Hz three-phase supply (R+Y+B+PE) is available for installations with different electrical standards. What guarantees consistent cut lengths in batch production? A manual adjustable measurement stopper covering 0–300 mm, together with pneumatic V‑block clamping and an adjustable pressure system, ensures repeatable lengths and reduces variation across batches. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

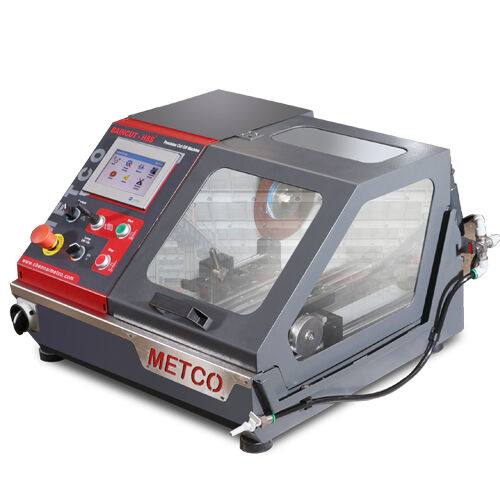

40mm Cutting Capacity Precision Cut Off Machine, Variable Speed 100-4000 rpm - Chennai Metco
Precision cut off machine - Baincut HSSThe Precision cut off machine - Baincut HSS is a variable-speed precision saw designed for accurate sectioning of Surface-Engineered Components and hard or sensitive Materials in Research and Laboratory environments.Cutting capacity up to 40 mmVariable Speed 100–4000 rpm for versatile preparationExternal Recirculation Coolant with 50 L tankAutomatic Longitudinal (Y) Movement for consistent cuts7" Colour Graphical Touch Screen for intuitive controlPrecision Performance for Laboratory SectioningThe Precision cut off machine - Baincut HSS combines a Variable Speed drive and a rotating vise to deliver reproducible Cutting results across a wide range of Materials. With a Cutting Capacity up to 40 mm and a Continuously Variable Speed System from 100 to 4000 rpm, the Machine enables controlled sectioning of both soft and hard samples. The rotating vise increases effective Cutting Depth while the automated Y Movement maintains longitudinal feed consistency, reducing manual adjustment and improving Sample Repeatability for analytical workflows.Built for Sensitive Materials and Research WorkflowsDesigned with Research and Laboratory users in mind, the Machine minimises thermal and mechanical damage during sectioning. The External Recirculation Coolant (50 L) controls temperature and flushes debris, which preserves Microstructure and avoids artefacts in subsequent analysis. The 7" Advance Colour Graphical Touch Screen simplifies parameter entry for Feed Rate and Cutting Length so that routine procedures are faster to set up. For users preparing metallographic mounts or delicate engineered parts, this precision saw supports consistent sample quality with clear process control.Operational Safety, Maintenance and Added ConvenienceSafety and serviceability are built into the design: a Door Limit Switch System and optional Door Safety Interlock prevent access during operation, and LOTO (Lock Out Tag Out) capability protects technicians during maintenance. The Machine accommodates Wheel Diameters from 3" to 8" and Wheel Mounting Shaft OD 12.7 × 25.4 × 31.75 mm, allowing flexible abrasive or diamond wheel selection. X Movement up to 50 mm permits lateral adjustment for varied sample sizes. Optional accessories and clear service access help maintain uptime and ensure safe, repeatable operation across demanding applications.Strong recommendation: For precision laboratory sectioning, choose the Baincut HSS precision saw from Chennai Metco — contact METAV Werkzeuge for personalised technical advice via eMail: info@metav-werkzeuge.com or Telefon: +49 2822 7131930; WhatsApp: +49 170 2837271Precision cut off machine - Baincut HSSBrand/Manufacturer: Chennai MetcoSKU: CMHSS049Cutting capacity: up to 40 mm diaWheel Mounting Shaft OD: 12.7 × 25.4 × 31.75 mmAutomatic Cut-Off: yesCutting Action: Automatic Y Movement (Longitudinal)Touch Screen: 7" Advance Colour Graphical Touch ScreenVariable Speed: 100–4000 rpm (Continuously Variable)Variable Feed Rates and Cutting Length: yesExternal Recirculation Coolant System: 50 L capacityDoor Limit Switch System: yesX Movement: up to 50 mmWheel Diameter Accommodation: Min 3" to Max 8"Electrical: 230 V, 50 Hz (1 + N + E)Machine Size: 810 mm × 810 mm × 550 mm (L × B × H)Machine Colour: Enclosures RAL 7040, Base & Stand RAL 7016Optional Accessories: Door Safety Interlock System; LOTO Switch & Tag OutManufacturer for English: Chennai Metco, D12, Ambattur Industrial Estate, Chennai – 600 058Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; info@metav-werkzeuge.comFAQWhat materials can the Precision cut off machine - Baincut HSS by Chennai Metco cut reliably?The Precision cut off machine - Baincut HSS by Chennai Metco is specified for a wide range of Materials, from soft samples to hard and Surface-Engineered Components, with a Cutting Capacity up to 40 mm and adjustable Speed and Feed to match material properties.Is the Baincut HSS suitable for routine metallographic sample preparation in a research Laboratory?Yes. The Baincut HSS from Chennai Metco features an Automatic Y Movement, External Recirculation Coolant (50 L) and a 7" Graphical Touch Screen to streamline Repeatable Procedures required in metallographic and analytical Laboratory workflows.How does the cooling system of the Precision cut off machine - Baincut HSS work and why is it beneficial?The Precision cut off machine - Baincut HSS uses an External Recirculation Coolant System with a 50 L tank to control Cutting temperature and remove debris; this reduces Thermal Damage and helps preserve Microstructure for subsequent analysis.Who provides technical advice and service for the Baincut HSS by Chennai Metco?METAV Werkzeuge offers comprehensive and competent consultation for the Baincut HSS by Chennai Metco; for questions about suitability or additional technical data, contact info@metav-werkzeuge.com, Telefon +49 2822 7131930 or WhatsApp +49 170 2837271

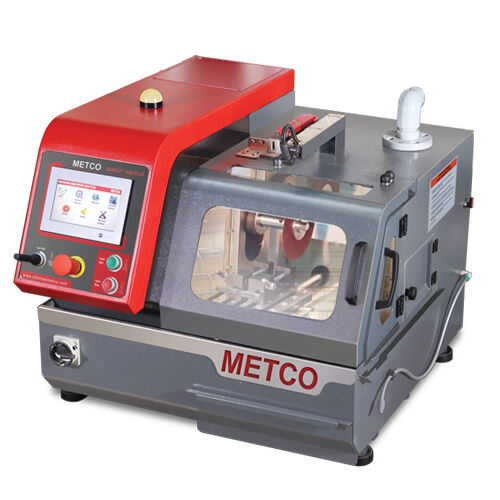

50mm Cutting Capacity Precision Cut Off Machine, Variable Speed 100-5000 rpm, Touchscreen HMI - Chennai Metco
Precision Cut-off Machine - Baincut HSS Plus — Precision cut-off machine by Chennai MetcoThe Precision Cut-off Machine - Baincut HSS Plus is a variable-speed precision saw designed for laboratory and industrial sample preparation, enabling controlled slicing of hard and sensitive materials for research and surface-engineered components.Variable speed 100–5000 rpm for precise controlCutting capacity up to 50 mm diameterAccepts diamond or abrasive wheel up to 200 mmColour touch screen HMI with preset programsInternal 10 L recirculation coolant tankPrecise power and speed control to protect samplesThe Baincut HSS Plus combines a 2 HP, 3-phase motor with Variable Speed control (100–5000 rpm) to deliver consistent results across a wide range of materials. With a Cutting Capacity of up to 50 mm diameter and compatibility with Diamond or abrasive wheels up to 8" (200 mm), the machine minimises thermal and mechanical damage, preserving microstructure for analysis. The adjustable Z Movement up to 40 mm and pre-set programs on the Colour Touch Screen HMI translate into repeatable cuts and faster setup times for routine laboratory work.Built-in safety and workflow features for uninterrupted operationSafety and operator efficiency are central: a Door Safety Interlock prevents access while cutting, an Emergency Stop and Auto Cutoff System protect both operator and sample, and a Sliding Door improves visibility. The large movable Cutting Table with T-slots (200 x 200 mm) and Three-Axis Movement enables ergonomic positioning and flexible Fixturing. These controls reduce handling time and help maintain a safe, traceable workflow during serial or single cuts.Designed for demanding lab and research applicationsPreferred by Research Laboratories working on Surface Engineered Components, the Baincut HSS Plus supports hard, sensitive applications where sample integrity matters. The internal Recirculation Coolant System (10 L) keeps the cut zone clear and cool, reducing thermal alteration, while the Quick Clamping Vise secures irregular samples for precise sectioning. This focus on controlled conditions aids reproducibility and improves downstream analysis quality.Flexible workholding and optional upgrades for specialised needsStandard Fixtures include mount chuck, irregular sample adapter, single saddle chuck and double saddle chuck to accommodate diverse geometries. Optional upgrades such as Laser Line Marking for cut preview, a Fume Recirculation unit to improve visibility and operator safety, and Serial Cutting capability expand throughput and usability. The Loto Switch & Tag Out option enhances maintenance safety by allowing the machine to be locked off during service, preventing accidental start-up.Strongly recommended for precision laboratory cutting: choose the Chennai Metco Baincut HSS Plus and contact METAV Werkzeuge for expert, no-obligation technical advice — Email: info@metav-werkzeuge.com | Tel: +49 2822 7131930 | WhatsApp: +49 170 2837271Bezeichnung: Precision Cut-off Machine - Baincut HSS PlusBrand/Manufacturer: Chennai MetcoSKU: CMHSSP060Cutting Capacity: up to 50 mm diameterZ Movement: up to 40 mmMotor: 2 HP, 3-phase motorVariable Speed: 100–5000 rpmWheel Compatibility: Diamond or abrasive wheel up to 8" (200 mm) diameterMachine Size: 845 x 850 x 600 mmControl: Colour touch screen HMI with preset programsAxes: Three-Axis MovementSafety Features: Sliding door; Door safety interlock system; Emergency Stop; Auto cutoff systemCutting Table: Large movable T-slot table 200 x 200 mmCoolant System: Internal recirculation coolant system, 10 L capacityVise: Quick clamping viseAdditional Functions: Manual wash; Serial cutting facility (optional)Work Holding Device: Four fixture types (mount chuck, irregular sample, single saddle chuck, double saddle chuck)Optional Accessories: Laser line marking system; Fume recirculation (ume digester); Loto Switch & Tag OutManufacturer: Chennai Metco, D12, Ambattur Industrial Estate, Chennai – 600 058Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; info@metav-werkzeuge.comFAQWhat materials can the Precision Cut-off Machine - Baincut HSS Plus (Chennai Metco) cut?The Baincut HSS Plus (Chennai Metco) is specified for a wide range of materials including metals, ceramics and coated or surface-engineered components; the combination of variable speed and wheel options (diamond or abrasive) allows adaptation to both hard and sensitive materials without compromising sample integrity.How large of a sample can the Precision Cut-off Machine - Baincut HSS Plus (Chennai Metco) accommodate?The machine accepts samples up to a 50 mm diameter; for larger or irregular geometries, the included fixture options and the movable T-slot cutting table (200 x 200 mm) provide flexible clamping and positioning.Does the Precision Cut-off Machine - Baincut HSS Plus (Chennai Metco) include coolant management?Yes, the Baincut HSS Plus features an internal recirculation Coolant System with a 10 L capacity, keeping the cutting zone clear and reducing thermal effects during sectioning.Can METAV Werkzeuge provide technical support or additional data for the Precision Cut-off Machine - Baincut HSS Plus?If further technical data, performance charts or advice on Fixturing are required for the Baincut HSS Plus, METAV Werkzeuge offers comprehensive consultation by Email: info@metav-werkzeuge.com, Tel: +49 2822 7131930 or WhatsApp: +49 170 2837271.

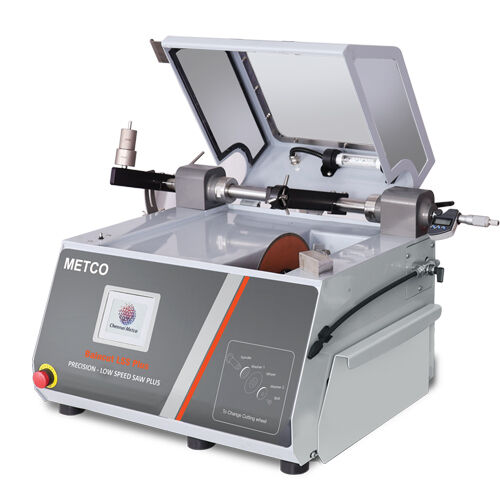

50mm Cutting Capacity Precision Cut-Off Machine, 0.01mm positioning accuracy, Colour Touch HMI - Chennai Metco
Precision cut off machine - Baincut LSS PlusThe Precision cut off machine - Baincut LSS Plus is a precision section saw designed for accurate cutting of hard and fragile materials, ideal for laboratories and industrial workshops requiring reliable, low-speed precision cuts.Cutting capacity up to 50 mmSpindle speed 60–1000 rpmPositioning accuracy 0.01 mmColour touch screen HMI with presetsBuilt-in stainless coolant trayHigh-precision results for fragile and high-value materialsThe Baincut LSS Plus delivers consistently accurate cuts thanks to its Positioning Accuracy of 0.01 mm and finely controllable Spindle Speed from 60 to 1000 rpm. These technical parameters ensure minimal mechanical stress on delicate specimens and components, reducing the risk of chipping or breakage. For users who work with brittle artificial crystal or hardened alloys, this translates into fewer rejects and less rework, which improves throughput and cost-efficiency in quality-critical processes.Intuitive control and repeatable workflow to save timeEquipped with a Colour Touch Screen HMI, the cutter offers preset programs and user-friendly operation that reduce setup time and operator training. The integrated Micrometer allows cross-feed adjustment up to 25 mm, enabling precise, repeatable positioning for series cutting. Together, these features support standardized procedures and faster changeovers, making the machine suitable for laboratories, research facilities, or production environments that demand reproducible outcomes.Built-in coolant management and automatic cut-off for safer operationThe machine includes a movable, stainless steel Built-in Coolant Tray with re-circulation, which maintains optimal cooling during cutting and protects both tools and workpieces from thermal damage. The Auto Cut Off function powers down the machine automatically after a cut completes, reducing operator oversight and improving workplace safety. These design choices contribute directly to longer tool life and a cleaner, more controlled working environment.Versatile feed control and compact footprint for bench-top useA variable Down-Feed facility with weights up to 400 gram permits fine adjustment of cutting pressure to match material characteristics, ensuring smooth sectioning across a wide range of substrates. With a compact Machine Size of 650 mm × 550 mm × 420 mm and an Arbor Size of 12.7 mm, the unit fits easily on standard benches while accommodating cut-off wheels from 4" to 7". This combination of adaptability and space efficiency suits small labs as well as constrained production areas.Strongly recommended for applications where precision and material care are essential: contact METAV Werkzeuge for tailored advice and support — Not sure if this tool meets your requirements or need additional technical data? No problem – we are happy to help. Email: info@metav-werkzeuge.com Phone: +49 2822 7131930 WhatsApp: +49 170 2837271Technical InformationPrecision cut off machine - Baincut LSS PlusBrand: Chennai MetcoSKU: LSS003ACutting capacity: up to 50 mm diaCut-off wheel diameter: 4" to 7"Positioning accuracy: 0.01 mmArbor size: 12.7 mmSpindle speed: 60 - 1000 rpmMachine size: 650 mm x 550 mm x 420 mmColour touch screen HMI with preset programsMicrometer for cross-feed adjustment up to 25 mmBuilt-in re-circulation stainless steel coolant trayAuto cut off after finishing cutting operationDown-feed facility with variable weights up to 400 gramManufacturer: Chennai MetcoManufacturer or Manufacturer for English: Chennai Metco, D12, Ambattur Industrial Estate, Chennai – 600 058Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; info@metav-werkzeuge.comFAQWhat materials can the Precision cut off machine - Baincut LSS Plus cut?The Baincut LSS Plus from Chennai Metco is designed to cut a wide range of materials, with a particular focus on hard and fragile substrates such as artificial crystal and hardened metals; selection of the appropriate cut-off wheel and spindle speed ensures optimal results.How accurate is the positioning on the Precision cut off machine - Baincut LSS Plus?Positioning Accuracy is 0.01 mm on the Chennai Metco Baincut LSS Plus, which enables precise cross-feed adjustments and consistent repeatability for high-precision sectioning tasks.Is coolant management included with the Precision cut off machine - Baincut LSS Plus?Yes, the machine features a Built-in Re-Circulation stainless steel Coolant Tray that simplifies coolant handling and maintains consistent cooling during cutting operations.Can the Baincut LSS Plus be operated automatically?The Baincut LSS Plus includes an Auto Cut Off function and preset programs via the Colour Touch Screen HMI, allowing automated shutdown after cuts and streamlined process control for repeat operations.Where can I get technical support for the Baincut LSS Plus?For technical questions or personalised advice about the Baincut LSS Plus by Chennai Metco, contact METAV Werkzeuge via email at info@metav-werkzeuge.com, by phone at +49 2822 7131930, or via WhatsApp at +49 170 2837271.

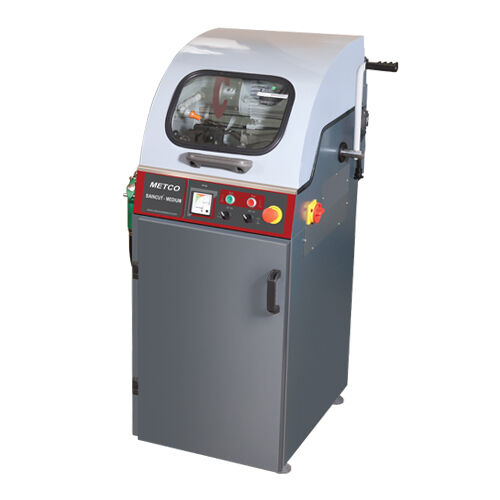

60 mm Cutting Capacity Cut-Off Machine, 10" Wheel, 2800 rpm, Motor 3 HP - Chennai Metco
Cut-off Machine — Baincut Medium (Chennai Metco)The Baincut Medium Cut-off Machine provides robust, precise metallographic cutting for laboratories and workshops, designed to handle routine sample preparation and demanding component sections.Cutting capacity up to 60 mm diameter3 HP three-phase Motor for steady performance10" (250 mm) Cut-off Wheel with 2,800 rpm Spindle SpeedIntegrated Coolant System with Washing Jet for fast cleaningFRP Hood with Viewing Window and internal illuminationReliable Power and Precise Cutting for Consistent ResultsEquipped with a 3 HP Motor and a Spindle Speed of 2800 rpm, this Cut-off Machine ensures steady, reproducible cuts across a wide range of metallic specimens. The Cutting Capacity up to 60 mm Diameter and the 10" (250 mm) Cut-off Wheel allow clear sectioning of medium-sized samples while minimising distortion. Operators benefit from predictable cycle times and consistent surface finish, which supports downstream Metallography and Quality Control workflows without frequent rework.Clean, Safe Operation Reduces Downtime and EffortThe Baincut Medium features an FRP Hood with a Viewing Window and internal Illumination, a Recirculation Coolant System and a Washing Jet that cleans the Cutting Area after use. A Door Limit Switch prevents access during operation, improving Safety, and optional Auto Wash and Door Safety Interlock further reduce Operator cleaning time and risk. These design choices mean less manual maintenance and fewer interruptions for the Workshop or Laboratory staff.Flexible Workholding for Irregular and Long ComponentsA range of Workholding Devices is available, including an Imported Koppel Fixture, Special Fixtures tailored to specific parts and a Swivel Base for angle cuts. The Left Side Vent (Opening) supports longer Components, and options such as Twin Cutting or a Variable Speed System increase versatility for unusual geometries. This adaptability minimises the need for multiple machines and speeds up sample preparation for diverse applications.Designed to Fit Laboratory and Workshop WorkflowsThe robust Table Size of 110 x 200 mm with 12 mm T-slot (2) offers secure fixturing and straightforward integration into existing benches; Machine Size is 850 x 750 x 1550 mm for predictable footprint planning. Simple construction with practical features like the Brake Motor System and optional LOTO Switch supports safe Maintenance and repair. If Unsure whether this tool meets specific requirements or additional Technical Data is needed, METAV Werkzeuge provides expert consultation and support for selection and commissioning.For professional metallography work, choose the Chennai Metco Baincut Medium Cut-off Machine for dependable cutting performance — contact METAV Werkzeuge for personalised technical advice via eMail: info@metav-werkzeuge.com, Telefon: +49 2822 7131930 or WhatsApp: +49 170 2837271Bezeichnung: Cut-off Machine - Baincut MediumMarke/Hersteller: Chennai MetcoSKU: CMM001Category: Metallography EquipmentCutting Capacity: up to 60 mm diameterMotor: 3 HP, three-phase MotorCut-off Wheel Diameter: 10" (250 mm)Spindle Speed: 2800 rpmTable Size: 110 x 200 mm with 12 mm T-slot (2)Machine Size: 850 mm x 750 mm x 1550 mmHousing: FRP Hood with Viewing Window and Internal IlluminationCoolant: Recirculation Coolant System with Washing JetSafety Features: Door Limit Switch; optional Door Safety Interlock; Brake Motor System; LOTO Switch & Tag out availableWork Holding Device: Koppel Fixture (Imported); Special Fixture; Swivel BaseOptional Features: Auto Wash; Twin Cutting; Variable Speed System (1000–3000 rpm)Key Benefits: Reliable Cutting Performance, Reduced Cleaning Time, Flexible FixturingManufacturer: Chennai Metco, D12, Ambattur Industrial Estate, Chennai – 600 058Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; info@metav-werkzeuge.comFAQWhat materials can the Baincut Medium cut reliably?The Chennai Metco Baincut Medium Cut-off Machine is designed primarily for Metallic specimens used in Metallography and Quality Control; its 3 HP Motor and 10" Cut-off Wheel make it suitable for common ferrous and non-ferrous materials within the stated 60 mm Cutting Capacity.Which Safety and cleaning features are included with the Baincut Medium?The Baincut Medium Cut-off Machine includes a Door Limit Switch that locks the Door during cutting, a Recirculation Coolant System and a Washing Jet to clear debris; optional Door Safety Interlock, Brake Motor System and Auto Wash can be specified for enhanced Operator Safety and reduced cleaning time.Can the Baincut Medium handle irregularly shaped parts?Yes, the Baincut Medium Cut-off Machine supports irregular Components via dedicated Workholding Devices such as an Imported Koppel Fixture, Special Fixtures made to order and a Swivel Base, enabling secure clamping and precise cuts for non-standard shapes.Is there support available if technical specifications need clarification?If further Technical Data or application advice is required, METAV Werkzeuge offers comprehensive consultation for the Chennai Metco Baincut Medium Cut-off Machine; contact info@metav-werkzeuge.com or call +49 2822 7131930 for assistance.
Ensure material integrity with precise metallography
Metallography, also known as materialography or microstructural analysis, is the systematic examination of a metal’s internal structure to make grain size, phase boundaries and inclusions visible. The process links microscopic observations to macroscopic properties such as hardness, strength and corrosion resistance, providing a verifiable basis for decisions in production and failure investigation.
How metallography works and where it matters
The method begins with careful sample preparation and proceeds to microscopic evaluation. Typical preparatory stages include controlled sample removal, optional embedding in resin, mechanical grinding using progressively finer abrasives (for example P180–P1000 grit), polishing with diamond suspension until mirror finish, and final etching with suitable acids or alkalis to reveal microstructural features. Analysis is performed with light or electron microscopes and results are evaluated both qualitatively and quantitatively for grain size, phase distribution, texture and inclusion content. Metallography is indispensable in quality assurance, failure analysis, research and development, and process control where thermal or mechanical treatments may alter the material.
Direct benefits for production and inspection
- Reliable quality assurance: microscopic verification of microstructure ensures components meet specifications and prevents undetected defects.
- Targeted failure analysis: clear visualisation of fractures and inclusions supports root-cause identification.
- Improved process control: repeated metallographic checks reduce rework by detecting treatment-related faults early.
- Reproducible sample preparation: standardised steps (embedding, grinding, polishing, etching) enable comparable results across batches.
- Broad applicability: suitable for metals and, increasingly, for composites, ceramics and polymers under the umbrella of materialography.
Why choose Chennai Metco and Metav as your supply partner
Chennai Metco, based in Chennai, India, is recognised for consistent product quality and industrial suitability. Metav complements such suppliers by democratising precision: acting as a quality filter from Emmerich, the company supports workshops and industrial buyers with a broad range of measurement and preparation equipment. With over 48,000 customers and a catalogue of more than 250,000 products, Metav ensures reliable sourcing and transparent order handling from stock to workbench. Competitors such as 3‑Rath Kalibrier+Prüftechnik, Schmitz‑Metallographie and ATM Qness operate in the same field, but Metav focuses on assembling a coherent, expert-led assortment for practical laboratory and on-site metallography.
FAQ
What is etching in metallography?
Etching is a selective chemical treatment that attacks microstructural constituents at different rates so that grain boundaries, phases and inclusions become visible under the microscope; it is the final preparatory step after polishing in metallography.
What disadvantages does electropolishing have?
Electropolishing can produce excellent surface finishes, but it may alter near-surface chemistry, remove small features or introduce preferential material removal on heterogeneous phases; these effects must be considered when interpreting metallography results.
What is metallography, simply explained?
Metallography is the laboratory practice of preparing and inspecting metal samples to correlate microscopic structure with material properties, used for quality checks, failure analysis and development work.
What is a metallographic examination?
A metallographic examination comprises sample extraction, embedding (if required), sequential grinding and polishing (P180–P1000, diamond polishing), etching, microscopic imaging (light or electron microscope) and a qualitative or quantitative assessment of grain size, phase distribution and defects.
