50mm Cutting Capacity Precision Cut Off Machine, Variable Speed 100-5000 rpm, Touchscreen HMI - Chennai Metco

Precision Cut-off Machine - Baincut HSS Plus — Precision cut-off machine by Chennai Metco

The Precision Cut-off Machine - Baincut HSS Plus is a variable-speed precision saw designed for laboratory and industrial sample preparation, enabling controlled slicing of hard and sensitive materials for research and surface-engineered components.

• Variable speed 100–5000 rpm for precise control
• Cutting capacity up to 50 mm diameter
• Accepts diamond or abrasive wheel up to 200 mm
• Colour touch screen HMI with preset programs
• Internal 10 L recirculation coolant tank

Precise power and speed control to protect samples

The Baincut HSS Plus combines a 2 HP, 3-phase motor with Variable Speed control (100–5000 rpm) to deliver consistent results across a wide range of materials. With a Cutting Capacity of up to 50 mm diameter and compatibility with Diamond or abrasive wheels up to 8" (200 mm), the machine minimises thermal and mechanical damage, preserving microstructure for analysis. The adjustable Z Movement up to 40 mm and pre-set programs on the Colour Touch Screen HMI translate into repeatable cuts and faster setup times for routine laboratory work.

Built-in safety and workflow features for uninterrupted operation

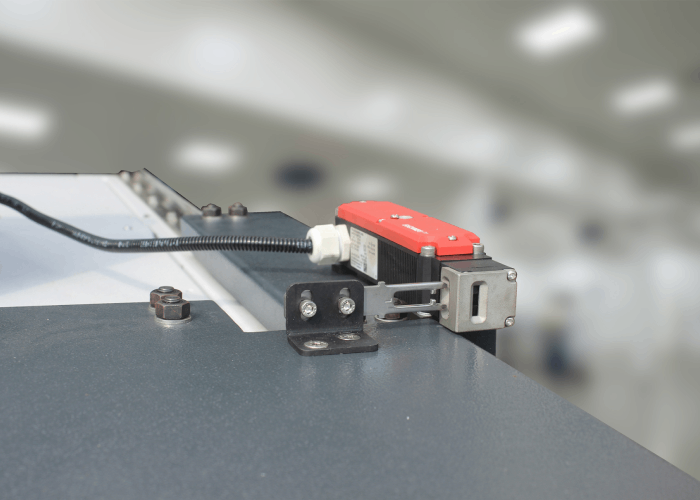

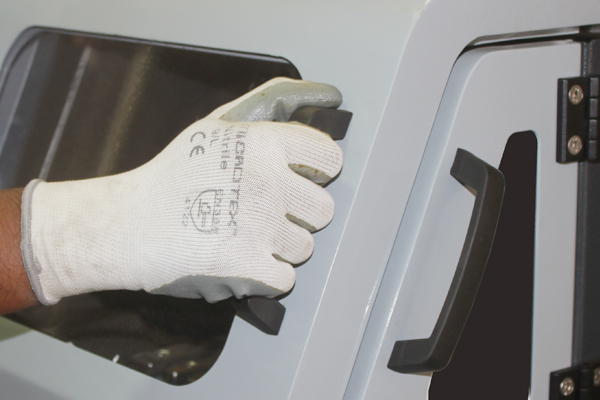

Safety and operator efficiency are central: a Door Safety Interlock prevents access while cutting, an Emergency Stop and Auto Cutoff System protect both operator and sample, and a Sliding Door improves visibility. The large movable Cutting Table with T-slots (200 x 200 mm) and Three-Axis Movement enables ergonomic positioning and flexible Fixturing. These controls reduce handling time and help maintain a safe, traceable workflow during serial or single cuts.

Designed for demanding lab and research applications

Preferred by Research Laboratories working on Surface Engineered Components, the Baincut HSS Plus supports hard, sensitive applications where sample integrity matters. The internal Recirculation Coolant System (10 L) keeps the cut zone clear and cool, reducing thermal alteration, while the Quick Clamping Vise secures irregular samples for precise sectioning. This focus on controlled conditions aids reproducibility and improves downstream analysis quality.

Flexible workholding and optional upgrades for specialised needs

Standard Fixtures include mount chuck, irregular sample adapter, single saddle chuck and double saddle chuck to accommodate diverse geometries. Optional upgrades such as Laser Line Marking for cut preview, a Fume Recirculation unit to improve visibility and operator safety, and Serial Cutting capability expand throughput and usability. The Loto Switch & Tag Out option enhances maintenance safety by allowing the machine to be locked off during service, preventing accidental start-up.

Strongly recommended for precision laboratory cutting: choose the Chennai Metco Baincut HSS Plus and contact METAV Werkzeuge for expert, no-obligation technical advice — Email: info@metav-werkzeuge.com | Tel: +49 2822 7131930 | WhatsApp: +49 170 2837271

• Bezeichnung: Precision Cut-off Machine - Baincut HSS Plus
• Brand/Manufacturer: Chennai Metco
• SKU: CMHSSP060
• Cutting Capacity: up to 50 mm diameter
• Z Movement: up to 40 mm
• Motor: 2 HP, 3-phase motor
• Variable Speed: 100–5000 rpm
• Wheel Compatibility: Diamond or abrasive wheel up to 8" (200 mm) diameter
• Machine Size: 845 x 850 x 600 mm

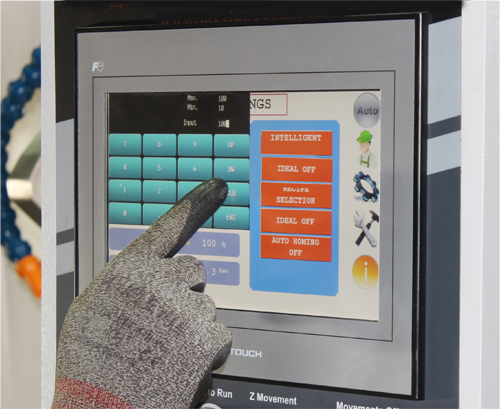

• Control: Colour touch screen HMI with preset programs

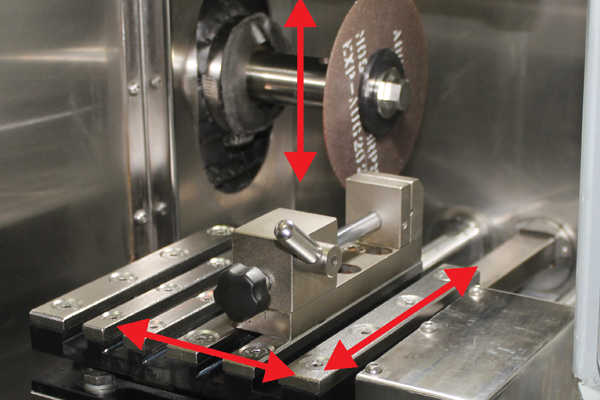

• Axes: Three-Axis Movement

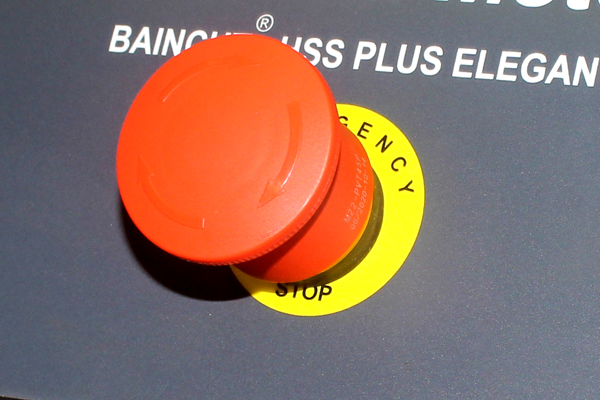

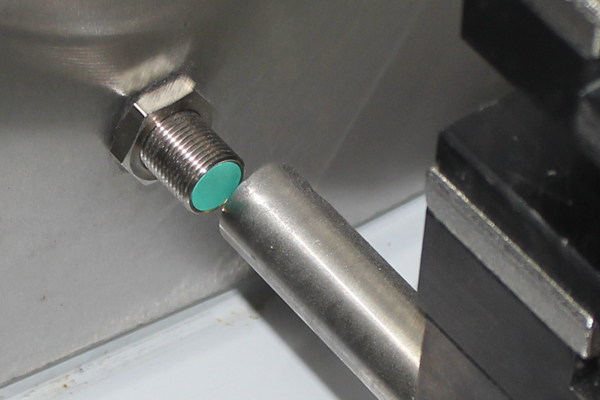

• Safety Features: Sliding door; Door safety interlock system; Emergency Stop; Auto cutoff system

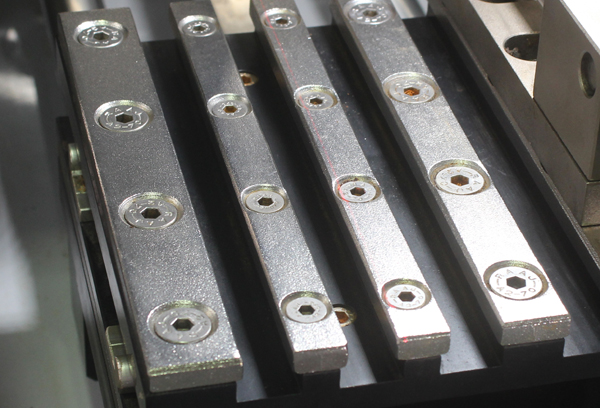

• Cutting Table: Large movable T-slot table 200 x 200 mm
• Coolant System: Internal recirculation coolant system, 10 L capacity

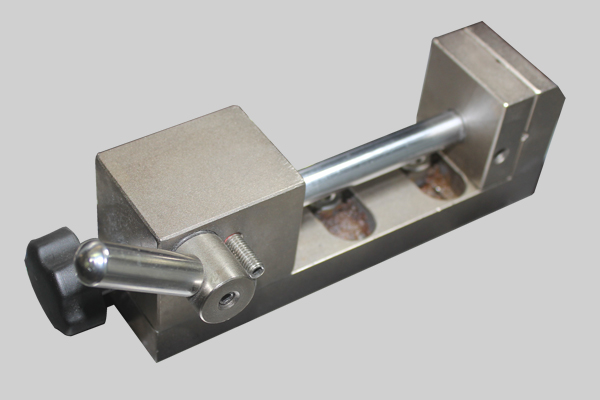

• Vise: Quick clamping vise

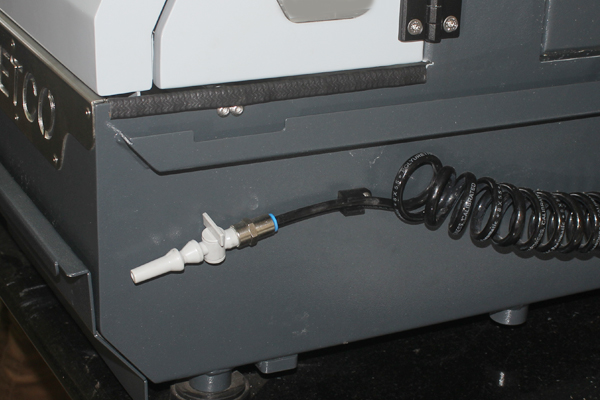

• Additional Functions: Manual wash; Serial cutting facility (optional)
• Work Holding Device: Four fixture types (mount chuck, irregular sample, single saddle chuck, double saddle chuck)
• Optional Accessories: Laser line marking system; Fume recirculation (ume digester); Loto Switch & Tag Out
• Manufacturer: Chennai Metco, D12, Ambattur Industrial Estate, Chennai – 600 058
• Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; info@metav-werkzeuge.com

FAQ

What materials can the Precision Cut-off Machine - Baincut HSS Plus (Chennai Metco) cut?
The Baincut HSS Plus (Chennai Metco) is specified for a wide range of materials including metals, ceramics and coated or surface-engineered components; the combination of variable speed and wheel options (diamond or abrasive) allows adaptation to both hard and sensitive materials without compromising sample integrity.

How large of a sample can the Precision Cut-off Machine - Baincut HSS Plus (Chennai Metco) accommodate?
The machine accepts samples up to a 50 mm diameter; for larger or irregular geometries, the included fixture options and the movable T-slot cutting table (200 x 200 mm) provide flexible clamping and positioning.

Does the Precision Cut-off Machine - Baincut HSS Plus (Chennai Metco) include coolant management?
Yes, the Baincut HSS Plus features an internal recirculation Coolant System with a 10 L capacity, keeping the cutting zone clear and reducing thermal effects during sectioning.

Can METAV Werkzeuge provide technical support or additional data for the Precision Cut-off Machine - Baincut HSS Plus?
If further technical data, performance charts or advice on Fixturing are required for the Baincut HSS Plus, METAV Werkzeuge offers comprehensive consultation by Email: info@metav-werkzeuge.com, Tel: +49 2822 7131930 or WhatsApp: +49 170 2837271.
