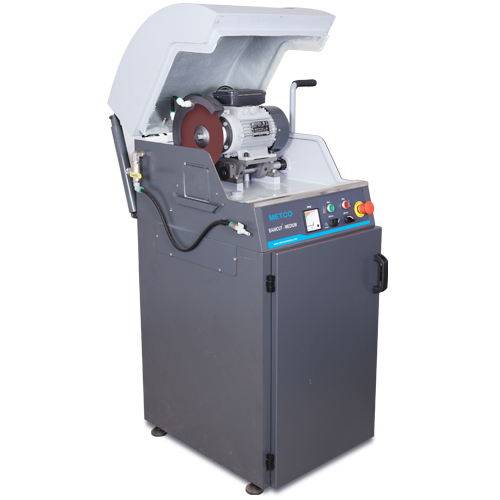

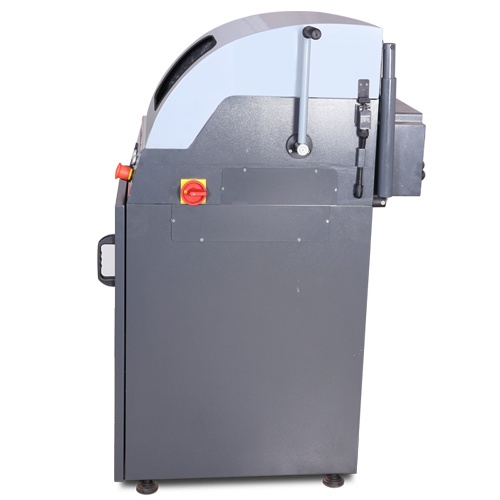

Cut-off Machine — Baincut Medium (Chennai Metco)

The Baincut Medium Cut-off Machine provides robust, precise metallographic cutting for laboratories and workshops, designed to handle routine sample preparation and demanding component sections.

• Cutting capacity up to 60 mm diameter
• 3 HP three-phase Motor for steady performance
• 10" (250 mm) Cut-off Wheel with 2,800 rpm Spindle Speed
• Integrated Coolant System with Washing Jet for fast cleaning
• FRP Hood with Viewing Window and internal illumination

Reliable Power and Precise Cutting for Consistent Results

Equipped with a 3 HP Motor and a Spindle Speed of 2800 rpm, this Cut-off Machine ensures steady, reproducible cuts across a wide range of metallic specimens. The Cutting Capacity up to 60 mm Diameter and the 10" (250 mm) Cut-off Wheel allow clear sectioning of medium-sized samples while minimising distortion. Operators benefit from predictable cycle times and consistent surface finish, which supports downstream Metallography and Quality Control workflows without frequent rework.

Clean, Safe Operation Reduces Downtime and Effort

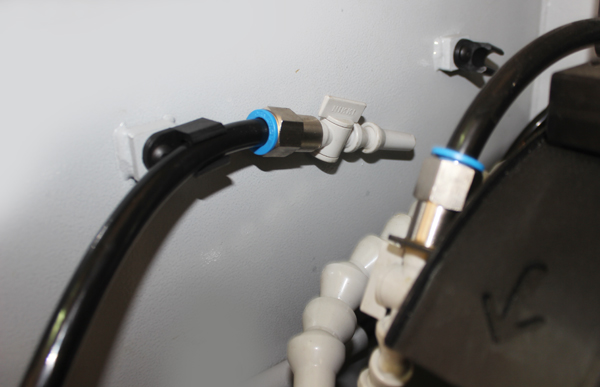

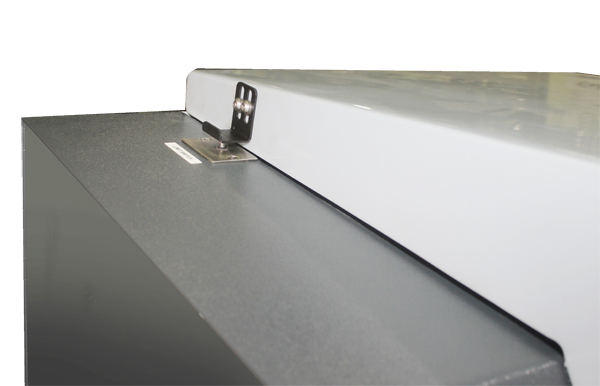

The Baincut Medium features an FRP Hood with a Viewing Window and internal Illumination, a Recirculation Coolant System and a Washing Jet that cleans the Cutting Area after use. A Door Limit Switch prevents access during operation, improving Safety, and optional Auto Wash and Door Safety Interlock further reduce Operator cleaning time and risk. These design choices mean less manual maintenance and fewer interruptions for the Workshop or Laboratory staff.

Flexible Workholding for Irregular and Long Components

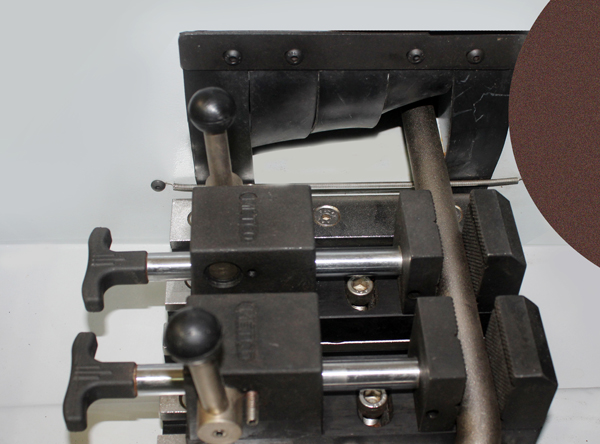

A range of Workholding Devices is available, including an Imported Koppel Fixture, Special Fixtures tailored to specific parts and a Swivel Base for angle cuts. The Left Side Vent (Opening) supports longer Components, and options such as Twin Cutting or a Variable Speed System increase versatility for unusual geometries. This adaptability minimises the need for multiple machines and speeds up sample preparation for diverse applications.

Designed to Fit Laboratory and Workshop Workflows

The robust Table Size of 110 x 200 mm with 12 mm T-slot (2) offers secure fixturing and straightforward integration into existing benches; Machine Size is 850 x 750 x 1550 mm for predictable footprint planning. Simple construction with practical features like the Brake Motor System and optional LOTO Switch supports safe Maintenance and repair. If Unsure whether this tool meets specific requirements or additional Technical Data is needed, METAV Werkzeuge provides expert consultation and support for selection and commissioning.

For professional metallography work, choose the Chennai Metco Baincut Medium Cut-off Machine for dependable cutting performance — contact METAV Werkzeuge for personalised technical advice via eMail: info@metav-werkzeuge.com, Telefon: +49 2822 7131930 or WhatsApp: +49 170 2837271

• Bezeichnung: Cut-off Machine - Baincut Medium
• Marke/Hersteller: Chennai Metco
• SKU: CMM001
• Category: Metallography Equipment
• Cutting Capacity: up to 60 mm diameter
• Motor: 3 HP, three-phase Motor
• Cut-off Wheel Diameter: 10" (250 mm)
• Spindle Speed: 2800 rpm
• Table Size: 110 x 200 mm with 12 mm T-slot (2)
• Machine Size: 850 mm x 750 mm x 1550 mm
• Housing: FRP Hood with Viewing Window and Internal Illumination

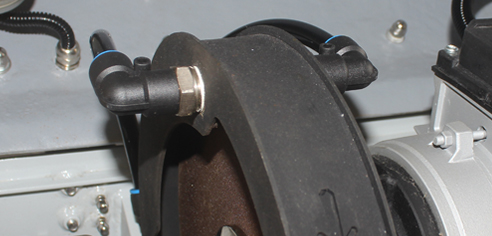

• Coolant: Recirculation Coolant System with Washing Jet
• Safety Features: Door Limit Switch; optional Door Safety Interlock; Brake Motor System; LOTO Switch & Tag out available
• Work Holding Device: Koppel Fixture (Imported); Special Fixture; Swivel Base
• Optional Features: Auto Wash; Twin Cutting; Variable Speed System (1000–3000 rpm)
• Key Benefits: Reliable Cutting Performance, Reduced Cleaning Time, Flexible Fixturing
• Manufacturer: Chennai Metco, D12, Ambattur Industrial Estate, Chennai – 600 058
• Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; info@metav-werkzeuge.com

FAQ

What materials can the Baincut Medium cut reliably?
The Chennai Metco Baincut Medium Cut-off Machine is designed primarily for Metallic specimens used in Metallography and Quality Control; its 3 HP Motor and 10" Cut-off Wheel make it suitable for common ferrous and non-ferrous materials within the stated 60 mm Cutting Capacity.

Which Safety and cleaning features are included with the Baincut Medium?
The Baincut Medium Cut-off Machine includes a Door Limit Switch that locks the Door during cutting, a Recirculation Coolant System and a Washing Jet to clear debris; optional Door Safety Interlock, Brake Motor System and Auto Wash can be specified for enhanced Operator Safety and reduced cleaning time.

Can the Baincut Medium handle irregularly shaped parts?
Yes, the Baincut Medium Cut-off Machine supports irregular Components via dedicated Workholding Devices such as an Imported Koppel Fixture, Special Fixtures made to order and a Swivel Base, enabling secure clamping and precise cuts for non-standard shapes.

Is there support available if technical specifications need clarification?
If further Technical Data or application advice is required, METAV Werkzeuge offers comprehensive consultation for the Chennai Metco Baincut Medium Cut-off Machine; contact info@metav-werkzeuge.com or call +49 2822 7131930 for assistance.
