High-precision drills for reliable, high-throughput metalworking
Drills provide the fundamental rotating cutting solution for producing accurate cylindrical holes in materials such as structural steel, high-alloy stainless steel, cast iron, non-ferrous metals and engineering plastics, delivering consistent hole quality and extended tool life in CNC machining and turning centres. This category covers everything from classic twist drill made from high-speed steel for general machining to solid carbide drill optimised for high cutting speeds and long run times, offering advanced coatings and internal coolant options for improved heat management. By using optimised point geometries and split points the tools reduce thrust, prevent walking at the start of the cut and ensure superior surface finish, which benefits sectors from general mechanical engineering to automotive component manufacture.

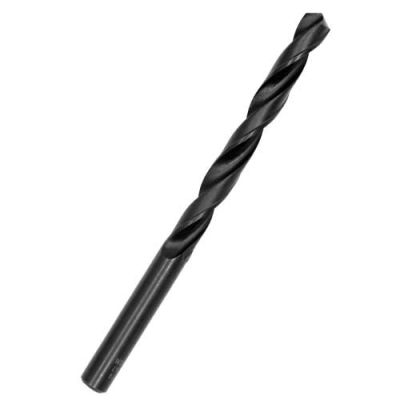

0.3mm HSS Twist Drill DIN 338 ,short, roll forged, black, Type N - MetavCUT
Twist Drill (Type N) — 0.3 mm diameter, 118° point angle, Short execution, Black, HSS, DIN 338, suitable for Drilling Machine, MetavCUT The Twist Drill (Type N) is a short HSS metal drill designed for precise, stable drilling in metal on a Drilling Machine, offering a 0.3 mm diameter and a 118° point angle for improved centring. Short design for high stability and precision HSS material for metal and alloyed steel drilling 118° point angle improves centring on curved surfaces Conforms to DIN 338 for short Twist Drills Precision and stability for demanding metal work The short construction of this Twist Drill delivers enhanced stability and reduced runout, which leads to more accurate holes in small diameters. Thanks to the compact geometry, axial and radial deflection are minimised, so shops and workshops achieve consistent hole quality. As a Type N tool, this drill is optimised for metal applications where controlled centring and repeatable results matter. Material advantages: why HSS matters for metal drilling Manufactured from HSS (High Speed Steel), the cutter provides a balanced combination of toughness and hardness suitable for alloyed and unalloyed steels, cast iron, non-ferrous metals and plastics. The low-temperature rolling process used for these drills increases elasticity and reduces fracture risk, especially for diameters below 6 mm. This material choice supports longer tool life under standard workshop conditions. Geometry and application: the role of the 118° point and short flute A 118° point angle means easier penetration and improved self-centring on softer to medium-hard materials, while the shorter flute length reduces chatter and enhances rigidity. This geometry makes the bit particularly effective when used in a steady Drilling Machine setup and for tasks that demand precise start holes, such as model work, precision engineering or small-part fabrication. Who benefits and how to integrate it into the workflow Precision shops, prototyping facilities and maintenance departments that require dependable small-diameter metal holes will find this short Twist Drill well suited to their needs. Its robust design favours repeated use in production runs where stable clamping and correct feeds are applied. For operators unfamiliar with feed rates and coolant strategies, a brief setup check avoids common errors and secures consistent results. Strong recommendation: Select the MetavCUT Twist Drill Type N for precise, reliable metal drilling — for personalised technical advice and support contact METAV Werkzeuge at info@metav-werkzeuge.com, call +49 2822 7131930 or WhatsApp +49 170 2837271 Technical Data Designation: Twist Drill Brand: MetavCUT SKU: 40003-FDA Diameter: 0.3 mm Point Angle: 118° Overall Length: 22 mm Spiral Length: 6 mm Execution: Short Type: Type N Material: HSS For Machine: Drilling Machine Colour: Black Standard: DIN 338 Applications: Drills for Metal Manufacturer: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; info@metav-werkzeuge.com FAQ What is a Twist Drill used for and which materials suit this tool best? The MetavCUT Twist Drill Type N is primarily used for drilling metal; it is ideal for alloyed and unalloyed steel, cast iron, non-ferrous metals and some plastics, offering reliable performance in typical metalworking tasks. Which three main drill types exist? The three principal drill types are Metal drills, Wood drills and Stone/Concrete drills; the MetavCUT Twist Drill is a Metal drill designed specifically for metalworking applications. Why are Twist Drills point-ground? The point grinding reduces the cross-cut at the tip of the Twist Drill, which significantly lowers friction and the required feed forces, while improving centring of the tip in the workpiece for more accurate starts. Can a metal Twist Drill be used to drill wood? A Metal Twist Drill such as the MetavCUT Twist Drill can be used in Wood, but guidance and finish are inferior compared with a dedicated Wood drill; however, the Metal drill is easier to resharpen and shows less self-feed. For which drilling depths is the Twist Drill most commonly used? A hole drilled through solid stock is typically executed with a Twist Drill. For diameters up to 20 mm and drilling depths up to 100 mm, the Twist Drill is the most commonly used tool, as in many MetavCUT workshop applications. Is HSS better than HSSE? The common belief that HSSE steels are categorically superior to HSS is incorrect. Assess whether the working conditions justify the higher purchase cost of HSSE before deciding; for many standard metalworking tasks, HSS offers an excellent cost-performance ratio.
0.4mm HSS Twist Drill DIN 338 ,short, roll forged, black, Type N - MetavCUT
Twist Drill — Type N Short HSS, 0.4 mm, 118° Tip, Black, DIN 338 The Twist Drill Type N short HSS is a precision metal drilling bit designed for stable, accurate drilling in metalworking applications. Short HSS design for high stability DIN 338 short version for precision work 118° tip angle for reliable centering 0.4 mm diameter for fine, accurate holes Suitable for Drilling Machine use Highest precision for demanding metal holes This short HSS Twist Drill from MetavCUT delivers notable Precision when drilling small-diameter holes in metal. The reduced overhang inherent to the short execution reduces deflection and vibration, so every hole stays true to the intended position. For work requiring reproducible accuracy, the combination of HSS material and compact geometry ensures consistent cutting performance and longer tool life under standard metalworking conditions. Material choice and standardised design boost reliability Manufactured from HSS (High Speed Steel) and produced to DIN 338 specifications, the bit offers a reliable balance of hardness and toughness. The HSS material is well suited to alloyed and unalloyed steel, cast iron, non-ferrous metals and many plastics, providing versatility for workshop tasks. Compliance with DIN 338 guarantees that dimensions and tolerances meet industry expectations for short twist drills with cylinder shank. Tip geometry optimised for centring and feed control With a 118° tip angle and the typical geometry of Type N, this drill promotes easier centring on curved or uneven surfaces while keeping feed forces moderate. The sharper point aids initial penetration and helps maintain position during the start of the cut, which is particularly useful on small diameters such as 0.4 mm. Reduced radial forces mean improved surface quality and less risk of walk-off on smooth metal faces. Short length for stability in confined or ergonomic setups The abbreviated overall length increases stiffness and is ideal when the drill projects only a short distance from the chuck, for example in handheld Drilling Machine operations or compact fixtures. This short format improves operator control and reduces chatter, translating directly into cleaner holes and fewer rejects. The compact design also simplifies handling during manual setups and high-speed machining in production. For whom this drill was developed and practical tips This Type N short twist drill is targeted at tradespeople, toolroom operators and metalworking hobbyists who require small, precise holes in metals. To extend service life, use appropriate cutting fluid, moderate feed rates for the small diameter and ensure secure clamping of the workpiece. If uncertainty exists regarding material compatibility or optimal machining parameters, METAV Werkzeuge provides expert guidance and application support. Strong recommendation: Choose the MetavCUT short HSS Twist Drill for precise, repeatable metal drilling — for tailored technical advice contact METAV Werkzeuge at info@metav-werkzeuge.com or call +49 2822 7131930, WhatsApp +49 170 2837271 Designation: Twist Drill Brand: MetavCUT SKU: 40004-FDA Diameter: 0.4 mm Overall length: 22 mm Spiral length: 6 mm Tip angle: 118° Type: Type N Execution: short Colour: black Material: HSS Standard: DIN 338 Application: Drills for metal For use with: Drilling Machine Hersteller: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; info@metav-werkzeuge.com FAQ What is the Twist Drill used for and which materials suit it best? The MetavCUT Twist Drill Type N short HSS is primarily used for drilling metal; it is particularly suitable for alloyed and unalloyed steel, cast iron, non-ferrous metals and many technical plastics. The short HSS design provides improved stability for small-diameter, high-precision holes in metalworking applications. Which three drill types exist? Commonly distinguished drill types are metal drills, wood drills and stone/concrete drills. For metal tasks the MetavCUT Type N Twist Drill is the standard choice, while purpose-made bits are recommended for timber or masonry for best results.
0.5mm Centre Drill DIN 333 Form A 60° HSS Right-Hand, 25mm Overall Length - TECWERK
Take advantage of HSS construction and the DIN 333 Form A geometry for reliable centring and repeatable pilot holes; the compact Ø 0.5 mm tip with a 60° countersink angle ensures controlled entry and reduced run-out. Order the TECWERK centre drill directly via Metav Werkzeuge or consult our specialists for application-specific guidance. TECWERK centre drill DIN 333 Form A, HSS, Ø 0.5 mm TECWERK centre drill for producing precise centre holes in general workshop and industrial applications, offering a compact overall length and standard 60° point for conformity with DIN specifications High-speed steel (HSS) construction DIN 333 Form A geometry 60° countersink angle for standard centres Right-hand cutting, single-ended design Accurate starting points for reliable machining The combination of HSS material and DIN 333 Form A geometry creates a robust tool that establishes exact starting points before main drilling. The Ø 0.5 mm nominal diameter with a 60° point generates standard centre holes that conform to accepted specifications, reducing the risk of drill walking and increasing positional repeatability. This precision is particularly valuable when subsequent operations demand tight concentricity. Optimised feed and consistent performance in routine use Designed for general workshop use, the tool supports a controlled feed of 0.01 mm/rev in steel at recommended cutting conditions, enabling steady chip formation and predictable behaviour. The single-ended construction and right-hand cutting orientation simplify handling and replacement in common tool holders. The compact overall length promotes accessibility in cramped set-ups while ensuring the short pilot radius gives a clear, well-defined centre for follow-up machining. Seamless integration into production and supply chains As part of a pragmatic tooling assortment, this compact centre drill assists in streamlining process reliability across diverse machining tasks. The precision of the ground point shortens set-up time and improves first-pass quality, which supports higher throughput and fewer reworks. Metav’s distribution and consultancy capabilities provide an additional layer of assurance for procurement and application choices, combining decades of experience with broad product availability. Contact Metav Werkzeuge for application advice or to arrange supply of TECWERK centre drills; technical queries are welcome at info@metav-werkzeuge.com or by phone at +49 2822 7131930 Technical data Article number: 2111651050NW Product type: Centre drill Manufacturer: TECWERK Material: HSS Execution: Single-ended Standard: DIN 333 Form A Data Diameter: 0.5 mm Overall length: 25 mm Countersink angle: 60° Feed in steel (to 800 N): 0.01 mm/rev Packaging unit: 10 Special features Right-hand cutting For centre holes according to DIN 332 without protective countersink General workshop and industrial use Compact geometry for constrained setups FAQ What materials is this centre drill suitable for? The centre drill is manufactured from HSS and is intended for general use in steel and similar workshop materials; the specification includes a feed guideline of 0.01 mm/rev in steel at typical cutting conditions. How does the DIN 333 Form A geometry affect performance? DIN 333 Form A provides a standardised point angle and shank geometry that produces consistent centre holes, ensuring reliable alignment for subsequent drilling and turning operations. Is this centre drill single-ended or double-ended? This TECWERK centre drill is of a single-ended design, offering a fixed point for accurate centring and straightforward replacement when worn. What is the nominal diameter and overall length? The tool has a nominal diameter of 0.5 mm and an overall length of 25 mm, providing a compact option for tight access situations. Can this tool produce centre holes to DIN 332 without a protective countersink? Yes, the geometry is specified for making centre holes in accordance with DIN 332 without the need for an additional protective countersink. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
0.5mm HSS Twist Drill DIN 338 ,short, roll forged, black, Type N - MetavCUT
Twist Drill — Type N short HSS drill, Ø 0.5 mm, 118° point angle, black, DIN 338 A Twist Drill Type N designed for precise Metal drilling with a short design for increased stability and centred starts. Short design for high stability HSS material suited for metal machining 118° point angle for precise centring Complies with DIN 338 for short drills Suitable for Drilling Machine and hand drills Exceptional precision and endurance for metalworking The Twist Drill in HSS is engineered for reliable performance when machining metal. Its short execution reduces overhang and minimises bending, which delivers a steadier cut and improved hole accuracy. The 118° point angle helps the tip centre quickly on flat or slightly curved surfaces, reducing walking and facilitating a clean entry. For tradespeople and workshops where repeatable, small-diameter holes are required, the compact geometry translates directly into less rework and a smoother workflow. Stable drilling for demanding applications Designed under DIN 338 as a short cylindrical-shank drill, this Type N tool offers high rigidity for medium-hard metalwork. The reduced free length gives better control when using hand-held or bench Drilling Machines, making it well suited to precise tasks such as panel work, instrument fabrication and small-part assembly. Because the bit is manufactured from High-Speed Steel, it balances toughness and wear resistance, so operators benefit from consistent performance across repeated holes without compromising bit life. Material choice and practical advantages explained High-Speed Steel (HSS) stands for cutting durability under elevated speeds and temperatures; it is particularly effective on alloyed and unalloyed steels, cast iron, non-ferrous metals and engineering plastics. The Type N fluting is the classic spiral for metal drilling and is easy to re-sharpen if required. The short geometry also improves chip evacuation in interrupted cuts and reduces the chance of tool chatter. For users who value serviceable tools, HSS presents an economical choice with clear reconditioning options and reliable everyday performance. Who benefits from this design Workshops, maintenance technicians and precision engineers who need fine-diameter holes will appreciate the control and repeatability this drill provides. The compact form factor is ideal where access is limited or where stability from a short protrusion is crucial. If tasks demand frequent small holes in metal components while keeping setup times low, this specialised bit delivers the necessary combination of accuracy and practical handling that speeds up production without sacrificing quality. Simple handling and compatibility tips To achieve the best results, clamp the workpiece securely and use appropriate coolant or cutting oil when drilling steels; this prolongs tool life and improves surface finish. The drill is compatible with standard chucks used on hand drills and bench Drilling Machines; the short shank reduces run-out and helps maintain concentricity. For customers less familiar with drill geometry, the Type N designation indicates a normal spiral profile tailored to metals rather than soft woods. Strongly recommended: choose the MetavCUT Twist Drill Type N for precise metal drilling — METAV Werkzeuge provides expert advice and support if you are unsure whether this tool fits your task; contact METAV Werkzeuge by eMail at info@metav-werkzeuge.com or by phone at +49 2822 7131930 — WhatsApp enquiries welcome at +49 170 2837271 Designation: Twist Drill Brand: MetavCUT SKU: 40005-FDA Diameter: 0.5 mm Point angle: 118° Spiral length: 6 mm Overall length: 22 mm Execution: short Type: Type N Material: HSS (High Speed Steel) Colour: black Application: Drill for Metal Standard: DIN 338 Suitable for: Drilling Machine (Hand Drill) Hersteller: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; info@metav-werkzeuge.com FAQ What are Twist Drills mainly used for? The MetavCUT Twist Drill Type N is primarily used for machining high-strength materials and larger drill diameters in metalworking. This short HSS design is straightforward to re-sharpen and withstands significant loads, making it suitable for demanding metal-drilling tasks. Which three drill types exist? When selecting tools, consider the main categories: Metal drills, Wood drills and Stone/Concrete drills. The MetavCUT Twist Drill Type N falls into the Metal drills category and is optimised for steel and similar materials.
0.5mm HSS-G Twist Drill DIN 338 ,short, bright finished, Type N - MetavCUT
Die Kombination aus HSS-G Material, kurzer Ausführung und geschliffener Schneidengeometrie sorgt für hohe Stabilität und saubere Bohrbilder bei Stahl und Gusseisen; dadurch werden Zerspanzeit und Anpresskraft reduziert. Für präzise Metallbearbeitung empfiehlt sich der Einsatz an stationären Maschinen oder leistungsfähigen Handbohrmaschinen; bei Unsicherheit steht Metav mit technischer Beratung zur Verfügung. Spiralbohrer von MetavCUT – kurzer HSS‑G Bohrer (Typ N) Der Spiralbohrer ist ein kurz ausgeführter HSS‑G Metallbohrer, konzipiert für präzise Bohrungen in legierten und unlegierten Stählen sowie Gusswerkstoffen. HSS-G geschliffen für präzise Metallbohrungen Kurze Ausführung für höhere Stabilität Spitzenwinkel 118° für guten Zentrierhalt Geeignet für Handbohrmaschine und stationäre Maschinen DIN 338 konform für kurze Spiralbohrer Höhere Präzision durch geschliffene Geometrie Ein geschliffener HSS-G Bohrer bietet sehr scharfe Schneiden und hohe Rundlaufgenauigkeit, was saubere Bohrlöcher in harten Werkstoffen ermöglicht. Die kurze Auskraglänge reduziert das Auslenken bei der Bearbeitung, sodass weniger Nacharbeit erforderlich wird. Anwender profitieren von einem spürbar ruhigeren Lauf und geringerer Vibrationsneigung bei Stahl und Temperguss. Effizienz und Kraftersparnis bei Metallbohrungen Die optimierte Schneidgeometrie erlaubt bis zu 40 % schnellere Vorschübe und erfordert bis zu 50 % weniger Anpresskraft gegenüber herkömmlichen HSS‑Bohrern. Das Ergebnis ist ein wirtschaftlicheres Bearbeiten von Blech, Profilen und Vollmaterial. Für Handgeführte Anwendungen empfiehlt sich ein vorheriges Anpunkten, um Wanderneigung zu minimieren. Einsatzgebiete und Maschinenkompatibilität Die kurze Ausführung eignet sich besonders für stationäre Säulenbohrmaschinen und leistungsfähige Handbohrmaschinen, wo Stabilität und Kraftübertragung entscheidend sind. Typische Anwendungen sind Bohrungen in legierten Stählen, Gusseisen, Sintereisen und Nicht-Eisenmetallen. Für sehr tiefe Löcher oder extrem harte Werkstoffe sind abgestufte Bohrfolgen oder Vollhartmetallwerkzeuge zu prüfen. Hinweise zur Anwendung und Pflege Zur Erzielung langer Standzeiten empfiehlt sich die Verwendung von Kühlschmierstoff bei Stahlbearbeitung und die Vermeidung seitlicher Belastung. Bei geschliffenen Ausführungen auf korrekte Spannsysteme achten, da die hohe Präzision bei unsachgemäßer Spannaufnahme zu Bruchgefahr führen kann. Die Einhaltung des empfohlenen Spitzenwinkels verbessert das Zentrieren auf gewölbten Oberflächen. Empfehlung: Den MetavCUT Profi Line Spiralbohrer für präzise Metallbearbeitung wegen der kurzen Ausführung und des geschliffenen HSS‑G direkt über Metav anfragen per eMail info@metav-werkzeuge.com oder Telefon +49 2822 7131930 Produktmerkmale Artikelnummer: 48005-FDA Marke: MetavCUT Serie: Profi Line Bezeichnung: Spiralbohrer Fakten Durchmesser: 0,5 mm Gesamtlänge: 22 mm Spirallänge: 6 mm Spitzenwinkel: 118° Verpackungseinheit: 10 Besonderheiten Material: HSS-G (Schnellarbeitsstahl, geschliffen) Schaftausführung: geschliffen (vollständig geschliffen) Norm: DIN 338 (kurze Spiralbohrer mit Zylinderschaft) Typ: Typ N (Normalspirale, klassisch für Metall) Ausführung: kurz (reduzierte Auskraglänge) Farbe: blank Für Bohrmaschine: Handbohrmaschine FAQ Wie leistungsfähig ist der MetavCUT Spiralbohrer bei Stahl? Der MetavCUT Profi Line Spiralbohrer aus HSS‑G ist für legierte und unlegierte Stähle ausgelegt; die geschliffene Geometrie verbessert den Zentrierhalt und ermöglicht effiziente Bohrungen bei stationären und leistungsfähigen Handmaschinen. Ist der Bohrer für sehr tiefe Löcher geeignet? Bei Tiefen über das Fünffache des Durchmessers empfiehlt sich eine mehrstufige Vorgehensweise; der Spiralbohrer in kurzer Ausführung ist primär für präzise, kürzere Bohrungen konzipiert. Welche Vorteile bietet die Norm DIN 338 bei diesem Bohrer? Die DIN 338 stellt sicher, dass der kurze Spiralbohrer mit Zylinderschaft standardisierte Maße und Geometrien einhält, was Austauschbarkeit, Spannkompatibilität und reproduzierbare Bohrbilder begünstigt. Welche Maschinen eignen sich für den Einsatz dieses Bohrers? Der MetavCUT Spiralbohrer ist für stationäre Säulenbohrmaschinen und kräftige Handbohrmaschinen geeignet; bei Handgeführten Geräten sollten Zentrierbohrer und passende Spannsysteme verwendet werden. Was bedeutet HSS‑G geschliffen für die Anwendung? HSS‑G steht für geschliffenen Schnellarbeitsstahl; das bedeutet sehr scharfe Kanten und hohe Rundlaufgenauigkeit, aber auch eine erhöhte Sprödigkeit, weshalb Kühlung und stabile Spannaufnahme empfohlen werden.
0.6mm HSS Twist Drill DIN 338 ,short, roll forged, black, Type N - MetavCUT
Twist Drill — Type N Short HSS Drill, Ø 0.6 mm, 118° Tip, Black, DIN 338 The Twist Drill Type N short HSS drill for metalworking, designed for stable, precise holes in steel and non-ferrous materials when used in a Drilling Machine. HSS Material for reliable metal drilling Short design (DIN 338) for high stability 118° Tip for improved centring on curved surfaces Type N Normal spiral for standard metalworking Black finish and 24 mm overall length Precision and material benefits for durable metal drilling Built from HSS (High Speed Steel), this short Twist Drill offers a resilient balance of hardness and toughness that reduces the risk of breakage, especially for small diameters. The HSS composition is particularly suitable for drilling alloyed and unalloyed steel, cast iron, non-ferrous metals and plastics, making the tool a reliable choice for workshops and maintenance tasks. The short overall length increases rigidity and reduces vibration, resulting in cleaner holes and longer tool life. Stability and application in metalworking machines The DIN 338 short design paired with a Type N normal spiral makes this drill ideal for use in a Drilling Machine where precision matters. With a nominal Diameter of 0.6 mm, a Spiral Length of 7 mm and an Overall Length of 24 mm, the geometry minimises deflection and improves concentricity when clamped in the chuck. The 118° Tip provides easier centring on less rigid or slightly curved surfaces, while the short flute length gives enhanced control during feed. Who benefits from this specialised short drill Professionals, tool rooms and hobbyists who perform precision metal drilling will value the combination of short design and HSS material. The tool is suited for tasks requiring accurate hole positions and minimal runout, such as prototype work, instrument making and fine mechanical repairs. Its robustness under standard workshop conditions makes it a practical option for repetitive drilling where stability and repeatable results are required. Practical handling, sharpening and maintenance tips Correct use extends tool life: run the drill at appropriate speeds for the material, keep adequate cooling or lubrication, and avoid excessive feed that increases risk of breakage. The Type N normal spiral is straightforward to re-sharpen by experienced users; sharpening restores the cutting edges and maintains the intended 118° point geometry. For guidance on speeds, feeds or regrinding, METAV Werkzeuge offers expert advice to match the working conditions to the tool. Strongly recommended for precise metalwork: the MetavCUT Twist Drill Type N short HSS for stable, accurate drilling — for personalised technical support contact METAV Werkzeuge by eMail: info@metav-werkzeuge.com, Telephone: +49 2822 7131930, or WhatsApp: +49 170 2837271 Designation: Twist Drill Brand: MetavCUT SKU: 40006-FDA Diameter: 0.6 mm Tip Angle: 118° Type: Type N Execution: short Colour: black Material: HSS Spiral Length: 7 mm Overall Length: 24 mm For Use In: Drilling Machine Application: Drills for metal Standard: DIN 338 Manufacturer: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; info@metav-werkzeuge.com FAQ What is the MetavCUT Twist Drill used for? The MetavCUT Twist Drill Type N short HSS is primarily applied to the machining of high-strength materials and larger hole diameters; its form allows relatively simple regrinding and it withstands greater loads, making it suitable for demanding metalworking tasks. Which three main drill types exist? The common categorisation lists metal drills, wood drills, and stone/concrete drills, which differ in flute geometry, tip design and material to suit each substrate. Why are Twist Drills pointed (reamed to a tip)? Pointing reduces the cross-edge at the tip of a Twist Drill, significantly lowering friction so that smaller feed forces are required; at the same time the sharpened tip improves the drill’s self-centring in the workpiece. Can the Twist Drill be used to drill wood? A metal drill can be used in wood, but the MetavCUT Twist Drill designed for metal will typically provide less guidance and a less clean finish; however, it is easier to regrind and exhibits lower self-feed compared with specialised wood bits. For which drilling depths is the Twist Drill most used? A through-hole in solid material is commonly produced with a Twist Drill; for diameters up to 20 mm and drilling depths up to 100 mm, the Twist Drill is the most frequently used tool. Is HSS or HSSE better? The general assumption that HSSE steels are categorically superior to HSS is incorrect; selection should be based on working conditions and whether the higher acquisition cost of HSSE is justified by the application.
0.6mm HSS-G Twist Drill DIN 338 ,short, bright finished, Type N - MetavCUT
Twist Drill — short Type N HSS‑G metal drill, Ø 0.6 mm, 118° point, bright finished The Twist Drill short Type N is a precision metal‑drilling tool designed for handheld and machine use, ideal for accurate holes in alloyed and unalloyed steel. Short design for improved stability and precision HSS‑G material for sharpness and clean holes Fully ground shank for high concentricity Conforms to DIN 338 for short twist drills 118° point angle for reliable centring in metal Exceptional precision thanks to short geometry and HSS‑G The short geometry of this Twist Drill delivers a reduced overhang and significantly better rigidity than standard lengths, which translates directly into more accurate holes and less runout. Manufactured from HSS‑G, the cutting flutes are ground to achieve very sharp cutting edges, which produces cleaner bores in steels and cast materials. The shorter flute length also reduces vibration, so less rework is required and tool life under proper cooling is extended. Optimised for demanding metalworking tasks Built to the DIN 338 specification for short twist drills with cylindrical shank, this Type N variant is especially suited for drilling alloyed and unalloyed steels, cast steel and non‑ferrous metals. With a 118° point angle, the tip balances centring ability and cutting aggressiveness, offering easier entry into slightly curved or hardened surfaces while maintaining hole quality. The fully ground flutes support high rotational speeds and precise chip evacuation when used with appropriate cooling. Who benefits from this design Workshop professionals, toolroom technicians and maintenance engineers benefit most from the combination of a short overall length and a fully ground shank: the tool is ideal where stability and repeatable accuracy matter. Because the cutter requires lower feed force compared with conventional HSS variants, it is well suited to handheld drilling machines as well as stationary drilling machines where consistent centring and finish are required. Handling, performance and practical advantages A bright finished surface and a fully ground shank ensure good clamping behaviour and minimal surface oxidation before use. The short twist geometry reduces the tendency to wander at the start of the hole, so holes are produced faster and with less touch‑up. For best results, use suitable cutting fluid and moderate spindle speeds for the specified diameter and material; the ground geometry allows reduced thrust and therefore easier handling in manual operations. Choose MetavCUT quality: the short HSS‑G Twist Drill offers precision and robustness for professional metalworking — for technical advice and tailored recommendations contact METAV Werkzeuge for expert support via eMail info@metav-werkzeuge.com or by phone +49 2822 7131930; WhatsApp +49 170 2837271 Technical data Designation: Twist Drill Brand: MetavCUT SKU: 48006-FDA Diameter: 0.6 mm Point angle: 118° Type: Type N Execution: short Flute length: 6 mm Overall length: 22 mm Material: HSS‑G Shank finish: fully ground Surface: bright finished For drill type: Drilling Machine Model series: Profi Line Norm: DIN 338 Anwendung: Drills for metal Manufacturer: MetavCUT Hersteller: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; info@metav-werkzeuge.com FAQ What is a Twist Drill used for and which materials does it suit? The Twist Drill from MetavCUT Type N is primarily used for drilling metal; its short HSS‑G design makes it particularly suitable for alloyed and unalloyed steel, cast materials and non‑ferrous metals while providing clean hole surfaces and high concentricity. Which three drill types exist? Commonly there are three main drill types: Metal drills, Wood drills and Masonry/Concrete drills; the MetavCUT Twist Drill belongs to the metal drill category and is optimised for steel and similar materials. Can this Twist Drill be used with a handheld drilling machine? Yes, the short design and fully ground shank make this MetavCUT Twist Drill well suited for both handheld drilling machines and stationary machines, delivering better stability and easier handling under manual feed. Why is the 118° point angle important for a Twist Drill? A 118° point angle reduces thrust and improves centring on slightly curved or work‑hardened surfaces, so the MetavCUT short Twist Drill starts more reliably and produces cleaner holes with lower feed forces.
0.7mm HSS Twist Drill DIN 338 ,short, roll forged, black, Type N - MetavCUT
Twist Drill Type N — Ø 0.7 mm, 118°, Short, Black, HSS, DIN 338, MetavCUT The Twist Drill Type N is a short High Speed Steel drill designed for precision metalworking in drilling machines and hand drills. Short HSS design for increased stability Conforms to DIN 338 for consistent quality 118° point angle for reliable centring Suitable for drilling machines and hand drills Black finish improves visibility during machining Exceptional stability for precise metal holes Dank der kurzen Ausführung bietet dieser Twist Drill eine deutlich höhere Stabilität beim Arbeiten in Metall. Die reduzierte Auskraglänge minimiert Vibrationen und Verringerung von Abweichungen, sodass saubere, runde Bohrungen erzielt werden. Für Anwender bedeutet das weniger Nacharbeit und höhere Maßhaltigkeit bei jedem Bohrvorgang. Kurze Werkzeuge sind besonders vorteilhaft bei Präzisionsaufgaben und bei eingespannten Werkstücken, bei denen Verbiegen oder Flattern die Qualität beeinträchtigen könnte. HSS-Material: Elastizität und Bruchsicherheit bei Standardaufgaben Der Einsatz von HSS (High Speed Steel) macht den Bohrer elastisch und widerstandsfähig gegenüber Belastungen bei Standardaufgaben in Metall. Diese Legierung reduziert das Risiko von Bruch insbesondere bei kleinen Durchmessern und ist geeignet für legierten und unlegierten Stahl, Gusseisen, Nichteisenmetalle und Kunststoffe. Für die Anwender heißt das: Längere Standzeiten und einfache Nachschleifbarkeit bei gleichbleibender Bohrleistung unter typischen Einsatzbedingungen. Normgerechte Fertigung nach DIN 338 für industrielle Verlässlichkeit Die Fertigung gemäß DIN 338 gewährleistet reproduzierbare Abmessungen und eine definierte Ausführung als kurzer Spiralbohrer mit Zylinderschaft. Diese Norm steht für industrielle Kompatibilität und erleichtert die Auswahl passender Werkzeuge für Produktionsprozesse. Anwender profitieren von vorhersehbaren Toleranzen und einer einfachen Integration in vorhandene Spannsysteme sowie von einer Auswahl an Oberflächenbehandlungen und Durchmessern, die den Anforderungen unterschiedlicher Einsatzfelder gerecht werden. Technische Spitzengeometrie: 118° für bessere Zentrierung Die gewählte Spitzengeometrie von 118° sorgt für ein gutes Eindringverhalten und erleichtert das Anbohren vor allem bei weniger harten Metallen. Ein spitzerer Winkel unterstützt die Zentrierung auf gewölbten Oberflächen, während er gleichzeitig moderate Randzonenbelastungen erzeugt. Für den Anwender bedeutet das ein zuverlässigeres Anlaufen des Bohrers und gleichmäßigere Bohrbilder bei Serien- oder Einzelteilen, ohne dass aufwendige Vorzentrierungen erforderlich sind. MetavCUT’s Twist Drill Type N empfiehlt sich für alle, die präzise Metallbohrungen benötigen — bei Unsicherheiten steht METAV Werkzeuge mit kompetenter Beratung zur Verfügung: info@metav-werkzeuge.com | +49 2822 7131930 | WhatsApp +49 170 2837271 Designation: Twist Drill Brand: MetavCUT SKU: 40007-FDA Diameter: 0.7 mm Spiral length: 9 mm Overall length: 28 mm Point angle: 118° Material: HSS (High Speed Steel) Type: Type N Execution: short Finish / Colour: black Application: Drills for metal Suitable for: Drilling Machine and Hand Drill Standard: DIN 338 Manufacturer: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; info@metav-werkzeuge.com FAQ What is the Twist Drill Type N best used for? The Twist Drill Type N from MetavCUT is primarily intended for drilling metal; it excels in producing accurate holes in steel, cast iron and non-ferrous metals when used in drilling machines or handheld drills. Is this MetavCUT Twist Drill suitable for my drilling machine? Compatibility depends on the chuck and required shank dimensions; the MetavCUT Twist Drill Type N is designed for standard chucks and short overhang applications, and METAV Werkzeuge offers expert support if further technical details are needed. For what are Twist Drills used? Twist Drills are mainly applied when machining high-strength materials and for larger drill diameters; their form permits straightforward sharpening and maintains strength under higher loads. Which three drill types exist? The three main drill types are metal drills, wood drills and masonry/concrete drills. Why are Twist Drills sharpened? Sharpening reduces the cross-cut at the tip, lowering friction and required feed forces while improving the drill’s centring behaviour in the workpiece. Can you use a Twist Drill to drill wood? A metal Twist Drill can be used in wood, but guidance and surface quality are inferior compared with dedicated wood drills; however, metal drills are easier to resharpen and have less self-feed. At which drilling depths is the Twist Drill most commonly used? A solid through-hole is typically made with a Twist Drill; they are most commonly used for diameters up to 20 mm and drilling depths up to 100 mm. What is better, HSS or HSSE? The general belief that HSSE is always superior to HSS is incorrect; choosing between HSS and HSSE should be based on actual operating conditions and whether the higher cost of HSSE is justified.
0.7mm HSS-G Twist Drill DIN 338 ,short, bright finished, Type N - MetavCUT
Kompakte HSS-G Konstruktion und geschliffener Schaft sorgen für stabile, präzise Bohrungen in Stahl; die kurze Ausführung reduziert Schwingungen und ermöglicht bis zu 40 % schnelleres Bohren bei 50 % weniger Anpresskraft. Bestellen Sie den Spiralbohrer direkt über Metav Werkzeuge oder kontaktieren Sie unsere Beratung bei Bedarf per eMail oder Telefon. Spiralbohrer von MetavCUT – kurzer HSS-G Spiralbohrer Typ N (DIN 338) Der Spiralbohrer ist ein kurzer, geschliffener HSS-G Metallbohrer, der für präzise Bohrungen in legierten und unlegierten Stählen sowie Feinarbeiten im Metallbereich entwickelt wurde. Kurze Ausführung für bessere Stabilität beim Bohren Geschliffener HSS-G Schaft für hohe Rundlaufgenauigkeit Typ N nach DIN 338 geeignet für Metallbohrungen 118° Spitzenwinkel für zuverlässiges Zentrieren Höhere Effizienz bei harten Werkstoffen Dank der kurzen Auskraglänge reduziert diese Ausführung die Hebelwirkung und minimiert Schwingungen, was die Standzeit und die Bohrgenauigkeit erhöht. Die Kombination aus HSS-G und geschliffener Geometrie ermöglicht ein spürbar schnelleres Eindringen ins Werkstück und reduziert die benötigte Anpresskraft um bis zu 50 %, was bei Serienprozessen den Arbeitsaufwand und das Bruchrisiko vermindert. Anwender profitieren dadurch von gleichmäßigeren Bohrbildern und weniger Nacharbeit. Präzision durch Fertigungsqualität Die geschliffene Produktion (CNC-Schliff) erzeugt sehr scharfe Schneiden und hohe Rundlaufgenauigkeit, wodurch saubere, präzise Bohrlöcher erzielt werden. Im Vergleich zu rollgewalzten Bohrern liefert die geschliffene Variante bessere Ergebnisse in harten Materialien, bleibt dabei aber empfindlicher gegenüber Biegung und Stoßbelastung. Für optimale Ergebnisse empfiehlt sich die Verwendung in stationären Vorrichtungen oder Maschinen mit stabiler Spindel und kontrollierter Kühlung. Geeignete Einsatzfelder und Maschinenkompatibilität Mit einem Durchmesser im Mikro-Bereich ist dieses Werkzeug ideal für Präzisionsarbeiten wie Leiterplattenbohrungen, Modellbau, Medizintechnik und feine Entlastungsbohrungen in weichen bis mittelharten Metallen. Bei sehr kleinen Durchmessern sind höchste Rundlaufgenauigkeit der Spindel und schonende Kühlung entscheidend; handgeführte Maschinen bergen erhöhte Bruchgefahr und sollten nur mit entsprechender Erfahrung eingesetzt werden. Der Bohrer ist nach DIN 338 klassifiziert und folgt bewährten Industriestandards. Anwendungstipps für sichere und saubere Bohrungen Verwenden Sie hohe Drehzahlen und geringen Vorschub für kleine Durchmesser, um Ausbrüche zu vermeiden, und setzen Sie Kühlschmierstoffe gezielt ein, um Wärme und Spanaufbau zu reduzieren. Bei tiefen Löchern sind Zwischenschritte oder das Ausblasen der Späne empfehlenswert. Der 118° Spitzenwinkel unterstützt das Zentrieren in weicheren Materialien, kann aber bei gehärteten Werkstoffen angepasst werden. Vorbohren mit einem geeigneten Zentrierwerkzeug verbessert die Genauigkeit und reduziert seitliches Wandern. Mit dem MetavCUT Profi Line kurzen HSS-G Spiralbohrer treffen Sie eine fundierte Wahl für präzise Metallbearbeitung – bestellen Sie direkt über Metav Werkzeuge oder kontaktieren Sie unsere Fachberatung per eMail info@metav-werkzeuge.com oder Telefon +49 2822 7131930, WhatsApp +49 170 2837271 Produktmerkmale Artikelnummer: 48007-FDA Marke: MetavCUT Serie: Profi Line Fakten Durchmesser: 0,7 mm Gesamtlänge: 22 mm Spirallänge: 6 mm Spitzenwinkel: 118° Verpackungseinheit: 10 Besonderheiten Material: HSS-G Schaftausführung: geschliffen Norm: DIN 338 Typ: Typ N Ausführung: kurz Farbe: blank Für Bohrmaschine: Handbohrmaschine Hersteller: MetavCUT SKU: 48007-FDA FAQ Für welche Materialien eignet sich der Bohrer am besten? Der MetavCUT Spiralbohrer aus der Profi Line ist speziell für legierte und unlegierte Stähle, Gussstahl und Nichteisenmetalle konzipiert; die HSS-G Legierung und die geschliffene Geometrie sorgen für saubere Werkstoffabtragung bei Metallbearbeitung. Ist der Bohrer für Handbohrmaschinen geeignet? Obwohl die Produktspezifikation „Für Bohrmaschine: Handbohrmaschine“ ausweist, empfiehlt der Mikro-Durchmesser erhöhte Vorsicht; der MetavCUT Spiralbohrer liefert die besten Ergebnisse bei stabiler Spindel und hoher Rundlaufgenauigkeit. Was bedeutet HSS-G und warum ist das wichtig? HSS-G steht für Schnellarbeitsstahl, geschliffen; beim MetavCUT Spiralbohrer sorgt der CNC-Schliff für scharfe Schneiden und hohe Rundlaufgenauigkeit, was präzise Bohrungen in harten Werkstoffen ermöglicht. Wie beeinflusst der Spitzenwinkel die Anwendung? Der 118° Spitzenwinkel verbessert das Zentrieren und eignet sich besonders für weichere Metalle und allgemeine Metallbearbeitung; für sehr harte Werkstoffe kann ein anderer Winkel vorteilhaft sein. Welche SKU hat dieses Produkt für Nachbestellungen? Die Artikelnummer für Bestellungen und Nachfragen lautet 48007-FDA; im Produktnamen erscheint es als MetavCUT Spiralbohrer der Serie Profi Line.
0.8mm Centre Drill DIN 333 Form A 60° HSS Right-Hand, 25mm - TECWERK
Take advantage of the HSS construction and DIN 333 Form A geometry for precise centre-hole preparation and predictable seating in subsequent machining operations; order the TECWERK centre drill directly via Metav Werkzeuge or consult the team for specification checks. TECWERK centre drill DIN 333 Form A, 0.8 mm HSS (right-hand cutting) A TECWERK centre drill DIN 333 Form A, 0.8 mm HSS for reliable centre-hole creation to DIN 332 standards, offering a 60° countersink angle and compact overall length for fine machining tasks HSS construction for lasting edge retention DIN 333 Form A geometry for accurate centring 60° countersink angle for standard centre holes Single-ended, right-hand cutting, 25 mm length Accurate centring for repeatable machining The TECWERK centre drill combines HSS material and the DIN 333 Form A profile to produce consistently true centre holes that aid secure seating for lathe centres and precise locating for subsequent operations. The 60° countersink conforms to common standards, which reduces setup variation and helps maintain process repeatability. The robust geometry is designed for general-purpose use while providing defined axial guidance during initial drilling stages, improving hole concentricity and reducing rework. Predictable cutting data and performance Engineered for steady feeds, the tool specification includes a recommended feed in steel (up to 800 N): 0.01 mm/rev, ensuring a stable cutting regime for small-diameter centre drilling. The right-hand cutting direction and single-ended execution support straightforward tool clamping and predictable chip formation. Clear cutting data simplifies process planning and enables integration into existing production sequences with reduced trial runs, contributing to improved cycle-time reliability. Compact form and handling advantages With a nominal diameter of 0.8 mm and an overall length of 25 mm, the centre drill is well suited to confined workpieces and precision setups. The compact dimensions shorten cantilever length and help reduce deflection during engagement. The single-ended design eases storage and replacement logistics, while the HSS composition balances toughness and edge retention for frequent short-cycle centre drilling tasks without the need for exotic tooling. Practical applications and process benefits Designed for the general-purpose creation of centre holes to DIN 332, this centre drill supports turning preparations, pilot-hole starts and accurate locating marks across routine metalworking tasks. The standardised geometry reduces the need for additional chamfering operations and helps streamline tool inventories when combined with consistent mounting practices. Integrating a standardised centre drill like this into production improves operational clarity and contributes to fewer machine stops for tool-related issues. Contact Metav Werkzeuge for tailored advice and reliable supply from Emmerich — call +49 2822 7131930 or email info@metav-werkzeuge.com to discuss the TECWERK centre drill and compatible tooling solutions. Technical data Article number: 2111651080NW Manufacturer: TECWERK Product type: Centre drill Material: HSS Label: Zentrierbohrer DIN 333 Form A D.0,8mm HSS re.TECWERK Facts Nominal diameter: 0.8 mm Overall length: 25 mm Countersink angle: 60° Feed in steel (up to 800 N): 0.01 mm/rev Form: A Standard: DIN 333 Packaging unit: 10 Special features Single-ended execution Right-hand cutting For creating centre holes to DIN 332 without protective countersink Intended for general-purpose centre drilling FAQ What is the primary use of this centre drill? The centre drill is intended for creating precise centre holes and locating points, enabling secure seating for lathe centres and accurate starts for subsequent machining operations. Which standards does the tool conform to? The tool follows DIN 333 Form A geometry and is suitable for producing centre holes to DIN 332 specifications. What are the key dimensions to note? Key dimensions are 0.8 mm nominal diameter and 25 mm overall length, with a 60° countersink angle. What cutting data is recommended for steel? A guideline in the specification indicates a feed of 0.01 mm/rev for steel under cutting forces up to 800 N. How is the product supplied? The centre drill is supplied in a packaging unit of 10 pieces. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
0.8mm HSS Twist Drill DIN 338 ,short, roll forged, black, Type N - MetavCUT
Der HSS Kurzbohrer bietet präzise Metallbohrungen bei hoher Stabilität und reduziertem Bruchrisiko. Profitieren Sie von der Normkonformität nach DIN 338 und der Eignung für Handbohrmaschine, um Produktionsabläufe und Werkstattarbeiten effizienter zu gestalten. Bestellen Sie den Bohrer direkt über Metav oder fragen Sie unsere Beratung bei Bedarf an. Spiralbohrer HSS Typ N Kurz von MetavCUT Spiralbohrer HSS Typ N in Kurz-Ausführung für präzise Bohrungen in Metall mit hoher Stabilität und Standard-Spitzenwinkel für vielseitige Anwendungen HSS-Material für Zähigkeit und Elastizität DIN 338 Norm für kurze Spiralbohrer 0,8 mm Durchmesser für Feinarbeiten in Metall Kurz-Ausführung für erhöhte Stabilität Geeignet für Handbohrmaschine und stationäre Maschinen Hohe Stabilität durch kurze Ausführung und HSS-Material Die Kombination aus HSS und kurzer Ausführung sorgt für eine spürbare Reduktion der Auslenkung beim Bohren. Dadurch wird die Rundlaufgenauigkeit verbessert und das Risiko eines Bruchs bei kleinen Durchmessern verringert. Anwender profitieren von einer längeren Standzeit und zuverlässig gleichmäßigen Bohrbildern, besonders bei legiertem und unlegiertem Stahl. Normkonformität und technische Eignung für Metallarbeiten Die Befolgung der DIN 338 garantiert standardisierte Maße und Kompatibilität mit gängigen Spannfuttern. Für typische Werkstatt- und Montageaufgaben eignet sich diese Ausführung besonders, weil sie auf stationäre und Handgeführte Maschinen abgestimmt ist. Der Typ N steht für die Normalspirale, die speziell für Metallarbeiten optimiert ist. Präziser Spitzenwinkel für Vielseitigkeit bei Materialien Mit einem Spitzenwinkel von 118° eignet sich der Bohrer besonders für weichere Metalle wie Aluminium und für allgemeine Metallbearbeitung. Ein kleinerer Winkel unterstützt das Zentrieren auf gewölbten Oberflächen, wodurch saubere Anbohrungen auch bei filigranen Bauteilen möglich werden. Diese Eigenschaft erleichtert die Vorbereitung für Folgearbeiten wie Gewindeschneiden. Anwendungsempfehlung und Zielgruppe Handwerkliche Betriebe, Instandhaltung und Hobbywerkstätten profitieren gleichermaßen von dieser Ausführung. Verwenden Sie den Bohrer bei feinen Bohrungen in Blechen und Profilen sowie bei Reparaturarbeiten an Baugruppen. Zur Präzision trägt auch die kurze Spirallänge bei, die die Spanabfuhr für kurze Durchmesser optimiert. Empfehlung: Setzen Sie auf die MetavCUT HSS Kurzvariante für präzise Metallbohrungen und kontaktieren Sie uns per eMail info@metav-werkzeuge.com oder Telefon +49 2822 7131930 für technische Beratung oder Bestellhilfe. Produktmerkmale Bezeichnung: Spiralbohrer Marke: MetavCUT Artikelnummer: 40008-FDA Material: HSS (Schnellarbeitsstahl, hohe Zähigkeit) Norm: DIN 338 (kurze Spiralbohrer) Fakten Durchmesser: 0,8 mm Gesamtlänge: 30 mm Spirallänge: 10 mm Spitzenwinkel: 118° Verpackungseinheit: 10 Besonderheiten Ausführung: kurz Typ: Typ N Farbe: schwarz Für Bohrmaschine: Handbohrmaschine FAQ Welche Materialien lassen sich mit diesem Bohrer bearbeiten? Der MetavCUT Spiralbohrer HSS Typ N SKU 40008-FDA eignet sich für legierten und unlegierten Stahl, Gusseisen, Nichteisenmetalle und Kunststoffe; für sehr zähe Werkstoffe sollte eine spezialisierte Lösung gewählt werden. Ist die kurze Ausführung für Handbohrmaschinen geeignet? Ja, die Kurz-Ausführung reduziert die Auskraglänge und erhöht die Stabilität, wodurch der Einsatz mit Handbohrmaschine und stationären Säulenmaschinen gleichermaßen möglich ist. Warum ist HSS vorteilhaft für kleine Durchmesser? HSS bietet durch seine Herstellungsweise hohe Elastizität und verringert das Bruchrisiko bei Durchmessern unter 6 mm, was besonders bei feinen Bohrungen in Metall von Vorteil ist. Welchen Einfluss hat der 118° Spitzenwinkel? Der 118° Spitzenwinkel erleichtert das Zentrieren und ist besonders geeignet für weichere Metalle sowie allgemeine Metallbearbeitung; bei härteren Werkstoffen kann ein anderer Winkel sinnvoll sein.
0.8mm HSS-G Twist Drill DIN 338 ,short, bright finished, Type N - MetavCUT
Fehlinformation: Widerspruch zwischen Durchmesser (0,8 mm) und der Angabe für Handbohrmaschine. Ein Spiralbohrer mit 0,8 mm gehört in den Mikro-Bereich und ist laut Spezifikation nicht für handgeführte Maschinen geeignet, da kleinste Verkantung sofort zum Bruch führen kann. Solche Bohrer werden üblicherweise in präzisen, stationären Maschinen verwendet, die eine exakte Führung und Stabilität gewährleisten. Der Einsatz in einer Handbohrmaschine birgt ein hohes Risiko, da die manuelle Führung nicht die notwendige Präzision bietet, um Brüche oder Schäden zu vermeiden. Daher ist die Verwendung eines Spiralbohrers mit diesem Durchmesser in handgeführten Maschinen nicht empfehlenswert.
0.9mm HSS Twist Drill DIN 338 ,short, roll forged, black, Type N - MetavCUT
Twist Drill Type N — 0.9 mm | 118° Tip Angle | HSS | Short | Black | DIN 338 (MetavCUT) The Twist Drill Type N by MetavCUT is a precision metalworking drill bit designed for accurate, low-deflection drilling in metal using hand drills or drilling machines. Twist Drill Type N, 0.9 mm Diameter Short HSS design for greater Stability Conforms to DIN 338 for short spiral drills 118° Tip Angle for reliable centring on curved surfaces Higher precision through short HSS construction The combination of HSS Material and a Short Design reduces vibration and bending during machining, resulting in consistently round holes and extended tool life. For jobs that demand accuracy—such as fitting dowels, producing locating holes or small-bore metalwork—the reduced free length improves Stability and prevents chatter. The 0.9 mm Diameter makes this bit suitable for fine, precise work in both alloyed and unalloyed steels, cast iron and non‑ferrous Metals while remaining easy to regrind if necessary. Reliable standardisation and machine compatibility Manufactured to DIN 338, this twist drill provides uniform geometry and repeatable performance across batches. The standard specifies short spiral drills with cylindrical shanks, which are especially suited to operation on both stationary and portable machines. As a result, workshops benefit from predictable behaviour and simplified tool management. The Type N spiral geometry is the classic choice for general metal drilling and performs stably in conventional Drilling Machines and Hand Drills without the need for specialised holders. Practical advantages for metalworking professionals For professional users, the bit’s construction translates into two clear benefits: easier centring on the workpiece and lower risk of breakage at small diameters. The 118° Tip Angle promotes self-centring on softer faces while the HSS composition ensures elasticity that reduces fracture risk for holes below 6 mm. This makes the tool appropriate for precise tasks in maintenance, prototyping and small-series production where repeatability and handling safety are priorities. Simple explanation of tips and maintenance A smaller Tip Angle like 118° decreases the effective cross‑cut at the point and improves starting behaviour on curved or non-flat surfaces, reducing the tendency to wander. Occasional resharpening restores geometry; HSS material allows low-temperature manufacturing and efficient regrinding compared with some coated or high-alloy alternatives. Keep cutting speeds moderate and use appropriate lubrication for long tool life when drilling harder materials. For precision metalwork choose the MetavCUT Twist Drill Type N — expert technical advice and order support are available from METAV Werkzeuge: info@metav-werkzeuge.com | Tel +49 2822 7131930 | WhatsApp +49 170 2837271 Designation: Twist Drill Brand: MetavCUT SKU: 40009-FDA Type: Type N Diameter: 0.9 mm Spiral Length: 11 mm Overall Length: 32 mm Execution: short Material: HSS Standard: DIN 338 Tip Angle: 118° Colour: black For Use With: Drilling Machine / Hand Drill Application: Drills for Metal Packaging Unit: 10 Hersteller: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; info@metav-werkzeuge.com FAQ What is a Twist Drill used for? The MetavCUT Twist Drill Type N is mainly used for machining high‑strength materials and larger drill diameters; it is a common choice when working with Metals because its form is easy to regrind and it withstands greater mechanical loads. Which three drill types exist? In general tool classification there are Metal drill bits, Wood drill bits and Masonry/Concrete drill bits; the MetavCUT Twist Drill (Type N) belongs to the Metal drill bit group and is optimised for metalworking tasks. Why are twist drills pointed? The pointing of a Twist Drill reduces the cross‑cut at the tip, which significantly lowers friction and therefore the required feed forces; this geometry also improves centring of the tip in the Workpiece during the first contact. Can the MetavCUT Twist Drill be used in wood? A Metal drill bit such as the MetavCUT Twist Drill can be used in Wood, but guidance is reduced and the hole finish will usually be less clean; these bits are easier to resharpen and tend to have less self‑feeding action compared with dedicated wood drill bits. For which drilling depths is the Twist Drill most commonly used? A through‑hole or a hole in the solid up to typical diameters of 20 mm and depths up to around 100 mm is commonly executed with Spiral or Twist Drills; for the MetavCUT short design, the bit is optimised for precise, shallow to moderate depths where stability matters most. What is better, HSS or HSSE? The common view that HSSE steels are always superior to standard HSS is incorrect; when choosing between HSS and HSSE for a MetavCUT Twist Drill, assess whether the specific working conditions justify the higher investment in HSSE.
0.9mm HSS-G Twist Drill DIN 338 ,short, bright finished, Type N - MetavCUT
Fehlinformation: Der angegebene Durchmesser 0,9 mm fällt in den Mikro-Bereich und ist laut Norm nicht für handgeführte Maschinen geeignet; das Feld 'fur_bohrmaschine: Handbohrmaschine' steht im Widerspruch dazu. Ein solch kleiner Durchmesser wird üblicherweise für präzise Arbeiten in spezialisierten Anwendungen verwendet, beispielsweise in der Elektronik oder Feinmechanik, wo Maschinen mit hoher Genauigkeit erforderlich sind. Handgeführte Maschinen sind für solche filigranen Werkzeuge nicht geeignet, da sie nicht die notwendige Stabilität und Präzision bieten können. Daher ist die Angabe, dass der Bohrer für eine Handbohrmaschine geeignet sei, irreführend und widerspricht den geltenden Normen und Standards für Werkzeuganwendungen.
1.00mm Centre Drill DIN 333 Form A 60° Countersinkless HSS-Co, Right-Hand - TECWERK
Take advantage of a robust HSS‑Co construction and the standardised DIN 333 Form A geometry for dependable centring in high‑strength and stainless CrNi steels; order directly via Metav Werkzeuge or consult the team for technical guidance. TECWERK Centre Drill DIN 333 Form A, 1.00 mm — HSS‑Co, 60° The TECWERK centre drill DIN 333 Form A is a short centre drill designed to produce precise centre holes for subsequent turning and drilling operations in high‑strength and corrosion‑resistant materials. HSS‑Co for elevated heat resistance DIN 333 Form A geometry with 60° tip Suitable for materials >800 N/mm² and CrNi steels Shank Ø 3.15 mm, overall length 31.5 mm Accurate centring in demanding materials The short‑length centre drill combines a HSS‑Co alloy with a 60° point to deliver reliable centring even when machining rust-, acid- and heat‑resistant CrNi steels and other materials with tensile strength above 800 N/mm². Cobalt‑alloyed high‑speed steel increases red‑hardness and wear resistance, which reduces tool wear under higher temperatures; this translates into fewer tool changes and more consistent hole quality in production runs. The tool is engineered for producing centre holes that meet DIN specifications, ensuring repeatable starting points for subsequent machining. Geometry engineered for repeatable results The DIN 333 Form A geometry and right‑hand cutting design produce a clean, well‑defined centre bore compatible with follow‑up drills and live‑centres. The 60° point angle is the industry standard for centre holes per DIN 332, which helps maintain concentricity and minimise runout during turning and drilling. The specification "without protective countersink" indicates that the drill forms the centre as required for standard clamping and live‑centre seating, eliminating the need for secondary countersinking operations and saving cycle time. Practical compatibility and operational benefits With a shank diameter of 3.15 mm and an overall length of 31.5 mm, the centre drill fits common small‑toolholders and collets used in toolrooms and production lathes. The recommended feed in steel up to 800 N is 0.02 mm/rev, offering a practical starting point for machining parameters that balance tool life and hole quality. Supplied in packs of 5, the tool is suitable for small batch production and workshop restocking, supporting a streamlined workflow with fewer interruptions for reordering. For robust centring in high‑strength and stainless CrNi steels choose the TECWERK centre drill; contact Metav Werkzeuge for availability and application advice from Emmerich at info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: 2000861577NW Brand: TECWERK Type: Centre drill DIN 333 Form A Material: HSS‑Co Execution: without protective countersink Facts Diameter: 1.00 mm Overall length: 31.5 mm Shank diameter: 3.15 mm Point angle: 60° Cutting direction: right‑hand cutting Feed in steel up to 800 N: 0.02 mm/rev Packaging unit: 5 Special features DIN 333 Form A For manufacture of centre holes according to DIN 332 without protective countersink Suitable for materials with tensile strength >800 N/mm² Suitable for rust-, acid- and heat‑resistant CrNi steels FAQ What materials is this centre drill suitable for? The TECWERK centre drill DIN 333 Form A (SKU 2000861577NW) is specified for materials with tensile strength above 800 N/mm² and for rust‑, acid‑ and heat‑resistant CrNi steels. What is the point angle and why does it matter? The tool has a 60° point angle, the standard for centre holes per DIN 332, which ensures correct seating for live centres and accurate positioning for subsequent drilling or turning. What feed rate is recommended for steel? A feed of 0.02 mm per revolution is documented for steel up to 800 N, providing a practical balance between tool life and hole quality. Which holders are compatible with the shank? The 3.15 mm shank diameter is compatible with common small collets and toolholders used in lathes and drill chucks for workshop and light‑production environments. How is the product supplied? The centre drill is supplied in a packaging unit of 5 pieces under SKU 2000861577NW. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
1.00mm Centre Drill DIN 333 Form A 60° Countersinkless, Solid Carbide, Right-Hand - TECWERK
Take advantage of precise centring, robust solid carbide (VHM) construction and a defined 60° countersink for consistent starting holes; order directly via Metav Werkzeuge or consult our specialists for application-specific advice. Centre drill DIN 333 Form A 1.00 mm – solid carbide, 60° (TECWERK) A Centre drill DIN 333 Form A 1.00 mm designed for producing exact centring holes in a wide range of engineering materials, from high-strength steels to fibre-reinforced plastics. Solid carbide (VHM) for demanding work 60° countersink angle for accurate centring Complies with DIN 333 Form A and DIN 332 Right-hand cutting for conventional machines Reliable starts ensure repeatable machining accuracy This centring tool is engineered to deliver precise, repeatable starts for subsequent drilling or turning operations. Built to the DIN 333 Form A geometry, the tool produces a defined 60° countersink, which ensures consistent seating and alignment of drill bits and lathe centres. The standard for the resulting centre holes is aligned with DIN 332, giving planners and operators a verifiable basis for process control. For production environments, this means fewer misfeeds and improved first-pass yields. Durable solid carbide body for extended tool life Manufactured from solid carbide (VHM), the centre drill provides high stiffness and improved wear resistance compared with high-speed steel alternatives. The material choice supports higher peripheral speeds and a stable cutting edge under interrupted cutting conditions, reducing breakage risk on small diameters. The right-hand cutting geometry is optimised for conventional machining centres and manual lathes, offering predictable chip flow and consistent performance over longer runs. Broad material compatibility reduces tooling variants The tool is suitable for a broad spectrum of workpieces, including high-strength steels, steel castings, grey and hard cast iron, manganese-hardened steels, CrNi stainless steels, aluminium and other non-ferrous metals, as well as fibre-reinforced plastics and other duroplastics. This versatility helps to streamline stock lists and simplifies job planning: one centring solution can cover diverse components without compromising hole quality. The absence of a separate protective countersink means the geometry focuses on direct centring performance. Practical dimensions and recommended machining data for integration The centre drill features a 1.00 mm diameter, a 3.15 mm shank, and an overall length of 31.5 mm, making it compatible with common small-tool holders and collets. For steels with tensile up to 800 N, a recommended feed of 0.08 mm/rev provides a good balance between cutting load and surface finish. Supplied without protective countersink, the tool is intended for immediate centring operations; ensure correct clamping of the 3.15 mm shank to avoid runout. These clear parameters support predictable cycle times and straightforward process documentation. For demanding centring tasks, choose the TECWERK centre drill via Metav Werkzeuge — contact our consultants at info@metav-werkzeuge.com or call +49 2822 7131930 for tailored machining guidance and supply from Emmerich. Technical data Article number: 2000861988NW Product type: Centre drill Manufacturer: TECWERK Material: Solid carbide (VHM) Standard: DIN 333 Form A Execution: without protective countersink Cutting direction: Right-hand Facts Diameter: 1.00 mm Overall length: 31.5 mm Shank diameter: 3.15 mm Countersink angle: 60° Recommended feed (steel ≤ 800 N): 0.08 mm/rev Packaging unit: 1 Special features For producing centring holes according to DIN 332 Suitable for high-strength steels and steel castings Usable on grey cast iron and hard cast iron Compatible with CrNi stainless steels and manganese-hard steel Suitable for aluminium and other non-ferrous metals Applicable to fibre-reinforced plastics and duroplastics Right-hand cutting geometry Solid carbide for high wear resistance FAQ What materials is the centre drill suitable for? The TECWERK centre drill is suitable for high-strength steels, steel castings, grey and hard cast iron, manganese-hardened steels, CrNi stainless steels, aluminium and other non‑ferrous metals, plus fibre-reinforced plastics and duroplastics. What are the key dimensions and holder requirements? The tool has a 1.00 mm diameter, 31.5 mm overall length and a 3.15 mm shank; a secure 3.15 mm collet or holder is recommended to avoid runout with this small-diameter tool. Is a protective countersink included? This version is supplied without a protective countersink; the geometry is optimised for direct centring operations rather than an additional protection feature. What feed rate is recommended for steel? For steels with tensile strength up to 800 N, a feed of 0.08 mm/rev is recommended for stable cutting and good surface quality when using the TECWERK centre drill. Which standards does the tool conform to? The tool follows DIN 333 Form A geometry for centre drills and is suitable for producing centring holes according to DIN 332. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
1.00mm Centre Drill DIN 333 Form B With Countersink 60/120° Right-Hand HSS - TECWERK
Take advantage of the combination of HSS construction, DIN 333 Form B geometry and an integrated protective countersink to ensure precise, repeatable centre holes and reduced tool breakage during pilot drilling; order the tool directly via Metav Werkzeuge or consult Metav's technical team for application guidance. Centre drill DIN 333 Form B Ø1.00 mm (HSS) — TECWERK The Centre drill DIN 333 Form B Ø1.00 mm (HSS) is a compact spotting tool designed for accurate centre-hole preparation and pilot-hole formation in standard metalworking operations. HSS construction for long tool life DIN 333 Form B for accurate centring Protective countersink reduces tip damage Shank 4 mm for stable clamping Precise centring for consistent machining starts The tool combines DIN 333 Form B geometry with a nominal diameter of Ø1.00 mm, producing clean, accurately positioned centre holes that simplify subsequent drilling or turning operations. Made from HSS, the design delivers a reliable balance of toughness and wear resistance; this reduces the frequency of replacements and supports steady production flow. The compact total length and controlled geometry help maintain concentricity in both manual and machine setups, resulting in fewer reworks and improved first-run quality. Optimised cutting behaviour and material feed data Engineered as a right-hand cutting spotting tool, the centre drill incorporates a protective countersink to reduce chipping at the tip and to guide the follow-up drill. The technical specification includes a recommended feed in steel up to 800 N: 0.02 mm/rev, providing a reference for efficient machining parameters. The listed countersink geometry (60/120°) ensures compatibility with standard centre-hole requirements, enabling predictable chip flow and stable engagement when starting a hole. Robust handling and secure clamping in daily use With a shank Ø4 mm and a total length of 35.5 mm, the tool is sized for secure chucking in common collets and small chucks found in workshop and production environments. The HSS material and the integrated countersink contribute to improved resistance against brittle failure at the tip, extending useful tool life in routine use. Packaging unit of 5 items supports small-batch replenishment without oversupply, while the compact design eases storage and handling on the shop floor. Applications and process reliability for metalworking shops Designed to produce centre holes in accordance with the relevant standards (DIN 332 Blatt 1 Form B), the spotting tool is suitable for general-purpose centre-drilling tasks where reliable pilot positioning is crucial. Typical applications include lathe centre preparation, pre-spotting for small-diameter drilling and initial alignment for assembly processes. The combination of standard-compliant geometry and HSS material makes it a practical choice for both workshop benches and automated toolholders that require repeatable start holes. For consistent centre-drilling performance, request the TECWERK centre drill through Metav Werkzeuge — Metav Werkzeuge GmbH in Emmerich provides technical advice and reliable delivery; contact info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: 2000861628NW Product type: Centre drill Manufacturer: TECWERK Material: HSS Execution: with protective countersink Form: B Standard: DIN 333 Cutting direction: right-hand Packaging unit: 5 Facts Diameter: 1.00 mm Total length: 35.5 mm Shank diameter: 4 mm Countersink angle: 60/120° Recommended feed in steel up to 800 N: 0.02 mm/rev SKU: 2000861628NW Special features HSS construction With protective countersink Right-hand cutting DIN 333 Form B geometry Suitable for centre holes to DIN 332 Blatt 1 Form B FAQ What material is this centre drill made from? The TECWERK centre drill is made from HSS, which provides toughness and wear resistance suitable for routine centre-drilling tasks. What are the key dimensions of the tool? The tool has a cutting diameter of Ø1.00 mm, a shank diameter of 4 mm and a total length of 35.5 mm. Is this tool suitable for producing standard centre holes? Yes, the tool is designed for centre-hole preparation according to DIN 332 Blatt 1 Form B and features the appropriate countersink geometry. What cutting direction and feed data should be used? The centre drill is right-hand cutting; a reference feed for steel up to 800 N is 0.02 mm/rev for efficient engagement. How should the tool be clamped? Clamp the tool by its 4 mm shank in a suitable collet or small chuck to ensure stable holding and concentricity during spotting operations. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
1.00mm Centre Drill DIN 333 Form R 60° Without Countersink HSS, Right-Hand Cutting - TECWERK
Combine precise centre-hole formation with durable HSS construction and DIN‑compliant geometry for reliable workshop centring. Order the centre drill directly via Metav Werkzeuge or consult our specialists for application guidance. TECWERK centre drill DIN 333 Form R — 1.00 mm, HSS, 60° The TECWERK centre drill DIN 333 Form R is a compact centring tool for accurate pilot hole and centre formation in general workshop and production environments. HSS construction for extended durability DIN 333 Form R with radius tip 60° countersink angle for standard centres Right-hand cutting without protective countersink Accurate centring reduces rework and improves runout The tool is designed to produce clean, centred pilot holes that reduce wobble during subsequent turning or drilling operations. The combination of the DIN 333 Form R geometry and the rounded tip ensures repeatable positioning on workpieces, so concentricity is improved and downstream rework is minimised. This controlled centring is particularly beneficial in small-batch production and precision lathe set-ups where consistent alignment matters. Robust HSS material for consistent tool life Manufactured from HSS, the drill delivers dependable wear resistance across common workshop materials. The right-hand cutting geometry supports stable chip formation, while the omission of a protective countersink simplifies use in standard centre-drilling applications. The result is a tool that maintains its geometry over many cycles, offering steady performance and predictable replacement intervals. Compact dimensions for easy integration in toolholders With a nominal diameter of 1.00 mm, a shank diameter of 3.15 mm and an overall length of 31.5 mm, the design supports use in collets and small chucks common to toolrooms and production lathes. The modest size facilitates quick tool changes and minimal setup time, which helps to keep cycle times low on both prototype and serial jobs. Designed for reliable feeds and general workshop use Specified for centre-hole production to DIN 332 sheet 1 Form R, the drill is suitable for general-purpose centring tasks. Feed guidance indicates efficient material engagement under typical cutting conditions; for steel up to 800 N a recommended feed is 0.02 mm per revolution. Such guidance aids process planning and supports consistent hole quality in everyday machining. For dependable centring performance, choose the TECWERK centre drill via Metav Werkzeuge or request application support from our team at Metav Werkzeuge for tailored recommendations. Technical data Article number: 2000861948NW Product type: Centre drill Manufacturer: TECWERK Material: HSS Execution: without protective countersink Core specifications Diameter: 1.00 mm Overall length: 31.5 mm Shank diameter: 3.15 mm Countersink angle: 60° Cutting direction: right-hand cutting Standard: DIN 333 Form R Feed in steel up to 800 N: 0.02 mm/rev Special features Form R (with radius) tip For producing centre holes to DIN 332 sheet 1 Form R Intended for general workshop and production use No protective countersink included FAQ What is the primary application of this centre drill? The TECWERK centre drill DIN 333 Form R 1.00 mm (SKU 2000861948NW) is intended for producing accurate centre and pilot holes prior to turning or drilling, improving concentricity in subsequent operations. What materials can be centre-drilled with this tool? Made from HSS, the centre drill is suitable for general workshop materials; for steel under moderate hardness conditions a feed of 0.02 mm per revolution is indicated for reliable results. Which toolholders are compatible with the shank size? The 3.15 mm shank is compatible with collets and small chucks that accept this diameter; appropriate clamping ensures concentricity and safe operation. How does the Form R geometry affect hole quality? The Form R tip includes a small radius that promotes clean centring and reduces the risk of chatter, producing a more reliable pilot for subsequent machining steps. Is a protective countersink included? This execution is supplied without a protective countersink, allowing direct centre-hole production per DIN 332 sheet 1 Form R. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
1.1mm HSS Twist Drill DIN 338 ,short, roll forged, black, Type N - MetavCUT
Twist Drill — Type N, Diameter 1.1 mm, 118° Tip, Short, Black, HSS, DIN 338 (MetavCUT) A Twist Drill Type N short HSS bit for precise metal drilling in Drilling Machines. Short design for high stability Ideal for Metal Drilling with Type N geometry 118° Tip Angle for better centring on surfaces HSS construction for toughness and re‑sharpening Conforms to DIN 338 short twist drill standard Precision and Stability for Tough Metal Tasks The short design of this Twist Drill ensures markedly reduced deflection and higher concentricity during drilling operations, which is essential when working with metallic components that demand tight tolerances. Thanks to the HSS material and the limited overhang, the tool resists bending and provides a more consistent Hole Quality. This stability means fewer rejects and less rework when producing precision Parts or preparing fastener holes in thin or thick Metal sheets. Engineered Tip Geometry for Reliable Starts A 118° Tip Angle combines good penetration with dependable centring on slightly curved or uneven surfaces. The moderated Tip Geometry reduces walking at the start of the cut and allows a controlled entry into materials such as unalloyed or alloyed Steel and Cast Iron. For users unfamiliar with angles: a smaller tip angle aids initial positioning, while a larger angle shortens the initial contact time; the 118° compromise is therefore widely used for versatile Metalworking applications. Machine Compatibility and Practical Application Designed for use in a Drilling Machine, this short Type N bit is well suited to tasks where tool rigidity influences result quality. With a Diameter of 1.1 mm, a Spiral Length of 14 mm and an Overall Length of 36 mm, the bit provides a balanced cutting zone and chip evacuation for small to medium depth holes. The normal-helix geometry supports chip removal in many ferrous and non-ferrous Metals while allowing straightforward re‑sharpening when necessary. Durability, Standards and Who Benefits Most Manufactured from HSS according to DIN 338 for short twist drills, this tool offers a reliable combination of toughness and heat resistance for repeated drilling cycles. The Type N geometry targets Metalworkers, tool rooms and workshops that require a versatile, easy-to-maintain drill for production and repair tasks. For professionals and advanced hobbyists alike, the short format brings improved control and a longer service life under typical workshop conditions. MetavCUT’s Twist Drill Type N is recommended for precision metalworking; for technical guidance or to confirm suitability contact METAV Werkzeuge — Email: info@metav-werkzeuge.com — Phone: +49 2822 7131930 — WhatsApp: +49 170 2837271 Technical Specifications Designation: Twist Drill Brand: MetavCUT SKU: 40011-FDA Diameter: 1.1 mm Tip Angle: 118° Spiral Length: 14 mm Overall Length: 36 mm Material: HSS Type: Type N Execution: Short Colour: Black For Drill Machine: Drilling Machine Application: Drills for Metal Standard: DIN 338 Packaging Unit: 10 Hersteller: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; info@metav-werkzeuge.com FAQ What is the Twist Drill used for and which materials can it handle? The Twist Drill from MetavCUT (Type N) is primarily intended for drilling Metal; its HSS composition and normal-helix geometry make it suitable for alloyed and unalloyed Steel, Cast Iron, Non‑Ferrous Metals and selected Plastics, providing robust performance in workshop and production environments. Which three drill types are commonly distinguished? Commonly, drills are categorised as Metal Drill, Wood Drill and Masonry/Concrete Drill, and the Twist Drill (MetavCUT, Type N) belongs to the Metal Drill group designed for ferrous and non‑ferrous materials. What is a Twist Drill mainly used for? A Twist Drill is mainly applied when machining high‑strength materials and for larger hole diameters; its shape allows straightforward re‑grinding and it withstands higher loads, making it the go‑to tool for many metalworking tasks. Why are Twist Drills point‑sharpened? Point‑sharpening reduces the chisel edge at the tip, significantly lowering friction and feed forces; as a result the Twist Drill centres more reliably and requires less operator input during penetration.
1.1mm HSS-G Twist Drill DIN 338 ,short, bright finished, Type N - MetavCUT
Twist Drill — Type N short HSS‑G metal drill, Ø 1.1 mm, 118° tip, bright finished, fully ground shank, DIN 338, Profi Line by MetavCUT The Twist Drill is a short HSS‑G metal drill designed for precision work in Drilling Machines, offering high stability and fast penetration for demanding metal applications. Short design for increased drilling stability HSS‑G hardened steel for sharp cutting 118° tip angle for easy penetration Fully ground shank for high concentricity DIN 338 standard for consistent dimensions Faster, more stable metal drilling for professional results The short design of this HSS‑G drill reduces the unsupported length outside the chuck, which significantly lowers deflection and vibration during cutting. This results in higher stability and more consistent hole geometry when machining steel and cast materials. According to the manufacturer data, the ground HSS construction permits up to 40% faster drilling with 50% less feed force compared with conventional HSS variants, making it an efficient choice for time‑critical metalworking tasks. Precise cutting geometry that improves hole quality A 118° tip angle combined with the fully ground flute geometry produces clean chip evacuation and better centring on curved or uneven surfaces. The ground manufacturing process (HSS‑G) creates very sharp cutting edges and excellent runout accuracy, which benefits finish and tolerance adherence in series production. For operations that require reproducible results, adherence to DIN 338 ensures standardised dimensions and compatibility with tool holders and reamers. Ideal applications and user groups This short Type N Twist Drill is optimised for use in Drilling Machines and is particularly suited to professionals working with alloyed and unalloyed steel, cast steel, cast iron, sintered iron, malleable iron, non‑ferrous metals and hard plastics. Toolrooms, maintenance workshops and small series manufacturers will appreciate the combination of precision and robustness. Because the ground form can be more brittle than rolled versions, stationary machine use with appropriate cooling is recommended for maximum tool life. Practical advice on sharpening, feeding and material choice The tip geometry and the controlled sharpening reduce the cross‑edge at the point, lowering friction and therefore the required feed force while improving centring in the Workpiece. When resharpening is needed, the fully ground profile allows straightforward regrinding but requires care to maintain the original point angle. For softer materials like aluminium or wood, consider that Type N drills are engineered primarily for metal; they will work in softer substrates but may not deliver the same surface quality or guidance as dedicated wood or masonry drills. Strong recommendation from MetavCUT Profi Line: the short HSS‑G Twist Drill is the expert choice for precise metal drilling — for individual advice or to confirm suitability for your application contact METAV Werkzeuge by eMail at info@metav-werkzeuge.com, by phone at +49 2822 7131930 or via WhatsApp at +49 170 2837271 Technical Data Bezeichnung: Twist Drill Marke: MetavCUT SKU: 48011-FDA Typ: Type N Ausführung: short Durchmesser: 1.1 mm Gesamtlänge: 40 mm Spirallänge: 18 mm Spitzenwinkel: 118° Material: HSS‑G Schaft Ausführung: fully ground Farbe: bright finished Anwendung: Drills for metal Für Bohrmaschine: Drilling Machine Modellserie: Profi Line Norm: DIN 338 Hersteller: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; info@metav-werkzeuge.com FAQ What are Twist Drills used for? The Twist Drill (MetavCUT, Type N) is primarily used for machining high‑strength materials and larger diameters in metalworking. This design is easy to regrind and withstands higher loads, which makes it suitable for demanding operations in steel, cast materials and non‑ferrous metals. Which three drill types exist? The Twist Drill (MetavCUT, Type N) belongs to the metal‑drill category; the three main drill types are metal drills, wood drills and stone/concrete drills, each optimised for its respective material and cutting conditions. Can the Twist Drill (MetavCUT, Type N) be used in a hand drill? The short Type N Twist Drill is designed for machine use in Drilling Machines for best concentricity and cooling. It can be used in a hand drill for light tasks, but for demanding or precision work the MetavCUT recommendation is to use a suitable machine and coolant to avoid premature breakage.
1.25mm Centre Drill DIN 333 Form A 60° HSS Right-Hand, Pack of 5 - TECWERK
Take advantage of the HSS construction and the DIN 333 Form A geometry with a 60° countersink for reliable centre preparation and repeatable positioning; order via Metav Werkzeuge or consult the Metav advisors for application-specific guidance. Centre drill DIN 333 Form A, 1.25 mm HSS – TECWERK The Centre drill DIN 333 Form A 1.25 mm is a short pilot and countersink combination designed for accurate 60° centre holes in metalworking preparation. HSS ground for high dimensional stability DIN 333 Form A geometry with 60° angle Suitable for general-purpose centre drilling Consistent positioning for downstream machining The combination of solid HSS construction and the standardised DIN 333 geometry delivers a dependable method for producing clean centre holes prior to turning or drilling. The integrated pilot and countersink ensure concentric pre‑centres with a defined 60° seating, reducing runout when transferring work between centres or when starting conventional drills. Because the tool is specified as Form A, the pilot and chamfer are matched to the standard, which simplifies inspection and tool replacement in serial production. The right‑hand cutting design and the specified feed behaviour contribute to predictable chip formation and less set‑up time. Proven geometry for reliable cutting performance The 60° tip angle and the compact Form A profile are optimised for stable initial engagement and minimal wandering on curved or uneven surfaces. With a nominal diameter of 1.25 mm, the tool is suitable for fine centre preparation on small shafts and workpieces where accuracy matters. The data sheet specifies a recommended feed in steel up to 800 N of 0.02 mm/rev, which translates into smooth cutting and a reduced risk of burrs at the hole edge. The combination of these measurable parameters supports throughput optimisation and quality assurance in batch processing. Practical use and material considerations This short centre drill is intended for general use in metalworking and offers a straightforward solution where a defined centre is required before subsequent machining operations. The right-hand cutting direction matches standard spindle rotation; the HSS substrate provides toughness for interrupted cuts and everyday workshop use. For applications requiring different materials or harder alloys, check the tool list for specific grades or coatings; for standard steel and cast components the HSS, DIN 333 specification and the compact geometry provide a robust, low‑maintenance option that helps to reduce rejects and rework. Contact Metav Werkzeuge today for tailored advice on integrating this TECWERK centre drill into existing workflows or to request batch availability information from the Emmerich quality hub Technical data Article number: 2000861803NW Label: Zentrierbohrer DIN 333 Form A D.1,25mm HSS re.TECWERK Manufacturer SKU: 2000861803NW Facts Nominal diameter: 1.25 mm Countersink angle: 60° Form: A Material: HSS Cutting direction: right‑hand Pack size: 5 Feed in steel up to 800 N: 0.02 mm/rev Special features DIN 333 standard geometry For producing centre holes according to DIN 332 without protective countersink General‑purpose centre drilling Short pilot and countersink combination Right‑hand cutting FAQ How does DIN 333 Form A differ from other centre drill forms? Form A combines a pilot and a 60° countersink in a compact geometry; the TECWERK centre drill to DIN 333 provides a standardised seating angle and pilot length for consistent centre hole preparation. Is the 1.25 mm size suitable for small shaft centres? Yes, the 1.25 mm nominal diameter is intended for fine centre preparation on small shafts and workpieces where precise seating and low runout are required. What cutting parameters are recommended for steel? For steel up to the specified condition, a feed of 0.02 mm/rev is given; this setting promotes stable chip removal and reduces burr formation when using the HSS centre drill. Can this centre drill be used on hardened materials? The tool is manufactured from HSS and is intended for general workshop materials; for pre‑hardened or high‑alloy materials, alternative grades or coated variants should be considered. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
1.25mm Centre Drill DIN 333 Form A 60° Point HSS-Co Right-Hand Cut For >800 N/mm² Materials - TECWERK
Take advantage of a robust HSS‑Co design, precise 60° centring geometry and a slim Ø 1.25 mm diameter for reliable centre-hole production in high‑strength steels; order via Metav Werkzeuge or contact the consultants for application advice. TECWERK centre drill DIN 333 Form A, HSS‑Co, Ø 1.25 mm The TECWERK centre drill DIN 333 Form A is a compact centre‑drill for producing DIN‑compliant centre holes in high‑strength and corrosion‑resistant steels, designed for reliable positioning and repeatable pre‑drilling in demanding shop environments HSS‑Co construction for high strength DIN 333 Form A specification 60° centre angle for accurate centring Consistent centring for high‑strength materials This centre‑drill is made from HSS‑Co, an alloyed high‑speed steel that combines hardness with toughness for demanding cutting tasks. The tool is specified for materials with a tensile strength above 800 N/mm² and for CrNi steels that are stainless, acid‑ and heat‑resistant. The 60° centring angle and the Form A geometry ensure stable initial engagement and reduce the risk of walking, delivering precise centre holes essential for subsequent drilling or turning operations. Geometry and dimensions optimised for workshop repeatability Engineered to DIN 333 with a total length of 31.5 mm and a slender Ø 1.25 mm point, the tool provides a compact footprint that suits toolholders and small chucks. The 3.15 mm shank is sized for secure clamping while maintaining concentricity. Together, these dimensions support repeatable positioning, reducing setup time and improving first‑pass accuracy on the workpiece. Cutting performance tuned for efficiency With a right‑hand cutting direction and a recommended feed of 0.02 mm/rev in steel up to 800 N, the drill balances low cutting forces with clean formation of the centre dimple. The cobalt‑alloyed substrate sustains edge integrity at elevated contact stresses, enabling longer tool life and fewer interruptions in production. For workshops aiming to streamline workflow, this combination offers a measurable increase in process reliability. Practical use and handling in production environments Supplied without a protective countersink, the tool is intended specifically for manufacturing centre holes to DIN 332 and pairs well with standard centre‑drilling sequences. Packaged in sets of 5 units, it is suitable for small series and routine maintenance inventories. For technical clarification or material‑specific recommendations, Metav Werkzeuge can provide data and application guidance by email or phone. Contact Metav Werkzeuge for tailored application support or to order this TECWERK centre drill directly and secure reliable supply from Emmerich. Technical data Article number: 2000861578NW Product type: Centre drill Manufacturer: TECWERK Facts Diameter: 1.25 mm Total length: 31.5 mm Shank diameter: 3.15 mm Countersink angle: 60° Cutting direction: right‑hand cutting Recommended feed in steel ≤ 800 N: 0.02 mm/rev Packaging unit: 5 Special features Material: HSS‑Co DIN 333 · Form A For producing centre holes according to DIN 332 without protective countersink Suitable for materials with tensile strength > 800 N/mm² Suitable for stainless, acid‑ and heat‑resistant CrNi steels FAQ What materials can this centre drill handle? The TECWERK centre drill is made from HSS‑Co and is suitable for materials with tensile strength above 800 N/mm², including stainless, acid‑ and heat‑resistant CrNi steels. What is the recommended feed for centring in steel? For steel up to 800 N, a feed of 0.02 mm per revolution is recommended for reliable centre formation with this centre drill. Does the tool include a protective countersink? This version is supplied without a protective countersink and is intended for direct production of DIN‑compliant centre holes. Which standards apply to the tool geometry? The tool conforms to DIN 333, Form A and is designed for centring according to DIN 332. What is the shank size and total length? The shank diameter is 3.15 mm and the total length is 31.5 mm for secure clamping and compact handling. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
1.25mm Centre Drill DIN 333 Form A 60° Solid Carbide Right-Hand Without Countersink - TECWERK
Combining precise centring, solid‑carbide wear resistance and a compact shank, this centre drill delivers repeatable pilot holes with minimal setup effort. Order the TECWERK centre drill directly via Metav Werkzeuge or consult our specialists for specification matching. TECWERK centre drill DIN 333 Form A, Ø 1.25 mm, solid carbide, 60° The TECWERK centre drill DIN 333 Form A Ø 1.25 mm is a solid‑carbide tool for producing exact centring holes to DIN 332 standards in a wide range of engineering materials. Solid‑carbide for high wear resistance DIN 333 Form A geometry with 60° angle Right‑hand cutting for conventional toolpaths Shank Ø 3.15 mm for secure clamping Reliable centring for consistent set‑ups The 60° point angle and DIN geometry ensure precision centring that reduces runout and improves subsequent drilling or turning accuracy. Designed to produce centring holes according to DIN 332, the tool guarantees the correct lead‑in for long production runs. The compact Ø 1.25 mm diameter is ideal for small‑part work and applications where tight concentricity is required, enabling stable toolholding and predictable positional accuracy in both manual and CNC operations. Long tool life and wide material compatibility Made from solid carbide, the centre drill combines hardness and thermal stability for extended service life under demanding conditions. It is suitable for machining high‑strength steels, cast steels, grey and hard cast iron, manganese‑steel and CrNi alloys, as well as light and non‑ferrous metals and fibre‑reinforced plastics. The specified feed 0.08 mm/rev in steel (up to 800 N) provides a practical balance between tool life and productivity. The lack of a protective countersink simplifies the geometry and fosters repeatable performance in serial production. Practical handling and integration into workflows With a shank Ø 3.15 mm and an overall length of 31.5 mm the centre drill is compatible with common collets and small toolholders, supporting quick tool changes and stable clamping. The right‑hand cutting orientation suits standard spindle directions and machining cycles. The straightforward Form A design minimises set‑up complexity while delivering the accurate pilot points required for subsequent drills or turning operations. For customers seeking predictable centring with minimal rework, this tool streamlines process steps and reduces scrap rates. Contact Metav Werkzeuge to discuss TECWERK solid‑carbide centre drills and arrange prompt delivery from our Emmerich facility or to request tailored technical advice Technical Data Article number: 2000861989NW Product type: centre drill Manufacturer: TECWERK Material: solid carbide DIN norm: DIN 333 Form: A Cutting direction: right‑hand Countersink angle: 60° Diameter: 1.25 mm Overall length: 31.5 mm Shank diameter: 3.15 mm Execution: without protective countersink Packaging unit: 1 Facts Diameter: 1.25 mm Overall length: 31.5 mm Shank Ø: 3.15 mm Countersink angle: 60° Feed in steel up to 800 N: 0.08 mm/rev Special features Solid‑carbide construction DIN 333 Form A geometry For producing centring holes to DIN 332 Right‑hand cutting Suitable for high‑strength steels, steel castings, grey cast iron, hard cast iron, manganese‑steel, CrNi steels, light and non‑ferrous metals, fibre‑reinforced plastics and other duroplastics No protective countersink FAQ What materials can this centre drill machine handle? The TECWERK centre drill is suitable for a wide range of materials including high‑strength steels, various cast irons, manganese‑steel, CrNi alloys, light and non‑ferrous metals, and fibre‑reinforced plastics as stated in the specification. What does VHM mean and why is it important? VHM denotes solid carbide; this material provides superior hardness and thermal resistance compared with high‑speed steel, resulting in longer tool life and consistent precision for the TECWERK centre drill. Is the 60° angle compatible with standard centring requirements? Yes, the 60° point angle corresponds to DIN guidelines for centring holes and ensures correct seating and guidance for subsequent drills and turning tools. Which shank size is required for clamping this tool? The centre drill has a shank Ø 3.15 mm, which fits common small collets and toolholders designed for slim shanks. Can this tool be used in CNC operations? The tool’s geometry and right‑hand cutting make it fully suitable for CNC and manual machining centres where conventional spindle rotation and standard toolpaths are used. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
1.25mm Centre Drill DIN 333 Form A 60° TiN Coated HSS, Right-Hand - TECWERK
Take advantage of precise centring, robust TiN protection and adherence to DIN 333 for consistent turning set-up. Combine reliable pilot formation with a 60° countersink for standard centre holes and order through Metav Werkzeuge for expert advice and secure supply. TECWERK Centre drill DIN 333 Form A, 1.25 mm — HSS, TiN-coated, 60° The TECWERK Centre drill DIN 333 Form A 1.25 mm is a short centre drill designed to produce accurate centre holes and reliable pilot starts for turning and lathe set-ups in general workshop use. HSS core with durable TiN coating Conforms to DIN 333, Form A 60° countersink for standard centre holes Right-hand cutting, precise pilot point Precise centring for consistent machining set-up The short centre drill provides a controlled pilot and countersink geometry for stable workholding. Made from HSS, the tool creates clean, concentric centre holes that improve the accuracy of subsequent turning operations; this improves repeatability and reduces rework. Compliance with DIN 333 and the 60° angle ensures compatibility with standard lathe centres and tailstock centres, making centre preparation predictable across different machines and setups. The geometry reduces radial play during chucking so the turning process starts from a true position. Coating and material engineered to lower wear and downtime A TiN coating over the high-speed steel substrate increases surface hardness and reduces friction at the cutting edge, extending tool life under routine operating conditions. The right-hand cutting design provides conventional cutting action for standard rotation directions. For steels up to the noted cutting resistance, a recommended feed of 0.02 mm/rev helps maintain edge life and minimise burr formation. The combination of HSS and TiN gives a balance between toughness and wear resistance, lending itself to frequent centre drilling with consistent results. Simple integration into workshop workflows and project schedules The centre drill is suitable for general centre hole production without a protective countersink, following the specifications for DIN 332 where required. Its compact design allows rapid changeover and reliable centring even in repetitive batch operations, supporting efficient throughput. Clear, standardised dimensions make stocking and process planning straightforward, while the robust coating and material choice reduce the need for unexpected tool replacements. The tool’s consistent performance supports short set-up times and predictable production planning. For ordering or technical guidance on the TECWERK centre drill and to secure fast delivery from Metav Werkzeuge, contact our specialists at info@metav-werkzeuge.com or +49 2822 7131930 for tailored advice and immediate next steps. Technical Data Article number: 2000861587NW Label: Zentrierbohrer DIN 333 Form A D.1,25mm HSS TiN re.TECWERK Manufacturer: TECWERK Product type: Centre drill Facts Nominal diameter: 1.25 mm Countersink angle: 60° Cutting direction: right-hand cutting Packaging unit: 5 Special features Material: HSS Coating: TiN Standard: DIN 333, Form A Application: production of centre holes according to DIN 332 without protective countersink Feed in steel up to 800 N: 0.02 mm/rev FAQ What materials is this centre drill suitable for? The TECWERK centre drill DIN 333 Form A 1.25 mm (SKU 2000861587NW) is manufactured in HSS with a TiN coating and is intended for general use in common workshop steels; specific performance depends on the workpiece material and cutting conditions. What does the 60° angle mean for my turning setup? A 60° countersink produces a standard centre geometry compatible with conventional lathe centres and tailstock points, ensuring correct seating and axial alignment during turning operations. How should the feed be set when drilling into steel? For steel up to the stated cutting resistance, follow the guideline of approximately 0.02 mm/rev to maintain tool life and produce a clean pilot without excessive burrs. Is this tool suitable for protective countersinking? The tool is specified for producing centre holes according to DIN 332 without a protective countersink; it is optimised for direct centre preparation rather than extended chamfering operations. Which standard does this centre drill follow? The product follows DIN 333 (Form A) for short centre drills and is intended to create centre holes consistent with the requirements of DIN 332. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
High-performance drill bits for demanding production
Drill bits designed for industrial manufacturing where precision, repeatability and tool life are decisive. Based on a spectrum from HSS and kobalt-alloyed hss-e for universal use to solid carbide drills for high-speed, high-precision serial production, this range covers applications from general engineering to automotive supplier work.
Why these drill bits are essential in the workshop and on the machining centre
Function and behaviour:
- primary use: creating accurate cylindrical holes
- typical machines: CNC machining centres, lathes and drill presses
- key design aspects: optimised chisel edge, defined point angles, flute geometry for reliable chip evacuation
Technical advantages and process benefits:
- reduced feed forces through optimised point geometry
- improved heat control with advanced coatings and, where specified, internal coolant supply
- extended tool life using solid carbide variants and multilayer coatings such as TiN / TiAlN
- process security on challenging materials thanks to tailored materials and geometries
Concrete benefits that boost productivity and quality
- predictable tool life and fewer tool changes, lowering machine downtime
- stable hole quality and consistent tolerances across long runs
- efficient chip control and thermal management for safe deep-hole and hardened-material drilling
- suitability across a wide material range, reducing the need for multiple specialised tools
Metav as a reliable partner for high-precision tooling
Metav combines decades of sector expertise with a broad, dependable offering from its Emmerich facility. With over 48,000 customers and more than 250,000 products, Metav positions its range of drill bits, twist drills and indexable drills as a practical, quality-first choice for procurement managers and production engineers seeking dependable supply and technical competence.
Technical data (at a glance)
- material: HSS, kobalt-alloyed hss-e, solid carbide
- coatings: TiN, TiAlN, advanced nanocoatings
- coolant option: internal coolant feed where specified
- typical applications: mild steel, high-alloy stainless steel, cast iron, non-ferrous metals, technical plastics, hardened materials (use solid carbide variants)
- tool types available: twist drills, solid carbide drills, indexable drills, centre and pilot drills, step drills
FAQ
What is the difference between hss and solid carbide drill bits?
HSS drill bits offer toughness and resistance to breakage for general machining, while solid carbide drills provide higher wear resistance and are the preferred choice for high-speed, high-volume machining and hardened materials.
Which coatings improve tool life for industrial drilling?
Coatings such as TiN and TiAlN increase surface hardness and thermal stability; when combined with the correct drill geometry and, if available, internal coolant, they significantly extend the service life of drill bits.
Can these drill bits be used on CNC machining centres for deep holes?
Yes. Drill bits designed with optimised flute geometry and internal coolant supply are suited to deep-hole machining on CNC machining centres, ensuring controlled chip evacuation and heat management.
How should I choose between twist drills, solid carbide drills and indexable drills?
Select twist drills for general-purpose drilling, solid carbide drills for high-speed and hardened-material applications, and indexable drills for large-diameter holes where insert changes offer economic advantages.
Why choose Metav for drill bits and drilling solutions?
Metav offers a comprehensive selection of drill bits, twist drills and indexable drills combined with sector expertise, centralised supply from Emmerich and proven reliability across thousands of industrial customers.
