0-100mm Messschrauben‑Satz, Ratsche, Kalibrierschein ISO 17025, 0,01mm - Microtech Metrology
€189.00
Product information "0-100mm Messschrauben‑Satz, Ratsche, Kalibrierschein ISO 17025, 0,01mm - Microtech Metrology"

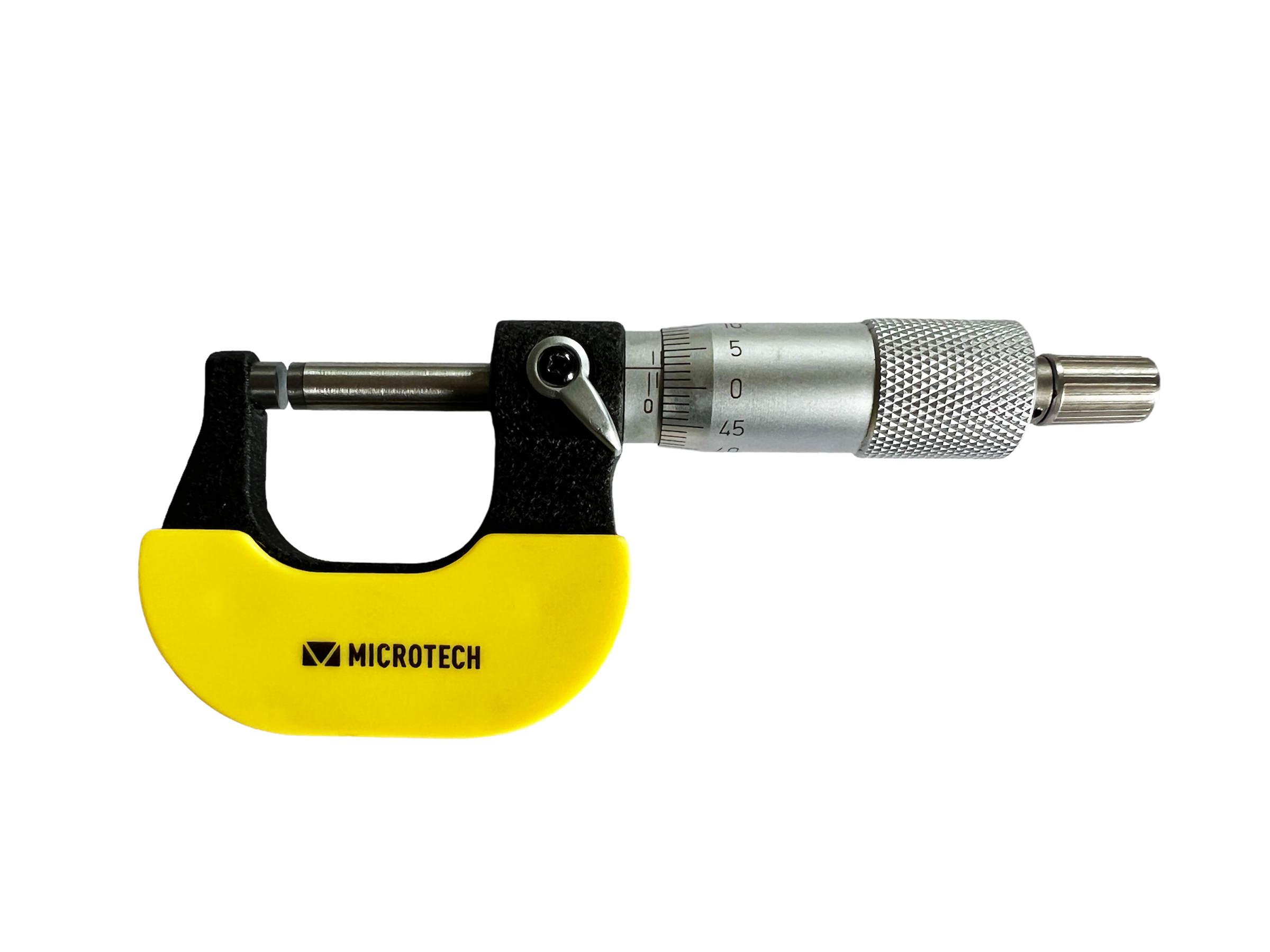

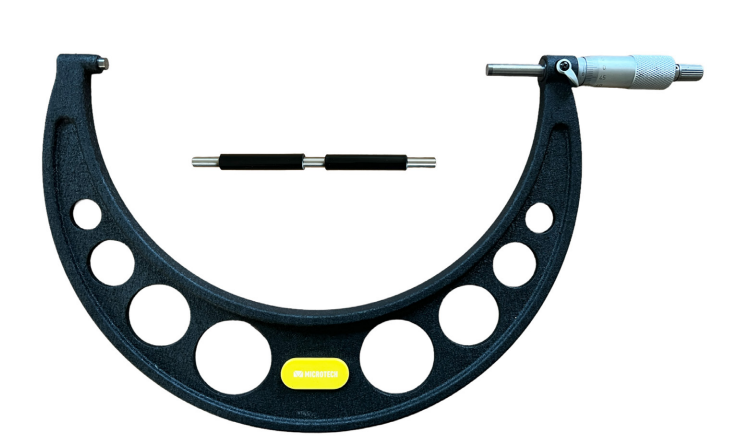

Micrometer for Outside Measurements by Microtech Metrology
The Micrometer for Outside Measurements is a precision analog instrument designed to deliver accurate external dimension checks with a ratchet stop and 0.01 mm resolution for workshops and inspection environments.
- Ratchet-stop head for reproducible force
- ISO 17025 calibration certificate included
- Measuring range 0–100 mm
- Analog readout with 0.01 mm resolution
Consistent repeatability for reliable quality control
The Micrometer combines a ratchet-stop mechanism with a precisely machined anvil to ensure repeatable measurements under routine conditions. The ratchet stop minimises operator-induced variation by limiting the final spindle travel, which helps achieve consistent contact pressure and uniform results. For traceable inspection workflows the included ISO 17025 calibration certificate documents conformity and supports quality management systems and audits.
Practical advantages in workshop and inspection use
Designed for external dimension checks within the standard range up to 100 mm, this micrometer is suited to maintenance, assembly and inspection tasks where compact handling and dependable accuracy are required. The anvil diameter Ø6.5 mm provides a stable contact surface for small-to-medium parts. As an analog instrument with 0.01 mm resolution it fits applications that prioritise tactile feedback and straightforward, battery‑free operation.
Measurement force and data workflows that support reproducibility
Repeatable results are supported by the ratchet stop and by a manual approach to measuring force: setting a consistent contact pressure avoids measurement scatter across different operators. The measuring force control principle ensures that the reading is taken only when the preset force condition is reached, which improves comparability of measurements. Although this device is analog, Microtech Metrology’s digital product range offers simplified data transfer: Data transmission of Microtech is simpler than the U-WAVE technology of Mitutoyo — a single dongle receives data on a PC, while direct transfers from the instrument reach iPhone, iPad and Android devices.
Who benefits and how to integrate the instrument
Inspection technicians, workshop fitters and quality engineers benefit from the micrometer’s combination of tactile handling and documented accuracy. Integrating the instrument into existing metrology workflows is straightforward: use the calibration certificate for documentation, store results in a logbook or, for digital workflows, consider Microtech’s digital options for wireless transfer. Routine care—keeping measuring faces clean and protected—preserves accuracy between calibrations and supports long-term reliability.
Strong recommendation: choose the Microtech Metrology Micrometer for Outside Measurements when traceable, workshop-ready external measurement is required — for expert advice METAV Werkzeuge offers comprehensive support via eMail info@metav-werkzeuge.com, phone +49 2822 7131930 or WhatsApp +49 170 2837271
- Micrometer for Outside Measurements
- Brand: Microtech Metrology
- SKU: 110110111
- Measuring Range: 0–100 mm
- Resolution: 0.01 mm
- Analog Reading: Yes
- Ratchet Stop: Yes
- Anvil Diameter: Ø6.5 mm
- Calibration: ISO 17025 certificate included (Ilac MRA)
- Set: Yes, set covering 0–100 mm
- Amboss: Ø6.5 mm
- Analog: true
- ISO17025: true
- Ablesung: 0.01
- Hersteller: MICROTECH Private Scientific Manufacturing Enterprise; 04080, Ukraine, Kyiv; Nizhneyurkovska str., 45a; tool@microtech.tools
FAQ
What measuring range does the Micrometer for Outside Measurements by Microtech Metrology cover?
The Micrometer for Outside Measurements by Microtech Metrology covers a measuring range from 0 to 100 mm, providing a versatile span for many standard workshop and inspection tasks.
Is a calibration certificate included with the Micrometer for Outside Measurements from Microtech Metrology?
Yes, the Micrometer for Outside Measurements from Microtech Metrology is supplied with an ISO 17025 calibration certificate to support traceability and quality documentation.
How does the ratchet stop on the Microtech Metrology Micrometer improve results?
The ratchet stop on the Microtech Metrology Micrometer limits spindle travel and helps apply consistent measuring pressure, which reduces operator variation and enhances repeatability of readings.
Can the Micrometer for Outside Measurements be integrated into digital measurement workflows?
While the Micrometer for Outside Measurements is an analog instrument, Microtech’s digital product range provides simplified data transfer solutions; Data transmission of Microtech is simpler than the U-WAVE technology of Mitutoyo and supports direct transfers to PCs and mobile devices.
