Precision cut-off tools for accurate grooving and part-off operations
Cut-off tools are narrow holder systems for lathes designed to produce precise grooves and part-offs, offering reliable control when machining steels and other workpiece materials where clean separation is essential. They serve as either solid clamp-style holders or flat tool blades fitted with indexable carbide inserts, and when equipped with internal coolant channels they deliver high-pressure coolant directly to the insert to control heat and evacuate chips efficiently. Using these tools reduces the risk of chip jamming, surface damage and sudden tool failure while improving repeatability, particularly in deep grooving and tough materials where external coolant is insufficient. Key advantages include enhanced cutting stability, extended insert life and consistent part quality through optimised chip evacuation and thermal management.
110mm 3.45mm Cutting Sword For SP 400 Indexable Inserts 26mm Height, 21.4mm Cut Height - Teknik Makina
Take advantage of reliable compatibility with Korloy indexable inserts, precise cutting geometry and a robust blade profile to keep parting processes stable and efficient. Order the parting blade directly via Metav Werkzeuge or consult our advisors for integration guidance. Parting Blade KL42TM — parting/grooving blade with 26 mm blade height, compatible with Korloy SP 400 Parting Blade KL42TM is designed for accurate parting and grooving in lathe operations, suited for use with Korloy SP 400 indexable inserts and standard parting holders Compatible with Korloy SP 400 inserts Cutting height 21.4 mm for deep grooves Blade height 26 mm for stable clamping 110 mm length, precision machined Minimise downtime with trusted insert compatibility The KL42TM is engineered for seamless use with Korloy SP 400 indexable inserts, which reduces set-up time and simplifies inventory management. Because the blade accepts a common insert format, exchanges are straightforward and tool change frequency can be reduced. This compatibility is particularly valuable in production environments where consistency and uptime are critical; the result is a more predictable machining schedule and fewer interruptions to workflow. Predictable cutting performance through precise geometry A 26 mm blade height combined with a 21.4 mm cutting height and 3.45 mm blade width provides a balance between rigidity and minimal material removal, which helps control vibration and chip formation. The defined cutting height ensures the insert sits at the correct centre height in most standard holders, improving surface finish and dimensional repeatability. For machinists less familiar with the terminology: cutting height denotes the usable height of the insert edge during parting, while blade height refers to the section of the blade that is clamped—both influence stability and cutting behaviour. Easy integration into existing tool setups for faster throughput At 110 mm length, the blade is compatible with a wide range of parting tool holders and can be integrated without major modifications to existing tooling systems. The profile is precision machined to ensure secure seating in the clamp and consistent alignment of the insert, which reduces rework and scrap. This practical design reduces the need for bespoke tooling and supports smoother transitions when switching jobs, contributing to higher throughput in busy workshops and small series production. Robust handling and workshop confidence The parting blade is made for repetitive duties where stable clamping and predictable wear are required. The geometry promotes reliable chip flow and reduces the risk of side loads that can cause chatter. For purchasing and workshop managers, the combination of compatibility, measurable geometry and proven build quality translates into lower process risk and fewer emergency tool changes. Metav’s role as a resilient supply partner further supports this reliability through consistent availability and technical guidance where needed. Contact Metav Werkzeuge today to secure Teknik Makina’s KL42TM parting blade for reliable parting and grooving operations, or ask our technical advisors for tailored holder compatibility and application advice — info@metav-werkzeuge.com / +49 2822 7131930 Technical Data Article number: KL42TM Manufacturer: Teknik Makina Product name: Stechschwerter Facts Blade height: 26 mm Cutting height: 21.4 mm Blade width: 3.45 mm Length: 110 mm ECLASS: 21181018 Special features Compatible with Korloy SP 400 indexable inserts Designed for parting and grooving operations Suitable for standard parting tool holders FAQ What insert types fit this parting blade? The parting blade KL42TM is compatible with Korloy SP 400 indexable inserts as stated in the product data. Can the blade be used in standard parting holders? Yes, the 110 mm length and profile are intended for integration with common parting tool holders; adapter requirements depend on the specific holder model. What are the key dimensions that determine stability? Primary dimensions are the 26 mm blade height, 21.4 mm cutting height and 3.45 mm blade width, which together affect clamping rigidity and cutting behaviour. Is this blade suitable for heavy interrupted cuts? The KL42TM’s dimensions and robust blade geometry are aimed at providing stable clamping for typical parting and grooving tasks; however, suitability for heavy interrupted cuts should be evaluated against machine power and holder rigidity Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
110mm Cut-Off Blade 3.45mm Width 21.4mm Cutting Height, KGMN 400 Compatible - Teknik Makina
Benefit from the combination of precise cutting geometry, a 26 mm blade height and a 36 mm maximum cutting depth for consistent parting results; secure clamping and compatibility with KGMN 400 inserts ensure reliable production. Order the parting blade directly via Metav Werkzeuge or consult our advisors for tailored selection. KL39TM parting blade – parting tool blade with 26 mm blade height and 36 mm max cutting depth (Teknik Cutting Tools) The KL39TM parting blade is a compact, high-rigidity parting tool blade designed for clean cut-off operations in turning applications and intended for use with KGMN 400 indexable inserts 26 mm blade height for deep cuts 36 mm maximum cutting depth Compatible with KGMN 400 inserts 110 mm overall length for secure mounting Precision cut-off performance for stable production The KL39TM delivers consistent cutting results through a combination of robust geometry and clearly defined dimensions. With a 26 mm blade height and a 21.4 mm cutting height, the design provides a stable cutting edge position that reduces deflection during parting operations. The compatibility with KGMN 400 indexable inserts enables quick insert changes and predictable tool behaviour; this reduces cycle-time variability and supports tight process control in series production. The result is a higher first-pass yield and fewer interrupted setups, which improves throughput on the shop floor. Rigidity and secure clamping reduce vibration and tool wear A narrow blade width of 3.45 mm together with the 110 mm overall length yields a stiff, well-supported tool that resists chatter when correctly mounted. The clamp allowance — a maximum stepover depth of 36 mm in the clamp — offers flexibility for deeper parting jobs while maintaining secure clamping. Reduced vibration translates into longer insert life and improved surface finish on workpieces. For operations that require repeatable quality, the combination of a slim, rigid blade and controlled clamping produces measurable gains in tool life and component consistency. Simple integration with Korloy-compatible inserts and standard holders The KL39TM is specified for use with KGMN 400 inserts and is compatible with inserts from Korloy, enabling straightforward procurement and stocking strategies. The indexable-insert approach allows inserts to be rotated or replaced quickly without replacing the entire blade, which supports rapid changeover and lower consumable costs over time. Given its defined dimensions and insert compatibility, the blade integrates easily into existing parting holders and machining sequences, making it suitable for both single-machine shops and larger turning centres seeking dependable parting solutions. Contact Metav Werkzeuge for expert advice on Teknik Cutting Tools parting blades such as the KL39TM and to confirm availability from our Emmerich stock Technical data Article number: KL39TM Manufacturer: Teknik Makina ECLASS: 21181018 Compatible insert manufacturer: Korloy Compatible insert: KGMN 400 Core dimensions Blade height: 26 mm Cutting height: 21.4 mm Blade width: 3.45 mm Overall length: 110 mm Max cutting depth in clamp: 36 mm Features Designed for KGMN 400 indexable inserts Suitable for Korloy-manufactured inserts Intended for parting / cut-off applications Clamp-compatible with up to 36 mm depth FAQ Which inserts fit this parting blade? The parting blade is specified for KGMN 400 indexable inserts and is listed as compatible with Korloy-manufactured inserts for straightforward replacement. What is the maximum cutting depth achievable in the clamp? The clamp allows a maximum cutting depth of 36 mm, enabling deeper parting operations while maintaining a secure hold. How narrow is the blade and why does that matter? The blade width is 3.45 mm; a narrower blade reduces material waste and helps maintain rigidity, which improves surface finish and reduces vibration. Can the blade be used on standard parting holders? The dimensions (110 mm overall length and the specified blade height) are intended to integrate with common clamp-style holders used in turning; compatibility should be checked against holder dimensions before fitting. Who supplies this product and where can it be ordered? This parting blade is supplied by Teknik Cutting Tools (Teknik Makina) and is available through Metav Werkzeuge; the SKU is KL39TM. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
110mm Grooving Blade 1.65mm Wide 21.4mm Cut Height 26mm Blade Height, for KGMN 200 - Teknik Makina
Take advantage of the combination of narrow cutting kerf and stable clamping for efficient parting operations; compatible with Korloy KGMN 200 indexable inserts. Order directly via Metav Werkzeuge or consult our specialists for application advice. Stechschwerter — Parting blade with 1.65 mm kerf and 26 mm blade height (Teknik Makina) The Stechschwerter is a parting blade designed for precision parting and grooving in lathe operations, compatible with KGMN 200 indexable inserts and intended for industrial turning applications Compatible with Korloy KGMN 200 inserts Precision 1.65 mm cutting width Blade height 26 mm for stable clamping 110 mm overall length for easy handling Minimise material waste with a narrow, consistent kerf The blade’s 1.65 mm cutting width delivers a narrow kerf that directly reduces scrap and material costs while maintaining throughput. In parting operations, a slim cutting profile means less removed material per cut and faster chip evacuation; this supports higher workpiece yields without sacrificing cycle consistency. Designed to work with KGMN 200 indexable inserts, the assembly offers the repeatability required for batch production and frequent setup changes, ensuring process reliability across shifts. Stable clamping and consistent surface finish for dependable runs A 26 mm blade height combined with a 21.4 mm cutting height supports secure fixation in standard clamp holders, reducing vibration and improving surface finish at the parting line. The blade’s 110 mm overall length is balanced for operator handling and machine clearance, while the holder’s maximum engagement depth of 36 mm allows for deeper parting tasks where required. These mechanical characteristics translate into fewer rejects and reduced need for secondary finishing, delivering measurable efficiency gains for job shops and production lines. Practical economy and process advantages for metalworking shops Using an indexable-insert system with this parting blade simplifies maintenance: worn inserts can be rotated or replaced without discarding the blade, cutting tooling expenditure over time. Compatibility with widely available Korloy inserts ensures straightforward sourcing of grades optimised for various materials. The result is a solution that supports fast first-piece approval and predictable production rhythms, helping procurement and engineering teams to plan tooling stocks with confidence. Where this blade fits into the workflow The component is primarily for turning operations that require precise parting off and grooving, suitable for use in workshop and light-industrial production environments. Its geometry and insert interface make it particularly useful where minimal kerf and strong clamping are priorities—for example, in bar turning, batch parting, and finish-grooving tasks. For application-specific setup or to confirm insert grade selection, Metav’s technical advisors can provide guidance tailored to the machining scenario. Contact Metav Werkzeuge in Emmerich for application advice and to secure the Teknik Makina parting blade; email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: KL37TM Brand: Teknik Makina Suitable for inserts: KGMN 200 Compatible insert manufacturer: Korloy Facts Blade height: 26 mm Cutting height: 21.4 mm Cutting width: 1.65 mm Overall length: 110 mm Max holder engagement / cutting depth: 36 mm SKU: KL37TM Special features Parting blade for indexable inserts Designed for stable clamping in turn-milling setups Reduced kerf for lower material waste FAQ Which inserts fit this parting blade? The parting blade is configured for KGMN 200 indexable inserts; Korloy-specified insert grades for the KGMN 200 family are compatible with the TekniK Makina blade (SKU KL37TM). What are the key dimensions to check before mounting? Check the 26 mm blade height, 21.4 mm cutting height, 1.65 mm cutting width, and the 110 mm overall length to ensure correct fit in the clamping holder and adequate machine clearance. Can this blade be used for deep parting operations? The blade supports a holder engagement of up to 36 mm, which allows for deeper parting where the clamping system and machine setup provide sufficient rigidity. How does the narrow kerf affect production? A 1.65 mm kerf reduces material removal per cut, lowering scrap and improving yield; it also promotes faster chip evacuation in many parting operations. Is the blade suitable for high-volume production? Yes—when combined with indexable inserts such as KGMN 200, the blade offers quick insert changes and consistent repeatability, making it suitable for batch and continuous production. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
110mm Grooving Blade 26mm Height 21.4mm Cut Height for ZT.D4C Indexable Inserts - Teknik Makina
Take advantage of the combination of rigidity and compatibility for consistent, clean parting cuts; the compact dimensions ensure straightforward integration into existing setups. Order the parting blade directly via Metav Werkzeuge or consult our technical advisors for application-specific guidance. Parting blade KL66TM for ZT.D4C indexable inserts — 26 mm height, 110 mm length (Teknik Makina) Parting blade KL66TM is a compact parting blade engineered for accurate cut-off and grooving operations with ZT.D4C indexable inserts. 26 mm blade height for stable performance 110 mm overall length for compact setups 21.4 mm cut height for accurate parting Compatible with ZT.D4C and ZCC inserts Precision and rigidity for clean parting The KL66TM offers precision through a focused geometry that supports stable machining. The combination of a 26 mm blade height and a stiff design reduces deflection during engagement, which directly improves surface finish and repeatability. For shops aiming to avoid rework, the controlled stiffness translates into fewer rejects and more predictable cycle times. Compatibility with ZT.D4C indexable inserts ensures the cutting edge can be renewed quickly without disturbing the holder geometry. Cost-efficient machining with indexable inserts Using indexable inserts as the cutting medium lowers per-part tooling cost by separating the cutting edge from the blade body. The KL66TM accepts ZT.D4C-format inserts and is specified for use with inserts from ZCC, providing straightforward procurement and broad availability. Swapping inserts is faster than regrinding brazed tools, reducing downtime and improving tool utilisation—an efficient route to lower production costs over long runs. Faster set-up and predictable results in familiar tool chains The succinct dimensional data—110 mm length and 21.4 mm cut height—simplifies fixture planning and height setting. These measurable values allow technicians to calculate tool offsets and clearance quickly, which shortens set-up times and reduces guesswork at the lathe. The compact form factor suits crowded tool turrets and makes it simpler to arrange tool sequences for multi-operation turning, improving throughput without compromising safety. Reliable supply and workshop alignment Sourcing through Metav brings an operational advantage: a dependable supply chain and a pragmatic quality filter from Emmerich that supports industrial and trade customers. Metav’s broad range and stock depth help to standardise tooling across workshops, while documented fitment for ZT.D4C inserts keeps procurement predictable. The result is a tool solution that aligns technical performance with practical workshop logistics. Contact Metav Werkzeuge for tailored advice on the Teknik Makina KL66TM parting blade and to arrange delivery from our Emmerich warehouse; phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data Article number: KL66TM Label: Stechschwerter ZT.D4C Manufacturer: Teknik Makina ECLASS: 21181018 Core dimensions Blade height: 26 mm Length: 110 mm Cut height: 21.4 mm Compatibility & features For ZT.D4C indexable inserts Compatible with ZCC indexable inserts Product type: Parting blade FAQ Which insert type fits this blade? The blade is specified for ZT.D4C indexable inserts and listed as compatible with inserts from ZCC; the KL66TM accepts that insert geometry. What are the key dimensions to check when setting up? Important dimensions are the 26 mm blade height, 110 mm overall length, and 21.4 mm cut height; these values determine tool offset and clearance. Is the blade suitable for compact turrets and small lathes? The compact 110 mm length and defined blade height make the KL66TM appropriate for constrained tool layouts where a short, stiff parting solution is required. How does using indexable inserts reduce operating costs? Indexable inserts on this blade allow quick edge renewal without replacing the holder, lowering downtime and reducing per-edge cost across long production runs. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
110mm Grooving Blade 26mm Height 21.4mm Cutting Height - Teknik Makina
Take advantage of the combination of precision, robust clamping dimensions and reliable parting geometry for consistent separation results; order the parting blade directly via Metav Werkzeuge or ask our consultants for compatibility advice. Stechschwerter – Parting blade with 110 mm overall length and 26 mm blade height (Teknik Makina) Stechschwerter is a parting blade designed for clean cut-off operations in industrial turning, offering a compact profile with a 21.4 mm cutting height suitable for stable setup and repeatable separation. Precision parting geometry 110 mm overall length for stable clamping 26 mm blade height, 21.4 mm cutting height For industrial turning and cut-off operations Consistent separation through measured geometry The combination of a defined cutting height and a reinforced blade profile delivers measurable improvement in cut quality. With a 21.4 mm cutting height and 26 mm blade height, the geometry reduces lateral deflection during separation, which translates into fewer secondary operations and less rework. The controlled profile supports predictable chip formation and contributes to a stable machining process, improving cycle reproducibility in serial production runs. Stiffness and clamping for reduced vibration An overall length of 110 mm provides a secure clamping footprint that helps to control vibration and chatter at the tool interface. Reduced vibration directly improves surface finish and extends tool life, so fewer tool changes are required and machine uptime increases. This mechanical stability is particularly useful when performing repeated parting cuts where consistent holding and minimal oscillation are essential for process reliability. Easy integration into existing turning setups The blade’s dimensions are designed to match common parting tool holders; checking the 26 mm blade height against holder capacity ensures quick installation and minimal adjustment. Faster setup leads to less machine downtime and smoother production transitions between batches. Clear dimensional data simplifies compatibility checks and lowers the effort required for tool planning and inventory management. Benefits for shop-floor productivity and quality assurance Adopting a blade with defined cutting parameters promotes a more predictable workflow: fewer scrapped parts, shorter secondary operations and better repeatability across operators and shifts. The compact design supports dense tool-post configurations where space is constrained, while the precise cutting height aids in achieving consistent part lengths and minimises manual finishing. Such predictability supports quality control and strengthens overall process capability. Discuss the Teknik Makina KL75TM parting blade with Metav Werkzeuge to determine the best holder match and delivery options from Emmerich; our consultants will advise on process fit and supply logistics. Technical Data Article number: KL75TM Manufacturer: Teknik Makina Product name: Stechschwerter Core dimensions Overall length: 110 mm Blade height: 26 mm Cutting height: 21.4 mm eClass: 21181018 Special features Parting blade for cut-off operations SKU: KL75TM Category path: Zerspanen > Stechschwerter FAQ What are the key dimensions of this parting blade? The KL75TM parting blade features an overall length of 110 mm, a blade height of 26 mm and a cutting height of 21.4 mm. For which machining tasks is this blade intended? This parting blade is designed for parting and cut-off operations in turning where a defined cutting height and stable clamping are required for repeatable separation. How does the blade height influence performance? A 26 mm blade height offers a solid clamping interface that helps to reduce lateral deflection, improving cut quality and tool life during repetitive parting operations. How should the blade be mounted to achieve best results? Mount the blade in a parting tool holder that accommodates the 26 mm blade height and secure clamping to minimise vibration and ensure consistent cut-off geometry. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
110mm Grooving Holder 26mm Height 21.4mm Cut Height, For ZT.D3C Indexable Inserts - Teknik Makina
Benefit from a stable 26 mm blade height, a 21.4 mm effective cutting height and full compatibility with ZT.D3C indexable inserts — designed to keep turning and parting cycles precise and repeatable; order directly via Metav Werkzeuge or consult our specialists for integration advice. Stechschwerter — Parting blade for ZT.D3C indexable inserts, 26 mm height The Stechschwerter parting blade is designed for precision grooving and parting operations using ZT.D3C indexable inserts in CNC and manual turning applications. Compatible with ZT.D3C indexable inserts 26 mm blade height for rigid clamping 21.4 mm effective cutting height 110 mm length for stable parting operations Consistent process performance through system compatibility The supplied parting blade has been specified for use with ZT.D3C indexable inserts, ensuring straightforward integration into existing toolholders and insert families. Compatibility with ZCC insert geometry reduces setup time and simplifies inventory management, supporting uninterrupted production. By matching insert and blade standards, the system minimises thermal and mechanical variability, which translates into more reliable cycle times and repeatable part quality. Rigid design for accurate cuts and reduced vibration With a 26 mm blade height and 110 mm overall length, the tool provides a solid interface for clamping and support, which reduces chatter during parting processes. The 21.4 mm effective cutting height defines the usable insert projection and helps select the correct insert edge and grade for the intended material. This combination of dimensions improves cut stability and surface finish while lowering the risk of blade deflection in demanding operations. Practical advantages for workshop and production environments The parting blade suits workshops seeking a compact, performance-focused solution for grooving and cut-off tasks. The standardised interface to ZT.D3C inserts keeps tool changeover predictable and fast, which is beneficial for short runs and mixed-batch production. Clear measurable parameters (blade height, cutting height, length) permit precise fixture planning and make tooling behaviour easier to forecast, helping production planners and machinists reduce trial-and-error at the lathe. Integration, availability and supply reliability Supplied under the Teknik Makina designation, the blade is optimised for industrial use and repeatability. Working with an established distributor ensures access to consistent stock levels and documentation for shop-floor reference. Metav’s role as a central European distributor adds a further quality filter and logistical reliability, supporting continuous supply to workshops and small industrial users without compromising product traceability. For technical advice on integrating this Teknik Makina parting blade with a ZT.D3C insert system or to arrange supply via Metav Werkzeuge, contact our consultants by email or phone for detailed recommendations and availability. Technical data Article number: KL65TM ECLASS: 21181018 Label: Stechschwerter ZT.D3C SKU: KL65TM UID: KL65TM Manufacturer: Teknik Makina Facts Blade height: 26 mm Total length: 110 mm Effective cutting height: 21.4 mm Compatible insert type: ZT.D3C Special features Product type: Parting blades Compatible insert manufacturer: ZCC Intended application: Grooving and parting on lathes Supplier: Teknik Cutting Tools / Teknik Makina FAQ What insert family fits this parting blade? The parting blade is designed for ZT.D3C indexable inserts; compatibility with ZCC-manufactured inserts is indicated for correct seating and performance. What are the key dimensions to check before installation? Check the 26 mm blade height, 21.4 mm effective cutting height and 110 mm overall length to ensure correct toolholder fit and insert projection for the intended operation. Is this blade suitable for heavy-duty parting operations? The rigid 26 mm blade height and 110 mm length provide enhanced stability for demanding parting tasks, though final suitability depends on cutting parameters and insert grade selection. Which manufacturer produces this product? This parting blade is supplied under Teknik Makina (Teknik Cutting Tools) and is available as item KL65TM. How does the cutting height affect insert choice? The 21.4 mm cutting height determines the insert projection and edge engagement; selecting an insert geometry matched to this height ensures optimal cutting forces and tool life. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
110mm Grooving Insert Holder 26mm Blade Height 21.4mm Cut Height 2.45mm Width - Teknik Makina
Take advantage of a narrow 2.45 mm kerf and a 21.4 mm effective cutting height for clean, material‑saving parting cuts; the 110 mm shank length adds rigidity for repeatable cycles. Order the tool directly via Metav Werkzeuge or consult the technical advisors for holder pairing and insert selection. Parting Blade KL23TM – compatible with GTN 3 inserts, 2.45 mm blade width A Parting Blade KL23TM designed for precision parting and grooving in CNC turning applications, compatible with GTN 3 indexable inserts for fast tool changes Compatible with GTN 3 indexable inserts 2.45 mm blade width for narrow kerfs 21.4 mm effective cutting height 110 mm shank length for improved stability Accurate parting that reduces waste and rework The slim 2.45 mm blade profile delivers a narrow kerf that minimises material loss and lowers the risk of binding during parting. With a cutting height of 21.4 mm, the tool covers a broad range of workpiece diameters while maintaining contact stability; this geometry reduces vibration and contributes to consistent surface finish. The design supports faster cycle times because less material is removed per pass, which can translate into measurable productivity gains on repetitive production runs. Stable shank geometry for reliable tool life A 110 mm overall shank length provides the necessary reach for many lathe setups while preserving stability in the clamping zone. The 26 mm blade height offers a robust interface with standard parting holders and helps to maintain correct alignment under cutting forces. Compatibility with GTN 3 indexable inserts simplifies replenishment and reduces downtime: worn inserts are exchanged quickly without altering the holder, helping to keep machining accuracy and repeatability high over long production runs. Workshop-friendly integration and procurement benefits The parting blade is engineered for straightforward integration into common holder families used in turning shops and subcontract machining. Its compatibility with GTN 3 inserts means stock-keeping is simplified and insert changeover is rapid, reducing setup time between jobs. Sourcing the component through Metav centralises supply and benefits from a tested quality filter based in Emmerich, ensuring consistent product standards and reliable delivery for routine reordering or sudden production needs. Contact Metav Werkzeuge today to confirm holder compatibility and to order the Teknik Cutting Tools Parting Blade KL23TM (GTN 3 compatible) via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: KL23TM Product name: Parting blades (Stechschwerter) Manufacturer: Teknik Makina Facts Blade width: 2.45 mm Cutting height (effective): 21.4 mm Blade/shank height: 26 mm Overall length: 110 mm Compatible inserts: GTN 3 Special features Designed for CNC turning parting operations Fast indexable insert replacement with GTN 3 Robust shank for reduced vibration and improved repeatability FAQ What insert type fits this parting blade? The parting blade KL23TM is compatible with GTN 3 indexable inserts and is designed for quick insert changes without modifying the holder. Which dimensions are critical for holder selection? Key dimensions are the 2.45 mm blade width, 21.4 mm effective cutting height and 110 mm overall length; these determine holder fit and clearance. Is the KL23TM suitable for high‑volume production? Yes, the KL23TM’s narrow kerf and stable shank geometry promote repeatable parting cycles, making it suitable for high‑volume turning where consistent tool life is important. How does GTN 3 compatibility benefit workshop logistics? GTN 3 compatibility standardises insert types across multiple tools, simplifying inventory and enabling faster swaps to reduce machine downtime. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
110mm Grooving Insert Holder 26mm Height 21.4mm Cut Height - Teknik Makina
Take advantage of the combination of stable cutting geometry, compact dimensions and straightforward integration for reliable parting operations on the shop floor; order the parting blades directly via Metav Werkzeuge or consult our specialists for application-specific advice. Parting blades — precision parting blade, 26 mm height · 110 mm length (Teknik Makina) The Parting blades deliver rigid, repeatable cut-off performance for industrial turning and lathe parting applications, designed to be clamped into standard parting toolholders for workshop and production environments 26 mm blade height for stable cutting 110 mm overall length for secure clamping 21.4 mm cutting height for deep parting Suitable for industrial turning applications Increased process stability through optimised geometry The blade’s 26 mm profile increases stiffness where it matters, reducing vibration and the risk of tool chatter during the cut. A higher section cross‑section keeps the active edge aligned with the toolholder so that the cutting height remains consistent from part to part; this is particularly relevant when performing repetitive parting or cut‑off operations. By specifying a 21.4 mm cutting height, the design clarifies the maximum useful engagement of the blade—helpful when matching the tool to the workpiece diameter and machining strategy. These dimensional details translate into fewer rejects and more predictable set‑ups on the shop floor. Easy integration into turning workflows for faster changeovers With an 110 mm overall length, the blade offers enough engagement to be secured firmly in clamping systems while keeping the exposed length manageable for clearance and chip control. The profile is intended for simple clamping rather than complex re‑tooling, which reduces setup time and helps maintain machine availability. For teams moving between long and short runs, the combination of compact length and defined cutting height supports quick swaps and repeatable positioning, enabling predictable cycle times and smoother production scheduling. Consistent quality that supports productivity and material savings A blade that maintains its geometry during operation helps deliver consistent part faces and repeatable separation, lowering scrap rates and downstream rework. The robust cross‑section supports steady cutting conditions, which conserves machine time and contributes to overall shop efficiency. Supplied under the Teknik Makina designation, the blade is a practical option where reliable parting performance is required; pairing this tool with the right toolholder and cutting parameters will maximise consistency and throughput. Contact Metav Werkzeuge today to discuss Teknik Makina parting blades (SKU KL76TM) and secure the right specification for precise lathe parting from our Emmerich stock — call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data SKU: KL76TM Manufacturer: Teknik Makina eClass: 21181018 Dimensions Blade height: 26 mm Overall length: 110 mm Cutting height: 21.4 mm Product details Product type: Parting blades Category: Zerspanen > Stechschwerter Label: Stechschwerter FAQ What are the exact dimensions of the blade? The parting blades have a blade height of 26 mm, an overall length of 110 mm and a cutting height of 21.4 mm (SKU KL76TM, Teknik Makina). Which machining tasks are these blades intended for? These blades are designed for lathe parting and cut‑off operations in industrial turning applications and are suitable where controlled, repeatable separations are required. How deep can the blade cut in a single pass? The specified cutting height of 21.4 mm indicates the maximum useful engagement; actual depth depends on workpiece material and machining parameters. How are the blades mounted in the machine? The blades are clamped into standard parting toolholders; secure clamping and correct alignment ensure stable cutting performance and repeatability. Are these blades suitable for production use? Yes—Teknik Makina parting blades (SKU KL76TM) are intended for industrial turning environments where consistent parting quality and reliable performance support production throughput. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
110mm Grooving Insert Holder 26mm Sword Height 2.45mm Blade Width, For Sandvik N151-3 - Teknik Makina
Take advantage of precise parting with a 26 mm blade height and a slim 2.45 mm cutting width for fine, controlled cut-off work; compatibility with Sandvik N151-3 inserts ensures quick changeover and reduced setup time. Order the parting blade directly via Metav Werkzeuge or ask our consultants if needed. Parting Blade KL52TM — Teknik Makina, 26 mm blade height, Sandvik N151-3 compatible The Parting Blade KL52TM is an insert-mounted parting tool designed for precision grooving and cut-off operations in turning applications, offering steady tool engagement and easy insert replacement. 26 mm blade height for deep grooves 2.45 mm cutting width for fine parting 110 mm overall length for secure clamping Compatible with Sandvik N151-3 inserts High-precision cut-off performance that keeps cycles consistent The combination of a 26 mm blade height and a 21.4 mm effective cut height delivers a controlled engagement depth that supports repeatable parting operations. This geometry reduces deflection during the cut and contributes to consistent surface quality and dimensional accuracy. By specifying a slim 2.45 mm cutting width, the design minimises material waste while enabling close shoulder work; the result is efficient material use and predictable cycle times for production runs. Robust length and shape for stable clamping and reduced vibration An overall 110 mm length gives the toolholder favourable support within common toolpost arrangements, improving stability during abrupt cut-off motions. The extended shank length helps maintain alignment under load and lowers the likelihood of chatter, which in turn can prolong insert life and lower rework rates. Stability-focused geometry like this is particularly valuable in series production where tool integrity directly affects throughput and machine uptime. Straightforward interchangeability with industry-standard inserts Designed to accept Sandvik N151-3 inserts, the tool supports rapid insert changes and broad aftermarket availability, simplifying stock handling and reducing lead times for consumables. Compatibility with a well-known insert family enables flexible tooling strategies: inserts can be selected for finish, wear resistance or cost-efficiency without changing the blade. This approach streamlines logistics and supports a pragmatic maintenance regime for the workshop. Practical application overview and advisory support The blade is intended for precision grooving and parting-off tasks on lathes where insert-mounted solutions are preferred for quick servicing and predictable tool life. For specific clamping setups or recommendations on insert grades and cutting parameters, Metav Werkzeuge’s advisers can provide tailored guidance and help integrate the blade into existing tooling systems. This ensures the tool performs reliably within the chosen machining process and contributes to a smoother production flow. For specification advice or to secure supply of the KL52TM parting blade from Teknik Makina, contact Metav Werkzeuge in Emmerich for prompt technical consultation and delivery: info@metav-werkzeuge.com / +49 2822 7131930 Technical data Article number: KL52TM Manufacturer: Teknik Makina eClass: 21181018 Core measurements Blade height: 26 mm Cutting height: 21.4 mm Blade width: 2.45 mm Overall length: 110 mm Compatibility & features Compatible with Sandvik N151-3 inserts Suitable for insert-mounted parting and grooving FAQ What insert type does this blade accept? The parting blade accepts Sandvik N151-3 inserts, enabling standardised, quick insert changes for consistent machining. Is the KL52TM suitable for deep grooving on standard lathes? Yes, the KL52TM offers a 26 mm blade height and a 21.4 mm cutting height which support deeper groove requirements within appropriate clamping limits. How does the blade width affect material removal? A 2.45 mm cutting width reduces material waste and allows precise parting operations while maintaining sufficient strength for controlled cuts. Can inserts be sourced easily for this blade? Inserts matching Sandvik N151-3 are widely available from established suppliers, simplifying procurement and stocking for production environments. Who can advise on clamping and parameter settings for this blade? Metav Werkzeuge’s technical team can advise on optimal clamping and cutting parameters for the KL52TM to ensure reliable performance in specific turning applications. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
110mm Precision Tool Holder SER 1212 J16-ER16 For 16 ER Inserts Right-Hand Cutting Innenkühlung - Teknik Makina
Take advantage of a compact, ISO-based toolholder that combines standardised fitting with low mass and secure clamping for efficient external threading operations; order the component via Metav Werkzeuge or consult the team for compatibility checks and fast delivery. Clamping holder SER 1212 — right-hand external thread, for 16 ER inserts (Teknik Makina) A clamping holder designed for right-hand external threading, compatible with 16 ER round inserts and the J16‑ER16 boring-bar system for compact lathe setups. Right-hand threading orientation Compatible with 16 ER inserts Total length 110 mm for tight spaces Low weight 0.11 kg reduces vibration Precise thread turning with a standardised holder The SER 1212 designation ensures a standardised fit that simplifies tool management and reduces setup time across batches. Built for external thread turning in a right-hand direction, this clamping system accepts 16 ER inserts and mates with the J16‑ER16 bar format, so interchangeability is maximised. The use of an established ISO-style holder means spare parts and replacement inserts can be stocked with confidence, improving production continuity and lowering administrative overhead. Secure fastening for uninterrupted production A robust clamping arrangement is provided via the specified fastener geometry: the clamping screw uses a Torx T15 drive and the retaining screw is M3.5x11, delivering repeatable torque and firm insert retention. The defined accessory references, including BSP010 shim and TA061 support plate, permit precise seat alignment and safe cutting forces. As a result, tool slippage is minimised and insert life is preserved, which translates directly into fewer stoppages and better process reliability. Compact dimensions for confined machining With a total length of 110 mm, a head width of 16 mm and a cutting height of 22 mm, the holder is tailored to operations where access is limited. The body measures 12 mm in width and 12 mm in height, keeping the overall profile slim and allowing closer approach to the workpiece. At just 0.11 kg, the reduced mass helps lower centrifugal and inertial effects during high‑speed turning, contributing to smoother finishes and improved surface integrity on delicate thread forms. Production-ready engineering for workshop use Designed for external thread applications, the holder is optimised for repeatable mounting and easy insert exchange, which supports throughput-focused workshops. The compact tooling concept and clear specification reduce the risk of mounting errors; the component's ISO-based labelling and compatibility approach allow purchasing and inventory processes to be streamlined. For manufacturers aiming to keep machine downtime low while maintaining consistent thread quality, this holder provides a pragmatic balance of simplicity and precision. For technical confirmation and rapid supply of the Teknik Makina SER 1212 clamping holder (SKU D500TM), contact Metav Werkzeuge: info@metav-werkzeuge.com or call +49 2822 7131930 for specialist advice and prompt dispatch from Emmerich Technical data SKU: D500TM Manufacturer: Teknik Makina ISO designation: SER 1212 For inserts: 16 ER Boring-bar compatibility: J16-ER16 Numbers / Core technical data Total length: 110 mm Cutting height: 22 mm Head width: 16 mm Body width: 12 mm Body height: 12 mm Weight: 0.11 kg Torx key: T15 Clamping screw: M3.5x11 Designs / Special features Right-hand cutting orientation For outside threads (external threading) Compatible shim: BSP010 Support plate reference: TA061 Low-mass construction for reduced vibration FAQ What insert size is required for this holder? The holder accepts 16 ER round thread inserts; the tool is specified for standard 16 ER threading inserts compatible with the J16‑ER16 system. Is the clamping direction left or right handed? This clamping holder is configured for right‑hand external threading, as indicated by the right-hand cutting orientation. Which ISO designation identifies the holder? The tool is designated SER 1212, which denotes the ISO-style mounting and assists with standardised inventory and replacement parts. What are the key dimensions affecting reach and access? Critical measurements are 110 mm total length, 22 mm cutting height and a 16 mm head width, giving a slim profile for confined turning operations. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
110mm Stech Sword Grooving Tool 26mm Height 3.45mm Blade Width, For Sandvik N151-4 - Teknik Makina
Take advantage of a precise, rigid parting solution with clear insert compatibility and compact dimensions for consistent cycle times. The slim 3.45 mm blade width and 21.4 mm cutting height ensure stable separations while the 110 mm overall length simplifies integration into standard toolholders — order directly via Metav Werkzeuge or consult our specialists for verification. Parting Blades KL54TM — parting blade for indexable inserts, 3.45 mm width, 110 mm length (Teknik Makina) The Parting Blades KL54TM are a compact parting solution intended for fine parting and grooving tasks where compatibility with Sandvik indexable inserts (N151-4) and consistent cut control are required. Compatible with Sandvik N151-4 inserts Blade width 3.45 mm for narrow cuts Cutting height 21.4 mm for insert fit Length 110 mm for robust mounting Precise geometry for consistent parting results The KL54TM series is engineered to deliver precision and repeatability in parting and grooving operations. The narrow 3.45 mm blade profile minimises material waste while maintaining adequate rigidity to reduce chatter. With an overall length of 110 mm and a cutting height of 21.4 mm, the design matches the seat dimensions of standard indexable inserts such as Sandvik N151-4, enabling secure clamping and consistent cutting height. This controlled geometry translates directly into shorter cycle times and fewer rejects in serial turning environments. Designed to improve process efficiency and tool life A focus on stable clamping and correct insert seating reduces stress on the cutting edge and the holder, which helps to extend tool life and lowers overall tooling costs. The blade’s dimensions allow accurate alignment in common grooving and parting holders, supporting predictable chip flow and less thermal loading at the cutting zone. For production-focused workshops and smaller job shops alike, the result is a measurable improvement in process reliability and a reduction in unexpected downtime. Practical application notes for workshop integration These parting blades suit a variety of turning setups where indexable inserts are preferred for fast insert changes and repeatable results. The KL54TM is specified for use with Sandvik N151-4 inserts, ensuring a proper geometric match for height and seat form; this compatibility simplifies inventory and reduces setup complexity. Suitable mounting in a rigid parting holder and correct insert torque are recommended to exploit the blade’s stiffness and to avoid premature wear. The combination of narrow blade and correct insert pairing is especially effective when minimal material removal and precision separation are priorities. What the dimensions mean for selection and planning When planning tooling for a turning cycle, the blade width (3.45 mm) indicates the kerf size and minimum remaining material, while the cutting height (21.4 mm) confirms seat compatibility with the referred insert series. The overall 110 mm length provides enough engagement for many standard holders without excess overhang, which helps to maintain stability. These technical parameters enable straightforward comparison with existing holders and inserts, supporting informed purchasing decisions and faster setup on the machine. For assured parting accuracy and confirmed compatibility, discuss the KL54TM parting blade with Metav Werkzeuge — our specialists at Metav Werkzeuge can verify fitment with Sandvik N151-4 inserts and advise on the best holder arrangement; call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: KL54TM Manufacturer: Teknik Makina Designation: Parting blades (Stechschwerter) eClass: 21181018 Numbers / Core technical data Length: 110 mm Blade width: 3.45 mm Blade height: 26 mm Cutting height: 21.4 mm Compatibility and special features Compatible insert: N151-4 Compatible insert manufacturer: Sandvik Application: Parting / grooving with indexable inserts FAQ What inserts are recommended for these blades? The parting blades KL54TM are specified for use with Sandvik N151-4 indexable inserts to ensure correct seating and cutting height. What are the key dimensions to check for holder compatibility? Check the 110 mm overall length, 3.45 mm blade width and 21.4 mm cutting height when matching holders and inserts for secure mounting of the KL54TM. Is the KL54TM suitable for narrow kerf parting operations? Yes, the slim 3.45 mm blade width is intended for narrow kerf operations where minimal material removal and high precision are required. Can these blades be used with other insert brands? Compatibility is defined for Sandvik N151-4 inserts; alternative brands may be usable if they match the same insert geometry and seat dimensions as specified for KL54TM. How does the cutting height affect setup? The 21.4 mm cutting height determines the required insert seat position in the holder and must match the holder’s insert pocket to ensure stable cutting and correct tool centreline alignment. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
110mm Stechsschwert Cutting Sword 26mm Height 21.4mm Cut Height 3.45mm Blade Width - Teknik Makina
Take advantage of the precise combination of compatibility with GTN 4 indexable inserts, a compact 110 mm length and a slim 3.45 mm blade for clean parting operations. Order the parting blade directly via Metav Werkzeuge or request advice from our consultants for straightforward integration into existing turning setups. Parting Blades KL24TM – Grooving blade for GTN 4 inserts, 110 mm length (Teknik Makina) The Parting Blades KL24TM is a precision parting and grooving blade engineered for turning applications using GTN 4 indexable inserts; suited to workshop and production environments where reliable repeatability is required Compatible with GTN 4 inserts 110 mm overall length Cutting height 21.4 mm Blade width 3.45 mm Accurate parting through stable geometry and clear dimensions The KL24TM offers a clearly defined geometry that supports consistent parting and predictable chip control. Its shank height of 26 mm and cutting height of 21.4 mm create a rigid interface with the toolholder, reducing chatter and promoting uniform surface finish. Specified dimensions allow straightforward process planning: the 110 mm overall length gives accessibility in confined turning setups, while the 3.45 mm blade width defines the maximum kerf for parting operations. These measurable values simplify the choice of feeds and speeds and help to maintain cycle-time stability. Faster set-ups and repeatable production thanks to insert compatibility Designed for use with GTN 4 indexable inserts, the blade enables rapid insert changes and standardised clamping routines. The GTN 4 designation refers to a commonly used insert family for grooving/parting tasks, which streamlines stocking and reduces search time for replacements. With an insert-compatible approach, changeovers become a part of predictable maintenance rather than unplanned downtime, supporting higher machine utilisation and improved throughput in short-run and batch production. Integration-friendly design that supports process reliability The linear dimensions and cut-height specification make the blade straightforward to match to typical parting holders. The compact profile assists in minimising tool overhang and therefore lowers bending moments at the cutting interface; this translates into reliable repeatability during repetitive cycles. Information is presented in measurable terms so engineering teams and buyers can compare alternatives objectively and integrate the blade into existing tooling lists without guesswork. For precision parting tasks that require GTN 4 compatibility and stable, repeatable performance, contact Metav Werkzeuge for availability and tailored technical guidance — Metav Werkzeuge ships from Emmerich and offers expert consultancy for smooth integration. Technical Data Article number: KL24TM Designation: Parting blades (Stechschwerter) Brand: Teknik Makina Compatible inserts: GTN 4 ECLASS: 21181018 Numbers / Core technical data Overall length: 110 mm Shank height: 26 mm Cutting height: 21.4 mm Blade width: 3.45 mm Special features Compatible with GTN 4 indexable inserts Compact profile for reduced overhang Suited to parting and grooving turning operations FAQ Which inserts fit this blade? The blade is designed for use with GTN 4 indexable inserts and works with holders specified for that insert family. What are the key dimensions to check before ordering? Check the 110 mm overall length, 26 mm shank height, 21.4 mm cutting height and 3.45 mm blade width to ensure compatibility with the chosen toolholder. Can the blade be used in standard parting holders? The KL24TM is intended for parting and grooving holders compatible with GTN 4 inserts; verification against holder specifications is recommended. Is there a coating specified for this blade? No coating is specified in the technical data for this product; the KL24TM is offered in the basic design listed. How does the KL24TM support repeatable machining? The defined shank and cutting-height dimensions reduce deflection and enable consistent clamping of GTN 4 inserts, which supports repeatable parting cycles. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
110mm Stechswerd Grooving Insert Holder 26mm Blade Height 21.4mm Cut Height 2.45mm Width - Teknik Makina
Take advantage of a high-precision cutting profile, slim kerf and dependable compatibility with Korloy SP 300 inserts for efficient parting operations; combine robust performance and straightforward replacement for predictable cycle times. Order the KL40TM parting blade directly via Metav Werkzeuge or consult the advisors if additional information is required. KL40TM parting blade – 21.4 mm cutting height, 2.45 mm blade width (Teknik Makina) The KL40TM parting blade is a slim, high-precision cutting blade designed for clean parting and cut-off applications with Korloy SP 300 indexable inserts in small to medium turning operations. KL40TM parting blade by Teknik Makina Compatible with Korloy SP 300 inserts Cutting height 21.4 mm for precise parting Narrow blade width 2.45 mm for minimal waste Consistent separation with defined cutting height The blade offers a cutting height of 21.4 mm, which provides a defined reference for repeatable parting depths and reduces set-up time in serial turning processes. A fixed cutting height simplifies insert selection and holder set-up, so cycle-to-cycle variation is minimised. The controlled geometry helps to limit chatter and promotes a consistent chip flow, translating into fewer rejects and more predictable throughput for production-focused workshops. Slim kerf for reduced material loss and faster throughput With a blade width of 2.45 mm, material removal during parting is kept to a minimum, improving material utilisation and decreasing secondary finishing work. The slim kerf also reduces cutting forces, which often results in longer insert life and lower power draw at the spindle. For operations where scrap reduction and high repeatability matter, this compact profile supports efficient processing without compromising stability. Proven compatibility for fast replacement cycles Designed to accept Korloy SP 300 style inserts, the blade fits into common parting holders used across industrial lathe fleets. Compatibility with established insert systems means stocking can be streamlined and changeovers performed quickly. The 110 mm overall length and a blade height of 26 mm provide a standard footprint that integrates easily into existing holders and clamping blocks, supporting rapid replacement and minimal downtime. Practical workshop benefits and selection guidance The parting blade’s straightforward specification — precise cutting height, narrow blade width and standard length — permits clear selection in procurement and maintenance planning. For workshops seeking to harmonise stocking across brands, the KL40TM offers a familiar interface with Korloy inserts while delivering the expected precision and robustness from Teknik Makina. For guidance on toolholder compatibility or to confirm the best insert grade for specific materials, consult the technical advisors at Metav Werkzeuge. For expert advice on selecting the right Teknik Makina KL40TM parting blades and to arrange delivery from Metav Werkzeuge’s Emmerich stock, contact Metav Werkzeuge at info@metav-werkzeuge.com or call +49 2822 7131930 — technical consultants are available to assist with application-specific recommendations. Technical Data Article number: KL40TM Manufacturer: Teknik Makina Dimensions Overall length: 110 mm Blade height: 26 mm Cutting height: 21.4 mm Blade width: 2.45 mm Compatibility & features For indexable inserts: SP 300 Compatible with Korloy inserts Storytrigger: stechschwert SKU: KL40TM FAQ Which insert type fits this parting blade? The KL40TM parting blade is specified for Korloy SP 300 indexable inserts and is designed to accept that insert geometry for reliable seating and performance. What are the key dimensions to check before fitting? Check the cutting height of 21.4 mm, blade height 26 mm and the overall length of 110 mm to ensure correct alignment in the toolholder for the KL40TM. Is the blade suitable for narrow stock and small-diameter parts? The narrow 2.45 mm blade width reduces the kerf and is well suited to applications where material saving and minimal stock removal are priorities with the KL40TM. How does the slim kerf affect insert life? A slim kerf at 2.45 mm typically lowers cutting forces and vibration, which can prolong insert life when the KL40TM is used with appropriate cutting parameters. Can the KL40TM be used with standard parting holders? The KL40TM’s standardised length and height make it compatible with widely used parting holders that accept SP 300-style inserts, allowing straightforward replacement in most setups. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah. 422 Nolu Sokak No:9, Selcuklu/KONYA/TURKEY; Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
110mm Turning Grooving Blade 2.45mm Wide 21.4mm Cut Height, 36mm Max Cut Depth - Teknik Makina
Take advantage of accurate parting with a 21.4 mm cutting height and a slim 2.45 mm blade width for reduced material waste and reliable chip control; order the parting blade directly via Metav Werkzeuge or contact the consultants for application support. Parting blade KL38TM — precision parting blade with 21.4 mm cutting height (Teknik Makina) A precision parting blade for lathe and turning operations, the Parting blade KL38TM is designed for narrow kerf cutting and stable clamping in medium-duty workshop and CNC environments. Precision parting with 21.4 mm cutting height Narrow 2.45 mm blade for minimal kerf Robust 26 mm blade shank height Compatible with KGMN 300 Korloy inserts Consistent, low-kerf parting for efficient material use The KL38TM parting blade delivers precise separation thanks to its 21.4 mm cutting height and slender 2.45 mm blade width. A reduced kerf means less material loss per cut and lower cutting forces, which translates into quieter operation and fewer secondary finishing steps. Compatibility with KGMN 300 inserts from Korloy ensures a predictable cutting geometry; the insert type defines the edge radius and chip control, so insertion and replacement are straightforward for standardised parting tasks. Stable support for predictable tool life and surface quality A 26 mm shank height and overall length of 110 mm provide a rigid mounting that reduces chatter and vibration during parting. This stiffness supports consistent surface finish on the parted face and extends insert life by limiting uncontrolled tool deflection. The specified maximum cutting depth of 36 mm indicates the practical reach for deeper parting operations without compromising clamping security, making the blade suitable for many routine turning and slotting procedures where stability is essential. Seamless workshop integration and adaptable use The KL38TM integrates into existing toolholders that accept KGMN 300-style inserts, simplifying changeover and keeping machine idle time low. As a standardised parting solution from Teknik Makina, the blade is suited to both manual lathe shops and CNC turning centres that demand repeatable results. The compact profile supports tight workpiece layouts and makes the blade a cost-effective option for operations requiring frequent parting with minimal setup complexity. For tailored advice on integrating the Teknik Makina KL38TM parting blade into specific turning operations, contact Metav Werkzeuge for consultancy and reliable supply from Emmerich. Technical data Article number: KL38TM Designation: Parting blade Manufacturer: Teknik Makina Core dimensions Blade height: 26 mm Cutting height: 21.4 mm Blade width: 2.45 mm Length: 110 mm Max cutting depth: 36 mm Compatibility & features Compatible insert: KGMN 300 Suitable inserts manufacturer: Korloy Intended use: parting / slotting Manufacturer SKU: KL38TM FAQ What insert type fits this parting blade? The KL38TM parting blade is designed for use with KGMN 300 inserts and is compatible with Korloy KGMN 300 insert geometries. What is the maximum cutting depth for the blade? The maximum practical cutting depth for the KL38TM parting blade is 36 mm, as specified for deeper parting operations. Which machines and applications suit this blade? This parting blade from Teknik Makina is suitable for manual lathes and CNC turning centres where standard KGMN 300 inserts are used for parting and narrow-slot cutting. How does the blade profile affect material waste? The 2.45 mm blade width produces a narrow kerf, reducing material loss per cut and lowering downstream machining and finishing effort. Is the KL38TM suitable for heavy interrupted cuts? The KL38TM offers a robust 26 mm shank height for improved stability, but suitability for heavily interrupted cuts depends on specific machine rigidity and clamping; evaluate setup conditions when planning aggressive cutting. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
11mm Mini Grooving Clamp Holder NFTG 16 For Indexable Inserts D11 K30 L130 S16, Innenkühlung, Rechtsschneidend - Teknik Makina
Take advantage of the compact design and proven insert compatibility to keep setups quick and repeatable; the short overhang and S16 shank combination provides stable clamping and reduced vibration for smooth grooving operations — order directly via Metav Werkzeuge or consult their specialists for application advice Mini grooving clamp holder (K804TM) — S16 shank, Ø11 mm cutting head, L130 A mini grooving clamp holder designed for precision parting and grooving tasks in confined toolposts, compatible with NFTG 16 inserts from Korloy S16 shank for secure toolholding Compatible with Korloy NFTG 16 inserts Ø11 mm cutting head, 30 mm cutting height Compact length L130 for tight spaces Precise, compact design for confined toolposts The Mini grooving clamp holder (K804TM) is engineered to deliver stable clamping in restricted setups where long overhangs are not acceptable. Its S16 shank and short overall length L130 reduce leverage and vibration, which improves repeatability and surface finish during grooving or parting operations. With a compact cutting head of Ø11 mm and a cutting height of 30 mm, the toolholder suits small-batch runs and repair tasks where machine access is limited. The reduced mass and trimmed profile make the holder easier to manoeuvre during quick changeovers while maintaining the rigidity required for repeatable cuts. Proven insert compatibility and dependable clamping principle Compatibility with NFTG 16 inserts by Korloy ensures a wide choice of insert grades for various materials and chip control strategies. The clamp-style seating secures the insert reliably, enabling consistent chip formation and stable edge life under interrupted cuts. Because the insert system is standardised, replacement and inventory management are simplified, minimising downtime. This holder’s geometry supports a direct clamping force that keeps the insert seated during heavy engagement, which translates into predictable tool life and fewer mid-run adjustments. Workflow benefits for production and maintenance environments Designed for quick installation and repeatable positioning, this holder helps reduce setup time across multiple machines. The clear numerical specifications — shaft diameter 16 mm, cutting head Ø11 mm, overall length 130 mm, weight 0.348 kg — allow planners to match the toolholder to toolposts and turret stations with confidence. For workshops aiming to streamline tooling variety, the compact grooving holder lowers the need for longer, specialised holders and facilitates faster tool changes. Its robust construction supports routine industrial use while maintaining cost-effective maintenance cycles. Contact Metav Werkzeuge in Emmerich for application guidance, stock availability and fast dispatch — info@metav-werkzeuge.com / +49 2822 7131930 Technical Data Article number: K804TM Manufacturer: Teknik Makina Item name: Mini Stechklemmhalter Core dimensions Shank diameter: 16 mm Cutting height: 30 mm Cutting diameter: 11 mm Overall length: 130 mm Weight: 0.348 kg Compatibility & features For inserts: NFTG 16 Compatible insert maker: Korloy Shank designation: S16 EClass: 21181005 FAQ What insert types fit this holder? The holder accepts NFTG 16 grooving/parting inserts; Korloy grades in the NFTG 16 format are suitable for a wide range of materials used with this clamp holder (K804TM). Which machines is the holder suitable for? The compact S16 shank and L130 length make the holder appropriate for lathes and turning centres with limited toolpost clearance where short overhang is required. How does clamping affect repeatability? The clamp-style seating in the mini grooving clamp holder secures the insert firmly, providing repeatable positioning and consistent cutting performance across repeated tool changes. Can the holder be used for heavy interrupted cuts? The holder’s short overhang and robust clamping principle increase stability; for severe interrupted cuts, select appropriate insert grades and machining parameters for the application. What are the key dimensions to check before ordering? Verify shank diameter 16 mm, cutting diameter 11 mm, and overall length 130 mm to ensure compatibility with the machine turret and toolpost. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

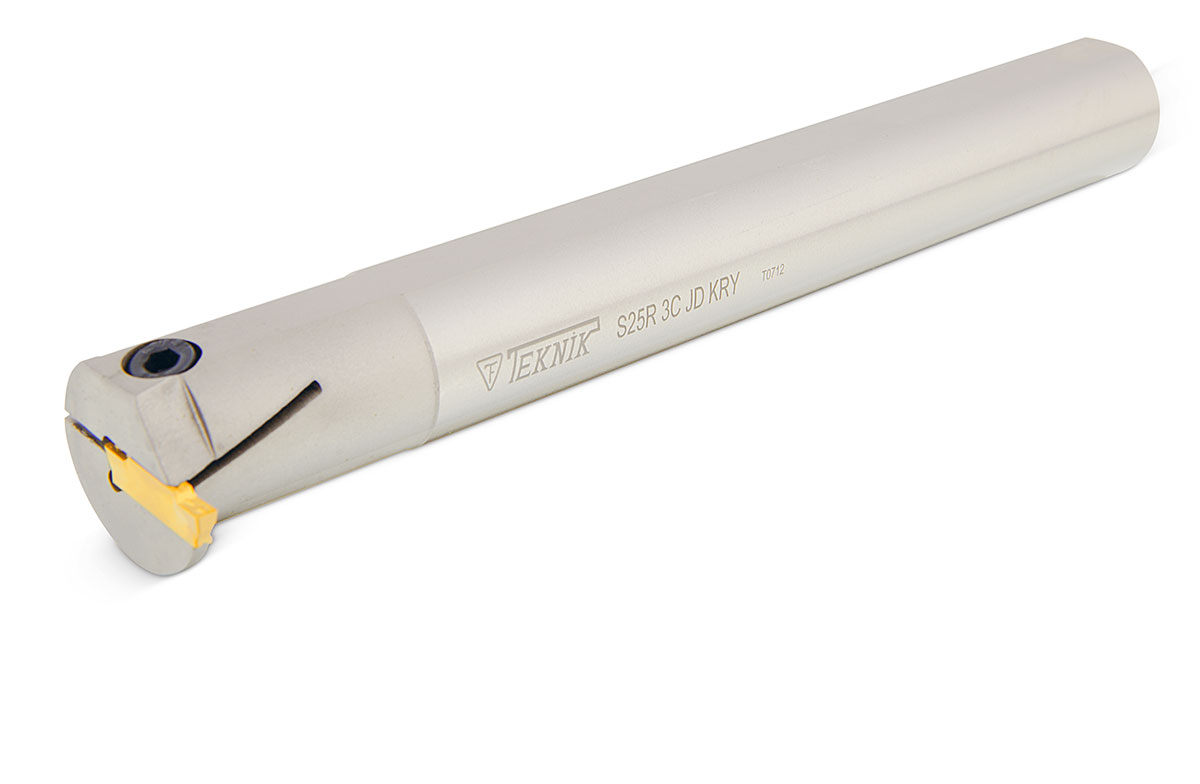

12.5mm Boring Clamp Holder L125mm, 6.8mm Cutting Head Width, 25mm Cutting Height - Teknik Makina
Take advantage of a compact, precision-focussed design that combines a slim 10 mm shank, a 125 mm overall length and a controlled max parting depth of 2 mm for reliable, repeatable grooving and parting operations. Order the parting clamp holder directly via Metav Werkzeuge or ask the consultants for tailored advice. Parting clamp holder K831TM — 12.5 mm, compact 125 mm length (Teknik Makina) A robust parting clamp holder K831TM engineered for precise grooving and cut‑off tasks in CNC turning, featuring a standard 10 mm shank and a short overall length for restricted toolpost spaces. 12.5 mm cutting diameter compatibility 125 mm overall length for compact setups 10 mm shank for standard toolholders Max parting depth 2 mm with T7 Torx screw Consistent, shop‑floor precision for tight spaces Designed for repeated, dependable parting and grooving cycles, this toolholder delivers consistent results where accessibility is limited. The short 125 mm overall length reduces overhang and helps maintain rigidity, which translates into improved surface finish and reduced tool chatter. The compact design pairs with a 10 mm shank, permitting secure clamping in commonly used toolposts and quick change systems; this ensures minimal set‑up time and steady process control for batch and single‑piece production alike. Efficient material removal with controlled depth and width With a maximum parting depth of 2 mm and a 6.8 mm cutting head width, the holder is tailored for fine, accurate cut‑off operations rather than heavy roughing; this reduces spindle load and extends insert life in finish or semi‑finish passes. The 25 mm cutting height allows correct insert positioning and stable engagement, so the toolholder supports predictable chip formation and easier downstream inspection. For workshops seeking reliable, low‑vibration performance, the geometry focuses on repeatability and economical tool consumption. Practical fastening and straightforward maintenance The clamping system uses a Torx T7 interface and an M2.2x6 fastening screw to secure the insert clamp, providing a compact, low‑profile connection that is simple to access with standard Torx tools. The arrangement simplifies insert changes and maintenance, reducing downtime during shift changes or tool swaps. At a weight of approximately 0.74 kg, the holder balances robustness and manoeuvrability, enabling technicians to handle and position the assembly easily without excessive strain. For expert advice on integrating the Teknik Cutting Tools parting clamp holder K831TM into existing tooling stations, contact Metav Werkzeuge for fast, reliable support and procurement at info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: K831TM Product type: Parting clamp holder Brand: Teknik Makina Label: 12,5mm Stechklemmhalter L125mm ECLASS: 21181005 Core specifications Overall length: 125 mm Shank diameter: 10 mm Cutting height: 25 mm Cutting head width: 6.8 mm Compatible cutting diameter: 12.5 mm Max parting depth: 2 mm Weight: 0.74 kg Features and fastening Torx key type: T7 Torx screw: M2.2x6 ISO shank designation: S10K SKU identifier: K831TM FAQ What is the shank size and how does it fit standard toolposts? The holder uses a 10 mm shank diameter, and the parting clamp holder K831TM is designed to clamp securely in standard 10 mm toolposts and quick‑change adaptors. What maximum parting depth can be achieved with this toolholder? The maximum recommended parting depth is 2 mm, enabling the K831TM to perform precise cut‑off and finish grooving operations with stable engagement. Which fasteners are used to secure the clamp and insert? Fastening is by a Torx T7 interface and an M2.2x6 screw; the parting clamp holder K831TM uses this compact fastening to allow quick, accessible insert changes. What overall length should be expected and why does it matter? The overall length is 125 mm; this compact dimension reduces overhang, improving rigidity and repeatability for the K831TM in constrained turret or toolpost arrangements. Is the toolholder suitable for heavy roughing cuts? The geometry and 6.8 mm cutting head width are optimised for precise parting and finishing operations rather than heavy stock removal; the K831TM is best used for controlled, repeatable cuts rather than aggressive roughing. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
12.5mm Grooving Clamp Holder L125mm, 6.8mm Cutter Width, Torx T7 - Teknik Makina
Take advantage of a compact, precision-engineered clamp that combines secure clamping, compatibility with standard ISO shanks, and compact dimensions for efficient parting operations; order the holder directly via Metav Werkzeuge or consult our technical team for application advice. Parting clamp holder K831-1TM — 12.5 mm diameter, 125 mm length (Teknik Makina) A Parting clamp holder K831-1TM designed for secure parting and grooving tasks on CNC lathes and turning centres, offering precise clamping for narrow-groove applications in workshop and production environments. High clamping stability with Torx T7 screw 12.5 mm diameter for narrow groove operations 125 mm overall length for deep setups Compatible with S10K ISO shank Precision and compatibility for controlled parting The K831-1TM is a compact parting clamp holder engineered for reliable, repeatable clamping in turning operations. With a diameter of 12.5 mm and an overall length of 125 mm, the holder is tailored for installations where space is limited but process control is essential. The shaft Ø 10 mm ensures compatibility with standard tool posts and adaptors, while the ISO designation S10K indicates straightforward interchangeability with common boring-bar and holder systems. These attributes reduce set-up time and simplify inventory, delivering measurable gains in process efficiency. Secure clamping and improved surface results Clamping integrity is central to consistent results; this holder uses a Torx-driven fastening system ( Torx T7 ) with an M2.2x6 screw, delivering firm seat and reduced micro-movement during cutting. The combination of cutting height 25 mm and cutting head width 6.8 mm supports stable engagement of the cutting insert, while the max parting depth 2 mm defines safe operational limits for narrow-groove procedures. Reduced vibration from a stable clamping arrangement improves surface finish and prolongs insert life, translating into lower tooling costs and fewer reworks for production-critical batches. Practical handling and workshop advantages Weighing 0.75 kg, the holder is robust yet easy to handle during tool changes and set-up. The design keeps maintenance straightforward: standard tool keys (Torx T7) and a single screw fixation simplify insert seating and replacement. For workshops aiming to standardise tooling across multiple lathes, the S10K compatibility and compact form factor make the holder suitable for small-batch work, repair tasks and continuous production alike. The construction prioritises repeatability and ease of alignment so that cycle times remain predictable and tool performance stable across shifts. For reliable parting and grooving solutions from Teknik Makina, contact Metav Werkzeuge for ordering and tailored setup advice — call +49 2822 7131930 or eMail info@metav-werkzeuge.com for fast technical guidance and supply from our Emmerich hub. Technical data Article number: K831-1TM Product type: Parting clamp holder Manufacturer: Teknik Makina ECLASS: 21181005 UID: K831-1TM Facts Diameter: 12.5 mm Overall length: 125 mm Shaft diameter: 10 mm Cutting height: 25 mm Cutting head width: 6.8 mm Max parting depth: 2 mm Weight: 0.75 kg Special features ISO shank designation: S10K Torx key: T7 Torx screw: M2.2x6 Label: 12.5 mm parting clamp holder L125 mm SKU: K831-1TM FAQ What machines are suitable for this holder? The K831-1TM parting clamp holder is suitable for CNC lathes and turning centres where a 12.5 mm diameter tool and shaft Ø 10 mm interface are compatible; use with standard tool posts and adaptors that accept S10K-style shanks. Which insert sizes and cutting depths are appropriate? The holder supports a cutting head width of 6.8 mm and a cutting height of 25 mm, with a recommended max parting depth of 2 mm; these limits help ensure secure clamping and reliable cutting performance. How is the clamping secured? Clamping is achieved with a Torx-driven fixation using a Torx T7 key and an M2.2x6 screw, providing firm seating to minimise micro-movement and vibration during parting operations. Is the holder suitable for high-speed parting? The design focuses on stability and repeatability; compatibility with S10K shank standards allows integration into typical production setups where speed is governed by the selected insert and machine capability. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
120mm Grooving Clamp Holder For PHCR 12 Indexable Inserts, Right-Hand, T20 Torx - Teknik Makina
Take advantage of a compact, right-hand clamping solution that accepts PHCR 12 indexable inserts and delivers secure fixation via an M5x12 Torx screw. Order the holder directly via Metav Werkzeuge or consult our specialists for application-specific guidance. Parting clamp holder for PHCR 12 indexable inserts — right-hand, 120 mm — Teknik Makina Parting clamp holder designed for precision parting and grooving operations with PHCR 12 indexable inserts; compact shank for straightforward mounting in standard tool posts. Right-hand holder for PHCR 12 inserts 120 mm overall length 12 x 12 mm shank for standard toolposts Compatible with ISCAR PHCR 12 inserts Reliable clamping for consistent parting performance The holder is engineered to provide a stable clamping interface for parting operations, reducing vibration and improving surface finish. Acceptance of PHCR 12 indexable inserts allows use of established carbide grades from recognised manufacturers, while the 12 x 12 mm shank ensures secure seating in common tool posts. The compact 120 mm overall length supports close machining on lathes with limited turret travel. These characteristics combine to reduce scrap rates and increase process repeatability in production and jobbing environments. Quick tool changes and secure fastening Fast and repeatable tool changes are enabled by the defined clamping geometry and the M5x12 Torx fastening screw. The use of a T20 Torx key provides reliable torque transmission without damaging the head, delivering consistent clamping force cycle after cycle. As a result, setup times are shortened and downtimes are reduced, supporting lean machine utilisation. The holder’s right-hand orientation is clearly specified to match the required cutting direction and avoid operational ambiguity during tool allocation. Built for workshop integration and long service life Constructed for routine industrial use, the holder balances rigidity and accessibility for maintenance. The modest 0.13 kg mass simplifies handling and reduces load on the turret when multiple tools are mounted. Compatibility with inserts from ISCAR expands retrofit options for existing insert stocks, helping to centralise procurement and streamline tool kits. When employed in standard parting and grooving applications, the holder contributes to predictable cycle times and straightforward inventory management. For technical advice on integrating the Teknik Makina parting clamp holder into existing toolsets and for prompt supply from Metav Werkzeuge in Emmerich, contact info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: D966TM Label: Stechklemmhalter PHCR 12 L120mm Product type: Parting clamp holder Manufacturer: Teknik Makina eClass: 21181005 Dimensions & weight Overall length: 120 mm Shank width: 12 mm Shank height: 12 mm Weight: 0.13 kg Compatibility & fastening Compatible inserts: PHCR 12 indexable inserts Suitable insert manufacturer: ISCAR Cutting direction: right Fastening screw: M5x12 Torx key: T20 FAQ Which inserts fit this holder? The holder accepts PHCR 12 indexable inserts; compatibility with ISCAR PHCR 12 inserts is specified for straightforward replacement and procurement. Is the holder for right-hand or left-hand cutting? The unit is specified for right-hand cutting direction and should be selected accordingly for the intended machining orientation. What fastening hardware is required? Fixing is via an M5x12 Torx screw tightened with a T20 Torx key to ensure consistent clamping torque. Can the holder be mounted in standard tool posts? The 12 x 12 mm shank is designed for standard tool posts and supports secure mounting in common turret and toolholder systems. What is the SKU for ordering and reference? The article is listed under SKU D966TM and is labelled Stechklemmhalter PHCR 12 L120mm for quick identification. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
120mm Grooving Clamp Holder for PHCR 16 Indexable Inserts Right T20 Torx - Teknik Makina
Take advantage of secure clamping, a compact 120 mm overall length and compatibility with PHCR 16 indexable inserts for reliable right-hand grooving performance; order directly via Metav Werkzeuge or consult our specialists for application advice. Grooving toolholder PHCR 16 L120 mm – right-hand, 120 mm (Teknik Makina) Grooving toolholder PHCR 16 for right-hand parting and grooving operations, designed to accept PHCR 16 indexable inserts for stable and repeatable machining in compact setups. Right-hand cutting direction Compatible with PHCR 16 indexable inserts Width and height 16 mm for compact setups Robust 120 mm overall length Consistent clamp performance for repeatable grooves A precise clamp design provides secure clamping and repeatable insert positioning, which reduces setup variation and scrap rates. The holder accepts PHCR 16 indexable inserts, a common geometry for narrow grooving and parting tasks, allowing standardised tooling across machines. The Torx T20 interface and M5x12 screw ensure a firm connection that is simple to torque to specification, translating into consistent cutting conditions and extended insert life. Space-saving form that improves machine integration With an overall length of 120 mm and a compact 16 mm cross-section (width and height), this toolholder integrates easily into tight tool layouts while maintaining rigidity under load. The reduced overhang lowers vibration and improves surface finish in grooving operations, especially on small lathes or multispindle machines. The low mass of the assembly contributes to quicker acceleration and deceleration, supporting shorter cycle times and higher throughput. Practical compatibility and clear machining orientation Designed for right-hand cutting, the holder matches applications that require material removal towards the operator’s right. Compatibility with inserts from established manufacturers such as ISCAR simplifies procurement and tool management. The item is identified as SKU D968TM and is suitable where a compact, reliable clamping solution is needed for repeatable grooving and parting operations. For procurement and application support on this Teknik Makina grooving toolholder, contact Metav Werkzeuge — direct supply from Emmerich with technical advice via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: D968TM Manufacturer: Teknik Makina Product type: Grooving toolholder Facts Overall length: 120 mm Weight: 0.23 kg Clamp width: 16 mm Clamp height: 16 mm Cutting direction: right Torx key size: T20 Torx screw: M5x12 Special features Compatible with PHCR 16 indexable inserts Suitable for inserts by ISCAR Compact 16 × 16 mm cross-section Right-hand orientation SKU D968TM FAQ Which inserts fit this toolholder? This grooving toolholder accepts PHCR 16 indexable inserts; inserts from ISCAR with the PHCR 16 geometry are compatible. What does right-hand cutting mean for installation? Right-hand cutting indicates the holder is set up for cuts made in the right-hand direction; the grooving toolholder PHCR 16 must be mounted accordingly for correct chip flow and tool clearance. Which screw and key are required for clamping? Clamping is secured with an M5x12 Torx screw driven by a T20 Torx key, providing reliable torque and repeatable clamp force. Is this holder suitable for tight tool layouts? Yes. The compact 16 mm width and height and the 120 mm overall length make the holder well suited to constrained setups where rigidity and a small footprint are essential. Manufacturer/Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
120mm Stechklemmhalter 20mm Breite 20mm Höhe Torx T20 M5x12 Schraube passend für Tungaloy - Teknik Makina
Stechklemmhalter Stechklemmhalter von Teknik Makina Der Stechklemmhalter bietet präzise Klemmeigenschaften für Stech- und Innenbearbeitung an Drehmaschinen und ist kompatibel mit ISO 2020 Schneidköpfen. Kompakte Gesamtlänge 120 mm für beengte Räume Passend für ISO 2020 Schneidköpfe Breite 20 mm, Höhe 20 mm für stabile Klemme Geeignet für Tungaloy Wendeplatten Torx Schraube M5x12 für sichere Befestigung Präzise Klemmung für konstant hohe Wiederholgenauigkeit Der Stechklemmhalter wurde für stabile Klemmkräfte und geringe Vibrationen konstruiert. Durch die ISO 2020 Schnittstelle lässt sich der Halter mit standardisierten Schneidköpfen kombinieren, was die Umrüstzeiten reduziert und die Wiederholgenauigkeit erhöht. Mit einer Gesamtlänge von 120 mm sowie einer Breite von 20 mm und einer Höhe von 20 mm sorgt der Halter für einen sicheren Sitz der Schneide, was wiederholte, saubere Schnitte ermöglicht und Ausschuss reduziert. Schnelle Montage und werksorientierte Handhabung Die Befestigung erfolgt über die beigefügte Torx Schraube M5x12, die mit einem Torx Schlüssel T20 einfach und sicher angezogen werden kann. Diese Kombination ermöglicht eine zügige Montage und Demontage, reduziert Rüstzeiten und vereinfacht den Werkzeugwechsel in der Werkstatt. Für Anwender ohne tiefe Fachkenntnis: ein Torx Schlüssel ist ein Schraubendreher mit sternförmiger Spitze, der Kraftübertragung und festen Sitz gewährleistet, die Torx Schraube M5x12 ist die passende Befestigungsschraube für diesen Halter. Kompatibilität mit Schneidplattenherstellern und wirtschaftlicher Vorteil Der Klemmhalter ist ausdrücklich geeignet für Tungaloy Wendeplatten, wodurch die Auswahl an verfügbaren Schneidgeometrien und Beschichtungen erweitert wird. Diese Kompatibilität erlaubt es, bewährte Plattentypen zu nutzen und Kosten für Sonderplatten zu vermeiden. Die robuste Konstruktion macht den Halter besonders geeignet für Serienfertigung und kleine Losgrößen, in denen schneller Werkzeugwechsel und konstante Schnittqualität wirtschaftlich entscheidend sind. Starke Empfehlung: Für gezielte Beratung und Bestellung den Stechklemmhalter D855TM von Teknik Makina bei Metav Werkzeuge anfragen; technische Rückfragen per eMail info@metav-werkzeuge.com oder Telefon +49 2822 7131930 Produktmerkmale Artikelnummer: D855TM Marke: Teknik Makina Produktart: Stechklemmhalter ISO-Bezeichnung: 2020 Gesamtlänge: 120 mm Klemmhalter Breite: 20 mm Klemmhalter Höhe: 20 mm Fakten Gesamtlänge: 120 mm Breite: 20 mm Höhe: 20 mm Torx Schraube: M5x12 Besonderheiten Passend für Wendeplattenhersteller: Tungaloy (geeignet für Tungaloy Wendeplatten) Torx Schlüssel: T20 (für Montage) Torx Schraube: M5x12 (Befestigung) ISO 2020 (Schnittstellenstandard für Wendeplatten) FAQ Welche Wendeplatten passen auf den Halter? Der Halter ist kompatibel mit Wendeplatten des Herstellers Tungaloy; in Verbindung mit der ISO 2020 Schnittstelle lassen sich gängige Tungaloy Platten sicher aufnehmen. Welche Abmessungen hat der Klemmhalter? Die Gesamtlänge beträgt 120 mm, die Klemmhalter Breite 20 mm und die Klemmhalter Höhe 20 mm; diese Maße bieten eine kompakte Lösung für beengte Anwendungen. Wie wird der Halter befestigt? Die Befestigung erfolgt mit einer Torx Schraube M5x12, die mit einem Torx Schlüssel T20 angezogen wird; diese Kombination ermöglicht eine sichere und schnelle Montage. Für welche Art von Bearbeitung ist der Halter geeignet? Der Halter eignet sich primär für Stech- und Innenbearbeitung an Drehmaschinen, bei denen stabile Klemmeigenschaften und standardisierte Plattenanschlüsse gefragt sind. Welche Vorteile bringt die ISO 2020 Schnittstelle? Die ISO 2020 Schnittstelle ermöglicht die Nutzung standardisierter Schneidköpfe, reduziert Rüstzeiten und vereinfacht den Austausch von Wendeplatten verschiedener Anbieter wie Tungaloy. Hersteller: Teknik Makina, Nolu Sokak, No 9, Selcuklu, Türkei, eMail: info@teknik-makina.com / Verantwortlich: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
125mm Boring Clamp Holder 16x16mm Cutting Width 2mm Left, Torx T15 - Teknik Makina
Benefit from a compact design that combines a rigid ISO 1616 shank with a 125 mm overall length for stable, repeatable parting operations; compatibility with ISCAR inserts ensures straightforward insert changes and continuity in production. Order the tool directly via Metav Werkzeuge or consult our specialists for application advice. Parting tool holder D063TM — 125 mm, ISO 1616, left-hand, Teknik Makina A Parting tool holder D063TM engineered for left-hand parting operations, offering a compact ISO 1616 shank for secure clamping and precise groove formation in workshop and production environments. ISO 1616 shank size 125 mm overall length Left-hand cutting direction Compatible with ISCAR inserts Consistent rigidity for accurate parting results The compact shank geometry and narrow profile of this holder deliver stable clamping and reduced vibration during parting, which translates into improved surface quality and extended insert life. The ISO 1616 specification (16 × 16 mm) ensures a precise fit with standard tool posts, while the 125 mm overall length keeps the tool projection minimal, reducing lever forces and supporting repeatable set-ups in batch production. This combination supports efficient machining with fewer rework cycles and predictable results. Straightforward insert changes and secure fastening Designed to work with established insert systems, the holder accepts ISCAR indexable inserts and uses a Torx T15 key for quick and reliable clamping. The fixing screw is M4×12.5, enabling firm retention of the cutting edge while allowing rapid exchange during shift changes. These mechanical details reduce downtime for tool changes and simplify workshop logistics: common service tools and replacement screws are compatible with the holder, making maintenance predictable and fast. Optimised for focused parting and grooving tasks With a maximum allowable parting depth of 16 mm and a cutting-edge width of 2 mm, the holder is tailored for narrow-groove and part-off operations where precision is essential. The left-hand cutting orientation suits setups that require the cutter to feed from the right towards the workpiece centre, ensuring the correct chip flow and feed direction for stable machining. The tool’s geometry supports reproducible cuts and contributes to consistent cycle times on turned components. Practical handling and identification for workshop use Weighing approximately 0.267 kg and featuring a cutting-head width of 16.2 mm, the holder balances durability with manageable handling during set-up and inspection. The compact mass aids quick repositioning and reduces operator fatigue when changing tools in confined toolpost arrangements. For identification and order reference the item is listed under SKU D063TM, which streamlines procurement and inventory control in production environments. Contact Metav Werkzeuge for tailored application advice and secure supply of Teknik Cutting Tools parting holders; email info@metav-werkzeuge.com or call +49 2822 7131930 to discuss compatibility and lead times Technical Data Article number: D063TM Product type: Parting tool holder Brand: Teknik Makina Cutting direction: left Facts Overall length: 125 mm Shank size: 16 × 16 mm (ISO 1616) Weight: 0.267 kg Max parting depth: 16 mm Cutting edge width: 2 mm Cutting-head width: 16.2 mm Special features Compatible with ISCAR inserts Torx key: T15 Fixing screw: M4x12.5 FAQ Which insert families fit this holder? The holder accepts ISCAR indexable inserts designed for parting and grooving; compatibility is ensured by the holder’s geometry and clamping arrangement for common ISCAR shapes. Is the shank compatible with standard tool posts? Yes, the 16 × 16 mm (ISO 1616) shank secures in standard tool post clamps and provides a repeatable datum for accurate positioning. What is the maximum cutting depth achievable? The tool supports a maximum parting depth of 16 mm, suitable for narrow-groove and part-off operations within that range. How is the insert fastened and serviced? Insert clamping uses a Torx drive; a T15 key and an M4×12.5 screw enable secure fastening and straightforward insert replacement. How should this holder be referenced when ordering? Order using SKU D063TM; mentioning the brand Teknik Makina and the ISO 1616 shank helps ensure the correct variant is supplied. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
125mm Clamping Grooved Steeping Holder For DCEN 300 Indexable Inserts 3mm Cutting Width, Right-Hand - Teknik Makina
Combining a compact 125 mm overall length with a 20 mm clamping width and compatibility for DCEN 300 indexable inserts, this grooving clamping holder delivers stable, right-hand parting performance and consistent insert life. Available through Metav Werkzeuge for secure supply and technical advice. Grooving clamping holder DCEN 300 L125mm — for DCEN 300 indexable inserts, right-hand, ISO 2020 (Teknik Makina) The Grooving clamping holder DCEN 300 L125mm is a right-hand toolholder engineered for secure parting and grooving operations with DCEN 300 indexable inserts in industrial turning applications. *125 mm overall length *20 mm clamping width *Compatible with DCEN 300 indexable inserts *Right-hand cutting direction *Includes 3 mm Allen key Greater stability for precision parting and longer insert life The holder’s compact design and 20 mm clamping width provide a stiff interface between insert and machine, reducing micro-movement during cuts. This rigidity translates into improved surface finish and more predictable tool life, which supports higher first-pass yields in production settings. The ISO 2020 designation ensures a standardised connection profile for repeatable clamping, and the measured mass of 0.409 kg gives a good balance between robustness and manoeuvrability for machining set-ups. Fast setup and broad compatibility to save cycle time Designed for DCEN 300 indexable inserts, the toolholder accepts widely used grooving inserts and is listed as compatible with ISCAR tooling, simplifying procurement and inventory management. The right-hand orientation and a maximum cutting depth of 22 mm enable confident parting and grooving to common workpiece geometries, while the 3 mm Allen key supplied eases initial mounting and insert changes. Clear, measurable specifications—such as the 3 mm cutting-edge width—help to plan cutting parameters and coolant strategies without guesswork. Robust workmanship for workshop reliability Constructed for the demands of daily production, this clamping holder is intended to withstand consistent use while keeping servicing straightforward. The defined cutting head width of 20 mm and matching clamping dimensions reduce the need for frequent tool swaps, lowering downtime. As part of a coordinated tooling strategy from a recognised tooling supplier, the holder supports efficient tool inventory and dependable machining quality in small to medium series production. For precision right-hand grooving with DCEN 300 inserts from Teknik Makina, contact Metav Werkzeuge in Emmerich for expert advice and reliable delivery. Technical data Article number: D744TM Product type: Grooving clamping holder Brand: Teknik Makina Facts Overall length: 125 mm Weight: 0.409 kg Clamping width: 20 mm Clamping height: 20 mm Cutting head width: 20 mm Max cutting depth: 22 mm Cutting-edge width: 3 mm Special features Compatible with DCEN 300 indexable inserts (ISCAR) Right-hand cutting direction ISO 2020 designation Includes 3 mm Allen key FAQ Which inserts fit this holder? The holder is manufactured for DCEN 300 indexable inserts and is listed as compatible with ISCAR DCEN 300 styles. Is the toolholder suitable for right-hand or left-hand cutting? This toolholder is specified for right-hand cutting direction and is optimised for right-hand parting and grooving tasks. What is the maximum parting depth? The maximum cutting depth for the holder is 22 mm, matching common grooving operations and allowing planning of cut passes accordingly. Which designation and mounting standard does the holder use? The holder follows ISO 2020 dimensions for the clamping interface, ensuring a standardised fit and repeatable clamping. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah. 422 Nolu Sokak No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
125mm Cut-Off Clamp Holder for PHCR 20 Indexable Inserts, Right-Hand, T20 Torx - Teknik Makina
Take advantage of the combination of secure clamping, precise compatibility and compact design to keep grooving and parting jobs consistent and productive; order the holder directly through Metav Werkzeuge or consult our advisors for application support. Grooving clamp holder PHCR 20 L125mm — 20 mm clamp width, right-hand, Teknik Makina A grooving clamp holder for PHCR 20 indexable inserts, engineered for right‑hand external grooving and parting tasks on lathes and turning centres. For PHCR 20 indexable inserts 20 mm clamp width for stable clamping Overall length 125 mm for turret fitting Right‑hand cutting direction Stable clamping for consistent surface quality The holder’s 20 mm clamp width and compact geometry provide a secure grip on the insert, which reduces micro‑movement during cutting. Reduced vibration leads to improved surface finish and a lower rate of insert wear, making machining cycles more predictable. For industrial turning, this translates into fewer tool changes and less unplanned downtime, which benefits throughput and process reliability. Built for compatibility and straightforward installation Designed to accept PHCR 20 indexable inserts and compatible with ISCAR specifications, the tool is supplied with a standard fastening arrangement: a Torx T20 key interface and M5x12 screw for repeatable, secure assembly. With an overall length of 125 mm and a nominal mass of 0.37 kg, the holder integrates easily on turrets and toolposts without adding unnecessary overhang, supporting stable cutting conditions in right‑hand grooving operations. Workshop efficiency and supplier confidence Routine replacement and maintenance are simplified by the standardised fastener and clear compatibility with established insert lines, allowing faster toolset changes on the shop floor. Backing up the product is Metav’s commitment to accessible precision: a broad range of inventory, central distribution from Emmerich and long‑standing technical support ensure parts and advice are available when required. The combination of practical design and reliable supply assists workshop planning and keeps production moving. Contact Metav Werkzeuge for application advice and to secure the Teknik Cutting Tools grooving clamp holder D970TM with immediate dispatch from Emmerich. Technical Data Article number: D970TM Label: Stechklemmhalter PHCR 20 L125mm Manufacturer: Teknik Makina Specifications Overall length: 125 mm Clamp width: 20 mm Clamp height: 20 mm Weight: 0.37 kg Cutting direction: right Compatibility & Fastening For PHCR 20 indexable inserts Compatible with ISCAR inserts Torx key: T20 Torx screw: M5x12 FAQ What inserts are suitable for this holder? The holder accepts PHCR 20 indexable inserts and is specified for compatibility with ISCAR insert geometries and tolerances for reliable clamping. Is the clamping direction right‑hand or left‑hand? This tool is configured for right‑hand cutting; the geometry and clamp orientation support right‑hand external grooving and parting operations. Which fastener is used to secure the insert? Assembly uses a M5x12 Torx screw operated with a Torx T20 key, providing repeatable and secure fastening for the insert pocket. What are the key dimensions to check for turret fitting? Important mounting dimensions are an overall length of 125 mm, a clamp width of 20 mm and a clamp height of 20 mm, which should be verified against the machine’s toolpost or turret envelope. Where can technical advice and spare screws or keys be obtained? Spare parts and application guidance are available via Metav Werkzeuge; reference the SKU D970TM and the Teknik Cutting Tools holder when enquiring. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
125mm Cutting Holder for PHCR 20 Indexable Inserts, Right-Hand T20/M5x12 - Teknik Makina
Take advantage of a compact solution that combines a 125 mm overall length, secure Torx fixing and compatibility with PHCR 20 indexable inserts for consistent parting and grooving performance. Order the cut-off clamping holder PHCR 20 L125mm directly via Metav Werkzeuge or ask our consultants if needed. Cut-off clamping holder PHCR 20 L125mm — 125 mm overall length, right-hand cutting A cut-off clamping holder for PHCR 20 indexable inserts, intended for precise parting and grooving tasks on turning centres. Compatible with PHCR 20 indexable inserts 125 mm overall length for stable mounting Right-hand cutting orientation Torx T20 screw with M5x12 fixing Precision and process reliability for parting operations The cut-off clamping holder is engineered to provide steady, repeatable performance during parting and grooving. With an overall length of 125 mm and a compact cross-section of 20 x 20 mm, the design reduces overhang and vibration, which helps maintain tool life and surface finish. Compatibility with PHCR 20 indexable inserts ensures a defined cutting edge geometry for controlled chip formation, while the right-hand cutting orientation matches typical lathe toolpost setups. These characteristics translate directly into shorter cycle times and fewer reworks. Secure clamping and quick indexable insert changeover Fast, reliable fixing is achieved via a Torx T20 retaining screw and an M5x12 fastening screw, offering consistent clamp force and repeatable seating of the insert. The compact mass (approx. 0.37 kg) assists in resisting chatter without adding unnecessary load to the toolpost. The holder accepts PHCR 20 inserts from ISCAR and compatible suppliers, simplifying tool inventory and enabling rapid insert exchanges during scheduled stops. The result is reduced set-up time and improved machine uptime across batch and single-piece production. Practical benefits for workshop efficiency and versatility Installed as part of a clamping system, this toolholder supports standardised tooling routines and lowers the barrier to high-precision turning tasks. The combination of narrow body dimensions and a robust clamping interface suits tight setups on small and medium-sized lathes. For engineers and workshop managers, the main advantages are consistent part quality, predictable tool consumption and simplified maintenance planning. The holder’s straight functionality aligns with lean manufacturing principles and aids in achieving predictable production throughput. Contact Metav Werkzeuge for application advice or to order the Teknik Makina cut-off clamping holder D974TM; email info@metav-werkzeuge.com or call +49 2822 7131930. Technical Data SKU: D974TM Model: Stechklemmhalter PHCR 20 L125mm Manufacturer: Teknik Makina ECLASS: 21181005 For inserts: PHCR 20 Facts Overall length: 125 mm Weight: 0.37 kg Clamp width: 20 mm Clamp height: 20 mm Cutting direction: right Torx key: T20 Fixing screw: M5x12 Special features Compatible with ISCAR PHCR 20 indexable inserts Category: clamping holders Product type: cut-off / grooving holder FAQ Is this holder compatible with PHCR 20 inserts from ISCAR? Yes. The cut-off clamping holder is designed for PHCR 20 indexable inserts and is compatible with inserts from ISCAR. What are the main dimensions of the holder? Overall length is 125 mm, clamp section measures 20 x 20 mm, and the weight is approximately 0.37 kg. Which cutting direction is supported by this holder? The holder is specified for right-hand cutting operations. Which screw type secures the insert? Insert and clamp are secured with a Torx T20 drive and an M5x12 fixing screw. Can the holder be used on small lathes with limited overhang? Yes. The compact 125 mm length and narrow cross-section make the holder suitable for setups with limited overhang. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; eMail: info@metav-werkzeuge.com
Fast, reliable parting and grooving for precision turning
Parting and grooving tools, also referred to as parting blades, grooving tools or cut-off tools, are narrow carrier tools for lathes fitted with replaceable carbide inserts. Supplied as solid holders or flat blades, they are designed to cut precise grooves and to part finished components cleanly from the material bar.
Why internal coolant matters for deep cuts and tough materials
When used in simple form without internal coolant, the cutting fluid is applied via external machine nozzles; this is often sufficient for very shallow grooves and easily machinable materials. For deeper grooving and parting operations, however, the tool nearly encloses the slot so that external coolant cannot reach the cutting edge. Tools with internal coolant incorporate fine, integrated channels that deliver coolant under high pressure directly to the insert and beneath the chip. This targeted supply controls the intense heat in the confined cutting zone and uses flushing pressure to eject chips reliably, preventing chip jamming, surface damage and sudden tool breakage.
Clear operational benefits you can measure
- faster cycle times through reliable chip evacuation and uninterrupted cutting
- extended tool life thanks to effective heat control at the cutting edge
- consistent surface finish by avoiding chip re-cutting and scarring
- safer machining of hard or ductile materials due to reduced risk of tool fracture
- simplified setup when holders with integrated channels replace complex external coolant rigs
Metav as a practical partner for your workshop
Metav stands for democratisation of precision: decades of expertise, a quality filter in Emmerich and an assortment that supports industry and trade. With more than 48,000 customers and a catalogue of over 250,000 products, Metav provides a focused selection of parting and grooving tools, accessories and matched holders so that procurement and technical choice remain straightforward and dependable.
Parting and grooving tools bring reliable groove geometry and safe parting to turning operations; choosing holders with integrated coolant channels is essential for deep cuts and demanding materials. If technical advice is needed, Metav’s product specialists can help select the appropriate tool geometry and coolant configuration for the application.
FAQ
When is internal coolant necessary for parting tools?
Internal coolant becomes necessary for deep grooving and parting or when machining hard or ductile materials; it delivers coolant directly to the insert and beneath the chip, which is critical when external nozzles can no longer reach the cutting edge.
Can parting tools be used without internal coolant?
Yes — for very shallow cuts and easily machinable materials, parting tools can be used with external machine coolant nozzles, but performance and tool life will drop markedly for deeper cuts.
How do parting tools prevent dangerous chip jamming?
Parting tools with integrated channels use high-pressure coolant to flush chips out of the narrow slot, preventing chips from becoming trapped and minimising the risk of surface damage and abrupt tool failure.
What should be considered when choosing a grooving insert and holder?
Select a combination that matches the required groove depth and material grade; holders offering integrated high-pressure channels are preferred for deep cuts or poor-chip-breaking materials to ensure heat control and reliable chip evacuation.
