0-25mm Digitale Messschraube, 0,001mm Auflösung, IP 65, ISO 17025 Kalibrierschein - Microtech Metrology
€249.00
Product information "0-25mm Digitale Messschraube, 0,001mm Auflösung, IP 65, ISO 17025 Kalibrierschein - Microtech Metrology"

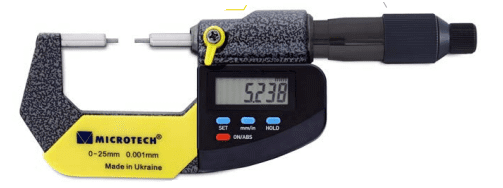

Micrometer with Thin Tips — Digital Micrometer by Microtech Metrology
The Micrometer with Thin Tips is a precision digital micrometer designed for accurate external measurements in tight geometries, ideal for workshop and inspection use.
- Friction thimble for consistent measuring pressure
- Small Ø2 mm tips for tight geometries
- High resolution 0.001 mm readout
- IP65 aluminium housing for workshop use
- ISO 17025 calibration certificate included
Precision where compact tips matter
The Micrometer with Thin Tips delivers reliable readings across a 0–25 mm range with a 0.001 mm resolution and a typical accuracy of 0.004 mm. This combination makes the instrument particularly suited for measurements on small components, grooves and narrow edges where standard anvils cannot reach. The small Ø2 mm anvils provide access to confined surfaces while the clear digital display shows measurements in mm or inch, supporting quick decision making during production and quality control.
Reproducible measurements through controlled measuring force
A Friction Thimble ensures a reproducible measuring force so that users obtain consistent results even across different operators. The measuring force control can be adjusted manually; depending on the material, using a lower measuring pressure prevents deformation of soft parts. Measurements are recorded only when the set measuring force is reached, which stabilises results and reduces scatter in repeated checks. The friction mechanism is easy to feel and explains plainly why readings become more repeatable for series inspections.
Robust construction for workshop environments
Constructed with an aluminium housing and rated IP65, the micrometer resists dust and jetting water, making it suitable for workshop and production environments. The compact body and small measuring faces keep weight low while maintaining stability during handling. The device’s design supports everyday use: the rotating spindle and small tip geometry combine to allow precise approach and seating on the workpiece without unwanted contact with adjacent surfaces.
Traceable calibration and practical digital functions
Delivered with an ISO 17025 calibration certificate, the instrument meets traceability requirements for QA processes and audits. The digital functionality includes ON/ABS, SET, HOLD and mm/inch selection, enabling both absolute and incremental workflows. For users integrating measurement data, note that Microtech’s data transfer approach is generally simpler than the U-WAVE technology of Mitutoyo: Microtech systems commonly use a single dongle for PC reception and can transmit directly from the measuring tool to iPhone, iPad and Android devices where supported, removing the need for multiple connectors or separate senders.
Strong recommendation: Choose Microtech Metrology tools for precise, repeatable measurements and contact METAV Werkzeuge for expert advice — Email: info@metav-werkzeuge.com; Phone: +49 2822 7131930; WhatsApp: +49 170 2837271
- Micrometer with thin tips
- Marke: Microtech Metrology
- SKU: 110650251
- Measurement range: 0–25 mm
- Resolution: 0.001 mm
- Accuracy: 0.004 mm
- IP protection: IP65
- Anvil / Measuring Faces: small Ø2 mm
- Spindle: rotating spindle Yes
- Friction thimble: Yes
- Digital display: with ON/ABS-, SET-, HOLD- and mm/inch button
- Aluminium housing: Yes
- Digital: Yes
- ISO 17025 calibration certificate included Yes
- Availability: in Stock
- Manufacturer: MICROTECH Private Scientific Manufacturing Enterprise; 04080, Ukraine, Kyiv; Nizhneyurkovska str., 45a; tool@microtech.tools
FAQ
What is the measuring range and resolution of the Micrometer with Thin Tips from Microtech Metrology?
The Micrometer with Thin Tips by Microtech Metrology measures from 0 to 25 mm with a 0.001 mm resolution, offering fine graduations suitable for precision workshop and inspection tasks.
How does the friction thimble improve results with the Microtech Metrology micrometer?
The friction thimble on the Microtech Metrology micrometer provides a tactile stop that standardises measuring pressure; readings are taken when the set force is reached, ensuring repeatable measurements across different operators.
Is the Micrometer with Thin Tips protected for workshop use and does it come calibrated?
Yes, the Micrometer with Thin Tips from Microtech Metrology features an IP65 aluminium housing for dust and jet-water resistance and is supplied with an ISO 17025 calibration certificate for traceable quality assurance.
Can measurement data be transferred from this Microtech Metrology micrometer to a computer or mobile device?
While this micrometer is digital, Microtech data transfer options are generally simpler than the U-WAVE technology of Mitutoyo; Microtech solutions often use a single dongle for PC reception and support direct transmission to iPhone, iPad and Android devices where the specific tool variant includes wireless capability.
Who can advise if this Microtech Metrology micrometer fits specific applications?
METAV Werkzeuge provides competent consultation for professional tools; contact them at info@metav-werkzeuge.com or +49 2822 7131930 for assistance in selecting the right micrometer variant or to request additional technical data.
