75-100mm Digital Micrometer, 0.0025mm, Colour Touchscreen, IP65, ISO17025 Calib. Cert. - Microtech Metrology
€599.00
Product information "75-100mm Digital Micrometer, 0.0025mm, Colour Touchscreen, IP65, ISO17025 Calib. Cert. - Microtech Metrology"
Die Kombination aus hoher Messgenauigkeit, umfangreicher Datenanbindung und robuster Bauweise sorgt für zuverlässige Messergebnisse und effiziente Datenerfassung in der Fertigung. Bestellen Sie direkt über Metav Werkzeuge oder kontaktieren Sie unsere Beratung für technische Rückfragen.

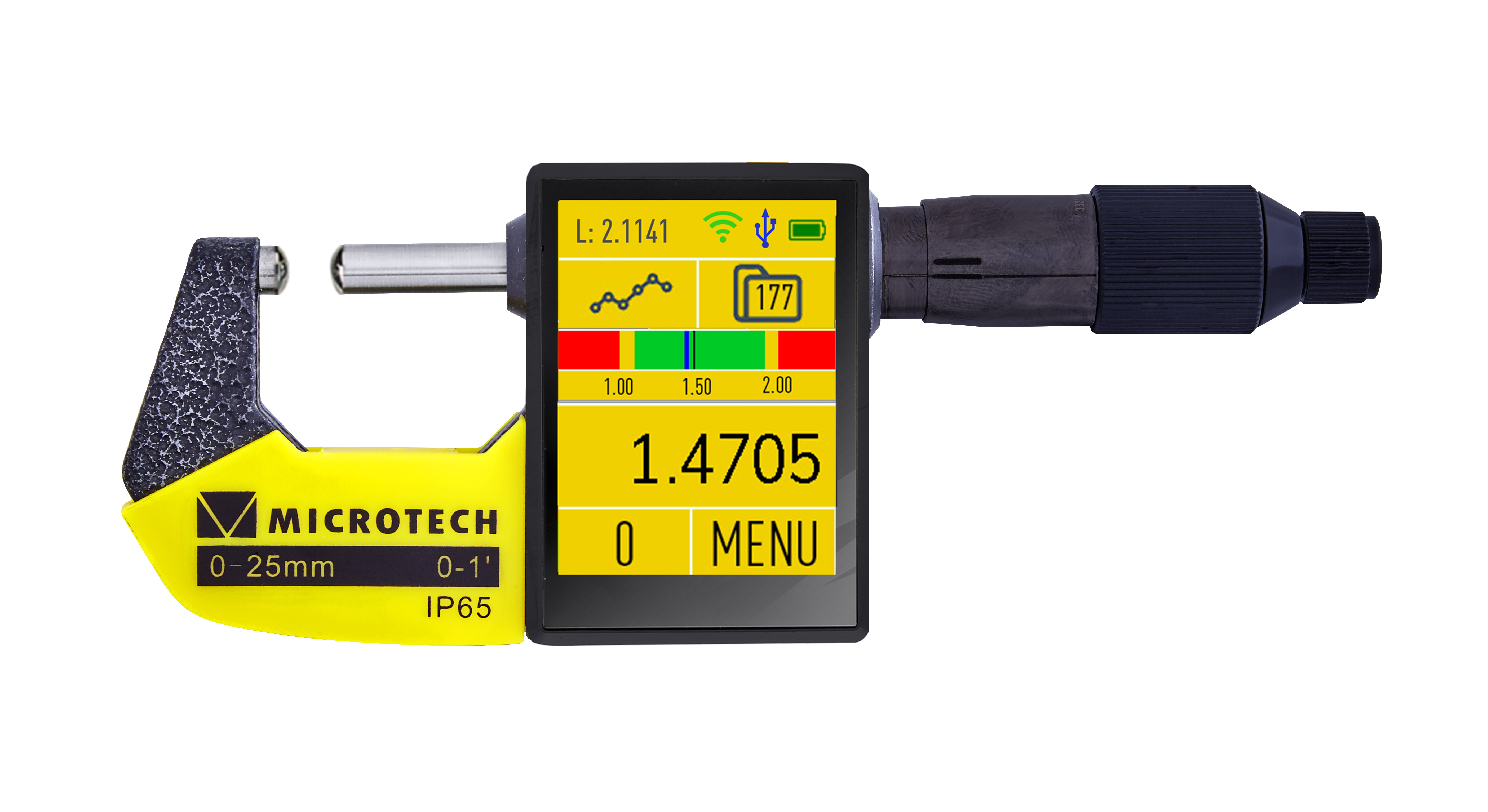

Micrometer (Digital Micrometer) by Microtech Metrology
Micrometer für präzise Außenmessungen und datenorientierte Fertigungsprozesse mit Touchscreen‑Anzeige und kabelloser Datenübertragung
- Wireless und USB Datenoutput für Industrieanbindung
- Farb‑Touchscreen 2.4" für klare Anzeige
- Hohe Genauigkeit 0.0025 mm für präzise Messungen
- IP65 Aluminiumgehäuse für raue Werkstattbedingungen
- Speicher für 2000 Messwerte und Statistikfunktionen
Präzision, auf die Fertigung baut
Das Micrometer liefert eine deklarierte Genauigkeit von 0.0025 mm bei einem Messbereich von 75–100 mm, ergänzt durch eine Ablesung von 0.0001 mm. Diese technischen Kennwerte reduzieren Messunsicherheit und ermöglichen wiederholbare Ergebnisse bei Serienmessungen. Für die Werkstatt bedeutet das reduzierte Nacharbeit und höhere Prozessstabilität; Kunden in Maschinenbau und Fertigung profitieren direkt von der gesteigerten Messverlässlichkeit.
Datenintegration, die Zeit spart
Die Datenarchitektur des Instruments ist auf Effizienz ausgelegt: Wireless‑Übertragung an die MDS App (Windows, Android, iOS, MacOS), Wireless HID‑Modi sowie USB HID sind vorhanden; optional steht MODBUS RTU für industrielle Schnittstellen bereit. Mit einem internen Speicher für 2000 Werte, Ordnerstruktur und Statistikmodus lassen sich Messreihen sicher archivieren und in Prüfabläufe integrieren. Die Möglichkeit zur Echtzeit‑Grafikdarstellung und Linearkorrektur unterstützt schnelle Qualitätsentscheidungen.
Robustheit und Bedienkomfort im Alltag
Das Gehäuse aus CNC‑gefrästem Aluminium kombiniert Steifigkeit mit reduziertem Gewicht, während die Schutzart IP65 den Einsatz in staubigen oder feuchten Umgebungen erlaubt. Die 2.4" Colour Touchscreen erleichtert die Bedienung vor Ort, Go/No‑Go‑Funktionen und Max/Min‑Werte beschleunigen Routineprüfungen. Die balligen Messflächen (Anvil Sphere R 5 mm) sind auf reproduzierbare Kontaktverhältnisse ausgelegt, was Einflüsse durch Messkraft minimiert.
Speziell für datengetriebene Messteams konzipiert
Dieses digitale Micrometer ist für Werkstätten und Qualitätslabore gedacht, die präzise Messwerte mit direkter Datenverarbeitung koppeln möchten. Dank synchronisierbarer Wireless‑Verbindungen, Probe‑ und 2D‑Graph‑Modi eignet sich das Gerät sowohl für einzelne Messplätze als auch für vernetzte Fertigungszellen. Die kombinierte Hardware‑ und Softwarefunktionalität macht es zu einem Werkzeug für Anwender, die auf Industrie 4.0‑fähige Messlösungen setzen.
Empfehlung: Vertrauen Sie auf die Datenfähigkeiten und Kalibriersicherheit des Micrometer von Microtech Metrology und beziehen Sie das Messgerät über Metav Werkzeuge — bei Fragen erreichen Sie unsere Technikexperten per E‑Mail unter info@metav-werkzeuge.com oder telefonisch unter +49 2822 7131930
Produkteigenschaften
- Artikelnummer: 110361008
- Marke: Microtech Metrology
- Bezeichnung: Messschraube
Zahlen
- Messbereich: 75–100 mm
- Ablesung: 0.0001 mm
- Genauigkeit: 0.0025 mm
- Speicher: 2000 Werte
- Display: Colour 2.4" Touchscreen
Besonderheiten
- Wireless und USB Datenoutput: Wireless to MDS App, Wireless HID, USB HID
- Optional: MODBUS RTU (RS‑485) für industrielle Verbindungen
- Gehäusematerial: Aluminium (CNC gefräst)
- Schutzart: IP65 (Schutz gegen Staub und Strahlwasser)
- Anvil Typ: Sphere R 5 mm
- Kalibrierzertifikat: ISO17025 (Ilac MRA) im Lieferumfang genannt
- Funktionalitäten: On‑line Graphic, Go/NoGo, Max/Min, Timer, Linear‑ und Temperaturkorrektur
FAQ
Welche Messgenauigkeit bietet das Micrometer und wofür reicht sie aus?
Das Micrometer von Microtech Metrology erreicht eine Genauigkeit von 0.0025 mm bei einer Ablesung von 0.0001 mm; diese Genauigkeit ist für präzise Fertigungs‑ und Prüfaufgaben ausgelegt, bei denen Wiederholbarkeit und enge Toleranzen gefordert sind.
Wie erfolgt die Datenübertragung vom Micrometer in die Prüfsoftware?
Daten können drahtlos an die MDS App (Windows, Android, iOS, MacOS) übertragen werden; alternativ stehen Wireless HID, Wireless HID+MAC und USB HID als Übertragungswege zur Verfügung. Optional ist MODBUS RTU für direkte Reihenanlagen‑Anbindung.
Eignet sich das Gerät für den Einsatz in rauen Werkstattumgebungen?
Ja. Das Micrometer verfügt über ein CNC‑gefrästes Aluminiumgehäuse und eine Schutzart IP65, wodurch es resistent gegen Staub und Strahlwasser ist und sich für anspruchsvolle Produktionsbedingungen eignet.
Wie viele Messwerte können gespeichert werden und sind Statistiken möglich?
Das Gerät bietet einen internen Speicher für 2000 Werte inklusive Ordnerstruktur und Statistikmodus, sodass Messreihen sicher archiviert und analysiert werden können.
Liegt eine Kalibrierbescheinigung bei und welcher Standard wird genannt?
Im Datenblatt wird für das Produkt ein Kalibrierzertifikat nach ISO17025 (Ilac MRA) genannt, das dem Micrometer beiliegen soll und die Kalibrierung dokumentiert.
Hersteller: Microtech Metrology; Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine; tool@microtech.tools
