USB Microscopes with UV Light

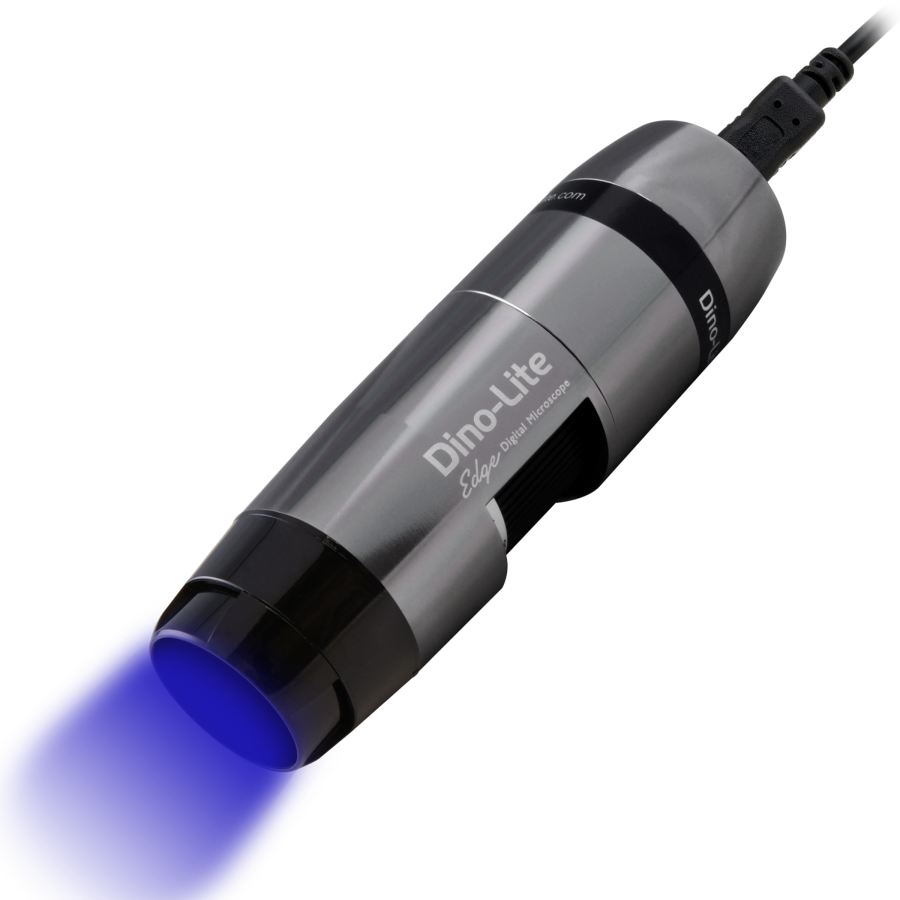

Dino-Lite handheld microscopes with ultraviolet (UV) light, or a combination of UV and white light.
Dino-Lite microscopes in this series offer an optical resolution of 1.3 megapixels or 5 megapixels, a USB connection, and come with the user-friendly DinoCapture software. Models with an extra-rugged metal housing are also part of this series.
Overview of UV model Dino-Lite microscopes.
The microscope's software makes measurements quick and easy. With the measurement function, lines, angles, radii and circles can be determined. The measurement results can be exported to Excel with a click of the mouse together with the corresponding image, which enables the creation of a comprehensive measurement protocol. In order to perform an accurate and safe measurement with your microscope, calibration is required. With the supplied calibration standard and software, calibration is quick and easy. The software guides you through the individual steps and thus guarantees precise calibration. Thanks to the front cap system of the microscope, you can work without a front cap to obtain a clear and undistorted view of the object to be examined. This makes the examination and analysis of samples much easier. The microscope is supplied with different front caps (may vary depending on the microscope) that can be easily attached to the microscope for optimal adaptation to the application. In particular, the use of diffusers can provide a special type of light diffusion that can help minimise light reflections. Are you looking for the right Dino-Lite microscope and need help? We are happy to be there for you! You can reach us by e-mail at info@metav-werkzeuge.de or by phone at +49 2822 7131930. Technical data: Hersteller: Dino-Lite Produktnummer: AM4517MT-FUW Arbeitsabstand: Standard Resolution: 1.3 Megapixel Magnification: 20-220x Connection: USB 2 Casing material: Aluminium Light: 4 LEDs ultraviolet with 375nm Measuring and calibration function Interchangeable front caps FLC - flexible light control What are Dino-Lite microscopes? Dino-Lite USB microscopes are a series of different microscopes that can be connected to a Apple Mac via USB. As an alternative to the USB-only models, there is the Wireless series, which can be used to connect directly to an Android smartphone. The included software enables quick measurement of surfaces and components. The results can be transferred directly to Excel. In addition, the images can be exported into almost any image format for further processing. With up to 5 megapixel resolution, even the small details can be displayed clearly and distinctly. The built-in chipset enables absolutely good colour and image reproduction. Depending on the handheld microscope, you can achieve up to 900x magnification. As a rule, normal use is between 50x and 230x magnification. Various features then round off the overall package of the Dino-Lite microscopes.
If you are not sure whether Dino-Lite USB microscopes fit your specific application, we offer you to send us your sample parts. Our experts will take images of your samples and present you with the tailor-made solution. ☎️ Telefon: +49 2822 7131930 📧 eMail: info@metav-werkzeuge.com ✔️ WhatsApp: +49 170 2837271 Product Features USB Microscope AM7115MT-FUW Article number: AM7115MT-FUW Brand: Dino-Lite Dino-Lite series: Dino-Lite Spezialbeleuchtung - UV-Licht Numbers for the Microscope: Magnification: 20x~220x Number of LEDs: 4 Resolution: 5 Megapixel Connection: USB 2.0 Numer of LEDs in area 1: 4 Cable length: ~1.8m Resolution in Pixel: 2592x1944 Lighting Nanometer: 375 Product Characteristics Casing material: Aluminium Light: uv Calibration function Measuring function Interchangeable front caps Magnification Lock Microtouch Working Distance: Standard Norms: CE, FCC Made in Taiwan Manufacturer: AnMo Electronics Corporation; 17F-1, No. 97, Sec. 4, Chongxin Road, Sanchong Dist., New Taipei City 241513, Taiwan; Tel:+886-2-29749126; E-Mail:Sales@anmo.com.tw
Would you like to find the right Dino-Lite microscope and need help with the selection? We will be happy to help you! ✔️ WhatsApp: +49 170 2837271, ☎️ Telefon: +49 2822 7131930, 📧 eMail: info@metav-werkzeuge.com Product Features Article number: AM8517MT-FUW Brand: Dino-Lite Dino-Lite series: Dino-Lite High Special Lighting Casing material: Aluminium Magnification: 20x~220x Light: weiß Number of LEDs: 4 Calibration function Measuring function Resolution: 5 Megapixel Connection: USB 2.0 Interchangeable front caps Numer of LEDs in area 1: 4 Type: Dino-Lite EDGE Plus Automatic Magnifiaction Readout Manufacturer: AnMo Electronics Corporation; 17F-1, No. 97, Sec. 4, Chongxin Road, Sanchong Dist., New Taipei City 241513, Taiwan; Tel:+886-2-29749126; E-Mail:Sales@anmo.com.tw Cable length: ~1.8m Magnification Lock Microtouch Working Distance: Standard Made in Taiwan Resolution in Pixel: 3840x2160 Norms: CE, FCC Lighting Nanometer: 395
If you are not sure whether Dino-Lite USB microscopes fit your specific application, we offer you to send us your sample parts. Our experts will take images of your samples and present you with the tailor-made solution. 📧 eMail: info@metav-werkzeuge.com, ✔️ WhatsApp: +49 170 2837271, ☎️ Telefon: +49 2822 7131930 Specifications (Specs) Article number: AM8517MT-FV Brand: Dino-Lite Dino-Lite series: Dino-Lite High Special Lighting Casing material: Aluminium Magnification: 20x~220x Light: weiß Number of LEDs: 4 Calibration function Measuring function Resolution: 5 Megapixel Connection: USB 2.0 Interchangeable front caps Dino-Lite EDGE Numer of LEDs in area 1: 4 Flexible light control Automatic Magnifiaction Readout Manufacturer: AnMo Electronics Corporation; 17F-1, No. 97, Sec. 4, Chongxin Road, Sanchong Dist., New Taipei City 241513, Taiwan; Tel:+886-2-29749126; E-Mail:Sales@anmo.com.tw Cable length: ~1.8m Magnification Lock Microtouch Working Distance: Standard Made in Taiwan Resolution in Pixel: 3840x2160 Norms: CE, FCC Lighting Nanometer: 395
