How do I connect to a USB microscope?

How to connect a USB Microscope to your computer: clear steps for beginners

Connecting a USB Microscope is straightforward and opens up powerful possibilities for inspection, education and documentation. This guide explains what the tool does, how it works, and exactly when and why you need a connection, so that even beginners can set up a Dino-Lite or comparable device quickly and reliably.

What a USB Microscope is and why connecting it matters

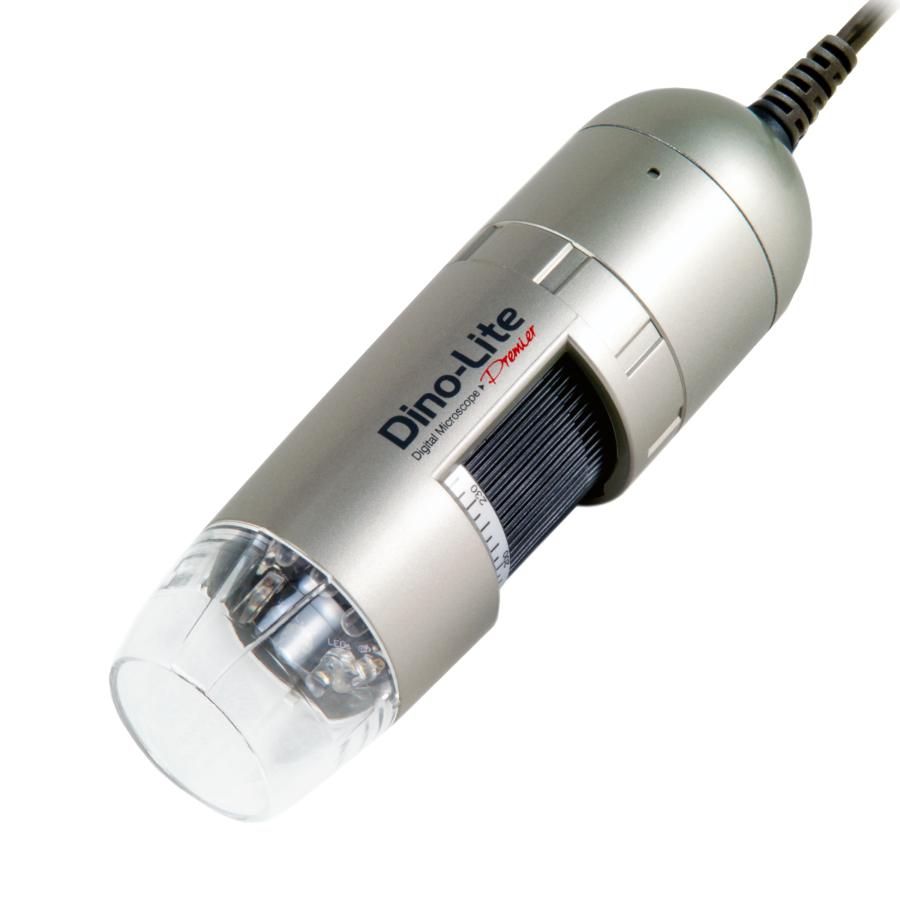

A USB Microscope is a portable digital imaging device that plugs into a computer via USB to display and capture magnified images. You need this connection to view live images on a larger screen, record photos and videos, and perform measurements directly in software. Connecting correctly ensures stable image transfer, access to advanced features like measurements and lighting control, and the best possible image quality.

Step-by-step connection process you can follow right away

Begin by preparing your workstation: choose a stable surface, ensure adequate lighting and have the USB cable and the Microscope software ready. First, inspect the Microscope and cable for damage. Next, plug the Microscope into an available USB port on your computer. If your model requires a power switch or an external power supply, turn it on. Then install the manufacturer’s software—DinoCapture for Windows or DinoXcope for Mac are typical examples—to enable live view, capture and measurement functions. After installation, launch the application; the software should automatically detect the connected Microscope. If the device does not appear, try a different USB port, update the computer’s USB drivers or restart the application. Finally, configure resolution and magnification in the software for a stable, crisp image.

How the connection works technically and what to check

The Microscope transmits image data as a USB video device or via a proprietary driver depending on the manufacturer. Most modern devices use standard USB Video Class (UVC), which lets the operating system recognise the Microscope as a camera without extra drivers. If the device needs a driver, the manufacturer’s installer will handle it. Confirm that your operating system is supported and that the USB port provides enough power—USB 3.0 ports often deliver better performance and higher frame rates. Avoid connecting through unpowered hubs for high-magnification or high-resolution models. Also check that any antivirus or privacy settings are not blocking camera access within the operating system.

Essential settings and lighting tips for best results

Adjust the Microscope’s focus and magnification gradually while observing the live image. Use the software controls to set resolution, frame rate and image compression. Lighting makes a major difference: choose the appropriate illumination mode—white LEDs for general inspection, polarisation for reflective surfaces, or UV/infrared if your model offers specialised lights. Dino-Lite devices, for example, provide a wide range of illumination options that can reveal hidden details and reduce glare. Stabilise the subject and Microscope to avoid motion blur; a stand or flexible arm is highly recommended for fine-detail work.

Troubleshooting common connection problems

If the computer does not detect the Microscope, try these steps: test another USB port, use a known-good cable, restart the computer, and reinstall the software. For intermittent disconnects, check for loose connections and try a shorter cable to reduce data loss. If the image is choppy, switch to a USB 3.0 port or lower the resolution to improve frame rate. When software features like measurement tools are greyed out, ensure the correct device driver is installed and that the software is the latest version. If problems persist, consult the manufacturer’s support resources—Dino-Lite’s documentation and software updates are often helpful and regularly maintained.

Useful features to look for and compare between models

When choosing or using a USB Microscope, consider these important attributes: Image Resolution, Magnification Range, Lighting Options, Software Capabilities, and Build Quality. High-resolution sensors enable clearer images and more accurate measurements. A wide magnification span lets you inspect both broad surfaces and fine details. Advanced lighting options improve contrast and material visibility. Professional software adds measurement tools, annotation and video capture. Robust construction and a reliable stand increase usability in demanding environments.

Leading brands in the market and why Dino-Lite stands out

Among the prominent manufacturers, Bresser, Toolcraft and Electra offer solid alternatives in USB microscopy, each with strengths in value, accessory options or specific application focus. However, Dino-Lite is widely regarded as an outstanding manufacturer thanks to its extensive model range, high image quality and professional software ecosystem. Their USB microscopes combine multi-megapixel cameras, precise optics and specialised illumination choices—features that make them suitable for industry, research, education and hobby use. The software that accompanies Dino-Lite devices enables direct measurements of distances, areas and angles on captured images, which is especially valuable for quality control and documentation tasks.

Final summary and the core takeaway

To connect a USB Microscope to your computer, plug the device into a suitable USB port, install and run the appropriate software, adjust focus and lighting, and verify drivers if required. This setup gives you immediate access to live imaging, measurements and documentation.

Key point: connecting a USB Microscope lets you view, record and analyse magnified images on your computer—an essential step for inspection, teaching and detailed visual work.
