300mm DataMet eFORCE 1-20N Caliper CERAMIC Wireless + USB (SWISS System)

DataMet eFORCE 1-20N 300 mm Caliper with Ceramic Measuring Faces (Swiss Precision Reading System)

DataMet eFORCE 1-20N Caliper is a lab-capable digital caliper from Microtech Metrology, offering ceramic measuring faces, precise E‑Force control and versatile Wireless + USB connectivity for workshop and laboratory measurement tasks.

• 300 mm Measurement Range with Ceramic Tips
• E‑Force 1–20 N Control with Auto‑Force Mode
• 2.0"/2.4" Hi‑Res Touchscreen Display
• 2000‑value Memory with Folder System
• Wireless to MDS App and USB HID connectivity

Exceptional Precision and Durable Construction

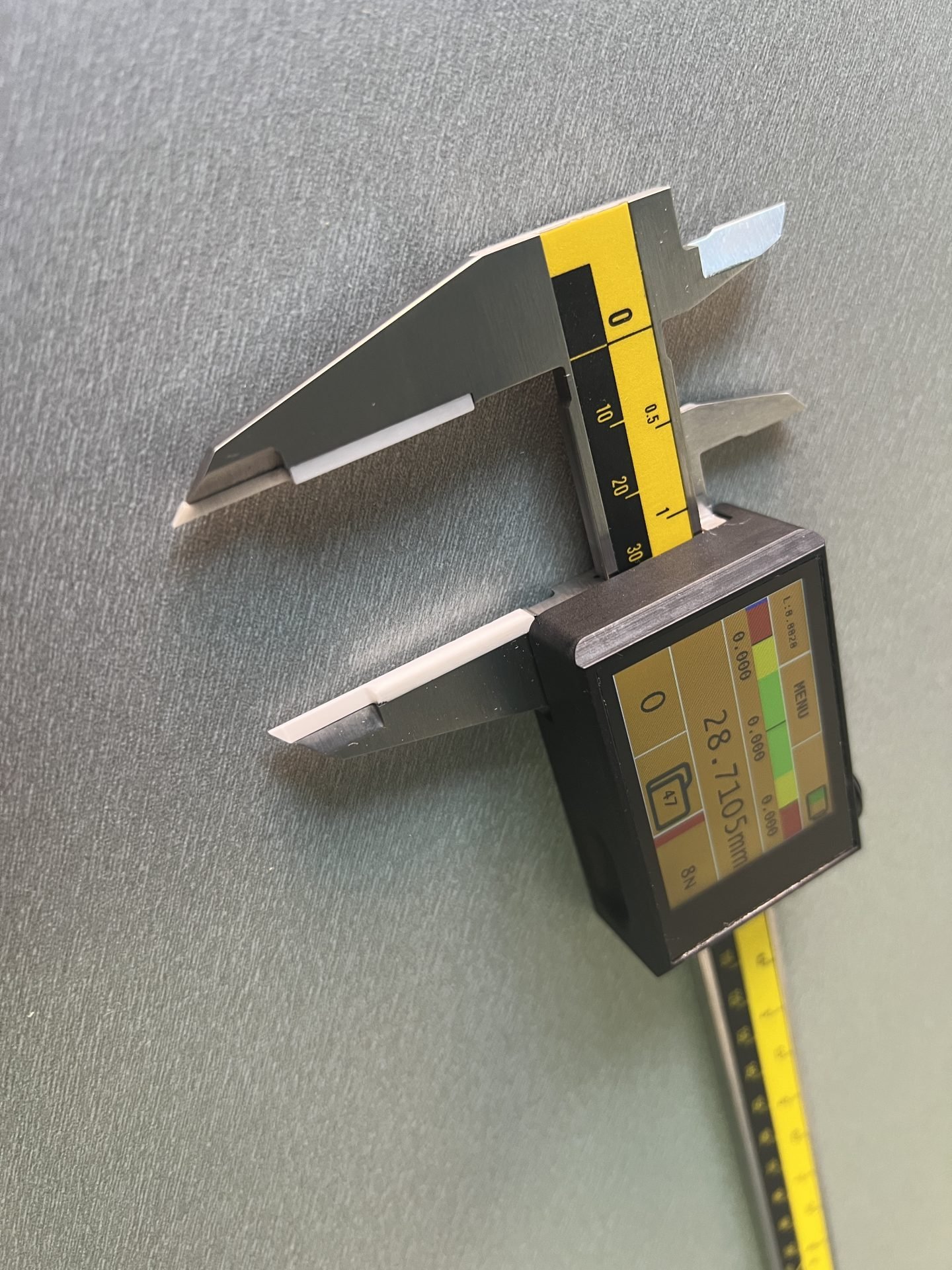

The DataMet eFORCE 1-20N Caliper combines a Swiss Precision Reading System with an ultra‑fine minimum resolution of 0.0002 mm, making it suitable for both fine laboratory work and robust workshop checks. External ceramic tipped jaws are non‑magnetic, non‑conductive and wear‑resistant, so the Measuring Instrument maintains accuracy over repeated use. The solid build and choice of materials reduce wear and ensure reproducible results when checking components or setup gauges.

Consistent Force for Reliable Results

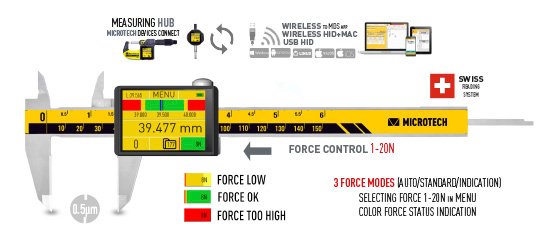

Integrated E‑Force control lets the operator select Measuring Force from 1–20 N, with clear color indication and an AUTO‑Force mode to standardize pressure. Because measurement values are captured only when the set force is reached, repeatability improves and operator influence is minimised. Manual force adjustment is possible for delicate materials, ensuring the same pressure is applied every time and reducing measurement scatter.

Smart Connectivity for Industry 4.0 Workflows

Equipped with the MICS Betriebssystem (MICS operating system) and Hi‑Res touchscreen, the caliper supports multiple data transfer modes: Wireless to the MDS App (Windows, Android, iOS, macOS), Wireless HID, Wireless HID+MAC, and USB HID. This approach to data transfer is simpler than U‑WAVE Technologie von Mitutoyo because no extra connectors or multiple transmitters are required—only a single dongle or direct Wireless output from the Measuring Instrument to mobile devices, depending on workflow. The device also supports MODBUS RTU in special configurations.

Practical Memory and Calibration Features

A built‑in Memory Manager stores up to 2000 values with Folders and a Statistics mode; stored data can be transferred later as needed. Calibration support includes Calibration Date Control and Linear Error Compensation; an ISO 17025 (Ilac MRA) calibration certificate is included, giving confidence where traceability matters. The device also offers Temperature Compensation, Resolution Selection and common utility functions such as Go/NoGo, Max/Min and Peak detection.

Designed for Real‑World Use and Versatile Applications

With a clear touchscreen interface (2.0" and 2.4" Hi‑Res options), USB‑C charging and a rechargeable 600 mAh Li‑Pol battery, the caliper suits long shifts and mobile use. The combination of lab‑grade resolution and workshop‑oriented robustness makes this Measuring Instrument appropriate for quality control, assembly verification and research tasks. For users migrating from older systems, the straightforward Wireless options reduce setup complexity and speed up integration.

Strong recommendation: Microtech Metrology’s DataMet eFORCE 1‑20N Caliper is ideal for precision measurement workflows that demand consistent force control and traceable data management — contact METAV Werkzeuge for tailored advice and installation support via info@metav-werkzeuge.com, +49 2822 7131930 or WhatsApp +49 170 2837271

Technical specifications

• Bezeichnung: DataMet eFORCE 1-20N Caliper with Ceramic Measuring Faces, 300 mm, Wireless + USB (Swiss Precision Reading System)
• Marke: Microtech Metrology
• SKU: 141088030AK
• Measurement Range: 0–300 mm
• Resolution: 0.0002 / 0.001 / 0.01 / 0.1 mm (selectable)
• Accuracy: 0.008 mm
• Measuring Force: 1–20 N (E‑Force control)
• Jaw Lengths: 60/20 mm
• Display: 2.0'' and 2.4'' Hi‑Res Touchscreen displays
• Data Transfer Modes: Wireless to MDS App (Windows, Android, iOS, macOS); Wireless HID; Wireless HID+MAC; USB HID; MODBUS RTU (modifications)
• HUB Connection: HUB (2D, Probe) synchronization as Slave or Master device
• Functions: Graphic, Synchronized Device, Timer, Preset, Formula, Resolution Selection, Peak, Limits, Firmware Update, Manual Temperature Compensation, E‑Force control (modifications)
• Memory: 2000 values with Folders and Statistics; Data transfer from Memory
• Calibration: Calibration Date Control, Linear Error Compensation; Calibration Certificate ISO 17025 (Ilac MRA) included
• Battery: Rechargeable 600 mAh Li‑Pol battery; USB‑C charging/data socket
• Delivery Set: Measuring Instrument; free versions of the MDS App; USB Data/Charging Cable; Calibration Protocol
• Manufacturer: MICROTECH Private Scientific Manufacturing Enterprise; 04080, Ukraine, Kyiv; Nizhneyurkovska str., 45a; tool@microtech.tools

FAQ

What measurement range and resolution does the DataMet eFORCE 1-20N caliper offer and who makes it?
The DataMet eFORCE 1‑20N caliper by Microtech Metrology covers 0–300 mm with selectable resolution down to 0.0002 mm, suitable for both fine laboratory measurement and robust workshop inspection.

How does the E‑Force control improve measurement repeatability on the DataMet eFORCE 1-20N caliper?
The E‑Force control in the DataMet eFORCE 1‑20N caliper allows selection of a fixed Measuring Force between 1 and 20 N, including an AUTO‑Force mode; measurements are recorded only when the set force is reached, ensuring consistent readings across repeated checks.

Can the DataMet eFORCE 1-20N caliper send data wirelessly to mobile devices and PC software?
Yes, the DataMet eFORCE 1‑20N caliper supports Wireless transfer to the MDS App (Windows, Android, iOS, macOS), Wireless HID, Wireless HID+MAC and USB HID. Its Wireless setup requires fewer connectors than older systems such as U‑WAVE Technologie von Mitutoyo.

Is calibration documentation included with the DataMet eFORCE 1-20N caliper?
A Calibration Certificate complying with ISO 17025 (Ilac MRA) is included with the DataMet eFORCE 1‑20N caliper to support traceability and quality assurance.
