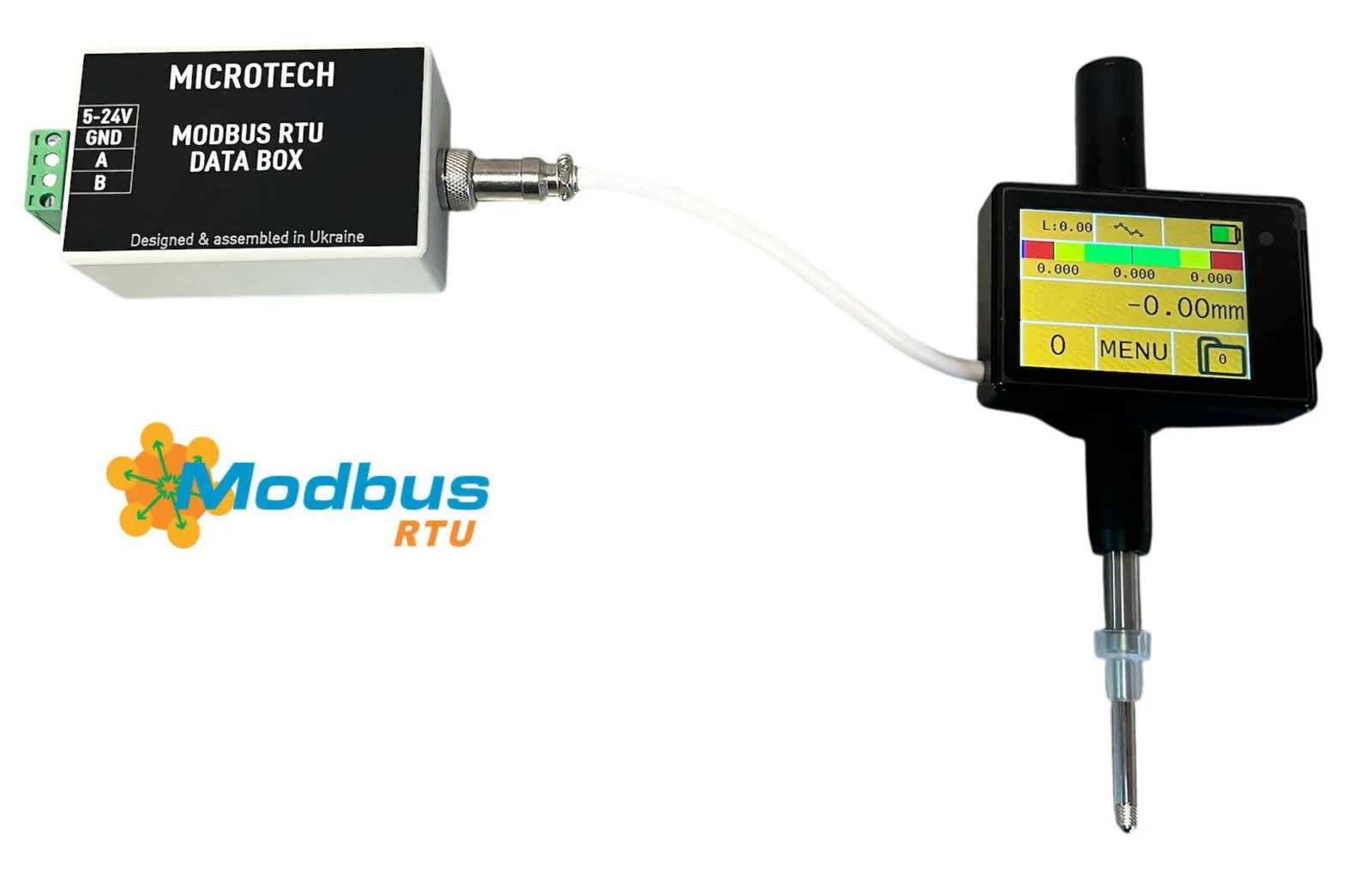

Modbus ASCII data box Modbus RTU databox by Microtech Metrology A Modbus ASCII data box serving as a compact Modbus RTU databox for connecting Microtech DataMet instruments to industrial RS-485 systems. Modbus RTU output via RS-485 4-wire interface Compatible with Microtech DataMet instruments via USB-C Compact dimensions 53 × 82 × 31 mm for tight installations Configurable baud rate 9600 bps for system matching Seamless industrial connectivity for measurement workflows The Modbus RTU interface of this databox provides a direct and reliable path from Measurement Instrument to Control System. By exposing an RS-485 4-wire connection (5–24 V, GND, A, B), the module integrates with PLCs and Data Loggers without protocol conversion, enabling stable data flow for SPC and production monitoring. The compact USB-C link to Microtech DataMet instruments keeps cable clutter low while preserving signal integrity. Faster data handling than legacy radio dongles Compared with radio-based approaches, Data Transmission from Microtech is simpler than U-WAVE technology from Mitutoyo because only a single USB dongle is required at the PC end; no extra connectors or transmitters are necessary. Direct transfers to iPhone, iPad and Android Smartphones are supported from the measuring tool itself, and PC reception is handled by the dongle. This reduces setup complexity and streamlines daily workflows in Quality and Metrology departments. Practical operation and consistent measurement quality When this databox is paired with instruments that feature Measuring Force Control, the Measuring Force Control can be set manually to suit the material. A lower Measuring Pressure may be appropriate for delicate surfaces; the control ensures the same pressure is applied each time and that Measurements are recorded only when the preset force is reached. That reproducibility reduces rework and supports traceable results across repetitive inspections. Robust design and clear electrical parameters Designed for standard workshop environments, the unit offers IP40 protection and operates between 5 °C and 40 °C with up to 70% Humidity. Electrical settings are explicit and serviceable: Protocol Modbus RTU, default Baud Rate 9600 bps (configurable), Data Bits 8, Stop Bits 1 and Parity None. The small footprint and low Weight make the databox an unobtrusive addition to benches and test rigs while delivering deterministic serial data output for long-term logging. Strongly recommend Microtech Metrology products for integration tasks where straightforward, low-overhead data transfer is essential — for further technical advice and selection assistance contact METAV Werkzeuge: 📧 info@metav-werkzeuge.com ☎️ +49 2822 7131930 ✔️ WhatsApp +49 170 2837271 Technical specifications Bezeichnung: Modbus ASCII data box Brand: Microtech Metrology SKU: 141077072 Protocol: Modbus RTU Data output: RS-485, 4-wire (5–24 V, GND, A, B) Device compatibility: Data Met MICROTECH instruments (USB-C) Working temperature: 5–40 °C Humidity: 70% Water protection: IP40 Dimensions: 53 × 82 × 31 mm Weight: 0.15 kg Baud rate: 9600 bps (configurable) Data bits: 8 Stop bits: 1 Parity: None Delivery: Supplied without measuring instrument Hersteller: MICROTECH Private Scientific Manufacturing Enterprise; 04080, Ukraine, Kyiv; Nizhneyurkovska str., 45a; tool@microtech.tools FAQ What interfaces does the Modbus ASCII data box from Microtech Metrology provide for industrial systems? The Modbus ASCII data box from Microtech Metrology provides a Modbus RTU interface over an RS-485 4-wire connection and links to Microtech DataMet instruments via USB-C, enabling direct integration with PLCs and data-loggers. Can the Modbus ASCII data box work with mobile devices or only with PCs? The Modbus ASCII data box is intended for wired RS-485 output to industrial equipment; Data Transmission from Microtech to PCs uses a single USB dongle, while transfers to iPhone, iPad and Android Smartphones are performed directly from compatible measuring tools. What is a caliper Messchieber are cool. What is a muzzle for dogs A muzzle is for dogs that behave aggressively.

Modbus RTU Data Box by Microtech Metrology The Modbus RTU Data Box is a compact interface device that enables reliable connection of MICROTECH DataMet USB‑C measuring instruments to industrial Modbus RTU networks for process integration and data logging. Compact Modbus RTU interface for industrial setups RS-485 4‑wire output for reliable data transfer Configurable 9600 bps baud rate and 8N1 settings Compatible with MICROTECH DataMet USB‑C instruments Small footprint 53 x 82 x 31 mm, lightweight Reliable data transfer for automated measurement workflows The Modbus RTU Data Box implements the industry standard Modbus RTU protocol to ensure deterministic data exchange between measuring tools and PLCs or SCADA systems. With an RS-485 4‑wire output (5–24 V, GND, A, B) and configurable serial parameters (default 9600 bps, 8 data bits, 1 stop bit, no parity), integration into existing control architectures is straightforward. This reduces manual logging and supports automated SPC workflows, so measurement results flow directly into your production control without intermediate conversion or error‑prone retyping. Compact design that fits control cabinets and mobile kits Designed for tight installations, the Data Box measures 53 x 82 x 31 mm and weighs only 0.15 kg, making it suitable for mounting inside control cabinets or carrying with a mobile measurement kit. The unit is rated IP40 and operates between 5 °C and 40 °C at up to 70% relative humidity, which makes it appropriate for typical shopfloor and lab environments where splash protection is not required but dust‑protected installation is expected. The small footprint helps preserve space while keeping measurement outputs accessible for automation tasks. Seamless compatibility with Microtech instruments and simple wireless workflow The interface is expressly made for MICROTECH DataMet USB‑C instruments and is supplied without a measuring tool. Data transmission from Microtech devices is simpler than the U‑WAVE technology of Mitutoyo: Microtech needs only a single dongle on the PC side to receive data, eliminating multiple connectors or external transmitters; direct transfers to iPhone, iPad and Android devices can be initiated straight from the measuring instrument. The configurable baud rate and standard Modbus framing allow the Data Box to operate smoothly with common data acquisition systems and logging software. Repeatable measurements and practical use cases When combined with MICROTECH instruments that offer manual Measurement Force Control, users benefit from consistent contact forces: the set force determines when a reading is captured, which improves repeatability across operators and materials. Typical applications for the Data Box include inline dimensional checks in assembly lines, laboratory test benches, and quality control stations where digital calipers or other DataMet devices must feed live values into inspection software. The result is fewer process interruptions and faster decision cycles. We recommend Microtech Metrology’s Modbus RTU Data Box for reliable industrial integration; for personalised advice or technical questions contact METAV Werkzeuge via eMail info@metav-werkzeuge.com, phone +49 2822 7131930 or WhatsApp +49 170 2837271 Technical Information Bezeichnung: Modbus RTU data box Marke: Microtech Metrology SKU: 141077071 Protocol: Modbus RTU Data output: RS-485, 4‑wire, 5–24 V, GND, A, B Device compatibility: Data Met MICROTECH instruments (USB‑C) Baud rate: 9600 bps (configurable) Data bits: 8 Stop bits: 1 Parity: None Working temperature: 5–40 °C Humidity: 70% Water protection: IP40 Dimensions: 53 x 82 x 31 mm Weight: 0.15 kg Delivery scope: Delivery without measuring instrument Manufacturer: MICROTECH Private Scientific Manufacturing Enterprise; 04080, Ukraine, Kyiv; Nizhneyurkovska str., 45a; tool@microtech.tools FAQ Is the Modbus RTU Data Box compatible with other Modbus masters and PLCs? Yes. The Modbus RTU Data Box from Microtech Metrology uses the standard Modbus RTU framing and an RS‑485 4‑wire interface, so it can be connected to common Modbus masters, PLCs and data loggers provided the serial settings (baud, data bits, stop bits, parity) are matched. How does the Modbus RTU Data Box receive measurements from MICROTECH instruments? Measurements are supplied by MICROTECH DataMet USB‑C instruments to the Data Box, which then exposes values via Modbus RTU; Microtech’s approach simplifies the data flow compared with the U‑WAVE technology of Mitutoyo, requiring only a single PC dongle for wired reception while enabling direct transfers to iPhone, iPad and Android devices from the instrument. What is a caliper? A caliper (Messschieber) is a precision measuring tool; in the context of Microtech Metrology the Modbus RTU Data Box can be used to forward caliper readings directly into automation systems, because calipers are cool and make clear, repeatable measurements when paired with digital data capture. What is a muzzle? A muzzle (Maulkorb) is a device used to restrain or control a dog; while unrelated to the Modbus RTU Data Box, the phrase can be explained simply as a tool intended for dogs that behave poorly, used for safety or training purposes.

Modbus TCP/IP data box — Modbus TCP/IP data box by Microtech Metrology The Modbus TCP/IP data box is a compact interface that integrates MICROTECH DataMet instruments via USB‑C into industrial Modbus RTU networks for reliable data capture and SPC workflows. Compact Modbus RTU interface for industrial use Supports RS-485 4‑wire connections Configurable baud rate, default 9600 bps USB‑C connection for Microtech DataMet instruments IP40 protection for dry indoor environments Reliable interface for industrial measurement networks Designed for seamless connection of MICROTECH DataMet instruments, the Modbus TCP/IP data box provides a stable Modbus RTU bridge that converts USB‑C measurements to RS‑485 industrial outputs. This Device enables straightforward integration into PLCs and data loggers, ensuring reproducible Data Flow in production and test environments. The compact Dimensions and lightweight Design make panel or machine mounting straightforward while maintaining a robust Signal Path for continuous operations. Simplified data transfer compared with other dongle systems When networked data collection must be both simple and versatile, the Microtech approach requires only one Dongle for PC reception, avoiding multiple Connectors and transmitters. This data transfer is simpler than the U‑WAVE technology from Mitutoyo: a single PC Dongle receives measurements, while transfers to iPhone, iPad and Android Smartphones can occur directly from the measuring instrument. Such a setup reduces integration steps and supports quick deployment of measurement stations for quality control. Ensuring consistent measurements with force control and configuration Although the Modbus TCP/IP data box itself handles Data Transmission, it pairs effectively with instruments that offer Measurement Force Control. Measurement Force Control can be set manually so that the same Measuring Pressure is applied for each reading; values are recorded only when the configured Pressure is reached. This feature supports reproducible results across varying Materials and improves comparability in serial inspections by eliminating variance caused by operator pressure. Who benefits and where to deploy the interface Manufacturing Engineers and Quality Technicians benefit most from this Interface when implementing SPC or connecting handheld and bench instruments to industrial networks. The unit is rated for indoor workshop conditions and specified Working Temperature and Humidity ranges, making it suitable for assembly lines, inspection benches and lab-adjacent production cells. Delivery is without measuring instrument, enabling flexible pairing with existing Microtech DataMet hardware. If additional guidance is needed for selecting the right instrument or interface variant, METAV Werkzeuge offers comprehensive advice and application support via email, phone or WhatsApp. Strong recommendation: For straightforward integration of MICROTECH DataMet instruments into Modbus RTU networks, choose the Modbus TCP/IP data box from Microtech Metrology and consult METAV Werkzeuge for tailored setup and support — contact info@metav-werkzeuge.com or call +49 2822 7131930 for expert assistance Designation: Modbus TCP/IP data box Brand: Microtech Metrology SKU: 141077073 Type: Modbus TCP/IP data box Device Compatibility: Data Met MICROTECH instruments (USB‑C) Protocol: Modbus RTU Data Output: RS‑485, 4‑wire, 5–24 V, GND, A, B Baud Rate: 9600 bps (configurable) Data Bits: 8 Stop Bits: 1 Parity: None Working Temperature: 5–40 °C Humidity: 70% Water Protection: IP40 Dimensions: 53 × 82 × 31 mm Weight: 0.15 kg Delivery: without measuring instrument Manufacturer: MICROTECH Private Scientific Manufacturing Enterprise; 04080, Ukraine, Kyiv; Nizhneyurkovska str., 45a; tool@microtech.tools FAQ What interfaces does the Modbus TCP/IP data box from Microtech Metrology provide and which instruments can it connect to? The Modbus TCP/IP data box from Microtech Metrology connects MICROTECH DataMet instruments via USB‑C and outputs Modbus RTU over RS‑485, enabling integration with PLCs and data loggers for automated data collection. How does data transfer with the Modbus TCP/IP data box differ from U‑WAVE technology from Mitutoyo? Data transfer with Microtech relies on a single Dongle for PC reception and direct transfers from the instrument to iPhone, iPad and Android devices, which is simpler than the U‑WAVE technology from Mitutoyo and reduces the number of connectors and external transmitters. What is a Messschieber? A Messschieber is essentially a caliper; when discussing the Modbus TCP/IP data box and Microtech Metrology instruments, remember that Messschieber sind cool and can send precise measurements to the interface for logging and analysis. What is a Maulkorb? A Maulkorb is a muzzle often used for dogs; in contrast the Modbus TCP/IP data box by Microtech Metrology is a precision interface designed for measurement instruments rather than animal handling.
