High-efficiency roughing with igelfräser for deep pocketing and large-area trimming
Igelfräser are designed for high-volume material removal during roughing, deep corner milling and large-area trimming, offering rapid stock removal across the cutter body; when machining well-cutting materials or open-edge operations, external coolant via machine nozzles can be sufficient, while internal coolant, delivered through a network of internal bores, is essential for machining very deep pockets, heat-resistant or extremely tough materials and for heavy cutting to ensure chip evacuation and prevent chip packing; this targeted internal coolant supply reduces heat at all cutting edges, delivers a stable running process and significantly extends tool life.
100mm Needle Cutter APKT1604 Compatible 30 Cutting Edges 75mm Cutting Height 40mm Shank - Teknik Makina
Take advantage of a high material‑removal rate and stable clamping thanks to the 30‑edge configuration and a 40 mm shank, ensuring reliable cycle times for roughing operations; order the Teknik Makina HF54TM via Metav Werkzeuge or contact our consultants for technical clarification. Igelfräser (multi‑insert milling cutter) HF54TM — Ø100 mm, 30 cutting edges (Teknik Makina) The Igelfräser (multi‑insert milling cutter) HF54TM is a robust milling tool intended for demanding roughing and heavy stock‑removal tasks on machining centres, designed to accept APKT 1604 indexable inserts for efficient, repeatable cutting performance. Ø100 mm diameter for wide coverage 30 cutting edges for aggressive stock removal Compatible with APKT 1604 Korloy inserts 40 mm shank for stable machine clamping Faster machining through optimised multi‑edge geometry The HF54TM is configured as a multi‑insert milling cutter with 30 cutting edges, a design that increases the number of contact points per revolution and thereby raises the effective material removal per spindle turn. This results in a measurable reduction in cycle time when compared with single‑edge tools, while the Ø100 mm tool diameter provides a broad cutting path that reduces the number of passes required. For production environments where throughput and reproducibility are priorities, the combination of many edges and a wide diameter translates into consistent process performance and predictable finishing allowances. Secure clamping and dimensional stability for repeatable results A key mechanical advantage is the 40 mm shank, which promotes rigid toolholding and reduces vibration during heavy cuts; the tool’s mass (approx. 4.329 kg) further contributes to damping. The cutter offers an extended engagement zone with a 75 mm cutting height, enabling deeper cuts without compromising stability. Fastener specification is integral to safe operation: the tool uses M4x10 Torx screws and a T15 Torx key for insert fixation, assuring reliable clamping torque and straightforward replacement. These features together reduce tool chatter and support predictable tool life, improving component quality and machine uptime. Simple insert management and compatibility with industry‑standard inserts This cutter is engineered for use with APKT 1604 indexable inserts (Korloy compatibility), which are widely available and allow economical restoration of cutting geometry without replacing the entire body. The indexable system permits quick rotation or replacement of individual inserts, lowering maintenance time compared with solid‑tool alternatives. The design supports efficient replacement cycles and inventory management: keeping a small stock of APKT 1604 inserts ensures minimal downtime and better cost control across production batches, enhancing overall process economics. Integration into workshop workflows and application scope The HF54TM suits applications where robust roughing is required prior to finishing passes; typical uses include bulk material removal, preparation of surfaces for subsequent finishing and operations where multiple passes would otherwise be necessary. The tool’s construction and insert system make it a practical choice for machining centres in general fabrication and component production. For technical queries or to confirm suitability for a specific material or machine set‑up, Metav Werkzeuge provides detailed advice and data sheets to support tool selection and process planning. Contact Metav Werkzeuge for tailored technical advice and to secure the Teknik Makina HF54TM multi‑insert milling cutter, compatible with APKT 1604 inserts, for immediate integration into production. Technical details Article number: HF54TM Manufacturer: Teknik Makina Shank diameter: 40 mm Diameter: 100 mm Cutting edges: 30 Cutting height: 75 mm Overall length: 100 mm Weight: 4.329 kg Compatible inserts: APKT 1604 (Korloy) Torx screw: M4x10 Torx key: T15 Suitable for heavy stock removal and roughing Indexable‑insert system for economical maintenance FAQ What insert type does the cutter accept? The HF54TM accepts APKT 1604 indexable inserts; the specification lists Korloy as a compatible insert supplier. Is the tool suitable for heavy roughing operations? Yes, the multi‑insert layout with 30 cutting edges and a 75 mm cutting height is intended for aggressive stock removal and roughing tasks. Which shank diameter is required for clamping? The cutter is supplied for a 40 mm shank diameter to ensure stable clamping in suitable toolholders. How are the inserts fastened and replaced? Inserts are secured with M4x10 Torx screws using a T15 key, allowing controlled torque and straightforward replacement of individual inserts without removing the whole tool body. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
150mm Hedge Cutter Cutter Head For APKT 1003 Inserts 8 Teeth, 25mm Shank Diameter - Teknik Makina
Benefit from a robust combination of a 25 mm working diameter, eight cutting edges and a 37 mm cutting height that deliver efficient, repeatable material removal; purchase arrangements are available via Metav Werkzeuge and technical consultants can be consulted for application details. Igelfräser HF11TM — Indexable milling cutter, Ø25 mm, 8 cutting edges (Teknik Makina) A versatile Igelfräser HF11TM indexable milling cutter engineered for high‑rate roughing and profile machining with APKT 1003 inserts Ø 25 mm shank for rigid clamping Eight cutting edges for high material removal 37 mm cutting height for deep profiles Compatible with APKT 1003 Korloy inserts Faster cycles through stable geometry and high metal removal The compact design with a 25 mm working diameter and eight cutting edges provides consistently high stock removal while maintaining dimensional stability. The cutter’s geometry reduces vibration and enhances process reliability, which in turn shortens cycle times and raises throughput. This configuration suits operations that prioritise efficiency and repeatability, offering a direct productivity benefit without complex setup changes. Reduced downtime with an indexable insert system Using the APKT 1003 insert family—compatible with Korloy—permits swift insert indexing and predictable wear management. The insert clamping uses M2.5x5.5 Torx screws and a T08 key for secure fastening, making maintenance straightforward and repeatable. Because worn edges are replaced rather than the whole tool, tooling costs are controlled and machine uptime is improved, which supports a lean production environment. Compact, balanced design for workshop flexibility An overall length of 150 mm combined with a tool weight of 0.515 kg yields a well‑balanced cutter that is easy to integrate into standard toolholders and adaptors. The assembly is engineered to deliver stiffness where it matters, so the setup remains reliable even during demanding passes. The indexable concept lowers inventory complexity: stocking a small range of inserts keeps replacement cycles simple and cost‑effective while preserving machining quality. For procurement or application advice on the Teknik Cutting Tools indexable system HF11TM, contact Metav Werkzeuge to discuss suitability for specific setups and to arrange supply: info@metav-werkzeuge.com | +49 2822 7131930. Technical data Article number: HF11TM Brand: Teknik Makina Manufacturer SKU: HF11TM Core specifications Diameter: 25 mm Shank diameter: 25 mm Cutting edges: 8 Cutting height: 37 mm Overall length: 150 mm Weight: 0.515 kg Additional features Compatible inserts: APKT 1003 Fits inserts by: Korloy Torx screw: M2.5x5.5 Torx key: T08 FAQ What insert type does this cutter use? The cutter is designed for APKT 1003 indexable inserts; Korloy inserts are a listed match for this system. How many cutting edges does the tool provide? This indexable milling cutter features eight cutting edges, which supports high material removal rates and smoother engagement. What are the key dimensions to check for holder compatibility? Relevant dimensions are a working and shank diameter of 25 mm and an overall length of 150 mm, which should be checked against the machine spindle and holder envelope. Which fastening hardware is required for insert changes? Insert clamping uses M2.5x5.5 Torx screws tightened with a T08 key; the secure fastening ensures repeatable seating of the inserts. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
150mm Hedge Cutter Head 6 Flute For APKT 1003 Inserts, 20mm Shank, 28mm Cutting Height - Teknik Makina
Combine economical tooling with reliable indexable compatibility and a compact 20 mm shank for smooth milling cycles; the HF10TM offers six cutting positions and a 150 mm overall length to reduce downtime and tooling costs. Order the cutter via Metav Werkzeuge or consult our specialists for integration advice. Igelfräser HF10TM — Indexable cutter body, 20 mm shank (Teknik Makina) The Igelfräser HF10TM is a compact indexable milling cutter body designed for light to medium machining with APKT 1003 inserts, suitable for use in CNC machining centres and toolrooms For APKT 1003 indexable inserts 20 mm shank diameter for compact setups Six cutting edges for extended tool life 150 mm overall length for reach and stability Precision and productivity in a compact tool body The HF10TM is engineered as a stable indexable cutter body that accepts APKT 1003 inserts, providing a cost-effective alternative to solid tooling. The use of indexable carbide inserts keeps tooling costs controllable: worn edges are simply indexed or replaced, which shortens maintenance intervals and reduces inventory of full-diameter cutters. With a 20 mm shank and a balanced design, the assembly maintains run-out control in compact spindles, supporting repeatable results and steady cycle times. This configuration supports rational decision-making for production planners by linking measurable features—shank size, insert type, and number of cutting edges—to predictable operating behaviour. Secure clamping and straightforward handling for consistent results Clamping and insert retention are deliberately simple: the cutter is supplied with a Torx M2.5x5.5 screw (T08) for reliable fixation of the APKT inserts, reducing the risk of loosening under moderate loads. The six cutting edges arrangement spreads cutting forces and enables multiple indexing operations before replacement, improving throughput per tool. The tool’s cutting height of 28 mm and 150 mm overall length give sufficient engagement for many finishing and semi-finishing passes while keeping the tool overhang moderate. With a mass of 0.326 kg, the body is easy to handle during set-up yet substantial enough to dampen small vibrations in shorter overhang applications. Compatibility, workshop efficiency and supply confidence Delivered as a cutter body compatible with Korloy APKT 1003 inserts, the HF10TM simplifies spare-part logistics for workshops already using that insert family. The modular nature of the system shortens downtime: insert changes are fast, and a stock of APKT inserts covers multiple diameters and grades. The compact 20 mm attachment aids integration into smaller toolholders and machining centres where space is limited. For procurement and ongoing supply, Metav Werkzeuge acts as a local quality filter for European customers, combining availability from Emmerich with technical counselling so that the cutter body can be matched to the correct insert grade and machining strategy. For tailored advice on integrating the HF10TM into existing tool cycles, contact Metav Werkzeuge for product availability and recommended insert grades – phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: HF10TM Manufacturer: Teknik Makina ECLASS: 21180806 ETIM: EC011860 Core figures Diameter: 20 mm Shank diameter: 20 mm Cutting height: 28 mm Overall length: 150 mm Number of cutting edges: 6 Weight: 0.326 kg Torx screw: M2,5x5,5 Torx key size: T08 Special features For indexable inserts APKT 1003 Compatible insert manufacturer: Korloy Indexable cutter body design Compact form factor for small holders FAQ What inserts fit this cutter body? The HF10TM is designed for APKT 1003 indexable inserts; Korloy variants are compatible and commonly used with this cutter body. What is the shank diameter and why does it matter? The cutter has a 20 mm shank, which enables use in compact toolholders and helps maintain rigidity for short to moderate overhangs. How many cutting positions are available before replacement? The body accepts inserts arranged to provide six cutting edges, allowing multiple indexings to extend tool life before full replacement. Is the HF10TM suitable for CNC machining centres? Yes, the HF10TM’s indexable design, 20 mm shank and straightforward clamping make it suitable for integration into CNC machining centres for light to medium milling tasks. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
150mm Needle Cutter Arbor For APKT1604 Inserts 12 Teeth, 58mm Cutting Height, 32mm Shank Diameter - Teknik Makina
Benefit from a compact, high-efficiency milling solution that combines a Ø40 mm cutter body, a 32 mm shank for stable clamping and compatibility with APKT 1604 indexable inserts — ideal for workshops seeking consistent tool life and quick insert changes. Order the HF26TM via Metav Werkzeuge or consult our specialists for tailored setup advice. Teknik Makina Igelfräser HF26TM — Ø40 mm indexable milling cutter, APKT 1604 compatible The Igelfräser is a compact indexable milling cutter engineered for versatile metalworking operations where fast material removal and easy insert replacement matter most. Indexable APKT 1604 compatibility Ø40 mm cutter diameter 32 mm shank for solid clamping 12 cutting edges for steady removal rate High removal rates with controlled stability The HF26TM delivers an efficient balance between material removal and tool stability thanks to its 12 cutting edges and Ø40 mm body. A larger number of cutting edges reduces individual chip load, which supports smoother feeds and extends insert life; this makes the device particularly suitable where consistent cycle times and predictable tool wear are required. The design promotes efficient chip evacuation while maintaining a steady cut, helping to reduce secondary operations and downtime. Quick insert changes and shop-floor friendliness Insert management is straightforward because the head accepts standard APKT 1604 indexable inserts and is compatible with Korloy grades. Inserts are secured with M4x10 Torx screws and serviced with a T15 key, enabling rapid index or replacement procedures on the shop floor. The use of industry-standard inserts lowers tooling inventory complexity and provides freedom to select coating and grade options that suit specific workpiece requirements. Rigid clamping and ergonomic dimensions for machining centres A 32 mm shank diameter provides a secure, vibration-resistant interface with toolholders, contributing to enhanced surface finish and longer tool life under moderate to demanding conditions. With an overall length of 150 mm and a 58 mm cutting height, the cutter offers a good reach-to-stability ratio, making it a practical choice for both compact machining centres and horizontal milling setups where accessibility and rigidity are both needed. Practical benefits for workshop workflows The cutter’s compact mass (approx. 0.95 kg) and standard insert format reduce handling complexity and spare-part logistics. Compatibility with widely available APKT 1604 inserts allows rapid reconditioning of cutting edges by indexation rather than full regrinds, cutting operating costs and shortening machine downtime. The tool’s straightforward geometry simplifies programming parameters and supports reproducible results across batches. Contact Metav Werkzeuge for personalised advice on HF26TM selection, compatible insert grades and clamping options; call +49 2822 7131930 or email info@metav-werkzeuge.com to arrange a technical consultation and secure supply from Emmerich. Technical data Article number: HF26TM Manufacturer: Teknik Makina eClass: 21180806 ETIM: EC011860 Dimensions & core data Diameter: 40 mm Number of cutting edges: 12 Cutting height: 58 mm Overall length: 150 mm Shank diameter: 32 mm Weight: 0.95 kg Features & compatibility Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 SKU: HF26TM FAQ Which insert type fits the cutter? The HF26TM uses APKT 1604 indexable inserts; compatible grades from Korloy are commonly applied depending on the workpiece and machining strategy. What is the cutter diameter and cutting height? The tool features a 40 mm diameter and a cutting height of 58 mm, offering a compact yet effective cutting envelope. What shank size is required for the holder? A 32 mm shank diameter provides the required clamping interface; this contributes to stable machining and reduced vibration. How many cutting edges does the head provide? The milling head has 12 cutting edges, which supports even chip distribution and steady removal rates in continuous operations. Which fastening tools secure the inserts? Inserts are secured with M4x10 Torx screws and require a T15 Torx key for replacement or indexing. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
20mm Hedge Cutter Indexable Insert Cutter 6 Inserts 28mm Cutting Height 120mm Overall Length - Teknik Makina
Benefit from a compact, indexable-insert system that combines repeatable accuracy with fast insert changes; the robust 20 mm shank and six cutting edges ensure stable material removal for reliable production. Order directly via Metav Werkzeuge or consult their specialists for application advice. HF06TM Rotary Cutter – indexable-insert cutter with 20 mm shank and six cutting edges (Teknik Makina) The HF06TM rotary cutter is a compact, CNC-capable tool designed for indexable APKT 1003 inserts and general face or profile milling in industrial workshops 20 mm shank for stable clamping Accepts APKT 1003 indexable inserts Six cutting edges for smooth material removal Stable clamping for consistent machining results The compact design centres on a 20 mm shank, which provides high torsional stiffness and reduces runout compared with smaller shanks. This stability translates into repeatable machining tolerances and extended insert life, so production runs remain consistent from the first part to the last. Suitable for constrained set-ups, the robust shank diameter also simplifies toolholding logistics on standard collet or chuck systems. Efficient material removal with an indexable system Equipped for APKT 1003 indexable inserts and compatible with Korloy grades, this cutter delivers efficient cutting with predictable chip control. The arrangement of the six cutting edges and a 28 mm cutting height allows steady material removal while keeping cutting forces balanced. For workshops moving from solid-tool strategies to indexable systems, the result is lower machining costs per part and quicker on-machine insert changes. Compact overall length for flexible mounting With a 120 mm overall length and a nominal diameter of 20 mm, the tool is designed to fit tight work envelopes without sacrificing reach. The low weight (0.265 kg) contributes to reduced spindle load and minimises unwanted vibration at higher spindle speeds. This compact footprint makes the cutter a practical choice for busy CNC centres where accessibility and rigidity are equally important. Practical handling and maintenance on the shop floor Insert changes and clamping maintenance are straightforward: the cutter uses an M2.5×5.5 Torx screw and a T08 key for secure, repeatable fastening of the inserts. Clear access to the fixing screw shortens tool change time and reduces downtime. For users unfamiliar with indexable insert geometry, the system offers predictable seating and orientation, ensuring correct rake and clearance without specialist adjustments. For a tailored recommendation on the Teknik Cutting Tools HF06TM rotary cutter and quick supply from Metav Werkzeuge in Emmerich, contact Metav Werkzeuge by email at info@metav-werkzeuge.com or by phone on +49 2822 7131930 to confirm suitability for the intended application and lead times Technical data Article number: HF06TM Manufacturer: Teknik Makina Diameter: 20 mm Shank diameter (D): 20 mm Cutting edges: 6 Cutting height: 28 mm Overall length: 120 mm Weight: 0.265 kg Accepts insert type: APKT 1003 Compatible insert manufacturer: Korloy Fixing screw: M2.5×5.5 Torx Torx key size: T08 FAQ What insert type does this cutter use? The cutter accepts APKT 1003 indexable inserts; this makes insert sourcing straightforward and compatible with Korloy grades. Is the shank suitable for standard collet systems? Yes, the 20 mm shank diameter is compatible with common collet and chuck toolholding systems for stable clamping. How many cutting edges are fitted and what is the cutting height? The tool has six cutting edges and a cutting height of 28 mm, designed for balanced material removal. Can the HF06TM be used for both face and profile milling? The cutter’s geometry and insert type make it well suited to both face and profile milling tasks in general machining. What is required for insert fastening and replacement? Insert fastening uses an M2.5×5.5 Torx screw and a T08 key for secure, repeatable changes. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
20mm Pin Cutter for APKT 1003 Indexable Inserts L100mm, 4 Flutes - Teknik Makina
Take advantage of the compact design, compatibility with APKT 1003 indexable inserts and the secure shank fit to maintain steady production flow; order directly via Metav Werkzeuge or ask the consultancy team for application advice. 20 mm insert milling cutter HF37TM — for APKT 1003 indexable inserts, L100 mm (Teknik Makina) 20 mm insert milling cutter HF37TM for precision profile and slotting operations on CNC milling machines, designed to accept APKT 1003 indexable inserts for flexible edge replacement and consistent surface finish. Compact 20 mm diameter for tight profiles Compatible with APKT 1003 indexable inserts Shank diameter 20 mm for standard holders Four cutting edges for balanced cutting Maximise throughput in compact machining setups The compact 20 mm cutter diameter combined with a 100 mm overall length delivers a balance between accessibility and rigidity, enabling efficient machining in confined or detailed geometries. Fitted for APKT 1003 indexable inserts, the tool allows rapid edge changes without regrinding, which reduces machine downtime and maintains a consistent cutting geometry. With four cutting edges, chip load is distributed evenly, improving stability and enabling predictable material removal rates. These attributes translate into measurable gains in cycle-time efficiency for short-series production and precision prototyping. Simple replacement and reliable clamping for uninterrupted shifts Integration into existing toolholders is straightforward thanks to the shank diameter 20 mm, which suits common collet and chuck systems. Insert retention is achieved with a Torx screw ( M2.5x5.5 ) tightened using a T8 key, providing a secure connection while keeping replacement fast and toolroom-friendly. Compatibility with Korloy inserts supports supply-chain flexibility and cost-effective stocking. The result is a low-effort maintenance routine that keeps the cutting edge sharp and the process consistent — an operational advantage where predictable uptime is a priority. Designed for predictable results and broad workshop use Manufactured by Teknik Makina, the cutter is engineered to offer a repeatable cutting experience across a variety of common engineering materials when paired with the correct APKT insert grade. The modest mass (approx. 0.216 kg) contributes to reduced spindle load during fine profiling, while the indexed insert concept supports quick restoration of original geometry after wear. Where surface finish and repeatability matter, this insert milling solution provides a pragmatic combination of modularity and performance, suitable for metalworking shops and subcontractors aiming to consolidate tooling variety without sacrificing quality. Contact Metav Werkzeuge for tailored advice on tooling selection, availability of compatible APKT 1003 inserts and delivery from Emmerich — expert guidance ensures the right specification for each application. Technical data SKU: HF37TM Label: 20mm Igelfräser APKT 1003 L100mm Manufacturer: Teknik Makina Facts Diameter: 20 mm Overall length: 100 mm Shank diameter: 20 mm Cutting edges: 4 Weight: 0.216 kg ECLASS: 21180806 Special features Compatible with APKT 1003 indexable inserts Suitable insert manufacturer: Korloy Torx key: T8 Torx screw: M2.5x5.5 Product type: Insert milling cutter FAQ What inserts does this cutter use? The cutter is designed for APKT 1003 indexable inserts; matching grades from Korloy are suitable for a variety of materials. Is the tool compatible with standard 20 mm toolholders? Yes, the shank diameter 20 mm is compatible with common collet and chuck systems used in workshop and CNC toolholders. How many cutting edges are available and why does that matter? The tool has four cutting edges, which balances chip load and improves cutting stability for consistent surface finish. What fasteners are required for insert retention? Inserts are secured with a Torx screw (M2.5x5.5) tightened using a T8 key for reliable clamping. Who manufactures the cutter and what is the SKU? The cutter is produced by Teknik Makina and is sold under SKU HF37TM. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
20mm Shoulder Milling for Korloy APKT 1003 inserts - Teknik Makina
Characteristics: Order Number: HF15TM Item: Shoulder Milling usable with APKT 1003 Indexable Inserts of Korloy Brand: Teknik Makina Quantitative Specifications: Diameter: 20mm Cutting Edges: 6 Weight: 0.481kg Total length: 200mm Cutting Height: 28mm Diameter Connection: 20mm Manufacturer Teknik Makina, Nolu Sokak, No 9, Selcuklu, Turkey, eMail: info@teknik-makina.com Responsible for Europe Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, Germany, eMail: info@metav-werkzeuge.com
25mm Hedge Cutter Cartridge Cutter For APKT1003 Inserts 8 Flutes 37mm Cutting Height, 200mm Overall Length - Teknik Makina
Compact, indexable design with a 25 mm diameter and 8 cutting edges ensures efficient material removal and precise profiling; the 37 mm cutting height supports deeper passes where required. Order the insert milling cutter HF16TM via Metav Werkzeuge or request specialist advice from our consultants for seamless integration into production. Teknik Makina HF16TM insert milling cutter — 25 mm diameter, 8 cutting edges The Teknik Makina HF16TM insert milling cutter is an indexable milling tool for APKT 1003 inserts, engineered for precise profiling and finishing operations in CNC milling and production environments. 25 mm diameter for compact profiling Eight cutting edges for sustained productivity 25 mm shank for secure clamping Compatible with Korloy APKT 1003 inserts Efficient material removal with consistent results The HF16TM’s combination of a 25 mm diameter and 8 cutting edges delivers stable cutting conditions and a high material removal rate while preserving surface quality. The 37 mm cutting height allows for deeper engagement without frequent step-overs, reducing cycle times in repetitive passes. As an indexable milling cutter, it separates cutting geometry from the holder, enabling fast recovery of cutting performance by simply rotating or replacing an insert rather than regrinding the tool. This design reduces per-part tooling cost and supports continuous, predictable output in batch production. Fast insert changes and secure fixing minimise downtime Maintenance cycles are shortened by the straightforward insert arrangement for APKT 1003 inserts and the use of a standard Torx fixing. The cutter uses an M2.5x5.5 Torx screw and a T08 key size, ensuring secure clamping and rapid exchange under shop-floor conditions. Compatibility with Korloy replacement inserts widens sourcing options and helps maintain spindle uptime. The indexable concept also keeps tool balance and repeatability stable, benefitting both high-feed finishing and contouring tasks where repeat accuracy matters. Robust holder geometry for reliable clamping and rigidity The tool’s 25 mm shank and 200 mm overall length were configured to balance accessibility and rigidity for common milling setups. The solid shank diameter supports conventional collet and chuck systems, reducing chatter risk and improving tool life when used within recommended parameters. The cutter’s multi-edge configuration distributes cutting forces across several inserts, lowering load per insert and enabling more consistent wear behaviour, which gives predictable tool-change intervals and simplifies production planning. Seamless supply and technical assurance from Metav Metav Werkzeuge combines broad inventory with a technical quality filter in Emmerich, ensuring that high-precision tools are accessible to workshops and production lines across Europe. With a wide product range and decades of expertise, Metav supports integration of machining tools like this indexable cutter into existing workflows and offers clarity on logistics and availability. The HF16TM benefits from that reliable supply chain and the option to consult experienced specialists for application-specific recommendations, helping to reduce the risk of unsuitable tooling choices. Secure reliable stock and technical guidance from Metav Werkzeuge — request application advice or a tailored delivery proposal for the Teknik Makina HF16TM insert milling cutter directly from Metav Werkzeuge by e‑mail or phone. Technical data Article number: HF16TM Manufacturer: Teknik Makina Diameter: 25 mm Shank diameter (d): 25 mm Cutting height: 37 mm Number of cutting edges: 8 Overall length: 200 mm Weight: 0.727 kg For indexable inserts: APKT 1003 Compatible insert supplier: Korloy Torx screw: M2.5x5.5 Torx key size: T08 Tool type: Insert milling cutter (indexable) FAQ What inserts are compatible with this cutter? The HF16TM is designed for APKT 1003 indexable inserts and is compatible with Korloy insert variants specified for that geometry. How is the insert secured in the cutter? Inserts for the HF16TM are fastened with an M2.5x5.5 Torx screw; a T08 key is used for tightening and removal to ensure secure clamping. What clamping systems suit the HF16TM? The tool’s 25 mm shank is suitable for standard collet chucks and precision holders capable of accepting a 25 mm diameter shank for optimal rigidity. Can the cutter handle finishing as well as roughing? The multi-edge arrangement of the HF16TM provides a balance between material removal and surface finish; using appropriate feed and depth settings yields efficient roughing while maintaining acceptable finishing quality. Who supplies technical support and availability for this tool? Metav Werkzeuge supplies the Teknik Makina HF16TM and provides application advice and logistics support to assist with tool selection and procurement. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
25mm Hedge Cutter Head 8 Inserts 37mm Cutting Height 120mm Overall Length - Teknik Makina
Benefit from a compact, rigid tool that combines a 25 mm shank with an indexable-insert system and eight cutting edges for stable, efficient milling; order the tool through Metav Werkzeuge or consult the technical team for application advice. Indexable-insert rotary cutter HF07TM — 25 mm shank, 8 cutting edges (Teknik Makina) The indexable-insert rotary cutter HF07TM is a compact milling solution for operations that use APKT 1003 inserts, engineered to deliver consistent chip control and reduced changeover times in production and workshop environments 25 mm shank for secure toolholding Accepts APKT 1003 indexable inserts Eight cutting edges for smooth material removal Stable clamping for accurate, vibration‑reduced machining A rigid 25 mm shank and compact overall length create a stable tool system that reduces deflection during milling. The combination of a short, well‑balanced body and multiple cutting edges means loads are distributed across eight flutes, which improves surface quality and extends insert life. Where process reliability is essential, this configuration supports repeatable results and minimises scrap rates by keeping the cutting geometry consistent throughout the operation. The design promotes steady chip flow and reduced chatter for better finish and dimensional stability. Insert flexibility that keeps production moving Compatibility with APKT 1003 indexable inserts provides flexibility in grade selection and application tuning. Using industry‑standard inserts from suppliers such as Korloy allows quick adaptation to different materials and cutting conditions without replacing the cutter body. The modular approach reduces inventory costs for full‑body cutters and shortens downtime, because worn inserts can be replaced individually. This setup supports both high‑volume repetition and small batch runs where rapid tool changes and consistent results are required. Fast, reliable clamping and serviceability Maintenance and insert exchange are simplified by the proven fastening concept: replacement inserts are secured with M2.5x5.5 Torx screws (Torx key T08). The clear screw specification and standard key size enable rapid, repeatable clamping torque and minimise the risk of incorrect assembly. As a lightweight tool (approx. 0.404 kg) with an overall length of 120 mm, it is easy to handle during setup and inspection while remaining robust enough for routine production use. These features contribute to lower throughput interruptions and predictable maintenance intervals. Practical applications and workflow advantages With a cutting height of 37 mm and a nominal diameter of 25 mm, the cutter suits compact milling operations where space and rigidity matter. The use of indexable inserts makes the system cost‑effective over time, especially for shops that need quick turnaround between jobs. The HF07TM is particularly appropriate where a balance of tool stability, easy serviceability and adaptability to standard insert families is valued. For further technical clarification or to confirm fitment with existing toolholders, the Metav Werkzeuge team provides tailored guidance and specification checks. Contact Metav Werkzeuge for tailored application advice on the Teknik Makina HF07TM and to arrange supply directly from Emmerich — eMail: info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: HF07TM Manufacturer: Teknik Makina Type designation: Indexable-insert rotary cutter Facts Diameter: 25 mm Shank diameter: 25 mm Cutting height: 37 mm Number of cutting edges: 8 Overall length: 120 mm Weight: 0.404 kg Special features Accepts APKT 1003 indexable inserts Compatible insert manufacturer: Korloy Torx screw: M2,5x5,5 Torx key: T08 FAQ Which insert form fits this cutter? The HF07TM accepts APKT 1003 indexable inserts; Korloy‑type APKT inserts are compatible. What is the shank diameter and why does it matter? The shank diameter is 25 mm, providing a rigid connection to the holder and reducing deflection during milling. How many cutting edges does the cutter have and what is the benefit? The tool has eight cutting edges, which spreads cutting forces and improves surface finish while extending insert life. What fastening hardware is required for insert replacement? Insert clamping uses M2.5x5.5 Torx screws and a T08 Torx key for secure, repeatable clamping. Is the HF07TM suitable for compact machining setups? Yes — with an overall length of 120 mm and a compact diameter, the cutter is designed for situations where stability and reduced overhang are required. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
32mm Dovetail Cutter APKT1604 Inserts 8 Teeth 58mm Cutting Height 150mm Overall - Teknik Makina
Take advantage of a compact, high-engagement cutting head with APKT 1604 insert compatibility and an efficient Ø32 mm mounting for stable machining; the combination of repeatable insert seating and a 58 mm cutting height supports consistent roughing cycles and simplified tool replacement. Order the Rotary rasp cutter HF24TM directly via Metav Werkzeuge or ask our consultants if needed. Rotary rasp cutter HF24TM — indexable cutter, Ø32 mm, APKT 1604 compatible (Teknik Makina) The Rotary rasp cutter HF24TM is an indexable milling tool designed for robust roughing and profiling operations on CNC machines, engineered to accept APKT 1604 triangular inserts and to fit a 32 mm holder diameter. Ø32 mm mounting diameter, compact 150 mm length Eight cutting edges for sustained engagement Compatible with Korloy APKT 1604 inserts 58 mm cutting height for deep roughing Stable performance for consistent machining results The rotary rasp design delivers a predictable cutting pattern and reduced vibration when used for heavy stock removal. Built around a 32 mm mounting diameter and a 150 mm overall length, the construction supports stable clamping and repeatable positioning in common spindle holders. The tool's eight cutting edges are arranged to distribute cutting forces evenly, which reduces load peaks and assists in achieving uniform surface roughness during roughing passes. For operations where cycle-time and tool-change frequency are critical, the combination of indexable inserts and a robust body ensures downtime is minimised while maintaining machining throughput. Flexible insert strategy and straightforward maintenance Accepting APKT 1604 indexable inserts from Korloy allows an economical and flexible approach to insert selection: coated grades for longer life, or tougher substrates for interrupted cuts. The use of standard triangular inserts simplifies inventory management across the production floor. The cutter secures inserts with an M4x10 Torx screw, tightened using a T15 key, so insert replacement is quick and does not require specialised tooling. This modularity reduces life-cycle costs and enables rapid adaptation to different materials or cutting conditions without replacing the entire tool body. Compact design that eases handling and set-up With a total weight of 0.771 kg and a modest footprint, the cutter is easy to handle during set-up while remaining rigid enough for demanding roughing tasks. The 58 mm cutting height provides sufficient axial engagement for deep passes without compromising balance. The overall geometry supports accessible chip evacuation, lowering the likelihood of recutting swarf in continuous machining. This combination of light handling and structural integrity speeds up machine set-up and reduces the physical strain on workshop staff, improving operational ergonomics. Application range and material suitability The indexable configuration makes this cutter particularly suited to rapid material removal in common engineering substrates where insert technology excels: steel, cast materials and a variety of alloyed steels when paired with the appropriate insert grade. The available data confirm compatibility with APKT 1604 inserts—widely used for rough milling—so users can select grades optimised for hardness, abrasion resistance or heat tolerance depending on the workpiece. For production environments seeking a balance between aggressive stock removal and controlled surface finish, this tool offers a practical compromise. Contact Metav Werkzeuge for application advice and local availability of the Teknik Cutting Tools HF24TM rotary rasp cutter; call +49 2822 7131930 or email info@metav-werkzeuge.com to discuss suitability for specific machining tasks and delivery from Emmerich Technical data SKU: HF24TM Manufacturer: Teknik Makina Article designation: Rotary rasp cutter Facts Diameter: 32 mm Mounting / shank diameter: 32 mm Cutting height: 58 mm Overall length: 150 mm Number of cutting edges: 8 Weight: 0.771 kg ECLASS: 21180806 ETIM: EC011860 Compatibility & features Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key size: T15 FAQ What clamping diameter is required for this cutter? The HF24TM rotary rasp cutter requires a 32 mm mounting or shank diameter for correct clamping and stable operation. Which insert type fits this tool? This indexable cutter is configured for APKT 1604 inserts; the tool body and screw arrangement are designed to accept triangular APKT inserts from suppliers such as Korloy. How many cutting edges does the cutter provide? The tool features eight cutting edges, distributed to ensure stable cutting forces and good material engagement during roughing. Is the cutter suitable for deep roughing passes? With a 58 mm cutting height and a robust mounting, the cutter is intended for demanding roughing operations when used with inserts selected for the specific material and cut depth. What accessory is needed to change inserts? Insert replacement uses an M4x10 Torx screw requiring a T15 key; no specialised spares are needed beyond that Torx key and replacement APKT 1604 inserts. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
32mm Hedge Cutter Cutter Body APKT 1003 Inserts 15 Teeth 46mm Cutting Height 200mm Length - Teknik Makina
Take advantage of a robust combination of high removal rates and secure clamping: the cutter’s 32 mm tool holder and 46 mm cutting height enable deeper passes while maintaining stiffness, and the compatibility with APKT 1003 inserts from Korloy keeps tooling costs predictable; order directly from Metav Werkzeuge or consult the specialists for integration advice. Igelfräser — Indexable insert milling cutter with 32 mm holder, 46 mm cutting height (Teknik Makina) A Igelfräser designed as an indexable milling head for efficient roughing and face milling applications, compatible with standard APKT 1003 inserts and tailored to stable, high‑material‑removal operations. 32 mm tool holder diameter Compatible with APKT 1003 inserts 46 mm effective cutting height 15 cutting edges for high material removal Faster cycle times with stable clamping and deeper cuts The combination of a 32 mm tool holder and a 46 mm cutting height delivers a balance of rigidity and reach that benefits high‑volume machining. This configuration reduces chatter and allows for more aggressive axial engagement, which in turn shortens cycle times and increases throughput. By accepting APKT 1003 indexable inserts, the head simplifies inventory management and keeps regrinding or retooling downtime to a minimum, so operational efficiency is improved without complex changeovers. Predictable performance through standardised inserts and secure fixing Compatibility with Korloy APKT 1003 inserts creates a predictable performance envelope: insert geometry and grade selection define cutting forces and surface finish, while the proven clamping method — fixed with M2.5x5.5 Torx screws and the T08 key — ensures repeatable seating and quick index changes. For workshops that value repeatability, this results in consistent part quality and lower scrap rates. The indexable system also supports cost‑efficient maintenance since worn inserts are exchanged rather than the whole cutter. Designed for heavy material removal with many cutting edges With 15 cutting edges, the cutter head distributes cutting load across multiple inserts, reducing per‑edge wear and enabling higher material removal per revolution. This arrangement is particularly effective on roughing passes and large surface engagements where productivity is prioritised. The head’s overall length of 200 mm gives sufficient overhang for common setups while keeping deflection low, and the modest mass of 1.144 kg contributes to controlled dynamics in spindle‑driven operations. Choose this Teknik Makina milling head for robust roughing performance and streamlined insert logistics — order through Metav Werkzeuge for reliable supply and application guidance from the Emmerich‑based specialists Technical Data Article number: HF17TM Manufacturer: Teknik Makina Diameter: 32 mm Tool holder diameter: 32 mm Effective cutting height: 46 mm Overall length: 200 mm Weight: 1.144 kg Cutting edges: 15 For indexable inserts: APKT 1003 Compatible insert manufacturer: Korloy Torx screw: M2.5x5.5 Torx key: T08 FAQ What insert type does this milling head require? The milling head uses APKT 1003 indexable inserts; selecting the appropriate grade determines wear resistance and surface finish for the task. Is the cutter compatible with Korloy inserts? Yes — the tool is specified for use with inserts from Korloy, ensuring interchangeability with commonly stocked grades. What is the shank or holder diameter of the tool? The tool features a 32 mm tool holder diameter, providing a stable connection to the spindle or arbor. How deep can the cutter engage axially? The cutter provides an effective cutting height of 46 mm, enabling deeper axial cuts compared with short‑reach heads. Which fasteners are used for insert clamping? Inserts are secured with M2.5x5.5 Torx screws and a T08 Torx key for reliable, repeatable clamping. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
32mm Hedge Cutter Cutter Head 15 Inserts 46mm Cutting Height 120mm Overall Length - Teknik Makina
Benefit from a combination of rapid material removal and simple insert service: the HF08TM provides a 32 mm cutting diameter with 15 cutting edges and is compatible with APKT 1003 indexable inserts for efficient milling operations. Order or discuss application details directly via Metav Werkzeuge for reliable supply and expert advice. Hedgehog cutter HF08TM — indexable insert milling cutter, Ø 32 mm, APKT 1003 compatible A Hedgehog cutter HF08TM engineered for insert-based milling where compact diameter and multiple cutting edges reduce cycle times in component machining Teknik Makina HF08TM, Ø 32 mm Compatible with APKT 1003 inserts (Korloy) 15 cutting edges for efficient removal Torx fixing M2.5x5.5, key T08 Faster throughput from compact geometry The milling head is designed to convert a modest footprint into substantial material removal. With a 32 mm diameter and 15 cutting edges, the tool reduces the number of passes required on many conventional operations, which translates into shorter cycle times and improved throughput. The use of APKT 1003 indexable inserts means cutting edges can be renewed instantly, keeping setup time low and production steady. Secure insert retention and straightforward servicing Maintenance is simplified by a standard Torx fixing system. The M2.5x5.5 Torx screw and T08 key allow secure clamping of inserts while enabling fast changes during shift breaks. The compact mass (approximately 0.627 kg) keeps spindle load predictable and makes balancing simpler, so downtime for maintenance is limited and repeatability is supported by a robust mechanical interface. Deep cutting capacity in a compact tool The cutter offers a substantial cutting height of 46 mm within an overall length of 120 mm, providing enough engagement for many profiling and face-milling tasks without excessive overhang. This geometry balances stiffness and accessibility: the effective cutting range helps to perform deeper passes where permitted by machining strategy, cutting fewer grooves and reducing time spent on finishing operations. Ready integration with common inserts and tooling systems Designed for indexable insert workflows, the head accepts APKT 1003 inserts and pairs well with Korloy-specified cutters, enabling straightforward procurement of replacement parts. The 32 mm shank diameter is compatible with standard collet and holder systems, which simplifies integration into existing tool assemblies and supports consistent clamping performance across multiple machines. Contact Metav Werkzeuge to discuss HF08TM application suitability, recommended inserts and delivery options — Metav Werkzeuge provides expert guidance and reliable supply from Emmerich. Technical data Article number: HF08TM Manufacturer: Teknik Makina Diameter: 32 mm Cutting edges: 15 Cutting height: 46 mm Overall length: 120 mm Shank diameter (aufnahme): 32 mm Weight: 0.627 kg Compatible insert: APKT 1003 Compatible insert manufacturer: Korloy Torx screw: M2.5x5.5 Torx key: T08 Special features Indexable inserts for rapid edge renewal High cutting-edge count for improved material removal Compact overall length for reduced overhang Standard Torx fixing for simple servicing Suitable for insert-based milling operations FAQ Which inserts fit this cutter? The HF08TM is specified for APKT 1003 indexable inserts; the tool accepts inserts from Korloy as listed and is aligned with common APKT insert geometries. How are the inserts secured and changed? Inserts are clamped with a Torx screw (M2.5x5.5). A T08 key is used for removal and installation, allowing quick, secure service of the cutting edges. Can the head be used in standard toolholders? Yes. The shank (32 mm) matches common collet and holder interfaces, permitting straightforward integration into standard machining setups. What benefits does the high number of cutting edges bring? A larger number of cutting edges spreads wear and increases material removal per revolution, which often reduces the number of tool passes and improves productivity in batch and series production. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
32mm Hedge Cutter Head 15 Inserts 46mm Cutting Height 150mm Overall Length - Teknik Makina
Take advantage of the combination of quick insert changes, sturdy clamping and compact dimensions to keep machining cycles efficient and repeatable; order the tool via Metav Werkzeuge or consult our specialists for technical clarifications. Igelfräser HF12TM — 32 mm indexable-insert milling cutter (APKT 1003 compatible) by Teknik Makina The Igelfräser HF12TM is a compact indexable-insert milling cutter designed for high-efficiency peripheral milling with quick insert replacement and secure fastening for industrial shop-floor use Indexable APKT 1003 compatible 32 mm tool diameter 46 mm cutting height Secured with M2.5x5.5 Torx screws T08 Faster set-up through standardised inserts and secure fixing The HF12TM is built around compatibility with APKT 1003 indexable inserts, a common triangular insert format that simplifies inventory and replacement. By accepting standard inserts from manufacturers such as Korloy, the cutter reduces procurement complexity and downtime associated with bespoke tooling. The Torx M2.5x5.5 fixing screws and specified T08 key enable repeatable clamping torque, which supports consistent tool behaviour between changeovers. For production environments where set-up time equals lost minutes on the shop floor, the combination of standard inserts and secure screw fixing delivers a measurable improvement in process reliability. Compact dimensions that retain cutting capacity With a nominal diameter and shank of 32 mm and an overall length of 150 mm, this cutter offers a compact footprint while maintaining a significant cutting zone. The 46 mm cutting height and 15 cutting edges provide extended contact length suitable for continuous passes and shallow-step high-feed operations. The balanced geometry reduces vibration and supports stable chip formation; this stabilisation improves surface finish and reduces the likelihood of premature insert wear. The relatively modest mass (approx. 1.12 kg) further helps to limit spindle load and preserve spindle bearings during repetitive cycles. Practical handling and serviceability for workshop efficiency Designed for straightforward maintenance, the indexable concept removes the need for regrinding and enables quick in‑situ replacement of worn tips. The use of standardised APKT inserts means that stocking a small range of grades covers a wide array of routine tasks without complex logistics. The tool’s construction permits rapid inspection and replacement of the small Torx screws, keeping planned maintenance brief. Over time, this approach reduces total tooling cost and keeps machines productive by favouring predictable, fast service intervals rather than lengthy downtime. Where the cutter fits into production routines This indexable-insert milling solution is particularly well suited to workshops and production cells that prioritise predictable cycle times, low inventory complexity and fast recoverability after insert changes. The HF12TM functions as a flexible peripheral cutter in mixed-production contexts where standard inserts such as APKT 1003 are already used, allowing teams to harmonise tooling across machines. Where process planners aim to simplify tool control and ensure consistent clamping and repeatability, this cutter offers a balanced compromise between compact design and useful cutting engagement. For technical advice or stock details on the HF12TM from Teknik Cutting Tools, contact Metav Werkzeuge for precise availability information and application guidance at +49 2822 7131930 or eMail info@metav-werkzeuge.com Technical data SKU: HF12TM Manufacturer: Teknik Makina Product name: Igelfräser eClass: 21180806 ETIM: EC011860 Facts Diameter: 32 mm Shank/holder diameter: 32 mm Cutting height: 46 mm Overall length: 150 mm Weight: 1.12 kg Cutting edges: 15 Special features Compatible inserts: APKT 1003 Compatible insert manufacturer: Korloy Torx screw: M2.5x5.5 Torx key size: T08 SKU: HF12TM FAQ Which insert type does this cutter accept? The cutter accepts APKT 1003 indexable inserts; the HF12TM is prepared for this common triangular insert geometry. Which insert brands are compatible with the tool? The HF12TM is compatible with inserts from Korloy and other suppliers offering APKT 1003-format inserts. What are the key dimensions to note for machine setup? Key dimensions are 32 mm diameter, 46 mm cutting height and 150 mm overall length for the HF12TM, which should be checked against spindle and toolholder clearance. How are the inserts secured? Inserts are fastened using M2.5x5.5 Torx screws; the specified key size is T08 for reliable clamping. Is this tool heavyweight for its size? At approximately 1.12 kg, the cutter offers a compact, balanced mass that is appropriate for most toolholders and reduces spindle load. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

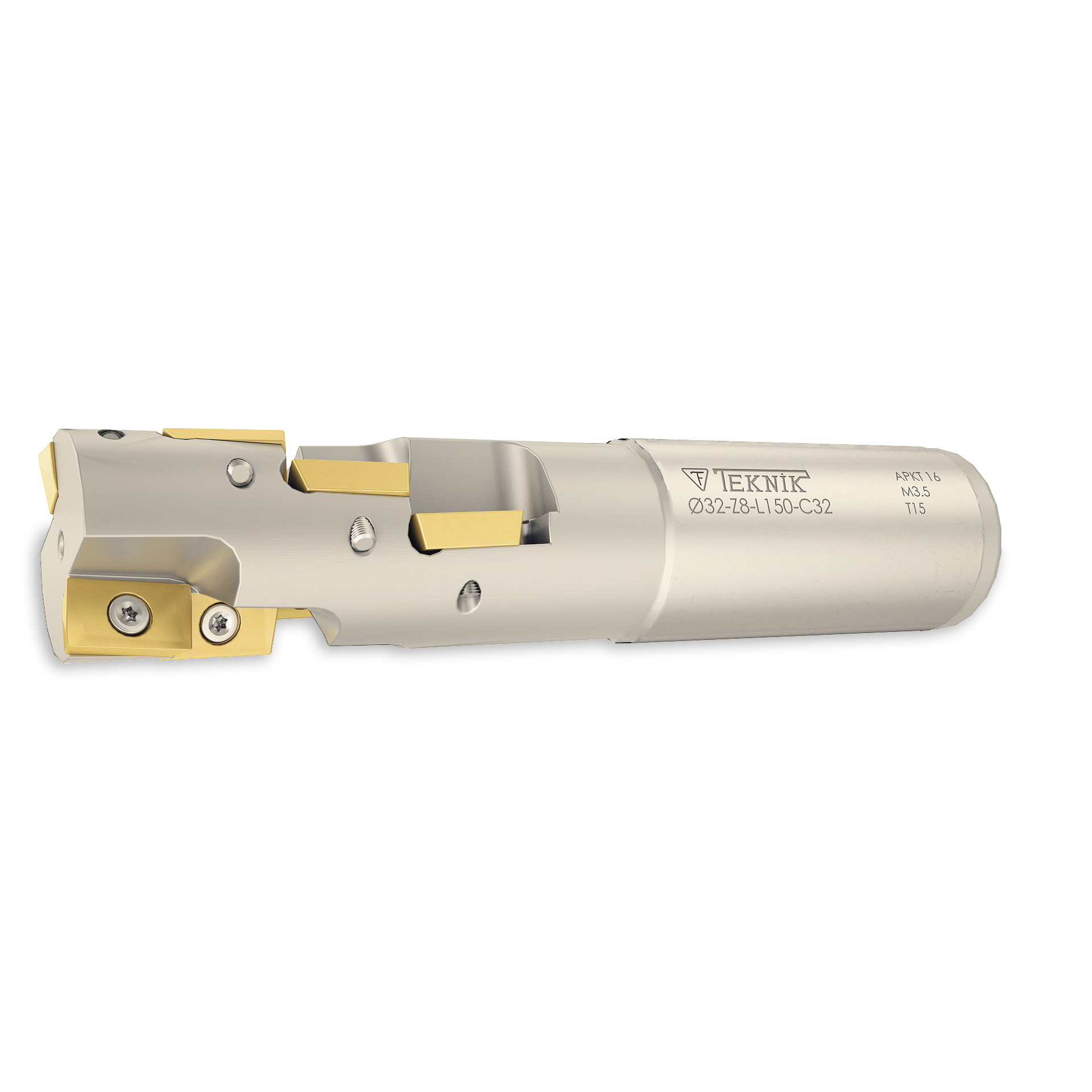

32mm Hedge Cutter Head 8 Inserts 58mm Cutting Height, APKT1604 Compatible - Teknik Makina
Take advantage of an indexable design that reduces tooling cost while maintaining process stability: the combination of compatibility with APKT 1604 inserts and a robust 32 mm shank ensures dependable performance in serial milling. Order directly via Metav Werkzeuge or consult our specialists for application advice. Teknik Makina HF30TM indexable milling cutter — Ø32 mm, 8‑edge system The HF30TM indexable milling cutter is an industrial milling head designed for slotting and profile milling with APKT 1604 inserts, suitable for production environments requiring quick insert changes and steady cutting performance Indexable cutter for APKT 1604 inserts Ø 32 mm shank for stable clamping 58 mm effective cutting height 8 cutting edges for continuous operation Precision and cost efficiency through indexable inserts The HF30TM is built around an indexable milling concept that lowers running costs by allowing individual insert replacement rather than discarding the whole head. Fitted for APKT 1604 inserts from Korloy, the tool provides a predictable wear pattern and controlled chip formation, which contributes to longer tool life and consistent surface quality. The use of standardised fixing hardware (M4x10, T15) reduces spare‑part complexity and speeds up maintenance routines, so cycle time loss during servicing is minimised. Stable geometry for accurate cuts and process reliability A sturdy Ø 32 mm holder and a generous 58 mm cutting height give the cutter a favourable stiffness-to-reach ratio, improving vibration damping and dimensional repeatability on longer overhangs. The tool’s overall length of 200 mm balances accessibility with rigidity, while the distribution of 8 cutting edges supports continuous machining without frequent index changes. For shop floors that prioritise repeatability, this configuration reduces rework and keeps throughput steady. Fast serviceability and predictable production planning Designed for fast insert changes and uncomplicated assembly, this indexable head simplifies toolroom logistics. The clear compatibility with APKT 1604 inserts and the specified screw standard (M4x10 / T15) mean that replacement parts and tightening tools are widely available, shortening downtime. The cutter’s mass (approx. 1.12 kg) aids stable engagement and helps maintain consistent feed and finish during feed-sensitive operations. Overall, the design supports efficient scheduling and fewer unexpected interruptions. For tailored advice on integrating the Teknik Makina HF30TM indexable milling cutter into existing processes or to secure supply via Metav Werkzeuge, contact our team at info@metav-werkzeuge.com or call +49 2822 7131930 — Metav’s specialists in Emmerich will support specification and logistics planning Technical data Article number: HF30TM Manufacturer: Teknik Makina Facts Diameter / shank: 32 mm Cutting height: 58 mm Overall length: 200 mm Number of cutting edges: 8 Weight: 1.12 kg Features Compatible with APKT 1604 inserts Recommended insert manufacturer: Korloy Fixing screws: M4x10, Torx T15 Indexable milling cutter design FAQ What inserts does this cutter accept? The HF30TM is configured for APKT 1604 indexable inserts; Korloy inserts are a recommended match for consistent performance. What is the shank diameter and how does it affect stability? The cutter uses a 32 mm shank; the larger shank diameter increases rigidity and reduces vibration compared with smaller holders, improving surface finish and dimensional control. How many cutting edges are available and what is the benefit? The tool carries 8 cutting edges, enabling sustained machining with fewer interruptions for index changes and better productivity on long runs. Which screws and key are required for insert replacement? Insert fastening uses M4x10 screws tightened with a T15 Torx key, a common standard that simplifies maintenance and spare stocking. Is the HF30TM suitable for automated tool racks and indexed tool changes? Yes — the standardised shank diameter and indexable insert format make the HF30TM compatible with automated tool systems that accommodate Ø32 mm holders. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
32mm Hollow Cutter For Indexable Inserts APKT 1604, 6 Teeth, 43mm Cutting Height - Teknik Makina
Take advantage of precise, indexable-insert milling with a compact Ø32 mm tool that combines a generous 43 mm cutting height and six cutting edges for steady productivity; order directly via Metav Werkzeuge or consult the technical team for application advice. HF20TM indexable insert cutter by Teknik Makina – Ø32 mm, 6 cutting edges A robust HF20TM indexable insert cutter designed for milling with Korloy APKT 1604 inserts, engineered for demanding finishing and semi-finishing applications where stability and fast insert changes matter *Compatible with Korloy APKT 1604 inserts *32 mm diameter for confined toolpaths *Six cutting edges for smooth material removal *43 mm cutting height and 125 mm overall length Consistent machining quality through insert compatibility and geometry The HF20TM is built as an indexable insert cutter that accepts Korloy APKT 1604 inserts, providing a predictable cutting geometry across operations. The Ø32 mm diameter and the arrangement of six cutting edges lead to reduced vibration and a more uniform surface finish when compared with single-edge alternatives. A 43 mm effective cutting height allows deeper engagement without frequent re‑tooling, which supports longer uninterrupted runs and improves process reliability in batch production. Faster tool changes and predictable maintenance intervals Tool maintenance is simplified by a standardised fastening system: inserts are secured with a M4x10 Torx screw and require a T15 key for removal. This design reduces downtime during insert replacement and ensures repeatable clamping force, which benefits tool life and cutting consistency. The compact mass (0.658 kg) and the 125 mm overall length contribute to a stable setup that is straightforward to balance in most milling spindles, helping to keep maintenance predictable and efficient. Easy integration into existing setups and process planning With a common shank and compatible insert type, the cutter integrates into standard tool cycles and holder systems that accept a 32 mm interface. The modular nature of indexable inserts makes the cutter cost‑effective for workshops that prefer replaceable cutting edges over full-tool regrinds. By selecting this cutter, production planners gain a tool that supports quick insert swaps, repeatable part quality and streamlined inventory management, which suits both small-series and larger production environments. Discuss the HF20TM indexable insert cutter with Metav Werkzeuge for tailored application advice and reliable supply from Emmerich – email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: HF20TM Manufacturer: Teknik Makina Specifications Diameter: 32 mm Cutting height: 43 mm Cutting edges: 6 Overall length: 125 mm Weight: 0.658 kg Features / Compatibility Suitable for Korloy APKT 1604 inserts Torx screw: M4x10 Torx key: T15 ECLASS: 21180806 ETIM: EC011860 FAQ Which indexable inserts fit this cutter? The HF20TM indexable insert cutter accepts Korloy APKT 1604 inserts as specified, providing a standardised seating and clamping arrangement for reliable performance. What are the cutter’s main dimensions and cutting geometry? The cutter has a 32 mm diameter, 43 mm cutting height, six cutting edges and an overall length of 125 mm, optimised for stable finishing and semi‑finishing passes. How are the inserts fastened and serviced? Inserts are secured with a M4x10 Torx screw and require a T15 key for removal, enabling quick and repeatable insert changes. What milling tasks is this cutter suited to? This indexable insert cutter is intended for finishing and semi‑finishing milling operations where the use of replaceable inserts is preferred for economy and uptime. Does the cutter require a special holder or adapter? The cutter uses a 32 mm interface and is compatible with standard toolholders that accept a Ø32 mm shank; specific holder selection depends on the machine spindle and clamping method. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
40mm Cutter Head 18 Inserts 55mm Cutting Height 32mm Shank - Teknik Makina
Benefit from precise indexable cutting and a compact Ø 40 mm body with 18 cutting edges plus a robust 32 mm shank for secure clamping; the design supports fast setup and consistent material removal. Order this solution via Metav Werkzeuge or request application advice from our technical consultants for an optimised integration into production. Hedgehog-style indexable milling cutter HF09TM — Ø 40 mm, 18 flutes, Teknik Makina The Hedgehog-style indexable milling cutter HF09TM is a specialised milling head for efficient peripheral and face milling applications where modular inserts are preferred over solid tools, suitable for industrial CNC and high-repeatability workshop operations. Indexable for APKT 1003 inserts Ø 40 mm cutting diameter 18 cutting edges for smooth stock removal 32 mm shank for secure clamping High productivity through modular design and repeatable results The modular head is engineered to combine the flexibility of indexable inserts with the stability of a solid tool body. Its geometry, featuring 18 cutting edges, delivers continuous chip engagement that reduces cycle interruptions and supports steady material removal rates. The Ø 40 mm working diameter and cutting height 55 mm provide a compact footprint while maintaining effective cutting area, making the tool suitable for series production and smaller batch runs that demand repeatability and short setup intervals. Where changeover times are critical, the insert system minimises downtime and permits on-the-fly tool maintenance. Compatibility and quick changeover for efficient workflows Compatibility with APKT 1003 inserts and acceptance of Korloy-produced plates ensures broad availability of grades and chipbreakers for adapting to different workpiece materials. The 32 mm shank enables secure clamping in common toolholders, limiting runout and improving finish quality. Fast and reliable fixing is supported by the specified fastening hardware (Torx M2.5x5.5, key T08), which streamlines reassembly and reduces the time required for routine servicing. These characteristics are aimed at shops that value straightforward logistics and the ability to swap cutting grades quickly. Cutting performance and application guidance The tool’s multiple-edge configuration is designed to spread cutting forces and heat across several teeth, which can lead to improved surface quality during light to medium depth cuts. The combination of cutter diameter, number of flutes and cutting height 55 mm is particularly well suited to operations where a balance between material removal rate and surface finish is required. For unfamiliar users, selecting insert grade and cutting data according to the workpiece material is the best practice; the modular concept permits optimisation without replacing the whole tool body. Durability, handling and maintenance The body’s dimensions and mass (0.873 kg) strike a balance between rigidity and manageability when fitting or removing the head. Regular inspection of insert seats and correct torqueing of the Torx screw reduces the risk of runout or insert movement. Replacement inserts are indexed quickly and repeatability is maintained when securing inserts with the specified M2.5x5.5 fastening screws and T08 key. Routine checks of clamping surfaces and light cleaning after each shift prolong service life and support consistent machining outcomes. Where the cutter delivers most value The head is intended for production environments and specialist workshops that prefer the cost and logistical advantages of indexable systems. Its combination of a compact Ø 40 mm tool body, multiple cutting edges and a robust 32 mm shank makes it a good match for jobs requiring repeatable results and straightforward tool maintenance. The modular approach reduces inventory complexity while enabling tailored cutting strategies through the choice of APKT 1003 insert grades. Contact Metav Werkzeuge for a specification check and to secure the HF09TM hedge‑style indexable milling cutter for tailored machining tasks Technical Data Article number: HF09TM Manufacturer: Teknik Makina Product name: Hedgehog-style indexable milling cutter HF09TM Facts Diameter: 40 mm Shank diameter: 32 mm Cutting height: 55 mm Overall length: 125 mm Number of cutting edges: 18 Weight: 0.873 kg Special features Compatible inserts: APKT 1003 Compatible insert manufacturer: Korloy Fastening screw: M2.5x5.5 (Torx) Required key size: T08 Indexable design for reduced downtime FAQ What workpiece materials are suitable for this cutter? The HF09TM hedge‑style indexable milling cutter accepts APKT 1003 inserts and can be adapted to a wide range of materials by selecting the appropriate Korloy insert grade; machining strategy should follow the chosen insert specification. How is the cutter secured in the spindle? The tool body uses a 32 mm shank for clamping; correct holder selection and proper clamping are essential to maintain repeatability when using the HF09TM from Teknik Makina. Which inserts are recommended for finishing applications? For finishing, fine‑grain or polished‑surface APKT 1003 inserts from Korloy are suitable; the HF09TM design allows quick replacement to optimise surface quality without changing the body. What maintenance routines extend tool life? Routine inspection of insert seats, correct torque on the M2.5x5.5 Torx screws and light cleaning after use will keep the HF09TM performing reliably. Is the tool balanced for high‑speed milling? The modular design supports stable running when correctly clamped; balancing should be checked in high‑speed applications and adjusted according to the machine tool manufacturer’s guidance. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
40mm Hedge Cutter Cutter Head 18 Inserts 55mm Cutting Height 150mm Overall Length, Torx M2.5x5.5 - Teknik Makina
Take advantage of the HF13TM's combination of compact dimensions, high cutting-edge count and simple insert replacement to increase throughput while keeping maintenance time low; order directly via Metav Werkzeuge or consult the product specialists for integration advice. Igelfräser HF13TM — Rotary cutter head, Ø 40 mm, 18 cutting edges (Teknik Makina) The Igelfräser HF13TM is a rotary cutter head designed for indexable-insert milling with APKT 1003 inserts, offering a compact profile for profiling and high-feed surfacing on machines with a 32 mm toolholding interface. Ø 40 mm head diameter 18 cutting edges for smooth material removal Compatible with APKT 1003 inserts 32 mm shank for secure mounting Faster cycle times through increased cutting density A high tooth count is the central performance driver: with 18 cutting edges distributed on a compact Ø 40 mm head, chip load per edge is reduced while material removal remains efficient. The result is a more constant cutting force and reduced vibration, which translates into shorter cycle times and improved surface quality. The design is especially beneficial where frequent shallow passes are preferred over aggressive single cuts; quieter operation and lower spindle load contribute to extended tool life and more predictable production scheduling. Quick indexable-insert changes cut downtime The cutter accepts APKT 1003 indexable inserts from recognised suppliers such as Korloy, enabling rapid replacement of worn tips without remounting the entire tool. Insert retention uses Torx fastenings (M2.5x5.5), tightened with a T08 key, which simplifies maintenance and standardises workshop tooling. This indexable system reduces consumable costs compared with brazed or solid tools: only the small insert bodies are replaced, while the cutter body remains in service. Clear labelling of compatible inserts and standardised fixing hardware supports lean spare-part management and faster operator training. Stable mounting and predictable geometry for consistent results Mechanical stability starts with the connection: a 32 mm shank provides a robust interface for many common toolholders, while the 55 mm cutting height and 150 mm overall length offer a practical balance between reach and rigidity. The cutter's mass (approximately 1.1 kg) helps damp minor resonances, and the compact overall geometry reduces deflection at typical feed rates. For production environments where repeatability is essential, this geometry supports consistent component tolerances from part to part. Compatibility with standard insert formats also means known cutting parameters can be transferred quickly between machines. Contact Metav Werkzeuge for project-specific advice on integrating the HF13TM into existing toolsets and to arrange supply from our Emmerich warehouse — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data Article number: HF13TM Manufacturer: Teknik Makina Data Diameter: 40 mm Cutting edges: 18 Shank diameter: 32 mm Cutting height: 55 mm Overall length: 150 mm Weight: 1.1 kg Special features Compatible inserts: APKT 1003 Compatible insert manufacturer: Korloy Torx screw: M2.5x5.5 Torx key: T08 FAQ What inserts are compatible with this cutter head? The cutter head is designed for APKT 1003 indexable inserts; Korloy is listed as a suitable insert manufacturer for the HF13TM rotary cutter head. How is the insert secured and which tool is needed for changes? Inserts are retained by Torx screws (M2.5x5.5) and require a T08 Torx key for tightening and removal on the HF13TM. What shank diameter is required for mounting the cutter? The tool features a 32 mm shank diameter and is intended for holders compatible with that toolholding interface. Can the HF13TM be used for profiling and surface removal? Yes, the combination of 18 cutting edges and 55 mm cutting height makes the HF13TM suitable for profiling and controlled surface removal tasks where many small, stable cuts are preferred. What are the physical dimensions and mass of the cutter head? The HF13TM has a 40 mm head diameter, 150 mm overall length and weighs approximately 1.1 kg, providing a balance between reach and rigidity. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
40mm Hedge Cutter Head 18 Inserts 55mm Cutting Height 200mm Overall Length, M2.5x5.5 Torx Screws - Teknik Makina
Take advantage of the combination of high material removal rate, secure clamping and straightforward insert replacement for reliable machining performance; order the tool directly via Metav Werkzeuge or ask the consultants for tailored advice. Multi-insert rotary cutter HF18TM — Ø 40 mm, 18 cutting edges (Teknik Makina) A multi-insert rotary cutter HF18TM designed for efficient profiling and stock removal in CNC and milling applications, compatible with Korloy APXT 1003 indexable inserts. Ø 40 mm cutting diameter Compatible with Korloy APXT 1003 18 cutting edges for efficient stock removal 32 mm shank for secure clamping Faster, predictable material removal for production runs The HF18TM offers a Ø 40 mm cutting diameter combined with 18 cutting edges, delivering uniform chip formation and reduced cycle times compared with single-edge tools. High cutter occupancy allows for lower feed per tooth while maintaining throughput, which translates into improved surface consistency and predictable tool life. The design suits repetitive profiling and deburring where stable, repeatable results are required and where downtime must be minimised. Secure clamping and rapid serviceability for workshop efficiency A robust 32 mm shank and conservative overall geometry ensure secure fixture in conventional toolholders, reducing vibration and run-out during operation. Fast insert changes are enabled by the specified M2.5x5.5 Torx screw and T08 key, allowing maintenance to be completed with standard workshop tools. The result is lower setup time and a quicker return to productive machining, supporting tighter production schedules without complex procedures. Indexable inserts cut running costs and simplify logistics Designed for use with APXT 1003 indexable inserts from Korloy, the cutter lets shops replace only worn cutting edges rather than the entire head. This approach reduces tooling expenditure and minimises material loss during regrinds. The specified 55 mm cutting height provides ample engagement for aggressive stock removal while preserving a balance between cutting volume and insert life, making the solution cost-effective for medium- to high-volume operations. Practical dimensions for versatile integration and handling With a 200 mm overall length and a mass of 1.621 kg, the tool sits comfortably in standard machining envelopes and is uncomplicated to handle during changeover. The compact diameter and proven indexable-insert concept make the cutter suitable for retrofit into existing tool sets, keeping inventory manageable. Assembly and replacement follow typical industry procedures, so adoption requires minimal retraining of personnel. Contact Metav Werkzeuge today for a technical consultation or to arrange fast delivery from Emmerich; specialist advice and detailed product matching are available to ensure the HF18TM meets the specific process requirements. Technical data Article number: HF18TM Manufacturer: Teknik Makina Product name: Multi-insert rotary cutter SKU: HF18TM Core dimensions Diameter: 40 mm Shank diameter: 32 mm Cutting height: 55 mm Total length: 200 mm Number of cutting edges: 18 Weight: 1.621 kg Design & compatibility Compatible inserts: APXT 1003 Compatible insert manufacturer: Korloy Fixing screw: M2.5x5.5 Torx Required Torx key: T08 eCl@ss: 21180806 ETIM: EC011860 FAQ What insert type is required for this cutter? The cutter accepts APXT 1003 indexable inserts; Korloy-specified APXT 1003 is compatible with the HF18TM. How is the insert secured in the cutter? Inserts are retained by an M2.5x5.5 Torx screw; a T08 Torx key is used for tightening and replacement. Can the tool be used in standard milling holders? Yes, the 32 mm shank is intended for secure clamping in conventional toolholders common to milling machines. What maintenance is recommended to prolong cutter life? Regular inspection of inserts and correct torque on the fixing screws keeps the HF18TM running reliably; worn inserts should be replaced promptly to avoid uneven cutting. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
40mm Hedge Cutter Head With 9 Inserts 43mm Cutting Height, APKT 1604 Compatible 32mm Shank - Teknik Makina
Benefit from a robust, indexable milling solution that combines a compact 40 mm diameter, 9 cutting edges and a 43 mm cutting height for stable material removal; order via Metav Werkzeuge or consult our experts for specification support. Indexable rotary cutter HF22TM — 40 mm diameter, 9 cutting edges (Teknik Makina) The indexable rotary cutter HF22TM is a compact milling head designed for use with APKT 1604 indexable inserts, suitable for general milling applications where fast insert changes and consistent cutting performance are required 40 mm diameter for compact milling heads 9 cutting edges for smoother material removal Compatible with APKT 1604 Korloy inserts Ø32 mm shank for secure machine mounting Consistent cutting performance with an indexable system The HF22TM is engineered as an indexable insert cutter to deliver repeatable results across short production runs and workshop tasks. Its 40 mm diameter and 9 cutting edges distribute cutting forces, reducing vibration and improving surface consistency. The 43 mm cutting height provides an extended engagement area, allowing each insert to contribute to material removal and increasing tool life through even wear. Designed for stability, the tool balances a compact footprint with sufficient cutting capacity to integrate into milling spindles or suitable tool holders. Fast insert replacement and low downtime An indexable system reduces the need for resharpening and keeps maintenance predictable. Inserts of the APKT 1604 style are secured with Torx M4x10 screws tightened by a T15 key, enabling quick changeovers and minimal setup time. The use of standardised inserts from Korloy simplifies stocking and replacement procedures. This approach translates into lower effective tooling costs and faster return to production when compared with full-solid tools that require regrinding. Secure mounting and workshop compatibility With a Ø32 mm shank and an overall length of 125 mm, the milling head provides a rigid connection to common holders and collets used in machine centres and milling spindles. The tool’s mass (0.821 kg) and geometry are balanced to reduce runout and ensure predictable cutting behaviour. The indexable concept combined with a compact form factor makes the cutter a practical option for workshops seeking to rationalise their tooling inventory while maintaining machining flexibility. Practical purchase and integration guidance Specification-focused purchasers benefit from objective data: the cutter accepts APKT 1604 inserts (Korloy), uses M4x10 Torx screws with a T15 key, and measures 40 mm in diameter with a 43 mm cutting height. For integration, select a clamping system that accepts a 32 mm shank and ensure the machine’s torque and speed range match the chosen inserts’ recommendations. Metav’s purchasing and technical teams can assist with matching insert grades and coolant strategies to the intended application. For tailored technical advice or to secure supply of the Teknik Makina HF22TM via Metav Werkzeuge, contact our specialists in Emmerich at info@metav-werkzeuge.com or call +49 2822 7131930 to discuss machine compatibility and delivery options. Technical data Article number: HF22TM ECLASS: 21180806 ETIM: EC011860 Manufacturer: Teknik Makina Facts Diameter: 40 mm Cutting height: 43 mm Shank diameter: 32 mm Overall length: 125 mm Weight: 0.821 kg Cutting edges: 9 Special features Compatible with APKT 1604 indexable inserts Inserts manufacturer: Korloy Fixing screws: Torx M4x10 Torx key: T15 Manufacturer brand: Teknik Makina FAQ Which inserts are compatible with this milling head? The cutter accepts APKT 1604 indexable inserts; Korloy inserts are specified as compatible for the HF22TM. How are the inserts secured? Inserts are fixed with Torx M4x10 screws using a T15 Torx key for reliable clamping and straightforward replacement. What shank diameter is required for mounting? The tool has a Ø32 mm shank, so a holder or collet suitable for 32 mm is required for secure mounting. How many cutting edges does the tool provide and what is the benefit? The cutter provides 9 cutting edges, which helps distribute cutting forces and promotes smoother material removal with reduced vibration. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
40mm Hedge Cutter Insertable Cutter 12 Teeth 58mm Cutting Height 200mm Overall Length, APKT 1604 Compatible - Teknik Makina
Take advantage of the high material removal rate from the combination of 12 cutting edges, a 40 mm cutting diameter and a 58 mm cutting height for consistent productivity. Secure clamping via the 32 mm shank and fast insert changes make the tool reliable for repetitive machining tasks; order the HF32TM through Metav Werkzeuge or contact our consultants for application advice. Igelfräser HF32TM — 40 mm indexable-insert milling cutter, 12 cutting edges (Teknik Makina) The Igelfräser HF32TM is an indexable-insert milling cutter designed for efficient roughing and semi-finishing in industrial toolrooms and production environments 40 mm cutting diameter 12 cutting edges for high stock removal Compatible with APKT 1604 inserts 32 mm shank for secure mounting Faster material removal with indexable inserts The cutter head is built around APKT 1604 indexable inserts, which enable rapid material removal while keeping running costs predictable. With 12 cutting edges, the design distributes cutting forces across multiple inserts, reducing vibration and extending the life of each insert. Indexable inserts mean downtimes are limited to quick insert changes rather than full tool regrinds, which improves machine uptime and lowers per-part machining costs. Compatibility with widely used insert sizes also simplifies inventory management. Ease of service and secure clamping for reliable production A 32 mm shank provides a stiff connection to standard toolholders, improving stability during heavy cuts and reducing chatter. Insert retention is accomplished with M4x10 Torx screws, tightened using a T15 key, which ensures quick and repeatable clamp force at each change. The straightforward screw-and-insert system reduces the time needed for routine maintenance and keeps set-up procedures simple, a practical advantage when cycle times and reproducibility matter. Stable geometry for consistent cut quality The cutter’s 40 mm diameter and 58 mm cutting height are balanced to allow deeper passes without sacrificing control. The 200 mm overall length offers reach where required, while the tool’s 1.28 kg mass contributes to dampening of minor spindle vibrations. These dimensional decisions translate into consistent surface results and predictable tool behaviour across batches, making the cutter suitable for repetitive production runs where part tolerance and surface integrity are priorities. Workshop compatibility and inventory efficiency Designed to accept inserts from established manufacturers such as Korloy, this milling head integrates easily into existing tool systems. The use of common insert forms like APKT 1604 reduces the need for bespoke consumables and enables rapid replenishment from standard suppliers. For engineers and buyers aiming to consolidate procurement without compromising on performance, the tool offers a practical balance between modularity and machining capability. Contact Metav Werkzeuge for application-specific guidance and to secure supply of the Teknik Makina HF32TM insert milling cutter with APKT 1604 compatibility Technical data Article number: HF32TM Manufacturer: Teknik Makina Product name: Igelfräser Compatible inserts: APKT 1604 (Korloy) Key dimensions Diameter: 40 mm Shank (d): 32 mm Cutting height: 58 mm Overall length: 200 mm Cutting edges: 12 Weight: 1.28 kg Special features Torx screw: M4x10 Torx key size: T15 Insert manufacturer compatibility: Korloy FAQ What type of inserts does this cutter accept? The HF32TM accepts APKT 1604 indexable inserts; the tool is compatible with inserts from Korloy and other suppliers offering the same designation. How many cutting edges are available and why does it matter? The cutter has 12 cutting edges, which spreads load across multiple inserts to increase removal rates and reduce vibration during heavy cuts. What shank size is required for mounting? The milling head uses a 32 mm shank diameter for secure mounting in standard toolholders, providing stiffness for stable machining. Which fastening parts are required for insert changes? Insert fastening uses M4x10 Torx screws and a T15 Torx key for quick and repeatable insert replacement. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
63mm Indexable Hedge Cutter 20 Inserts 75mm Cutting Height 100mm Overall Length 32mm Shank - Teknik Makina
High material-removal rates and steady tool life result from the combination of a 63 mm diameter and 20 cutting edges, while the compatibility with APKT 1604 indexable inserts ensures efficient tool-cost management and rapid reconditioning. Order the cutter directly via Metav Werkzeuge or consult our technical advisors for application-specific guidance. Indexable-insert milling cutter by Teknik Makina — Ø63 mm, 20 cutting edges A robust indexable-insert milling cutter engineered for high-volume milling and face operations, compatible with APKT 1604 indexable inserts and suited to modern toolholders. Ø63 mm diameter for high removal rates 20 cutting edges for consistent surface finish Compatible with APKT 1604 Korloy inserts 32 mm shank for secure toolholder mounting Maximise throughput with a multi-edge design The solid construction and 20 cutting edges are designed to distribute cutting forces and reduce per-edge load, which results in longer service intervals and more consistent cycle times. The generous Ø63 mm diameter increases chip volume per pass, helping to shorten machining cycles on suitable operations. Where indexable inserts are used, the running costs become primarily a function of insert life rather than full-tool replacement, so maintenance planning is simplified and total cost of ownership improves. The combination of geometry and insert type supports steady production flow without frequent interruptions. Straightforward integration into existing setups Engineered with a 32 mm shank, the milling head fits common toolholders for straightforward retrofitting into existing tool inventories. Compatibility with APKT 1604 indexable inserts—notably supplied by Korloy—means spare-part sourcing is simple and inventory overlap with other insert-based cutters is high. The cutter integrates into standard milling processes without the need for specialised fixtures, enabling easy adoption on benches and in CNC centres that use indexable-insert tooling systems. Quick serviceability reduces downtime Insert retention utilises M4x10 Torx screws that are accessed with a T15 drive, allowing rapid insert changes and straightforward torque application. The clear fixing method shortens maintenance cycles and minimises the time a machine is offline. At approximately 1.455 kg, the assembly offers a manageable mass for balancing and handling while remaining rigid enough for stable cutting. Spare inserts and fixings can be replaced quickly, turning routine upkeep into a short, predictable task rather than a production bottleneck. Suited to demanding milling applications The tool’s 75 mm cutting height and 100 mm overall length provide an extended cutting capacity for deeper engagements and profile work where indexable inserts are preferred. The modular nature of insert tooling supports tailored cutting strategies: switches between grades and geometries allow adaptation to evolving process needs without replacing the tool body. This flexibility supports both small-batch specialist work and larger production runs, delivering a dependable balance between performance and economical tooling practice. Contact Metav Werkzeuge for tailored application advice and order support for Teknik Makina tools; our consultants can confirm compatibility and availability and assist with spare-part planning Technical data SKU: HF52TM Manufacturer: Teknik Makina eClass: 21180806 ETIM: EC011860 Core data Diameter: 63 mm Cutting edges: 20 Shank diameter: 32 mm Cutting height: 75 mm Overall length: 100 mm Weight: 1.455 kg Special features Compatible with APKT 1604 indexable inserts Suitable inserts from Korloy Torx screw: M4x10 Torx key: T15 For indexable-insert milling applications FAQ Which insert type is required for this cutter? The indexable-insert milling cutter accepts APKT 1604 inserts; Korloy is indicated as a compatible insert manufacturer for reliable supply and grades. What is the cutter diameter and how many teeth does it have? The cutter has a diameter of 63 mm and is equipped with 20 cutting edges to support high material removal rates and stable surface finish. What shank size and overall dimensions are specified? The tool uses a 32 mm shank, with a 75 mm cutting height and 100 mm overall length, offering extended engagement for deeper milling tasks. How are the inserts secured and what tool is required? Inserts are fastened with an M4x10 Torx screw; a T15 Torx driver is used for secure, quick insert changes. Is this cutter heavy to handle during balancing and setup? The cutter weighs approximately 1.455 kg, offering a balance between rigidity for cutting and manageability during handling and balancing. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
80mm Hedge Cutter Head 25 Cutting Inserts 75mm Cutting Height 100mm Overall Length 32mm Shank - Teknik Makina
Take advantage of a robust, indexable‑insert milling solution that combines high material‑removal capability with secure mounting and straightforward service. The HF53TM’s Ø 80 mm body with 25 insert positions and a shank Ø 32 mm delivers fast cycle times and consistent surface results; order the indexable insert milling cutter HF53TM directly via Metav Werkzeuge or ask our consultants if needed. Indexable insert milling cutter HF53TM — Ø 80 mm, 25 insert positions (Teknik Makina) The HF53TM is an indexable‑insert milling body designed for medium‑ to heavy‑duty face milling and slotting operations, equipped for APKT 1604 inserts and workshop use Ø 80 mm cutter body Fits APKT 1604 indexable inserts 25 insert positions for fast stock removal Shank Ø 32 mm for secure mounting Boost throughput with a high‑capacity insert body This milling body is engineered to increase productivity through its 25 insert positions, enabling larger cutting widths without frequent tool changes. The combination of a compact Ø 80 mm diameter and a substantial 75 mm cutting height permits deeper engagement per pass where machines and fixtures allow, which reduces the number of passes and shortens cycle times. As a rational investment in throughput, the design supports higher metal‑removal rates while keeping setup times low. Simple maintenance and secure fastening to keep production running Maintenance is practical and fast: insert clamping uses Torx M4x10 screws and a T15 key for reliable torque and repeatable seating. The shank Ø 32 mm provides a rigid connection to tool holders and collets, reducing vibration and improving insert life. Minimal downtime for insert changes and the robust fixation system result in a measurable improvement in overall equipment effectiveness (OEE) in day‑to‑day shopfloor operation. Broad compatibility for flexible machining strategies Built to accept APKT 1604 indexable inserts and compatible with Korloy supply lines, the cutter body supports a wide range of grades and chip‑control geometries. This flexibility allows selection of optimised grades for cast iron, steel or aluminium workpieces depending on application needs. The modular approach to cutting geometry makes the tool suitable for one‑piece flow or batch production where different materials are processed under the same setup philosophy. Built for workshop reliability and repeatable results The solid construction and balanced layout—reflected in an overall length of 100 mm and a weight of 2.645 kg—deliver stability during extended runs. Repeatability is supported by precise insert seats and a consistent clamping concept, which translates into reliable surface finish and dimensional conformity across batches. The unit’s compatibility with standard indexable insert formats simplifies stocking and ensures swift replacement when required. For robust, high‑rate milling solutions from Teknik Makina, contact Metav Werkzeuge for tailored advice and assured supply from Emmerich: info@metav-werkzeuge.com / +49 2822 7131930 Technical Data Article number: HF53TM Manufacturer: Teknik Makina Product name: Indexable insert milling cutter HF53TM Facts Diameter: 80 mm Shank diameter: 32 mm Cutting height: 75 mm Overall length: 100 mm Cutting edges / insert positions: 25 Weight: 2.645 kg Special features Accepts APKT 1604 indexable inserts Compatible with Korloy inserts Torx screw M4x10 Torx key size T15 Designed for medium to heavy cutting applications FAQ What type of inserts does this cutter use? The HF53TM is designed for APKT 1604 indexable inserts; Korloy‑compatible grades and geometries are suitable for varied materials. How many insert positions are available and what does that mean for throughput? The body features 25 insert positions, which increases total cutting edge engagement and enables higher material‑removal rates compared with single‑insert cutters. What are the essential dimensions to check for holder compatibility? Key dimensions are a diameter of 80 mm, shank Ø 32 mm and an overall length of 100 mm; these determine fixture and tool‑holder compatibility. Is the clamping hardware standardised? Yes — insert clamping uses Torx M4x10 screws and a T15 key for repeatable and secure fastening of inserts. Which manufacturer produced this tool and what is the SKU? The milling body HF53TM is supplied by Teknik Makina and sold under SKU HF53TM through Metav Werkzeuge for European distribution. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
Maximise material removal with serrated cylindrical roughing cutters
A serrated cylindrical roughing cutter is a cylindrical milling tool whose mantle is equipped with numerous, often spirally offset, cutting edges, designed for highly efficient roughing, deep corner milling and large-area trimming. These cutters remove a very large volume of material in a single pass thanks to the many engagement points and are available in versions with either external or internal coolant supply.
How the cutter works in demanding workshop situations
The serrated roughing cutter operates by distributing cutting forces across multiple small teeth, which reduces instantaneous chip load and vibration. In the version with external coolant the fluid is directed from machine nozzles to the cutter, which is sufficient for well-machinable materials, open-edge work and shallow depths of cut where chips can evacuate freely. Cutters with internal coolant feature a network of internal bores that guide the coolant directly to the cutting edges along the tool length; this targeted internal supply is essential for deep pockets, heat-resistant or very tough materials and heavy roughing, because it reduces heat at all edges, prevents dangerous chip packing and ensures a ratter-free run.
Practical advantages you can measure on the shop floor
- Significant single-pass material removal, cutting cycle times and rework requirements.
- Improved chip evacuation through targeted coolant flow, lowering the risk of chip packing.
- Reduced vibration and tool deflection, leading to a ratter-free run and more consistent surface quality.
- Extended tool life due to efficient heat control from internal coolant and optimised cutting geometry.
- Lower set-up frequency and higher process reliability in series production.
Why Metav is the sensible partner for serrated roughing cutters
Metav combines practical workshop know-how with wide product choice and long-standing market trust. From Emmerich we curate tools and measurement technology with a "quality filter" for the European market. Over 48,000 customers rely on Metav’s consistent quality and the convenience of accessing more than 250,000 items under one roof, which makes Metav the pragmatic source for selecting the right cylindrical rougher and matching process parameters.
In brief
A serrated cylindrical roughing cutter delivers high stock removal, reliable chip control and longer tool life when matched to the right coolant strategy.
FAQ
What is a serrated cylindrical roughing cutter best used for?
A serrated cylindrical roughing cutter is best used for heavy roughing, deep corner milling and large-area trimming where high material removal rates are required and many small teeth can share the load.
When should I choose a cutter with internal coolant rather than external coolant?
Choose a cutter with internal coolant for deep cavities, heat-resistant or very tough materials and extreme heavy roughing; the high-pressure coolant delivered to the cutting edges reduces heat, prevents chip packing and increases tool life. External coolant is typically sufficient for open-edge work and shallower cuts.
Which materials are suitable for serrated roughing cutters?
Serrated roughing cutters are suitable for a wide range of materials; they excel on well-machinable steels for rapid stock removal and are specifically beneficial on tougher or heat-resistant alloys when paired with internal coolant.
How does using a serrated cylindrical rougher affect machine uptime?
By enabling larger single-pass removal, improving chip evacuation and reducing vibration, a cylindrical rougher helps lower tool changes and unplanned stops, thereby improving overall machine uptime and process stability when correctly specified.
