Precision chamfer milling cutters for efficient edge finishing
Chamfer milling cutters are steel-bodied tools fitted with indexable carbide inserts designed to economically deburr sharp edges, produce precise edge chamfers and prepare V-shaped weld grooves, improving assembly fit and part durability. These cutters are available with external coolant supply for accessible outer contours or with internal coolant channels that deliver pressurised coolant directly to each insert, which is essential when machining wide chamfers, heat‑generating materials or deep internal edges. The main benefits are reduced tooling costs since only the inserts require replacement, increased insert life through effective cooling and chip evacuation, and consistently high surface quality for subsequent processing. Key applications include general deburring, chamfering and weld preparation for metalworking, where throughput and reproducible results are critical.
150mm T‑Slot Cutter 40mm Diameter 3 Flute 45° Cutting Angle, 25mm Shank 50mm Cutting Length - Teknik Makina
Take advantage of a robust T‑slot solution that pairs Ø40 mm cutting diameter with a 25 mm shank for rigid clamping and stable chip control; compatible with Taegutec SPMG 0904 inserts for straightforward inventory management. Order the S062TM T‑slot cutter directly via Metav Werkzeuge or ask the consultants for application support. T‑slot cutter S062TM — Teknik Makina — Ø40 mm, 25 mm shank The T‑slot cutter S062TM is a precision indexable cutter designed for milling accurate T‑grooves and slots in industrial machining applications, optimised for use with Taegutec insert systems. Ø40 mm cutting diameter 25 mm solid shank for rigid clamping Compatible with Taegutec SPMG 0904 inserts 3 cutting edges, 45° cutting angle Achieve repeatable T‑groove accuracy with a compact design The S062TM is engineered to deliver consistent T‑slot geometry across batch runs. Its Ø40 mm cutting diameter and 25 mm shank reduce runout and vibration when mounted in a suitably rigid holder, which translates into tighter tolerances and less rework. For machine shops seeking predictable results, the combination of three cutting edges and a balanced cutter body lowers radial forces and supports stable cutting, thereby improving surface quality and slot profile precision. Fast insert changes and standardised tooling management Indexable inserts simplify maintenance and spare-part stock. The cutter accepts SPMG 0904 inserts from Taegutec, secured by an M3.5x8.5 Torx screw tightened with a T15 key, enabling quick and reliable replacement. This standardised clamping arrangement reduces downtime during tool changes and helps central purchasing consolidate compatible inserts, supporting operational efficiency and easier tool provisioning on the shop floor. Stable cutting behaviour for consistent productivity A 45° cutting angle gives a favourable shear action that helps reduce cutting forces and improves chip formation. The three-flute geometry balances material removal with chip evacuation, which can support higher feed rates under appropriate machining conditions. With an overall length of 150 mm and a cutting length of 50 mm, the tool provides a practical combination of reach and rigidity for many milling setups while remaining compact enough for efficient handling and toolpath planning. Built for workshop integration and reliable handling Weighing approximately 0.562 kg, the cutter is easy to fit and remove during routine operations while still offering the mass required for stable cutting. Compatibility with a widely used insert type means less specialised stock and fewer logistical hurdles. For production environments that demand dependable tool performance and simple maintenance routines, the S062TM supports streamlined workflows and predictable machining cycles. For application-specific guidance and stock availability of the S062TM, contact Metav Werkzeuge for tailored advice by e‑mail at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: S062TM Manufacturer: Teknik Makina Facts Diameter: 40 mm Shank diameter: 25 mm Cutting length: 50 mm Overall length: 150 mm Weight: 0.562 kg Cutting angle: 45° Number of cutting edges: 3 Special features Compatible with Taegutec SPMG 0904 inserts Secured with M3.5x8.5 Torx screw Torx key size T15 Designed for indexable insert T‑slot machining FAQ Which inserts fit the cutter? The cutter accepts Taegutec SPMG 0904 indexable inserts; this standardisation simplifies spare-part management for workshops using Taegutec systems. What is the shank diameter and why it matters? The shank measures 25 mm, providing a rigid clamping interface that reduces runout and improves stability during T‑groove milling. How many cutting edges does the tool have? The tool is supplied with three cutting edges, a geometry chosen to balance chip evacuation and cutting force for controlled material removal. What fastening hardware is used for the insert? Inserts are secured with an M3.5x8.5 Torx screw, tightened using a T15 key, for secure and repeatable clamping. What are the overall length and reach of the cutter? The cutter has an overall length of 150 mm with a cutting length of 50 mm, offering practical reach while maintaining rigidity. Manufacturer: Teknik Cutting Tools; Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
16mm Chamfer Cutter 45°/90° Replaceable Insert TCMT1102, 35mm Cutting Height - Teknik Makina
Take advantage of a compact, versatile chamfering tool that combines precise angle control and indexable-insert efficiency for consistent edge preparation; the 16 mm shank and 35 mm cutting height deliver reliable stability and capacity for deeper chamfers. Order directly via Metav Werkzeuge or consult our specialists for application advice. Fasenfräser S334TM — Chamfer cutter with 16 mm shank and dual-angle capability Fasenfräser S334TM is a compact chamfer cutter designed for precise edge preparation and flexible chamfer angles in CNC and workshop settings. 16 mm shank for secure clamping Compatible with TCMT 1102 inserts Dual-angle 45° and 90° capability 35 mm cutting height for deeper chamfers Consistent chamfering performance for production use The chamfer cutter is engineered to provide reliable edge preparation with a sturdy 16 mm shank that ensures stable fixation in the tool holder and reduces runout. With a 35 mm cutting height and a single cutting edge, the tool maintains a compact footprint while allowing deeper chamfers where required. Compatibility with TCMT 1102 indexable inserts reduces downtime: worn inserts are replaced in seconds, restoring cutting performance without regrinding, which keeps cycle times predictable and maintenance straightforward. Flexible angle options to simplify setup and part handling Two defined chamfer geometries—45° and 90°—are available on the same tool body, enabling quick switching between common edge preparations without a different cutter per angle. This flexibility shortens set-up routines and minimises tool inventory. The dual-angle design supports standard deburring and assembly-facing preparations, delivering repeatable results across batches and reducing the need for secondary operations. Fast insert changes and low toolmass for reduced spindle load Insert retention uses a Torx M2.5x5.5 screw operated with a T8 key, allowing fast, secure replacement of the TCMT inserts. This straightforward clamping reduces changeover time and the risk of incorrect seating. The tool’s lightweight 0.14 kg construction minimises additional mass on the spindle, helping to maintain machine dynamics and improving acceleration between cuts; the result is efficient machining with predictable forces and stable finishing. Built for integration in standard tool systems With a nominal diameter 16 mm and total length 100 mm, this chamfer cutter integrates easily into conventional tool holders and modular setups. The cutter’s single cutting edge and insert format are widely available, simplifying spare-part stocking. Compatibility with a common TCMT insert type ensures access to varied grades and coatings for specific workpiece demands without changing tool geometry. Contact Metav Werkzeuge for tailored application guidance and to discuss the Teknik Cutting Tools chamfer cutter S334TM; our Emmerich team can advise on insert grades, clamping options and delivery logistics. Technical data Article number: S334TM Manufacturer: Teknik Makina Eclass: 21180806 ETIM: EC011860 Designation: Chamfer cutter (Fasenfräser) Facts Shank diameter: 16 mm Diameter: 16 mm Cutting height: 35 mm Total length: 100 mm Cutting edges: 1 Angles: 45° / 90° Weight: 0.14 kg Special features Compatible with TCMT 1102 indexable inserts Torx screw: M2.5x5.5 Torx key: T8 Single-cutting-edge design FAQ What insert type fits this chamfer cutter? The chamfer cutter S334TM is specified for TCMT 1102 indexable inserts, allowing rapid replacement and broad choice of insert grades. Can the tool produce both 45° and 90° chamfers without replacement? Yes. The cutter is designed with defined geometries for 45° and 90° chamfering, enabling flexible edge preparation within one tool. What is the shank size and why does it matter? Shank diameter is 16 mm, which ensures secure clamping in standard collets and holders and contributes to consistent concentricity during chamfering. How long is the active cutting length? The tool provides a 35 mm cutting height, suitable for deeper chamfers and yielding greater material engagement where required. Is the screw type for insert clamping easy to service on the shop floor? Yes. Insert clamping uses a Torx M2.5x5.5 screw operated with a T8 key, enabling quick and reliable insert changes during routine maintenance. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
18mm Chamfer Cutter 60/120° Single Cutting Edge 16mm Shank 35mm Cutting Height 100mm Overall Length - Teknik Makina
Take advantage of a compact, indexable‑insert solution that combines precise chamfer geometry with quick insert changes for minimal downtime; the result is consistent edge preparation and efficient workshop integration — order the chamfer cutter directly via Metav Werkzeuge or ask our consultants if specialist advice is required. Chamfer cutter S335TM – 18 mm diameter, shank Ø16 mm (Teknik Makina) The Chamfer cutter S335TM is a single‑flute tool designed for producing controlled 60° and 120° chamfers with indexable inserts, ideal for workshop and light industrial milling tasks. Compatible with TCMT 1102 inserts Dual chamfer angles 60° and 120° Shank Ø16 mm for reliable clamping 35 mm cutting height, 100 mm overall Precise chamfer geometry for repeatable edge quality The S335TM delivers stable, repeatable chamfers by combining a measured cutting diameter of 18 mm with clearly defined chamfer angles of 60° and 120°. The single‑flute configuration supports controlled material removal and consistent chip formation; when used with an indexable TCMT 1102 insert the assembly enables quick restoration of cutting performance without full regrinding. The tool’s Ø16 mm shank ensures secure seating in standard holders, which reduces vibration and supports dimensional consistency across batches. Fast maintenance and low downtime for smooth production flow Maintenance is straightforward: the insert is secured with a Torx screw M2.5x8.5 and removed or fitted using a T8 key, allowing routine service to be completed at the machine without specialised tooling. The lightweight construction (approx. 0.157 kg) and compact 100 mm overall length mean handlers can replace or store spares easily, while the 35 mm effective cutting height gives enough engagement for substantial chamfers without overloading the cutter body. These attributes combine to lower changeover time and maintain high spindle utilisation. Versatile use and practical benefits in assembly and finishing Chamfering with this tool reduces burrs, eases component assembly and minimises stress concentrators at edges — advantages appreciated across mechanical workshops and fabrication environments. The single cutting edge and indexed insert approach allow controlled surface finish and predictable results, making the cutter suitable for deburring, lead‑in preparation and cosmetic edge work. Its compact form and standard shank diameter facilitate integration into existing tool inventories, simplifying logistics and holder compatibility. For technical advice, availability or to secure supply from our Emmerich warehouse, contact Metav Werkzeuge for tailored recommendations on the Teknik Makina S335TM chamfer cutter and compatible inserts. Technical data SKU: S335TM Manufacturer: Teknik Makina Product type: Chamfer cutter (Fasenfräser) ECLASS: 21180806 ETIM: EC011860 Facts Diameter: 18 mm Shank diameter: 16 mm Cutting height: 35 mm Overall length: 100 mm Weight: 0.157 kg Chamfer angles: 60° and 120° Cutting edges: 1 Special features Compatible with indexable insert TCMT 1102 Torx screw M2.5x8.5 for insert fixation Torx key size T8 for maintenance Single‑flute design for chip control Compact, workshop‑friendly dimensions FAQ What chamfer angles can be produced with this cutter? The cutter produces defined 60° and 120° chamfers; these options are integral to the cutter geometry and suit common assembly and finishing requirements. Which insert type is compatible with the S335TM? The S335TM is designed for indexable TCMT 1102 inserts, enabling fast replacement and consistent cutting performance. How is the insert secured and what tool is required? Insert retention is via a Torx screw M2.5x8.5; a T8 Torx key is used for removal and installation. Is the shank compatible with standard tool holders? The tool features a Ø16 mm shank, which fits standard collets and chucking systems that accept a 16 mm shank. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
20mm Chamfer Cutter For TCMT 16T3 Inserts 30°/60° Cutting Height 37mm, 16mm Shank - Teknik Makina
Data inconsistency detected: the compatible indexable insert is listed as "TCMT 16T3" in one field but referred to as "TCMT 1102" in the title/description, which creates confusion and potential errors in understanding or processing the product information; therefore, it is essential to review and rectify this discrepancy in the product data to ensure accuracy and consistency across all fields before resubmitting, as such inconsistencies can lead to miscommunication, incorrect orders, or other operational issues that may negatively impact both the supplier and the customer, highlighting the importance of maintaining precise and uniform data throughout all relevant documentation and systems.
21mm Chamfer Mill 45° For TWX 16R Inserts, 20mm Shank 50mm Cutting Height, 110mm Overall Length - Teknik Makina
Take advantage of consistent 45° chamfering, a robust 20 mm shank and direct compatibility with Korloy TWX 16R indexable inserts for efficient bevel production; order directly via Metav Werkzeuge or consult our specialists for application advice. Chamfer mill S352TM — indexable‑insert cutter with 45° chamfer, Ø 21 mm (Teknik Makina) The Chamfer mill S352TM is a compact indexable‑insert cutter for producing precise 45° bevels, optimised for TWX 16R inserts and routine workshop milling tasks. 45° chamfer angle Shaft Ø 20 mm Compatible with TWX 16R inserts Overall length 110 mm Accurate chamfering for reduced rework The tool delivers a consistent 45° chamfer, achieved by the cutter geometry and the single cutting edge design. With an external diameter of 21 mm and a cutting height of 50 mm, the cutter produces repeatable bevels that reduce secondary operations and scrap. This precision is suitable for batch production as well as single‑part finishing, where predictable edge quality shortens inspection cycles and supports process stability. Quick insert changes and straightforward clamping Insert retention is secured by a Torx screw M4x11, tightened with a T8 key, enabling quick replacement of worn inserts and minimising machine downtime. The solid 20 mm shank fits standard collets and contributes to stable toolholding, while the modest weight of 0.26 kg simplifies handling during tool changes. These features together support an efficient workflow and lower total processing time per chamfered edge. Flexible usage and supply advantages for workshops Designed for use with TWX 16R indexable inserts (Korloy), the cutter offers flexibility in sourcing and inventory management. Using a standard insert size allows workshops to stock fewer variants while maintaining process capability. The compact overall length of 110 mm makes the cutter suitable for many CNC milling set‑ups and manual milling operations, delivering a balance of accessibility and machining performance for daily workshop demands. For ordering, technical consultation or supply options for the Teknik Makina Chamfer mill S352TM, contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or call +49 2822 7131930 to discuss suitability for the intended application Technical data Article number: S352TM Manufacturer: Teknik Makina Diameter: 21 mm Cutting height: 50 mm Shank diameter: 20 mm Overall length: 110 mm Cutting edges: 1 Chamfer angle: 45° Weight: 0.26 kg For indexable inserts TWX 16R Compatible insert manufacturer: Korloy Torx screw: M4x11 Torx key: T8 FAQ Which insert type is required for this chamfer cutter? The chamfer cutter accepts TWX 16R indexable inserts; the design is compatible with inserts from Korloy. What chamfer angle does the cutter produce? The tool is configured for a 45° chamfer, providing standard bevels for general finishing and edge preparation. How are the inserts secured in the cutter? Inserts are fixed with a Torx screw M4x11, which is tightened or released using a T8 key for rapid insert changes. What shank size is required for mounting? The cutter has a 20 mm shank diameter and is intended for collets or holders that accept a 20 mm shank. Can the cutter be used in compact machine setups? Yes, the overall length of 110 mm and the compact head dimensions make the tool suitable for many CNC and manual milling configurations. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
24mm Chamfer Cutter 45°/90° For TCMT 16T3 Inserts 20mm Shank 30mm Cutting Height 100mm Overall - Teknik Makina
Combining a 20 mm shank for stable clamping with a TCMT 16T3 indexable-insert system and selectable 45° or 90° chamfer angles ensures consistent edge preparation and short changeover times; order the chamfer cutter directly via Metav Werkzeuge or ask our consultants if needed Chamfer cutter S341TM – indexable-insert chamfer cutter with 20 mm shank (Teknik Makina) A Chamfer cutter S341TM engineered for reliable edge breaking and bevel formation, compatible with TCMT 16T3 inserts and set up for 45° and 90° chamfers Stable 20 mm shank for secure clamping TCMT 16T3 insert compatibility for quick changes 45° and 90° chamfer capability for versatile use 30 mm cutting height for deeper chamfers when required Achieve consistent chamfer quality with fewer reworks The S341TM is designed to deliver repeatable chamfer results across serial production runs. The indexable-insert arrangement with TCMT 16T3 inserts allows the cutting edge to be renewed in seconds, which reduces the need for tool regrind and minimises scrap caused by worn edges. The availability of both 45°/90° settings supports common edge-preparation standards, so parts leave the machine with predictable geometry and a clean finish. This stabilises downstream processes and lowers overall production costs by cutting rework time. Faster changeovers and predictable process times Tooling downtime is reduced by the standard insert form and a straightforward fixing method. The insert is secured with a M3.5x8.5 Torx screw and adjusted with a T15 key, enabling rapid changes on the shop floor. The combination of an indexable system and a 20 mm shank means setup is both quick and repeatable, delivering measurable productivity gains. Where cycle times matter, the reduced intervention for tool maintenance translates directly into higher effective machine utilisation and steadier throughput. Robust design for stable machining and uniform results Built with a 24 mm cutter diameter and an overall length of 100 mm, the tool offers a balance between reach and rigidity that supports reliable material engagement. A 30 mm cutting height gives scope for deeper bevels without multiple passes, while the single insert configuration concentrates forces for clean chip control. At approximately 0.256 kg, the assembly is light enough for easy handling yet engineered for consistent performance on standard milling spindles. The design supports workshop environments seeking dependable edge preparation without complex set-ups. Speak to Metav Werkzeuge for tailored advice on the Teknik Makina chamfer cutter S341TM — technical consultation and secure delivery from Emmerich: info@metav-werkzeuge.com | +49 2822 7131930 Technical data Article number: S341TM Manufacturer: Teknik Makina eClass: 21180806 ETIM: EC011860 Facts Diameter: 24 mm Shank diameter: 20 mm Cutting height: 30 mm Overall length: 100 mm Cutting edges: 1 Weight: 0.256 kg Chamfer angles: 45°, 90° Special features Compatible inserts: TCMT 16T3 Torx screw: M3.5x8.5 Torx key: T15 FAQ Which chamfer angles are available with this tool? The chamfer cutter S341TM is set up for both 45° and 90° chamfers, allowing standard bevels to be produced without additional tooling. Which inserts fit the cutter? The S341TM accepts TCMT 16T3 indexable inserts; the insert is secured with a M3.5x8.5 Torx screw and tightened using a T15 key. Is the tool suitable for series production? Yes. The 20 mm shank and indexable-insert concept of the S341TM are intended to reduce downtime and provide repeatable results for batch and serial production. What are the key dimensions relevant for toolholders? Important dimensions are a 24 mm cutter diameter, 20 mm shank diameter and 100 mm overall length; these determine compatibility with standard holders. How quickly can an insert be changed? Insert change is a quick procedure using the M3.5x8.5 Torx screw and a T15 key; the indexable system is designed for fast, repeatable changeovers. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

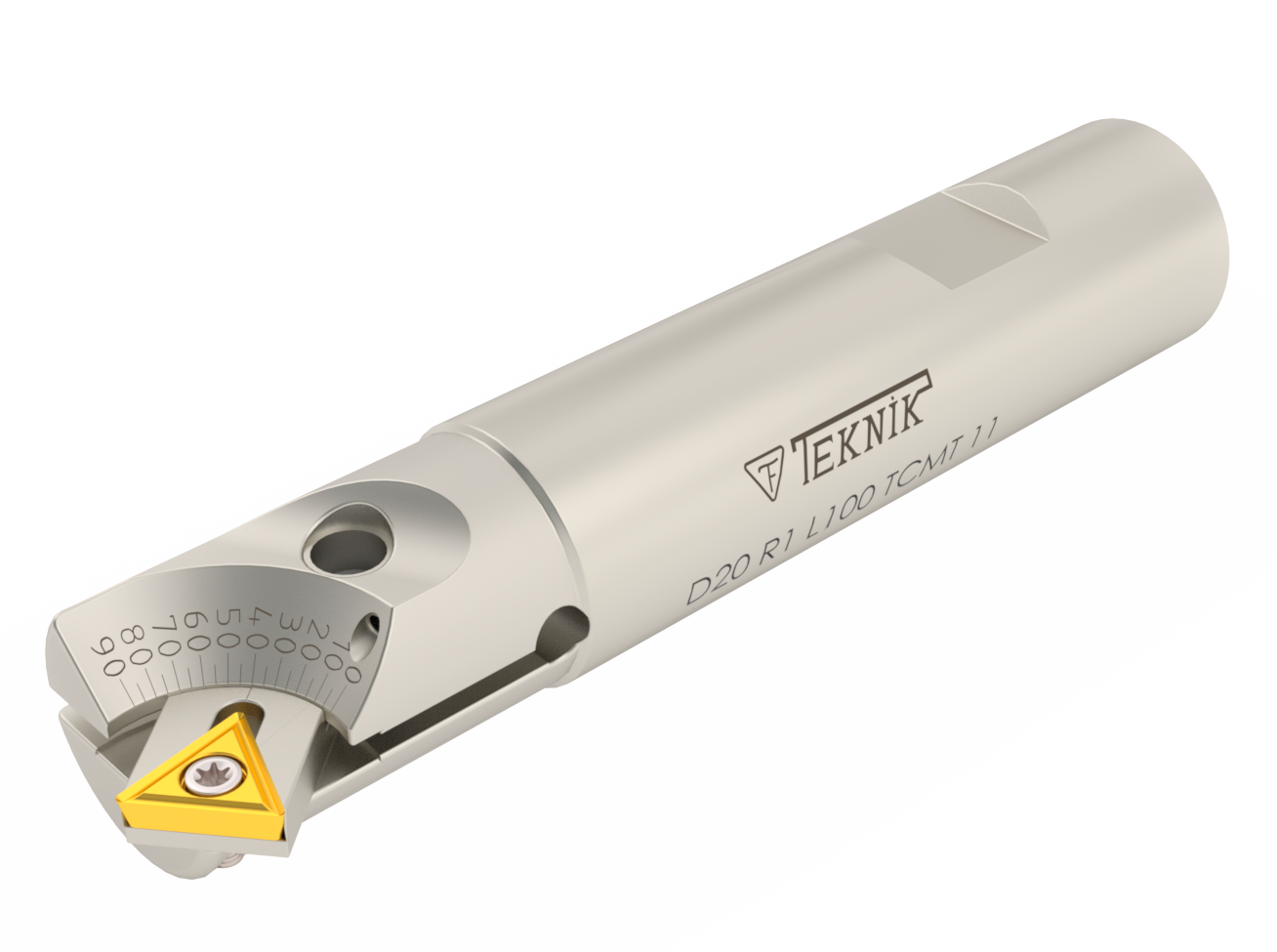

27mm Adjustable Chamfer Cutter TCMT 1102 Indexable Inserts, 10–80° Angle, 20mm Shank - Teknik Makina
Benefit from flexible, precise chamfering thanks to the adjustable angle range and compatibility with standard indexable inserts; combine the 10–80° angle adjustability with the use of TCMT 1102 inserts for rapid changeovers and consistent edge quality — order the AH10TM directly via Metav Werkzeuge or consult our application specialists for optimum integration. Adjustable Chamfer Cutter AH10TM – TCMT 1102 compatible, 10–80° adjustable angle (Teknik Makina) The Adjustable Chamfer Cutter AH10TM provides a compact, angle-variable solution for chamfering and edge preparation tasks across turning and small milling set-ups. Adjustable chamfering angle 10–80° Accepts TCMT 1102 indexable inserts 20 mm shank for standard toolholders Max cutting diameter 27 mm, weight 0.241 kg Greater machining flexibility with a wide angle range The AH10TM delivers a wide adjustment range (10–80°), enabling one tool to replace multiple fixed chamfer cutters and so reduce tool changes and inventory. The adjustable angle is set and secured via a simple clamping mechanism, which shortens set-up time and ensures repeatable edge geometry. For production environments where cycle time and part consistency matter, this flexibility translates directly into fewer interruptions and a more streamlined workflow. Secure insert system for predictable performance Designed for indexable TCMT 1102 inserts, the toolhead accommodates commonly used carbide grades, allowing the cutting geometry to be tailored to different workpiece materials by selecting the appropriate insert specification. The insert is retained with an M2.5×7 Torx screw and is served by a T8 Torx key, providing a secure, low-maintenance clamping arrangement that minimises vibration and thermal movement during cutting. This results in stable cutting forces and consistent chamfer profiles across batches. Compact shank and robust cutting capacity for easy integration With a 20 mm shank diameter and a maximum cutting diameter of 27 mm, the cutter is sized to fit standard toolholders while delivering sufficient reach for many chamfering operations. The modest weight of 0.241 kg reduces spindle load and contributes to easier handling during tool changes. The compact design supports integration into both manual and CNC-driven workflows where space is limited but precision is required. Practical maintenance and shop-floor advantages Maintenance is straightforward: replacement inserts and the Torx screw are standardised components, reducing downtime and simplifying spares management. The tool’s acceptance of TCMT 1102 plates allows existing insert stocks to be reused, cutting procurement complexity. Clear, repeatable set-up and easy access to the fastening screw contribute to lower process variation and predictable output quality, which is particularly valuable for small-series production and repair tasks. Contact Metav Werkzeuge for tailored chamfering advice and to order the Teknik Makina AH10TM via Metav's specialists at info@metav-werkzeuge.com or by telephone on +49 2822 7131930 Technical data Article number: AH10TM Manufacturer: Teknik Makina Article name: Adjustable chamfer cutter (verstellbar) Compatible inserts: TCMT 1102 Facts Angle range: 10–80° Max cutting diameter: 27 mm Shank diameter: 20 mm Weight: 0.241 kg Diameter: 5 mm ECLASS: 21180801 ETIM: EC011860 Flex mounting designation: S1473 Special features M2.5×7 Torx screw for insert retention Torx key size T8 Indexable insert system for rapid change Compact, lightweight construction FAQ Which inserts fit the cutter? The cutter uses TCMT 1102 indexable inserts; the AH10TM is specified for that insert geometry and will accept standard TCMT 1102 grades. How is the chamfer angle adjusted and secured? The chamfer angle is adjusted across the 10–80° range and locked by the cutter’s clamping mechanism to maintain repeatability during production. What toolholder shank is required? A toolholder that accepts a 20 mm shank is required; the compact shank diameter supports a broad range of standard holders. Is specialised maintenance required for the fastening hardware? Insert changes and screw checks are maintenance tasks carried out with a T8 Torx key and the M2.5×7 screw; these are standardised parts that simplify routine upkeep. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY; Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
31mm Chamfer Cutter 45°/90° For TCMT 16T3 Inserts 16mm Shank 35mm Cutting Height - Teknik Makina
Take advantage of an indexable solution that combines quick insert changes, precise 45° and 90° chamfering and a robust 16 mm shank for stable machining — order the tool directly via Metav Werkzeuge or consult the team for application advice. Chamfer Mill S336TM — Indexable chamfer cutter, Ø31 mm, 45°/90° (Teknik Makina) A Chamfer Mill S336TM engineered for economical chamfering with replaceable carbide inserts, ideal for production use where consistent edge preparation is required Indexable inserts TCMT 16T3 Two cutting edges for smooth chamfers 45° and 90° chamfer angles Ø31 mm cutting diameter, 16 mm shank Faster chamfering with economical insert tooling The S336TM is designed around indexable inserts (compatible with TCMT 16T3) to reduce per-edge cost and limit downtime when compared with solid tools. The insert system enables rapid seat changes and predictable wear cycles, which translates into measurable productivity gains on repetitive jobs. With a Ø31 mm cutting diameter and two cutting edges, the tool balances material removal with surface finish, allowing clearer planning of cycle times and tool budgets. Rigidity and repeatability for routine production A solid 16 mm shank and a 35 mm cutting height provide the mechanical stability needed to maintain consistent chamfer geometry across batches. The combination of shaft stiffness and the tool’s overall length (100 mm) reduces vibration and helps deliver repeatable chamfer dimensions in serial production. This stability supports predictable process control and lowers scrap rates by ensuring each chamfer meets dimensional expectations. Practical maintenance and assembly on the shop floor The clamping system uses a Torx screw M3.5x8.5 secured with a T15 key, allowing straightforward insert replacement without specialised fixtures. Fewer spare tools are required thanks to replaceable carbide tips, which keeps inventory lean and tool management simple. For customers seeking application data or adaptation to specific machines, Metav Werkzeuge provides technical documentation and advice to align the tool’s performance with workshop conditions. Contact Metav Werkzeuge for tailored advice on Teknik Cutting Tools’ Chamfer Mill S336TM — rely on local stock and application expertise from Emmerich; phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: S336TM Manufacturer: Teknik Makina Insert type: TCMT 16T3 Cutting diameter: 31 mm Shank diameter: 16 mm Total length: 100 mm Cutting height: 35 mm Number of cutting edges: 2 Chamfer angles: 45° / 90° Torx screw: M3,5x8,5 Torx key size: T15 Weight: 0.204 kg Facts Ø31 mm 16 mm shank 100 mm total length 35 mm cutting height 2 cutting edges 45° / 90° angles 0.204 kg Special features For indexable inserts TCMT 16T3 Two cutting edges Chamfer angles 45° and 90° Torx screw M3,5x8,5 (T15) FAQ Which inserts fit the chamfer mill S336TM? The S336TM is specified for TCMT 16T3 indexable inserts; these inserts are the intended fit for Teknik Makina’s chamfer cutter. What chamfer angles can be produced? This chamfer cutter offers fixed 45° and 90° geometries, enabling standard edge preparation and countersink-style chamfers where required. What are the shank and cutting diameter dimensions? The tool has a 16 mm shank and a Ø31 mm cutting diameter, providing a balance of rigidity and cutting capacity for common machining set-ups. How is the insert secured and replaced? Inserts are clamped using a Torx screw M3.5x8.5 tightened with a T15 key, allowing quick replacement and secure retention during machining. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
31mm Chamfer Cutter 60/120° For TCMT 16T3 Tips, 16mm Shank 35mm Cutting Height - Teknik Makina
Take advantage of the combination of precise chamfer geometry, a robust 16 mm shank and compatibility with standard indexable inserts for consistent results in series production — order the Chamfer cutter S339TM directly via Metav Werkzeuge or ask our consultants if needed. Chamfer cutter S339TM – indexable chamfering cutter, Ø31 mm, 16 mm shank (Teknik Makina) The Chamfer cutter S339TM is a compact indexable cutter designed for accurate chamfering on milling machines; it supports TCMT 16T3 inserts and offers selectable chamfer angles for versatile component finishing. Ø31 mm diameter, 2 cutting edges Shank ø16 mm for secure clamping 35 mm cutting height for deep chamfers Compatible with TCMT 16T3 indexable inserts Delivering precise chamfers with stable clamping The tool is built around a 16 mm shank that ensures secure clamping in standard toolholders, which reduces runout and contributes to repeatable edge quality. With a Ø31 mm cutting body and 2 cutting edges, the design focuses on balance between material removal and surface finish. The combination of diameter and shank dimension makes the cutter suitable for stable setups on vertical and horizontal milling machines, where vibration damping and concentricity are decisive for consistent chamfer geometry. Flexible chamfer angles for application variety Two chamfer geometries—60° and 120°—are available through the cutter's insert arrangement, enabling a choice between sharper and broader chamfers without changing the tool body. The 35 mm cutting height gives scope for deeper chamfers in fewer passes, improving cycle times. Using TCMT 16T3 indexable inserts standardises tool maintenance: worn inserts are replaced quickly, restoring tool performance with minimal downtime and predictable operating costs. Simple serviceability and low downtime The cutter uses a single clamping screw configuration (Torx screw M3.5x8.5 secured with T15) for insert retention, which simplifies changeover and reduces tool-change times on the shop floor. The indexable insert concept avoids grinding or rehoning operations and supports fast, reliable maintenance routines. The modest tool mass of 0.213 kg lowers inertia during spindle acceleration and deceleration, which can contribute to smoother machining cycles and reduced spindle load during frequent stops and starts. Why supply chain reliability matters for production Sourcing the cutter through an established partner brings operational advantages beyond the tool's geometry: central warehousing and a tested quality filter reduce the risk of inconsistent batches and delivery delays. Metav’s provision of technical information and stocked accessories supports planning and ensures the cutter is ready for immediate use in standard setups. Confidence in supply continuity is critical when replacing inserts or scaling production runs. Contact Metav Werkzeuge for tailored technical advice on integrating the Chamfer cutter S339TM into existing toolsets or to arrange a purchase via their Emmerich warehouse; phone +49 2822 7131930 or e‑mail info@metav-werkzeuge.com Technical data Article number: S339TM Manufacturer: Teknik Makina Product name: Chamfer cutter (Fasenfräser) eCl@ss: 21180806 ETIM: EC011860 Core data Diameter: 31 mm Shank diameter: 16 mm Cutting height: 35 mm Overall length: 100 mm Number of cutting edges: 2 Weight: 0.213 kg Chamfer angles: 60° / 120° Special features For indexable inserts: TCMT 16T3 Torx screw: M3.5x8.5 Torx key size: T15 Designed for quick insert replacement Two-angle chamfer capability FAQ What type of inserts does the cutter use? The Chamfer cutter S339TM accepts TCMT 16T3 indexable inserts, enabling rapid replacement and standardised insert sourcing. Which chamfer angles are available with this tool? The cutter provides chamfer geometries of 60° and 120°, allowing selection between narrow and wide chamfers without changing the tool body. What are the key dimensions to check for holder compatibility? Check the 16 mm shank diameter and the overall length of 100 mm when selecting a compatible toolholder for the S339TM. How many cutting edges does the tool have and what is the impact? The tool has 2 cutting edges, which balance material removal rate and surface finish while keeping the design compact for stable machining. Is specialised tooling required to change inserts? Insert changes require a Torx T15 key and the specified Torx screw M3.5x8.5, which simplifies maintenance on the shop floor. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
32mm T-Nut Cutter 45° Indexable Inserts SPMG 0904, 25mm Shank 30mm Cutting Length - Teknik Makina
Take advantage of the combination of 45° cutting geometry, compatibility with SPMG 0904 indexable inserts and a 25 mm shank for stable, repeatable T-slot machining — a compact solution for production and workshop use. Order the T-slot milling cutter directly via Metav Werkzeuge or ask our consultants if needed. T-slot milling cutter – 32 mm diameter, 45° cutting angle (Teknik Makina) T-slot milling cutter for machining precise T-slots and grooves in industrial fixtures and machine tables 45° cutting angle for precise T-slots Accepts SPMG 0904 indexable inserts 25 mm shank for rigid clamping 32 mm diameter, 2 cutting edges Precision slotting with indexable inserts for consistent results The T-slot milling cutter combines a defined 45° cutting angle with compatibility for SPMG 0904 indexable inserts, delivering consistent slot geometry across series production. Using replaceable inserts reduces downtime compared with solid cutters: worn cutting edges are exchanged quickly, restoring original performance without regrinding. The insert system also enables controlled chip formation and predictable tool life, which supports higher throughput and reliable cycle-time planning in CNC and conventional machining environments. Rigid tool body and secure fixation for improved surface quality A substantial 25 mm shank and a 32 mm cutter diameter give the tool the stiffness required for stable operation, while the overall length of 150 mm and a 30 mm cutting length provide an accessible working envelope for typical T-slot depths. The cutter is secured with an M3.5x8.5 Torx screw tightened with a T15 key, ensuring repeatable clamping of the insert pocket. Reduced vibration from the rigid design improves surface finish and extends insert life, which contributes to lower per-part costs and fewer secondary operations. System compatibility designed for workshop productivity Designed to accept inserts from established manufacturers — notably Taegutec — the cutter integrates easily into existing tooling kits and spare-part strategies. With 2 cutting edges and a balanced geometry, the tool is suitable for repetitive T-slot production where uniformity is essential for assembly and fixture alignment. If additional technical details are required to match specific machines or workpieces, advisory support is available; Metav Werkzeuge combines broad stock depth with decades of metrology and tooling expertise to help select the right tool combination for the job. For reliable T-slot machining choose the Teknik Makina T-slot milling cutter — contact Metav Werkzeuge in Emmerich for specific application advice or spare-part guidance via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: S060TM Manufacturer: Teknik Makina Designation: T-slot milling cutter Facts Diameter: 32 mm Shank diameter: 25 mm Cutting length: 30 mm Overall length: 150 mm Number of cutting edges: 2 Cutting angle: 45° Weight: 0.589 kg Special features Suitable for insert: SPMG 0904 Compatible insert manufacturer: Taegutec Torx screw: M3.5x8.5 Torx key size: T15 FAQ Which inserts fit the cutter best? The cutter accepts SPMG 0904 indexable inserts; Taegutec inserts in this designation are compatible with the Teknik Makina T-slot milling cutter (SKU S060TM). How is the insert secured and which key is required? Inserts are secured with an M3.5x8.5 Torx screw; use a T15 key to achieve the specified clamping. What shank diameter is required for the holder? The cutter has a 25 mm shank, so machine holders or collets must accommodate a 25 mm shank diameter for secure clamping. Can the cutter be used on different machines? Yes — the tool is suitable for CNC milling machines and conventional mills where a 32 mm diameter T-slot cutter is required; machine spindle capability and holder rigidity should be checked to match speeds and feeds. How many cutting edges does the tool have and what is the benefit? The tool features 2 cutting edges, providing a predictable chip load and simplified insert replacement, which helps maintain consistent slot geometry over production runs. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
34mm Chamfer Cutter 20mm Shank 40mm Cutting Height 30°/60° For TCMT 16T3 Inserts - Teknik Makina
Take advantage of a compact, indexable-insert solution that combines high repeatability, straightforward maintenance and efficient chip control; the measurable benefits are reduced set-up time and consistent chamfer quality. Order the chamfer cutter directly via Metav Werkzeuge or contact the consultants for application advice. Chamfer cutter S345TM – indexable-insert chamfering cutter, Ø 34 mm (Teknik Makina) Chamfer cutter S345TM is a robust indexable-insert tool designed for precise chamfering operations in machining centres and milling machines, suitable for use with standard TCMT 16T3 inserts. Ø 34 mm cutting diameter for broad edges Compatible with TCMT 16T3 indexable inserts 20 mm cylindrical shank for standard holders 30° and 60° chamfer angles for versatile chamfering Consistent chamfer quality with indexable inserts The indexable design ensures repeatable chamfer geometry and fast recovery time after insert changes. With a 34 mm nominal diameter and 40 mm cutting height, the cutter delivers a stable machining platform for chamfers and deburring operations. The use of TCMT 16T3 inserts provides straightforward tool management: worn inserts are replaced rather than re-sharpened, reducing downtime and keeping the production line moving. This configuration supports efficiency improvements in batch production where reproducibility is essential. Reduced set-up complexity and secure clamping A 20 mm shank permits secure mounting in standard collet chucks and toolholders, while the supplied M3.5×8.5 Torx screw (Torx key T15) secures the insert reliably under cutting loads. The double-angled design (available 30° / 60°) enables the selection of the most suitable chamfer geometry without multiple tools, saving tool-change time and simplifying tool inventory. The cutter’s modest weight (0.307 kg) and balanced construction minimise spindle wear and support stable surface finishes. Designed for workshop integration and predictable throughput The modular indexable-insert concept aligns with lean workshop processes: predictable tool life, fewer regrinds and quicker interventions at the machine. The cutter’s compatible insert size and common Torx fastener mean replacement parts are widely available, aiding uninterrupted production flow. For procurement managers and workshop supervisors this tool represents a pragmatic choice where uptime and standardisation across multiple machines are priorities, rather than exotic single-use solutions. Contact Metav Werkzeuge today to discuss how the Teknik Makina Chamfer Cutter S345TM fits into existing tool sets and to arrange delivery from Emmerich; Metav Werkzeuge’s consultants can advise on holder compatibility and insert selection Technical data Article number: S345TM Brand: Teknik Makina Insert type: TCMT 16T3 Core dimensions Cutting diameter: 34 mm Shank diameter: 20 mm Cutting height: 40 mm Overall length: 100 mm Number of cutting edges: 2 Weight: 0.307 kg Features & compatibility Chamfer angles: 30° and 60° Torx screw: M3.5x8.5 Torx key size: T15 Indexable-insert system FAQ Which inserts fit this chamfer cutter? The chamfer cutter S345TM from Teknik Makina is designed for TCMT 16T3 indexable inserts. What shank diameter is required for mounting? The tool has a 20 mm cylindrical shank, compatible with standard collet chucks and holders that accept a 20 mm shank. What chamfer angles are available with this cutter? This cutter is configured for both 30° and 60° chamfering applications, enabling flexible edge geometries. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
35mm Chamfer Cutter 45° 6 Flutes, 60mm Shank, APKT 1604 Compatible - Teknik Makina
Take advantage of a robust chamfering solution that combines a 76 mm cutting diameter, a 60 mm shank and compatibility with APKT 1604 indexable inserts for a reliable production flow; order the chamfer cutter directly via Metav Werkzeuge or ask our consultants if needed. Chamfer cutter by Teknik Makina — 45° chamfer, APKT 1604 compatible Chamfer cutter for industrial edge chamfering and face preparation, designed for indexable insert operation in CNC and milling applications *Compatible with APKT 1604 inserts *45° chamfer geometry for precise edge preparation *60 mm shank for secure machine clamping *Six cutting edges for efficient material removal Precision chamfering that reduces set-up time and scrap The chamfering solution is engineered to deliver consistent results on series production runs. With a 45° cutting geometry and a substantial 76 mm maximum cutting diameter, the tool reduces the need for multiple passes and avoids uncontrolled burr formation. The insert system using APKT 1604 indexable inserts allows quick replacement without regrinding, which shortens downtime and keeps machining cycles predictable. This focus on process efficiency translates into reduced setup time and less scrap across batches. Secure clamping and stable cutting for improved surface quality A 60 mm shank provides the required rigidity for heavy-duty milling and contributes to vibration damping, which improves finished-edge consistency. The tool features six cutting edges, a configuration that spreads the cutting load and extends insert life while maintaining a steady material flow. For workshops stepping up production or integrating larger workpieces, the robust shank and balanced geometry ensure repeatable quality and a lower risk of chatter or edge burn. Versatile indexable system explained for practical application Using APKT 1604 indexable inserts means the tool can be maintained with standard industry inserts from compatible manufacturers, keeping running costs predictable. Insert indexing requires only a simple Torx screw (M4x10) and a T15 key for secure retention and fast changeovers. This familiar indexable concept simplifies inventory management and training requirements, making the cutter suitable both for experienced toolrooms and for operations transitioning to indexable tooling. Discuss integration and availability with Metav Werkzeuge — specify Teknik Makina chamfer cutter (SKU T456TM) to receive tailored advice and order support from the Emmerich team Technical Data Article number: T456TM Manufacturer: Teknik Makina Core specifications Cutting diameter max: 76 mm Shank diameter: 60 mm Overall length: 50 mm Weight: 0.734 kg Cutting edges: 6 Chamfer angle: 45° Special features For indexable inserts APKT 1604 Compatible inserts manufacturer: Korloy Torx screw: M4x10 Torx key: T15 FAQ What materials is this chamfer cutter suitable for? The chamfer cutter by Teknik Makina (SKU T456TM) is designed for general milling and chamfering applications; selection of the correct APKT 1604 insert grade will determine suitability for specific materials. How are the inserts secured and replaced? Inserts are clamped with an M4x10 Torx screw; a T15 key is used for secure fastening and quick replacement when the APKT 1604 insert reaches wear limits. Can the tool be used on large-format CNC machines? Yes — the 60 mm shank provides the rigidity required for stable clamping in larger machine spindles, enabling reliable chamfering on bigger workpieces. How many cutting edges are available and what is the benefit? The cutter has six cutting edges, which distribute cutting forces and extend insert life while maintaining consistent material removal and surface finish. Is the cutter compatible with inserts from different manufacturers? The tool is specified for APKT 1604 inserts and is noted as compatible with Korloy inserts; using equivalent grades from other reputable insert manufacturers is possible if dimensions match. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
35mm Chamfer Cutter APKT1604 Inserts 6 Cutting Edges, 15° Angle, 45mm Shank - Teknik Makina
Take advantage of a compact chamfering solution that combines high edge quality with quick insert changes — the tool’s Ø35 mm body and 45 mm shank deliver stable clamping and reliable results in series production; order the tool directly via Metav Werkzeuge or ask our consultants for application support. Chamfer mill T457TM by Teknik Makina — 15° cutting angle, compatible with APKT 1604 The Chamfer mill is a solid chamfering cutter designed for indexable inserts and precise edge finishing in metalworking applications. Ø35 mm body diameter Compatible with APKT 1604 inserts 45 mm shank for stable clamping Six cutting edges for smooth chamfers Consistent chamfers for repeatable component quality The T457TM delivers precision chamfering through a compact geometry and carefully defined cutting angle. With a 50.5 mm cutting diameter at maximum and a nominal Ø35 mm body, the cutter is configured to produce uniform chamfers across batches, reducing rework and inspection time. The tool’s 6 cutting edges distribute cutting forces evenly, which helps to maintain a steady surface finish and extend insert life. This design suits metalworking environments where reproducibility and tight edge tolerances matter. Quick set-up and dependable toolholding for efficient cycles A short overall length of 60 mm and a robust 45 mm shank support stable clamping in standard toolholders, lowering vibration and improving surface integrity. Insert fixation uses an M4x10 Torx screw and a T15 key, enabling secure, fast replacements without specialised fixtures. The compatibility with APKT 1604 indexable inserts from major manufacturers gives flexibility when selecting grades for different materials, while the compact mass (0.415 kg) simplifies handling during tool changes and reduces spindle load during operation. Designed for workshop reliability and simple maintenance The cutter is built for frequent use and straightforward upkeep: replaceable insert geometry means maintenance is limited to routine insert changes rather than full-tool replacement. Compatibility with inserts from Korloy and standard clamping hardware ensures easy sourcing of consumables. The modest tool mass and standard shank diameter also support predictable balancing and integration into existing machining setups. Documentation and parts alignment are simplified by the clear use of standardised insert types and torque requirements. Contact Metav Werkzeuge for tailored advice and reliable supply from Emmerich — call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: T457TM Article name: Fasenfräser Manufacturer: Teknik Makina Specifications Diameter (body): 35 mm Maximum cutting diameter: 50.5 mm Shank diameter: 45 mm Overall length: 60 mm Weight: 0.415 kg Cutting edges: 6 Cutting angle: 15° Torx screw: M4x10 Torx key: T15 Compatible inserts: APKT 1604 Compatibility & special features Suitable insert manufacturer: Korloy Angles available (as listed): 15°, 30°, 45°, 60°, 75° Indexable-insert design for quick replacement Compact construction for stable clamping FAQ What insert type does this chamfering cutter use? The chamfer mill T457TM is designed for APKT 1604 indexable inserts and is compatible with inserts from Korloy. What shank diameter is required for mounting? Mounting requires a toolholder that accepts a 45 mm shank, as specified for the T457TM. How many cutting edges does the cutter have and what is the benefit? The cutter has six cutting edges, which distribute cutting forces to produce smoother chamfers and extend insert life. Which cutting angles are available with this tool? The product data lists available angles of 15°, 30°, 45°, 60° and 75°, enabling a range of chamfer geometries. What size Torx screw and key are used for the inserts? Insert clamping uses an M4x10 Torx screw tightened with a T15 key, providing secure fixation for the indexable inserts. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
35mm Chamfer Cutter For Indexable Inserts 45°/90° 35mm Cut Height 35mm, 20mm Shank - Teknik Makina
Take advantage of a robust combination of precise chamfering, fast insert changes and a compact 20 mm shank for stable mounting; order the tool directly via Metav Werkzeuge or consult our specialists for application advice. Chamfer cutter S338TM — 35 mm diameter, 20 mm shank (Teknik Makina) A Chamfer cutter S338TM designed for accurate 45° and 90° chamfering in machining operations, compatible with TCMT 16T3 indexable inserts for efficient edge preparation 35 mm cutting diameter 20 mm shank diameter Compatible with TCMT 16T3 inserts 45° and 90° chamfer angles Accurate chamfers with predictable results The S338TM delivers consistent chamfer geometry thanks to its 35 mm nominal diameter and a cutting height of 35 mm, which together enable stable material engagement on flat workpieces. With two cutting edges, the cutter balances material removal and surface finish, reducing the need for secondary operations. The combination of a solid 20 mm shank and a compact overall length of 100 mm ensures low run-out when mounted in standard toolholders, promoting repeatable angles and reduced scrap rates. Where process reliability matters, choosing a cutter with defined dimensions simplifies setup routines and quality documentation. Rapid insert changes and short machine downtime This chamfering solution accepts TCMT 16T3 indexable inserts, enabling quick replacement without complex regrinding. A single Torx fixing (M3.5x8.5) secured with a T15 key keeps clamping straightforward and repeatable; the simple fastening reduces changeover time and lowers the risk of incorrect seating. Using standard indexable inserts allows stock consolidation and predictable cutting performance across batches. For production environments, the result is improved throughput and easier inventory management, as inserts can be rotated or replaced independently from the cutter body. Versatile angles, robust handling and predictable lifecycle Designed to produce both 45° and 90° chamfers, the cutter suits deburring, edge preparation and bevel creation across a range of common tasks. The two-flute configuration contributes to balanced cutting forces and a stable finish on aluminium and steel workpieces in typical workshop applications. At 0.324 kg, the tool body is light enough for safe handling yet substantial enough to resist chatter in regular milling setups. The modular nature of the design—indexable inserts and standard fixing—supports maintenance workflows and keeps toolholding costs manageable over the tool’s lifetime. Contact Metav Werkzeuge for tailored application advice and to source the S338TM chamfer cutter from our Emmerich site — call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data SKU: S338TM Manufacturer: Teknik Makina Diameter: 35 mm Shank diameter: 20 mm Cutting height: 35 mm Overall length: 100 mm Weight: 0.324 kg Cutting edges: 2 Chamfer angles: 45° / 90° Torx screw: M3.5x8.5 Torx key: T15 Features For indexable inserts: TCMT 16T3 Suitable for 45° and 90° chamfers Two-flute cutter for balanced cutting forces Compact 20 mm shank for standard toolholders FAQ What chamfer angles can be produced with this cutter? The cutter supports both 45° and 90° chamfers; the geometry permits reliable edge creation at these standard angles for deburring and bevel preparation. Which inserts are compatible with the cutter? The tool accepts TCMT 16T3 indexable inserts, which are widely available and easy to replace to restore cutting performance. What are the mounting dimensions for the cutter? The S338TM features a 20 mm shank and an overall length of 100 mm, making it compatible with standard collet and holder systems that accept a 20 mm shank. How many cutting edges does the tool have and what is the effect on finish? The cutter has two cutting edges, offering a compromise between material removal rate and surface finish, resulting in stable cutting forces and good edge quality. Is the fixing hardware included and what tool is required? Fixing is achieved with a Torx screw M3.5x8.5; a T15 key is used for secure and repeatable clamping of the insert. Teknik Makina: Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
35mm Chamfer Mill 30° Cutting Angle 6 Inserts 48mm Shank - Teknik Makina
Take advantage of a compact, rigid solution that delivers repeatable bevel geometry and simple insert handling; the combination of a 48 mm shank and a 30° cutting angle ensures stable machining and consistent results. Order the tool directly via Metav Werkzeuge or consult their specialists for application-specific advice. Teknik Makina T454TM Chamfer Cutter — 35 mm, compatible with APKT 1604 The chamfer cutter by Teknik Makina is designed for precision beveling and edge preparation in milling operations, combining a compact tool body with indexable insert technology for efficient shop-floor performance 35 mm cutting diameter for precise chamfers Compatible with APKT 1604 indexable inserts 30° cutting angle for standard bevel geometry 48 mm shank for rigid toolholding Repeatable chamfers through measured geometry A controlled chamfer is achieved thanks to the tool's 35 mm diameter and 30° cutting angle, which together produce a consistent bevel across successive workpieces. The design uses indexable inserts that ensure the cutting edge can be restored quickly by rotation or replacement, so downtime is reduced and process stability is increased. For production environments where reproducibility matters, this configuration allows a predictable set-up that can be documented and repeated; the result is fewer rejects and an easier integration into existing machining cycles. Faster changeover and simplified tooling management Compatibility with APKT 1604 inserts and the common Korloy insert designation streamlines inventory: one insert type supports multiple operations. The cutter uses an M4x10 Torx screw together with a T15 key for secure seat clamping, enabling rapid insert changes with standard workshop tools. This reduction in SKU variety and the straightforward clamping concept help to shorten maintenance intervals and to lower logistical complexity, which is particularly useful for small series or mixed-production shops that value agility. Rigid shank, compact length — stability under load The tool's 48 mm shank and a 50 mm overall length create a compact, rigid assembly that resists deflection during chamfering. With six cutting edges, material removal is distributed to maintain surface quality while moderating cutting forces; the modest mass of 0.61 kg keeps spindle load predictable. Where chatter and vibration would otherwise compromise edge quality, this construction is intended to achieve a smoother finish and a more reliable cutting process, reducing rework and enhancing throughput. Speak with Metav Werkzeuge for tailored application guidance on the T454TM chamfer cutter — Metav's specialists in Emmerich can advise on insert selection, clamping procedures and rapid supply via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: T454TM Manufacturer: Teknik Makina Designation: Chamfer cutter Compatible inserts: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key: T15 Facts Diameter: 35 mm Max. cutting diameter: 65 mm Shank diameter: 48 mm Number of cutting edges: 6 Cutting angle: 30° Overall length: 50 mm Weight: 0.61 kg SKU: T454TM Special features For indexable inserts APKT 1604 Six cutting edges for distributed cutting load Compact design for rigid toolholding Uses Torx M4x10 clamping screw, T15 key required FAQ How many cutting edges does the T454TM have? The T454TM is supplied with six cutting edges, which helps to distribute cutting forces and maintain surface quality during chamfering. Which insert type fits this chamfer cutter? This chamfer cutter accepts APKT 1604 indexable inserts; the designation matches widely used Korloy inserts for easy procurement. What clamping hardware is specified for insert fastening? Insert clamping is achieved with an M4x10 Torx screw; a T15 key is used to tighten and release the insert seat. What shank and length dimensions should be considered for setup? The tool features a 48 mm shank and a 50 mm overall length, which supports rigid mounting and reduced overhang in most milling setups. Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
35mm Chamfer Mill APKT 1604 Compatible, 60° Cutting Angle, 6 Flutes, 60mm Shank - Teknik Makina
Benefit from precise chamfering with a robust 60 mm shank and a wide 86 mm cutting diameter; the cutter’s 60° geometry and six cutting edges combine stability and efficient material removal. Purchase or request expert advice via Metav Werkzeuge for tailored application support. Chamfer mill T455TM — indexable chamfer cutter with 60° cutting angle (Teknik Makina) The Chamfer mill T455TM is an indexable chamfering cutter for industrial chamfer and bevel operations, compatible with APKT 1604 inserts and designed for stable mounting on a 60 mm shank. 60° cutting angle for accurate chamfers Compatible with APKT 1604 indexable inserts 86 mm maximum cutting diameter 6 cutting edges for smooth material removal Faster, more consistent chamfering through engineered geometry The milling head’s 60° cutting angle is engineered to produce uniform chamfers with predictable material removal rates. By combining a large effective diameter (86 mm) with a stable 60 mm shank, the tool reduces vibrations and improves surface quality during high-volume runs. This geometry allows the cutter to maintain cutting engagement and distribute load across multiple cutting edges, resulting in a repeatable finish and fewer rework cycles for production parts. Cost-efficient insert system and straightforward maintenance Equipped for APKT 1604 inserts and compatible with Korloy insert grades, the cutter supports rapid index changes and simple inventory management. The tool is secured with M4x10 Torx screws and associated T15 key, enabling quick, toolroom-friendly insert replacement. For workshops seeking uptime, the indexable system reduces tooling costs per component and shortens maintenance intervals without specialised fixtures. Robust build for industrial duty and reliable handling With six cutting edges and a mass of 0.892 kg, this cutter balances rigidity with handling convenience. The combination of multiple edges and stable attachment minimises chattering and extends insert life by sharing wear. The tool’s overall length of 50 mm contributes to a compact setup, lowering cantilever forces on the spindle and promoting safer, higher-precision machining in repetitive chamfering tasks. Suitable for workshop and light production environments Designed for consistent chamfer production, the cutter is a pragmatic choice for CNC and milling centres that require dependable indexable tooling. Backed by Teknik Makina engineering and available through Metav Werkzeuge, the cutter benefits from broad aftermarket support and compatible insert availability. Metav’s distribution model focuses on dependable supply and industry-grade quality control, supporting efficient procurement and steady workshop operation. Contact Metav Werkzeuge for application-specific recommendations on Teknik Makina chamfering cutters and to arrange prompt delivery from Emmerich. Technical data Article number: T455TM Core specifications Maximum cutting diameter: 86 mm Shank diameter: 60 mm Overall length: 50 mm Number of cutting edges: 6 Weight: 0.892 kg Cutting angle: 60° Features and compatibility Insert type: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key: T15 FAQ Which insert type does the cutter accept? The cutter accepts APKT 1604 indexable inserts; compatible grades from Korloy are suitable for typical chamfering applications. What is the maximum cutting diameter of the tool? The maximum cutting diameter is 86 mm, allowing broad chamfer widths while retaining stability via the 60 mm shank. What shank size is required for mounting? A 60 mm shank diameter is specified for secure mounting and reduced vibration during operation. Are fastening screws and the key included? The tool is specified with M4x10 Torx screws and a T15 key for insert fixing and replacement. Is the cutter suitable for high-volume production? The cutter’s indexable design and 6 cutting edges make it appropriate for repetitive chamfering tasks in workshop and light production settings. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
35mm Chamfer Mill APKT 1604 Compatible, 75° Cutting Angle, 6 Flutes, 60mm Shank - Teknik Makina
Take advantage of the combination of robust toolholding, a defined 75° chamfer geometry and easy insert replacement for consistent edge finishes and reduced setup time; order the component via Metav Werkzeuge or contact the consultants for tailored advice. Chamfer mill T458TM — 75° cutting angle, 60 mm shank (Teknik Makina) A chamfer mill T458TM designed for precision edge chamfering in industrial machining, compatible with APKT 1604 indexable inserts 75° cutting angle for precise chamfers Compatible with APKT 1604 indexable inserts 60 mm shank for stable toolholding Six cutting edges for efficient material removal Consistent chamfer geometry for reliable production The T458TM delivers a defined 75° cutting angle, engineered to produce repeatable chamfers with minimal setup variance. The combination of a rigid 60 mm shank and a compact overall length of 50 mm stabilises the tool in the holder, reducing vibration and improving surface finish. With six cutting edges arranged to share the load, wear is distributed evenly, which extends insert life and sustains process reliability. This configuration supports lean production by lowering the frequency of rework and by helping to maintain tolerances across batch runs. Efficient indexable system that speeds up changeover Designed around indexable inserts APKT 1604 (compatible with Korloy), the cutter reduces downtime through quick insert indexing and replacement. The indexable system permits consistent edge geometry without complex regrinding, which simplifies tool management in busy workshops and small production lines alike. The combination of multiple cutting edges and replaceable inserts enhances throughput and provides a predictable cost-per-edge metric for job costing and process planning. Serviceable design with clear maintenance steps Insert retention uses a Torx screw specification M4x10 and the required key size is T15, enabling straightforward replacement and secure clamping. The tool's balanced mass (approx. 1.256 kg) and robust construction aid in stable cutting performance, while the compatibility with Korloy inserts broadens sourcing options for spares. For traceability and ordering, reference T458TM and Teknik Makina when selecting holders or replacement parts; the model’s design supports routine maintenance without specialised fixtures. For tailored technical advice on integrating the Teknik Makina chamfer mill into existing tool setups or to confirm suitability for a specific application, contact Metav Werkzeuge in Emmerich for expert guidance and stock information Technical data Article number: T458TM Manufacturer: Teknik Makina Insert type: APKT 1604 Compatible insert manufacturer: Korloy Torx screw: M4x10 Torx key: T15 Core specifications Cutting angle: 75° Shank diameter: 60 mm Overall length: 50 mm Cutting edges: 6 Weight: 1.256 kg Max. cutting diameter: 94 mm Nominal diameter: 35 mm Features & versions Compatible with indexable inserts APKT 1604 Insert supplier compatibility: Korloy Secure clamping via M4x10 Torx screw Balanced design for reduced vibration FAQ What insert type is required for this chamfer cutter? The cutter is specified for APKT 1604 indexable inserts; compatibility with Korloy inserts is indicated and recommended for optimal fit and performance. Which toolholder diameter does the cutter require? This tool uses a 60 mm shank for rigid mounting and stable toolholding during chamfering operations. How many cutting edges are provided and what is the benefit? The tool features six cutting edges, which distribute wear across multiple cutting faces and increase effective machining time between indexings. What is the specified cutting angle and what does it mean for applications? A 75° cutting angle provides a defined chamfer geometry suitable for standard edge preparation tasks, delivering consistent results for assemblies requiring controlled edge breaks. Which fastener and key are needed for insert changes? Insert retention uses an M4x10 Torx screw and requires a T15 Torx key for secure and repeatable replacement. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
39mm Chamfer Mill TCMT Inserts 36mm Cutting Height, 20mm Shank - Teknik Makina
Benefit from a robust indexable design with a Ø39 mm cutting diameter and 36 mm cutting height for reliable chamfering and minimal downtime; order the chamfer cutter directly via Metav Werkzeuge or consult our technical advisors for application support. Chamfer cutter S343TM — indexable-insert cutter, Ø39 mm, Teknik Makina The Chamfer cutter S343TM is an indexable-insert milling tool engineered for precise chamfering and bevel preparation in metalworking applications. Indexable system for TCMT 16T3 inserts Ø 39 mm diameter for medium chamfers 36 mm cutting height for deep chamfers 20 mm shank for stable clamping Faster chamfering with replaceable inserts The indexable concept offers a clear production advantage: rapid insert changes lead to reduced downtime and lower per-part costs compared with solid-tool replacements. Fitted for TCMT 16T3 inserts, the cutter accepts commonly available carbide inserts, enabling a quick insert change routine that is compatible with standard workshop stocking practices. This design supports steady throughput in repetitive chamfering tasks and helps maintain predictable edge quality across batches. Stable clamping for consistent edge quality A robust tooling foundation improves process reliability. The combination of a 20 mm shank and a tool Ø39 mm body keeps the cutter rigid in the holder, which reduces vibration and preserves surface finish. With a 36 mm cutting height and two cutting edges, the geometry provides steady material engagement for chamfers and bevels; the included 30° and 60° chamfer options allow selection of the best edge angle for a given part design. Consistent clamping and predictable chip formation translate into fewer reworks and a more controlled machining process. Practical workshop handling and maintenance Maintenance is straightforward: inserts are secured with an M3.5x8.5 Torx screw and serviced using a T15 key, simplifying routine changeover and reducing toolroom time. The tool’s 100 mm total length and compact mass (approx. 0.356 kg) make it easy to handle during toolprep and mounting, while the indexable concept lowers overall tooling inventory by allowing one cutter body to serve multiple insert life cycles. For production environments that value both uptime and cost-efficiency, this cutter forms a pragmatic part of a modular tooling strategy. Secure Teknik Cutting Tools' chamfer cutter S343TM through Metav Werkzeuge for dependable stock and application advice — contact Metav Werkzeuge at info@metav-werkzeuge.com or call +49 2822 7131930 for specification assistance and order coordination Technical data Article number: S343TM Manufacturer: Teknik Makina SKU: S343TM Facts Diameter: 39 mm Shank diameter: 20 mm Cutting height: 36 mm Total length: 100 mm Cutting edges: 2 Weight: 0.356 kg Special features For indexable inserts TCMT 16T3 Chamfer angles: 30° and 60° Torx screw: M3.5x8.5 Torx key size: T15 FAQ What inserts are compatible with this cutter? The cutter is designed for TCMT 16T3 indexable inserts; TCMT 16T3 inserts fit the S343TM cutter and are commonly available from insert suppliers. How are inserts secured and changed? Inserts on the S343TM are fastened with an M3.5x8.5 Torx screw and require a T15 Torx key for secure and repeatable replacement. Which chamfer angles does the tool provide? The cutter features geometries for 30° and 60° chamfers, enabling straightforward selection of the desired edge profile for bevel preparation. Is the shank suitable for standard tool holders? The 20 mm shank and 100 mm overall length are compatible with holders accepting 20 mm shanks; the rigid shank supports stable clamping and consistent machining results. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
43mm Chamfer Cutter 45/90° 3 Flute, 25mm Shank 37mm Cutting Height, 100mm Overall - Teknik Makina
Take advantage of a precise chamfering solution with a 43 mm cutting diameter, a 25 mm shank for rigid mounting and compatibility with economical TCMT 16T3 indexable inserts — a combination that keeps tooling costs low while improving process repeatability; order directly via Metav Werkzeuge or consult their specialists for integration advice. Chamfer cutter S340TM — 43 mm diameter, TCMT 16T3 compatible (Teknik Makina) The Chamfer cutter S340TM is a compact, indexable-insert tool designed for producing clean 45° and 90° chamfers in machining setups where repeatability and quick insert changes are required. 43 mm cutting diameter Compatible with TCMT 16T3 inserts 45° and 90° chamfer angles 25 mm shank for secure clamping Consistent chamfers that reduce rework and setup time The S340TM delivers repeatable chamfer geometry thanks to a well-dimensioned cutting head and defined seating for indexable inserts. Using replaceable TCMT 16T3 inserts means the cutting edge can be renewed in seconds, lowering downtime compared with solid cutters. The tool’s 3 cutting edges and dedicated clamping ensure stable cutting conditions, reducing the likelihood of rework and the time spent on manual deburring. For shops aiming to standardise edge treatments, this cutter offers a predictable, measurable result for both 45° and 90° chamfers. Rigid build for industrial use and reliable toolholding Designed with a 25 mm shank and a 100 mm overall length, the tool provides a balance of reach and stiffness suited to many common holders and collet systems that accept 25 mm shanks. The moderate weight (0.634 kg) and compact design contribute to lower vibration during chamfering passes, which supports longer insert life and a cleaner surface finish. Fast and secure insert fastening is provided by the M3.5x8.5 Torx screw with a T15 key, giving straightforward maintenance and minimal accessory complexity for production environments. Economical operation through indexable inserts and controlled chip management By accepting standard TCMT 16T3 inserts, the cutter minimises tooling costs and simplifies inventory: only the small triangular inserts need replacing rather than entire cutters. The 37 mm cutting height and the cutter’s diameter are dimensioned to produce stable chip evacuation for typical chamfering depths, supporting efficient cycle times and consistent part quality. Compatibility with two common chamfer angles (45° and 90°) makes the cutter versatile across a range of finishing tasks without multiple dedicated tools. Contact Metav Werkzeuge to discuss integrating the Teknik Makina Chamfer cutter S340TM into the tooling portfolio or to request tailored advice from their technical consultants via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: S340TM Brand: Teknik Makina SKU: S340TM Facts Cutting diameter: 43 mm Shank diameter: 25 mm Cutting height: 37 mm Overall length: 100 mm Weight: 0.634 kg Cutting edges: 3 Chamfer angles: 45° / 90° Special features For indexable inserts TCMT 16T3 Torx screw M3.5x8.5 Torx key size T15 Designed for chamfering operations FAQ What insert type does the chamfer cutter require? The chamfer cutter S340TM is designed for TCMT 16T3 indexable inserts, offering quick replacement and economical running costs. Which chamfer angles can be produced with this cutter? The tool is configured to produce defined 45° and 90° chamfers, enabling consistent edge geometry without additional tool changes. What are the key dimensions for toolholding compatibility? The cutter has a 25 mm shank and 100 mm overall length, suitable for holders and collets that accept a 25 mm diameter shaft. How many cutting edges are available on the head? The cutter features 3 cutting edges, arranged to provide stable cutting and straightforward rotation of insert positions as required. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
53mm Chamfer Cutter 45°/90° 3 Cutting Edges 37mm Cutting Height 25mm Shank - Teknik Makina
Benefit from precise chamfering with a Ø53 mm cutter that accepts TCMT 16T3 indexable inserts and offers both 45° and 90° chamfer options; the 25 mm shank provides secure clamping for repeatable results. Order the tool directly via Metav Werkzeuge or consult their specialists for application guidance. Chamfer Cutter S342TM – indexable cutter, Ø53 mm, 45°/90° chamfers (Teknik Makina) The Chamfer Cutter S342TM is an indexable milling cutter designed for efficient production of 45° and 90° chamfers in machining and workshop environments, suitable for use on milling heads and CNC toolholders. Indexable for TCMT 16T3 inserts 45° and 90° chamfer angles Ø53 mm diameter, 3 cutting edges 25 mm shank for secure clamping Deliver consistent chamfers and improved assembly fit The cutter delivers repeatable results thanks to its Ø53 mm body and a three‑edge cutting configuration that stabilises cutting forces. Chamfers at 45° and 90° are produced without additional setup changes, which simplifies jigging and reduces rework. The measurable cutting height 37 mm allows predictable material removal per pass, enabling planners to calculate cycle times and tolerances with confidence. This component is aimed at production workshops and contract manufacturers where process reliability is prioritised. Faster tool changes and reduced downtime with indexable inserts Designed for indexable operation, the tool accepts TCMT 16T3 inserts that are commonly stocked and quickly replaced. The use of indexable inserts minimises tool change time and keeps machining uptime high; insert indexing restores original geometry without regrinding. Fixing is executed with a Torx screw M3.5x8.5 and maintenance or replacement torque is applied via T15 drive tools. At a total length of 100 mm and a modest mass of 0.634 kg, the cutter offers good dynamic behaviour in automated spindles while remaining easy to handle during set‑up. Secure clamping and compatibility with common toolholders A 25 mm shank diameter ensures robust clamping in standard collets and hydraulic chucks, providing concentricity and resistance to deflection in interrupted cuts. The cutter’s design concentrates the cutting edges near the periphery for controlled chip evacuation and steady surface finish on chamfered edges. The product from Teknik Makina is suitable where quick indexability and predictable chamfer geometry are required in serial production or maintenance workshops, helping maintain process quality and assembly accuracy. Contact Metav Werkzeuge for tailored application advice on the Teknik Makina Chamfer Cutter S342TM and to arrange supply directly from Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 for technical clarification and order support Technical Data Article number: S342TM Manufacturer: Teknik Makina Name: Chamfer Cutter S342TM Facts Diameter: 53 mm Cutting edges: 3 Total length: 100 mm Shank diameter: 25 mm Cutting height: 37 mm Chamfer angles: 45°, 90° Weight: 0.634 kg Torx screw: M3.5x8.5 Torx key: T15 Special features For indexable inserts TCMT 16T3 Indexable design for fast insert changes Three cutting edges for stable cutting Suitable for milling heads and CNC toolholders FAQ What insert type does this cutter use? The cutter is designed for TCMT 16T3 indexable inserts, which provide fast replacement and consistent geometry for chamfering operations. Can this tool produce both 45° and 90° chamfers? Yes, the tool is configured to machine chamfers at 45° and 90° angles, offering flexibility for assembly preparations and edge finishing. What is the shank diameter and will it fit standard holders? The tool has a 25 mm shank, which is compatible with common collets and toolholders used in milling and CNC applications. How many cutting edges does the cutter have and what is the total length? The cutter features 3 cutting edges and a total length of 100 mm, balancing stability with reach in typical workshop setups. Which screw and drive size secure the inserts? Inserts are secured with a Torx screw M3.5x8.5, tightened or released using a T15 Torx key. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
5mm Adjustable Chamfer Cutter 10°–80° Cutting Diameter 34mm Shank 25mm - Teknik Makina
Take advantage of the adjustable 10°–80° angle range, the stable 25 mm shank and compatibility with TCMT 16T3 indexable inserts for precise, repeatable chamfering in production environments; order the cutter directly via Metav Werkzeuge or consult our experts for application advice. Adjustable Chamfer Cutter by Teknik Makina — 10°–80° angle, accepts TCMT 16T3 The Adjustable Chamfer Cutter is an indexable chamfering tool engineered for flexible bevel creation across a range of production and workshop tasks. Adjustable angle 10°–80° 25 mm shank for rigid clamping Max cutting diameter 34 mm Compatible with TCMT 16T3 inserts Flexible bevel control for varied chamfering tasks The adjustable design provides an immediate benefit in setups that require multiple bevels: the 10°–80° angle range permits rapid switching between shallow and steep chamfers without changing the tool body. This flexibility reduces downtime and simplifies tool inventories in small batches or mixed-production runs. The mechanism is optimised for repeatability, so every setting change maintains consistent edge geometry — important when tolerances are tight and finish quality matters. Rigid mounting and insert-based economy A 25 mm shank ensures secure clamping for stable cutting conditions, while a maximum cutting diameter of 34 mm defines the tool’s working envelope. Compatibility with TCMT 16T3 indexable inserts delivers the usual indexable-tool advantages: fast insert changes, consistent cutting edges and cost-efficient reconditioning compared with brazed cutters. The cutter is supplied with a Torx fastening system (M3.5×8.5 screw, T15 key) for reliable insert retention and straightforward maintenance. Practical handling and workshop integration Weighing just 0.37 kg, the tool balances ease of handling with industrial robustness, making it suitable for both bench-mounted operations and longer production runs where tool change ergonomics matter. The cutter’s modular concept supports standard indexable-insert workflows and simplifies spare-part logistics. For application-specific questions or to confirm fitment in a particular holder, Metav Werkzeuge can advise on the correct clamping and insert choices to match existing toolholders and machine systems. Contact Metav Werkzeuge for tailored application advice on the Teknik Makina adjustable chamfer cutter and secure reliable supply directly from Emmerich. Technical data Article number: AH15TM Manufacturer: Teknik Makina Designation: Adjustable chamfer cutter Core specifications Angle range: 10°–80° Max cutting diameter: 34 mm Shank diameter: 25 mm Weight: 0.37 kg Features and compatibility Inserts: TCMT 16T3 Torx screw: M3.5×8.5 Torx key: T15 Flexible holder designation: S1474 FAQ What angle range can be set with this cutter? The adjustable chamfer cutter by Teknik Makina can be set across a 10°–80° range to cover shallow to steep bevels. Which indexable inserts are compatible? Compatibility is specified for TCMT 16T3 inserts; the cutter uses these standard inserts for economical edge changes. What shank size is required for secure clamping? A 25 mm shank diameter provides the necessary rigidity for stable chamfering operations with this cutter. How is the insert secured on the cutter? Inserts are fastened with a Torx screw (M3.5×8.5) using a T15 key for reliable retention and simple servicing. Is the cutter suitable for production use? With a robust shank, indexable inserts and adjustable angles, the Teknik Makina chamfer cutter is intended for workshop and production environments where versatility and repeatability are required. Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
Precision chamfering for repeatable, economical edge finishing
Chamfering cutters for indexable inserts are steel carrier tools fitted with replaceable carbide cutting inserts, engineered to deburr sharp edges economically, produce precise bevels and prepare V‑shaped weld grooves. The design lets workshops renew cutting geometry simply by rotating or replacing worn inserts while the steel carrier body remains in service, reducing tooling cost and downtime.
How they work and where they belong in the workshop
These tools are used for conventional deburring and bevel creation on external contours as well as for preparing weld joints. In versions without internal coolant, the coolant or compressed air is directed at the tool from external machine nozzles, which is sufficient for well‑accessible outer contours and everyday deburring where chips can evacuate freely. Chamfering cutters fitted with internal coolant incorporate bores in the carrier that guide high‑pressure coolant directly to each insert. This targeted internal coolant supply is essential when machining wide chamfers, heat‑generating or hard‑to‑cut materials, or when bevelling deep inside components, because the high flush pressure removes chips effectively and reduces thermal load on the cutting edges.
Tangible benefits that improve production metrics
- Reduced tooling expenditure thanks to indexable inserts that are rotated or exchanged instead of replacing the whole cutter.
- Increased uptime and shorter changeover times through modular insert systems.
- Improved surface quality and consistent bevel geometry when using internal coolant for demanding materials.
- Better chip control on open operations with external coolant and machine nozzle alignment.
- Longer insert life and lower thermal wear under high‑pressure coolant conditions.
Why Metav is the practical choice for B2B buyers
Metav stands for democratisation of precision. As an experienced precision partner, Metav combines decades of application know‑how with a comprehensive range that covers every stage from measurement to machining accessories. With more than 48,000 customers, a catalogue of over 250,000 products and a central quality hub in Emmerich, Metav offers a reliable supply chain and specialist advice for selecting the right chamfering cutters and coolant configuration for each application. Metav’s range is positioned as the smart, quality‑first choice for industry, trade and specialist distributors.
Core summary
Chamfering cutters for indexable inserts deliver cost‑effective, repeatable edge preparation and weld‑groove formation by combining a reusable steel carrier body with easily replaceable indexable inserts and selectable coolant options. They are the pragmatic tool for workshops seeking consistent bevels and maximised tool life.
FAQ
When should I choose a chamfering cutter with internal coolant?
Choose a chamfering cutter with internal coolant when you need to machine wide chamfers, work with heat‑sensitive or hard‑to‑cut materials, or reach deep internal edges. The internal high‑pressure coolant directs flushing precisely to each insert, improving chip evacuation and reducing thermal wear on chamfering cutters.
Can chamfering cutters be used to prepare V‑shaped weld grooves?
Yes. Chamfering cutters for indexable inserts are commonly used to prepare clean, consistent V‑shaped weld grooves; their replaceable inserts permit economical reconditioning of cutting geometry between welding batches.
How are worn inserts replaced on these cutters?
Worn inserts are indexed or replaced individually on the cutter body, allowing the steel carrier body to remain in use. This modular approach lowers consumable cost and reduces machine downtime compared with solid cutters.
Which applications are suitable for cutters without internal coolant?
Cutters without internal coolant are ideal for accessible external contours and routine deburring tasks where chips can escape freely and coolant delivered by machine nozzles provides sufficient cooling and lubrication.
