Precision micrometers for reliable dimensional control
Micrometers deliver precise length and depth measurements in metalworking, enabling repeatable control over component tolerances and process stability. These instruments—available as outside micrometers, inside micrometers and depth micrometers—offer hardened contact faces and fine-thread spindles to ensure long-term accuracy and resistance to wear, with digital versions providing data transfer via USB or Bluetooth for seamless integration into inspection software. Typical uses include measuring small bores, depths and diameters in precision engineering, where features must be defined to micrometre-level accuracy; features such as ratchet thimbles and insulated frames help maintain consistent measuring force and temperature compensation. Choose between robust analog models, IP54-protected digital micrometers or micrometers with an integrated minicomputer for advanced functions like unit conversion, temperature correction and Go/NoGo evaluations.

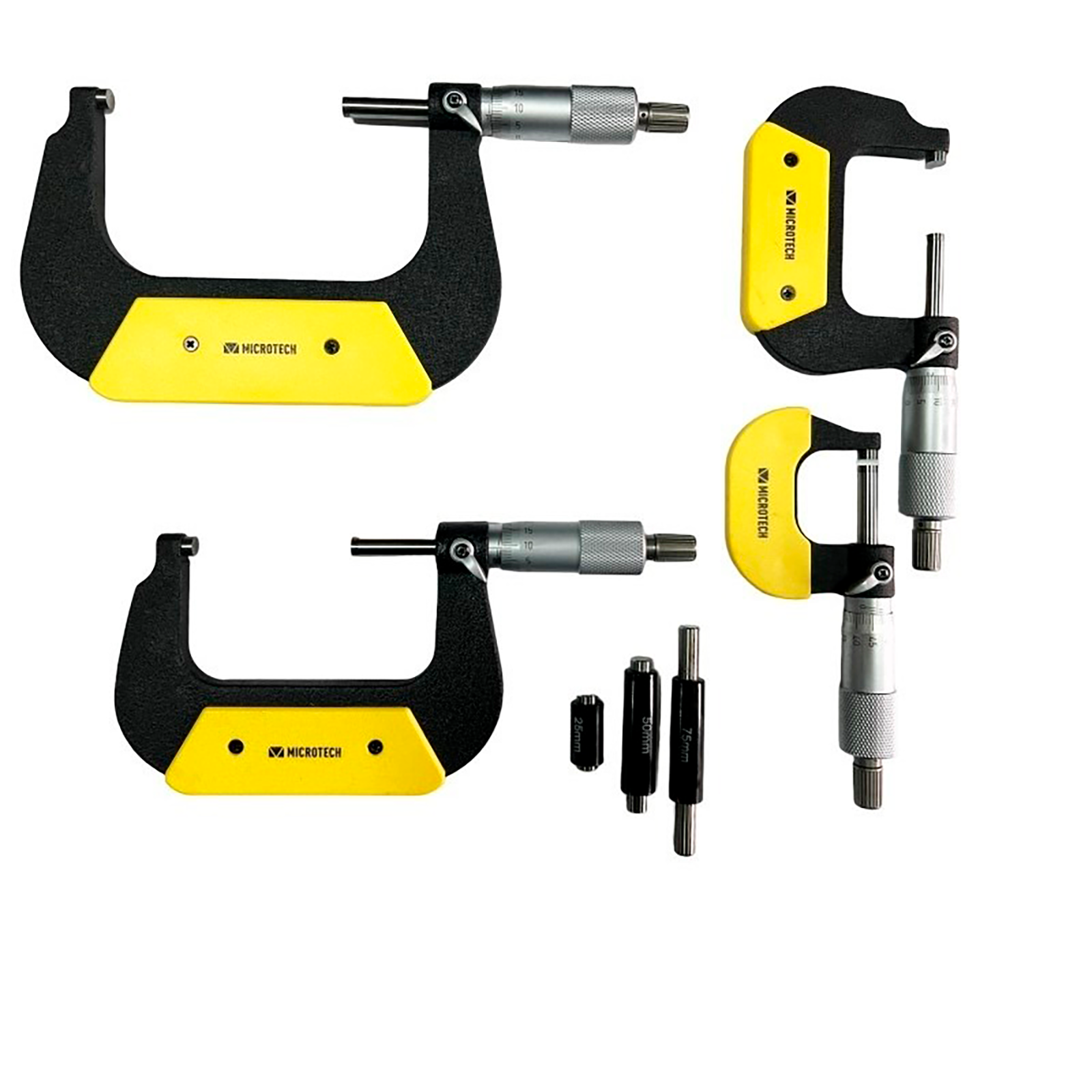

0-150mm Outside Micrometer Set Ratchet Stop, ISO 17025 Calibrated Certificate Included - Microtech Metrology
Take advantage of laboratory‑grade calibration together with a ratchet stop and fine resolution for reproducible measurements; the six‑piece configuration covers 0–150 mm for everyday workshop and inspection tasks. Order the set directly via Metav Werkzeuge or consult our specialists for application advice. Microtech outside micrometer set (Certi Met) — ratchet stop & ISO 17025 calibrated The Microtech outside micrometer set (Certi Met) is a calibrated, high‑accuracy instrument group designed for dimensional inspection and workshop measurement across a standard 0–150 mm span. Ratchet stop for consistent measuring Calibrated to ISO 17025 with certificate Six-piece range 0–150 mm Resolution 0.01 mm for precise readings Laboratory traceability and measurable benefits The set is supplied with an ISO 17025 calibration certificate, which ensures traceability and comparable results across batches and locations — a crucial requirement for quality control and incoming inspection. With an analogue resolution of 0.01 mm and a design optimised for high accuracy, the instruments deliver repeatable dimensional data; the calibration certificate documents performance and reduces uncertainty in routine checks. This combination supports faster decision making in production control and simplifies conformity records. A practical set for the daily workshop routine Classified as a standard measuring solution (0–150 mm), the six individual instruments provide good coverage for common components while maintaining comfortable handling and stiffness. The set format eliminates the need to swap between single tools during a shift, speeding up inspection cycles and reducing handling errors. The analogue dials and clear graduations enable rapid readings for serial inspections, while the six‑piece set layout keeps measurement tasks efficient on the shop floor and in maintenance applications. How design features improve measurement reliability The integrated ratchet stop prevents over‑tightening and equalises applied measuring force, cutting operator‑induced variance. The anvil Ø6.5 mm diameter provides a stable contact area appropriate for many turned and milled surfaces, while the outside micrometer geometry supports consistent external diameter and thickness checks. Analogue operation is straightforward and robust under workshop conditions; routine care — gentle cleaning and occasional lubrication of the spindle — preserves accuracy and extends service life. From technical precision to operational confidence Combining certified calibration, a consistent measuring interface and workshop‑oriented range, this set bridges laboratory precision and practical utility. The documented calibration removes guesswork during audits and the analogue construction minimises electronic failure modes in harsh environments. For procurement and quality teams the result is a measurable reduction in rework and fewer measurement disputes across suppliers and internal production steps. Contact Metav Werkzeuge in Emmerich to discuss specification matching or to secure the ISO 17025‑calibrated Certi Met micrometer set for immediate integration into inspection workflows Technical Data Article number: 110110151 GTIN: 4061905458927 Manufacturer: Microtech Metrology Facts Measuring range: 0–150 mm Resolution / reading: 0.01 mm Pieces per set: 6 Anvil diameter: Ø6.5 mm Special features Ratchet stop micrometer head ISO 17025 calibration certificate included Analogue outside micrometer design Supplied as a calibrated set FAQ Are these micrometers delivered with traceable calibration? Yes. The Microtech outside micrometer set is supplied with an ISO 17025 calibration certificate, ensuring traceability for quality records. What measuring range does the set cover? The set covers a combined range of 0–150 mm across six instruments, suitable for standard workshop and production checks. What resolution and accuracy can be expected? Readings are at 0.01 mm resolution; calibration documentation specifies the verified performance parameters for each instrument. Does the set include a ratchet stop? Yes. Each micrometer features a ratchet stop to ensure consistent measuring force and reduce operator variation. Is the design suitable for shop‑floor use? The analogue, robust construction and the anvil Ø6.5 mm contact area make the set well suited to workshop environments and routine inspection tasks. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
0.1 mm Conical Replacement Tips 60° Pair, For Uni Micrometer - Metav IndustryLine
Take advantage of the combination of 60° conical tip geometry, 0.1 mm contact diameter and matched‑pair delivery to ensure repeatable point measurements on small or recessed features; order the pair directly via Metav Werkzeuge or ask our consultants if needed. Pair of conical anvils for uni micrometer (60°, 0.1 mm) — Metav IndustryLine accessory Pair of conical anvils for uni micrometer (60°, 0.1 mm) provides precision contact points for point and groove measurements, adapting a standard micrometer for demanding small‑feature inspection. Conical 60° tip geometry 0.1 mm tip diameter for fine contact Supplied as a matched pair Designed for uni micrometers Accurate point contact where access is limited The conical contacts deliver a 60° conical tip that concentrates contact at a single point, making them ideal for measurements in narrow grooves, bores or on chamfered edges. The 0.1 mm tip diameter reduces the contact area to avoid averaging over small details, which improves measurement resolution when standard flat anvils would obscure the feature. In practical terms, this means more reliable identification of minima and maxima on fine components and better repeatability when measuring hard‑to‑reach surfaces. Matched pairing increases reproducibility Delivered as a matched pair, the contacts are manufactured to a consistent geometry so that both measuring faces behave identically during comparative checks. This configuration reduces systematic differences between readings and simplifies setup for comparative or go/no‑go tasks. The matched set also supports rapid replacement in production environments, maintaining process uptime and reducing the need for on‑the‑spot adjustments. Compatibility and application focus Engineered as an accessory for uni micrometers, the contact tips convert a conventional micrometer into a dedicated tool for point‑style inspections without the need for a secondary instrument. Typical applications include inspection of thread roots, small bores, precision turned features and toolmaker checks. The lightweight construction contributes to easy handling while the compact contact geometry preserves the instrument’s manoeuvrability in confined assemblies. Handling, mounting and care for consistent results The contact points are intended for secure mounting to the micrometer spindle and anvil; correct fitting ensures minimal lateral play and reliable contact alignment. Regular visual inspection for wear on the conical apex is recommended where repeated hard contacts occur. When storing, keep the matched pair together to avoid mixing with other contact types and to preserve the matched pair benefit for future measurements. Choose the Metav IndustryLine conical anvil pair to upgrade micrometer capability; contact Metav Werkzeuge in Emmerich for product matching and specification advice. Technical data Article number: M309.088.6 GTIN: 4054469117997 Manufacturer: Metav IndustryLine Category: Zubehör Customs tariff number: 90173000 Core dimensions Tip diameter: 0.1 mm Tip angle: 60° Weight: 0.1 kg Special features Supplied as a matched pair Conical tip geometry for point contact Accessory for uni micrometer Suitable for measurements in confined features FAQ What is the intended use of these contacts? The pair of conical anvils for uni micrometer (Metav IndustryLine, M309.088.6) is intended for point‑style measurements such as thread roots, small bores and narrow grooves where a reduced contact area improves resolution. Are the contacts supplied as a matched set? Yes, the contact points are delivered as a matched pair to ensure consistent geometry and reproducible comparative measurements with the uni micrometer. Can these contacts be used on any micrometer? The contacts are designed as an accessory for a uni micrometer; compatibility depends on the micrometer’s spindle and anvil interface—Metav Werkzeuge can advise on fitment for specific models. How durable are the conical tips under repeated use? The conical tips are designed for precision contact; as with all point contacts, regular inspection for apex wear is recommended to maintain measurement quality for the Metav IndustryLine anvil pair (M309.088.6). Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.3 mm Wedge-Tip Anvil Pair 60° For Uni Micrometer, Supplied In Pairs - Metav IndustryLine
Take advantage of a precise contact geometry and matched‑pair delivery to secure repeatable measurements on small features; the wedge‑shaped 60° tip with a 0.3 mm diameter provides defined contact for narrow grooves and edges, while the paired supply ensures symmetry for comparative checks. Order the insert pair directly via Metav Werkzeuge or consult the Metav team for application advice. Pair of Wedge Anvils for Uni Micrometer, 60° Wedge, 0.3 mm — Metav IndustryLine Pair of Wedge Anvils for Uni Micrometer, 60° Wedge, 0.3 mm is a precision accessory intended to extend the measuring capability of compatible uni micrometers, providing a narrow, well‑defined contact for small or hard‑to‑reach features. Wedge‑shaped 60° tip 0.3 mm diameter precision tip Supplied as a matched pair Precise contact geometry for small features The wedge‑shaped 60° contact concentrates measurement force into a very small, repeatable area, making it suitable for defining edges, narrow grooves and fine form elements. With a 0.3 mm tip diameter the insert enables measurements that standard flat anvils cannot resolve, while the wedge profile reduces ambiguous seating on curved or chamfered surfaces. This geometry improves repeatability by providing a consistent contact point that is less sensitive to slight misalignment during routine checks. Matched pair and workflow benefits Delivered as a matched pair, the inserts are balanced for comparative or opposing measurements and help preserve centring when used in pairs on the spindle and anvil sides of a micrometer. The pairing supports rapid verification workflows in inspection benches and helps reduce setup time in production control. As a dedicated uni micrometer accessory from Metav IndustryLine, the inserts integrate into metrology routines where compact contact geometry and quick interchangeability are required. Practical handling and application notes Lightweight and compact, the pair is easy to store and fit to micrometers that accept interchangeable anvils; their small mass minimises influence on the instrument’s dynamics. The wedge form is particularly useful for measuring slot widths, sharp edges and fine sections on small components typical in precision engineering and fine mechanics. For best results, ensure the micrometer spindle and anvils are clean and mounted securely; regular visual checks will maintain measurement reliability and prolong service life. Contact Metav Werkzeuge for tailored application advice and to discuss compatibility with existing micrometers — Metav Werkzeuge is available at +49 2822 7131930 or info@metav-werkzeuge.com Technical data Article number: M309.088.5 GTIN: 4054469117980 Manufacturer: Metav IndustryLine Facts Tip diameter: 0.3 mm Tip angle: 60° Weight: 0.1 kg Tariff number: 90173000 Special features Supplied as matched pair Wedge‑shaped tip geometry Accessory for uni micrometer Category: Measuring instruments – Accessories FAQ What applications benefit from the wedge‑shaped tip? The wedge‑shaped 60° tip is ideal for measuring narrow grooves, sharp edges and small features where flat anvils cannot make defined contact; the insert pair enhances such measurements when used with a compatible uni micrometer. Are these inserts compatible with all uni micrometers? Compatibility depends on the micrometer model and whether it accepts interchangeable anvils; the Metav IndustryLine pair M309.088.5 is intended for uni micrometers designed for replaceable inserts and should be checked against the instrument’s adapter specification. How should the matched pair be handled and stored? Handle the inserts with clean hands or gloves, keep contact surfaces free from debris and store them in a protective container to avoid tip damage; the matched pair should be kept together to preserve their matched condition. Is special maintenance required for these precision tips? Regular cleaning and visual inspection are sufficient for most uses; avoid impact or abrasion of the 0.3 mm tips and re‑check seating after any rough handling to maintain measurement consistency. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.4-0.5mm Thread Micrometer Insert Pair 60° Tip Diameter 5mm - Metav IndustryLine
Taking advantage of precise contact geometry and a matched set design ensures reliable thread measurement across production runs; the inserts cover the 0.4–0.5 mm thread range with a 60° flank angle and a 5 mm contact diameter for consistent repeatability. Order the insert pair via Metav Werkzeuge or consult the technical team for application advice. Insert pair for thread micrometer, 0.4–0.5 mm, 60° (D = 5 mm) — Metav IndustryLine accessory The Insert pair for thread micrometer, 0.4–0.5 mm, 60° (D = 5 mm) is a matched set of measuring inserts designed for precision verification of small metric threads in industrial quality control. Precision thread range 0.4–0.5 mm 60° flank angle for standard V-threads 5 mm contact diameter for consistent seating Supplied as a matched pair Improved throughput through dependable thread measurement Designed for process-oriented quality control, these measuring inserts deliver repeatable results for fine threads within the 0.4–0.5 mm range. The 60° flank geometry matches standard V-profile threads, allowing the measuring device to reference the thread form reliably. Using a matched pair reduces variation between left- and right-hand contacts and minimises rework caused by inconsistent readings, so batch inspection becomes more predictable and efficient. These factors combine to shorten inspection cycles and support higher throughput on shop floors where small-thread accuracy is critical. Robust contact design for consistent readings and easy replacement The 5 mm contact diameter offers a stable seating area that resists rocking during measurement, improving accuracy across repeated checks. Supplied as a pair, the inserts are manufactured to work together to maintain symmetry and repeatability; this is particularly useful when switching inserts during maintenance or calibration intervals. Their compact form and low mass (approx. 0.1 kg) make handling straightforward while keeping instrument balance intact, so integration into existing thread micrometers is uncomplicated and downtime is kept to a minimum. Confidence from a precision partner and practical application hints As a Metav IndustryLine accessory, these inserts are intended to support standard thread micrometer use in production and inspection environments. The matched geometry helps to reduce operator influence on readings and aids traceable measurement routines. For customers seeking a dependable accessory that complements established metrology practices, the set provides a pragmatic balance between ease of use and metrological performance. Combined with Metav’s established distribution and technical support ethos, the product aligns with efforts to democratise precision across workshops and industrial users. Contact Metav Werkzeuge for application guidance or to order the Metav IndustryLine insert pair (SKU M309.090.1) and ensure thread inspections meet production tolerances Technical data Article number: M309.090.1 SKU: M309.090.1 GTIN: 4054469118031 Brand: Metav IndustryLine Weight: 0.1 kg Core data Measuring range: 0.4–0.5 mm Contact diameter: 5 mm Contact angle: 60° Tariff number: 90173000 eCl@ss: 21170324 Special features Accessory for thread micrometers Matched insert pair for symmetric contact Category: Zubehör (Messgeräte > Zubehör) Supplied as a pair FAQ Which thread sizes are covered by these inserts? The insert pair covers thread profiles with a measuring range of 0.4–0.5 mm, intended for fine metric threads requiring a 60° flank reference. What contact geometry do the inserts use? The inserts feature a 60° flank angle and a 5 mm contact diameter, suitable for standard V-profile thread measurement. Are the inserts supplied as individual pieces or as a matched set? They are supplied as a matched pair, manufactured to work as complementary contacts for consistent measurement symmetry. Which micrometers will accept these inserts? The inserts are intended for thread micrometers that accommodate 5 mm diameter contacts and accept replaceable measuring inserts; compatibility should be checked against the instrument’s insert mounting system. What is the product SKU and weight? SKU M309.090.1, weight approximately 0.1 kg. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.4-7 mm Thread Micrometer Inserts Set 6 Pairs - Metav IndustryLine
Take advantage of a compact set that covers a wide thread diameter span while keeping handling and storage simple; the six paired inserts deliver measured coverage from 0.4–7 mm and support rapid changeover between pitch sizes. Order the inserts directly via Metav Werkzeuge or consult the team for compatibility advice. M309.090 — Inserts for thread micrometers (set of 6 pairs), 0.4–7 mm M309.090 is a set of paired measuring inserts intended for use with thread micrometers; the configuration covers small to medium thread diameters for workshop and inspection tasks. Set of 6 paired inserts Measuring range 0.4–7 mm For thread micrometers and thread profiles Consistent, measurable results across common thread sizes The supplied insert set is tailored to cover a continuous measuring span from 0.4–7 mm, grouping the range into practical subranges to avoid repeated retooling. By matching each pair to a defined thread diameter band, the set supports repeatable readings and reduces setup time in quality-control loops. This rational design is aimed at production environments and metrology stations where throughput and dependable traceability matter most. Faster changeovers and simple integration into inspection routines Paired inserts are supplied as a compact set that enables quick replacement of the measuring face for different thread diameters. The modular concept shortens inspection cycles and helps maintain constant measuring conditions, which is particularly valuable when several thread forms are inspected in sequence. The inserts are therefore a pragmatic choice where efficiency and stable measurement conditions are required. Practical composition for workshop and laboratory use The configuration comprises six matched pairs covering these subranges: 0.4–0.5 mm, 0.6–0.9 mm, 1–1.75 mm, 2–3 mm, 3.5–5 mm and 5.5–7 mm, presented as a single set for straightforward inventory control. The total net weight is minimal, simplifying transport between bench and inspection area. For traceability and procurement the article is listed under SKU M309.090 and GTIN 4054469118024, which supports orderly stock management and ordering processes. Choose Metav IndustryLine inserts for consistent threaded measurements; contact Metav Werkzeuge in Emmerich for ordering and expert advice on +49 2822 7131930 or info@metav-werkzeuge.com Technical data Article number: M309.090 GTIN: 4054469118024 Description: Inserts for thread micrometers, set of 6 pairs, 0.4–7 mm Net weight: 0.01 kg Tariff code: 90173000 Core data Measuring range: 0.4–7 mm Set count: 6 pairs Weight (net): 0.01 kg SKU: M309.090 GTIN: 4054469118024 Applications / Special features For use with thread micrometers Subranges per pair: 0.4–0.5; 0.6–0.9; 1–1.75; 2–3; 3.5–5; 5.5–7 Supplied as one set for easy inventory handling FAQ What diameters are covered by the insert set? The insert set covers a continuous range from 0.4–7 mm via six paired inserts, allowing inspection across common small and medium thread sizes with the M309.090 inserts. Are these inserts supplied as matched pairs? Yes, the configuration is a set of six paired inserts intended for paired mounting in a thread micrometer to ensure symmetrical contact and consistent readings. Which instrument are the inserts intended for? The inserts are designed specifically for thread micrometers and are compatible where changeable measuring anvils or inserts are used for thread profile measurement. How is the product identified for ordering and stock? The item is listed under SKU M309.090 and GTIN 4054469118024, which can be used for procurement and stock control. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.4–7mm Three-Point Thread Snap Gauge Anvils Set, 6pcs - Microtech Metrology
Take advantage of precise, repeatable thread checks with a six-piece metric anvil set (0.4–7 mm) that speeds up inspection and reduces rework; order the set directly via Metav Werkzeuge or consult the technical team for application advice. Anvil set for threading — Metric 0.4–7 mm, 6 pcs (Microtech Metrology) The Anvil set provides a compact solution for metric thread verification and is designed for use with Metric 60 snap-gauge systems in production and quality-control environments. Snap gauge anvils, metric 0.4–7 mm range Six-piece set for rapid thread checks Manufactured by Microtech Metrology Compatible with Metric 60 snap gauges Precision checks that shorten inspection time The set delivers consistent thread verification across a wide metric span. With a range of 0.4–7 mm, the six inserts cover the most common small to medium metric threads used in component manufacturing. The design emphasises repeatability and ease of handling: when fitted to a snap-gauge head the inserts allow quick go/no-go checks, reducing the time spent on individual parts while maintaining measurable control over process quality. This supports faster throughput and fewer returns. Built for inline use and straightforward integration Each insert in the set is shaped for reliable seating in Metric 60 gauge fixtures, enabling fast changeover and minimal tool preparation. The modular nature of the set suits batch inspection and spot checks on assembly lines, where repeatable results and straightforward fixture compatibility are primary concerns. For workshops implementing standardised inspection points, the set provides an efficient, low-complexity way to add thread verification to existing gauging stations. Confidence in supply and application-level benefits Sourcing the components from an established metrology maker adds a layer of procurement reliability: the bundle is a practical way to standardise thread inspection across a site. Using dedicated snap-gauge inserts reduces measurement uncertainty from improvised solutions and helps maintain production tolerances. Combined with Metav Werkzeuge’s broad industry offering and distribution from Emmerich, the set supports a dependable supply chain for everyday workshop needs and small-series production. Contact Metav Werkzeuge for advice on integrating Microtech Metrology snap-gauge anvils into existing inspection routines and to confirm availability from stock Technical data Article number: 110710001 GTIN: 4061905458415 Manufacturer: Microtech Metrology Contents: Anvils 0.4–7 mm (Metric 60) Pieces per set: 6 Facts Measuring range: 0.4–7 mm Set size: 6 pieces Type: Metric 60 compatible SKU: 110710001 Special features Snap-gauge anvils for thread verification Six-piece metric insert set Intended for Metric 60 snap-gauge systems Suitable for production and quality-control checks FAQ What thread sizes does the set cover? The anvil set covers threads in the 0.4–7 mm metric range across six inserts, supplied as a complete Metric 60 set by Microtech Metrology. Can these anvils be used with existing Metric 60 snap gauges? Yes, the inserts are specified for use with Metric 60 snap-gauge fixtures and are intended for rapid fitment and inspection. Is a calibration certificate supplied with the set? No calibration certificate is specified in the provided product data for this anvil set. What is included in the delivery? Delivery comprises a six-piece set of metric thread anvils for thread sizes from 0.4–7 mm; identification by SKU 110710001 and GTIN 4061905458415 is provided in the product data. For which applications is the anvil set suitable? The set is suited to production-line thread verification, incoming-part checks and quick go/no-go inspections in component manufacturing and assembly contexts. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
0.6-0.9 mm Thread Micrometer Anvil Pair 60° D5 - Metav IndustryLine
Take advantage of a precise 0.6–0.9 mm measuring window combined with standard 60° flank geometry and a compact Ø 5 mm seating for reliable thread inspection; order directly via Metav Werkzeuge or contact our consultants for application advice. M309.090.2 Anvil Pair for Thread Micrometer — 0.6–0.9 mm, 60° (Metav IndustryLine) A M309.090.2 anvil pair designed to provide accurate external thread measurement for small-diameter metric threads in workshop and inspection environments. Precision thread range 0.6–0.9 mm 60° flank for standard metric threads Ø 5 mm seating diameter Compatible with standard thread micrometers Consistent, measurable accuracy for small threads These inserts deliver a clear technical advantage where repeatability matters: the 0.6–0.9 mm measuring range targets fine external threads, while the 60° flank matches standard metric thread profiles to reduce form-related measuring errors. Fitted into a thread micrometer with the appropriate spindle faces, the pair ensures stable contact geometry and quick, reproducible readings. The defined seating of Ø 5 mm provides reliable seating on the micrometer anvil holder, which helps to reduce lateral play and improves comparative gauging consistency during batch checks. Compact handling that supports workshop workflows With a nominal mass of 0.1 kg for the set, the inserts are easy to store, change and transport between measuring stations without adding unnecessary bulk to your inspection kit. The compact format shortens changeover times in series inspection and aids ergonomic handling during repetitive checks. These characteristics contribute to higher throughput in small-part inspection and reduce downtime when multiple thread sizes are measured in sequence, supporting efficient process control in production or repair shops. Designed to integrate into quality-control routines As an accessory intended for standard thread micrometers, the inserts simplify routine quality assurance: they are supplied as a matched pair for consistent contact conditions and are straightforward to interchange when switching between thread pitches. Using such dedicated measuring faces reduces setup variation and supports traceable comparisons across measurement runs, thereby strengthening the rational case for reliable component acceptance and fewer downstream rework cycles. Contact Metav Werkzeuge today for a matched set or application guidance — Metav IndustryLine fittings such as the M309.090.2 are available through our specialists in Emmerich; call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: M309.090.2 GTIN: 4054469118048 Brand: Metav IndustryLine Category: Accessory — thread micrometer inserts Facts Measuring range: 0.6–0.9 mm Flank angle: 60° Seating diameter: 5 mm Weight: 0.1 kg Tariff number: 90173000 Special features Supplied as a matched pair of inserts For external thread measurement Standard 60° thread profile compatibility Compact, workshop-oriented accessory FAQ What measuring range do these inserts cover? The M309.090.2 anvil pair covers a 0.6–0.9 mm range and is intended for fine external metric threads when used with a compatible thread micrometer from Metav IndustryLine. Are these inserts compatible with standard thread micrometers? Yes — the inserts use a 60° flank geometry and an Ø 5 mm seating diameter to match common thread micrometer holders and provide secure seating for consistent measurements. Is the product delivered as a single insert or a pair? Delivery includes a matched pair of inserts designed for use together on a thread micrometer to ensure identical contact conditions for repeatable readings. Can these inserts be used for internal thread measurement? No — the M309.090.2 set is designed for external thread measurement and fits the anvil holders of external thread micrometers rather than internal gauges. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0.7 mm Flat Micrometer Anvil Pair, Supplied in Pairs - Metav IndustryLine
Take advantage of the matched anvil pair to restore or extend the measuring range of compatible micrometers while maintaining consistent contact geometry; the flat 0.7 mm diameter faces provide a defined reference for repeatable thickness or step measurements. Order the replacement set directly via Metav Werkzeuge or contact the consultancy team for fitting advice. Pair of flat anvils for uni micrometer, 0.7 mm diameter — Metav IndustryLine The Pair of flat anvils for uni micrometer, 0.7 mm diameter is a precision replacement anvil set designed to re-establish accurate contact geometry for fine measurement tasks on uni micrometers and related instruments. Flat 0.7 mm diameter anvil Supplied as a matched pair Compatible with uni micrometer models Precision contact for repeatable readings Precision where small detail matters The flat 0.7 mm contact faces deliver a clearly defined measurement interface that reduces ambiguity when measuring thin sections, small steps or delicate parts. A narrow, flat anvil is particularly valuable where standard spherical or larger faces would introduce measurement uncertainty or fail to access confined geometries. By using purpose‑designed flat contacts the instrument records a consistent reference plane, which improves repeatability and simplifies comparison across serial parts. This specification supports tasks in quality control and fine mechanical assembly where stable contact geometry is essential. Matched pair for consistent measurement results Supplied as a matched pair, the two anvils are intended to be used together to preserve symmetry and balance in the micrometer's measuring circuit. Matched components minimise systematic offsets that can occur when replacing only a single contact face, so measured values remain comparable over time and between instruments. For workshop calibration routines and routine inspection, this approach reduces the need for frequent realignment and supports process stability, helping to maintain traceable measurement chains when used alongside documented procedures. Simple integration and robust handling These anvils are made as a compact accessory that integrates directly with standard uni micrometer fittings, allowing quick replacement without modification to the instrument. Their light mass (0.1 kg for the pair) and compact form mean minimal effect on the instrument’s handling and zero point. The accessory is suited to environments where space and manoeuvrability matter, such as bench inspection stations and precision assembly lines. When combined with a disciplined measurement procedure and appropriate fixturing, the flat anvils contribute to faster inspection cycles and fewer adjustments. For tailored advice on compatibility with specific uni micrometer models or for procurement assistance, contact Metav Werkzeuge — Metav IndustryLine replacements are available from the Emmerich distribution hub and technical consultants can advise on fit and application. Technical data Article number: M309.088.2 GTIN: 4054469117959 Description: Flat 0.7 mm Delivery: Supplied as a pair Weight: 0.1 kg Facts Diameter: 0.7 mm Weight (pair): 0.1 kg Tariff number: 90173000 ECLASS: 21170324 Special features Accessory for uni micrometer Matched anvil pair for symmetric contact Compact design for confined measurements Category: Accessories (measuring devices) FAQ What is the contact diameter of the anvils? The contact diameter is 0.7 mm and the set comprises flat faces intended for precise, well‑defined contact points. Are these supplied as a single anvil or a matched pair? The item is supplied as a matched pair to preserve symmetric contact geometry and to reduce systematic measurement deviation. Which micrometer models are these anvils compatible with? These anvils are made for use with uni micrometer fittings; compatibility checks are recommended with the specific instrument model before fitting. How should the anvils be used to ensure repeatable measurements? Use the matched pair in the micrometer as intended, ensure stable fixturing of the workpiece and follow established measuring routines to maintain repeatability. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
1 mm Special Ball Insert For Indirect Gear Tooth Thickness Measurement, Module 0.6–0.65 - Metav IndustryLine
Take advantage of precise, repeatable measurements thanks to the combination of a D = 1 mm contact element, a dedicated module 0.6–0.65 range and delivery in matched pairs for consistent readings. Order the accessory directly via Metav Werkzeuge or consult the technical team for application advice. Special ball insert D = 1 mm — accessory for indirect gear tooth thickness measurement (module 0.6–0.65, Metav IndustryLine) Special ball insert D = 1 mm is a compact measuring accessory designed to support indirect tooth-thickness checks on small-module gears; suited for use with gear measuring fixtures and comparators Special ball insert D 1 mm for gear measurement For indirect tooth thickness measurement Module range 0.6–0.65 Supplied in pairs for consistent readings Accurate indirect measurement for small‑module gears The D = 1 mm contact element provides a small, well‑defined contact point that simplifies indirect gear tooth thickness measurement on fine-pitch gears. By using a ball insert instead of a flat probe, the contact geometry reduces measurement uncertainty where flank curvature and microform features influence the reading. For gears in the module 0.6–0.65 range this results in improved repeatability and a clearer separation between measurement noise and actual part variation, which supports reliable quality decisions in production and inspection. Optimised workflow compatibility and consistent results Delivered supplied in pairs, the insert set ensures matched geometry for left/right flank checks and reduces the need for on‑the‑spot matching. The compact design integrates with standard gear measuring fixtures and comparators, allowing use without extensive fixture modification. The small mass and defined contact shape speed handling and setup, so inspection cycles remain efficient while maintaining the precision required for small‑module components. The result is fewer re‑measurements and a steadier flow through quality control. Practical benefits for quality assurance and production As an accessory from Metav IndustryLine, the insert set supports repeatable measurement chains and clearer pass/fail decisions for fine gears. Using a dedicated contact element for the targeted module 0.6–0.65 range reduces interpretation effort and shortens training time for operators new to gear metrology. The matched pair delivery helps minimise systematic offsets between left and right measurements, improving statistical process control and reducing scrap rates for small‑module batches. For individual application advice or to request the Metav IndustryLine Special ball insert (M309.181) for small‑module gear inspection, contact Metav Werkzeuge in Emmerich by e‑mail at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: M309.181 GTIN: 4054469118581 Customs tariff number: 90173000 Category: Accessory (measuring devices) Core data Ball diameter: D = 1 mm Module range: 0.6–0.65 Delivery: supplied in pairs Weight: 0.1 kg Special features Application: Indirect gear tooth thickness measurement Compatibility: gear measuring fixtures and comparators Use case: metrology and quality control for fine gears Packaging: paired delivery for matched readings FAQ How is the insert used to measure tooth thickness indirectly? The Special ball insert D = 1 mm for indirect gear tooth thickness measurement (Metav IndustryLine, M309.181) is placed between gear flanks so the comparator or fixture measures the resulting chord or gap, allowing tooth thickness to be calculated without direct flank contact over a wide area. Which module sizes are suitable for this insert? This insert set is specified for the module 0.6–0.65 range, making it suitable for fine‑pitch gears commonly found in precision mechanisms and small transmissions. Is the product supplied individually or as matched items? The article is supplied in pairs, which provides matched geometry for left and right flank checks and helps to maintain consistency across comparative measurements. What are the primary benefits of using a small-diameter ball contact? A D = 1 mm contact reduces the influence of flank curvature and surface irregularities on the measurement, improving repeatability and clarity when assessing small‑module gear tooth thickness. Which measuring devices is this accessory compatible with? The insert is an accessory for gear measuring fixtures and comparators; it is intended to integrate with common gear inspection set-ups used in metrology labs and production quality control. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
1.5mm Special Ball Insert For Indirect Gear Tooth Thickness Measurement, Module 0.9–1.0 - Metav IndustryLine
The compact design and 1.5 mm ball diameter of this insert ensure repeatable, indirect measurement of gear tooth thickness for module 0.9–1.0, while the matched-pair delivery guarantees consistent comparison across measurements — order the exact spare pair directly via Metav Werkzeuge or contact the sales team for matching accessories. Special ball insert M309.182 — Ball insert for indirect gear tooth thickness measurement, D 1.5 mm (module 0.9–1.0) A Special ball insert M309.182 intended for indirect measurement of gear tooth thickness in small-module gears, ideal as an accessory for precision measuring instruments. Diameter 1.5 mm precision ball insert For indirect gear tooth thickness measurement Compatible with module 0.9–1.0 gears Supplied as a matched pair Accurate measurements for small-module gears The insert’s 1.5 mm ball diameter and tight manufacturing tolerances deliver a clear benefit: reliable indirect assessment of tooth thickness on small module gears where direct probing is impractical. By converting contact points into reproducible reference positions, the accessory reduces measurement scatter and helps maintain production tolerances. The compact geometry is optimised for confined tooth spaces, ensuring that the measuring instrument generates consistent, comparable data across repeated checks — an efficiency gain for quality-controlled gear manufacture. Simple integration into existing measuring setups Designed as an accessory for measuring devices, the insert fits into routine inspection workflows without extensive adaptation. The module 0.9–1.0 compatibility covers common small-gear sizes used in precision assemblies, which means fewer specialised tools are required. Supplied as a matched pair, the items allow comparative or redundant checks that improve confidence in results and speed up inspection cycles. Lightweight construction and a small footprint make handling straightforward during production sampling or bench-top quality control. Practical benefits that reduce rework and downtime Using a dedicated ball insert for indirect tooth-thickness measurement translates into tangible process advantages: fewer ambiguous readings, shorter inspection times and reduced risk of rework caused by measurement uncertainty. The accessory supports a consistent measurement method that is easy to document in quality records. Where repeatability matters, this accessory contributes to measurable improvements in throughput and product conformity, aligning metrology practice with lean production goals. Contact Metav Werkzeuge for assistance selecting matching measurement accessories or to request delivery of the M309.182 matched pair — info@metav-werkzeuge.com / +49 2822 7131930 Technical data Article number: M309.182 GTIN: 4054469118598 Weight: 0.1 kg Customs tariff number: 90173000 Specifications Ball diameter: 1.5 mm Module range: 0.9–1.0 Delivery: supplied in pairs Applications / Features For indirect gear tooth thickness measurement Accessory for measuring instruments Category: Accessories (Measuring devices) FAQ What is this insert used for? This insert is used for indirect measurement of gear tooth thickness; the M309.182 pair provides reference contact points for small-module gears. Which gear modules are compatible? The accessory is designed for module 0.9–1.0 gears and is suitable for common small-module applications. How is the insert supplied? The item is supplied as a matched pair to support comparative and redundant measurement routines with consistent contact geometry. Can the insert be used with any measuring device? The M309.182 is intended as an accessory for measuring instruments that accept interchangeable ball inserts; compatibility depends on the instrument’s holder and adapter. Is the weight relevant for handling? At 0.1 kg for the pair, the inserts are lightweight and simple to handle during inspection and bench operations. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
1.8–2.0m Digital Micrometer With Ratchet Stop, IP65, ISO 17025 Certificate - Microtech Metrology
Take advantage of a large-range, digitally read micrometer that combines durable, industrial protection with certified traceability; the unit’s IP65-rated electronics and ISO 17025 calibration certificate ensure reliable use in harsh production environments. For rapid integration into metrology workflows, order directly via Metav Werkzeuge or consult our specialists for application advice. Outside Micrometer — digital, long-range measuring instrument by Microtech Metrology The Outside Micrometer is a heavy-duty digital micrometer engineered for large-format external measurements in production, tooling and heavy machining applications. Digital head with IP65 protection ISO 17025 calibration certificate included Ratchet-stop spindle for consistent force Ø50 mm measuring faces for large surfaces Robust build—approximately 19.5 kg mass Reliable measurement for large components Designed for long-span external measurement, this instrument covers a 1,800–2,000 mm range and belongs to the long-class of measuring tools where rigidity and repeatability are decisive. The large Ø50 mm measuring faces reduce contact pressure per unit area, improving stability on uneven or coarse surfaces. With a mechanical design that tolerates workshop handling, the gauge supports production tasks such as shaft checks, large housings and welded assemblies while keeping measurement uncertainty low. Industrial-proof electronics and certified traceability The integrated digital head carries an IP65 rating, protecting the electronics from dust and jetting water to maintain functionality on the shop floor. A laboratory traceable calibration is supplied under ISO 17025, together with the calibration certificate, which simplifies quality documentation and acceptance in audit processes. The digital readout offers fine resolution for clear results, supporting process control and reducing the need for repeated manual interpretation. Consistent measuring force for reproducible results A built-in ratchet stop and friction mechanism ensure a repeatable contact force for every reading, eliminating a major source of operator variability. Readout resolution and stated accuracy—tuned for large-range performance—mean measurement steps are precise and comparable across batches. This consistency improves first-pass yield and lowers rework rates when the micrometer is used as a control instrument on incoming or in-process parts. Practical delivery and workshop integration The micrometer is supplied complete with setting rods to verify or set the zero position before use, enabling straightforward commissioning at the bench. The instrument’s substantial mass (about 19.5 kg) and robust construction help dampen vibration and support steady handling when measuring heavier workpieces. Designed to integrate into existing quality routines, it is suited to workshop environments that require documented, durable and repeatable dimensional control. Discuss Microtech Metrology’s large-range digital micrometer with Metav Werkzeuge for tailored measurement solutions and fast delivery from our Emmerich hub. Technical data SKU: 110172001 GTIN: 4061905040320 Manufacturer: Microtech Metrology IP protection: IP65 Digital display resolution: 0.001 mm Calibration: ISO 17025 certificate included Measuring faces diameter: Ø50 mm Measuring range: 1,800–2,000 mm Accuracy: 0.035 mm Weight: 19.5 kg Numbers / Core technical data Measuring range min: 1,800 mm Measuring range max: 2,000 mm Resolution: 0.001 mm Stated accuracy: 0.035 mm Mass: 19.5 kg Measuring face diameter: 50 mm Special features Digital micrometer head (CertiMet) IP65-protected electronics Ratchet-stop spindle / friction ratchet Setting rods included Delivery with ISO 17025 calibration certificate FAQ What measuring range does this instrument cover? The micrometer covers a measuring range of 1,800–2,000 mm, making it suitable for long-span external measurements on large components. Is the instrument supplied with a calibration certificate? Yes, the Microtech Metrology outside micrometer is delivered with an ISO 17025 calibration certificate, facilitating traceability and audit compliance. How is repeatable measuring force achieved? Repeatability is provided by the built-in ratchet-stop and friction mechanism, which standardises contact force for each reading and improves reproducibility. Can the instrument be used on workshops exposed to dust and coolant? The digital head is IP65 rated, offering protection against dust and water jets and making the unit appropriate for challenging shop-floor conditions. What readout resolution and accuracy can be expected? The digital display provides a resolution of 0.001 mm, with a stated accuracy of 0.035 mm, balanced for reliable checks across the large measuring span. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10 mm Can Thickness Micrometer Flat Anvil, 0.01 mm Resolution, Carbide Faces, Supplied in Case - Metav IndustryLine
Take advantage of the combination of micro-range precision, robust carbide measuring faces and a compact matt‑chrome frame for repeatable thickness checks on tin cans and thin sheet metal; order directly via Metav Werkzeuge or consult our advisors for specification support. Micrometer for Cans M307.042 — 0–10 mm, 0.01 mm resolution (carbide faces) The Micrometer for Cans M307.042 is a micro‑range micrometer engineered for accurate thickness measurement of tin cans and thin sheet components in production and quality control. Micro-range 0–10 mm capacity 0.01 mm reading resolution Carbide measuring faces for durability Delivered in protective case Precision where thin materials matter This micrometer delivers repeatable thickness readings within a compact envelope. With a measuring range of 0–10 mm and a reading resolution of 0.01 mm, the instrument is classified for the micro segment—ideal where short anvils and low bending are essential. The spindle incorporates a 0.5 mm pitch, providing smooth, fine adjustment; combined with an exhibited accuracy of ±0.004 mm, this reduces scrap and speeds up quality checks in high‑volume canning or thin‑gauge metal operations. The matt‑chrome finish on the measuring drum and frame resists glare and wear, maintaining consistent contact geometry over time. Robust contact surfaces and tactile control Carbide measuring faces provide a hard, wear‑resistant contact for long service life and stable measurements on sheet and tin surfaces. The device balances a firm feel with fine control thanks to the spindle configuration and ergonomic drum, enabling operators to achieve uniform contact pressure during each measurement. The micrometer’s compact form and approximately 0.3 kg mass make it simple to handle on the shop floor or at the inspection bench, while still offering the stiffness required to avoid twist errors common with very short gauges. Designed for production and inspection workflows Engineered for straightforward use in process control, the instrument fits seamlessly into inspection routines for packaging, can manufacturing and thin‑part fabrication. The construction focusses on measurable benefits: carbide faces for longevity, a matt‑chrome frame for dimensional stability, and a calibrated spindle pitch for predictable advancement per rotation. Delivered in a protective case, the tool is ready for workshop use and safe transport between production and quality stations, supporting efficient sample throughput and reproducible results. Contact Metav Werkzeuge today for tailored advice on integrating the Micrometer for Cans M307.042 into inspection workflows and to arrange fast delivery from our Emmerich warehouse. Technical data Article number: M307.042 GTIN: 4054469117355 Brand: Metav IndustryLine Core specifications Measuring range: 0–10 mm Resolution (reading): 0.01 mm Accuracy: ±0.004 mm Spindle pitch: 0.5 mm Weight: 0.3 kg Materials & features Carbide measuring faces Measuring drum and frame matt chrome‑plated Delivered in protective case Intended for tin can and thin sheet thickness measurement Customs tariff number: 90173000 FAQ Is the micrometer suitable for measuring tin can wall thickness? The micrometer M307.042 is specifically designed for tin can and thin sheet measurements, offering the micro‑range 0–10 mm capacity and carbide faces suited to this application. What resolution and accuracy can be expected from this micrometer? The instrument provides a reading resolution of 0.01 mm with an accuracy of ±0.004 mm, enabling reliable thickness control during production checks. Are the measuring faces wear‑resistant? Yes, the micrometer features carbide measuring faces, which ensure long service life and stable contact conditions on metal sheet and tin surfaces. How is the micrometer protected during transport and storage? The tool is supplied in a protective case to prevent damage in transit and to keep the gauge ready for immediate use at the inspection bench. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
10-12mm Three-Point Inside Micrometer Self-Centring, Calibrated in Wooden Case - Metav IndustryLine
Take advantage of the combination of self‑centring three‑point contact, 5 µm accuracy and robust carbide measuring faces for consistent bore measurement in precision workshops. Order the instrument directly via Metav Werkzeuge or consult the specialists for application support and delivery from Emmerich. Three‑point internal micrometer M836.706 — self‑centring, 10–12 mm range A Three‑point internal micrometer engineered for repeatable small‑bore measurement in precision engineering and toolmaking applications. Self‑centring three‑point contact Measuring range 10–12 mm 0.005 mm accuracy Carbide measuring faces Precise small‑bore measurement where repeatability matters The instrument is built around a three‑point contact head that automatically aligns with the bore axis, reducing centring errors and shortening setup time. With a measuring range of 10–12 mm and an indicated accuracy of 0.005 mm (5 µm), the tool closes the gap between standard gauges and specialised micro‑measurement equipment. The analogue spindle gives tactile control for delicate adjustments while the fine graduation supports controlled readings, making this an efficient choice for repeat inspections and small‑batch quality checks. How the self‑centring design reduces operator influence The self‑centring mechanism distributes contact forces across three equally spaced anvils, so the measured diameter is less sensitive to off‑axis pressure or misalignment. This mechanical advantage translates into greater repeatability during serial checks and reduces rework caused by inconsistent measurements. For production environments where cycle time and conformity are measured in minutes, the reduced need for re‑positioning and re‑measuring saves technician time and improves throughput. Hardened measuring faces for durability and consistent results Measuring faces are finished in carbide, providing wear resistance and stable contact geometry over long service intervals. Carbide faces preserve accuracy in workshop conditions where handling and ambient contaminants can accelerate wear on softer surfaces. The combination of hardened contacts and a precise spindle contributes to a long service life while keeping calibration needs predictable, which supports reliable inspection routines in busy maintenance or manufacturing departments. Practical integration into inspection and assembly workflows Compact dimensions and clear analogue feedback make the gauge simple to use at the bench, on assembly lines or in toolrooms. The device is especially suited to fine mechanical work, gauge verification and small‑bore checks in toolmaking, hydraulic components and precision housings. Where instrument interchangeability is required, the three‑point principle ensures consistent centring across different bore geometries, simplifying process documentation and reducing operator training overheads. Care, handling and calibration considerations Routine care is limited to keeping the measuring faces clean and protecting the spindle from shock and contamination. The mechanical nature of the instrument makes field checks straightforward and allows rapid verification against dated master rings or reference gauges. For traceable workflows, the gauge can be incorporated into regular calibration cycles to maintain documented measurement certainty and ensure continued compliance with internal quality plans. Discuss the Metav IndustryLine self‑centring three‑point internal micrometer with Metav Werkzeuge in Emmerich for specification advice and reliable supply — contact info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: M836.706 GTIN: 4061905041402 Brand: Metav IndustryLine ECLASS: 21170335 ETIM: EC003590 Facts Measuring range: 10 mm – 12 mm Indicated accuracy: 0.005 mm Graduation: 0.001 mm Analogue instrument Special features Self‑centring three‑point contact Carbide measuring faces Category: Messschrauben Analog display FAQ What is the measuring range of this gauge and for which applications is it suited? The measuring range is 10–12 mm; the gauge is intended for small‑bore precision work in toolmaking, hydraulic components and fine mechanical assemblies where repeatable centring is required. How accurate is the instrument in practical use? The instrument indicates an accuracy of 0.005 mm (5 µm); the three‑point contact and hardened faces help to maintain that performance in routine inspection tasks. Are the measuring faces durable enough for workshop use? Yes, the measuring faces are carbide‑finished, which provides wear resistance and stable contact geometry for prolonged service in workshop conditions. Is this an electronic device and does it need batteries? No, this is an analogue internal micrometer; it operates mechanically and does not require batteries or electronic components. How does the self‑centring mechanism improve measurement speed? The self‑centring head aligns automatically with the bore axis, reducing repositioning and re‑measuring, which speeds up serial inspections and lowers operator variance. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
10-12mm Three-Point Internal Micrometer Digital Reading With Measurement Drum Scale, IP65 - Metav IndustryLine
Combine three-point contact with a digital readout and IP65 protection to obtain reproducible measurements of blind bores in the 10–12 mm range; the compact design and included setting ring and extension simplify setup and increase throughput. Order the three-point internal micrometer directly via Metav Werkzeuge or ask our consultants if needed. Three-point internal micrometer M312.232.M — digital readout, IP65 protection (Metav IndustryLine) The Three-point internal micrometer M312.232.M is a compact, workshop-grade gauge for precise inspection of blind bores and small internal diameters in the 10–12 mm range. Three-point contact for blind-bore measurement Digital display with ABS/INC/UNIT buttons IP65 rating for robust workshop use Precision where it matters The instrument delivers an accuracy of 0.004 mm, making it suitable for fine internal measurements where reproducibility is essential. The three-point measuring system centres reliably in blind holes, reducing eccentricity errors typical of two-point methods; combined with the digital display and its ABS/INC/UNIT functions, readings are quick and unambiguous. Built to DIN 863 standards, this gauge supports quality control routines that demand traceable, repeatable results and helps cut downstream rework through reliable first-pass verification. Designed for everyday workshop use Robustness and legibility are central to the design: the scale and vernier are matt chrome plated to minimise glare, while the overall instrument benefits from an IP65 rating so that dust and coolant splash do not compromise its electronics. At a compact length and modest mass, the gauge is easy to handle yet substantial enough to remain stable during measurement. The visible measuring drum with scale aids coarse setting, reducing the time spent on manual adjustments and improving throughput on repetitive inspections. Practical features that speed measurement For blind-bore applications the tool includes a setting ring and an extension (100 x Ø5.7) to reach recessed features without loss of accuracy. The electronics offer convenient functions — ON/OFF/SET and absolute/incremental switching — and a data output RB 4.1, which permits connection to data collection systems for process documentation and trend analysis. These capabilities turn the gauge from a single reading device into an integrated component of a digital inspection workflow. Micro-class instrument for fine mechanical work With a measurement range of 10–12 mm, the gauge falls into the Micro class of internal measuring instruments, a category prized for its compactness and stiffness. This makes it particularly suitable for watchmaking, microcomponents and hydraulic fittings where short jaws and controlled contact force yield the best reproducibility. The combination of a solid mechanical design and digital electronics supports both bench inspection and short-series production checks, while the included accessories accelerate set-up times and reduce handling errors. Choose the Metav IndustryLine three-point internal micrometer for dependable blind-bore measurement and contact Metav Werkzeuge for tailored technical advice and procurement: info@metav-werkzeuge.com • +49 2822 7131930 Technical data Article number: M312.232.M GTIN: 4054469156385 Brand: Metav IndustryLine Standard: DIN 863 Facts Measurement range: 10–12 mm Accuracy: 0.004 mm Length: 55 mm Weight: 0.9 kg Protection class: IP65 Display resolution: 0.001 mm (device digitalisation as supplied) Data interface: RB 4.1 Special features Three-point measuring system for blind bores Digital display with ON/OFF/SET and ABS/INC/UNIT buttons Measuring drum with scale Scale and vernier matt chrome plated Includes setting ring and extension (100×Ø5.7) Delivered in a protective case Conforms to DIN 863 Suitable for blind-hole measurement applications FAQ How does the three-point measuring system improve accuracy for blind bores? The three-point contact automatically centres in the bore, lowering eccentricity and providing more stable readings than two-point methods; the M312.232.M uses this principle to deliver consistent results in blind-hole checks. Is the instrument suitable for use in a coolant-rich environment? Yes, the digital internals and enclosure are rated IP65, so the gauge tolerates splash and dusty workshop conditions while maintaining measurement integrity. What accessories are supplied for setting and extended reach? The delivery includes a setting ring and an extension (100×Ø5.7) to position the measuring contacts in recessed bores without compromising accuracy. Can measurement data be exported from the device? The instrument is equipped with a data output RB 4.1, enabling recorded values to be transferred to data-collection systems for documentation and quality records. For which applications is the gauge intended? Classified as a Micro-range tool (10–12 mm), it is intended for precise internal measurements in fine mechanical work, small hydraulic components and other applications requiring tight reproducibility. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
10-12mm Three-Point Internal Micrometer For Blind Holes, Supplied With Setting Ring And Extension In Case - Metav IndustryLine
Take advantage of a compact three‑point internal measuring system with ±0.004 mm accuracy and a 10–12 mm measurement range for reproducible bore inspections; the instrument is supplied with a setting ring and extension in a transport case. Order the item directly via Metav Werkzeuge or contact our consultants for application advice. Three‑point internal micrometer M312.132.P — 10–12 mm, blind‑hole measurement, Metav IndustryLine The three‑point internal micrometer is a precision gauge designed for tight‑space bore measurements and blind‑hole inspection in workshops and production environments Three‑point internal measuring system Suitable for blind‑hole bores Measurement range 10–12 mm Accuracy ±0.004 mm Exceptional accuracy for small‑bore inspection The instrument delivers accuracy ±0.004 mm, offering a measurable reduction in rework and quicker in‑process checks compared with less precise tools. Its three‑point contact head centres itself in the bore, which improves reproducibility on cylindrical interiors and minimises angular errors that occur with single‑point probes. Combined with a fine vernier reading (0.001 mm), the gauge supports consistent quality control routines where small tolerances are decisive. Robust design and ready‑to‑use delivery A matt‑chrome scale and vernier provide durable, low‑glare markings that remain legible under workshop lighting. The gauge is supplied complete with a setting ring and an extension (50 mm × Ø5.7 mm), so the measuring setup can be adjusted for slightly recessed or awkward bores without improvised workarounds. The complete kit is delivered in a protective transport case to reduce the risk of damage in transit and storage, supporting reliable availability on the shop floor. Practical measurement workflow that saves time The three‑point contact reduces the need for repeated repositioning: insert, seat the head, and read the result from the vernier — the typical workflow that cuts inspection time. The included setting ring allows verification of the instrument zero and fast on‑machine checks, while the extension adapts the instrument for deeper blind holes. Together these features provide a pragmatic balance of speed, repeatability and hygiene for serial inspection tasks. Who benefits and where it belongs This compact internal micrometer suits machine shops, toolrooms and maintenance departments that regularly inspect small bores, housings and valve seats. It is particularly useful for mould‑making and precision assembly work where a reliable blind‑hole measurement is required without sacrificing portability. The instrument’s straightforward mechanical design makes it a pragmatic choice for routine production checks and spot sampling. Contact Metav Werkzeuge for application guidance and to reserve the Metav IndustryLine three‑point internal micrometer M312.132.P complete with setting ring and extension, supplied in a protective transport case Technical data Article number: M312.132.P GTIN: 4054469158617 Manufacturer: Metav IndustryLine Facts Measurement range: 10–12 mm Accuracy: ±0.004 mm Reading: 0.001 mm Length: 50 mm Weight: 0.6 kg Special features Three‑point contact head Suitable for blind‑hole bores Matt‑chrome scale and vernier Supplied with setting ring (10 mm) Includes extension 50 mm × Ø5.7 mm Delivered in protective transport case Analog vernier instrument FAQ Is this instrument suitable for measuring blind holes? Yes. The M312.132.P three‑point internal micrometer is explicitly configured for blind‑hole bores, its three‑point head centring improves contact and repeatability in recessed interiors. What accuracy and resolution does the gauge offer? The gauge provides an accuracy of ±0.004 mm and a vernier reading resolution of 0.001 mm, making it suitable for high‑precision routine inspections. Which accessories are included with delivery? The instrument is delivered with a setting ring (10 mm) and an extension (50 mm × Ø5.7 mm) and comes in a protective transport case for safe handling and storage. Is the instrument supplied calibrated to ISO 17025? No ISO 17025 certificate is stated for this item. Calibration and certificates are not included unless specifically requested or listed for the product. For which applications is this internal micrometer recommended? The gauge is recommended for precision workshops, mould and toolmaking, maintenance departments and any application requiring reliable measurements of small internal diameters and blind bores. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
10-7 TPI Thread Insert 55° Whitworth Profile - Metav IndustryLine
Take advantage of the precise Whitworth profile and the broad 10–7 TPI range to ensure reliable thread verification; the compact, lightweight design keeps handling efficient and repeatable. Order the insert directly via Metav Werkzeuge or ask our consultants if additional specification details are required. Thread gauge insert M309.098.7 — Whitworth 55°, 10–7 TPI (Metav IndustryLine) The thread gauge insert M309.098.7 provides a compact accessory for measuring and verifying Whitworth 55° thread forms across the 10–7 TPI range, ideal for inspection benches and gauge sets. Whitworth 55° profile verification Suitable for 10–7 TPI thread forms Compact, lightweight accessory for gauge sets Workshop-friendly handling and logistics Verify Whitworth threads with clear standards and form control The insert is designed for Whitworth 55° profiles and for thread pitches covering 10–7 TPI, enabling decisive verification of form and fit where Whitworth specification compliance is required. By referencing the standard 55° flank angle, the insert removes ambiguity in profile checks and supports traceable inspection routines. The accessory functions as a precise reference element in a gauge set, making it suitable for use at inspection benches and within workshop measuring stations. Using a dedicated form insert reduces rework and non-conforming parts by ensuring that thread geometry is assessed against the correct flank angle and pitch class. Practical compatibility for workshop gauge systems and handling efficiency Engineered as a compact accessory, the insert keeps handling simple while integrating into established measuring workflows. The low weight of 0.1 kg makes it easy to position in a gauge holder or to carry between stations without adding significant inertia to the setup. Where rapid throughput is necessary, the accessory saves time by enabling fast go/no-go checks for Whitworth threads at the relevant TPI sizes, reducing cycle time in quality control. The design supports repeatable seating against mating measuring screws and contributes to consistent inspection results when used with compatible thread-measuring equipment. Inventory traceability and logistical advantages for production control For procurement and stock management the insert is identifiable by SKU M309.098.7 and GTIN 4054469118383, facilitating clear part tracking and reordering. The customs tariff number 90173000 assists in smooth cross-border handling. As an accessory in the measuring-device category, it fits into workshop inventories that favour standardised, easily referenced components. Coupled with Metav’s European distribution and quality filter in Emmerich, the product supports reliable supply and consistent availability for production and maintenance schedules. For assured compatibility with existing gauge sets and prompt supply from Metav Werkzeuge, contact our consultants at info@metav-werkzeuge.com or call +49 2822 7131930 for further application guidance and stock information Technical Data SKU: M309.098.7 GTIN: 4054469118383 Category: Accessories Facts Weight: 0.1 kg Thread range: 10–7 TPI Flank angle: 55° Tariff number: 90173000 Special features Whitworth 55° thread profile Accessory for thread measuring screws and gauge sets Compact, lightweight design Product image available (reference asset) FAQ What thread forms does this insert check? The insert checks Whitworth 55° thread forms across the 10–7 TPI range as specified for the product M309.098.7 from Metav IndustryLine. Can the insert be used with standard gauge holders? Yes, the accessory is intended for integration into workshop gauge sets and thread-measuring assemblies compatible with Whitworth profile verification. How is the item identified for ordering and stock control? Order and stock references include SKU M309.098.7 and GTIN 4054469118383, which are provided for procurement and inventory systems. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100 mm Digital Micrometer Set 0.001 mm Resolution 35 mm Travel Friction Ratchet, Data Output RB 6 - Metav IndustryLine
Take advantage of the combination of 0.001 mm resolution, a reliable RB 6 data interface, and a robust friction ratchet to ensure fast, repeatable external measurements across production and quality control. Order the set directly via Metav Werkzeuge or consult our specialists for application support. Digital Micrometer Set M302.084 — three-piece set, 0–100 mm, 0.001 mm resolution The Digital Micrometer Set M302.084 is a three-piece micrometer set designed for high-precision external measurements in the workshop and inspection environment, supplying digital readings and electronic data transfer for traceable measurement records High-resolution 0.001 mm reading Data output interface RB 6 Friction ratchet for repeatable force Supplied in transport case Submicrometre precision for routine inspection The three-piece micrometer set delivers 0–100 mm coverage in compact, easy-to-handle instruments that keep measurement throughput high without compromising accuracy. The 0.001 mm resolution offers a significant step up from standard 0.01 mm devices and supports fine-tolerance checks where tighter control is required; this makes the set especially suitable for precision toolmaking, component inspection and laboratory checks. The integrated friction ratchet maintains a consistent measuring force, reducing operator-induced variation and improving repeatability across batches. Fast digital capture and traceable data transfer Equipped with a clear digital display and dedicated buttons (ON/OFF/SET, DATA, mm/inch and zero), the instruments simplify reading and unit conversion. The built-in RB 6 data output enables direct logging of measured values into data collection systems or SPC software, reducing transcription errors and accelerating documentation for quality records. For production environments that rely on documented traceability, the electronic interface turns manual gauges into dependable data sources for process control. Durable design for day‑to‑day workshop use The micrometres feature hardened measuring faces and a long measuring spindle travel of 35 mm, supporting measurements of varied step or stepped components without overextending the spindle. Robust construction and a practical transport case protect the instruments during storage and transport between measuring stations. The instruments are presented as a three-piece set, balancing reach and stiffness so that the set covers common workshop needs while remaining simple to handle and store. Practical integration and efficiency gains Integration of digital micrometres into inspection routines pays off through quicker checks, fewer recording mistakes and easier data aggregation for quality reports. The combination of high resolution, electronic output and repeatable measuring force streamlines inspection workflows; users benefit from faster decision cycles, reduced rework and more consistent quality control. For teams upgrading from analogue gauges, the set provides a straightforward path to digital measurement without overhauling existing procedures. Discuss application requirements with Metav Werkzeuge and secure the Metav IndustryLine Digital Micrometer Set M302.084 from Emmerich — call +49 2822 7131930 or email info@metav-werkzeuge.com for tailored supply and advice Technical data Article number: M302.084 GTIN: 4054469169026 Category: Messschrauben (micrometres) Weight: 3 kg ECLASS: 21170328 Numbers / Core technical data Measuring range: 0–100 mm Resolution: 0.001 mm Measuring faces diameter: 6.5 mm Measuring spindle travel: 35 mm Zolltarifnummer: 90173000 Special features Digital display with ON/OFF/SET, DATA, mm/inch and 0 buttons Data output: RB 6 Friction ratchet for consistent measuring force Three-piece set for full 0–100 mm coverage Hardened measuring faces Supplied in transport case FAQ What level of accuracy can be expected from this micrometer set? The Digital Micrometer Set M302.084 provides a resolution of 0.001 mm; combined with the friction ratchet and hardened measuring faces, this yields reliable repeatability for fine-tolerance external measurements. Is the data output compatible with common data loggers and SPC systems? Yes. The instruments feature an RB 6 data output, which is intended for direct connection to compatible data acquisition devices and SPC setups for efficient digital logging. What is included in the set and how is it supplied? The supply consists of a three-piece micrometer set covering 0–100 mm, each with a digital readout, friction ratchet and a transport case for secure storage and handling. Can the micrometres measure stepped or deep features? The micrometres offer a measuring spindle travel of 35 mm, which supports a variety of external geometries including stepped components; hardened faces help protect contact surfaces during routine use. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100 mm Extension for Three-Point Internal Measuring Probes 6–8, 8–10, 10–12 mm, M5 Thread - Metav IndustryLine
Take advantage of extended reach, secure M5 mounting and a slim 5.7 mm shank to measure deep bores with confidence; the extension combines compatibility across the 6–12 mm three‑point ranges with robust construction for repeatable results. Order the accessory directly via Metav Werkzeuge or consult the Metav specialists for application advice. Extension for three‑point internal micrometer M312.103 — 100 mm, compatible with 6–12 mm (Metav IndustryLine) The Extension for three‑point internal micrometer is an accessory designed to extend the reach of three‑point internal measuring instruments for deep or narrow bore applications, improving access without compromising contact reliability 100 mm extension length Compatible with 6–12 mm three‑point sets M5 threaded connection Shank Ø 5.7 mm for narrow bores Extended reach for precise internal measurement The accessory provides a 100 mm extension designed specifically for three‑point internal measuring tools and catapults standard measuring ranges into deeper cavities. With a slender Ø 5.7 mm shank and compatibility for the 6–8 mm, 8–10 mm and 10–12 mm measuring sets, the extension enables inspection of recessed bores and stepped interiors that would otherwise require disassembly or special fixturing. By reducing handling and repositioning, the attachment supports more efficient inspection cycles and fewer interruptions to production flow. Secure mounting and consistent contact for repeatability A dedicated M5 thread ensures a firm connection to the measuring head and prevents play that could degrade readings. The design focuses on mechanical stability so that the measuring points maintain consistent contact geometry during insertion and withdrawal, delivering repeatable measurements across multiple parts. The combination of precise fit and robust attachment reduces measurement variability, supporting quality-control processes that prioritise reliability and traceability. Workshop integration and application advantages As an accessory for three‑point internal micrometers, this extension is straightforward to fit and does not alter the instrument’s measuring principle; the extension merely increases reach while preserving the original contact behaviour. The compact shank diameter and standard thread make it suitable for use in toolrooms, production inspection and retrofit situations where extending capability is more cost‑effective than acquiring a separate long‑reach instrument. Metav IndustryLine’s supply and distribution network ensures rapid availability for continuity in metrology workflows. Contact Metav Werkzeuge today to secure the M312.103 extension for extended internal measurements — Metav Werkzeuge GmbH can advise on compatibility and delivery at +49 2822 7131930 or info@metav-werkzeuge.com Technical data Article number: M312.103 GTIN: 4054469119342 ECLASS: 21019104 ETIM: EC002219 Category: Accessory for measuring instruments Facts Length: 100 mm Shank diameter: Ø 5.7 mm Thread: M5 Weight: 1.3 kg Tariff number: 90173000 Special features Compatible with three‑point internal micrometer ranges 6–8, 8–10, 10–12 mm Extension type: for three‑point internal measuring instruments SKU: M312.103 Intended use: deep or narrow bore internal measurements FAQ Which three‑point sets are compatible with this extension? The extension is compatible with three‑point internal micrometer measuring ranges 6–8 mm, 8–10 mm and 10–12 mm, as specified for the M312.103 accessory. How is the extension attached to the measuring head? Attachment is via an M5 thread; the threaded connection provides a secure fit and maintains the contact geometry of the measuring instrument. What are the physical dimensions relevant for tight bores? The extension measures 100 mm in length and has a shank diameter of Ø 5.7 mm, allowing access into narrow or recessed internal features. Is the extension intended to alter measurement behaviour of the micrometer? No — the extension increases reach while preserving the original three‑point contact principle; it is an accessory to extend application range rather than to change measurement methodology. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100 mm Extension Ø28 mm for Rod Inside Micrometer Sets, Accessory - Metav IndustryLine
The combination of precise 100 mm reach and a 28 mm external diameter ensures stable seating and extended measuring depth for compatible internal micrometer sets; benefit from a rugged Metav IndustryLine accessory that integrates directly into existing gauge stacks. Order the extension through Metav Werkzeuge or consult our specialists for selection advice. 100 mm extension for 310.065, 310.066, 310.067 (Ø 28 mm) – Metav IndustryLine accessory The 100 mm extension for 310.065, 310.066, 310.067 (Ø 28 mm) is an accessory designed to extend the measuring range of compatible rod internal micrometers, enabling reliable measurements in deeper bores and hard‑to‑reach features. 100 mm extension for deeper bore measurements 28 mm external diameter for stable seating Compatible with 310.065 / 310.066 / 310.067 Part of the Metav IndustryLine accessory range Reach deeper bores while retaining measurement certainty Extending the measuring depth by 100 mm provides a practical solution when standard rods fall short. The extension rod increases the functional reach of rod internal micrometers without altering the measuring head or readout, preserving the original instrument's calibration characteristics. By maintaining a consistent alignment through a 28 mm external diameter seating, the accessory reduces lateral play and helps retain repeatable centreline contact, which is essential for accurate bore measurements in assembly, maintenance and quality control contexts. Engineered for stable alignment and compatibility Constructed as a direct accessory for the listed micrometer sets, this extension guarantees mechanical compatibility with the corresponding gauge system. The Ø 28 mm seating diameter provides a robust interface that resists tilting under typical handling, so axial alignment is preserved during insertion and retraction. Compatibility with models 310.065, 310.066 and 310.067 allows integration into existing tool stacks, meaning longer measuring tasks can be completed using familiar metrology workflows without additional converters or adapters. Designed for workshop resilience and straightforward handling The extension is built to withstand the demands of industrial use while remaining simple to install and remove. Its solid construction contributes to dependable performance in routine shop measurements, improving process efficiency by avoiding repeated re‑fixturing to access deep features. The modest mass also aids stable handling during manual measurement operations, reducing operator‑induced variability and supporting consistent results across multiple measurements. Integrates with Metav’s precision ecosystem As part of the Metav IndustryLine range, the extension is a pragmatic addition for workshops and inspection departments seeking to extend capability with minimal disruption. The accessory complements established measurement sets and supports standardised procedures, which helps maintain traceability and repeatability in production and inspection routines. Where longer reach is required, the extension permits measurement without replacing the principal measuring head, reducing downtime and safeguarding instrument calibration integrity. For increased measuring range with assured stability, contact Metav Werkzeuge to add this Metav IndustryLine 100 mm extension to the measurement set; enquiries: info@metav-werkzeuge.com or +49 2822 7131930. Technical Data Article number: M310.066.3 GTIN: 4054469160962 Manufacturer: Metav IndustryLine Weight: 6 kg Facts Length: 100 mm Outer diameter: 28 mm Customs tariff number: 90173000 ECLASS: 21019104 ETIM: EC002219 Special features Accessory for rod internal micrometers Compatible with models 310.065, 310.066, 310.067 Category: Accessory (Zubehör) SKU: M310.066.3 Intended for extending measuring reach in bores and deep features FAQ What measurement extension does this accessory provide? The extension provides an additional 100 mm measuring reach for compatible rod internal micrometer sets, enabling access to deeper bores and recessed features. Which instruments is the extension compatible with? Compatibility is specified for models 310.065, 310.066 and 310.067; the extension is engineered to mate directly with those rod internal micrometer assemblies. How does the Ø 28 mm diameter affect measurement stability? The 28 mm external diameter creates a stable seating interface that reduces lateral play and helps maintain axial alignment, improving repeatability when measuring deep bores. Is the extension supplied as part of a set or as a single accessory? The item is supplied as a single accessory unit intended to expand the measuring range of existing rod internal micrometer sets. Does the accessory alter calibration of the base instrument? The extension is intended to be used with the existing calibrated measuring head; separate calibration of the combined setup may be considered according to internal quality procedures. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100 mm Gauge Block Metric 60, Calibration Included - Microtech Metrology
Combine precision, the Metric 60 reference and a compact 100 mm length for repeatable setups and efficient verification. Order the setting gauge directly via Metav Werkzeuge or ask our consultants for tailored application advice. Setting gauge – Metric 60 reference, 100 mm | Microtech Metrology The setting gauge is a compact calibration accessory designed for precise setup and quick verification tasks in metrology workbenches and inspection areas. Metric 60 reference standard 100 mm precision length Compact accessory for metrology Ensure repeatable setups with a Metric 60 reference A dedicated reference such as this setting gauge provides a stable baseline for adjusting gauges and fixtures. The Metric 60 specification delivers a commonly accepted reference that simplifies comparisons between tools and instruments, improving repeatability across production runs. Using a fixed 100 mm length as the baseline reduces setup variation and shortens machine downtime, because adjustments can be returned to a known reference point rather than rebuilt from scratch. Compact design that fits workshop workflows The compact format suits both bench-top metrology and the shop floor: easy to store alongside other measuring aids and quick to use during tool changes or inspection sequences. As an accessory, it complements calipers, micrometers and other gauge systems without adding bulk to a technician’s kit. The small footprint supports rapid exchange between stations, helping maintain steady production pace and consistent quality control. Trusted supply and practical integration into quality systems Sourced from Microtech Metrology and distributed via Metav, this reference gauge benefits from a transparent supply chain and practical logistics from Emmerich. Choosing a standardised reference supports internal traceability and easier documentation of measurement routines, which is particularly useful where repeatable inspection criteria are required. The combination of an established manufacturer and Metav’s distribution network underlines an accessible route to industrial-grade precision. Contact Metav Werkzeuge for assistance with system compatibility and to secure the Microtech Metrology setting gauge from our Emmerich stock Technical Data Article number: 110710010 GTIN: 4061905459207 Manufacturer: Microtech Metrology Designation: Setting gauge Feature: Metric 60 Numbers Length: 100 mm Special features Accessory for metrology and measuring devices Compact reference for setup and verification FAQ What is the primary use of this reference gauge? The setting gauge is intended as a stable reference for setting and verifying measuring instruments and fixtures in workshop and inspection environments. Which standard does the gauge follow? The gauge is specified as Metric 60, making it suitable as a common metric reference for thread and gauge setup tasks. What is the length of the reference surface? The reference has a length of 100 mm, providing a compact baseline for repeatable adjustments. Is this suitable for both bench-top and shop-floor use? Yes, the compact design allows the gauge to be used at inspection benches as well as directly on the shop floor alongside other measuring tools. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
100 mm Micrometer Set 4‑Piece Ratchet With Setting Gauges 25/50/75mm, Painted Frame Matte Chrome Thimble, In Case - Metav IndustryLine
Take advantage of precise mechanical measurement, robust workshop design and quick reference settings for efficient quality checks—order the micrometer set directly via Metav Werkzeuge or consult the Metav team for application advice. Micrometer set M304.620 — 0–100 mm mechanical set with ratchet stop (Metav IndustryLine) A Micrometer set M304.620 designed for reliable external measurement in workshop and production environments, combining a ratchet stop with setting gauges for repeatable reference checks Ratchet stop for consistent measuring pressure Four-piece set covering 0–100 mm range DIN 863-compliant mechanical micrometers Consistent results for production control The M304.620 delivers repeatable external measurements through a mechanical design that prioritises constant contact force and clear readout. The integrated ratchet stop reduces operator-induced variance by ensuring the same measuring pressure each time, which improves process control and reduces rework. With a 0.01 mm resolution and DIN 863 conformity, the set supports routine inspection tasks and entry-level traceable checks in small-series manufacturing and maintenance shops. The precise spindle pitch 0.5 mm and robust spindle diameter contribute to steady screw travel and predictable measurement increments. Built for daily workshop use and handling Robust material choices make the set suitable for everyday use: the frame is painted to resist corrosion and the measuring drum is matt chrome plated for durable graduations and smooth rotation. The mechanical construction avoids electronics, providing simple long-term serviceability and straightforward verification procedures. A compact four-piece set design balances reach and stiffness over the 0–100 mm range, enabling efficient inspection of parts, fixtures and assemblies without frequent tool changes. The ratchet mechanism assists faster throughput during repetitive checks while protecting the measuring surfaces. What the set contains and how it helps inspection routines Contents include four micrometers covering the 0–100 mm range, plus three setting gauges 25/50/75 mm for quick verification of zero and periodic checks. The mechanical nature means readings are taken directly from the scale with 0.01 mm increments; thread lead and spindle geometry support stable movement and reproducible readings. The set is classified as a mechanical micrometer kit and suits workshop quality control, toolroom tasks and maintenance inspection. Practical documentation and clear graduations aid operators in consistent data capture and simple visual checks. Contact Metav Werkzeuge for tailored application advice on the M304.620 micrometer set and arrange prompt delivery from Emmerich to your workshop bench Technical data Article number: M304.620 GTIN: 4054469117218 Type: Mechanical micrometer set (analog) Standard: DIN 863 Facts Measuring range: 0–100 mm Resolution (readout): 0.01 mm Spindle pitch: 0.5 mm Spindle diameter: 6.5 mm Pieces per set: 4 Setting gauges: 25 / 50 / 75 mm Tariff number: 90173000 Special features Ratchet stop for reproducible measuring pressure Painted frame Measuring drum matt chrome plated Mechanical (analog) operation Four-piece micrometer set for external measurement FAQ What accuracy and resolution can be expected from this micrometer set? The micrometer set M304.620 provides a readout resolution of 0.01 mm and meets DIN 863 for mechanical micrometers, giving reliable routine inspection accuracy for workshop and production use. Are calibration standards included with the set? The set includes setting gauges 25/50/75 mm for quick verification of zero and periodic checks; formal calibration status is not specified in the product data and should be requested from Metav Werkzeuge if required. How does the ratchet stop affect measurement reproducibility? The integrated ratchet stop limits the applied torque during closing, standardising contact force and reducing variability caused by differing operator pressure, which enhances reproducibility in repetitive measurements. Is this set suitable for daily shopfloor use and maintenance tasks? Yes. The four-piece mechanical design, robust surface finishes and simple verifiability make the kit well suited to workshop quality control, toolroom and maintenance inspection routines. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100 mm Setting Gauge For Internal Measurement With Lapped Measuring Faces - Metav IndustryLine
Combine a compact 100 mm reference length with finely lapped measuring faces and a stated accuracy of 0.004 mm to secure reproducible internal measurements and faster calibration routines; order the internal setting gauge directly via Metav Werkzeuge or consult our advisors for specification guidance. Internal setting gauge, 100 mm — finely lapped faces, 0.004 mm accuracy (Metav IndustryLine) The Internal setting gauge, 100 mm serves as a stable reference for internal metrology, designed to support routine calibration and setup tasks in workshops and quality-control benches. 100 mm gauge with finely lapped measuring faces High accuracy with 0.004 mm tolerance Compact, workshop-ready calibration standard Reproducible measurements through a precise reference A dedicated reference standard at 100 mm reduces variability when setting internal measurement tools. The finely lapped measuring faces minimise local surface irregularities and contact-point inconsistencies, which improves repeatability across repeated setups. With a declared tolerance of 0.004 mm, the gauge provides a reliable benchmark for internal gauges and calipers, helping to ensure that dimensional checks are consistent and comparable over time. This performance-oriented data supports faster decision-making in production and quality assurance. Practical advantages for everyday workshop use The compact format and clear functional design make the gauge easy to handle during frequent calibration cycles. As a shop-floor standard it shortens setup times and lowers the risk of misadjustment, since the standard physically represents the target dimension for an internal measuring tool. The straightforward geometry of the gauge also simplifies adoption into existing inspection routines and fixture setups, so calibration and verification steps can be integrated without major process changes. Built to integrate with quality systems and traceable routines Designed for use as a calibration aid, the gauge supports traceable workflows and better documentation of measurement chains. Incorporating a stable reference like this one into inspection protocols helps maintain documented conformity across batches and shifts. Backed by the Metav IndustryLine offering, the product is supplied within a broader portfolio that emphasises accessible precision: Metav’s position as a committed partner ensures consistent availability and pragmatic advice for integration into production lines and maintenance schedules. For accurate internal setups and dependable calibration practice, contact Metav Werkzeuge for technical guidance and procurement via info@metav-werkzeuge.com or call +49 2822 7131930 — Metav IndustryLine specialists will advise on compatibility and implementation Technical data SKU: M311.083 GTIN: 4054469119205 ECLASS: 21170102 Customs tariff number: 90173000 Core technical data Measuring length: 100 mm Accuracy / tolerance: 0.004 mm Surface finish: finely lapped measuring faces Special features Application: reference for internal measurement and calibration Product category: Accessories for measuring equipment Brand: Metav IndustryLine FAQ What nominal length does the gauge provide? The gauge provides a nominal 100 mm reference length suitable for setting and checking internal measuring tools. What level of accuracy can be expected? The product is specified with an accuracy of 0.004 mm, making it appropriate as a workshop reference for consistent internal measurements. Can this gauge be used for routine calibration on the shop floor? Yes, the compact format and lapped measuring faces make the gauge suitable for routine workshop calibration and setup procedures. Is this product part of a broader calibration offering from Metav IndustryLine? The gauge is offered under the Metav IndustryLine range, which provides pragmatic support and a wide selection of inspection aids to integrate into quality-management workflows. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100 mm Setting Gauge For Micrometers With Heat Shield, Accuracy ±0.0025 D 8 mm - Metav IndustryLine
Take advantage of a compact 100 mm reference gauge with ±2.5 µm accuracy and flat measuring faces for reliable micrometer adjustment; order the item directly via Metav Werkzeuge or ask our consultants if needed. Setting gauge for micrometers M304.312 — 100 mm, accuracy ±2.5 µm The Setting gauge for micrometers M304.312 is a compact reference used to set and verify external micrometer heads in inspection and workshop environments 100 mm reference gauge High accuracy ±2.5 µm for repeatable adjustments Flat measuring faces with 8 mm diameter Stable reference for precise micrometer adjustment This reference standard provides a 100 mm nominal measure with a declared resolution of 0.0025 mm (equivalent to ±2.5 µm), making it suitable where tight tolerances matter. As a dedicated setting gauge it shortens setup time by offering a single, traceable dimension for spindle and anvil alignment. The high repeatability of the reference reduces measurement scatter when calibrating external micrometers, which leads to fewer rejects and more consistent production outcomes. Design that mitigates thermal influence and ensures contact integrity The component includes thermal protection, which limits temperature-induced length changes during typical workshop handling. Combined with flat measuring faces and an 8 mm diameter contact zone, the geometry promotes full and repeatable contact between the gauge and the micrometer anvils. The compact mass (approx. 0.1 kg) reduces thermal inertia while keeping the gauge easy to position, so the stability of the reference is preserved during short adjustment procedures. Practical use and integration into inspection workflows Classified as measuring accessories, this 100 mm reference is intended for routine setting of external micrometer spindles and can be stored alongside other bench standards. Its compact format fits standard inspection benches and enables clear, fast transfer of the nominal value to a micrometer head. As an accessory in the Metav IndustryLine range, the gauge supports standard workshop and inspection tasks where a concise, durable reference dimension is required. For ordering or technical enquiry about the Metav IndustryLine setting gauge M304.312, contact Metav Werkzeuge in Emmerich for purchasing and consultation on workshop integration Technical data SKU: M304.312 GTIN: 4054469116631 ECLASS: 21170102 Category: Zubehör (Measuring accessories) Story trigger: Zubehör Tariff code: 90173000 Core technical figures Nominal measure: 100 mm Accuracy / resolution: 0.0025 mm (±2.5 µm) Weight: 0.1 kg Contact diameter: 8 mm Special features and design Flat measuring faces With thermal protection Application: setting external micrometers Measuring faces: flach FAQ What accuracy does the setting gauge offer? The Setting gauge for micrometers M304.312 has a declared accuracy of 0.0025 mm, corresponding to ±2.5 µm. Which contact geometry is used on the gauge? This gauge features flat measuring faces with an 8 mm contact diameter to ensure repeatable anvil engagement. For which tasks is this reference gauge intended? The gauge is intended as an accessory for setting and checking external micrometer heads in workshop and inspection workflows. Does the gauge reduce thermal error during handling? The item is supplied with thermal protection to limit short-term temperature effects and improve measurement stability. How is the gauge used to set an external micrometer? Place the flat faces between the micrometer anvils, close the spindle to the reference without over-tightening, and adjust the thimble or locking mechanism until the micrometer reads the nominal 100 mm. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100-125 mm Thread Micrometer Including 100 mm Setting Gauge 60°, Supplied in Case - Metav IndustryLine
Take advantage of the combination of high measurement accuracy ±0.012 mm, a dedicated 100–125 mm measuring range, and the supplied 100 mm 60° setting gauge for fast, reproducible thread inspection; order this precision instrument directly via Metav Werkzeuge or consult our advisors for application-specific guidance. Thread Micrometer M309.095 — 100–125 mm with 100 mm 60° setting gauge (Metav IndustryLine) The Thread Micrometer M309.095 is a precision instrument designed for external thread measurement in mechanical engineering and quality assurance, supplied with a 100 mm 60° setting gauge for straightforward zeroing and set-up High accuracy ±0.012 mm Measuring range 100–125 mm Includes 100 mm 60° setting gauge Non-rotating spindle for repeatable contact Precision where thread geometry matters The instrument delivers a declared accuracy of ±0.012 mm, paired with a mechanical reading resolution of 0.01 mm, which makes it suitable for tight tolerance inspections and routine shop-floor quality control. The specified 100–125 mm measuring range targets medium-size screw threads and external profiles commonly found in assemblies and fixtures. The supplied 100 mm 60° setting gauge simplifies zeroing and ensures consistent reference set-up before each measuring run; this reduces set-up time and improves measurement confidence without requiring additional accessories. The combination of clear mechanical graduations and a hardened spindle produces a robust basis for repeatable decision-making in production and inspection workflows. Consistent contact for repeatable results A non-rotating measuring spindle and a spindle diameter of 6.5 mm reduce the risk of thread damage and help produce a stable contact condition across repeated measurements. The fixed contact behaviour improves repeatability, so fewer re-measures are required and inspection throughput increases. With a handled mass of 1.1 kg, the instrument gives sufficient inherent stability when used on a workbench or alongside a fixture, while remaining portable for in‑line checks. The analogue design avoids electronic dependency, offering straightforward operation and minimal maintenance in harsh workshop environments. Workshop-ready build and efficient inspection Built as an analogue micrometer for workshop and inspection-room use, the tool combines simple handling with durable execution. The instrument supports direct external thread measurement and short inspection cycles where quick, reliable results are needed. Thanks to its compact design and the included setting gauge, routine calibrations and daily zero checks can be completed quickly, increasing uptime at the inspection point. The product’s specification and Metav IndustryLine sourcing make it a practical choice for quality managers and metrology technicians aiming to streamline thread verification without complex electronics. For application advice or specification matching, contact Metav Werkzeuge — Metav IndustryLine specialists are available at info@metav-werkzeuge.com or by phone on +49 2822 7131930 to discuss how this thread micrometer fits into existing inspection routines. Technical data SKU: M309.095 GTIN: 4054469118208 E‑class: 21170328 Tariff number: 90173000 Designation: Thread micrometer, 100–125 mm incl. 100 mm 60° setting gauge Facts Measuring range: 100–125 mm Minimum range: 100 mm Maximum range: 125 mm Resolution (reading): 0.01 mm Accuracy: ±0.012 mm Measuring spindle diameter: 6.5 mm Weight: 1.1 kg Analogue instrument Special features Non-rotating measuring spindle Supplied with 100 mm 60° setting gauge Designed for external thread measurement Supplied by Metav IndustryLine FAQ What measurement accuracy can be expected from this micrometer? The Thread Micrometer M309.095 provides an accuracy of ±0.012 mm with a reading resolution of 0.01 mm, suitable for medium‑tolerance thread inspections in production and workshop QC. Which thread sizes can be measured with this instrument? Measurements are possible across the 100–125 mm range; the tool is optimised for external thread diameters and comparable external profiles within that span. How is the micrometer zeroed for thread measurement? Zeroing is performed with the supplied 100 mm 60° setting gauge; the gauge establishes the reference contact geometry so subsequent measurements are directly comparable. Does the spindle rotate during measurement? No — the measuring spindle is non‑rotating, which helps avoid damage to the thread surface and improves repeatability of contact conditions. Is this instrument suitable for workshop use without electronics? Yes; the device is an analogue micrometer intended for robust shop‑floor operation and routine inspection cycles, offering simple handling and low maintenance. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Precision micrometers built for repeatable accuracy
Micrometers—also referred to as micrometer screw gauges or micrometer callipers—are compact, robust instruments for fast, highly accurate length measurement of small to medium workpieces. Designed for routine use on the shop floor, these tools combine mechanical reliability with options for digital data capture, making them indispensable where repeatable tolerances matter.
How micrometers work and where they belong in production
Micrometers operate on a finely threaded spindle that brings two measuring faces into alignment with the workpiece; many designs follow the Abbe comparator principle so that the measuring axis and scale are collinear, reducing tilting errors. Typical outside micrometers (bühlermessschrauben) provide readings down to 1/1000 mm (0.001 mm) in analogue form; internal micrometers and specialised two- or three-point gauges enable accurate diameter and bore measurements, while depth micrometers cover depths from 0–300 mm. Hardened carbide (HM) measuring faces are standard to prevent wear and maintain accuracy over time. Digital variants offer easy reading, unit switching (mm/inch) and data output via USB, RS interface or Bluetooth; advanced models with an integrated minicomputer support Go/NoGo checks, temperature compensation and wireless transmission up to 50 m.
Practical benefits that improve shop‑floor performance
- Reduced rework and higher first-pass yield thanks to repeatable accuracy and carbide-tipped measuring faces.
- Faster, safer measurement cycles by using the ratchet/coupling to limit measuring force to 5 N to 10 N, protecting both part and instrument.
- Flexible inspection workflows with analogue, digital and minicomputer options, including wireless data transfer and mm/inch toggle.
- Versatile coverage with outside, internal, depth and built-in micrometers offering measuring ranges from a few millimetres up to 300 mm and resolution down to 2 µm (internal) or 0.003 mm (standard depth micrometers).
- Durable operation in workshop environments: mechanical models resist dust and moisture, while digital versions are available with IP54 protection.
Metav — a precision partner you can rely on
Metav combines decades of technical expertise with a broad, quality-filtered product range from its Emmerich hub. Over 48,000 customers trust Metav’s offer of more than 250,000 products, which simplifies procurement and secures reliable supply for industry, trade and specialist retailers. For buyers seeking micrometers with consistent performance and traceable data capture, Metav’s selection and technical support make it a practical, long-term choice.
In short
Micrometers provide robust, highly repeatable measurement for external, internal and depth applications, available in analogue, digital and minicomputer formats to match precision requirements and data‑management needs.
FAQ
How precise are micrometers for internal measurements?
Internal micrometers in the micrometers category can achieve accuracies around 2 µm when correctly used; digital and minicomputer models improve readout convenience and data integration for traceable inspection results.
When is a digital micrometer preferable to an analogue one?
Choose a digital micrometer when easy readout, unit conversion (mm/inch), or data transmission is required. Digital models with IP54 rating also offer dust and splash protection, while analogue micrometers remain the most robust option in harsh environments.
What measuring force should be used to ensure consistent results?
The recommended measuring force for micrometers is 5 N to 10 N. Use the ratchet or friction thimble to apply this consistent force and rely on the insulating sleeve to minimise heat transfer from the hand.
Can depth micrometers measure small bores and tight features?
Yes. Depth micrometers use a fine needle or flat measuring face and, with suitable extensions, cover narrow or deep features; standard depth micrometers typically span 0–300 mm with accuracies near 0.003 mm, while specialised digital systems offer even higher resolution.
