Rapid and reliable thickness measurement for metalworking quality control
Thickness measurement ensures precise control of sheet and component dimensions in metalworking by providing immediate, process-integrated feedback that reduces scrap and rework. Handheld instruments such as the micrometer, caliper and fine‑needle thickness gauge serve distinct roles: the micrometer with its ratchet delivers a consistent contact pressure, the caliper offers versatility for general measurements, and the fine‑needle gauge provides reproducible results on elastic or very thin materials thanks to its defined spring force. Proper use demands attention to external influences like thermal expansion from body heat and regular calibration with reference gauges at room temperature to maintain accuracy. Employing these tools correctly enables rapid detection of deviations and supports corrective action directly at the workstation.
0-10mm Digitales Dicken-Messgerät mit 0,001mm Ablesung, Mit Timer 5sec., Messkraft 5±0,05N, ASTM D5199-01-A - Microtech Metrology
Das Microtech Dicken-Messgerät überzeugt durch Genauigkeit 0,02 mm und Ablesung 0,001 mm, was schnelle, zuverlässige Dickenmessungen bei weichen Materialien ermöglicht; kombiniert mit der ASTM‑Norm bietet das Gerät reproduzierbare Messergebnisse für Labor und Feld. Für Verfügbarkeit und technische Beratung direkt über Metav Werkzeuge anfragen. Dicken-Messgerät von Microtech Metrology Dicken-Messgerät für präzise Dickenmessung weicher Werkstoffe gemäß ASTM und für Qualitätskontrolle in Laboren und im Feld Kompakte Bauform für feine Messaufgaben Digitale Ablesung 0,001 mm für sichere Protokolle Genauigkeit 0,02 mm entspricht Industriestandards Messflächen Ø56,4 mm für gleichmäßige Auflage Timer 5sec. für Messung an weichen Materialien Präzision, die Prozessen Verlässlichkeit gibt Das Dicken-Messgerät liefert eine Genauigkeit von 0,02 mm bei einer Auflösung von 0,001 mm, wodurch Messunsicherheiten minimiert werden. Diese Kombination aus feiner Ablesung und konstanter Messkraft sorgt für reproduzierbare Daten in der Serienprüfung. Anwender profitieren von klaren Messwerten, die direkt in Prüfprotokolle übernommen werden können. Speziell abgestimmt auf weiche und geotechnische Materialien Dank der großen Messflächen mit Ø56,4 mm und der vorgegebenen Messkraft von 5±0,05 N werden Proben aus Geotextilien und ähnlichen Verbundstoffen schonend und gleichmäßig geprüft. Der integrierte Timer (5 sec.) ermöglicht eine standardisierte Messdauer und reduziert so Einflüsse durch Materialverformung bei weichen Proben. Praktische Handhabung für Prüflabor und Werkstatt Das digitale Display bietet eine schnelle Ablesbarkeit und erleichtert die Dokumentation bei wiederkehrenden Prüfungen. Die kompakte Bauform macht das Gerät transportfähig für Feldmessungen, während die robuste Ausführung den Einsatz in Laborumgebungen ermöglicht. Probenaufbau und Messablauf werden dadurch effizienter. Zielgruppe und Einsatzbereiche Entwickelt für Qualitätsverantwortliche in der Forschung, Prüfstellen und Produktion, eignet sich das Gerät besonders für Hersteller von Geotextilien, Prüflabore und Baustoffprüfstellen. Kleine Laborgruppen profitieren von der schnellen Messung und der einfachen Protokollierung ohne aufwendige Vorbereitung. Empfehlung: Das Microtech Dicken-Messgerät für präzise Dickenmessungen direkt bei Metav Werkzeuge anfragen; Verfügbarkeit und technische Details per eMail info@metav-werkzeuge.com oder Telefon +49 2822 7131930 klären. Produktmerkmale Artikelnummer: 137331232 Marke: Microtech Metrology Bezeichnung: Dicken-Messgerät GTIN: 4061905451966 Fakten Ablesung: 0,001 mm Genauigkeit: 0,02 mm Messbereich: 0-10 mm Messkraft: 5±0,05 N Messflächen: Ø56,4 mm Besonderheiten Digitales Messgerät Timer 5sec. für weiche Materialien Norm: ASTM D5199-01-A Geeignet für: Geotextilien, -netze oder -gemischmaterialien zur Entwässerung Storytrigger: messuhr FAQ Wie genau ist die Messung mit dem Dicken-Messgerät? Die Messung erreicht eine Genauigkeit von 0,02 mm bei einer Ablesung von 0,001 mm, sodass das Microtech Dicken-Messgerät für präzise Prüfaufgaben eingesetzt werden kann. Für welche Materialien ist das Gerät besonders geeignet? Das Microtech Dicken-Messgerät ist ausgelegt für weiche Materialien wie Geotextilien und Verbundstoffe; die Messflächen und die definierte Messkraft gewährleisten schonende und reproduzierbare Messergebnisse. Welcher Messbereich ist abgedeckt? Der Messbereich des Microtech Dicken-Messgerät reicht von 0 bis 10 mm, womit es zur Kategorie Mikro zählt und sich für feine Messaufgaben in Labor und Werkstatt eignet. Welche Norm wird bei der Messung berücksichtigt? Das Gerät entspricht der Norm ASTM D5199-01-A, was eine standardisierte Vorgehensweise für Dickenmessungen an Geotextilien sicherstellt. Hersteller: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
0-25mm Dicken-Messgerät, 0,015mm Genauigkeit, ohne Timer - Microtech Metrology
Präzises Dicken‑Messgerät für weiche Materialien mit digitaler Anzeige und reproduzierbarer Messkraft: Die Kombination aus einer Messgenauigkeit von 0,015 mm und einer definierten Messfläche sorgt für verlässliche Prüfwerte bei gewebten und gestrickten Stoffen. Bestellen Sie das Dicken‑Messgerät direkt über Metav Werkzeuge oder fordern Sie bei Bedarf eine individuelle Beratung an. Dicken-Messgerät von Microtech Metrology Das Dicken-Messgerät ist ein digitales Messgerät zur schnellen und reproduzierbaren Dickenmessung von gewebten und gestrickten Stoffen. Digitales Dicken-Messgerät für Textilmessungen Messbereich 0–25 mm für feine Materialdicken Messgenauigkeit 0,015 mm für verlässliche Ergebnisse Messflächen Ø28,7 mm für reproduzierbare Auflage Ohne Timer, einfache und direkte Bedienung Präzision, die Prüfabläufe sicherer macht Die hohe Messgenauigkeit von 0,015 mm reduziert Messunsicherheit bei Routineprüfungen und Laboranalysen. Durch die digitale Anzeige werden Ablesefehler minimiert, sodass Prüfprotokolle und Qualitätsberichte mit konsistenten Werten versorgt werden. Die Normangabe ASTM D1777-1/5 gewährleistet eine anerkannte Vorgehensweise bei Dickenmessungen von weichen Materialien und erleichtert die Vergleichbarkeit von Messergebnissen zwischen Prüfstellen. Messbereich und Anwendungsspielraum erklärt Mit einem Messbereich von 0–25 mm deckt das Messgerät die typischen Dicken von Textilien, Vliesstoffen und dünnen Schaumstoffen ab. Diese Reichweite eignet sich besonders für Qualitätskontrolle in Webereien, Textilprüflaboren und bei der Warenannahme. Die kompakte Bauform ermöglicht dabei ergonomische Abläufe, ohne dass Messgenauigkeit oder Reproduzierbarkeit leiden. Bedienkomfort durch definierte Messflächen und Messkraft Die runde Messfläche Ø28,7 mm sorgt für stabile Auflagebedingungen, während die spezifizierte Messkraft (2,68±0,13 N / 0,45±0,05 N) wiederholbare Messsituationen ermöglicht. Ein konstantes Anpressverhalten verringert die Abhängigkeit von der Bedienerhand und steigert die Verlässlichkeit der Ergebnisse bei Serienprüfungen. Für wen dieses Messgerät konzipiert wurde Das Messgerät richtet sich an Prüfingenieure, Laboranten und Qualitätsverantwortliche in der Textil‑ und Materialprüfung, die präzise Dickenwerte für gewebte und gestrickte Stoffe benötigen. Der Fokus liegt auf reproduzierbarer Messung und effizienter Einbindung in Prüfabläufe, ohne komplexe Kalibrierprozeduren für den Anwender. Für reproduzierbare Textilprüfungen empfehlen wir das digitale Microtech Metrology Dicken‑Messgerät – Bestellung und Beratung über Metav Werkzeuge per eMail info@metav-werkzeuge.com oder Telefon +49 2822 7131930 Produktmerkmale Artikelnummer: 137331251 Marke: Microtech Metrology Bezeichnung: Dicken-Messgerät für weiche Materialien, mit Stand GTIN: 4061905451515 ECLASS: 21170535 Daten Messbereich: 0–25 mm Genauigkeit: 0,015 mm Messflächen: Ø28,7 mm Messkraft: 2,68±0,13 N / 0,45±0,05 N Besonderheiten Digital Norm: ASTM D1777-1/5 Geeignet für: gewebte oder gestrickte Stoffe Ohne Timer FAQ Wie genau ist das Dicken‑Messgerät in der Praxis? Das Microtech Metrology Dicken‑Messgerät erreicht eine Messgenauigkeit von 0,015 mm und liefert damit verlässliche Werte für Prüfabläufe in Labor und Produktion; die digitale Anzeige unterstützt das fehlerfreie Ablesen. Für welche Materialien eignet sich das Gerät besonders? Das Gerät ist speziell für weiche Materialien konzipiert und eignet sich vor allem für gewebte und gestrickte Stoffe sowie dünne Vliesstoffe und Schaumstoffe. Welche Vorteile bietet die definierte Messfläche Ø28,7 mm? Die Messfläche Ø28,7 mm sorgt für eine reproduzierbare Auflage und reduziert Messstreuung, was besonders bei Serienmessungen die Vergleichbarkeit der Ergebnisse verbessert. Liegt ein Kalibrierzeugnis bei der Lieferung bei? Es wird ein standardmäßiges Kalibrierverfahren angewendet; falls eine ISO‑Zertifizierung erforderlich ist, prüfen Sie bitte die Verfügbarkeit zusätzlicher Kalibrieroptionen mit Metav Werkzeuge. Hersteller: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine; tool@microtech.tools
1 mm Thickness Gauge Digital With 0.0001mm Resolution, Wireless/USB, ISO 17025 Calibrated - Microtech Metrology
Take advantage of the combination of laboratory-grade accuracy, fast digital data transfer and ISO 17025 traceability for reliable thickness testing across production and research environments. Order the instrument directly via Metav Werkzeuge or consult their specialists for specification advice and rapid delivery from Emmerich. Thickness Gauge (Dicken-Messgerät) — digital thickness gauge with 0.003 mm accuracy, Wireless + USB, Microtech Metrology A Thickness Gauge that delivers high-resolution thickness measurement in laboratory and production settings, equipped with wireless and USB data output for seamless documentation and traceable results. Digital readout with 0.003 mm accuracy Wireless and USB data output ISO 17025 calibrated with certificate 25 mm measuring depth for small parts Traceable accuracy for quality control The instrument provides a repeatable measurement basis thanks to a stated 0.003 mm accuracy, which supports strict tolerance checks and component acceptance procedures. Calibration to ISO 17025 accompanies the delivery, so every result can be traced back to an accredited standard — an essential requirement for audit-ready quality systems. This combination of precision and formal calibration reduces rework and inspection variability, making the gauge suitable for both laboratory testing and inline quality control. Fast data capture and integration into workflows Equipped with Wireless and USB data outputs and a fine display resolution, the device simplifies data logging and statistical process control. The wireless interface allows untethered transfer to collection software, while USB ensures reliable wired communication for line-side stations. With structured digital output, measurement data can be exported for SPC analysis or archived alongside batch records, shortening the time from measurement to decision and supporting lean inspection processes. Compact design tailored to small components The measuring faces measure 6.35 mm and the instrument offers a 25 mm measuring depth, which suits thin or intricate parts where access is limited. The compact construction maintains stiffness where it matters, producing consistent readings on small geometries. Built as a purpose-designed metrology tool, it combines a readable digital display with a form factor that eases handling and repeatability during series checks or laboratory tasks. Practical benefits for procurement and production planning As a calibrated, ready-to-use instrument with accredited documentation, the gauge reduces start-up overhead for incoming inspection routines. The digital interfaces cut manual transcription errors and support automated documentation. For purchasers and quality engineers, the measurable advantages are fewer rejects, faster acceptance cycles and clearly documented conformity — outcomes that benefit production throughput and supplier control. Contact Metav Werkzeuge for tailored integration advice, delivery options from Emmerich and information on calibration traceability and software compatibility Technical Data Article number: 137001027 GTIN: 4061905044274 Manufacturer: Microtech Metrology Digital instrument: yes Data output: Wireless and USB Facts Measurement range: 0–1 mm Accuracy: 0.003 mm Display resolution: 0.0001 Measuring faces: 6.35 mm Measuring depth: 25 mm SKU: 137001027 Special features ISO 17025 calibration certificate included Category: Thickness gauge / dial instrument Suitable for laboratory and production metrology Wireless data transfer for integration with SPC systems FAQ Is the instrument delivered with a calibration certificate? Yes. The Dicken-Messgerät from Microtech Metrology (thickness gauge, SKU 137001027) is supplied fully calibrated with an ISO 17025 calibration certificate. What data interfaces are available for logging measurements? The device supports both wireless transfer and USB output, enabling connection to data acquisition systems, SPC software or simple file export workflows. What level of accuracy and resolution can be expected? The thickness gauge provides an accuracy of 0.003 mm with a fine display resolution, making it appropriate for tight tolerance inspections in production and laboratory environments. For which parts and applications is this thickness instrument best suited? With 6.35 mm measuring faces and a 25 mm measuring depth, the gauge is optimised for thin, small or hard-to-access components typically inspected in research, precision engineering and series quality checks. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10 mm Digital Probe With 8 mm Shank, Spring-Loaded, 0.01 mm Resolution, Supplied In Case - Metav IndustryLine
Take advantage of the compact design, precise 0–10 mm measuring range and reliable ±0.02 mm accuracy for fast, repeatable micro‑inspections; order the instrument directly via Metav Werkzeuge or contact our consultants for setup guidance. Digital test probe 10 mm — 8 mm shank (Metav IndustryLine) The Digital test probe 10 mm with 8 mm shank is a compact, spring‑loaded probe for fine metrology tasks, suited to micro‑components and precision inspection stations. 0–10 mm micro measuring range 0.01 mm digital resolution ±0.02 mm measurement accuracy 8 mm shank fits standard holders Spring‑loaded contact, low measuring force Precision in a compact form for micro measurements Designed for tasks where space and repeatability matter, this compact probe offers a 0–10 mm measuring range with a 0.01 mm display resolution and an industrial ±0.02 mm accuracy class. The combination of short gauge length and low weight keeps the instrument stable during fingertip handling, which reduces measurement scatter in delicate assemblies. The small footprint and 8 mm shank mean the probe fits common holders and test stands used in fine mechanical and horological inspection, enabling consistent results without elaborate fixturing. Built‑in functions on the digital display (on/off, mm/inch and zero) speed up batch checks and hand measurements. Efficient, low‑disturbance probing for repeatable results A spring‑loaded contact reduces push‑force variability, with a measuring force <1.5 N that is gentle on thin or compliant workpieces while still providing reliable contact detection. The digital electronics provide a clear numeric read‑out and quick unit switching to inches where needed (resolution 0.0005 in), shortening setup and handover times on the shop floor. At just 98 mm length and approximately 0.23 kg, the probe is easy to manoeuvre while maintaining the stiffness required for repeatable readings. The design supports straightforward integration into inspection benches and portable test rigs, improving throughput for routine checks without compromising traceability. Practical benefits for workshop and laboratory routines For small series production, toolroom checks or lab verification, the probe accelerates decision‑making by presenting verifiable readings and minimising operator influence. Supplied ready for immediate use in a protective case, the unit is protected during transport and storage and is suited to mobile inspection rounds across a production line. Durable construction and clear mechanical function deliver long service intervals; the digital readout helps capture and compare values quickly during quality control tasks. As part of the Metav IndustryLine range, the instrument complements broader metrology sets and supports simplified procurement and stock management for precision departments. For a precise quotation or to discuss integration options with Metav Werkzeuge, contact our Emmerich team by email at info@metav-werkzeuge.com or by phone at +49 2822 7131930. Technical Data Article number: M240.125 GTIN: 4054469181271 eClass: 27144044 ETIM: EC000029 Category: Measuring instruments / Test indicators Facts Measuring range: 0–10 mm Resolution (display): 0.01 mm Resolution (inch): 0.0005 in Accuracy: ±0.02 mm Measuring force: <1.5 N Length: 98 mm Weight: 0.23 kg Shank diameter: 8 mm Customs tariff number: 90173000 Special features Digital display with on/off, mm/inch and zero functions Spring‑loaded contact for gentle probing Supplied in protective case for transport and storage Label: Digital test probe 10 mm with 8 mm shank Manufacturer range: Metav IndustryLine FAQ What is the measuring range and typical use for this probe? The probe measures from 0–10 mm, classifying it as a micro range instrument ideal for fine mechanical work, small assemblies and watchmaking applications where compactness and repeatability are required. How accurate is the read‑out and what resolution does the display provide? The instrument offers ±0.02 mm accuracy with a 0.01 mm display resolution; in inch mode the display resolution is 0.0005 in, which supports precise comparisons and clear pass/fail checks. Does the probe require a specific holder or adapter? The 8 mm shank conforms to common test‑stand holders; standard collets and mounts used in bench and portable rigs will accept the shank for rapid installation. Is the contact force suitable for delicate components? Yes, with a measuring force <1.5 N and spring‑loaded contact, this probe minimises deformation of thin or soft parts while maintaining reliable contact detection. What is included with the product on delivery? The delivery includes the probe itself, protected in a transport and storage case to ensure safe handling between inspections and during storage. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
10 mm Digital Thickness Gauge 30 mm Reach 0.01 mm Resolution, Spring-Closing, Supplied in Case - Metav IndustryLine
Benefit from the combination of a compact 10 mm measuring range, 0.01 mm resolution and a robust stainless‑steel probe for reliable, repeatable thickness checks; order directly via Metav Werkzeuge or contact the technical team for tailored advice. Digital Thickness Gauge M240.124 — 10 mm range, 0.01 mm resolution (Metav IndustryLine) A Digital Thickness Gauge M240.124 designed for precise thickness measurement of sheets, films and small components, featuring a 30 mm probe reach and a clear digital display. Digital readout 0.01 mm resolution 10 mm measuring range, 30 mm reach Stainless‑steel probe, cast‑iron frame Spring‑closing anvil for repeatable contact Consistent precision that supports quality control The instrument delivers a 0.01 mm display resolution with a stated measurement accuracy of 0.04 mm, which separates the value shown from the inherent measurement uncertainty. This makes the device well suited for routine quality checks where repeatability matters: the fine resolution allows clear detection of small thickness variations, while the quoted accuracy provides a realistic expectation of tolerances during production‑grade inspection. The compact measuring span focuses the performance on short, highly repeatable strokes, ideal for fast pass/fail decisions in a production line or bench inspection. Tough, workshop-ready mechanics for everyday use Mechanical components have been selected for durability: a stainless‑steel probe resists wear on the contact surface, while the cast‑iron frame is painted to protect against knocks and workshop contaminants. The spring‑closing anvil ensures consistent contact force for reproducible measurements, and the 30 mm probe reach permits access to moderate recesses and stack checks without compromising stability. At approximately 0.26 kg, the device is lightweight enough for handheld operation yet rigid enough to reduce measurement scatter under typical shop conditions. Fast readings and straightforward handling for efficient workflows Operation is simplified by a digital display with ON/OFF, mm/inch selection and zeroing functions, enabling rapid switching between units and quick relative measurements. Powered by a 3 V cell, the instrument supports long intervals between battery changes and minimal downtime. The short command set and visible readout speed up inspection cycles and reduce interpretation errors, contributing to faster throughput and fewer hold‑ups in quality control. For workshops seeking a compact, reliable thickness measuring tool, this solution balances speed and clarity with technical robustness. Choose the Metav IndustryLine thickness gauge for dependable 0.01 mm resolution — contact Metav Werkzeuge in Emmerich for application guidance and reliable delivery. Technical data Article number: M240.124 GTIN: 4061905044588 Manufacturer: Metav IndustryLine Core data Measuring range: 0–10 mm Resolution (display): 0.01 mm Accuracy: 0.04 mm Probe reach: 30 mm Weight: 0.26 kg Operating voltage: 3 V Measuring faces: flat Special features Stainless‑steel probe Cast‑iron frame, painted Spring‑closing anvil Digital display with ON/OFF, mm/inch and zero functions FAQ What measuring range does the gauge cover? The Metav IndustryLine digital thickness gauge (M240.124) covers 0–10 mm, making it suitable for thin sheet, foil and small‑part thickness checks. What precision and accuracy can be expected? The instrument displays 0.01 mm resolution and is specified with an accuracy of 0.04 mm, values that support repeatable comparative measurements in workshop and production monitoring. Which materials are in contact with the workpiece? The measuring probe is made of stainless steel, while the frame consists of painted cast iron, offering wear resistance at the contact face and structural rigidity. How is the device powered and how are units selected? The gauge runs on a 3 V battery and features a digital display with convenient mm/inch selection plus an ON/OFF and a zeroing button for relative measurements. Is the instrument suitable for rapid inspection routines? Yes — the clear digital readout, simple controls and spring‑closing anvil are designed for fast, repeatable thickness checks during production and incoming inspection. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
10 mm Thickness Gauge Ball-Tip Anvils 30 mm Reach Spring-Closed, Rounded Measuring Faces Plastic Case - Metav IndustryLine
Take advantage of the compact 0–10 mm measuring range combined with a finely tuned 0.02 mm accuracy and robust construction to keep fine‑mechanical inspection simple and repeatable. Order the gauge directly via Metav Werkzeuge or consult our specialists for selection and technical advice. Thickness Gauge M209.306 — compact analogue gauge, 0–10 mm range, 0.02 mm accuracy (Metav IndustryLine) A compact Thickness Gauge M209.306 for precise thickness checks and component inspection in fine mechanical and workshop environments, supplied as an analogue measuring instrument with a small measuring face. Compact range 0–10 mm, ideal for micro measurements Resolution 0.02 mm for reliable workshop precision Stainless measuring tip and lacquered cast‑iron frame Precision where space is limited and repeatability matters The instrument is designed for the micro measurement class (maximum range 0–10 mm), which is ideal when the task requires maximum precision in a small footprint. The 0.02 mm accuracy provides industrial‑grade repeatability for routine quality checks and bench control. Being an analogue dial instrument, it offers immediate visual feedback without batteries, which simplifies daily use and reduces downtime. The compact layout keeps handling steady and minimises torsion on short jaws, so readings remain dependable even on small components. Rugged construction that supports consistent contact force A stainless measuring tip sits on a 10 mm measuring face and is guided by a lacquered cast‑iron frame, a combination that balances corrosion resistance at the contact point with structural stiffness for the body. The built‑in spring‑closing mechanism ensures a constant contact force, reducing operator‑dependent variation and improving repeatability across many samples. The instrument's 30 mm reach gives comfortable access to small parts while the curved measuring faces accommodate gently rounded surfaces without slipping, making it suitable for watchmaking, micro‑assemblies and precision trim checks. Ready for workshop routines and simple quality control As an analogue thickness gauge the unit requires minimal maintenance and is well suited to repeated on‑bench inspections where quick, reliable decisions are needed. The modest mass (approximately 0.42 kg) contributes to steady handling and less operator fatigue during repetitive tasks. Technical clarity and straightforward operation save time during first‑article inspections and in‑process checks, while the solid materials and mechanical design support long service life under normal workshop conditions. For customers seeking a compact, durable gauge for precision small‑part measurement, this instrument delivers consistent results. Contact Metav Werkzeuge for advice on application suitability and procurement of the M209.306 from the Metav IndustryLine range; technical enquiries by e‑mail at info@metav-werkzeuge.com or by phone at +49 2822 7131930 Technical Data Article number: M209.306 GTIN: 4061905044137 Manufacturer: Metav IndustryLine Facts Measuring range: 0–10 mm Resolution: 0.01 mm (dial reading increment) Accuracy: 0.02 mm Mass: 0.42 kg Reach (Ausladung): 30 mm Special features Stainless steel measuring tip Lacquered cast‑iron frame Curved measuring faces 10 mm measuring face (messteller) Analogue dial display Spring‑closing mechanism FAQ What is the measuring range and accuracy of this gauge? The gauge covers a range of 0–10 mm with an accuracy of 0.02 mm, making it suitable for fine mechanical measurements and routine workshop checks. Is the instrument battery‑powered or mechanical? This is an analogue dial instrument; no batteries are required and readings are visible immediately on the dial. For which applications is this compact gauge intended? The instrument is designed for micro measurements such as watchmaking, small component inspection and fine‑tolerance workshop tasks where a compact, precise gauge is required. How do the curved measuring faces affect measurement? The curved (convex) measuring faces improve contact on gently rounded surfaces and help prevent slippage, supporting reliable readings on non‑flat parts. What materials are used in the construction of the M209.306? The M209.306 features a stainless steel measuring tip and a lacquered cast‑iron body for structural stiffness and contact durability. Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
10 mm Thickness Gauge Pocket Flat Anvil 5.5 mm Closing Spring, Plastic Case - Metav IndustryLine
Compact, pocket-sized precision with a 0–10 mm measuring range and 0.01 mm resolution ensures fast, repeatable thickness checks for thin parts; order the M209.301 directly via Metav Werkzeuge or ask our consultants if needed. M209.301 pocket thickness gauge — pocket instrument with 0–10 mm range and 0.01 mm dial resolution (Metav IndustryLine) A M209.301 pocket thickness gauge designed for rapid thickness checks and quality spot checks on thin components in workshop and inspection environments. Pocket format, 0–10 mm range 0.01 mm resolution dial Stainless steel measuring tip Ø5.5 mm Supplied in a protective case Compact precision for fine workpieces This pocket instrument belongs to the micro class of thickness gauges, optimised for measurements up to 10 mm where compactness and tactile control matter. The mechanical dial offers 0.01 mm graduations, giving a clear, analogue readout that is immediately interpretable during production checks. The stainless steel probe with a Ø5.5 mm contact face and the flat measuring faces are tuned to deliver consistent contact geometry across thin sheets, foils and small components; the spring-closing mechanism stabilises the contact force to reduce operator variation and to improve repeatability. The result is a reliable, low-effort measurement tool that speeds up inspection cycles without sacrificing accuracy. Built to be carried and used every day Designed as a true pocket instrument, the unit combines low mass with robust materials to survive daily handling: the probe is made from stainless steel and the whole assembly weighs about 0.1 kg, making it unobtrusive on a bench or in a tool pouch. The flat measuring faces simplify alignment on narrow edges and step features, while the compact reach of 10 mm keeps the geometry stiff and resistant to bending or wobble. A protective case is included for secure transport and storage, protecting the dial and probe between shifts. The mechanical design is intentionally straightforward so maintenance is minimal and downtimes are reduced. Practical integration into workshop workflows As a handheld thickness gauge for quick spot checks, this pocket model is suited to incoming inspection, routine quality control and small-batch production where speed and repeatability matter. The analogue dial enables immediate trend recognition during run-off checks, while the compact size supports work in cramped assemblies or on fixtures. Calibration is straightforward as part of normal quality routines; the compact format also makes it a good companion for mobile measuring teams who require a robust, portable instrument for on-site verification. Overall, the device delivers a balance of precision, portability and durability that supports steady production flow and faster decision-making on the shop floor. Contact Metav Werkzeuge for a tailored recommendation or to arrange a quotation for the M209.301 pocket thickness gauge; Metav Werkzeuge provides expert advice and supply from Emmerich for reliable delivery to your workshop. Technical data SKU: M209.301 GTIN: 4061905044601 Manufacturer: Metav IndustryLine Facts Measuring range: 0–10 mm Resolution / graduations: 0.01 mm Weight: 0.1 kg Probe diameter: Ø5.5 mm Reach / Ausladung: 10 mm Analog mechanical dial: yes Special features Pocket version Flat measuring faces Spring-closing contact Probe made of stainless steel Supplied in protective case FAQ What is the typical application for this pocket thickness gauge? The M209.301 pocket thickness gauge is intended for quick thickness checks and spot inspections on thin materials and small components in workshop and quality-control environments. How precise is the measurement on this instrument? The instrument provides an analogue readout with 0.01 mm graduations, suitable for precise workshop checks where fine resolution is required. Is the contact tip robust for daily use? Yes, the probe is made of stainless steel and the flat contact face (Ø5.5 mm) is designed for repeated use and stable contact on thin parts. Does the gauge come with a protective case? A protective case is included for transport and storage to protect the dial and probe between uses. Can this pocket gauge be used for small-step and edge measurements? The flat measuring faces and short reach of 10 mm make it well suited for edges, thin steps and confined measuring situations. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
100mm Dial Thickness Gauge With 0.01mm Resolution, Depth 800mm Calibrated To ISO 17025 - Microtech Metrology
Take advantage of a compact instrument that combines a 0–100 mm measuring range, a clear analogue dial with 0.1 mm accuracy and full traceability via an ISO 17025 calibration certificate — order directly through Metav Werkzeuge or contact our advisors for application guidance. Thickness gauge with dial indicator — Microtech Metrology (0–100 mm, ISO 17025) The thickness gauge with dial indicator is an analogue measuring instrument designed for rapid, repeatable thickness checks in workshops, production lines and inspection benches within the micro measurement class. Analogue dial with 0.1 mm graduation Measuring range 0–100 mm Delivered with ISO 17025 calibration certificate Suitable for fine mechanical thickness checks Precise, compact measuring for fine mechanical tasks This instrument delivers dependable thickness checks in the compact micro class (max. range to 100 mm), making it particularly suitable for precision metalworking, small assembly operations and watchmaking-style components. The analogue dial provides an intuitive visual result while the specified 0.1 mm accuracy ensures measurements are consistent for routine QC tasks. The instrument’s compact footprint keeps handling simple and reduces operator fatigue, supporting repeatable checks on small parts without the need for complex fixturing. Traceable calibration for quality assurance and documentation Calibrated to ISO 17025, the gauge is supplied with a formal calibration certificate, providing documented traceability that integrates into quality management systems. This level of verification supports production audits and acceptance testing: inspectors receive a measured value together with a certificate that confirms conformity to recognised metrological standards. Such certification reduces non‑conformance risk and simplifies acceptance procedures in supplier chains where documented accuracy is required. Practical reach and application in production workflows With a measuring depth of 800 mm the instrument can be used in setups requiring extended probe travel while retaining the compact nature of the dial mechanism. The analogue display permits quick pass/fail comparisons in assembly and maintenance contexts, and the unit’s configuration lends itself to bench mounting or use in simple test rigs. Where a rapid, robust thickness check is needed without digital integration, this gauge offers an effective balance of readability, stiffness and ease of use. Contact Metav Werkzeuge today to discuss how the ISO 17025‑calibrated Microtech Metrology thickness gauge can be integrated into your inspection routine and to request further technical documentation Technical data Article number: 137100801 GTIN: 4061905044762 Manufacturer: Microtech Metrology Facts Measuring range: 0–100 mm Accuracy: 0.1 mm Reading: 0.01 mm Measuring depth: 800 mm Analogue instrument ISO 17025 calibrated, certificate included Special features Dial indicator for direct visual reading Compact design for micro‑range measurements Suited for workshop and production inspection Supplied for fine mechanical thickness checks FAQ Is the instrument supplied with a calibration certificate? Yes. The Microtech Metrology thickness gauge is delivered fully calibrated to ISO 17025 and includes the calibration certificate. What measuring range and accuracy can be expected? The instrument covers 0–100 mm with a specified accuracy of 0.1 mm, making it suitable for routine precision checks in the micro measurement class. Can the gauge be used in production inspection routines? Yes. Its compact design and clear analogue dial make the gauge appropriate for production and workshop inspection where rapid, repeatable thickness checks are required. What details identify the product for ordering? Order using article number 137100801 or GTIN 4061905044762 for the Microtech Metrology thickness gauge with dial indicator. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
100mm Thickness Gauge Digital Indicator, 0.001mm Resolution, ISO 17025 Calibrated - Microtech Metrology
Compact traceability meets workshop practicality: a digital thickness gauge with a 0–100 mm measuring range, 0.001 mm display resolution and an ISO 17025 calibration certificate delivers reproducible readings and audit-ready documentation. Combine reliable precision, clear readout and accredited calibration for smoother quality control — order directly via Metav Werkzeuge or consult our specialists for application advice. Thickness Gauge 'Dicken-Messgerät' — digital readout, ISO 17025 calibrated (Microtech Metrology) Thickness Gauge "Dicken-Messgerät" provides compact, traceable thickness measurement for workshops and laboratories with fine‑mechanical requirements Digital display with 0.001 mm resolution ISO 17025 calibration certificate included 0–100 mm compact measuring range Consistent, traceable precision for quality control The instrument offers high repeatability thanks to its fine display increment and factory calibration. With a display resolution of 0.001 mm and an indicated accuracy of ±0.055 mm, the device suits routine checks where documented results are required. The included ISO 17025 calibration certificate guarantees traceability and simplifies acceptance in internal audits or supplier qualification procedures. This combination of measurable performance and accredited calibration reduces uncertainty and supports a reliable inspection routine. Compact range that favours fine mechanical work With a measuring span from 0 to 100 mm, the unit falls into the micro‑range category for compact precision instruments, making it particularly suitable for small components and assemblies where short measuring faces limit torsion and improve handling. The compact format preserves stiffness and allows straightforward placement on fine parts, resulting in stable readings even during frequent measurements. For workshops focused on small batches, instrument size and range translate directly into faster set‑up and less handling time. Clear results and efficient workshop integration A digital readout accelerates decision cycles by eliminating manual interpolation: readings are immediate and legible, which shortens inspection times and reduces transcription errors. The robust mechanical design and concise interface enable operators to perform rapid thickness checks while maintaining measurement integrity. Accredited calibration and a precise digital display together deliver both efficiency and confidence — fewer repeat measurements, quicker go/no‑go decisions and improved process reliability across production and incoming‑goods inspection. For audit‑ready measurement solutions and tailored advice on Microtech instruments, contact Metav Werkzeuge in Emmerich — our consultants provide practical selection support and delivery solutions. Technical Data Article number: 137100808 GTIN: 4061905045219 Brand: Microtech Metrology Measuring range: 0–100 mm Display resolution: 0.001 mm Indicated accuracy: ±0.055 mm Measuring faces diameter: 10 mm Digital instrument with clear readout ISO 17025 calibration certificate included Category: Micro‑range precision instrument FAQ What accuracy can be expected from this thickness gauge? The thickness gauge from Microtech Metrology delivers an indicated accuracy of ±0.055 mm, with a display resolution of 0.001 mm; the device is supplied calibrated to ISO 17025 standards for documented traceability. Is a calibration certificate supplied with the instrument? Yes, the instrument is delivered with an ISO 17025 calibration certificate, confirming laboratory calibration and traceability of results for quality systems. What is the suitable application area for the 0–100 mm range? A 0–100 mm measuring range places this gauge in the micro class, ideal for small components, fine mechanical parts and workshops that require compact, torsion‑resistant measuring setups. Which brand and SKU identify this product for ordering? This product is supplied by Microtech Metrology and is listed under SKU 137100808 for ordering and reference. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

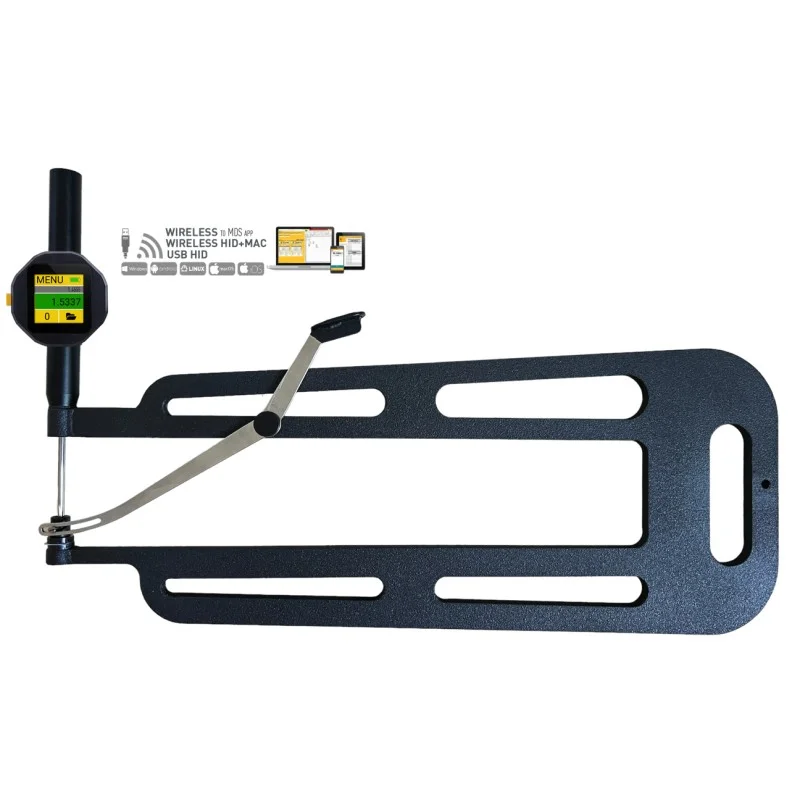

100mm Thickness Gauge Digital Wireless USB, 0.0001mm Resolution, ISO 17025 Calibrated - Microtech Metrology
Take advantage of precise measurement, seamless data transfer and certified traceability for reliable quality control and efficient documentation. Order the instrument directly via Metav Werkzeuge or consult our specialists for integration advice. Thickness Gauge — digital thickness gauge with Wireless + USB and ISO 17025 certification The Thickness Gauge is a compact digital instrument for high‑resolution thickness measurement across workshop and laboratory environments, designed for precise inspection of small components and production samples. Wireless + USB data output ISO 17025 calibration certificate included Measuring range 0–100 mm High resolution 0.0001 mm display Certified precision for dependable quality assurance The instrument delivers a documented measurement standard thanks to its ISO 17025 calibration, supplied with a calibration certificate that supports traceability and audit requirements. With an accuracy of ±0.027 mm and a display resolution of 0.0001 mm, the device reduces uncertainty in routine inspections and short-run production checks. This level of performance helps lower rejects and rework by making measurement discrepancies immediately visible and actionable within established quality procedures. Effortless data capture for process control and documentation Equipped with Wireless transmission and a USB interface, the gauge allows direct data logging into analysis software and quality management systems. Electronic output accelerates documentation and eliminates manual transcription errors, enabling faster feedback loops between inspection and production. The instrument’s measuring faces (Ø 10 mm) and a measuring depth of 400 mm support stable contact and repeatable readings, making the unit well suited to serial checks and statistical process control. Compact design tailored to fine mechanical and laboratory tasks With a measuring range of 0–100 mm, this device belongs to the compact class intended for fine mechanical work where reach and rigidity must be balanced. The form factor supports single‑handed handling while maintaining measurement stability for small parts, gauges and assemblies. Built for workshop and laboratory use, the tool combines ease of use with traceable results, supporting both incoming inspection and in‑process checks without adding complexity to daily routines. Contact Metav Werkzeuge to discuss the Microtech Metrology Thickness Gauge with integrated wireless and USB data output and to arrange delivery of the ISO 17025 calibration certificate; reach us at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: 137100407 GTIN: 4061905043901 Manufacturer: Microtech Metrology Digital: yes Data output: Wireless + USB Measuring range: 0–100 mm Facts Accuracy: ±0.027 mm Resolution: 0.0001 mm Measuring depth: 400 mm Measuring face diameter: 10 mm Display: digital Special features ISO 17025 calibration certificate included Wireless data transmission USB interface for direct logging Suited for fine mechanical and laboratory use FAQ Is the device delivered calibrated and traceable? The Thickness Gauge from Microtech Metrology is delivered fully calibrated to ISO 17025 and includes the corresponding calibration certificate for traceability. What measurement range does the instrument cover? The instrument measures from 0–100 mm, making it suitable for compact and fine mechanical components. How precise and repeatable are the readings? Typical performance is an accuracy of ±0.027 mm with a display resolution of 0.0001 mm, which supports reliable repeatability for standard quality checks. How is measurement data exported for analysis? Data can be exported wirelessly or via USB directly from the gauge for integration into SPC software or inspection reports. Which applications benefit most from this gauge? The instrument is aimed at workshops, laboratories and quality departments performing precise thickness checks on small parts, fixtures and assemblies. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
100mm Thickness Gauge Digital Wireless/USB, 0.1µm Readout, ISO 17025 Calibrated Certificate Included - Microtech Metrology
Take advantage of a compact, micro‑range instrument with ISO 17025 traceable calibration and both Wireless+USB data output for fast, reliable measurement workflows — order the thickness gauge directly via Metav Werkzeuge or ask our consultants if needed. Thickness gauge — Digital thickness gauge with Wireless + USB, Microtech Metrology Thickness gauge for precision workshop and laboratory use; digital instrument for micro‑range thickness and depth checks with traceable calibration. Digital readout with 0.0001 mm resolution Wireless+USB data output for direct logging ISO 17025 calibration with certificate included Measuring range 0–100 mm (Micro range) Traceable precision that shortens inspection cycles The instrument provides ISO 17025 traceable calibration and is supplied with a calibration certificate, ensuring measurements are auditable and accepted in quality control procedures. With a stated accuracy 0.048 mm, the device supports routine checks where repeatability and documented traceability reduce rework and inspection uncertainty. This calibrated status means the tool can be integrated directly into formal QC routines without additional on‑site calibration steps, saving time during incoming inspection and process control. Streamlined data capture to eliminate transcription errors Equipped with Wireless+USB outputs and a clear digital readout, the gauge transfers measured values electronically, avoiding manual transcription and speeding up reports. The high readout increment of 0.0001 mm facilitates fine adjustments and comparative studies, while direct data export enables seamless connection to SPC systems and spreadsheets. Reduced data handling time and fewer input errors lead to a more efficient inspection workflow and quicker decision making on the shop floor. Micro‑range design for fine mechanical components Classified as Micro range (0–100 mm), this instrument is optimised for compact, high‑precision work such as fine mechanical assemblies and watch components; the shorter measuring geometry keeps the jaws low in torsion and easy to handle in restricted spaces. The small measuring faces 10 mm improve contact stability on small parts, and the extended measuring depth 800 mm allows access to recessed features and stepped measurements not always achievable with standard calipers. The digital format combines convenience with the repeatability required in laboratory and production settings. Contact Metav Werkzeuge today to request a personalised quote for the Microtech Metrology digital thickness gauge, calibrated to ISO 17025, and to receive expert advice from our specialists at the Emmerich quality centre. Technical data Article number: 137100807 GTIN: 4061905045226 Manufacturer: Microtech Metrology Facts Measuring range: 0–100 mm Accuracy: 0.048 mm Resolution (readout): 0.0001 mm Measuring faces: 10 mm Measuring depth: 800 mm Digital: yes Data output: Wireless + USB Special features ISO 17025 calibrated — calibration certificate included Wireless + USB data output for electronic logging Category: Thickness gauge / dial gauge Micro range classification for fine mechanical work FAQ Is the instrument delivered calibrated? Yes. The thickness gauge from Microtech Metrology is supplied fully calibrated to ISO 17025 and includes a calibration certificate with the delivery. What interfaces are available for data transfer? Data transfer is provided via Wireless+USB, enabling direct logging to PCs and SPC systems without manual entry. Is this gauge suitable for watchmaking and micro components? The instrument’s Micro range (0–100 mm) design and small measuring faces 10 mm make it well suited to watchmaking and other fine mechanical applications. What level of precision can be expected in routine use? The device specification lists an accuracy of 0.048 mm and a readout increment of 0.0001 mm, offering repeatable results for standard workshop and laboratory inspections. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
100mm Thickness Gauge With Dial Indicator, 0.07mm Accuracy, ISO 17025 Calibrated - Microtech Metrology
Take advantage of precise analogue measurement, a compact 0–100 mm range and a 400 mm measuring depth for versatile inspection tasks; the delivery includes an ISO 17025 calibration certificate. Order the thickness gauge directly via Metav Werkzeuge or ask our consultants if needed. Thickness gauge with analogue dial indicator – 0–100 mm, Microtech Metrology A thickness gauge that combines an analogue dial indicator with a 400 mm measuring depth for reliable thickness control in workshop and laboratory environments Analogue dial, 0.01 mm resolution Measuring range 0–100 mm 400 mm measuring depth for deep checks Delivered calibrated with ISO 17025 certificate Consistent, traceable thickness checks for production control A compact measuring instrument delivers consistent readings for routine quality checks and setup tasks. The analogue dial offers a clear, continuous display with a 0.01 mm reading which supports repeatable decisions on part acceptance and process adjustment. With a stated accuracy of ±0.07 mm, this tool is suitable for general workshop metrology and inspection where robust, easily interpreted results are required. The moderate range avoids unnecessary bulk while covering common thicknesses in sheet, plate and small component inspection. Built for straightforward workshop use and durable handling Engineered for practical operation, the instrument’s mechanics favour simple maintenance and long-term stability. The construction permits reliable contact measurement across the full 0–100 mm range and the extended 400 mm measuring depth allows checks on thicker assemblies or parts with recessed measuring faces. The analogue design reduces dependence on batteries and electronics, offering a low-maintenance alternative for environments where durability and uptime matter most. Clear mechanical feedback supports fast decisions during set‑up and routine checks. ISO 17025 calibration for audit-ready documentation Delivered with a full ISO 17025 calibration certificate, the device meets traceability requirements for controlled processes and audit trails. This formal calibration documents conformity to international laboratory procedures and simplifies integration into quality systems where documented measurement uncertainty and traceability are mandatory. The certificate provides reassurance for internal quality assurance and external audits, enabling confident measurement traceability without additional in‑house calibration steps. For ISO‑traceable thickness control and practical workshop reliability, contact Metav Werkzeuge to discuss the Microtech Metrology calibrated thickness gauge or to request ordering advice. Technical data Article number: 137100401 GTIN: 4061905046247 Manufacturer: Microtech Metrology Calibration: ISO 17025 certificate included Facts Measuring range: 0–100 mm Measuring depth: 400 mm Reading resolution: 0.01 mm Stated accuracy: ±0.07 mm Display type: analogue dial Special features Analogue dial indicator for continuous reading Delivered fully calibrated (ISO 17025) Suitable for workshop and laboratory inspection Category: dial gauges FAQ How accurate is the instrument for typical workshop use? The stated accuracy of the thickness gauge is ±0.07 mm, with a reading resolution of 0.01 mm, which makes it suitable for routine inspection and setup tasks where that tolerance meets process requirements. Is calibration documentation supplied with the device? Yes, the thickness gauge from Microtech Metrology is delivered with an ISO 17025 calibration certificate, providing traceable documentation for audits and quality records. What does the 400 mm measuring depth mean in practice? The 400 mm measuring depth indicates the maximum distance from the instrument’s reference face to the contact point that can be measured reliably, allowing checks on deeper or recessed features without additional fixtures. Can this gauge be used in a production environment without batteries? The analogue dial design does not require batteries for basic readings, offering reliable, low‑maintenance operation well suited to continuous production use. Which typical tasks is this instrument intended for? The instrument targets thickness and clearance checks, incoming material inspection and set‑up measurement tasks in both workshop and laboratory settings where a compact, calibrated mechanical gauge is preferred. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10mm Pipe Wall Thickness Gauge Digital Readout, 0.001mm Resolution, 6 Measuring Faces - Microtech Metrology
Take advantage of compact measurement capability (0–10 mm) combined with a high-resolution digital dial and reliable repeatability for fast, traceable pipe wall inspections. Order the instrument directly via Metav Werkzeuge or consult our specialists for application advice and rapid dispatch. Microtech Metrology Pipe Wall Thickness Gauge — Digital Dial, 0–10 mm Range The Microtech Metrology Pipe Wall Thickness Gauge is a compact digital measuring instrument designed for rapid and reliable wall-thickness checks on tubes and small-diameter pipes in workshop and quality‑control environments. Compact 0–10 mm measuring range Digital dial with 0.001 mm readout High accuracy 0.012 mm repeatability Six contact faces for versatile measurement Precision where thin walls matter For inspections of tubing and small pipes the decisive factors are repeatability and readable resolution. This digital gauge delivers a measuring range of 0–10 mm with a reading increment of 0.001 mm and a declared accuracy of 0.012 mm, which places it in the compact precision category used for fine mechanical and workshop tasks. The combination of fine resolution and stable contact geometry reduces measurement scatter and supports objective acceptance decisions during corrosion checks or post‑machining verification. Faster inspection cycles and fewer re-measures The instrument’s digital dial shortens reading time and lowers interpretation errors compared with analogue indications. With multiple contact points and a compact form factor the device is optimised for quick repositioning on curved surfaces, helping to accelerate batch inspections and in‑process checks. In practical terms, improved throughput means fewer interruptions to production and a clearer record of measurement outcomes for quality documentation. Built for portable use and shop-floor robustness Engineered for regular workshop handling, the gauge combines a small footprint with a design that keeps the measuring faces aligned on curved workpieces. The compact size suited to the micro measuring class eases single‑handed operation on benches and in fixtures. Durable materials and straightforward mechanics ensure reliable service life in everyday industrial environments, providing a pragmatic balance between precision and usability for inspection teams. For precise pipe wall assessment, request the Microtech Metrology gauge from Metav Werkzeuge — contact info@metav-werkzeuge.com or call +49 2822 7131930 for tailored advice and prompt dispatch Technical data SKU: 137011106 GTIN: 4061905044984 Manufacturer: Microtech Metrology Numbers / Core technical data Measuring range: 0–10 mm Resolution (reading increment): 0.001 mm Accuracy: 0.012 mm Number of measuring faces: 6 Special features / Design Digital dial indicator Category: dial gauges (messuhren) eClass: 27200302 UID: 137011106 FAQ What measurement range does the gauge cover? The gauge measures wall thicknesses from 0 to 10 mm; this range is ideal for small tubes and thin‑walled components with repeatable contact geometry. What accuracy and resolution can be expected during routine checks? The instrument provides a resolution of 0.001 mm and a stated accuracy of 0.012 mm, offering fine discrimination for workshop and inspection tasks. Is the device suitable for curved or small‑diameter pipes? Yes — the compact construction and multiple contact faces make the gauge appropriate for small diameters and curved surfaces encountered in tube inspection. Which readout is used for results and documentation? Readings are taken from the digital dial display for fast, unambiguous values that simplify logging and quality records. Who manufactures this instrument and where is it from? The gauge is produced by Microtech Metrology and supplied under that brand and specification (SKU 137011106) for precision inspection tasks. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10mm Pipe Wall Thickness Gauge With Microcomputer Colour 1.5" Touchscreen Wireless USB - Microtech Metrology
Take advantage of a compact instrument that combines 0–10 mm measurement range, 0.01 mm accuracy and modern data transfer for efficient pipe wall inspections; order the gauge directly via Metav Werkzeuge or contact our consultants for tailored integration into existing measurement workflows. Thickness gauge — digital pipe wall measurement, 0–10 mm range, 0.01 mm accuracy A thickness gauge for rapid, portable assessment of pipe and tube wall thickness in workshop and inspection routines, featuring a clear colour display and wired or wireless data output. High precision: 0.01 mm accuracy Compact 0–10 mm measurement range Colour 1.5" touchscreen display Wireless and USB data transfer Precision where thin walls matter The instrument delivers 0.01 mm accuracy across a 0–10 mm range, making it suited to thin-walled pipe inspection and corrosion monitoring where small changes are critical. The unit combines a fine display resolution of 0.0001 mm with a repeatable measuring interface, allowing objective pass/fail decisions in production or maintenance workflows. With six measuring faces, the device adapts to different contact geometries so readings on curved or irregular sections remain consistent. The factual specification supports traceable quality checks and helps maintain documented trends for condition-based maintenance. Integrated data workflow for efficient documentation Equipped with Wireless + USB output and a Colour 1.5" touchscreen, the device simplifies capture and transfer of measurement data to statistical process control or asset-management systems. Wireless transfer speeds up batch inspections; USB connectivity supports local downloads and archival. Clear numeric readout and straightforward menu navigation reduce interpretation time and the potential for manual transcription errors. The combination of digital output and compact interface accelerates data collection cycles and supports reproducible reporting for quality assurance. Built for workshop use and regular inspection cycles Designed for frequent handling, the instrument offers a compact footprint that supports mobile inspection rounds and bench checks alike. The robust digital electronics and straightforward controls mean rapid measurements without elaborate set-up, while the measurable specifications make the device a reliable tool for routine checks in fabrication, repair or inspection shops. Sourcing via an established supplier in Europe adds logistical reliability and ensures availability of spare parts and calibration options when required. Contact Metav Werkzeuge for specialist advice on this thickness gauge and secure fast supply and technical guidance — eMail info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: 137011107 GTIN: 4061905045424 ECLASS: 27200302 Display: Colour 1.5" touchscreen Data output: Wireless + USB Digital: yes Data Measurement range: 0–10 mm Resolution (display): 0.0001 mm Accuracy: 0.01 mm Measuring faces: 6 SKU: 137011107 Special features Portable digital thickness gauge Colour touchscreen readout Wireless data transfer for quick logging USB connection for local export Suitable for pipe and tube wall checks FAQ What is the measurement range of the instrument? The instrument measures from 0 to 10 mm and is therefore intended for thin-walled pipe and tube applications; the thickness gauge (Microtech Metrology, SKU 137011107) covers this span with stable performance. How precise are the readings produced by the device? Readings are specified with an accuracy of 0.01 mm and a display resolution of 0.0001 mm, enabling the thickness gauge (Microtech Metrology, SKU 137011107) to detect small variations relevant for corrosion monitoring and quality control. Which data transfer options are available for documentation? The device provides Wireless and USB outputs for integration into data-logging workflows; wireless transfer accelerates batch inspections while USB allows direct export and archival from the gauge. Is the instrument suitable for field use in workshops? Yes; the compact format, clear 1.5" colour touchscreen and robust digital interface make this thickness gauge appropriate for routine workshop inspections and mobile measurement rounds. Can measurement results be integrated into quality records? Measurement data from the gauge (Microtech Metrology, SKU 137011107) can be transferred via USB or wirelessly to quality systems, supporting traceable documentation and trend analysis. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10mm Thickness Gauge Dial Indicator, 0.01mm Resolution, Calibrated to ISO 17025 - Microtech Metrology
Precision and traceability in one instrument: the calibrated analogue dial thickness gauge combines a compact 0–10 mm measuring range with a ±0.03 mm accuracy and a 120 mm measuring depth, making it suitable for routine thickness checks and quality inspections — order via Metav Werkzeuge or contact our consultants for tailored advice. Dial Thickness Gauge 0–10 mm by Microtech Metrology — Calibrated (ISO 17025), analogue dial The Dial Thickness Gauge is an analogue thickness measuring instrument for workshop and quality‑control use, featuring a compact 0–10 mm range, a clear mechanical dial and a 120 mm measuring depth for rapid shop‑floor checks Calibrated to ISO 17025 Measuring range 0–10 mm Accuracy ±0.03 mm Reliable measurement where traceability matters The instrument offers measurable confidence for inspection tasks: its ISO 17025 calibration ensures documented traceability and a calibration certificate is supplied with each unit. With a resolution of 0.01 mm on the mechanical dial and a stated accuracy of ±0.03 mm, the gauge provides consistent readings suitable for standard quality control and acceptance tests. The analogue display simplifies immediate comparison against tolerances, while traceability supports internal audits and external reporting. Robust analogue design for efficient daily use Designed as an analogue dial instrument, the device delivers straightforward handling and low maintenance. The analogue dial eliminates battery dependency and presents readings in a format technicians are accustomed to; the mechanism is durable and suitable for frequent use in production environments. The 120 mm measuring depth allows access to recessed or awkwardly positioned specimens, and the compact 0–10 mm measuring envelope keeps the tool nimble for batch checks and spot inspections. Fast integration into inspection workflows This gauge complements bench and portable measurement sets by offering rapid, tactile thickness checks for thin components, foils and small parts. The simple mechanical operation speeds up repetitive checks and reduces cycle time in incoming inspection or process control. Clear scale markings and a reliable mechanical feel assist operators in maintaining repeatable measuring technique, which supports consistent quality outcomes over time. Documented identification and procurement clarity Every unit is clearly identifiable for inventory and purchasing: the instrument is supplied by Microtech Metrology and can be ordered using SKU 137010121 or referenced by GTIN 4061905044670 for procurement systems. The inclusion of an ISO 17025 calibration certificate with each delivery reduces administrative effort and simplifies acceptance into regulated quality systems, offering both functional reliability and documented compliance. Contact Metav Werkzeuge today to request the calibrated Microtech Metrology dial thickness gauge (SKU 137010121) with ISO 17025 certificate — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 137010121 GTIN: 4061905044670 Manufacturer: Microtech Metrology Category: Messuhren ECLASS: 21170535 Facts Measuring range: 0–10 mm Resolution / reading: 0.01 mm Accuracy: ±0.03 mm Measuring depth: 120 mm Special features Analogue dial gauge Delivered calibrated to ISO 17025 with certificate Mechanical, no battery required Suitable for workshop inspection and quality control FAQ What is the measuring range of the gauge? The measuring range is 0–10 mm, suitable for thin parts and material checks with fine increments. What resolution and accuracy can be expected? Resolution is 0.01 mm and the stated accuracy is ±0.03 mm, providing reliable shop‑floor measurement performance. Is the instrument supplied with a calibration certificate? Yes — the instrument is delivered fully calibrated to ISO 17025 and includes the calibration certificate. Does the gauge require batteries or electronic maintenance? No — the analogue dial design needs no batteries and is suited to routine, low‑maintenance use. How can the product be identified for purchasing and inventory? Refer to SKU 137010121 or GTIN 4061905044670 when ordering or adding to procurement systems. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10mm Thickness Gauge Digital 0.001mm Resolution, Ø5mm Measuring Faces, 0.5N Force, DIN 53370‑P - Microtech Metrology
Take advantage of the combination of compact range, fine resolution and a standardised measurement method to ensure repeatable thickness checks on delicate materials; order the instrument directly via Metav Werkzeuge or consult the technical team for tailored advice. Thickness gauge — digital device, 0–10 mm measurement range (Microtech Metrology) The Thickness gauge is a compact, digital measuring instrument designed for precise thickness checks on soft materials and films up to 10 mm, suitable for workshop and laboratory use. Digital readout, 0.001 mm resolution Measurement range 0–10 mm for micro applications Ø5 mm measurement faces for delicate samples Low contact force of 0.5 N for non‑deforming checks Precise micro‑range measurement for films and soft materials The instrument is built for the Micro class of measuring tools (maximum range up to 10 mm), which combines compact form with the stiffness needed for repeatable shopfloor checks of small parts. The small Ø5 mm measuring faces concentrate the contact area, while the modest 0.5 N measuring force reduces the risk of compressing flexible samples such as foils or soft plastics. This pairing of small faces and low force makes the device particularly suitable for quality control of packaging films, laminates and other thin, compliant materials where conventional calipers might distort results. Clear digital readout with defined resolution and real‑world accuracy A high‑contrast digital display provides a 0.001 mm reading step, allowing users to observe fine changes instantly. It is important to distinguish display resolution from measurement accuracy: the instrument’s practical accuracy is specified at 0.01–0.015 mm, which reflects the realistic measurement uncertainty during routine inspections. Compliance with DIN 53370‑P documents the measurement method and supports reproducible results across inspection batches, providing a reliable basis for production decisions and traceable quality records. Robust ergonomics and straightforward operation for repeated use The compact format and digital interface enable quick, single‑operator checks without sacrificing control or repeatability. Construction choices prioritise ease of handling and steady contact pressure, which together reduce operator‑related variance. The device omits extraneous functions such as a timer, favouring a focused feature set that simplifies training and speeds up throughput in repetitive measurement tasks. In practice, this means fewer steps between part presentation and a validated measurement reading, improving efficiency in incoming inspection and process control. Typical applications and benefits in production workflows Intended for the inspection of films, thin sheets and soft components, the device is commonly used in material verification, incoming goods checks and R&D sample testing. Its equipment classification as Micro ensures suitability for fine mechanical tasks where short, rigid measuring jaws are advantageous. The digital readout combined with standardised measurement practice helps integrate the instrument into existing quality workflows, enabling consistent data collection for trend analysis and reducing the incidence of rejected batches due to measurement variability. Discuss the Microtech Metrology thickness gauge with Metav Werkzeuge for a tailored inspection solution — call +49 2822 7131930 or email info@metav-werkzeuge.com to arrange a technical consultation and fitment advice Technical data SKU: 137331207 GTIN: 4061905454356 Manufacturer: Microtech Metrology eClass: 21170535 Facts Measurement range: 0–10 mm Reading resolution: 0.001 mm Specified accuracy: 0.01–0.015 mm Measurement faces: Ø5 mm Measuring force: 0.5 N Digital instrument Standard: DIN 53370‑P Special features Suitable for films and soft materials Micro class instrument (compact range) Focused feature set without timer Clear digital readout for rapid checks FAQ What is the measurement range of this instrument? The device covers a measurement range of 0–10 mm, intended for fine, micro‑range tasks. What resolution and accuracy can be expected? The digital display provides a 0.001 mm resolution, while practical accuracy is specified at 0.01–0.015 mm for routine measurements. Is the instrument suitable for measuring films and foils? Yes, the gauge is designed for films and soft materials; the Ø5 mm faces and 0.5 N measuring force minimise sample deformation. Does the device follow a recognised measurement standard? Measurements are performed in accordance with DIN 53370‑P, supporting reproducible inspection procedures. Which applications suit this compact instrument? Typical uses include incoming inspection, R&D sample checks and quality control of thin laminates, foils and soft components; the Micro class format is tailored to such tasks. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10mm Thickness Gauge Digital 0.01mm Resolution Ø10mm Measuring Faces 0.8N Measuring Force ISO 23529-A/ASTM D3767-03-A - Microtech Metrology
Benefit from a compact, high‑resolution instrument that combines a digital display with a measured accuracy of 0.01 mm and a 0–10 mm range tailored to soft materials; order directly via Metav Werkzeuge or consult our specialists for application advice. Thickness Gauge — Digital thickness gauge for soft materials (Microtech Metrology) The Thickness Gauge is a compact digital measuring instrument designed to record precise thickness values on rubber and elastomers up to 10 mm for quality control and material testing applications Digital display, 0.001 mm increment Accuracy ±0.01 mm measurement precision Designed for rubber and elastomers (<35 IRHD) Compliant with ISO 23529‑A / ASTM D3767‑03‑A Precise control for compressible materials A measurement device that quantifies thin sections reliably is essential when working with soft substrates. This instrument offers a 0–10 mm measuring range with a display resolution of 0.001 mm while delivering an overall accuracy of 0.01 mm, which provides a clear basis for process decisions. The specified measuring force 0.8 ±0.16 N minimises compression of compliant samples, so thickness values reflect the material rather than the operator’s touch. Conformity with ISO 23529‑A and ASTM D3767‑03‑A ensures results are comparable across laboratories and contract partners, supporting traceable quality control. Compact format that fits fine‑detail work Classified in the micro segment, the instrument’s short measurement span reduces lever arm deflection and improves handling for small components. The compact frame is ideal for workshops and laboratories that need a low‑footprint solution for incoming inspection or routine checks on seals, gaskets and micro parts. A digital display accelerates read‑out and logging compared with analogue alternatives, and the Ø10 mm measuring faces concentrate the contact area for consistent, repeatable placements on narrow or recessed specimens. Designed to integrate into industrial routines The gauge is built for repetitive testing: consistent measuring force, clear numerical output and adherence to recognised norms reduce uncertainty in acceptance testing and material verification. For test labs and production lines working with elastomers or soft polymers, the instrument serves as a fast, reliable comparator for batches or supplier audits. The device’s specification and operating principles make it straightforward to include the readings in quality documentation and to train staff quickly, improving throughput without sacrificing measurement integrity. For reliable thickness control with Microtech Metrology’s compact digital instrument, contact Metav Werkzeuge in Emmerich for tailored advice and swift delivery — eMail info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 137331212 GTIN: 4061905454288 Manufacturer: Microtech Metrology Display type: digital Accuracy: 0.01 mm Resolution (reading): 0.001 mm Measuring range: 0–10 mm Measuring faces: Ø10 mm Measuring force: 0.8 ±0.16 N Standards: ISO 23529‑A / ASTM D3767‑03‑A Facts Range minimum: 0 mm Range maximum: 10 mm Increment: 0.001 mm Error tolerance: 0.01 mm Contact area diameter: 10 mm Special features Suitable for rubber and elastomers (<35 IRHD) No timer function Compact micro‑format for fine components Rapid digital read‑out for production checks FAQ How accurate is the instrument for routine quality control? The instrument offers an accuracy of 0.01 mm and a display increment of 0.001 mm, making it suitable for routine quality control and comparative thickness checks on soft materials. Is this gauge suitable for rubber compound testing? Yes. The device is explicitly designed for rubber and elastomers (<35 IRHD) and uses a controlled measuring force to reduce compression effects during measurement. What measuring range does the instrument cover? The gauge measures from 0 to 10 mm, which places it in the compact micro category optimised for small parts and precise thickness checks. Which standards does the instrument comply with? The device complies with ISO 23529‑A and ASTM D3767‑03‑A, allowing results to be compared with laboratory and industry reference methods. What is the article number for ordering and reference? The article number is 137331212; the instrument is supplied by Microtech Metrology and listed under GTIN 4061905454288. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

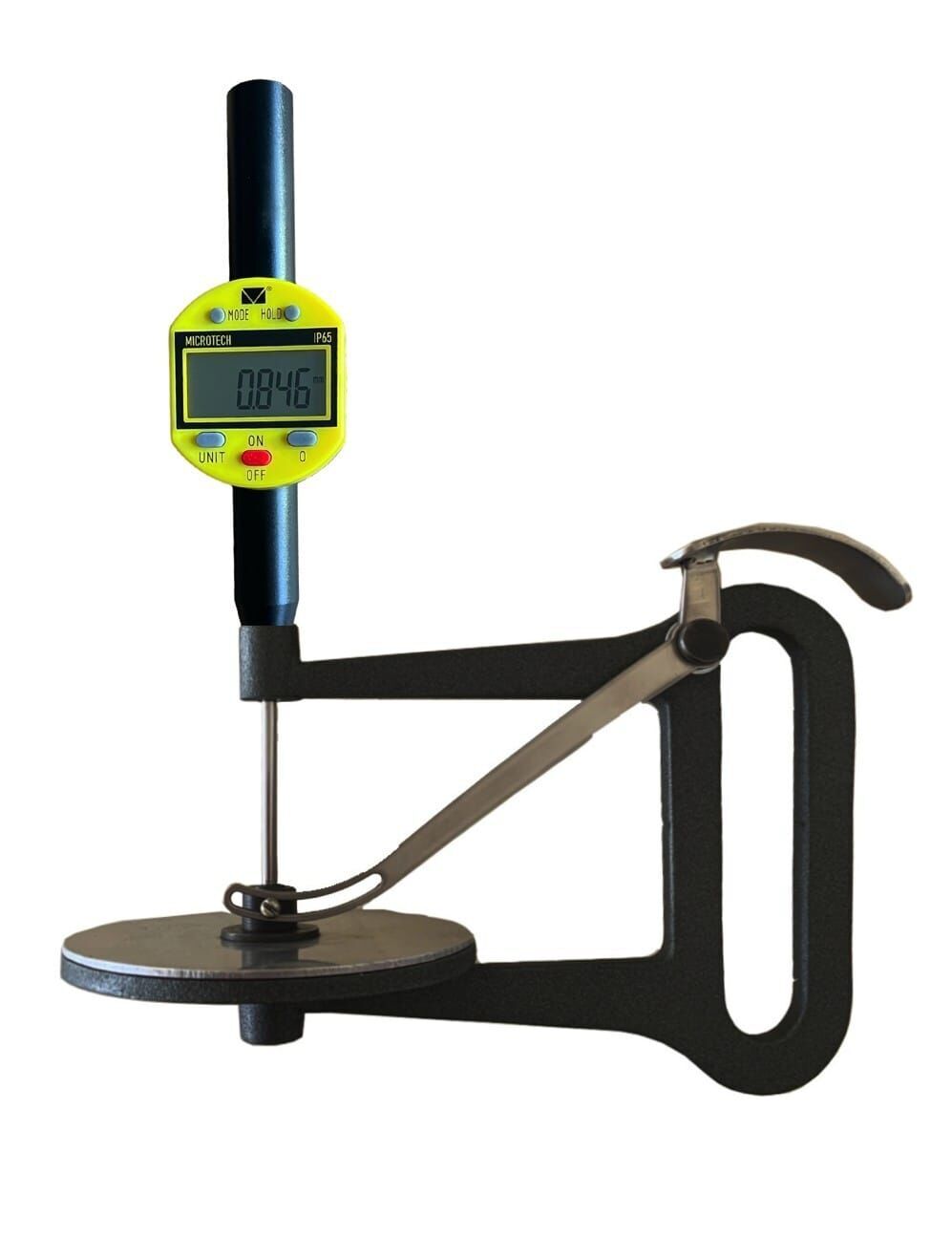

10mm Thickness Gauge Digital For Soft Materials, 0.001mm Resolution, ISO 4593-R - Microtech Metrology
High-precision digital measurement, compact design and a gentle 0.5 N measuring force combine to protect delicate samples while delivering repeatable readings. Benefit from selectable accuracy options down to 0.001 mm and ISO 4593‑R compliance for consistent quality checks — order directly via Metav Werkzeuge or consult the team for application advice. Thickness Gauge (0–10 mm) by Microtech Metrology — Digital, 0.001 mm resolution The Thickness Gauge is a compact digital instrument for fast, non-destructive thickness checks of soft materials in production and quality control environments. Digital display with 0.001 mm resolution Gentle 0.5 N measuring force Compliant with ISO 4593‑R standard Suitable for plastics, films and sheets Precision where soft materials matter For tasks that demand fine measurement without compressing the specimen, this digital instrument delivers high resolution right at the point of inspection. With a displayed increment of 0.001 mm and several selectable accuracy levels, the device is set up to resolve the subtle thickness variations common in laminates, films and thin sheets. Adherence to ISO 4593‑R provides an accepted framework for repeatability, making the gauge suitable for production sampling and incoming‑goods inspection where objective, comparable results are essential. Gentle contact for repeatable readings A controlled measuring force of 0.5 N and rounded Ø5 mm measuring faces reduce local deformation, so readings reflect true material thickness rather than contact artefacts. The combination of a stable contact geometry and a digital readout reduces operator influence and speeds up cycle times, meaning fewer rejects and clearer process decisions. Multiple accuracy settings allow prioritisation of speed or resolution, depending on whether the focus is rapid screening or detailed tolerance verification. Fit for quality workflows and traceability Compact and easy to handle, the device integrates into manual inspection stations and can be referenced in written inspection plans where ISO 4593‑R procedures are used. Its digital nature simplifies documentation by offering clear, legible values that minimise transcription errors during logging. For workshops and small production lines seeking reliable thickness control of plastics, films and sheets, the instrument balances precision with everyday practicality while supporting tighter process control and lower material waste. Request technical guidance from Metav Werkzeuge to match this Microtech Metrology gauge to specific materials or test routines — Metav’s experts provide practical advice from Emmerich to the workshop floor Technical data Article number: 137331210 GTIN: 4061905454387 Manufacturer: Microtech Metrology Category: Messuhren Digital: yes Standard: ISO 4593‑R Special feature: No timer Facts Measuring range: 0–10 mm Display resolution: 0.001 mm Accuracy options: 0.001 / 0.002 / 0.003 / 0.012 mm Measuring force: 0.5 N Measuring face diameter: Ø5 mm Readability: 0.001 Special features Suitable for plastics, films and sheets Compact, low‑deformation contact design Digital readout for clear, repeatable values Multiple accuracy settings FAQ How small a thickness can be measured reliably? The instrument measures within its 0–10 mm range and provides a display resolution of 0.001 mm; its selectable accuracy settings allow fine discrimination down to the smallest usable increments for thin films and sheets. Is this gauge suitable for delicate plastics and films? Yes. The gauge from Microtech Metrology uses a controlled 0.5 N measuring force and Ø5 mm measuring faces to minimise deformation of delicate materials such as plastics, films and thin sheets. Does the device conform to any standards for thickness measurement? Measurements follow the ISO 4593‑R standard, so the gauge is suitable for procedures and documentation that reference this normative basis. What accuracy options are available? The instrument offers multiple accuracy settings, listed as 0.001, 0.002, 0.003 and 0.012 mm, enabling a choice between higher resolution or faster measurement cycles. Can the readings be used directly in quality records? Yes. The digital display and clear numerical output make values from the Microtech Metrology thickness gauge straightforward to record and incorporate into quality documentation. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10mm Thickness Gauge Digital For Soft Materials, 1.66N Contact Force, ASTM D1777-2 - Microtech Metrology
Benefit from a compact, micro‑range instrument that combines digital resolution, a 0–10 mm measuring span and ASTM conformity for consistent fabric thickness control; arrange supply or technical advice via Metav Werkzeuge for a reliable procurement path. Thickness Gauge — Digital thickness gauge, 0–10 mm, Microtech Metrology The Thickness Gauge is a compact digital instrument engineered for precise measurement of coated and narrow fabrics, webbing and braided ropes in production and quality control environments. Compact digital gauge 0–10 mm High accuracy 0.015 mm Ø9.5 mm measuring faces Compliant with ASTM D1777-2 Reliable micro‑range readings for thin materials The instrument delivers repeatable thickness data across a 0–10 mm span, classifying it in the micro measurement category suited to fine materials and small components. With a calibrated accuracy of 0.015 mm and a display resolution of 0.001 mm, the device supports statistical process control and routine quality checks where tight tolerances matter. The compact dimensions reduce lever-induced error and make the gauge practical for bench use or inline sampling; the digital readout simplifies logging and reduces transcription errors compared with analogue alternatives. Gentle, standardised contact for flexible surfaces Measuring faces of Ø9.5 mm combined with a defined measuring force of 1.66±0.05 N minimise compression of soft substrates, preserving the real thickness of coated textiles and narrow webs. That controlled contact is essential when evaluating flexible or layered materials such as coated fabrics, straps and braided ropes, where variable pressure would otherwise distort results. The result is a dependable measurement method that aligns measurement physics with practical inspection requirements. Standards, operation and application clarity Conforming to ASTM D1777-2 ensures measurements are comparable with common textile testing protocols, supporting certification and supplier communication. The digital format gives fast numeric readouts without auxiliary timing functions, focusing on straightforward thickness determination. The device is therefore well suited for laboratory spot checks, production line sampling and contract inspection where objective, standard‑based thickness values are required. Traceable identification (GTIN and SKU) supports inventory and audit processes. For procurement or technical consultation regarding the Microtech Metrology digital thickness gauge, contact Metav Werkzeuge for tailored advice and delivery coordination via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 137331202 SKU: 137331202 GTIN: 4061905454301 Manufacturer: Microtech Metrology Category: Messuhren / measuring instruments Digital: true ECLASS: 21170535 Facts Measuring range: 0–10 mm Resolution / display reading: 0.001 mm Accuracy: 0.015 mm Measuring faces: Ø9.5 mm Measuring force: 1.66±0.05 N Special features Complies with ASTM D1777-2 Suitable for coated or narrow fabrics, webbing and braided ropes Without timer Compact digital format FAQ What measurement range does the instrument cover? The Thickness Gauge from Microtech Metrology covers a range of 0–10 mm (SKU 137331202), designed for micro‑range thickness inspection. What resolution and accuracy can be expected? Resolution is 0.001 mm with an accuracy of 0.015 mm for the Microtech digital thickness gauge, permitting fine discrimination for thin materials. Which materials are suitable for measurement with this gauge? The device is suitable for coated and narrow fabrics, webbing and braided ropes, addressing applications where small‑area contact and low compression are necessary. Why is the measuring force specified and what is its value? The measuring force is 1.66±0.05 N; this controlled force reduces sample compression and ensures more reproducible thickness readings on soft or layered materials when using the Microtech instrument. Does the instrument follow any recognised testing standard? Yes, the thickness gauge conforms to ASTM D1777-2, providing compatibility with common textile testing procedures. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10mm Thickness Gauge Digital For Soft Materials, 40x30mm Anvils, 8±2N Force, ASTM 3767-03-B - Microtech Metrology
Product data inconsistency detected: the measurement range is specified as 0–10 mm while suitability indicates rubber thickness 30–100 mm. This discrepancy raises concerns regarding the accuracy of the provided specifications and their alignment with the intended application. It is essential to ensure that the measurement range and suitability details are consistent and correctly reflect the product's capabilities. Please verify the source data thoroughly to identify any errors or miscommunications that may have occurred during data entry or documentation. Accurate and reliable data is crucial before a product description can be generated, as it ensures clarity and prevents potential misunderstandings.
10mm Thickness Gauge Digital For Soft Materials, Ø10mm Measuring Faces, 1.76N Force, ISO 23529-A/ASTM D3767-03-A - Microtech Metrology
Take advantage of precise thickness control, minimal indentation on soft materials and fast digital readings to keep quality checks efficient. Combine compact range, sub-millimetre display resolution and standard compliance for reliable pass/fail decisions on elastomer components; order via Metav Werkzeuge or request configuration advice from our consultants. Thickness Gauge for Soft Materials – Microtech Metrology (digital, 0–10 mm) A digital thickness gauge designed for repeatable measurements of soft substrates such as rubber and elastomer components in laboratory and production environments. Digital thickness gauge, 0–10 mm range Resolution 0.001 mm with ±0.01 mm accuracy Ø10 mm measuring faces for soft materials Compliant with ISO 23529-A / ASTM D3767-03-A Precision tailored to soft materials and small parts The instrument provides a compact measuring range of 0–10 mm, placing it in the micro class for fine mechanical tasks. With a display resolution of 0.001 mm and an accuracy of ±0.01 mm, the device offers a balance between sub‑micrometre readability and robust repeatability suitable for production sampling and R&D trials. The specified measuring force of 1.76±0.35 N reduces surface indentation on elastomers, ensuring that readings reflect true thickness rather than artefacts created by excess pressure. This combination of low measuring force and fine resolution supports informed quality decisions while preserving delicate samples. Built for repeatability and standards compliance Constructed with Ø10 mm measuring faces that spread load evenly, the gauge is optimised for materials rated above 35 IRHD, including many industrial rubbers and soft elastomers. Conformity with ISO 23529‑A / ASTM D3767‑03‑A provides a recognisable framework for test procedure and acceptance criteria, easing integration into established quality systems. The absence of a timing function streamlines the unit for direct thickness assessment rather than extended procedural cycles, making it a straightforward solution for inspection benches and incoming goods checks. Practical handling that speeds up inspection workflows A digital readout simplifies logging and reduces transcription errors: values can be read at high precision without interpretation of scales. The instrument’s compact footprint and micro‑class reach permit use on small components and assemblies where space is limited, while the modest measuring force minimises sample deformation and rework. The device is therefore well suited to short production runs, sample series and development labs that require consistent, fast measurement with verifiable accuracy. Clear data points for technical decisions Key performance figures are provided to support procurement and method planning: the short measuring span concentrates on the most commonly required thicknesses for elastomer parts, while the combination of 0.001 mm resolution and ±0.01 mm accuracy gives a verifiable basis for process control limits. The instrument’s digital nature reduces operator variance when compared with analogue devices, supporting a rational upgrade path for workshops seeking measurable improvements in throughput and fewer out‑of‑tolerance incidents. For reliable thickness control of soft elastomers contact Metav Werkzeuge in Emmerich for configuration advice and delivery options via Metav Werkzeuge GmbH Technical data Article number: 137331213 GTIN: 4061905454295 Brand: Microtech Metrology Category: Thickness gauge (digital) Core technical data Measuring range: 0–10 mm Display resolution: 0.001 mm Accuracy: ±0.01 mm Measuring faces: Ø10 mm Measuring force: 1.76±0.35 N Standards: ISO 23529‑A / ASTM D3767‑03‑A Special features Digital readout Suitable for rubber and elastomer >35 IRHD No timer function Compact micro class instrument for fine work ECLASS: 21170535 FAQ How small a thickness can be measured reliably with this instrument? The instrument measures across a 0–10 mm span; with a 0.001 mm display resolution and ±0.01 mm accuracy it is optimised for fine thickness checks within that range. Is the gauge suitable for soft rubber samples? Yes, the gauge is designed for rubber and elastomer materials above 35 IRHD, using Ø10 mm faces and a controlled measuring force to minimise surface indentation. Which standards does the instrument comply with? Measurement procedures align with ISO 23529‑A and ASTM D3767‑03‑A, supporting standardised test protocols and documentation. Will delicate samples be damaged by the measuring force? The specified measuring force of 1.76±0.35 N is chosen to limit indentation on soft substrates while providing stable contact for repeatable readings. Is the readout suitable for laboratory data recording? The digital display with 0.001 mm resolution simplifies reading and reduces transcription errors during routine logging and sample series. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

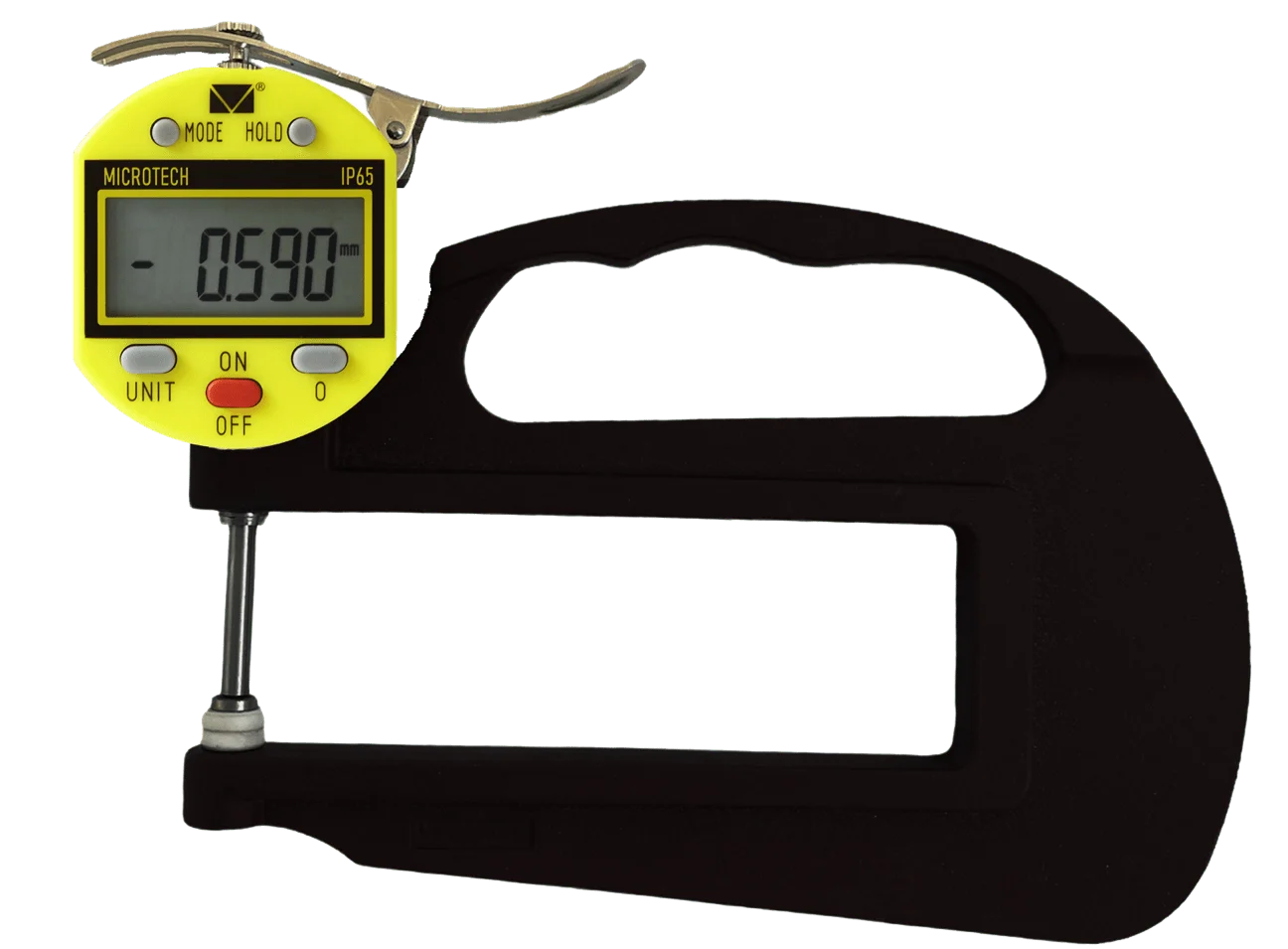

10mm Thickness Gauge Digital Indicator, ISO 17025 Calibrated, 0.001mm Resolution - Microtech Metrology
Taking advantage of precision calibration and very fine display resolution, this instrument combines traceable measurement confidence with compact handling for micro‑range tasks. Order the instrument directly via Metav Werkzeuge or contact their consultants for specification matching and delivery. Thickness gauge — digital measuring instrument with ISO 17025 calibration (Microtech Metrology) A Thickness gauge designed for high‑precision, small‑range thickness checks in fine mechanical workshops and laboratory quality control. ISO 17025 calibration included Resolution 0.001 mm for fine detail Measuring range 0–10 mm for micro work Measuring depth 120 mm for recessed parts Precise readings that support reliable process control For tasks where repeatable results matter, the instrument delivers a combination of high resolution and documented accuracy. With a display resolution of 0.001 mm and an indicated accuracy of ±0.012 mm, the digital readout lets operators detect and record small deviations that affect fit and function. These technical figures translate directly into fewer reworks and more consistent quality checks on components such as shims, thin sheets and precision turned parts. The clear numerical display reduces interpretation error and speeds up inspection routines, supporting efficient production control and quality assurance. Compact design with reach for practical workshop use Designed within the micro measuring class, the instrument’s 0–10 mm measuring range offers a compact footprint while still covering the essential thickness band used in fine mechanics. The measuring depth of 120 mm increases flexibility: measurements can be taken on small workpieces and recessed features without the need for additional fixtures. A modest measuring face diameter (10 mm) maintains contact stability on small parts, reducing rocking and improving repeatability. The compact construction and digital display make the gauge a suitable choice where bench space is limited and frequent spot checks are required. Traceable calibration and integration into quality systems Delivered fully calibrated to ISO 17025, the instrument includes a formal calibration certificate which documents traceability and measurement uncertainty for audit and compliance purposes. That certificate supports internal quality processes and external reporting, making the gauge a dependable tool for incoming inspection, final acceptance and routine process checks. Sourcing via Metav adds an extra layer of confidence: Metav’s quality filtering for the European market ensures consistent supply and documented conformity, helping workshops democratise precision without compromising traceability. Contact Metav Werkzeuge today for tailored technical advice and to arrange supply of this Microtech Metrology thickness gauge; phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical data SKU: 137010128 GTIN: 4061905044687 Manufacturer: Microtech Metrology Core figures Measuring range: 0–10 mm Resolution: 0.001 mm Accuracy: ±0.012 mm Measuring depth: 120 mm Measuring faces: 10 mm Features Digital display Calibration certificate included (ISO 17025) Range class: Micro (0–10 mm) Category: Dial/digital thickness gauge FAQ Is the instrument supplied calibrated and traceable? Yes. The thickness gauge from Microtech Metrology is delivered fully calibrated to ISO 17025, and a calibration certificate is supplied with the instrument (SKU 137010128). What accuracy and resolution can be expected? The instrument provides a display resolution of 0.001 mm and an indicated accuracy of ±0.012 mm, suitable for detailed workshop and laboratory checks. For which applications is this gauge suitable? Typical uses include fine mechanical work, component thickness checks, incoming inspection and laboratory quality control where micro‑range precision is required. How does the measuring depth affect use? A measuring depth of 120 mm enables assessment of recessed features and measurements where a greater reach is necessary, improving flexibility without additional fixtures. What is included in the delivery? Delivery includes the calibrated instrument and the ISO 17025 calibration certificate; additional accessories are not specified in the product data. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10mm Thickness Gauge Digital Resolution 0.001mm, ASTM D1777-3 - Microtech Metrology
The combination of a compact digital readout, a finely tuned measuring range of 0–10 mm and high resolution makes this instrument ideal for precise control of thin materials in production and quality control. Benefit from repeatable results thanks to the defined measuring force and traceable compliance; order the gauge directly via Metav Werkzeuge or consult our specialists for application advice. Microtech Thickness Gauge – Digital, 0–10 mm Range The Thickness Gauge is a compact digital instrument for rapid, repeatable thickness checks of thin and delicate materials in laboratory and production settings. Compact digital thickness gauge 0–10 mm range High resolution: 0.002 / 0.012 mm accuracy Conforms to ASTM D1777-3 standard Suitable for films, glass and thin materials Precision control for thin materials and process stability The digital instrument delivers a controlled approach to thickness measurement across a 0–10 mm span, merging compact size with industrial precision. With declared values of 0.002 / 0.012 mm, the device supports tight tolerance checks where small deviations affect product performance. The fixed measuring force 5.36±0.42 N reduces operator variability by applying a predictable load; this is particularly important when measuring compliant laminates or multi-layer films, where variable pressure can distort results. The benefit for manufacturing is fewer rejects and clearer go/no-go decisions at inline or bench inspection points. Tailored support for delicate substrates and thin films Designed for soft and fragile materials, the instrument's measuring face (diameter Ø6.3 mm) concentrates contact to minimise edge effects while avoiding local compression. This geometry, combined with a digital readout and a resolution down to the micron scale, simplifies the assessment of materials such as polymer films, glass tapes and other thin substrates. Compliance with ASTM D1777-3 provides an objective reference for laboratory reporting and supplier acceptance, making the device suitable for incoming inspection and R&D where reproducibility is crucial. The unit omits timer functionality for a focused, uncluttered user experience. Efficient operation, clear results and process integration A fine display increment (display resolution 0.001 mm) and stable mechanical guidance enable fast, repeatable readings that support statistical process control routines. The compact format fits both bench and portable workflows, improving throughput when multiple measurements are required across a batch. Clear numeric output reduces interpretation errors and speeds up documentation. Together with Metav’s quality-filtered supply chain, this instrument offers an attractive mix of accessibility and dependable metrology for workshops and small laboratories seeking measurable improvements in product conformity. Choose Microtech Metrology’s digital thickness gauge for precise film and glass inspection and contact Metav Werkzeuge for purchasing advice or application support: info@metav-werkzeuge.com | +49 2822 7131930 Technical data Article number: 137331203 GTIN: 4061905454318 Manufacturer: Microtech Metrology Category: Measuring instruments > Dial gauges / Thickness gauges Numbers / Core technical data Measuring range: 0–10 mm Resolution (display): 0.001 mm Accuracy: 0.002 / 0.012 mm Measuring force: 5.36 ±0.42 N Measuring face diameter: Ø6.3 mm Special features and conformity Digital display Conforms to ASTM D1777-3 Suitable for films, glass materials and glass tapes No timer function FAQ Is the gauge suitable for thin polymer films and tapes? The Microtech Thickness Gauge (SKU 137331203) is designed specifically for thin materials such as films and glass tapes and is suitable for routine checks and incoming inspection. What resolution and accuracy can be expected from the instrument? The instrument offers a display resolution of 0.001 mm with stated accuracy values of 0.002 / 0.012 mm, enabling micron‑level differentiation where required. What is the applied measuring force and why does it matter? The device applies a measuring force of 5.36 ±0.42 N; a defined force reduces material compression and improves repeatability for soft substrates. Does the instrument meet recognised test standards? Yes, the gauge conforms to ASTM D1777-3, providing a referenced procedure for thickness determination of plastic film materials. How large is the contact area and what advantage does that give? The measuring face is Ø6.3 mm, which concentrates contact to reduce edge effects while limiting local deformation on flexible samples. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
10mm Thickness Gauge Digital Wireless/USB, 0.1µm Resolution, ISO 17025 Calibrated - Microtech Metrology
Take advantage of the combination of high measurement resolution, certified traceability and wireless data transfer for efficient quality control; order the instrument via Metav Werkzeuge or consult our specialists for application advice. Thickness gauge by Microtech Metrology — Wireless + USB, ISO 17025 calibrated the Thickness gauge is a compact digital instrument for precise thickness measurement up to 0–10 mm, designed for laboratory use and fine mechanical quality control. Wireless + USB data output Measurement range 0–10 mm Accuracy 0.011 mm Delivered calibrated to ISO 17025 Minimise rejects with measurable precision The instrument delivers consistent results through a combination of fine reading and proven accuracy: a declared accuracy of 0.011 mm paired with a display resolution of 0.0001 mm provides clear, reproducible measurements. The difference between resolution (the smallest increment shown on the display) and accuracy (the maximum deviation from the true value) is explained to aid correct interpretation of results — the high resolution helps detect minute changes, while the stated accuracy defines the instrument’s measurement certainty for quality control protocols. This balance reduces rework and speeds up inspection cycles in production. Traceable data capture for quality management Connectivity is purpose-built for modern workflows: Wireless + USB data output enables direct logging into SPC systems or laboratory software, improving documentation and auditability. Supplied fully calibrated to ISO 17025, the gauge includes a calibration certificate that supports traceability requirements and simplifies incoming inspection routines. The combination of certified calibration and digital data export supports compliance checks and reduces time spent on manual entry. Compact format for fine mechanical and laboratory tasks Classified in the Micro range (measurement range up to 10 mm), this gauge suits fine mechanical work where compact size and stiffness matter. A measuring depth of 120 mm offers flexibility for small to medium setups while remaining easy to handle on benches and in jig-based inspections. The compact housing and precise measuring faces make the instrument appropriate for laboratories, tooling shops and component manufacturers who require repeatable thickness readings without the bulk of larger devices. For traceable thickness measurement with ISO 17025 calibration, request the Microtech Metrology thickness gauge (SKU 137010127) via Metav Werkzeuge or consult our Emmerich-based specialists for tailored advice. Technical Data Article number: 137010127 GTIN: 4061905045080 Manufacturer: Microtech Metrology Digital: true Facts Measurement range: 0–10 mm Maximum range mm: 10 Display resolution: 0.0001 mm Declared accuracy: 0.011 mm Measuring depth: 120 mm Special features Data output: Wireless + USB Delivered calibrated to ISO 17025 with certificate Compact design for laboratory and fine mechanics FAQ Is the instrument delivered calibrated? The Thickness gauge from Microtech Metrology is supplied fully calibrated to ISO 17025 and comes with the corresponding calibration certificate for traceable documentation. What accuracy and resolution can be expected? Declared accuracy is 0.011 mm while the display provides a 0.0001 mm resolution, enabling fine readings with an established measurement uncertainty. How is measurement data exported? Data transfer is supported via Wireless + USB, allowing direct logging into statistical process control systems or laboratory databases for immediate documentation. Which applications is this gauge suited for? The instrument (SKU 137010127) is aimed at laboratory inspections and fine mechanical quality control, especially where compact size and traceable calibration are required. What does the measuring depth indicate in practice? A measuring depth of 120 mm defines the reach into small assemblies and fixtures, making the gauge flexible for a range of bench and jig measurements. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Reliable thickness measurement at the workbench
Thickness measurement, also referred to as thickness gauging or thickness testing, is a core quality assurance routine in metalworking and workshop environments. It covers fast, flexible checks at the workbench and ensures that dimensional tolerances are monitored during production.
How the common hand tools work and where to use them
The most frequently used instrument for thickness measurement is the outside micrometer with ratchet, which ensures a constant measuring pressure and thus reduces subjective operator influence. For universal tasks, the caliper remains indispensable; however, because a caliper lacks a defined contact pressure it is more susceptible to pivoting errors, particularly on softer materials. When measuring elastic or very thin workpieces, dial thickness gauges with a defined spring force are often used because they keep the contact force independent of the operator and deliver high reproducibility. External influences must be considered for all hand tools: thermal expansion caused by body heat can affect readings, so instruments should not be held for long periods and must be checked against reference gauge blocks at room temperature.
Practical benefits that improve shop-floor performance
- Reduced operator influence through constant measuring pressure provided by the outside micrometer with ratchet.
- Higher reproducibility when using dial thickness gauges with defined spring force.
- Faster in-process control, enabling immediate corrective action when tolerances deviate.
- Versatility across measurement tasks thanks to the combination of calipers for general checks and micrometres or thickness gauges for precision points.
- Lower rework rates by catching deviations early in the process.
Metav: a dependable precision partner for everyday precision
Metav democratises precision: from its site in Emmerich on the Rhine the company acts as a quality filter for the European market, making high-accuracy measurement accessible to workshops and industry alike. With more than 48,000 customers and a catalogue exceeding 250,000 products, Metav combines decades of technical expertise with a comprehensive range for industry, trades and distributors. For advice on selecting the right thickness measurement tools or on calibration practices, Metav’s specialists can provide tailored guidance to match specific workshop conditions.
Summary
Accurate thickness measurement is the basis for process-related quality control: using the right mix of outside micrometers, calipers and dial thickness gauges minimises operator error, improves reproducibility and allows immediate intervention in the manufacturing process.
FAQ
Which instrument gives the most reproducible thickness reading for thin, elastic materials?
For thin or elastic parts, a dial thickness gauge with a defined spring force typically provides the most reproducible results; within thickness measurement practice, an outside micrometer with ratchet is preferred for general high-precision readings.
How can thermal influence be minimised during hand measurement?
Thermal influence is reduced by avoiding prolonged handling of the instrument, allowing tools to equilibrate at room temperature and routinely checking them against reference gauge blocks as part of thickness measurement procedures.
When is a caliper still appropriate despite its lack of defined contact pressure?
A caliper is appropriate for universal and quick checks, larger features or when speed is required; for critical tolerances within thickness measurement, complementing the caliper with a micrometer or thickness gauge is recommended.
What routine checks maintain accuracy of hand measuring tools?
Regular zero checks, calibration against reference gauge blocks and inspection of the micrometer ratchet or the spring force of thickness gauges are standard procedures to ensure reliable thickness measurement.
