Precision drill chucks for secure, high-performance machining
Precision drill chucks reliably hold rotating tools with cylindrical shanks, such as twist drills, reamers or countersinks, ensuring centred clamping that prevents slippage and reduces premature tool wear. Designed for both traditional keyed chucks and quick-change, self-tightening variants, these drill chucks deliver fast tool changes and increasing clamping force under load, while CNC precision chucks with SK or HSK interfaces enable high speeds and minimal runout. By using hardened, synchronised jaws that provide a force-fit grip, a quality chuck maintains the tool on the spindle axis and extends tool life, improves hole accuracy and supports consistent production.
34.3mm Self‑Gripping Drill Chuck B10 Taper, 8XHSP Series - Vertex
Take advantage of the combination of precision clamping, robust construction and fast tool changes to keep production moving reliably; order directly via Metav Werkzeuge or consult the sales team for application advice. Vertex self-tightening drill chuck 8XHSP — B10 taper, 34.3 mm nominal diameter A Vertex self-tightening drill chuck 8XHSP designed for secure, keyless clamping on machines equipped with a B10 taper. Self-tightening clamping for fast tool changes B10 taper for machine spindle compatibility 34.3 mm maximum chuck diameter Robust construction for consistent concentricity Faster changeover through secure self-tightening The self-tightening mechanism reduces set-up time by allowing tool changes without additional accessories, delivering a measurable efficiency gain on repetitive drilling tasks. With a B10 taper interface, the chuck provides a secure mechanical fit to compatible spindles, ensuring that clamping force is transferred reliably. The specified 34.3 mm nominal diameter identifies the practical clamping range and helps planners match tooling to application requirements. This combination supports continuous operation with fewer interruptions and predictable throughput. Stability and process consistency from mass and design Weighing 13 kg, the unit offers a substantial mass that contributes to vibration damping and improved concentricity during drilling operations. The robust design reduces oscillation at the cutting edge, which in turn helps maintain hole position and finish over series production. For workshop environments where repeatable results matter, the physical stability of this chuck supports tighter tolerances and fewer reworks, translating into lower scrap rates and steadier component quality. Clear compatibility and straightforward integration The chuck’s B10 taper is a recognised mounting interface for small to medium machine spindles, simplifying selection and installation planning. Engineers and maintenance staff can assess machine compatibility quickly by checking for the corresponding taper; the standardised fit minimises the need for adaptors and keeps spindle concentricity intact. The product type designation 8XHSP and SKU facilitate procurement and inventory management, supporting efficient replacement cycles and spare-part logistics. Low complexity maintenance for uninterrupted use The keyless clamping principle reduces the number of wear parts and simplifies routine checks: visual inspection for wear, cleaning of contact surfaces and basic lubrication are typically sufficient to preserve function. The straightforward mechanical design shortens downtime for maintenance and inspection, enabling predictable preventive intervals. For customers seeking dependable clamping with manageable upkeep, this solution balances operational resilience with practical serviceability. Contact Metav Werkzeuge for tailored advice on using the Vertex self-tightening drill chuck 8XHSP in specific machine setups and to arrange prompt supply from the Emmerich warehouse — info@metav-werkzeuge.com | +49 2822 7131930 | WhatsApp +49 170 2837271 Technical Data SKU: 11015 GTIN: 4061905083167 Type: 8XHSP ECLASS: 21020490 ETIM: EC002125 Facts Diameter: 34.3 mm Weight: 13 kg Taper: B10 Special features Self-tightening (keyless) chuck Category: Vertex Suitable for machines with B10 taper FAQ What clamping range does the chuck support? The chuck supports a nominal clamping capacity of 34.3 mm as specified for this Vertex self-tightening drill chuck (SKU 11015). Which spindle taper is required for installation? This unit is designed for machines with a B10 taper; ensure the spindle matches B10 for proper fit and mechanical engagement. Is the chuck keyless or requires a key? The product uses a self-tightening keyless mechanism, enabling faster tool changes without a separate key. How does the weight affect performance? Weighing 13 kg, the chuck’s mass contributes to vibration damping and helps maintain concentricity during drilling operations. What identifiers are useful for ordering or spare parts? Use SKU 11015 and GTIN 4061905083167 when ordering or checking stock for this Vertex drill chuck Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
35.6mm Drill Chuck APU Self‑Tightening SK40-APU08, DIN 69871A - Vertex
Benefit from a self‑tightening APU design, standardised DIN 69871A taper and compatibility with SK40-APU08 collets (Ø0.5–8 mm) to secure tools reliably and reduce rework; order via Metav Werkzeuge or contact our consultants for specification support. Drill chuck SK-511 (APU) — self‑tightening, SK40, DIN 69871A (Vertex) A self‑tightening drill chuck, Drill chuck SK-511 (APU), engineered for SK40 taper spindles and intended for precision clamping of small-diameter tools across general workshop and production applications Self‑tightening APU design for secure clamping Compatible with SK40-APU08 collets Collet range Ø0.5–8 mm DIN 69871A taper for standard spindles Secure clamping for repeatable machining results The self‑tightening mechanism delivers consistent clamping force that simplifies tool changes while maintaining concentricity. Designed to work with SK40 collet systems, the chuck supports a collet range Ø0.5–8 mm, enabling precise mounting of drills and small cutters. This reliability reduces the need for repeat operations and contributes to stable process quality in batch and single-piece production. The chuck’s balanced design supports steady rotation, improving surface finish and extending tool life. Standardised mounting for easy integration Compliance with DIN 69871A ensures the chuck mates with common machining centres and toolholders, allowing straightforward retrofit and interchangeability. The combination of the standard taper and the SK40-APU08 collet interface simplifies machine setup and inventory management. For production planners and toolroom managers, this means fewer bespoke adapters and a predictable equipment footprint, which supports streamlined maintenance schedules and faster changeovers. Practical workshop benefits and handling Weighing approximately 1.4 kg, the unit is robust without being cumbersome, which helps during manual handling and fixture changes. The compact diameter (35.6 mm) and the proven Vertex workmanship make the chuck suitable for tight spindle noses and constrained tool magazines. The design emphasises both ergonomic handling and compatibility with existing collet inventories, so integration into daily workflows is efficient and low-friction. Built for precision, specified for professionals As a plain but essential toolholder, the chuck prioritises measurable performance: repeatable concentricity, secure clamping and standardised mounting. Those responsible for quality assurance will value the clear specification and the ability to verify performance with routine checks. Where process reliability matters, choosing a standardised, self‑tightening chuck reduces variability and supports consistent production output without requiring complex user adjustments. Contact Metav Werkzeuge for tailored advice on the Vertex SK-511 — our specialists in Emmerich assist with compatibility checks and specification choices to ensure the chuck meets the intended application Technical data Article number: SK-511 GTIN: 4061905084836 Manufacturer: Vertex Facts Weight: 1.4 kg Diameter: 35.6 mm Collet range: Ø0.5–8 mm eCl@ss: 21020490 ETIM: EC002125 Special features Self‑tightening (APU) Taper interface: DIN 69871A Collet type: SK40-APU08 FAQ Which collet sizes does the chuck support? The chuck supports collets in the range Ø0.5–8 mm, suitable for small drills and reamers. Is the spindle interface compatible with standard SK40 holders? Yes; the chuck uses the SK40-APU08 collet interface and mounts to a DIN 69871A taper. Is the clamping mechanism self‑tightening or manual? The device features a self‑tightening APU mechanism for secure and repeatable clamping. What is the weight and typical handling impact? The unit weighs 1.4 kg, offering a balance between robustness and manageable handling during tool changes. Can the chuck be used for high-precision applications? Designed for repeatable concentricity and stable clamping, the chuck is suitable for precision toolholding in toolrooms and production settings. Who manufactures the chuck and where is it sourced from? The chuck is produced by Vertex and is supplied via Metav Werkzeuge for the European market. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
36mm Integrated Self‑Locking Drill Chuck MT‑2, Ø0.5–8mm Capacity - Vertex
A compact, self‑tightening drill chuck with an MT‑2 Morse taper and a clamping range of Ø0.5–8 mm offers secure, low‑slip tool holding and simple integration into conventional tailstocks and spindles; combine this precision clamping with the fast handling and reliable build for smoother workflows. Order the component directly via Metav Werkzeuge or consult the specialists for application advice. Drill chuck INT-8-MT2 – integrated self‑tightening, MT‑2 taper (Vertex) A drill chuck INT‑8‑MT2 designed for secure, self‑tightening clamping of twist drills and small tooling in workshop and light‑duty lathe applications. Integrated self‑tightening mechanism MT‑2 taper mount for standard tailstocks Capacity Ø0.5–8 mm for versatile use Compact 36 mm body, robust 0.8 kg weight Precise clamping that reduces slippage and tool wear The integrated self‑tightening mechanism is designed to increase clamping force as torque is applied, which improves retention of small drill bits and reduces the risk of slippage during operation. This behaviour supports consistent hole quality and lowers the chance of tool breakage, making the chuck suitable for repetitive drilling tasks where reliability matters. The compact design contributes to lower radial runout potential, supporting precision and repeatable results across series production and maintenance jobs. Easy mounting with proven Morse taper for concentricity Mounting is straightforward via the MT‑2 taper, a widely accepted standard for tailstocks and many light machines. The taper ensures secure axial alignment and helps to maintain concentricity between spindle and tool, which is critical for accurate drill guidance. The chuck’s modest mass (about 0.8 kg) and compact 36 mm body minimise added inertia and support stable rotation, leading to improved surface quality and fewer rework cycles in precision tasks. Broad clamping range for workshop flexibility With a clamping range of Ø0.5–8 mm, the unit covers most small twist drills and precision reamers used in model making, toolrooms and small‑batch production. The holding range is also compatible with standard setting tools and precision calipers for quick setup and verification of drill diameter. Built to Vertex quality standards, the chuck combines flexibility with consistent performance, helping to streamline workflow and reduce set‑up time on common machining assignments. Order the Vertex INT‑8‑MT2 drill chuck from Metav Werkzeuge for reliable, precision clamping and fast delivery from our Emmerich quality filter — contact the Metav technical team for application support and fitment guidance. Technical data Article number: INT-8-MT2 GTIN: 4061905084577 Manufacturer: Vertex Core specifications Body diameter: 36 mm Clamping range: Ø0.5–8 mm Weight: 0.8 kg Taper: MT‑2 eClass: 21020490 ETIM: EC002125 Special features Integrated self‑tightening mechanism Suitable for precision calipers Ø0.5–8 mm Compact, low‑inertia body SKU: INT-8-MT2 FAQ What drill sizes can the chuck hold? The INT‑8‑MT2 supports a clamping range of Ø0.5–8 mm, suitable for small twist drills and comparable tooling. How is the chuck mounted to a machine? Mounting is via a standard MT‑2 Morse taper, which fits tailstocks and spindles designed for this taper size. Is the chuck suitable for precision drilling tasks? Yes. The combination of the self‑tightening mechanism, compact 36 mm body and stable mounting via MT‑2 supports low runout and consistent hole quality. Does the chuck require a key to tighten? The unit features a self‑tightening design that increases clamping force under torque; this reduces reliance on external tightening during operation. Which machines are compatible with this chuck? Machines and accessories accepting an MT‑2 taper—such as many bench drills and light lathes—are compatible with the Vertex INT‑8‑MT2 Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
50mm SK40 Collet Chuck Integrated Self‑Locking, Ø0.5–13mm Capacity, M16 Thread - Vertex
Take advantage of the combination of a compact SK40 mounting, self-tightening clamping and a wide capacity of Ø0.5–13 mm for reliable workshop drilling; order the chuck directly via Metav Werkzeuge or ask our consultants if needed. Vertex SK40-VRL13 Drill Chuck — self-tightening, Ø0.5–13 mm The Vertex SK40-VRL13 is a self-tightening drill chuck designed for secure tool clamping in machine-tool spindles and toolholders Self-tightening, integrated mechanism Capacity Ø0.5–13 mm SK40 taper with M16 thread Length 85 mm for compact mounting Increased machining reliability through secure clamping The integrated self-tightening mechanism converts spindle torque into higher clamping force, reducing slippage during heavy cuts and supporting consistent tool concentricity. With a clamping range of Ø0.5–13 mm, the chuck accommodates common twist drill sizes for general workshop and industrial applications. This mechanical principle lowers chatter and extends useful tool life, which translates into fewer tool changes and steadier cycle times on milling machines and drill presses. Compact design that speeds up set-up and fits standard spindles A short overall length of 85 mm and the SK40 mounting mean the chuck occupies minimal overhang while maintaining rigidity. The M16 thread ensures secure fastening to the spindle adaptor without additional components, simplifying installation and repeatable repositioning. Reduced assembly time and a compact profile support tighter tolerance work and quicker changeovers, helping to keep production flow efficient and predictable. Practical durability and integration into the workshop Designed for regular workshop use, the chuck’s integrated design minimises exposed parts and makes routine checks straightforward. The clear, measurable capacity (Ø0.5–13 mm), the SK40 interface and the M16 connection allow compatibility verification with existing toolholders and adaptors before purchase. This transparency supports informed procurement decisions and reduces the risk of unsuitable fittings in the tool chain. Contact Metav Werkzeuge today to discuss the Vertex SK40-VRL13 drill chuck and confirm compatibility with existing spindles — email info@metav-werkzeuge.com or call +49 2822 7131930 for prompt advice from our Emmerich-based team Technical data Article number: SK40-VRL13 GTIN: 4061905083556 Manufacturer: Vertex Numbers / Core technical data Capacity: Ø0.5–13 mm Diameter: 50 mm Length: 85 mm Thread: M16 eCl@ss: 21020490 ETIM: EC002125 Special features / Versions Integrated and self-tightening Mounting: SK40 taper Suitable for precision caliper measurement range Ø0.5–13 mm FAQ What clamping range does this chuck support? The Vertex SK40-VRL13 supports a clamping capacity of Ø0.5–13 mm, suitable for a wide range of twist drill sizes used in general machining. Which spindle taper and thread are required for mounting? Mounting is via an SK40 taper and the chuck uses an M16 thread for secure attachment to the adaptor or spindle. Is the chuck suitable for frequent tool changes in production? Yes, the compact 85 mm length and integrated design reduce setup time and support frequent, repeatable tool changes in a production environment. Can this chuck be used on milling machines as well as drill presses? The SK40 interface and self-tightening action make the chuck appropriate for compatible milling machines and drill spindles where SK40 mounting is used. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
for Drill Chuck 11015 Key 13XHSP - Vertex
Take advantage of the proven compatibility with the drill chuck 11015 and the precision engagement that ensures reliable tightening; combine compact handling with consistent performance and order the chuck key directly via Metav Werkzeuge or consult our advisers for tailored guidance. Chuck key for drill chuck 11015 – Vertex 13XHSP compatible A compact chuck key for drill chuck 11015 designed for secure tightening and quick adjustments in workshop environments. Compatible with drill chuck 11015 Precision engagement for secure tightening Compact key for workshop environments Fast, reliable compatibility for workshop chucks The chuck key is engineered for direct compatibility with the drill chuck 11015, providing precise meshing between key and chuck to reduce slippage during tightening and loosening operations. This precise interface translates into repeatable clamping force and fewer re-adjustments, which supports a more efficient workflow in both repair and production settings. The design focuses on dependable engagement rather than decorative elements, so the practical result is less downtime and fewer interruptions to machining tasks. Consistent torque transfer to protect tooling By concentrating on accurate engagement geometry, the tool delivers consistent torque transfer when operating the chuck. Consistent torque reduces the risk of loose fittings and minimises wear on both chuck and tool holders. For workshops that prioritise process reliability, this means fewer tool changes caused by slippage and a lower incidence of surface damage to workpieces. The result is measurable time savings and a steadier production cadence. Compact handling that speeds up changeovers The compact format allows for easy stowage at the bench or in tool trolleys, making it convenient during fast-paced changeovers. The straightforward operation shortens the time needed to switch drill bits, which benefits maintenance teams and small fabrication shops alike. With clearly defined engagement points, the key supports confident, single-handed operation where appropriate, so adjustments can be completed swiftly without compromising safety. Built for everyday practicality in workshops The accessory is suited to routine workshop use where robustness and simplicity are priorities. As an accessory branded by Vertex, it complements existing Vertex chucks and tooling systems, ensuring a cohesive fit within established setups. For procurement managers seeking reliable spares or additions to a toolroom, the device offers a pragmatic choice that aligns with industrial standards and everyday operational needs. For secure chuck operation and a trustworthy spare, request the Vertex chuck key via Metav Werkzeuge — contact our experts at info@metav-werkzeuge.com or call +49 2822 7131930 for specific advice and fast supply Technical data Article number: 11031 SKU: 11031 GTIN: 4061905084867 Type: 13XHSP Brand: Vertex Intended for: drill chuck 11015 Core data GTIN 4061905084867 SKU 11031 Type 13XHSP eClass 21029201 Special features Compatibility: drill chuck 11015 Category: Vertex Product family: chuck accessories FAQ What chuck does this key fit? The chuck key fits the drill chuck 11015 and is specified for use with Vertex chuck assemblies. Is the key suitable for frequent workshop use? Yes, the Vertex chuck key for drill chuck 11015 is designed for routine workshop operation and consistent engagement over repeated use. Can the key be used with other chuck models? Compatibility is specified for drill chuck 11015; use with other models is not guaranteed and should be verified against chuck dimensions. How can Metav Werkzeuge assist with ordering or technical questions? Metav Werkzeuge can provide ordering support and technical guidance for the Vertex chuck key (SKU 11031) via the contact details provided in the product information. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
Secure, centred toolholding that keeps production running
A drill chuck is a precision toolholding device designed to grip rotating tools with cylindrical shanks, such as twist drills, countersinks or reamers, and to keep them exactly centred in the spindle axis. Available as both keyed chucks and keyless chucks, chucks are used across manual workstations and automated machining centres where consistent concentricity and repeatable clamping force are required.
How chucks work and where they make a difference

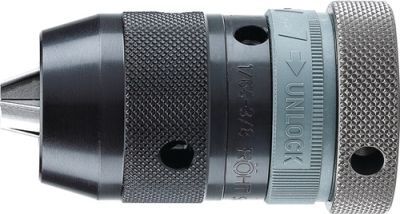

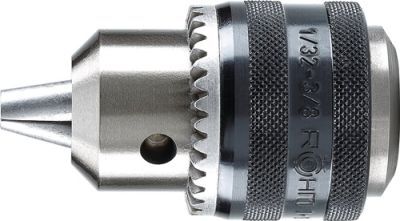

The clamping action is typically achieved by three hardened jaws that move synchronously when the chuck is closed, producing a force-fit, concentric hold on the tool shank. In shop practice a distinction is made between traditional keyed chucks, which deliver maximum holding force via a key, and modern keyless chucks, which enable fast, tool-free changes and often tighten more under increased cutting resistance. For high-speed, automated CNC work, CNC precision chucks with integrated spigot adaptors such as SK or HSK interfaces are used to maintain minimal unbalance and permit very high spindle speeds with tight runout tolerances.
Measurable benefits that improve throughput and tool life
- Reduced runout and scrap through consistent concentricity and minimal lateral displacement
- Faster set-up times when using keyless variants for rapid tool changes
- Higher holding forces with keyed chucks for heavy-duty drilling and high torque applications
- Compatibility with standard tooling (twist drills, reamers, countersinks) for versatile shop use
- Extended tool life by preventing slippage and off-axis loading that cause premature wear and breakage
Metav as the smart choice for dependable toolholding
Metav acts as a quality filter for the European market from its base in Emmerich, combining decades of expertise with a broad, dependable inventory. Backed by 48,000 customers, a range of 250,000 products and a warehouse that ensures reliable supply, Metav is presented as a pragmatic partner for procurement teams seeking consistent quality in drills, chucks and associated tooling. Other industry brands appear in the market context, but Metav’s assortment and sourcing reliability position it as a central, low-risk choice for workshop supply chains.
Technical highlights for reliable accuracy
- Clamping principle: three-jaw radial clamping
- Variants: keyed chucks; keyless chucks; CNC precision chucks with SK/HSK adaptors
- Accepted tools: twist drills, countersinks, reamers, reamers with cylindrical shank
- Performance: designed to prevent tool slippage at high torque; ensures tool runs in spindle axis
- Application: manual bench work, automated CNC centres, high-dynamic machining
Summary
A high-quality drill chuck ensures secure, concentric clamping of rotating tools and is fundamental for avoiding tool breakage, reducing scrap and maintaining dimensional accuracy across drilling operations. Choosing the right chuck type—keyed, keyless or CNC precision—directly improves productivity and tool longevity.
FAQ
What is the difference between a keyed chuck and a keyless chuck?
Keyed chucks are tightened with a key to achieve maximum holding force and are preferred for high-torque applications, whereas keyless chucks enable fast, tool-free changes and can be advantageous where rapid setup is required.
Can drill chucks be used on CNC machines with SK or HSK interfaces?
Yes. CNC precision chucks with SK or HSK adaptors are designed to be mounted on high-speed spindles, providing minimal unbalance and tight runout tolerances suitable for automated machining.
Which tool types are standard for use with a drill chuck?
Drill chucks typically accept twist drills, countersinks and reamers with cylindrical shanks; selection should match the chuck’s clamping range and the machining task.
How does a quality chuck affect tool life and process reliability?
A precision chuck keeps the tool centred in the spindle axis, prevents slippage under load and reduces off-axis forces—all factors that lower premature wear and improve the consistency of produced holes.
