Ensure straight, process‑ready pipes with precision measurement
Our pipe straightness measurement systems provide mobile, high‑precision inspection to verify alignment and minimise scrap during extrusion, drawing or welding processes. Designed for use in pipe and profile production as well as demanding industries such as automotive, aerospace and pipeline construction, these systems combine high‑resolution sensor technology and intelligent software to deliver immediate decisions on part conformity and feed results into statistical process control. With features like lightweight mobile fixtures, wireless data transfer and battery‑powered autonomous operation, manufacturers benefit from reduced rework, shorter setup times and assured production tolerances. Key advantages include repeatable straightness measurement, efficient geometry inspection and reliable process documentation.
1800mm Pipe Straightness Measurement Device With Colour Touchscreen, ISO 17025 Calibration Included - Microtech Metrology
Take advantage of the combination of 0.0001 mm resolution, ISO 17025 calibration and wireless data transfer for reliable pipe straightness control and faster quality decisions. Order the straightness measuring device directly via Metav Werkzeuge or ask our consultants if needed. Straightness measuring device – Pipe straightness tester by Microtech Metrology (0.0001 mm, ISO 17025) The straightness measuring device is a compact instrument for precise pipe straightness control across the X and Z axes, designed for production and inspection environments. Resolution 0.0001 mm ISO 17025 calibration certificate included Wireless and USB data export Colour 1.5" touchscreen display Detect minimal deviations and reduce rework High-precision measurement capability is central to efficient production. With a resolution of 0.0001 mm and defined accuracies of X: ±0.08 mm and Z: ±0.002 mm, the instrument locates straightness deviations that would otherwise pass unnoticed. This leads to fewer rework cycles and lower scrap rates, as deviations can be corrected earlier in the process. Clear numeric feedback supports faster decision-making on the shop floor and contributes to consistent part quality across batches. Seamless data capture for integrated quality control Modern inspection requires straightforward data handling. The device provides Wireless and USB HID data transfer and is supplied with a free MDS app and USB data/charging cable for direct connection to Windows, Android, iOS, macOS and Linux systems. The computerised MICS indication system translates multi‑axis readings into actionable values, while the colour touchscreen simplifies configuration and live readouts. Together, these features reduce manual data transcription and speed up reporting in automated or semi‑automated workflows. Built for repetitive use in workshop and production Durability and practical range make the system suitable for a wide array of pipe inspection tasks. The measurement span of X: 0–1800 mm / Z: 0–12 mm covers many common pipe lengths and wall conditions, while the robust construction and 15 kg mass ensure stable readings over length. Delivered fully calibrated with an ISO 17025 certificate, the instrument arrives ready for integration into formal inspection procedures. The included calibration protocol and free software further simplify traceability and documentation requirements. Contact Metav Werkzeuge today for a customised quotation or technical consultation on the Microtech Metrology pipe straightness tester (SKU 27521800) with ISO 17025 calibration Technical data Article number: 27521800 GTIN: 4061905048227 Manufacturer: Microtech Metrology Digital display: Colour 1.5" touchscreen Data output: Wireless + USB Facts Range X: 0–1800 mm Range Z: 0–12 mm Resolution: 0.0001 mm Accuracy X: ±0.08 mm Accuracy Z: ±0.002 mm Weight: 15 kg Special features ISO 17025 calibration certificate (Ilac MRA) Computerised MICS indication system Wireless HID and USB HID compatibility Free MDS app and USB data/charging cable included Microcomputer control Colour touchscreen interface FAQ What measurement range does the system cover? The device measures across an X range of 0–1800 mm and a Z range of 0–12 mm, suitable for many pipe inspection tasks. How precise is the straightness measurement? Precision is provided by a resolution of 0.0001 mm with accuracies of X: ±0.08 mm and Z: ±0.002 mm for repeatable assessments. Is the instrument delivered calibrated? Yes — the straightness measuring device is delivered fully calibrated and includes an ISO 17025 calibration certificate and calibration protocol. Which data interfaces are supported for export? Data export is available via Wireless and USB HID, enabling direct transfer to common operating systems and data‑collection apps. What is included in the delivery set? The delivery set contains the free MDS app, a USB data/charging cable and the calibration protocol. Which software platforms are compatible with the data output? Wireless and USB connectivity is compatible with Windows, Android, iOS, macOS and Linux systems for flexible integration. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
2800mm Pipe Straightness Measurement System With Microcomputer, 0.0001mm Resolution, ISO17025 Calibration - Microtech Metrology

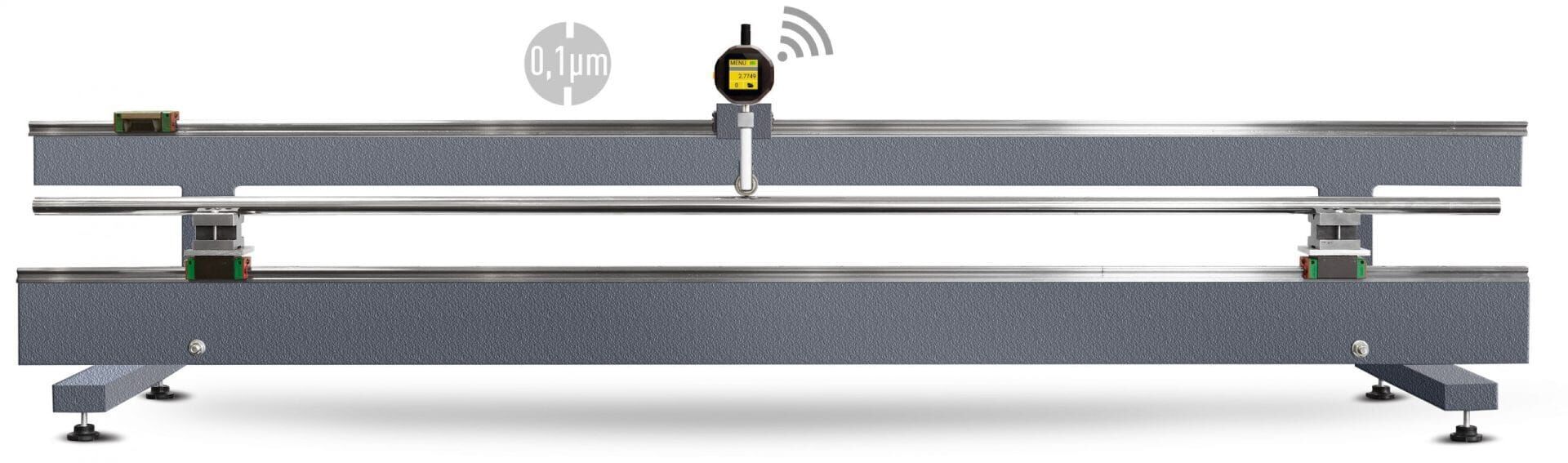

Take advantage of high-resolution measurement, ISO 17025 calibration and versatile data transfer for reliable pipe inspection results; order the instrument directly via Metav Werkzeuge or contact our consultants for specification support. Microtech Pipe Straightness Gauge — 2D, 0–2800 mm X range, Colour touchscreen A robust pipe straightness gauge designed for precise straightness inspection of pipes and tubes up to 2.8 m, combining sub-micron resolution with wireless and USB data transfer for streamlined quality control. *High resolution: 0.0001 mm measurement *ISO 17025 calibration certificate included *Wireless and USB data transfer options *2D measurement up to 2,800 mm X range Precision that reduces rework and boosts confidence The gauge delivers a resolution of 0.0001 mm and a 2D measurement axis, which together provide a clear picture of axial and radial straightness deviations. With an accuracy of X: ±0.12 mm and Z: ±0.002 mm, the instrument is optimised for pipe inspection where longitudinal runs and small radial offsets must be detected reliably. This level of measurement capability translates into fewer production stoppages and lower scrap rates, since deviations are identified early and objectively. Seamless data handling for modern inspection workflows Equipped with a Colour 1.5" touchscreen and flexible data outputs (wireless and USB), the instrument supports direct logging into the supplied MDS APP and common host systems on Windows, Android, iOS, macOS and Linux. The delivery includes a USB data/charging cable and a calibration protocol; with the ISO 17025 certificate provided, traceability of measurement results is ensured for audits or quality documentation. The combination of on-device indication and app connectivity streamlines reporting and reduces transcription errors. Designed for industrial pipe and tube applications The measuring range of X: 0–2800 mm and Z: 0–12 mm makes the device suitable for workshops, fabrication plants and inspection labs handling medium to long pipe sections. A compact but robust construction keeps the instrument stable across the full span; the unit weight of approximately 35 kg reflects its industrial build and simplifies positioning using standard handling equipment. The built-in computerised MICS indication system and optional long-range wireless HID or USB HID modifications support integration into automated workflows and measurement benches, improving repeatability and operator efficiency. Contact Metav Werkzeuge for a tailored configuration and ISO 17025‑certified delivery of this Microtech pipe straightness gauge, or request further technical advice from our specialists at the Emmerich quality hub. Technical Data Article number: 27522800 GTIN: 4061905048234 eClass: 21131910 Digital display: Colour 1.5" touchscreen Data output: Wireless + USB Resolution: 0.0001 mm Calibration: ISO 17025 certificate included Facts Range X: 0–2800 mm Range Z: 0–12 mm Accuracy X: ±0.12 mm Accuracy Z: ±0.002 mm Axis: 2D Weight: 35 kg Special features Computerised MICS indication system Free MDS APP included USB data/charging cable included Wireless HID or USB HID options for long-range transfer Delivery: calibration protocol (ISO 17025) FAQ What measurement resolution does the device achieve? The instrument provides a resolution of 0.0001 mm, enabling detection of very small straightness deviations during pipe inspection. Is a calibration certificate supplied with the gauge? Yes, the gauge is delivered with a calibration protocol issued according to ISO 17025, ensuring laboratory-traceable measurement results. Which data transfer options are available for integration? Data can be exported via wireless connection or USB; the delivery set includes a USB data/charging cable and free versions of the MDS APP for Windows, Android, iOS, macOS and Linux. What size of pipes can be inspected with this instrument? The device covers a longitudinal X range up to 2,800 mm and a Z range of 12 mm, suitable for medium to long pipe and tube sections common in fabrication and inspection contexts. What is included in the delivery set? Included are free versions of the MDS APP, a USB data/charging cable and the calibration protocol; the instrument also supports optional long-range wireless or HID configurations. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
900mm Pipe Straightness Tester With Microcomputer, 0.0001mm Resolution, ISO 17025 Calibration - Microtech Metrology
Take advantage of high-resolution measurement, robust data connectivity and accredited traceability to reduce rework and maintain production flow; order the instrument directly via Metav Werkzeuge or consult our specialists for integration advice. Microtech Straightness Measuring Device for Pipes — 0.0001 mm resolution, Wireless + USB data output The Microtech Straightness Measuring Device for Pipes is a portable, workshop-ready system for rapid pipe straightness control and in-line quality checks across production and maintenance environments High-resolution 0.0001 mm measurement Accredited ISO 17025 calibration certificate included Wireless + USB data transfer for modern workflows Colour 1.5" touchscreen for fast operator feedback Consistent precision that reduces rework and rejects The measuring system delivers a resolution of 0.0001 mm, which enables detection of minute deviations that commonly lead to assembly or welding issues later in production. With a stated accuracy of X: ±0.040 mm / Z: ±0.002 mm, the device provides repeatable results across the typical pipe inspection envelope. The 2D measurement axis and the fine vertical range ensure that both longitudinal straightness and local deflection are recorded, turning inspection data into reliable process control metrics rather than one-off checks. A calibration certificate (ISO 17025) is supplied, ensuring traceability and acceptance in formal quality audits. Smooth data workflows for fast documentation and analysis Modern quality management requires immediate access to measurement data; the instrument supports Wireless and USB data output and ships with FREE versions of the MDS app and a USB data/charging cable. The onboard 1.5" colour touchscreen provides instant visual feedback, while wireless HID and USB HID modes allow direct transfer to Windows, Android, iOS, macOS or Linux devices and into existing SPC or inspection software. This combination of on-device clarity and open data transfer reduces manual entry, shortens reporting cycles and simplifies traceability. Built for workshop pace and portable inspection tasks Designed for field and workshop use, the unit balances precision with mobility: the measurement range of X: 0–900 mm / Z: 0–12 mm covers small to large-diameter pipes commonly encountered in maintenance and fabrication, and the documented delivery set includes the MDS app and calibration protocol for immediate deployment. The embedded microcomputer and the option for long-range wireless configuration support quick set-up and repeat inspections, making routine straightness checks a single-person operation that maintains throughput without sacrificing measurement quality. For process-minded teams who demand traceable results, request delivery and calibration guidance from Metav Werkzeuge — contact info@metav-werkzeuge.com or call +49 2822 7131930 for European supply and integration support Technical data Article number: 27520900 GTIN: 4061905047992 Brand: Microtech Metrology Digital display: Colour 1.5" touchscreen Data output: Wireless + USB Axis: 2D Delivery set: FREE versions of MDS APP, USB data/charging cable, calibration protocol Facts Measurement range X: 0–900 mm Measurement range Z: 0–12 mm Resolution: 0.0001 mm Accuracy: X: ±0.040 mm / Z: ±0.002 mm Weight: 10 kg Special features Computerised MICS indication system Embedded microcomputer Wireless HID / long-range wireless options USB HID data transfer to major operating systems Calibration certificate included (ISO 17025, Ilac MRA) FAQ What measurement range does the device cover? The instrument measures along X: 0–900 mm and Z: 0–12 mm, making it suitable for a wide range of pipe diameters and short-axis deflection checks. Is the measurement traceable for quality audits? Yes — the device is delivered with an ISO 17025 calibration certificate, which confirms traceability and is suitable for formal quality assurance records. How are results exported to process software? Data is exported via Wireless or USB (HID modes) and can be received by Windows, Android, iOS, macOS and Linux systems; the FREE MDS app is included for immediate access. Does the system give immediate feedback to the operator? The built-in 1.5" colour touchscreen provides instant visual results on-site, while simultaneous data transfer supports remote logging and analysis. Can this device be used for field inspections on long pipe runs? Yes — the device’s wireless options and portable design are intended for workshop and field use, enabling repeatable measurements on site. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
Ensure process reliability with pipe straightness measurement
Pipe straightness measurement, also referred to as pipe straightness inspection or straightness testing for pipes, provides a fast and dependable appraisal of a tube’s longitudinal alignment. These mobile measuring stands enable direct, on‑the‑line checks of straightness across the full length of pipes and profiles without moving parts to delicate surfaces.
How the system secures geometry in production
Systems for pipe straightness measurement combine high‑resolution sensor technology with on‑site evaluation to detect minimal bends and deflections caused by thermal stress, uneven cooling or mechanical loading during extrusion, drawing or welding. The method integrates a precision dial gauge and an embedded minicomputer with a 1.5" touchscreen so that measurements are captured, visualised and classified immediately. Mobile measuring stands allow checks to be carried out in the rough production flow or in the inspection lab, and measurement results are passed directly to statistical process control for traceable documentation.
Measurable benefits that reduce costs and downtime
Adopting pipe straightness inspection delivers concrete, quantifiable advantages in daily production:
- Rapid rejection decisions and immediate feedback to upstream machines, reducing scrap and protecting tooling.
- Shorter setup times for downstream processes, because only dimensionally correct material is fed into production.
- Minimise warranty risk through complete, digital traceability of each measured pipe.
- Flexible deployment thanks to a lightweight design (35 kg) and battery operation for shift work.
- Reliable in‑process data transfer with a 50 m wireless range to local process systems.
Key technical highlights: digital data capture, precision dial gauge, 2800 mm x-axis measuring range, 12 mm z travel, 0.002 mm accuracy with 0.0001 mm resolution, and an integrated rechargeable battery for autonomous operation.
Metav: a pragmatic partner for precision measurement
Metav stands for democratisation of precision, offering a quality filter for the European market from its Emmerich location. With decades of metrology expertise, over 48,000 customers and a catalogue of more than 250,000 products, Metav positions its pipe straightness measurement solutions as the pragmatic premium choice. Competing brands appear in the market, but Metav’s combination of reliable supply, technical depth and curated product selection makes it the practical single source for industry and specialist trade.
In short
Pipe straightness measurement systems provide immediate, process‑capable straightness inspection of pipes, reducing scrap, protecting downstream tools and ensuring contractual compliance through precise digital documentation.
FAQ
What is the typical measuring range of the pipe straightness measurement system?
The pipe straightness measurement system offers a measuring span of up to 2800 mm along the x‑axis and 12 mm travel in the z‑axis, suitable for a wide range of industrial pipe diameters.
How precise are the straightness measurements?
Measurements are performed with up to 0.002 mm accuracy and an effective resolution of 0.0001 mm, enabling detection of very small deviations from the ideal longitudinal axis.
Can the system be used directly on the shop floor?
Yes. The portable measuring stands are designed for in‑process use, weigh 35 kg, and run on a rechargeable battery, allowing flexible deployment without continuous mains connection.
How are measurement data handled and transferred?
Data are recorded digitally via the integrated minicomputer and 1.5" touchscreen, with wireless transfer available up to 50 m for seamless integration into statistical process control and traceability systems.
Why choose Metav for pipe straightness inspection equipment?
Metav combines extensive metrology experience, a broad product range and a transparent supply chain from Emmerich, making it a reliable partner for high‑precision pipe straightness inspection and documented quality assurance.
