25mm Micrometer Outside Measurement Ratchet Stop 0.002mm Accuracy Calibration Certificate ISO17025 - Microtech Metrology
€42.00
Product information "25mm Micrometer Outside Measurement Ratchet Stop 0.002mm Accuracy Calibration Certificate ISO17025 - Microtech Metrology"
Combining ±0.002 mm accuracy, a ratchet-stop spindle and an included ISO 17025 calibration certificate ensures traceable, repeatable external measurements for precision workshops; order this calibrated instrument directly via Metav Werkzeuge or consult our specialists for application matching.

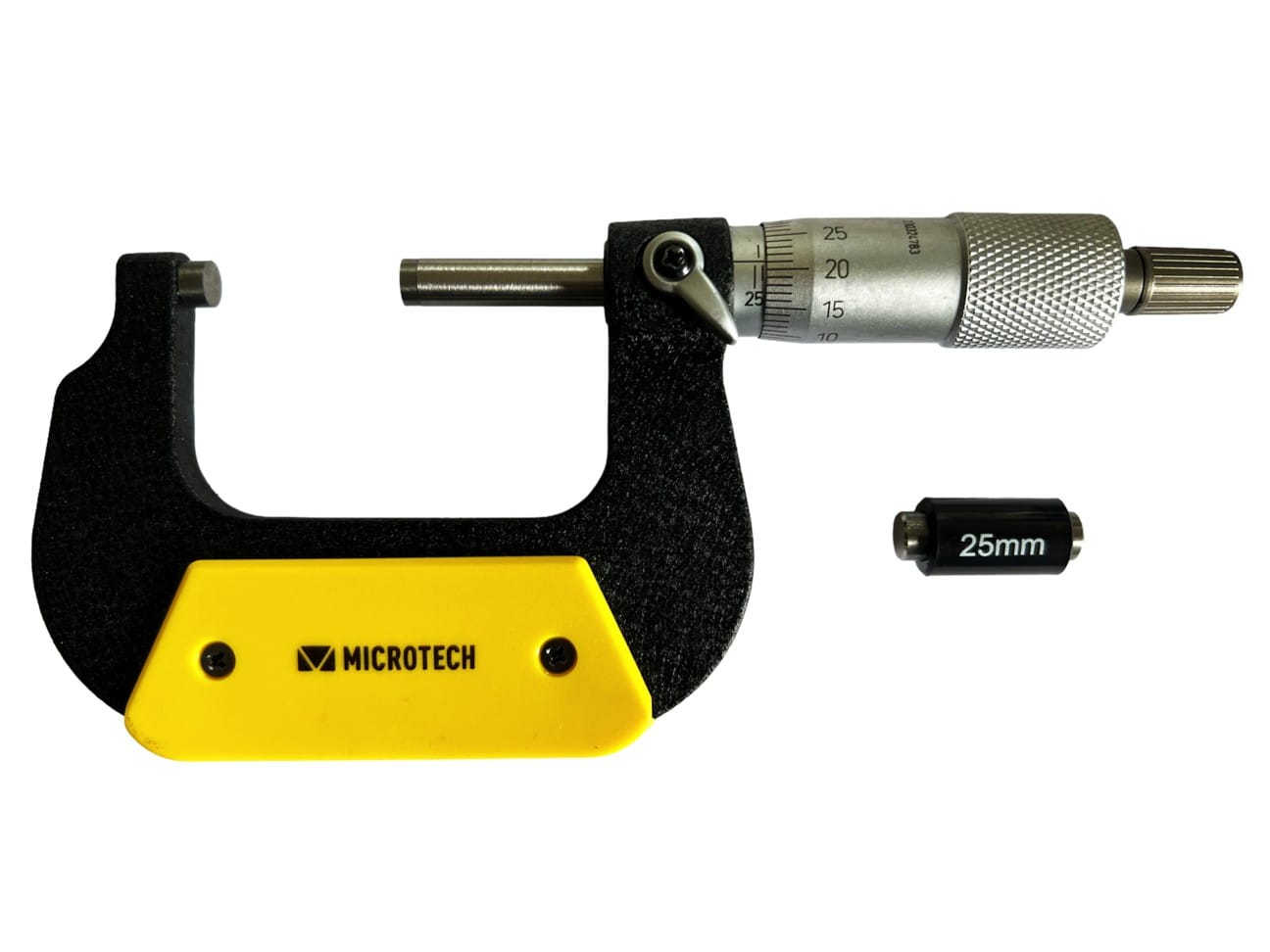

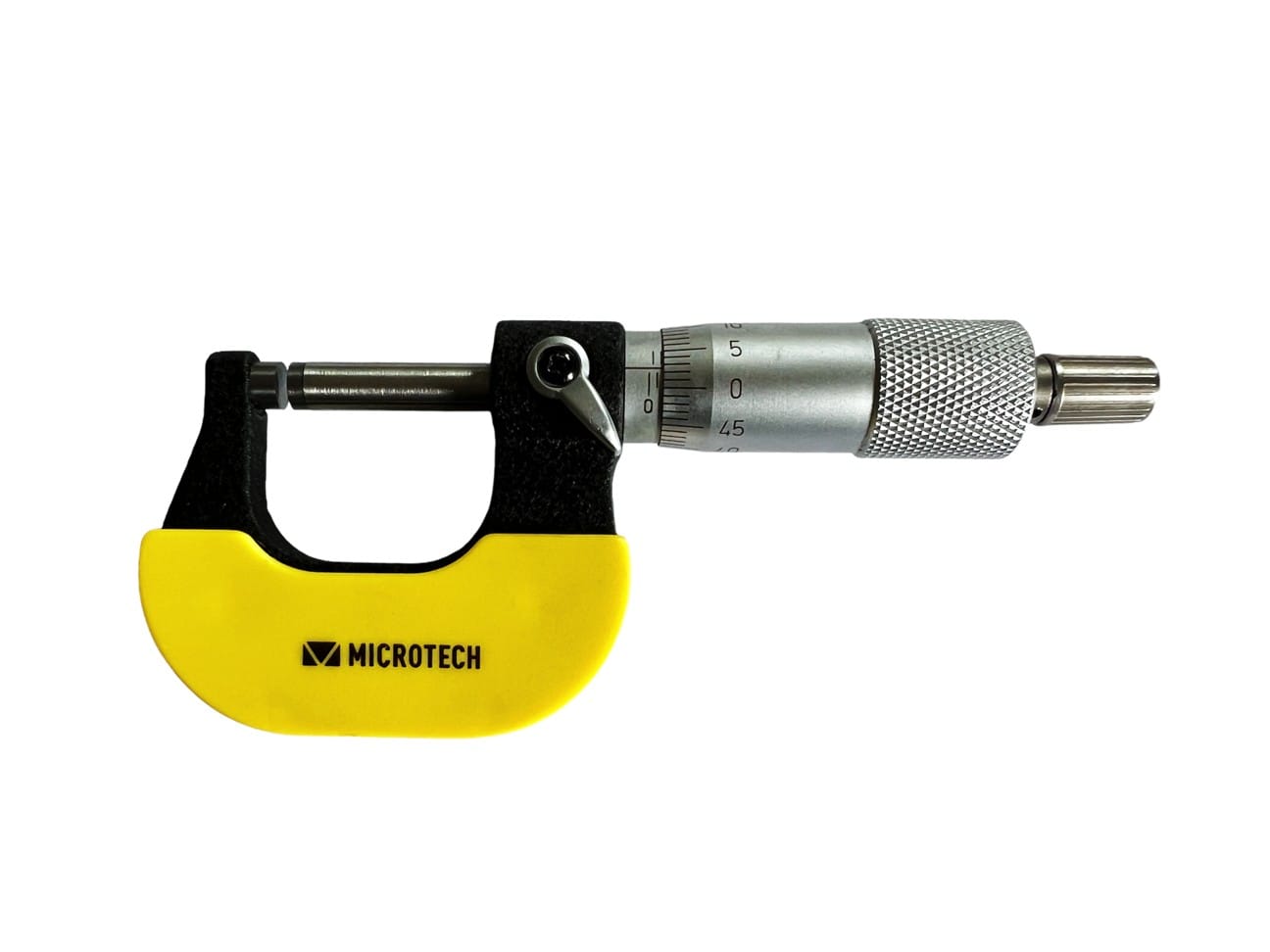

Micrometer for external measurements by Microtech Metrology — analogue, ISO 17025 calibrated
Micrometer is an analogue outside micrometer designed for high-precision external measurement tasks in fine mechanical and workshop environments.
- High accuracy to 0.002 mm
- Ratchet-stop micrometer head
- Delivered with ISO 17025 calibration certificate
Precision that reduces rework and secures quality control
The instrument delivers a verified accuracy of ±0.002 mm, a performance level that supports tighter tolerances in production and inspection. With a readable increment of 0.01 mm on the analogue scale and a precise spindle mechanism, the micrometer translates fine adjustments into dependable results, reducing the need for repeat machining. This technical reliability makes it suitable where dimensional conformity directly affects assembly fit and functional performance. The combination of stable mechanics and documented accuracy forms the rational basis for integrating the tool into quality control routines.
Handling and repeatability engineered for small parts
A ratchet-stop mechanism ensures consistent measuring force at the contact interface, preventing over-tightening and improving repeatability across multiple measurements. The anvil, with a diameter of Ø 6.5 mm, provides a compact, stable contact surface that is advantageous for small features and delicate components. Classified in the micro range (measurement range up to 100 mm), this analogue micrometer is optimised for fine‑mechanical work such as precision components, small housings and watch‑ and instrument parts; the short frame and robust spindle geometry make single‑hand operation and repeatable results straightforward.
Traceable calibration and workshop suitability
Supplied fully calibrated to ISO 17025 standards, the tool arrives with a calibration certificate that documents measurement traceability and conformity to laboratory-grade procedures. This formal calibration supports internal audits and supplier qualification processes and simplifies records for quality management systems. As an analogue outside micrometer from Microtech Metrology, it fits both inspection benches and production islands where a compact, mechanically reliable measuring instrument is preferred over electronic alternatives. The absence of electronic data output keeps the design simple and robust while the supplied certificate provides the necessary legal and technical assurance.
Contact Metav Werkzeuge today to request matching accessories, calibration copies or application advice for this ISO 17025‑calibrated micrometer and secure traceable measuring capability for your workshop.
Technical data
- Article number: 110110251
- GTIN: 4061905456657
- Manufacturer: Microtech Metrology
Facts
- Measurement range: 0–25 mm
- Resolution (reading): 0.01 mm
- Accuracy: ±0.002 mm
- Anvil diameter: Ø 6.5 mm
- Analogue instrument
- Ratchet stop: yes
- ISO 17025 calibration: included
Special features
- Outside (external) micrometer for precise external measurement
- Supplied with calibration certificate (ISO 17025)
- Compact frame suited for fine‑mechanical tasks
- Robust spindle and contact geometry for repeatable results
FAQ
What is the measurement range of this micrometer? The micrometer measures from 0 to 25 mm and is therefore classified in the micro range for fine mechanical work.
How precise is the micrometer and what does that mean in practice? The micrometer from Microtech Metrology offers an accuracy of ±0.002 mm with a readable increment of 0.01 mm, which supports tight tolerances and reduces the need for rework in precision assemblies.
Is a calibration certificate included with the instrument? Yes, the instrument is delivered fully calibrated with an ISO 17025 calibration certificate confirming traceability and laboratory‑level calibration.
What feature ensures consistent measuring force? A built‑in ratchet‑stop mechanism provides consistent contact pressure and helps to achieve repeatable measurements across multiple parts.
Can this instrument be used for inside measurements? This micrometer is designed for external (outside) measurements; inside measuring requires a dedicated inside micrometer or bore gauge.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine; tool@microtech.tools
