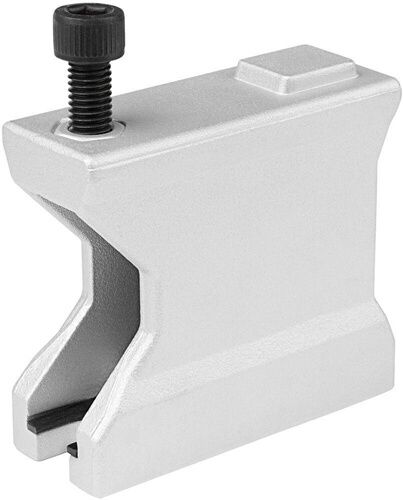

80mm Clamping Base Open Mounting Hole M10, Height Extension 80mm - BESSEY
Take advantage of a robust mounting solution that combines a compact design with a clear 80 mm clamping height extension and an M10 fixing thread for reliable machine-side installation; order directly via Metav Werkzeuge or request advice from our consultants for precise application support. BESSEY clamping base 80 mm — open fixing bore, M10 thread BESSEY clamping base 80 mm for BAS compact clamps, designed to provide increased clamping height and straightforward attachment via an open fixing bore suitable for M10 fastening Compact base for BAS clamping systems 80 mm clamping height extension Open fixing bore with M10 thread Compatible with DIN 912 M10 / M12 screws Increased setup flexibility through measurable clamping height The 80 mm clamping height extension offers a measurable advantage when adapting fixtures and jigs to different workpiece geometries. Designed as a clamping base for BAS compact clamps, the unit converts vertical clearance into usable clamping range, reducing the need for additional spacers. The straightforward specification of the height extension and thread means predictable setup times and fewer trial adjustments on the shop floor, which improves overall process efficiency and repeatability. Reliable fastening with standardised threads for quick integration Equipped with an M10 thread and prepared for DIN 912 cylinder screws in sizes M10 / M12, the component integrates with common fastening hardware used across maintenance and production environments. The specification ensures mechanical compatibility with industry-standard screws, enabling secure, vibration-resistant mounting. This standardisation reduces inventory complexity and simplifies procurement, supporting faster tool changeovers and a lower risk of incorrect fasteners being used at the workstation. Compact form factor that supports modular fixturing The product’s configuration for Compact clamp BAS systems and its open fixing bore make it an effective modular element in clamping assemblies. The compact footprint preserves workspace and allows closer placement of clamps for better load distribution. Where space constraints or tight clamping patterns are present, this mounting base helps maintain accessibility while delivering the required stability for machining, assembly, or inspection tasks. Clear benefits for production and workshop environments By combining a compact design, standard thread compatibility and a defined clamping height extension, the component offers an immediate productivity payoff: fewer bespoke adapters and faster fixture assembly. The clarity of technical parameters supports maintenance planning and quality control procedures, helping to ensure that fixtures perform predictably under repeated use. For workshops seeking pragmatic, durable mounting elements, the specification-driven approach lowers the barrier to consistent, repeatable clamping. For bespoke advice on integrating this BESSEY clamping base into existing BAS clamp setups or for ordering and logistics, contact Metav Werkzeuge — fast delivery from Emmerich and technical consultancy available by phone or e‑mail Technical Data Article number: 4123716070NW Label: Aufspannsockel 80mm Befestigungsbohrung offen Gew.M10 BESSEY Product type: Clamping base Manufacturer: BESSEY Version: for Compact clamp BAS; open fixing bore Facts Clamping height extension: 80 mm Thread: M10 For cylinder screw DIN 912: M10 / M12 Packaging unit: 1 Special features Open fixing bore Designed for BAS compact clamp systems Standardised thread compatibility FAQ What is the main function of this clamping base? The clamping base provides an 80 mm increase in clamping height for BAS compact clamps and a stable mounting point via an open fixing bore designed for M10 fastening. Which screws are compatible with the fixing bore? The fixing bore accepts cylinder screws to DIN 912, specifically stated for M10 and M12 sizes to ensure reliable mechanical attachment. Can this base be used with other clamping systems? Although configured for BAS compact clamps, the BESSEY clamping base can be integrated into other modular fixtures where an M10 threaded mounting and 80 mm height extension meet the application requirements. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

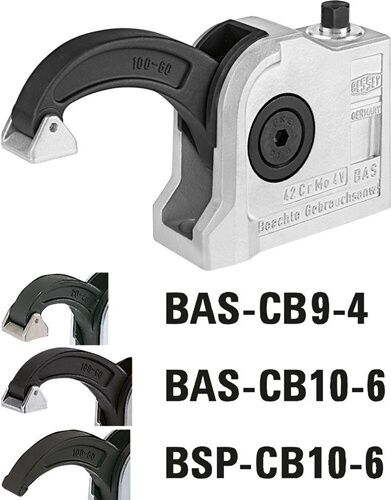

88mm Clamp Height Compact Clamp 40mm Reach Closed Mounting Hole - BESSEY
Take advantage of the 88 mm clamping height and 40 mm reach combined with an aluminium pressure shoe and closed fixing bore to secure workpieces in tight spaces; order the clamp directly via Metav Werkzeuge or consult our specialists for application advice. BESSEY BAS compact clamp — 88 mm clamping height, 40 mm reach The BESSEY BAS compact clamp is a workshop-grade compact clamp designed for secure clamping in confined or recessed areas, featuring an aluminium pressure shoe and a closed fixing bore for reliable attachment. 88 mm clamping height for deeper workpieces 40 mm reach for tight or recessed areas Aluminium pressure shoe for gentle contact Closed fixing bore for secure mounting Reliable clamping where space is limited This compact clamp delivers a notable combination of clamping height and reach, with an effective 88 mm clamping height and 40 mm projection that allow secure gripping of thicker or offset components in narrow setups. The measured values translate directly into fewer repositioning steps on the bench, improving workflow efficiency. For production environments where floor space and fixture room are constrained, the compact construction reduces the need for larger, more cumbersome clamps while maintaining consistent clamping force and repeatability. Prevents damage while keeping parts stable Equipped with an aluminium pressure shoe, the clamp ensures even distribution of contact pressure and reduces marking on softer surfaces such as coated panels or finished timber. The pressure shoe acts as a cushioning interface while still transmitting sufficient force for metalworking and assembly tasks. Where component finish is critical, this feature helps preserve surface integrity without sacrificing grip — a practical balance between protection and performance that benefits both prototype workshops and small-batch production. Secure attachment and straightforward integration The clamp’s closed fixing bore provides a secure mounting option for permanent or semi-permanent fixture layouts, simplifying fixture design and reducing setup time. Built on the BAS series architecture, the device supports fast retrofitting into existing jigs and benches thanks to its compact footprint and standardised attachment geometry. Durable construction and a design focused on ease of use make it suitable for repetitive tasks in maintenance, fabrication and precision assembly, where consistent clamping and quick repositioning are required. Contact Metav Werkzeuge to discuss the suitability of the BESSEY BAS compact clamp for specific applications or to arrange supply from our Emmerich warehouse — our team will provide technical guidance and delivery options. Technical data Article number: 4123716040NW Manufacturer: BESSEY Product type: Compact clamp Label: BAS clamping height 88 mm, reach 40 mm Packaging unit: 1 Facts Clamping height: 88 mm Reach: 40 mm Type: BAS SKU: 4123716040NW Special features Aluminium pressure shoe Closed fixing bore Compact design for restricted spaces FAQ What is the maximum clamping height of this clamp? The clamp provides a clamping height of 88 mm as specified for the BESSEY BAS compact clamp (SKU 4123716040NW). Can the clamp be mounted permanently to a jig or fixture? Yes — the closed fixing bore enables secure mounting for permanent or semi-permanent fixture setups. Is the pressure shoe suitable for delicate surfaces? The aluminium pressure shoe on the BAS series offers gentle contact to reduce marking while maintaining reliable grip. For which workshop tasks is this compact clamp most suitable? The clamp is ideal for operations in confined spaces such as recessed assemblies, light fabrication and precision bench work where a compact footprint is required. Manufacturer: BESSEY; Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
97mm Clamp Height Compact Clamp 60mm Reach Closed Mounting Hole - BESSEY
Take advantage of the combination of reliable 97 mm clamping height, a compact 60 mm reach and an aluminium pressure pad for consistent, damage‑free clamping. Order the clamp directly via Metav Werkzeuge or consult our specialists for application advice. BAS Compact Clamp by BESSEY — 97 mm clamping height, 60 mm reach A BAS Compact Clamp engineered for secure, space‑saving clamping in tight workshop environments, featuring an aluminium pressure pad and a closed mounting hole for fixed installation 97 mm clamping height for higher workpieces 60 mm reach for close‑quarter applications Aluminium pressure pad for even load distribution Closed mounting hole for secure fixed installation Secure clamping where space is limited The combination of a 97 mm clamping height and a 60 mm reach makes this compact clamp ideal for tasks where vertical capacity and short overhang are both required. The larger clamping height allows accommodation of thicker assemblies while the restrained reach keeps the tool manoeuvrable in confined jigs and benches. For production and repair work, this translates into fewer tool changes and faster setup times, improving workflow efficiency without sacrificing clamping force or reliability. Even pressure and surface protection for delicate components Equipped with an aluminium pressure pad, the clamping face distributes force across a broader area to reduce marking and distortion on softer or finished components. The pressure pad’s design enables even load distribution, which is particularly useful for laminates, thin panels and prep work before final fixing. This gentle yet secure contact supports repeatable, high‑quality results and reduces scrap caused by clamp damage, supporting consistent part quality across runs. Robust attachment and simple workshop integration The clamp’s closed mounting hole permits secure, permanent fastening to fixtures, benches or assembly jigs, enabling a fixed clamping station when needed. As a compact clamp, it is compatible with modular workshop setups and can be integrated into fixtures to save space and speed up repetitive operations. Built to the practical needs of craftsmen and small production lines alike, the tool offers dependable performance for day‑to‑day clamping tasks while remaining easy to handle and position. For precise clamping from a trusted brand, contact Metav Werkzeuge to request a technical consultation or to place an order for the BESSEY BAS Compact Clamp (SKU 4123716050NW) — our Emmerich team will assist with specifications and delivery arrangements Technical data Article number: 4123716050NW Type: BAS Product: Compact clamp Manufacturer: BESSEY Packaging unit: 1 Facts Clamping height: 97 mm Reach: 60 mm Special features Aluminium pressure pad Closed mounting hole Compact design FAQ What is the maximum clamping height of this clamp? The clamping height is 97 mm for the BAS Compact Clamp (BESSEY, SKU 4123716050NW), allowing secure holding of relatively tall workpieces. How far does the clamp reach from the fixing point? The clamp provides a 60 mm reach, designed for close‑quarter clamping and use in confined jigs or bench fixtures. Does the clamping face protect finished surfaces? Yes. The aluminium pressure pad on the BAS Compact Clamp delivers even load distribution to minimise marking and protect delicate surfaces during clamping. Can the clamp be fixed permanently to a workbench or jig? The closed mounting hole permits fixed installation, enabling secure attachment of the clamp to benches or custom fixtures for repeatable use. How many items are supplied per package? The item is supplied as a single unit (packaging unit: 1) for direct installation into the workshop. Manufacturer: BESSEY; Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
97mm Clamp Height Compact Clamp 60mm Reach Open Pressure Shoe, - BESSEY
Take advantage of a compact clamping solution that delivers precise 97 mm clamping height and a 60 mm reach for confined assembly tasks; the open aluminium pressure shoe protects workpieces while the open mounting hole enables flexible installation—order the unit via Metav Werkzeuge or consult our specialists for compatibility and supply. BAS Compact Spanner — 97 mm clamping height, 60 mm reach (BESSEY) The BAS Compact Spanner is a workshop-grade compact spanner designed for secure clamping in tight assemblies, offering a 97 mm clamping height and a 60 mm reach with an open aluminium pressure shoe for surface protection. 97 mm clamping height for deep work 60 mm reach for narrow spaces Open aluminium pressure shoe for gentle clamping Open mounting hole for flexible installation Secure clamping where space is limited The combination of 97 mm clamping height and 60 mm reach delivers reliable hold in confined setups. The increased clamping height permits taller workpieces to be fixed without sacrificing access, while the modest reach ensures the tool fits into restricted jig and fixture arrangements. This results in fewer workpiece movements and shorter set-up times, so processes are more efficient and downtimes are reduced. Precision and repeatability are supported by the compact form factor, which prevents unnecessary lateral play during tightening. Gentle contact for sensitive surfaces Fitted with an open aluminium pressure shoe, the clamping surface spreads load and reduces point pressure, lowering the risk of marring on softer materials. An aluminium pressure shoe functions as a sacrificial interface: it conforms slightly under load and can be replaced if heavily worn. For applications where surface finish matters, this feature preserves component integrity while maintaining secure clamping force. The open design also permits visual inspection of the contact area during operation, helping to ensure consistent positioning. Flexible fastening and installation options An open mounting hole is provided for straightforward fastening to workbenches, fixtures or custom jigs, enabling rapid integration into existing setups. The compact construction minimises interference with surrounding tools and allows several units to be mounted in close proximity for multi-point clamping. Because the spanner is compact, bench layout can be optimised for production flow, and fixture design simplified, which contributes to shorter retooling times and better shop-floor ergonomics. Built for routine industrial and workshop use Manufactured to meet practical daily demands, this compact spanner is suitable for repetitive assembly and clamping tasks in metalworking and general workshop environments. The straightforward mechanical design reduces the need for complex maintenance; components that experience wear are readily accessible and can be serviced without specialised equipment. Reliability in everyday use supports consistent production quality, while the compact footprint helps to maximise valuable bench space and streamline operations. Contact Metav Werkzeuge today to confirm compatibility and lead times for the BAS compact spanner—expert advice and secure supply from Emmerich are available by phone or email Technical data Article number: 4123716020NW Product type: Compact spanner Manufacturer: BESSEY Clamping height: 97 mm Reach: 60 mm Execution: open mounting hole; open aluminium pressure shoe Facts SKU: 4123716020NW Clamping height: 97 mm Reach: 60 mm Special features Open aluminium pressure shoe Open mounting hole for flexible installation Compact design for confined spaces FAQ What is the maximum clamping height of this spanner? The clamping height is 97 mm for the BAS compact spanner (SKU 4123716020NW), allowing secure fixation of taller workpieces within a compact footprint. How far does the spanner reach from the mounting point? The tool provides a 60 mm reach, suitable for use in narrow fixtures and confined assembly situations. What benefit does the aluminium pressure shoe provide? The open aluminium pressure shoe distributes clamping force to reduce surface marking and offers a replaceable contact surface for prolonged component protection. Can the spanner be fastened directly to a bench or jig? Yes, the spanner features an open mounting hole that enables direct fastening to benches, fixtures or custom jigs for straightforward integration. Is this spanner designed for workshop use? The BAS compact spanner is intended for routine workshop and industrial clamping tasks, offering a durable, compact solution for repetitive assembly operations. Manufacturer: BESSEY; Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
97mm Clamping Height Compact Clamp Open Pressure Shoe, 60mm Throat - BESSEY
Reliable clamping is achieved by the combination of a 97 mm clamping height and a 60 mm reach, delivering a stable hold for taller workpieces while remaining suitable for confined workspaces; the open mounting hole allows fast, flexible attachment. Order the BAS clamp directly via Metav Werkzeuge or contact our consultants for application advice. BAS compact clamp by BESSEY — 97 mm clamping height, 60 mm reach The BAS compact clamp is a robust compact clamping tool designed for secure holding in metalworking and woodworking applications, offering fast set-up and versatile mounting options. 97 mm clamping height for taller workpieces 60 mm reach for flexible positioning Open mounting hole for quick attachment Compact design for tight workspaces Secure hold for larger and awkward parts The 97 mm clamping height provides a measurable advantage when working with taller fixtures or stacked components; this extra clearance reduces the need for secondary fixturing and shortens setup time. As a compact clamp, the unit balances substantial clamping range with a small footprint, making it suitable for benches and jigs where space is at a premium. The mechanical principle is straightforward: increased clamping height enables contact with higher surfaces while maintaining lateral stability, which contributes to a secure hold during machining or assembly. Fast, adaptable mounting that saves production time An open mounting hole simplifies attachment to existing fixtures or customer-specific plates, allowing through-bolting and easy alignment without disassembly. This feature supports repeatable positioning and speeds changeovers, a clear efficiency gain in series production or mixed-batch workshops. The 60 mm reach ensures the clamping force can be applied slightly offset from the fixing point, which helps when accessing complex geometries or when multiple clamps must share limited bed space. Designed for dependable everyday workshop use Built for routine industrial tasks, the clamp focuses on reliability and low-maintenance operation. The combination of a compact form and robust functional design reduces obstruction around the workpiece while delivering consistent performance across repeated cycles. For users seeking predictable results, the clamp’s specifications—especially the 97 mm clamping height and 60 mm reach—translate directly into fewer setup iterations and more stable processing. For further technical clarification, Metav Werkzeuge can supply detailed application guidance and compatibility notes. For precise advice on the BESSEY BAS compact clamp — featuring a 97 mm clamping height and 60 mm reach — contact Metav Werkzeuge in Emmerich at info@metav-werkzeuge.com or +49 2822 7131930. Technical data Article number: 4123716030NW Type: BAS Product: Compact clamp Manufacturer: BESSEY Label: BAS Spannhöhe 97mm A.60mm o.AL-Druckschuh offen Bessey Facts Clamping height: 97 mm Reach: 60 mm Packaging unit: 1 Design & features Open mounting hole Compact design Open pressure shoe FAQ What is the exact clamping height of this clamp? The clamping height is 97 mm on the BESSEY BAS compact clamp (SKU 4123716030NW), providing clearance for taller workpieces. Can the clamp be fixed to custom fixtures or plates? Yes — the open mounting hole enables through-bolting to plates and fixtures for repeatable alignment and fast installation. Is the clamp suitable for use in tight benches or small jigs? The compact design and 60 mm reach make the clamp well suited to confined workspaces while still delivering effective positioning. What does the open pressure shoe mean in practice? An open pressure shoe allows direct contact with the workpiece and easy replacement or adaptation of the pressure interface to match specific parts. Does this clamp support quick changeovers in production? The combination of measured clamping height, practical reach and the open mounting hole reduces setup time and supports faster changeovers in serial operations. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

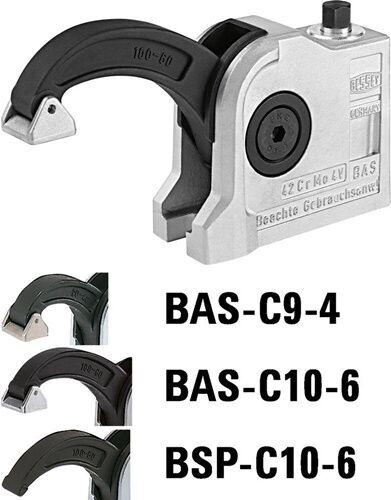

97mm Compact Spanner Closed Mounting Hole, 60mm Reach - BESSEY
Take advantage of a compact, reliable clamping solution with a 97 mm clamping height and 60 mm throat depth for precise, repeatable hold. The combination of generous clamping capacity and a closed mounting hole ensures stable fixture attachment in tight production environments. Order the clamp directly via Metav Werkzeuge or consult the team for application advice. BESSEY BAS Compact Clamp — 97 mm clamping height, 60 mm throat depth The BAS Compact Clamp is a compact bar clamp designed for secure holding in workshop, assembly and light production tasks where a tall clamping range and close-to-edge reach are required 97 mm clamping height for taller workpieces 60 mm throat depth for close-to-edge clamping Closed mounting hole for secure attachment Compact design for tight workspaces Secure hold for taller and awkward workpieces The 97 mm clamping height delivers a measurable advantage when working with thicker assemblies or stacked substrates. This increased vertical capacity allows a larger clamping range without switching tools, reducing setup time and improving throughput. In practice, the higher throat clearance enables clamping over jigs or fixtures while still applying consistent pressure across the workpiece. The result is reliable positioning and fewer reworks in repetitive tasks. Close-to-edge reach that improves accessibility With a 60 mm throat depth, the product provides a practical balance between reach and rigidity. The extended reach makes it possible to clamp near edges or into recesses where standard clamps cannot access, while the compact bar profile maintains stiffness under load. For users unfamiliar with the term: throat depth denotes the distance from the clamp bar to the clamping face, and a deeper throat means better access without relocating the workpiece. Stable attachment and long-term workshop reliability The closed mounting hole offers a secure method for fixing the clamp to workbenches, fixture plates or dedicated fixturing. This feature reduces lateral movement during operations and simplifies integration into permanent setups. Combined with the compact form factor, the clamp is especially suitable for benches with limited space, dedicated assembly stations and small-batch production lines where repeatable accuracy and a tidy workstation are priorities. Practical advantages for industrial and craft settings Built for frequent use, the design emphasises fast handling and dependable performance. The compact construction minimises storage footprint and allows multiple clamps to be deployed across assembly or fixture points. For production planners and workshop managers, this means fewer tool changes and smoother process flow. The clamp is targeted at craftsmen, maintenance teams and light production users seeking a robust, space-efficient clamping solution. Choose the BESSEY BAS compact clamp for dependable clamping performance and streamlined workflows — contact Metav Werkzeuge for tailored advice and ordering at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data SKU: 4123716060NW Manufacturer: BESSEY Type: BAS Product type: Compact clamp Packaging unit: 1 Facts Clamping height: 97 mm Throat depth / projection: 60 mm Article number / UID: 4123716060NW Special features Closed mounting hole Compact design for limited space Suitable for workshop and assembly applications FAQ What maximum clamping height does the clamp offer? The clamp provides a clamping height of 97 mm, as specified for the BESSEY BAS compact clamp, allowing secure holding of thicker workpieces. Is the clamp suitable for fixing to a workbench or fixture? Yes, the closed mounting hole enables secure attachment to benches or fixture plates for repeated, stable positioning. Can the clamp reach close to edges and recesses? The 60 mm throat depth permits close-to-edge clamping and access into shallow recesses while maintaining rigidity. Which SKU should be ordered for this configuration? Order SKU 4123716060NW for the BESSEY BAS compact clamp with a 97 mm clamping height and 60 mm throat depth. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
