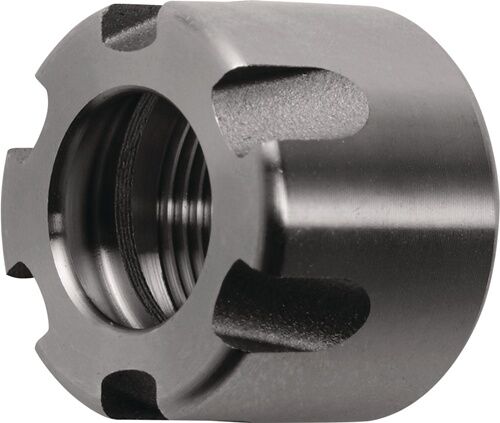

16mm ER Mini Collet Nut M13 x 0.75, For ER11 Collet Chuck - TECWERK
Take advantage of the combination of compact design, precise thread fit and reliable compatibility for consistent clamping performance in small-tool applications. Order the TECWERK ER Mini clamping nut directly via Metav Werkzeuge or consult the team for technical guidance. TECWERK ER Mini clamping nut – compact design, M13 x 0.75 thread The ER Mini clamping nut is a compact collet-nut solution for use with ER 11 collet chucks, designed to secure small-diameter tooling with consistent axial alignment Compatible with ER 11 collets Thread M13 x 0.75 for secure fit Diameter 16 mm for compact setups Miniature design for small-tool applications Reliable clamping and consistent runout for small tooling A compact clamping nut such as this is engineered to deliver precise clamping for small-diameter tools. The combination of an accurately cut M13 x 0.75 thread with a 16 mm external profile ensures repeatable seating in the ER 11 collet system, which reduces radial runout and vibration during spindle rotation. In practice, this means improved surface finish and longer tool life when machining delicate parts or performing finishing passes. The function of a collet nut is to draw the collet into the chuck taper and generate uniform radial compression; the result is a stable hold even at elevated spindle speeds, so production runs remain consistent. Fast assembly and secure thread engagement for efficient workflow Thread quality and ease of assembly are essential in high-throughput environments. The M13 x 0.75 thread provides a fine pitch that permits controlled clamping torque, helping to avoid over-tightening while maintaining a firm grip. The small external 16 mm diameter reduces toolholder envelope in compact spindles or fixtures, enabling closer tool spacing on multi-spindle setups. Maintenance demands are low: regular cleaning of thread crevices and inspection for wear are sufficient to preserve clamping performance. Clear, measurable features translate directly into shorter setup times and fewer rejected parts. Seamless integration into ER 11 systems and workshop toolsets Compatibility is the principal advantage when selecting replacement or spare parts for collet chucks: this component is specified for ER 11 systems and matches the dimensional and threading requirements typical of that standard. Its compact design suits toolrooms, small-batch production and retooling tasks where space and accuracy both matter. For purchasers focused on workflow reliability, the nut's conformity with ER 11 geometry supports interchangeability and stock rationalisation. Technical queries about fitment or torque settings can be addressed by Metav Werkzeuge’s specialists, ensuring the part integrates smoothly into existing setups. For purchase or technical advice on the TECWERK ER Mini clamping nut, contact Metav Werkzeuge for tailored guidance and supply from Emmerich—call +49 2822 7131930 or email info@metav-werkzeuge.com Technical data SKU: 2120620358NW Product type: ER Mini clamping nut Thread: M13 x 0.75 Diameter: 16 mm Suitable for: ER 11 Packaging unit: 1 Label: Spannmutter ER Mini ER 11 D.16mm z.Spannzangenfutter ER TECWERK UID: 2120620358NW Facts Thread pitch: M13 x 0.75 Outer diameter: 16 mm Packaging unit: 1 Special features Compatible with ER 11 collet chucks Designed for small-diameter tooling and compact spindles Ensures uniform radial compression of the collet Axite enrichment: passend zu Spannzangenfutter ER; für Abmessung ER 11; Gewinde M13 x 0.75mm; D: 16mm FAQ What collet systems is this nut compatible with? The TECWERK ER Mini clamping nut is specified for use with ER 11 collet chucks and matches the dimensional requirements of that system. Which thread does the clamping nut use? The component uses an M13 x 0.75 fine thread to allow controlled torque and secure engagement in the chuck assembly. Is the 16 mm diameter suitable for compact spindles? Yes, the 16 mm outer diameter is intended for compact setups and helps reduce the toolholder envelope in tight arrangements. Can this nut improve runout and finish on small tools? When paired with a correctly prepared collet and spindle, the nut aids in achieving consistent seating and reduced radial runout, which supports improved surface finish. Are spare nuts available for stocking and quick replacement? Spare clamping nuts such as this ER Mini model are commonly stocked to minimise downtime; Metav Werkzeuge can advise on availability and lead times. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund

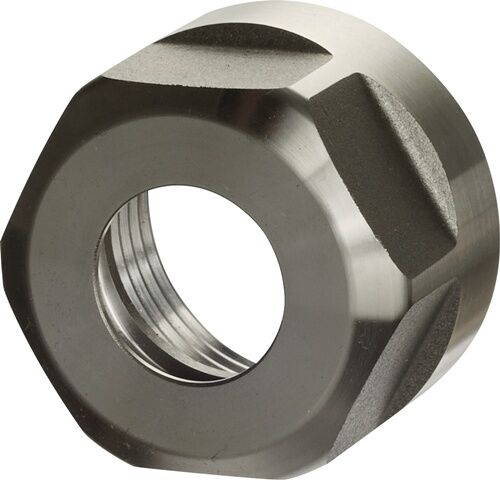

28mm ER 16 Collet Nut With Eccentric Ring M22 x 1.5, SW25 - TECWERK
Take advantage of a DIN‑compliant, balanced clamping solution: the eccentric ring improves axial alignment while the standard M22 x 1.5 thread ensures interchangeability with ER toolholding systems. Order the collet nut directly via Metav Werkzeuge or contact our consultants for matching toolholder advice. Collet nut ER 16 D28 SW 25 mm with eccentric ring – TECWERK (M22 x 1.5) The collet nut ER 16 D28 SW 25 mm with eccentric ring is a standard clamping nut for ER collet chucks, designed to deliver secure, repeatable toolholding in workshop and production environments. Eccentric ring for fine axial alignment Compatible with ER 16 collets and chucks M22 x 1.5 thread for standardised fitment DIN 6499 compliant, dynamically balanced Precise clamping for consistent spindle performance The combination of a dedicated eccentric ring and a balanced execution reduces variation in clamping position and helps to minimise runout during rotation. Built to the DIN 6499 specification, this clamping nut offers a predictable mechanical interface with ER collet systems, ensuring that radial forces are applied uniformly and that high-speed or repetitive operations maintain consistent accuracy. The standard M22 x 1.5 thread secures the nut to common toolholders without the need for custom adaptors. Smooth workshop integration that saves setup time A straightforward, standard design means quick installation and minimal adjustment on the shop floor. The nut features 25 mm spanner flats (SW 25 mm) for reliable torque application using common tools, and it is matched to widely used ER toolholding components to support fast changeovers. Reduced setup complexity translates into measurable time savings in small-batch and mixed-production contexts, while the robust mechanical interface supports predictable clamping behaviour across multiple tool changes. Practical features that reduce downtime and increase confidence For users unfamiliar with collet systems, ER collets generate uniform radial pressure on the tool shank, which stabilises cutting forces and helps prolong tool life. The eccentric ring on this clamping nut allows micro‑adjustment of axial position to improve concentricity when needed, while the balanced construction helps to lower vibration at speed. The clear, standardised interfaces promote interchangeability across ER‑based toolholders, reducing the need to stock multiple special nuts and helping to keep the production line running. For a reliable, DIN‑compliant clamping solution from TECWERK, contact Metav Werkzeuge for tailored product selection and technical advice — eMail: info@metav-werkzeuge.com | Tel: +49 2822 7131930 Technical Data Article number: 2000833993NW Product: Collet nut ER Execution: Standard execution with eccentric ring Suitable for: ER 16 Thread: M22 x 1.5 D: 28 Spanner flats: SW 25 mm Packing unit: 1 Facts Diameter: 28 mm Thread: M22 x 1.5 Spanner width: 25 mm Packing unit: 1 Special features Standard execution with eccentric ring For ER collet chucks Compliant with DIN 6499 Balanced execution FAQ Which collet size is this nut designed for? The collet nut is intended for ER 16 collets; the TECWERK collet nut ER 16 D28 SW 25 mm with eccentric ring (SKU 2000833993NW) matches ER 16 toolholding systems. What thread does the nut use and why is that important? The nut uses an M22 x 1.5 thread, a common standard that ensures compatibility and straightforward replacement across compatible ER collet chucks. How does the eccentric ring improve clamping? The eccentric ring permits fine axial adjustment, which can improve concentricity and compensate for minor misalignments to reduce runout and enhance tool stability. Is this nut suitable for high‑speed operation? The nut is supplied in a balanced execution and conforms to DIN 6499, features that help reduce vibration and support consistent behaviour at elevated spindle speeds. What spanner size is required to fit the nut? A 25 mm spanner (SW 25 mm) is required for assembly and secure torque application. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
28mm ER 16 Collet Nut, Balanced Gland With M22 x 1.5 Thread, SW 25mm - TECWERK
Take advantage of the combination of a balanced design and a sliding-bearing execution to reduce runout and extend tool life; order directly via Metav Werkzeuge or ask the consultants for specification support. TECWERK ER16 Collet Nut (D 28, M22 x 1.5) – Sliding-bearing, SW 25 mm A TECWERK ER16 collet nut for ER collet chucks, designed as a balanced, sliding-bearing version to ensure stable clamping in precision machining environments Balanced sliding-bearing construction for smooth clamping Compatible with ER 16 collet chucks to DIN 6499 Thread M22 x 1.5 for standardised spindle interfaces Spanner width SW 25 mm, outer diameter D 28 mm Reduce runout for consistent machining results The balanced design of this collet nut delivers a measurable improvement in precision by lowering eccentricity during rotation. Fitted to ER collet chucks, the balanced execution minimises vibration and helps maintain tool alignment, which in turn supports a more consistent surface finish and reduced wear on cutting edges. As a result, production runs can achieve tighter tolerances with fewer reworks. Straightforward compatibility and installation Built to interface with ER 16 systems, the component features a standard M22 x 1.5 thread and an outer diameter of D 28 with a spanner width of SW 25 mm, making it suitable for common spindle and chuck configurations. Compliance with DIN 6499 ensures interchangeability with established ER collet chuck setups, simplifying retrofits and replacements without the need for additional adapters. The clear mechanical specification shortens setup time and supports reliable repeatability. Sliding-bearing execution for smooth, reliable clamping The sliding-bearing construction reduces friction between mating parts, producing gentler axial guidance during tightening and release. This lowers the risk of galling and contributes to quieter operation during tool changes. The result is a clamping interface that requires less frequent adjustment while maintaining stable holding force, which benefits both manual and automated tool-change workflows in the workshop. Practical workshop benefits and maintenance guidance Delivered as a single unit, the collet nut integrates directly into ER 16 toolholding systems and supports predictable performance across batches. Regular inspection of the thread and bearing surfaces will preserve the integrity of the fit and the balanced behaviour. For shops aiming to improve process stability, the nut serves as a targeted upgrade to reduce variability at the spindle and increase overall uptime. For precise specification advice and to confirm compatibility with existing ER collet chucks, contact Metav Werkzeuge for personalised consultation; Metav Werkzeuge can advise on the TECWERK ER16 collet nut (SKU 2000833998NW) and ensure the correct part is supplied to suit the workshop setup, eMail: info@metav-werkzeuge.com, Tel: +49 2822 7131930 Technical data Article number: 2000833998NW Product type: Spannmutter ER / Collet nut Manufacturer: TECWERK Suitable for: ER 16 Execution: gewuchtete Ausführung (balanced execution) Additional execution detail: gleitgelagert (sliding-bearing) Thread: M22 x 1,5 Facts Diameter: 28 mm Spanner width: 25 mm Thread: M22 x 1.5 Packaging unit: 1 Special features Sliding-bearing execution for reduced friction Balanced execution to lower runout Compatible with ER 16 collet chucks Conforms to DIN 6499 FAQ What materials is this collet nut compatible with? This collet nut is specified for use with ER 16 toolholding systems; material compatibility depends on the chosen collet and cutter rather than the TECWERK ER16 collet nut itself. How does the balanced execution benefit spindle performance? Balanced execution reduces centrifugal forces at speed, lowering vibration and helping to maintain tool alignment; the balanced design of this nut contributes to improved surface finish and longer tool life. What thread and spanner size are required for installation? The component uses an M22 x 1.5 thread and requires a SW 25 mm spanner for tightening and removal, matching common ER 16 interface standards. Is this nut compatible with standard ER 16 collet chucks to DIN 6499? Yes, the nut is designed for compatibility with ER 16 collet chucks and references DIN 6499 for interchangeability. How should the nut be maintained to ensure longevity? Regular inspection and cleaning of the thread and bearing faces, plus light lubrication where appropriate, will preserve the sliding-bearing surfaces and the balanced behaviour of the nut. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund

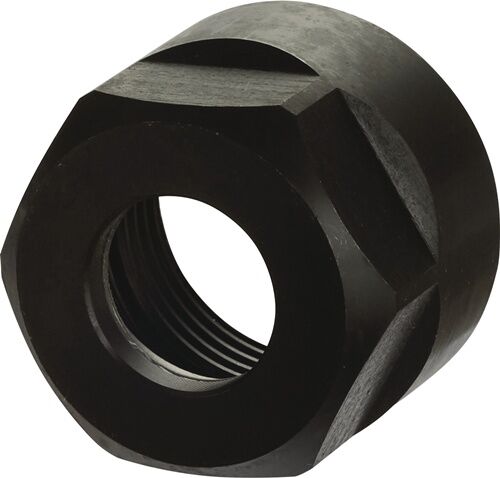

32mm ER Collet Nut With Eccentric Ring M22 x 1.5, Balanced DIN 6499 - TECWERK
The robust combination of a balanced design, standard M22 x 1.5 thread and an eccentric ring guarantees secure, repeatable clamping for ER 16 systems; order directly via Metav Werkzeuge or consult the technical team for compatibility advice. TECWERK ER 16 Collet Nut with Eccentric Ring — 32 mm, M22 x 1.5 The TECWERK ER 16 Collet Nut (32 mm) is a standard-design locking nut with an eccentric ring, engineered for secure clamping in ER 16 collet chucks and compliant with DIN 6499. *Standard design with eccentric ring *Conforms to DIN 6499, balanced execution *Thread M22 x 1.5 for ER 16 collet chucks *Diameter 32 mm for secure clamping Improved machining reliability through balanced clamping A balanced clamping solution reduces spindle vibration and contributes to consistent runout, improving part quality and tool life. The TECWERK ER 16 Collet Nut is produced as a balanced execution in accordance with recognised standards, ensuring that the chuck assembly maintains stability at higher speeds. This stability translates into fewer scrap parts and longer intervals between rework, supporting cost-effective, continuous production. Straightforward compatibility with ER 16 systems Matching the standard thread and size simplifies integration into existing tooling. The nut’s M22 x 1.5 thread and 32 mm diameter make it directly compatible with ER 16 collet chucks, allowing straightforward replacement or spare-parts stocking. For workshops and production lines that rely on standardised components, this compatibility reduces setup time and minimises inventory complexity while keeping clamping performance predictable. Practical benefits of the eccentric ring in everyday use The built-in eccentric ring improves centring and clamping consistency without adding complexity to the setup process. In practical terms, the eccentric element helps compensate for minor irregularities in collet seating, resulting in a more uniform grip on the tool shank. This leads to reduced micro-movement during cutting, a calmer spindle during operation and a measurable improvement in surface finish and dimensional accuracy for precision tasks. Durable standard construction for reliable service life Manufactured to a standard industrial specification, the nut offers dependable mechanical properties for routine workshop conditions. The standard design provides a robust interface between collet and chuck body, ensuring repeatable performance under normal machining loads. By choosing a proven, standard part, procurement teams benefit from predictability in maintenance cycles and straightforward interchangeability across ER 16 tooling platforms. For secure and repeatable clamping in ER 16 setups, order the TECWERK ER 16 Collet Nut via Metav Werkzeuge for fast supply from Emmerich, or consult Metav’s experts for application-specific advice and compatibility checks. Technical data Article number: 2000833994NW Item: ER 16 collet nut with eccentric ring Execution: Standard design Packaging unit: 1 SKU / UID: 2000833994NW Facts Diameter: 32 mm Thread: M22 x 1.5 Suitable for: ER 16 Conforms to: DIN 6499 Special features Standard design with eccentric ring For ER collet chucks Balanced execution M22 x 1.5 thread D: 32 mm FAQ Is this nut compatible with all ER 16 collet chucks? Compatibility is intended for ER 16 systems; the TECWERK ER 16 Collet Nut fits ER 16 collet chucks that accept an M22 x 1.5 thread and a 32 mm diameter nut What standard does the nut conform to? The component is specified to meet DIN 6499, ensuring standardised dimensions and balanced performance suitable for ER 16 tooling Does the eccentric ring affect installation? The eccentric ring is integrated into the nut’s design to improve clamping consistency and does not require special installation beyond standard fitting procedures for collet nuts Can this nut be used at higher spindle speeds? The balanced execution supports stable operation at typical machining speeds for ER 16 systems; final speed limits depend on the complete chuck and spindle assembly Is the thread specification standardised for replacement parts? Yes, the M22 x 1.5 thread is a standard specification intended for direct interchangeability within ER 16 tooling platforms Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund

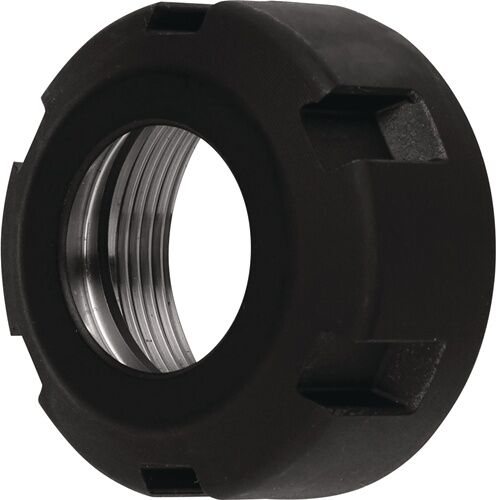

42mm ER 25 Clamping Nut, M32 x 1.5 Thread, Balanced Sliding Bearing Version - TECWERK
Take advantage of a balanced design and sliding-bearing guidance to reduce vibration and extend tool and spindle life; the M32 x 1.5 thread ensures secure engagement with ER25 collet chucks. Order the item directly via Metav Werkzeuge or consult our advisors for confirmation of fit and suitability. ER collet nut ER25 Ø42 mm – balanced sliding-bearing clamping nut by TECWERK The ER collet nut ER25 Ø42 mm is a balanced, sliding-bearing clamping component designed for secure fastening in ER collet chuck systems. Balanced design for high-speed machining Sliding-bearing for smooth axial guidance Thread M32 x 1.5 for ER25 collet chucks Conforms to DIN 6499, diameter 42 mm Improved clamping reliability for continuous production The balanced design and sliding-bearing construction reduce axial play and minimise vibration during rotation. This results in reduced runout, more consistent clamping force and less wear on the toolholder and spindle, which directly supports longer production runs and fewer unplanned stoppages. For workshops and small-scale production lines, these attributes translate into improved process stability and predictable repeatability. Engineered for precise fit and interchangeability The collet nut uses an M32 x 1.5 thread and is dimensioned for Ø42 mm engagement, matching the geometry specified in DIN 6499 for ER systems. Conformity to this standard ensures compatibility with established ER25 collet chucks and simplifies replacements or retrofits. In practical terms, adherence to the standard reduces setup time and eliminates uncertainty when sourcing replacement clamping components for existing toolholders. Compatibility, installation and operational benefits Designed specifically for ER25 systems, the component is suitable for integration into ER collet chucks where a balanced execution is required. The sliding-bearing version provides smoother axial guidance than rigid nuts, aiding consistent collet compression and release under cyclical loads typical in milling and turning operations. If the precise fit or suitability for a specific chuck type is uncertain, Metav Werkzeuge’s consultants can verify compatibility to ensure the component meets the intended operational demands. For precision clamping with TECWERK’s balanced sliding-bearing ER collet nut, contact Metav Werkzeuge in Emmerich for tailored advice and reliable supply. Technical Data Article number: 2000833999NW Product: ER collet nut ER25 Ø42 mm (TECWERK) Product type: ER collet nut Facts Diameter: 42 mm Thread: M32 x 1.5 Suitable for: ER25 Packaging unit: 1 Special features Balanced execution Sliding-bearing version Conforms to DIN 6499 For ER collet chucks FAQ Is this collet nut compatible with ER25 collet chucks? Yes. The ER collet nut ER25 Ø42 mm from TECWERK is designed for ER25 systems and uses an M32 x 1.5 thread to match standard ER25 collet chucks (SKU 2000833999NW). What performance advantage does the sliding-bearing design provide? The sliding-bearing version offers smoother axial guidance and reduced axial play, helping to maintain consistent clamping pressure and lowering wear on the collet and chuck over time when using the TECWERK ER collet nut. Can the balanced execution be used at high spindle speeds? The balanced design is intended to reduce vibration and runout during rotation, making the nut suitable for higher-speed applications where stability and concentricity are required. Does the product meet recognised standards for ER systems? Yes. The component conforms to DIN 6499, ensuring dimensional compatibility and interchangeability within ER25 collet systems. How is the item supplied? The TECWERK ER collet nut ER25 Ø42 mm is supplied as a single unit (packaging unit 1), article number 2000833999NW. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
42mm ER Collet Nut With Eccentric Ring, M32 x 1.5 Thread - TECWERK
Take advantage of the combination of a balanced execution, an eccentric ring and DIN‑compliant dimensions for reliable, repeatable clamping performance in workshops and production cells; order the clamping nut directly via Metav Werkzeuge or consult our specialists for integration advice. ER clamping nut ER 25, 42 mm with eccentric ring (TECWERK) The ER clamping nut ER 25, 42 mm with eccentric ring is a standard‑execution clamping component for ER collet chucks, designed to ensure secure tool retention and reduced runout. Standard execution with eccentric ring For ER collet chucks ER 25 Thread M32 x 1.5 Balanced design to reduce runout Secure clamping for consistent machining performance A precisely produced clamping nut with an eccentric ring transforms the clamping interface into a predictable element of the toolholding system. The eccentric ring compensates minor axial offsets during tightening, which improves clamping accuracy and reduces the risk of tilted collets under load. Specification conformity with DIN 6499 means simple interchangeability across compatible ER systems, helping to maintain stable cutting conditions and repeatable setups on milling spindles and toolholders. Seamless integration through standardised threads and sizes With a M32 x 1.5 thread and a nominal diameter of 42 mm, this component is matched to ER 25 collet chucks and accepts standard tooling dimensions. The thread profile and size allow for straightforward replacement of worn nuts without modifying existing holders, so downtime is minimised. The measured fit and DIN alignment simplify procurement planning and reduce inventory complexity when multiple machines use the same clamping ecosystem. Reduced vibration and improved runout at higher speeds The item’s balanced execution lowers eccentricity in the rotating assembly, thereby reducing vibration and improving surface finish on workpieces. For operations that demand dimensional accuracy, a balanced clamping nut contributes to lower tool deflection and consistent concentricity, which is particularly beneficial in finishing passes. Where spindle speeds are elevated, the balanced design helps maintain stability and prolongs the service life of collets and toolholders. Practical handling and workshop benefits The standard execution with eccentric ring offers quick assembly and reliable mechanical engagement, enabling maintenance teams to swap components without complex fixtures. The robust construction and conformity to ER dimensions make this clamping element suitable for general workshop use as well as in small manufacturing runs. Clear identification and compatibility with ER 25 reduce setup errors and support lean tooling management across multiple machines. For precise clamping solutions from TECWERK and expert procurement support from Metav Werkzeuge, request a technical consultation or place an order via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 2000833995NW Product name: ER clamping nut ER 25, 42 mm with eccentric ring Manufacturer: TECWERK Product type: ER clamping nut Packaging unit: 1 Facts Thread: M32 x 1.5 Diameter: 42 mm Suitable for: ER 25 Standard: DIN 6499 Special features Standard execution with eccentric ring Balanced execution to reduce runout Designed for ER collet chucks FAQ What collet size is this clamping nut intended for? This clamping nut is designed for use with ER 25 collet chucks and matches the standard ER 25 dimensions. Which thread is required to fit this nut? The item uses an M32 x 1.5 thread as specified for the component, enabling direct replacement in compatible holders. Does the nut meet industry standards for interchangeability? Yes, the component conforms to DIN 6499, ensuring compatibility with standard ER systems. How does the eccentric ring affect performance? The eccentric ring helps compensate minor axial misalignment during tightening, improving clamping accuracy and reducing collet tilt. Is this product balanced for rotational use? The nut is supplied in a balanced execution, which reduces runout and vibration during rotation. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund

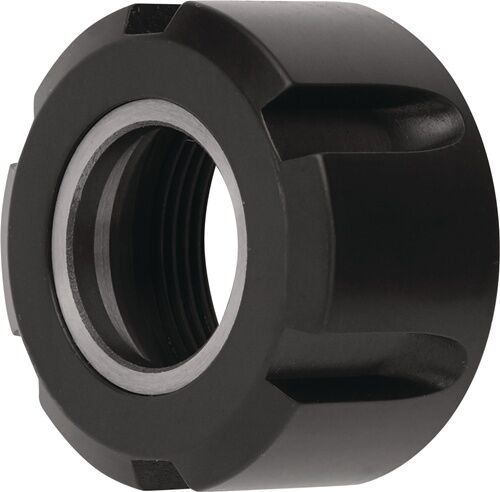

50mm ER 32 Collet Nut Gearing M40 x 1.5, Balanced Sliding Bearing - TECWERK
Balanced sliding-bearing design and a balanced execution combine to deliver secure clamping with reduced vibration; the M40 x 1.5 thread offers direct compatibility with ER 32 collet systems. Order the part via Metav Werkzeuge or consult the technical team for precise application advice. ER 32 clamping nut D 50 mm (sliding-bearing) – TECWERK The ER 32 clamping nut D 50 mm is a sliding-bearing, balanced clamping component designed for use with ER collet chucks in precision machining and toolholding assemblies. Sliding-bearing design for smooth clamping Balanced execution for high-speed compatibility Thread M40 x 1.5 for ER 32 systems Diameter 50 mm matched to ER 32 collets Reduced vibration and consistent clamping for precise machining The TECWERK ER 32 clamping nut is engineered to provide consistent axial clamping force while minimising runout. The combination of a sliding-bearing configuration and a balanced construction reduces vibration during rotation, which in turn helps to maintain tool life and surface finish. The clearly specified thread M40 x 1.5 and the 50 mm diameter make the component a straightforward replacement or upgrade in existing ER 32 toolholding setups; this ensures compatibility without altering the collet system. Reduced vibration and better dynamic behaviour are decisive benefits for repeatable results in production environments. Reliable fit and straightforward installation for workshop efficiency Designed for straightforward integration into standard collet chuck systems, the clamping nut offers a dependable mechanical interface for ER-style collets. The sliding-bearing design means the contact surfaces are optimised for smooth relative movement, which often translates to lower fretting and more uniform torque transmission during tightening. For maintenance routines, the construction supports predictable wear characteristics, so service intervals can be planned rather than reactive. Because the part is made to match ER 32 dimensions and DIN guidance, downtimes connected to thread or diameter mismatches are avoided, supporting continuous workshop throughput. Suited to demanding toolholding applications with clear sourcing This component is suitable where runout control and dynamic balance matter, such as high-speed milling or precision drilling operations that use ER collet chucks. The balanced execution reduces centrifugal forces that otherwise increase the mechanical load on bearings and spindle interfaces, supporting longer operational life for both tools and machines. For procurement and quality assurance, Metav’s position as a European quality filter ensures that components sourced through the distributor meet consistent standards; this reliability supports production planning and supplier consolidation strategies in industrial and trade settings. Contact Metav Werkzeuge to arrange delivery or to discuss TECWERK ER 32 clamping nuts and application details—phone or email for availability and lead-time clarification. Technical data Article number: 2000834000NW Product: ER 32 clamping nut, sliding-bearing Manufacturer: TECWERK Core data Diameter: 50 mm Thread: M40 x 1.5 Suitable for: ER 32 Packaging unit: 1 SKU: 2000834000NW Special features Sliding-bearing execution Balanced execution Compatible with ER collet chuck According to DIN 6499 FAQ What thread and diameter does this clamping nut use? The clamping nut uses an M40 x 1.5 thread and a 50 mm diameter, matched to ER 32 collet dimensions for direct assembly into standard ER 32 toolholding systems. Is the nut suitable for high-speed machining? Yes. The balanced execution reduces rotational imbalance, making the nut suitable for applications where improved dynamic behaviour and reduced vibration are required. How does the sliding-bearing design benefit clamping performance? The sliding-bearing execution provides smoother relative movement at the contact surfaces, which helps to distribute forces more evenly and can reduce localized wear while supporting consistent clamping torque. Will this part fit existing ER 32 collet chucks? The component is specified for ER 32 and manufactured to fit ER 32 collet chucks in accordance with the stated dimensional guidance, enabling straightforward replacement or integration. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund

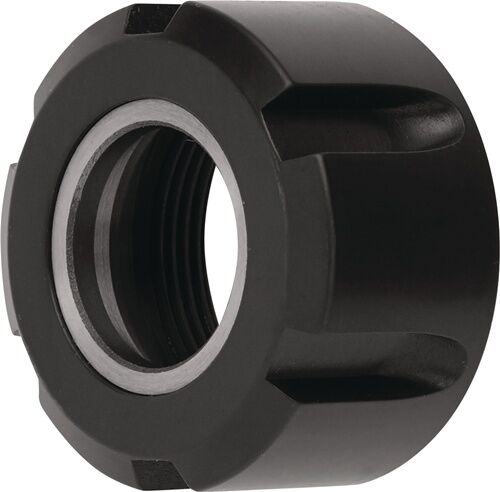

50mm ER Nut Clamping Collar With Eccentric Ring M40 x 1.5, Balanced DIN 6499 - TECWERK
Take advantage of the combination of a balanced design, an eccentric ring and standard M40 x 1.5 threading to ensure secure, concentric clamping for ER collet chucks; order directly via Metav Werkzeuge or consult the Metav specialists for application advice. ER 32 clamping nut with eccentric ring – D 50 mm by TECWERK The ER32 clamping nut with eccentric ring is a standard-design clamping component for ER collet chucks, providing stable, balanced fastening and compatibility with DIN 6499 systems. Standard design with eccentric ring Suitable for ER 32 collet chucks Thread M40 x 1.5 for secure fastening Diameter 50 mm, balanced execution Reliable clamping for consistent machining The balanced execution and the integrated eccentric ring reduce runout and support repeatable concentricity, which is essential for precision tasks. With the M40 x 1.5 thread and a nominal 50 mm diameter, this clamping nut secures ER collets reliably, contributing to stable toolholding and fewer reworks. Conformity with DIN 6499 indicates dimensional compatibility with established ER collet systems, so maintenance of concentricity becomes a measurable production benefit rather than an uncertainty. Seamless integration into ER collet systems Designed for compatibility with ER 32 collet chucks, the component fits directly into standard collet assemblies and simplifies retrofit or replacement procedures. The eccentric ring permits fine compensation for minor misalignment, helping to maintain concentric clamping without complex adjustments. For workshops and small production lines this means quicker set-ups and improved process stability, while service engineers benefit from straightforward interchangeability when aligning spindles or replacing worn components. Quality-filtered supply and workshop-focused service Sourced under the TECWERK designation and supplied via Metav Werkzeuge, the part is backed by a distribution approach that emphasises availability and traceable quality. Metav’s Emmerich hub acts as a quality filter for the European market, supported by an extensive range of precision tools and workshop equipment. This supply chain reliability reduces downtime risk and allows procurement teams to consolidate suppliers while keeping precision accessible for everyday workshop demands. Contact Metav Werkzeuge for tailored application advice and secure the balanced ER 32 clamping nut for improved concentricity and process reliability – email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 2000833996NW Manufacturer: TECWERK Product: ER clamping nut Facts Thread: M40 x 1.5 Diameter: 50 mm Suitable for: ER 32 Package unit: 1 Special features Standard design with eccentric ring Balanced execution, compliant with DIN 6499 For ER collet chucks FAQ Which collet size is this clamping nut designed for? The clamping nut is intended for ER 32 collet chucks and fits collets specified for ER 32 applications. What are the thread and nominal diameter of the part? The component features an M40 x 1.5 thread and a 50 mm diameter; reference SKU 2000833996NW for ordering. Is the nut balanced and to which standard does it conform? Yes, the nut is supplied as a balanced execution and is dimensionally compatible with DIN 6499. Can this clamping nut be used at elevated spindle speeds? The balanced design supports use at higher operational speeds typical for ER systems; final suitability depends on the spindle and collet chuck specifications. Is the eccentric ring adjustable and what is its purpose? The eccentric ring is incorporated to help compensate minor misalignment and assist in achieving concentric clamping when assembling ER collet systems. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
63mm ER 40 Collet Nut with Eccentric Ring, M50 x 1.5 - TECWERK
Take advantage of a balanced, DIN‑compliant clamping solution with an eccentric ring and M50 x 1.5 thread for secure, repeatable tool holding; order directly via Metav Werkzeuge or consult the sales team for application advice. ER 40 collet nut D63 mm with eccentric ring — TECWERK An ER 40 collet nut with eccentric ring for ER collet chucks, supplied in a standard, dynamically balanced design for reliable clamping in workshop and production applications Dynamically balanced design Eccentric ring for precise seating M50 x 1.5 thread for direct spindle fit Compatible with ER 40 collet chucks Secure clamping with measurable runout control The primary advantage of this clamping nut is its balanced design combined with an eccentric ring, which together improve seating consistency and reduce unbalance during rotation. In practical terms, the balanced execution lowers vibration and contributes to more predictable machining outcomes, especially at medium spindle speeds. The combination of M50 x 1.5 thread and a 63 mm diameter ensures a secure mechanical interface with standard ER systems, so the mechanism focuses on repeatable clamping precision rather than frequent adjustment. Clear compatibility and standard conformity for easier procurement Compatibility is straightforward: the component is made for ER 40 collet chucks and follows DIN 6499 conventions where applicable, simplifying selection and parts management. The standard format and marked dimensions make inventorying and assembly more efficient in workshop environments. For teams consolidating suppliers, the standardised interface reduces the need for custom adaptors and speeds up changeover between toolings, helping to maintain production flow. Robust design for everyday workshop use Built as a standard execution part for routine use, the nut’s geometry and the eccentric seating ring are engineered to withstand normal workshop handling while maintaining the required clamping force. This design choice supports operational reliability and reduces downtime caused by loosening or misalignment. The straightforward construction also permits straightforward inspection and verification, which is useful for quality control processes in small to medium manufacturing setups. Practical installation and inspection advice Installation requires matching the M50 x 1.5 spindle thread and an ER 40 collet chuck. When fitting, ensure the eccentric ring is correctly oriented to achieve uniform clamping pressure; incorrect seating can cause asymmetry in the clamping force. Periodic visual checks of thread condition and the eccentric ring seating are sufficient for most users to maintain performance; for detailed runout verification, measuring equipment that reads spindle runout will confirm the benefit of the nut’s balanced design without demanding specialist procedures. Contact Metav Werkzeuge for tailored advice or to arrange supply of TECWERK clamping components; technical queries are handled directly from the Emmerich centre at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: 2000833997NW Brand: TECWERK Product type: ER collet nut Facts Diameter: 63 mm Thread: M50 x 1.5 Suitable for: ER 40 Packaging unit: 1 Special features Standard design with eccentric ring Suitable for ER collet chucks Compliant with DIN 6499 where applicable Dynamically balanced execution FAQ What spindle thread does this collet nut require? The ER 40 collet nut from TECWERK requires an M50 x 1.5 spindle thread and is designed to mate directly with that specification. Is this nut suitable for standard ER 40 collet chucks? Yes, the nut is compatible with ER 40 collet chucks and is specified for that size to ensure correct clamping and fit. What are the benefits of the eccentric ring? The eccentric ring improves seating alignment and enhances clamping consistency, which helps reduce runout when the nut is used with ER 40 systems. Does the product include dynamic balancing? The item is supplied in a dynamically balanced execution, which reduces vibration and contributes to more stable machining results. TECWERK: Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund

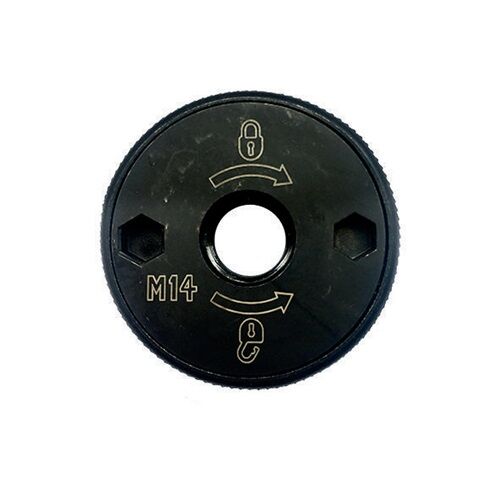

Schnellspannmutter DT3559 M14 DEWALT
passend zu allen Winkelschleifern mit M14 Antriebsspindel · kein zusätzliches Werkzeug zum Scheibenwechsel · bei eventuellen Bedarf auch mit Stirnlochschlüssel zu öffnen · zum Befestigen von Trenn- und Schruppscheiben

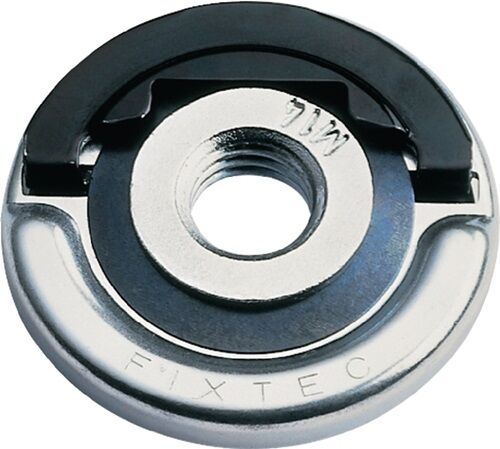

Schnellspannmutter FIXTEC M14 AEG
Scheibenwechsel in Sekunden · Lösen und Anziehen von Hand · kein Werkzeug erforderlich · nur 8 mm stark · erhöht die Schleiffläche · integrierte Sicherheitskupplung · für Winkelschleifer aller Fabrikate mit Spindel M14 und Scheibendurchmesser von 115-150 mm
