Secure and precise workholding for metalworking productivity
Workholding devices such as workpiece clamps and chuck systems provide absolute positional stability and vibration damping during milling, turning, drilling and grinding, ensuring parts remain free of play under high CNC cutting and feed forces. By transferring clamping loads into the machine table or spindle without deforming the component, a well engineered workholding solution improves machining accuracy, surface finish and process reliability while reducing set-up times. Modular systems from machine vices and chucks to zero-point systems and specialised fixtures enable fast changeovers and support both serial and single-part production, delivering consistent clamping force, repeatability and enhanced throughput.
0,5-10mm Schnellspannbohrfutter B12 Selbstspannend Rechtslauf, hoher Rundlauf · austauschbare gehärtete Teile - ALBRECHT
Schnellspannbohrfutter SBF Spann-Ø 0,5-10mm B 12 ALBRECHT – Schnellspannbohrfutter Das Schnellspannbohrfutter SBF ist ein robustes Schnellspannbohrfutter für präzise Bohr- und Spannaufgaben in der Industrie und Werkstatt, ausgelegt auf hohe Beanspruchung und maximale Rundlaufgenauigkeit. Selbstspannend mit maximaler Spannkraft Spannbereich 0,5–10 mm Kegelaufnahme B 12 für Standardaufnahmen Austauschbare, gehärtete Verschleißteile Ausgelegt für Rechtslauf Präzision und Aufbau für dauerhaften Einsatz Das Schnellspannbohrfutter kombiniert Rundlaufgenauigkeit mit einer soliden Mechanik, die für industrielle Fertigungsprozesse entwickelt wurde. Durch die Kegelaufnahme B 12 erfolgt die Kraftübertragung direkt und formschlüssig, was die Stabilität beim Bohren erhöht. Anwender profitieren von gleichbleibenden Bohrbildern und reduzierten Ausschussraten, da das Futter die Werkzeuge zentrisch führt und so Vibrationen minimiert. Einsatzbereiche und praktische Vorteile in der Fertigung Mit einem Spannbereich von 0,5–10 mm eignet sich das Bohrfutter für feine Präzisionsbohrungen ebenso wie für allgemeine Bearbeitungsaufgaben in Metall und anderen Werkstoffen. Die Konstruktion ist auf hohe Dauerbeanspruchung ausgelegt, sodass das Futter insbesondere in Serienfertigung, Instandhaltung und bei Maschinen mit kontinuierlichem Betrieb seine Stärken ausspielt. Die Kombination aus kompakter Bauform und Belastbarkeit erhöht die Maschinenverfügbarkeit. Wartungskonzept und Lebensdaueroptimierung Alle Verschleißteile sind einsatzgehärtet, geschliffen und austauschbar, was Wartungszyklen verkürzt und Stillstandzeiten reduziert. Die Möglichkeit, defekte Komponenten zu ersetzen, statt das komplette Futter zu tauschen, senkt die Gesamtkosten über den Lebenszyklus. Anwender mit hohem Teileumsatz schätzen die planbare Instandhaltung und die einfache Beschaffung kompatibler Ersatzteile. Für wen dieses Bohrfutter entwickelt wurde Das Produkt richtet sich an Werkstätten, Fertigungsbetriebe und Prüfbereiche, die auf wiederholbare Präzision und kurze Werkzeugwechselzeiten angewiesen sind. Anwender, die robuste Komponenten benötigen, finden hier ein Futter, das Belastbarkeit und Servicefreundlichkeit verbindet. Die Konstruktion ist ideal für Anwender, die eine zuverlässige Lösung für Rechtslauf-Maschinen suchen. Setzen Sie auf das ALBRECHT Schnellspannbohrfutter mit B 12 Kegelaufnahme für beständige Fertigungsqualität und kontaktieren Sie bei Fragen info@metav-werkzeuge.com oder telefonisch +49 2822 7131930. Produktmerkmale Artikelnummer: 4120167207NW Marke: ALBRECHT Produktart: Schnellspannbohrfutter Aufnahme: B 12 Fakten Spannbereich: 0,5–10 mm Außendurchmesser: 43 mm Verpackungseinheit: 1 Besonderheiten SBF: Schnellspannbohrfutter (schneller Werkzeugwechsel) Kegelaufnahme B 12: definierte Kegelverbindung, präzise Kraftübertragung Selbstspannend: automatische Spannfunktion für festen Halt Maximale Spannkraft: für sichere Werkzeugspannung Alle Verschleißteile einsatzgehärtet, geschliffen und austauschbar Drehrichtung: Rechtslauf FAQ Was bedeutet die Angabe B 12 bei der Aufnahme? Die Angabe B 12 bezeichnet die Kegelaufnahme des Bohrfutters; das Schnellspannbohrfutter SBF mit B 12 ist für Maschinen mit entsprechender Aufnahme genormt und gewährleistet formschlüssige Kraftübertragung. Für welche Bohrdurchmesser eignet sich das Futter? Das ALBRECHT Schnellspannbohrfutter deckt einen Spannbereich von 0,5–10 mm ab und ist somit für feine bis mittlere Bohrarbeiten geeignet. Sind Ersatzteile für das Bohrfutter verfügbar? Ja, beim Schnellspannbohrfutter sind alle Verschleißteile einsatzgehärtet, geschliffen und austauschbar, was gezielte Reparaturen und kosteneffiziente Instandhaltung ermöglicht. Kann das Bohrfutter auf Rechts- und Linkslaufmaschinen verwendet werden? Dieses Modell ist speziell für Rechtslauf ausgelegt. Für Linkslaufanwendungen sollten passende Alternativmodelle geprüft werden. Eignet sich das Futter für Serienbetrieb? Durch die robuste Bauweise, hohe Spannkraft und die Möglichkeit zum schnellen Austausch von Verschleißteilen ist das Schnellspannbohrfutter für den kontinuierlichen Betrieb in der Serienfertigung geeignet. Hersteller: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
0-100 mm Bench Vice With 360° Swivel Base, 1,800 kgf Clamp Force - Vertex
The combination of a 1800 kgf clamping force and a 360° swivelling base ensures stable, adaptable clamping for repetitive workshop tasks; paired with a compact 0–100 mm jaw opening, this vice supports reliable throughput and precise positioning. Order directly via Metav Werkzeuge or consult our advisers for specification assistance. BVV-4 Workshop Vice – 1800 kgf clamping force, 0–100 mm jaw opening (Vertex) The BVV-4 workshop vice with a 360° swivelling base secures workpieces for machining, assembly and measurement tasks, offering flexible positioning and consistent clamping in general workshop and light industrial environments. 360° swivelling base for flexible alignment 1800 kgf clamping force for secure holding 0–100 mm jaw opening for varied workpieces Robust 7 kg construction for daily use Secure clamping for repeatable accuracy A high clamping force is essential when consistency matters. The 1800 kgf rating of this clamping device provides secure fixation for a wide range of operations, reducing the risk of slippage during cutting, filing or assembly. By combining strong bite with a controlled jaw opening of 0–100 mm, the vice enables accurate workpiece positioning and improved process stability. For workshops seeking measurable reliability, this results in fewer reworks and a steadier production flow. Flexible positioning that speeds workflows Built around a 360° swivelling base, this clamping solution allows rapid alignment of the workpiece without repeated unclamping and reclamping. The swivel function shortens set-up times and supports multi-angle operations on the same fixture, which contributes to higher throughput and smoother job changeovers. The compact footprint and the vice’s capacity for fine positional adjustment make it well suited to benches where workflow efficiency and ergonomic access are priorities. Durable design for everyday workshop demands Designed for frequent use, the vice features a robust construction and a manageable mass of 7 kg, giving it stability without excessive bulk. Its build quality resists the knocks and stresses of daily handling, helping to sustain precision over time. Where regular clamping is part of production routines, a durable vice reduces downtime for repairs and replacement, supporting predictable maintenance cycles in the workshop. Practical fit for machining and inspection tasks The vice’s combination of secure holding, defined opening range and swivel capability makes it appropriate for both machining and measuring setups. When paired with common metrology practices, the stable clamping performance supports more consistent measurement results. The device integrates neatly into benches used for assembly, finishing and inspection work, offering a balance between rigidity and operational flexibility. For tailored advice on integrating the Vertex BVV-4 into existing workflows, contact Metav Werkzeuge—our specialists in precision tools are available via info@metav-werkzeuge.com, by phone on +49 2822 7131930 or WhatsApp at +49 170 2837271 to discuss specifications and compatibility Technical data Article number: BVV-4 GTIN: 4061905089985 SKU: BVV-4 Facts Dimensions: 178 x 310 x 148 mm Weight: 7 kg Clamping force: 1800 kgf Jaw opening: 0–100 mm eClass: 21020601 ETIM: EC002173 Special features 360° swivelling base Designed for workshop and light industrial use Compact footprint for bench mounting Manufacturer: Vertex FAQ What clamping force does the vice provide? The vice offers a clamping force of 1800 kgf, delivering stable holding for machining and assembly operations with the Vertex BVV-4 workshop vice. What is the maximum jaw opening? The jaw opening is 0–100 mm, allowing the vice to handle a wide range of workpiece sizes suitable for general workshop tasks. Can the vice be rotated for multi-angle work? Yes, the integrated 360° swivelling base permits flexible alignment and rapid repositioning without repeated unclamping. How heavy is the vice and is it suitable for bench mounting? Weighing 7 kg, the unit provides a stable yet manageable mass and is designed for secure bench mounting in workshop environments. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

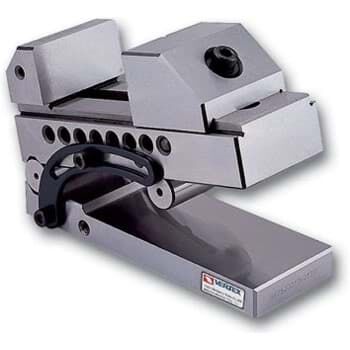

0-100 mm Grinding Vice With Low-Pull Adjustment System, 73x185x68mm - Vertex
Take advantage of precise clamping, a wide 0–100 mm opening and a compact footprint to streamline grinding operations; order the vice directly via Metav Werkzeuge or consult the Metav team for application advice. VBST-30 grinding vice with low-draw adjustment — Vertex The VBST-30 is a compact grinding vice with a low-draw adjustment system designed for secure clamping in precision grinding and toolroom applications. High-precision repeatability 0.005 mm Adjustable opening 0–100 mm Low-draw adjustment system Compact footprint 73x185x68 mm Maximise machining accuracy with repeatable clamping The vice delivers consistent positioning thanks to its rated 0.005 mm accuracy, reducing rework and variance between batches. This level of precision supports fine grinding and finishing tasks where tight tolerances matter, ensuring fewer inspection rejects and smoother downstream processes. The specification for repeatability enables predictable results across repeated setups, which helps to shorten cycle times and maintain quality in serial production. Faster setups through practical adjustment and range A wide opening of 0–100 mm paired with the low-draw adjustment system reduces clamping time and simplifies part loading. The mechanism is engineered to keep the workpiece firmly located during abrasive machining while allowing quick repositioning for successive operations. The compact footprint and manageable mass of 4.5 kg make the unit straightforward to integrate into existing magnetic or fixed grinding fixtures, improving workshop throughput without requiring major machine adaptations. Stable performance in grinding environments Designed for the demands of abrasive machining, the vice offers a stable workholding solution that supports finish consistency and operator confidence. The geometry and adjustment concept focus on maintaining clamp force and alignment under cutting and dressing loads, which contributes to fewer interruptions for repositioning. Its dimensions of 73 x 185 x 68 mm allow close mounting to the machine table, reducing overhang and enhancing stiffness for finer surface finishes. For workshop-grade precision rely on the Vertex VBST-30 — contact Metav Werkzeuge in Emmerich for tailored advice and prompt supply directly from our European quality filter (info@metav-werkzeuge.com / +49 2822 7131930) Technical Data Article number: VBST-30 GTIN: 4061905083242 Manufacturer: Vertex Facts Opening range: 0–100 mm Accuracy: 0.005 mm Dimensions: 73 x 185 x 68 mm Weight: 4.5 kg ECLASS: 21020601 ETIM: EC002173 Special features Low-draw adjustment system Compact grinding vice for machine integration Suited to precision grinding and toolroom applications FAQ How precise is the clamping of this vice? The vice offers an accuracy of 0.005 mm, providing the repeatability required for precision grinding with the Vertex VBST-30. What workpiece size can be accommodated? The adjustable opening covers 0–100 mm, making the unit suitable for a wide range of small to medium-sized components. Can this vice be integrated into existing grinding fixtures? Yes; the compact footprint (73 x 185 x 68 mm) and modest weight facilitate straightforward integration into standard fixtures and machine tables. Is the low-draw adjustment suitable for rapid changeovers? The low-draw adjustment system is designed to speed up clamping and repositioning, supporting efficient changeovers in serial production. What is the article number or SKU for ordering? The article number (SKU) is VBST-30, listed under Vertex for procurement and specification. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-100 mm Milling Vise B-Type 900 kgf Clamping Force, 21.5 kg - Vertex
Take advantage of the combination of 900 kgf clamping force and an adjustable 0–100 mm opening for secure, versatile component fixation in milling operations. Order the milling vice directly via Metav Werkzeuge or ask the consultants for application advice. VBV-5 milling vice (B-type) — 900 kgf clamping force, 0–100 mm opening | Vertex The VBV-5 milling vice is a mechanical B-type vice engineered for secure workpiece clamping on milling machines, providing a balance of strength and precision in a compact format. 900 kgf clamping force 0–100 mm adjustable opening Accuracy 0.01 mm Robust mechanical B-type design Secure clamping for demanding milling tasks The vice delivers a 900 kgf clamping force and an adjustable 0–100 mm jaw opening, ensuring reliable fixation of workpieces during heavy milling passes. The combination of high clamping force and a compact footprint reduces vibration and workpiece movement, which in turn helps maintain surface finish and tool life. The vice is suitable for repetitive setups where secure holding is required without frequent re‑clamping, supporting stable production flow and predictable machining results. Precision and repeatability where it counts With an accuracy of 0.01 mm, the vice contributes to consistent positioning and repeatable machining tolerances. This level of precision refers to the vice’s ability to hold the workpiece with minimal deviation between successive clamps; it is particularly beneficial in small‑batch production and toolroom tasks where dimensional consistency is critical. The mechanical design minimises play and backlash, translating nominal accuracy into tangible improvements in part quality and reduced rework. Engineered for workshop efficiency and durability The mechanical B‑type construction combines simple, robust mechanics with low maintenance demands. At approximately 21.5 kg, the vice is heavy enough to dampen cutting forces yet compact enough for flexible mounting on machine tables. The straightforward mechanical operation reduces the need for auxiliary equipment, while the durable build supports long service intervals and dependable daily use. Clear numeric specifications make integration into existing workflows straightforward and support efficient planning for fixturing and machine loading. A practical choice for production and jobbing shops The VBV‑5 milling vice from Vertex offers a pragmatic balance of strength, precision and footprint for a wide range of milling applications. Its repeatable clamping, measurable accuracy and compact dimensions make it well suited to both production benches and specialist jobbing tasks. For purchasers seeking a reliable clamping solution backed by a European distribution partner that acts as a quality filter for the market, this vice represents a solid, long‑term investment in clamping capability. For a tailored specification check or application recommendation for the VBV-5 from Metav Werkzeuge, contact Metav Werkzeuge for advice and a customised quotation via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: VBV-5 GTIN: 4061905090844 Manufacturer: Vertex Type: Mechanical Facts Dimensions: 280 x 410 x 131 mm Weight: 21.5 kg Clamping force: 900 kgf Opening range: 0–100 mm Accuracy: 0.01 mm eClass: 21020601 ETIM: EC002173 Special features B-type design Model family: VBV series SKU: VBV-5 FAQ What clamping range does the vice offer? The VBV-5 milling vice provides an adjustable jaw opening from 0 to 100 mm, allowing accommodation of a wide range of workpiece widths within that span. How precise is the clamping and what does the accuracy mean? The vice achieves an accuracy of 0.01 mm, which indicates consistent positional repeatability between successive clamps and supports tight machining tolerances in production and toolroom environments. Is the VBV-5 suitable for heavy milling operations? With a clamping force of 900 kgf and a robust mechanical B-type construction, the VBV-5 is designed to withstand demanding milling forces while maintaining workpiece stability. How should the vice be mounted on a machine table? Mounting follows standard machine table practices; the vice is intended for secure fixation to the table and alignment should be performed according to the machine’s fixturing requirements to ensure accuracy. What maintenance is required to keep the vice performing reliably? Regular cleaning of slip surfaces, periodic lubrication of the lead screw and routine checks for wear will preserve the vice’s repeatability and service life. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-100 mm Quick-Change Bench Vise, 167x428x196mm, 13.3 kg - Vertex
Take advantage of the combination of fast clamping, a wide 0–100 mm jaw range and a stable 13.3 kg mass for reliable, repeatable workshop clamping; order directly via Metav Werkzeuge or ask our consultants for application advice. VQS-40 Quick‑Release Bench Vice — 0–100 mm jaw opening, robust stability (Vertex) The VQS-40 is a quick‑release bench vice designed for general workshop clamping and machining tasks, offering fast set‑ups and steady holding for repeatable results. Quick‑release clamping for fast setup 0–100 mm jaw opening for varied parts 13.3 kg mass for vibration dampening Compact footprint: 167×428×196 mm Reduce setup time with rapid clamping The quick‑release mechanism shortens clamping cycles, enabling faster fixture changes and improved throughput on repetitive jobs. With a 0–100 mm jaw range, the vice accommodates a broad mix of stock sizes without auxiliary jaws, helping to streamline workflow. The design focuses on practical speed: fewer adjustments mean less machine downtime and a higher rate of finished parts per shift. Hold parts securely for accurate machining A stable mass of 13.3 kg gives the vice a solid foundation, reducing micro‑movement and supporting consistent cutting results. This stability translates into better precision and improved finish quality when milling or drilling. The vice’s jaw geometry ensures reliable contact and repeatability, which is important when the same datum must be held across multiple operations. Compact design that fits busy benches The compact footprint (167×428×196 mm) saves valuable bench space while still providing effective clamping range. The vice is sized for busy workshops where layout flexibility matters; the combination of small external dimensions and a useful jaw span allows for versatile placement without sacrificing performance. This balance keeps the workbench organised and accessible while maintaining the functionality expected from a professional clamping tool. Practical technical clarity for workshop planning Key specifications are provided plainly so purchasing and production planning can proceed with confidence. The vice’s measurable properties — jaw opening, mass and overall dimensions — support decisions about fixturing, storage and compatibility with existing equipment. This transparency helps avoid guesswork and supports reliable integration into tooling setups. For tailored advice about the Vertex VQS-40 and to request technical drawings or compatibility information, contact Metav Werkzeuge in Emmerich — our specialists will assist with specifications and practical application guidance Technical data Article number: VQS-40 GTIN: 4061905083679 eClass: 21020601 ETIM: EC002173 Facts Weight: 13.3 kg Jaw opening: 0–100 mm Dimensions: 167×428×196 mm Special features Quick‑release clamping mechanism Compact bench vice design Brand: Vertex SKU: VQS-40 FAQ What is the jaw opening of the vice? The jaw opening is 0–100 mm, which allows clamping of a wide range of part sizes with few adjustments for most workshop tasks. How much does the vice weigh? The vice has a mass of 13.3 kg, providing intrinsic stability that helps to reduce vibration during machining. Are the dimensions suitable for small workbenches? Yes, the vice’s compact footprint of 167×428×196 mm makes it suitable for benches where space is limited yet robust clamping is required. Is the VQS-40 appropriate for precision drilling and milling? The VQS-40 is engineered for reliable clamping and precision, with its quick‑release system and stable mass supporting consistent machining outcomes. Who manufactures the VQS-40? The VQS-40 is produced by Vertex and supplied under the SKU VQS-40, ensuring a recognised origin and traceable specification. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-100mm Adjustable Clamp U-Style or Swivel, M16x6" Bolt - Vertex
Reliable clamping for compact fixtures with adjustable 0–100 mm height and an M16 fastening for secure setups. Available in a U‑shaped or rotatable version to match different fixture concepts. Order the clamp directly via Metav Werkzeuge or ask Metav’s consultants for application-specific advice. VCA-405 clamp — adjustable height (0–100 mm) by Vertex the VCA-405 is a compact adjustable clamp designed for precise fixture and workholding tasks, offered in either a U‑shaped or rotatable configuration for flexible fixturing Adjustable height 0–100 mm for variable setups U‑shape or rotatable versions for application flexibility Compact dimensions 126 x 54 x 40 mm for tight spaces M16 fastening for secure and repeatable clamping Stable, space-saving design that improves fixture consistency The clamp provides a compact footprint of 126 x 54 x 40 mm, allowing integration into dense fixture arrays where space is limited. With a mass of 2.6 kg, the unit delivers inherent stability for repetitive operations and helps reduce vibration during machining or inspection. The M16 bolt interface ensures a standard and robust connection to tables, plates or sub‑fixtures, enabling secure fastening and straightforward replacement within existing clamping systems. Flexible configuration reduces setup time and increases versatility Two configuration options — U‑shaped or rotatable — make the clamp suitable for a range of tasks from vertical holding to indexed positioning. The adjustable height (0–100 mm) lets operators set clamping engagement precisely, avoiding over‑clamping and protecting delicate components. This mechanical adaptability supports faster changeovers between jobs, contributing to more efficient production cycles and better utilisation of existing fixturing equipment. Built for repeatability and workshop reliability Engineered for reliable performance in workshop and light industrial environments, the clamp emphasises repeatable clamping and simple mechanical adjustment rather than electronic aids. The clear mechanical specification and standard fastening deliver predictable behaviour across batches, which supports quality control and process stability. Compact dimensions and standard interfaces make the unit straightforward to integrate into modular fixtures, jigs or inspection rigs where consistent workholding is essential. For application-specific selection or to discuss integration into existing tooling systems, contact Metav Werkzeuge — eMail: info@metav-werkzeuge.com | Tel: +49 2822 7131930 | WhatsApp: +49 170 2837271 — and consult Metav’s specialists based in Emmerich for precise delivery and technical support. Technical Data SKU: VCA-405 GTIN: 4061905093791 eClass: 21049022 Facts Dimensions: 126 x 54 x 40 mm Weight: 2.6 kg Height adjustment: 0–100 mm Bolt: M16x6" Special features Available in U‑shape or rotatable versions Compact design for tight fixture layouts Standard M16 fastening for secure mounting FAQ What applications is this clamp best suited for? The clamp is suited for precision fixturing and workholding tasks where a compact, adjustable clamp is required; the VCA-405 clamp by Vertex fits modular fixtures and inspection rigs. How is the height adjusted and what range is available? Height is adjusted mechanically across a 0–100 mm range, allowing fine setting of clamp engagement for different workpiece heights. Can the clamp be mounted to standard tooling plates? Yes — the standard M16 fastening provides compatibility with many tooling plates and sub‑fixtures used in workshop environments. Are both U‑shaped and rotatable versions supplied under the same SKU? The product is offered in U‑shaped or rotatable configurations; refer to the SKU VCA-405 details when ordering to specify the preferred version. What ensures repeatability in clamping force and position? The combination of precise mechanical adjustment and a secure M16 bolt connection ensures repeatable clamping position and stable fixation during repetitive operations. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-100mm Pneumatic Precision Machine Vice Double-Opening 4000 kgf, Cast Iron - Vertex
Combine accuracy 0.01 mm, 4,000 kgf clamping force and a 0–100 mm opening for dependable, repeatable workholding; order the VMC-6PD directly via Metav Werkzeuge or consult our advisers for specification support. VMC-6PD Pneumatic Precision Machine Vice — 4,000 kgf Clamping, 0–100 mm Opening by Vertex VMC-6PD is a pneumatic precision machine vice designed for secure clamping in CNC and production machining environments, offering a compact footprint and double-opening function for efficient part handling. 4,000 kgf clamping force 0–100 mm versatile opening Accuracy 0.01 mm repeatability Cast-iron body for vibration damping Consistent precision that reduces rework The vice delivers industrial-grade accuracy 0.01 mm, providing stable positioning for serial machining tasks. High clamping integrity from the 4,000 kgf rating minimises workpiece movement during heavy cuts, which reduces scrap rates and downstream rework. The result is a measurable improvement in first-pass yield and reproducible results across batches, making the vice a rational choice for shops seeking predictable throughput and lower non‑productive time. Faster cycle times with pneumatic double opening Pneumatic actuation enables rapid clamp and release cycles, streamlining automated workflows. The pneumatic actuation and double-opening design shorten handling times by allowing jaws to open on either side, which is particularly advantageous in indexed or palletised systems. The 0–100 mm opening range supports a broad part size spectrum without frequent setup changes. For operations migrating from manual to automated clamping, the vice’s repeatable air-driven mechanism simplifies integration and increases net productive time on the machine. Robust construction for stable machining and long service life A cast iron body provides mass and damping, absorbing cutting forces and vibrations for improved surface finish and tool life. The vice’s substantial mass (approx. 63 kg) contributes to stable clamping on the machine table and reduces micro‑movement under load. Designed for workshop environments, the vice combines durable materials with straightforward maintenance routines, supporting continuous operation in both batch production and precision jobbing applications. Contact Metav Werkzeuge in Emmerich for project-specific advice on the Vertex VMC-6PD pneumatic precision vice, request CAD data or technical sheets via info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data SKU: VMC-6PD GTIN: 4061905093814 Manufacturer: Vertex Type: Pneumatic, double opening EClass: 21020601 ETIM: EC002173 Core specifications Dimensions: 160 x 682 x 148 mm Weight: 63 kg Clamping force: 4000 kgf Opening range: 0–100 mm Accuracy: 0.01 mm Materials & functions Body material: Cast iron Actuation: Pneumatic Design: Double-opening vice Intended use: Precision machine clamping FAQ What is the maximum clamping force of this vice? The VMC-6PD provides a clamping force of 4,000 kgf, giving strong, repeatable holding power for demanding machining operations. Which opening range is supported for different workpieces? The vice supports an opening range of 0–100 mm, allowing flexible clamping of small to medium-sized components on the machine table. Is the VMC-6PD suitable for automated pallet systems? Yes; the pneumatic actuation and double-opening design of the Vertex VMC-6PD make it well suited to palletised and automated loading systems where fast cycle times are required. How does the material of the vice affect machining performance? The cast iron construction of the vice improves vibration damping and stability, which helps to maintain surface finish and extend tool life during machining. What accuracy can be expected for positioning and clamping? The vice is specified with an accuracy of 0.01 mm, supporting precision requirements in serial and prototype workholding. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-100mm Precision Machine Vice Modular Hydraulic Option, 900 kgf Clamping Force, Alloy Steel - Vertex
Take advantage of the combination of modular design, 900 kgf clamping force and 0.01 mm accuracy for reliable, repeatable clamping in precision machining. Order the vice directly via Metav Werkzeuge or consult our specialists for configuration advice. VMP-4 Precision machine vice — modular, optionally hydraulic, high clamping force A VMP-4 precision machine vice engineered for demanding workshop and CNC applications, offering modular setup with an optional hydraulic actuation for faster cycle times and secure workholding. Accuracy 0.01 mm repeatability Modular design, optionally hydraulic 900 kgf clamping force Alloy steel construction, robust Consistent accuracy for demanding components The vice delivers consistent accuracy through a finely engineered clamping system that secures parts with 900 kgf of clamping force while maintaining 0.01 mm repeatability. This level of precision reduces rework and ensures stable tool paths during milling and finishing operations. The mechanical guidance and hardened contact surfaces minimise deflection under load, translating component tolerances directly into higher first-pass yields. By specifying a vice with such measured repeatability, production planning benefits from fewer inspection cycles and predictable part quality. Modular configuration that adapts to workflows A modular construction allows the vice to be configured as a purely mechanical unit or upgraded with a hydraulic module where continuous or rapid clamping is required. This flexibility shortens set-up times and supports mixed-production environments: one fixture can serve manual benches, machining centres or transfer systems depending on the fitted modules. Integration is straightforward because the unit is designed for standard fixing patterns and simple retrofitting, enabling a single clamping solution to address a wider range of workpieces and batch sizes. Durable materials and low-maintenance operation for uptime Constructed from alloy steel with surface treatments to withstand workshop conditions, the vice offers a balance of robust construction and manageable weight (approx. 9.2 kg) for easy handling during tool changes. The design minimises service points; routine maintenance consists of lubrication and inspection of wearing parts, keeping downtime low and total cost of ownership competitive. Delivered with clear dimensional data and repeatable mounting options, the vice supports predictable fixture design and long-term reliability in serial machining. Contact Metav Werkzeuge to specify the modular clamping configuration of the Vertex VMP-4 and arrange delivery from Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: VMP-4 GTIN: 4061905084188 ECLASS: 21020601 ETIM: EC002173 Dimensions: 75x270x65 mm Weight: 9.2 kg Material: Alloy steel Clamping force: 900 kgf Opening range: 0–100 mm Accuracy: 0.01 Type: Mechanical Brand: Vertex Facts Accuracy: 0.01 mm Clamping force: 900 kgf Opening: 0–100 mm Weight: 9.2 kg Dimensions: 75 x 270 x 65 mm Special features Modular design, optionally hydraulic Alloy steel construction Mechanical operation, compatible with retrofittable hydraulic module SKU: VMP-4 FAQ What level of accuracy can be expected from the VMP-4? The VMP-4 precision machine vice is specified with an accuracy of 0.01 mm, providing the repeatability required for tight-tolerance machining tasks. Can the vice be upgraded to hydraulic actuation? Yes, the vice features a modular design that can be supplied or retrofitted with a hydraulic module to provide faster and more uniform clamping. What materials is the vice suitable for clamping? The VMP-4 vice, built from alloy steel, is intended for secure clamping of metal workpieces commonly used in machining, supporting stable results during milling and finishing. How much clamping force does the vice provide? The unit delivers up to 900 kgf of clamping force, combining strong holding power with the precision needed for accurate machining operations. Is the VMP-4 suitable for use in CNC machining centres? Yes, the vice is designed for workshop and CNC applications and can be adapted to machining centres via standard mounting patterns or the optional hydraulic upgrade. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-100mm Tilting Milling Vice 900 kgf Clamp Force, Cast Iron, Mechanical - Vertex
Take advantage of a tilting design, robust cast-iron construction and a high 900 kgf clamping force to keep machining precise and production steady; order via Metav Werkzeuge or contact their consultants for tailored technical advice. VWT-5 Tilting Milling Vice (Vertex) – 900 kgf Clamping Force, 0–100 mm Opening A VWT-5 tilting milling vice designed for accurate, medium‑duty workshop milling that secures workpieces horizontally or at angles for versatile machining operations Tilting design for angled workpieces 900 kgf clamping force for secure holding Jaw opening 0–100 mm for varied stock sizes Cast-iron body with 0.01 mm precision Precision clamping that keeps tolerances tight The vice delivers measurable consistency through its 0.01 mm accuracy, enabling repeatable machining results on serial parts and single setups alike. The combination of a high 900 kgf clamping force and mechanically stable guiding surfaces reduces micro-movement during cutting, which shortens rework cycles and improves first-pass yield. Such specification supports quality-controlled production where dimensional stability and reproducibility are essential. Faster set-ups and flexible angle workholding A robust tilting mechanism allows angled clamping without complex fixturing, cutting setup time and expanding the range of feasible operations on a single fixture. The 0–100 mm jaw opening covers a broad spectrum of stock sizes commonly encountered in jobbing and light production environments. Reduced fixturing complexity translates into shorter machine idle times and greater operational throughput for milling centres and bench-mounted machines. Stable construction for consistent machining performance Built from cast-iron, the vice’s mass and stiffness—reflected in its 31.7 kg weight—dampen vibration and deliver improved surface finish and tool life. The substantial base and rigid jaws ensure reliable contact under machining loads, supporting secure clamping across repeated cycles. This durability results in lower maintenance frequency and dependable accuracy over extended service life. Seamless workshop integration and assured supply The mechanically operated design is readily compatible with standard milling tables and tooling, allowing simple retrofitting into existing production lines. The precision and robustness of this vice support downstream inspection and process control, helping to reduce scrap rates. Metav’s role as a European quality filter means access to reliable inventory and expert advice from Emmerich, backed by decades of precision experience and a broad product range. Choose the Vertex VWT-5 for reliable, high‑precision clamping and contact Metav Werkzeuge in Emmerich for expert guidance and dependable delivery via info@metav-werkzeuge.com or +49 2822 7131930 Technical Data SKU: VWT-5 GTIN: 4061905089152 Manufacturer: Vertex Type: Mechanical Eclass: 21020601 ETIM: EC002173 Facts Dimensions: 313 x 415 x 164 mm Weight: 31.7 kg Jaw opening: 0–100 mm Clamping force: 900 kgf Accuracy: 0.01 mm Materials & Special Features Material: Cast iron Tilting function (kippbar) Mechanical operation High clamping force for secure holding FAQ What types of machining suit this vice? The VWT-5 tilting milling vice by Vertex is suited to milling operations where secure, precise clamping is required, including angled cuts and repeatable series work on milling machines. How precise is the clamping and positioning? With an accuracy of 0.01 mm, the vice provides high repeatability, making the VWT-5 suitable for applications that demand tight dimensional control. Which materials can be held securely in the vice? The mechanical design and 900 kgf clamping force allow the vice to securely hold a wide range of workshop materials typically processed on milling machines. How does the tilting function improve workflow? The tilting mechanism reduces the need for additional fixtures when working on angled faces, speeding up set-up and enabling more operations per setup. Is the vice stable during heavy milling cuts? The cast-iron body and substantial mass provide vibration damping and stability, supporting consistent cutting performance and improved surface finish. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-102mm Precision Grinding Vise VC Series Quick-Adjust Jaw, 73x190x68mm - Vertex
Die Kombination aus robuster Bauweise, grosser 0–102 mm Spannweite und kompakten Abmessungen sorgt für verlässlichen Betrieb bei Schleif- und Präzisionsarbeiten. Order the VC30 directly via Metav Werkzeuge or ask our consultants if needed. VC30 Grinding Vice — Vertex precision vice with 0–102 mm opening A versatile VC30 grinding vice designed for secure clamping on surface and toolroom grinders, suitable for varied workshop tasks. Versatile grinding vice for workshop use Opening range 0–102 mm for varied workpieces Compact footprint 73 x 190 x 68 mm Stable 4 kg mass for improved steadiness Stable clamping for consistent grind quality The vice is engineered as a compact grinding vice that delivers steady holding power across a broad opening range. With a 0–102 mm opening, the device adapts to small and medium workpieces without frequent jaw changes, reducing setup time. Its compact footprint (73 x 190 x 68 mm) and moderate mass contribute to precision clamping by limiting vibration transfer during surface-finishing operations. This configuration supports repeatable results on conventional grinders where workpiece stability directly affects surface finish and dimensional accuracy. Flexible handling and reduced setup complexity A major benefit of the design is operational flexibility: the wide opening range enables processing of components with differing widths while maintaining an unchanged machine setup. The vice’s dimensions and weight strike a balance between portability and mass-related stability, which helps preserve wheel life and maintain consistent contact conditions. For workshops that prioritise efficient changeovers, the vice reduces time spent adapting fixtures and supports a steady workflow in mixed-production environments. Workshop longevity and straightforward use Constructed for everyday workshop use, the vice offers a straightforward mechanical concept that simplifies routine handling and inspection. The compact design minimises bench space consumption while the robust construction supports repeated clamping cycles typical in toolrooms and maintenance shops. Clear, mechanical adjustability ensures operators can check and set clamping positions quickly, which contributes to lower machine downtime and more predictable processing sequences over long production runs. Choose the Vertex VC30 for its wide 0–102 mm opening and compact stability — contact Metav Werkzeuge for ordering and technical advice: info@metav-werkzeuge.com | +49 2822 7131930 | WhatsApp +49 170 2837271 Technical data SKU: VC30 GTIN: 4061905085659 ECLASS: 21020601 ETIM: EC002173 Core dimensions and measures Opening range: 0–102 mm Dimensions: 73 x 190 x 68 mm Weight: 4 kg Product type and identifiers Product type: Grinding vice Model designation: VC (VC30) Image asset available: vc20-main.jpg FAQ What workpieces can be clamped in this vice? The VC30 grinding vice by Vertex is designed for small to medium-sized components within its 0–102 mm clamping range and is suitable for typical surface-grinding and finishing tasks. Is the vice suitable for repeated production use? Yes, the VC30 is dimensioned and weighted for stable, repetitive clamping cycles commonly required in toolrooms and workshops, supporting consistent grinding quality. Can the vice be used on different grinder types? The vice is intended for surface and toolroom grinding applications; compatibility with a specific machine depends on the machine table and fixturing arrangement rather than the vice itself. How does the compact size benefit workshop layout? The compact footprint of 73 x 190 x 68 mm helps save bench space while providing sufficient mass (4 kg) to reduce vibration and improve stability during finishing operations. Who manufactures the vice and what is the model designation? The vice is manufactured by Vertex and is offered under the model designation VC30, reflecting Vertex’s range of machine vices. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-103mm Machine Vice 1500 kgf Clamping Force 0.01mm Accuracy, 351x211x126mm - Vertex
Take advantage of a compact, high‑force clamping solution that combines 1500 kgf of holding power with a 0–103 mm jaw opening for versatile part sizes. The robust 20 kg construction and 0.01 mm positional accuracy support consistent machining results; order directly via Metav Werkzeuge or consult the Metav team for application advice. Vertex VA-4 Mechanical machine vice — 1500 kgf clamping force, 0–103 mm opening The Vertex VA-4 is a mechanical machine vice designed for precision clamping in workshops and machine shops, offering a compact footprint for use on milling machines and drill benches. 1500 kgf clamping force 0–103 mm adjustable jaw opening High precision with 0.01 mm accuracy Robust 20 kg body, compact 351 x 211 x 126 mm Precision clamping for consistent production results The vice delivers measurable control through its 0.01 mm positional accuracy and a finely graded jaw setting covering 0–103 mm, enabling repeatable setups for small to medium workpieces. This level of precision reduces rework and shortens inspection cycles; the clear numeric range of the opening and the defined 1500 kgf holding capacity allow planners to match clamping performance to machining forces, ensuring the fixturing is appropriate for turning, milling and drilling operations. Traceable identifiers such as GTIN: 4061905083204 support inventory and procurement processes. Stable performance and compact workshop footprint Designed with a compact profile of 351 x 211 x 126 mm and a mass of 20 kg, the device provides a low centre of gravity for reduced vibration during cutting. The solid mass contributes to consistent clamping pressure across the jaw faces, improving surface finish and tool life in routine production. The mechanical drive avoids complex electronics, simplifying maintenance and allowing rapid commissioning on conventional machine beds; the visible dimensions and mass make it straightforward to plan machine loading and workplace ergonomics. Practical integration and straightforward handling As a mechanically operated clamping tool, the vice is suitable for standard machine tables and allows quick part changes while maintaining repeat accuracy. The simple, durable mechanism supports predictable cycle times and low downtime; technical traceability is supported by the SKU and classification data for system documentation. For applications demanding robust, repeatable fixturing, the Vertex VA-4 offers a dependable balance of holding force, precision and compact design that integrates easily into existing production flows. For expert fitting recommendations and to verify compatibility with specific machines, contact Metav Werkzeuge for tailored advice on the Vertex VA-4 and its application in production environments, or request detailed technical data via info@metav-werkzeuge.com Technical Data Article number: VA-4 GTIN: 4061905083204 ETIM: EC002173 Facts Opening range: 0–103 mm Dimensions: 351 x 211 x 126 mm Weight: 20 kg Clamping force: 1500 kgf Accuracy: 0.01 mm Special features Type: Mechanical Category: Vertex eClass: 21020601 SKU: VA-4 FAQ What clamping range does the vice cover? The vice provides an adjustable jaw opening of 0–103 mm, suitable for a wide range of small to medium components. What holding force can be expected from this vice? The mechanical design achieves a rated 1500 kgf clamping force, ensuring stable fixation during typical milling and drilling tasks. Is the vice suitable for repetitive precision work? Yes; the device offers 0.01 mm positional accuracy and a stable mass of 20 kg, making it appropriate for repeatable setups in production runs. Which documentation identifiers are available for procurement and traceability? The product is listed with GTIN 4061905083204, SKU VA-4 and ETIM classification EC002173 for clear integration into purchasing and inventory systems. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-103mm Precision Machine Vice With Locking, 1500kgf Clamping Force, 14.2kg - Vertex
Take advantage of high clamping force and 0.01 mm precision combined with a reliable locking mechanism for consistent, safe workholding; order the vice directly via Metav Werkzeuge or consult the team for application advice. Vertex VMC-4 Precision Machine Vice with Locking — 1,500 kgf, 0–103 mm opening The Vertex VMC-4 is a precision machine vice designed for accurate and repeatable clamping in machining applications, offering a compact footprint and secure locking for demanding workholding tasks. 1,500 kgf clamping force Precision down to 0.01 mm Locking mechanism for secure hold 0–103 mm opening range Solid 14.2 kg body for stability Consistent accuracy that supports fine machining The vice delivers precision down to 0.01 mm, ensuring repeatable positioning across successive operations. This level of accuracy reduces rework and supports tight tolerances on milled or drilled components. The measured clamping force of 1,500 kgf provides the stability required to prevent micro-movement during cutting, which translates to improved surface finish and dimensional fidelity. For shops aiming to maintain throughput without compromising quality, the combination of precise guidance and robust force offers a clear operational advantage. Secure holding and flexible workpiece accommodation A locking mechanism integrated into the design guarantees secure hold during vibration-prone processes, helping to maintain cut integrity and tool life. The vice accommodates a practical workpiece range with its 0–103 mm opening, making it suitable for a variety of component sizes without frequent fixture changes. The straightforward clamping geometry simplifies setup times while the locking feature ensures that the workpiece remains stationary during heavier passes, providing operational confidence on both one-off and batch runs. Robust construction for stable machine integration With a mass of 14.2 kg and compact dimensions of 108 x 374 x 100 mm, this machine vice provides a low centre of gravity and stable base when mounted to a machine table. The solid construction contributes to reduced chatter and steadier cuts, which is particularly beneficial for precision tasks. Its size and rigidity strike a balance between shop-floor robustness and the space constraints of modern machining centres, enabling efficient integration without excessive footprint. Arrange a technical consultation with Metav Werkzeuge for the Vertex VMC-4 precision machine vice and secure reliable European supply from Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: VMC-4 GTIN: 4061905084324 Manufacturer: Vertex Facts Accuracy: 0.01 mm Clamping force: 1,500 kgf Opening: 0–103 mm Weight: 14.2 kg Dimensions: 108 x 374 x 100 mm eClass: 21020601 ETIM: EC002173 Special features Locking mechanism Precision machine vice design SKU: VMC-4 FAQ What level of precision can be expected from this machine vice? The Vertex VMC-4 achieves precision down to 0.01 mm, enabling repeatable positioning suitable for fine machining and tight tolerance work. What clamping force does the vice provide and why is it important? The vice offers a clamping force of 1,500 kgf, which secures components firmly to reduce vibration and movement during cutting, improving surface finish and tool life. Which workpiece sizes fit the vice? The opening range of 0–103 mm accommodates a wide variety of standard workpieces, allowing flexible setups without frequent fixture changes. Is the vice stable when mounted on a machine table? Yes; with a weight of 14.2 kg and compact dimensions, the vice provides a low centre of gravity and a stable base that helps minimise chatter during machining. What distinguishes the locking feature from a standard vice? The integrated locking mechanism ensures the clamping arrangement remains fixed under load and vibration, enhancing process reliability and part accuracy. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-104mm Machinist Vice With Quick-Adjust, Two-Axis Swivel, 800 kgf Clamping Force - Vertex
Take advantage of the combination of robust mechanical design, 800 kgf clamping force and a 0–104 mm opening for secure, repeatable workholding. Order the vice directly via Metav Werkzeuge or ask our consultants if additional details are required. VQW-130 Mechanical bench vice with quick-adjust and two-directional movement — Vertex A VQW-130 vice for workshop clamping that combines quick adjustment with movement in two directions for versatile machining and fixturing. Quick-adjust for rapid jaw setting Two-directional movement for flexible positioning 800 kgf clamping force for secure hold 0–104 mm opening for varied workpieces Reduce setup time and increase throughput with rapid adjustment The quick-adjust mechanism delivers measurable time savings during frequent clamping operations. By shortening the distance between the screw and the jaw, the quick adjustment lets operators position workpieces faster, which translates into fewer tool changes and reduced non-productive time. The result is a smoother workflow and improved plant efficiency without compromising safety or stability. Secure clamping and consistent precision for repeatable operations Constructed for everyday workshop demands, this bench vice offers 800 kgf clamping force and a finely machined contact surface that maintains grip under load. The robust mechanical design ensures repeatable results when performing drilling, filing or light milling tasks. For those less familiar with specifications, clamping force describes the maximum grip the vice can exert — higher values mean better resistance to movement during machining. Versatile positioning to adapt to complex tasks Movement in two directions increases the vice’s usefulness for non-standard setups and helps reduce the number of fixtures required. Combined with a 0–104 mm opening, the vice accommodates a wide range of component sizes while the compact footprint (303×422 mm) keeps bench space free for other tools. The moderate mass of 15.8 kg balances stability with the flexibility to relocate the vice when workshop layout changes are needed. Built for workshops that prioritise durability and ease of use A mechanically driven design keeps maintenance straightforward and parts easily serviceable. The vice’s rated accuracy supports tasks where alignment and repeatability matter, and the solid construction minimises vibration during operation. For production environments seeking dependable fixturing, the long-term advantage is fewer interruptions and predictable part quality. Choose the Vertex VQW-130 for reliable, fast clamping — contact Metav Werkzeuge for expert advice and supply from Emmerich, ensuring a precision-fit solution for your workshop Technical data Article number: VQW-130 GTIN: 4061905088100 Manufacturer: Vertex Numbers / Core technical data Dimensions: 303×422 mm Height: 106 mm Weight: 15.8 kg Clamping force: 800 kgf Opening range: 0–104 mm Accuracy: 0.01 mm Type: Mechanical Special features / Versions Quick-adjust mechanism Movable in two directions Bench vice design Brand: Vertex FAQ What is the maximum workpiece width the vice accommodates? The vice accepts workpieces within a 0–104 mm opening, allowing flexible clamping of narrow to moderately sized components with the Vertex VQW-130 vice. How strong is the clamping action? The Vertex VQW-130 applies up to 800 kgf of clamping force, offering a secure hold for everyday drilling, filing and light milling tasks. Is the vice suitable for repositioning on the bench? Yes, the vice’s compact footprint (303×422 mm) and moderate weight of 15.8 kg permit relocation when workshop layout adjustments are required. What does the accuracy figure mean for practical work? An accuracy of 0.01 mm indicates stable, repeatable positioning that supports precise alignment in routine workshop operations when using the VQW-130 bench vice. Which movement options improve flexibility during setup? The two-directional movement feature enables angular and lateral adjustments, reducing the need for additional fixtures and expanding the vice’s applicability with varied workpieces. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-104mm Tilting Machine Vice 800 kgf Clamp Force, 280mm Height, 140x190mm Base - Vertex
The combination of high clamping force, 0.01 mm repeatability and a tiltable, freely rotatable design ensures reliable, accurate workholding for varied machining tasks; order the VAV-4 machine vice directly via Metav Werkzeuge or ask our consultants if needed. VAV-4 Machine vice by Vertex — Tiltable and freely rotatable with 800 kgf clamping force The VAV-4 is a tiltable, freely rotatable machine vice designed for secure clamping and precise machining across workshop and production environments. Tiltable and freely rotatable clamping solution High clamping force of 800 kgf Precision repeatability to 0.01 mm Opening range 0–104 mm for varied workpieces Improved machining accuracy through measurable precision Built for environments where consistency matters, this vice delivers precision with a documented repeatability of 0.01 mm, reducing the need for rework and minimising cycle variation. The accurate clamping behaviour stabilises components during cutting and milling, which translates into fewer scrapped parts and more predictable downstream processes. The documented tolerance figure supports process planning and quality control, making the vice suitable for both small-batch production and repetitive tasks in jobbing shops. Faster set-ups with tilt and swivel flexibility The tiltable and freely rotatable design reduces the number of repositioning steps required during multi-axis or complex setups. Parts can be angled and rotated on the vice itself, shortening fixture times and increasing throughput. The integrated adjustment options enable quicker alignment to the tool path, which supports leaner workflow and improved machine utilisation while preserving clamping stability for accurate machining. Strong clamping force for demanding operations With a rated clamping force of 800 kgf, the vice holds workpieces securely during heavy cutting and high-feed operations. Robust clamping reduces micro-movement under load and contributes to consistent surface finish and dimensional control. The vice’s capacity to withstand demanding cutting forces makes it a practical choice where rigidity and tool life are priorities, enabling longer uninterrupted production runs. Compact footprint and stable mounting for shop-floor reliability The compact footprint, including a base of 140 x 190 mm, allows stable mounting on standard machine tables without occupying excessive space. The vice’s overall height and balanced mass support secure installation while the moderate weight of 21.4 kg ensures manageable handling during machine loading. This combination of compactness and stability suits both dedicated CNC cells and versatile workshop machines that require reliable, repeatable clamping in constrained spaces. Contact Metav Werkzeuge for tailored application advice and secure the tiltable Vertex machine vice for precise, reliable clamping — enquiries welcome via info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: VAV-4 GTIN: 4061905094125 SKU: VAV-4 Manufacturer: Vertex Facts Jaw dimensions: 106 x 256 mm Base dimensions: 140 x 190 mm Opening range: 0–104 mm Height: 280 mm Clamping force: 800 kgf Repeatability / accuracy: 0.01 mm Weight: 21.4 kg Special features Tiltable (kippbar) design Freely rotatable (Frei drehbar) type Designed for machine-table mounting Suitable for workshop and production use FAQ What is the maximum opening of the vice? The vice offers an opening range of 0–104 mm, providing flexibility for a variety of component sizes with the VAV-4 machine vice. How precise is the clamping and repeatability? Repeatability is specified as 0.01 mm, which supports consistent positioning and dimensional control during machining with the Vertex VAV-4. What clamping force can be expected? The clamping force is rated at 800 kgf, delivering the rigidity required for demanding cutting operations when using the VAV-4. What are the base dimensions for mounting? The base measures 140 x 190 mm, allowing stable mounting on standard machine tables for secure workholding with the VAV-4 vice. How heavy is the vice and is it easy to handle? The vice weighs 21.4 kg, a balance between mass for stability and manageable handling during setup and repositioning. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-104mm Tilting Machine Vice Mechanical Quick Clamp, Cast Iron Body - Vertex
Combining quick-action operation, a tiltable clamping function and a cast-iron body, the VUT-4QS delivers reliable hold and reduced setup times for repetitive machining operations. Benefit from the stable clamping range and compact footprint to keep production flowing; order the machine vice directly via Metav Werkzeuge or consult Metav's advisors for application support. VUT-4QS machine vice — quick-action, tiltable (Vertex) The VUT-4QS is a mechanical machine vice designed for robust workholding in milling and machining centre applications, offering fast setup and flexible angled positioning. Tiltable clamping for angled workpieces Quick-action mechanism for fast setups Cast-iron body for long-term stability Opening range 0–104 mm for varied parts Reduce setup time with fast clamping and clear throughput gains The VUT-4QS uses a quick-action mechanism that shortens clamping cycles and reduces non-productive time on the machine. A reliably repeatable closure across the clamping range 0–104 mm enables consistent part presentation, which in turn lowers rework rates and improves overall line efficiency. For batch production where fixture changes are frequent, the quick-action design supports faster changeovers and a measurable increase in output without sacrificing grip quality. The vice’s capability to secure small to medium-sized components makes it suitable for both toolrooms and production cells. Stable hold and predictable accuracy through robust construction Manufactured from cast iron, the vice body provides vibration damping and dimensional stability under load, which preserves cutting accuracy and extends service intervals. The substantial construction delivers excellent repeatability and resists deformation during heavy-duty cuts, maintaining part tolerances over long runs. Compact footprint with dimensions 397 x 266 x 227 mm and overall height 485 mm allows integration on most machine tables without impeding tool access. The combination of mass and geometry translates into a dependable platform for high-precision operations in metalworking environments. Flexible positioning and adaptable versions for varied tasks The tiltable design permits secure clamping at angles, expanding the range of feasible operations without custom fixturing. Available in Power or Quick versions, the vice adapts to different workflow priorities — higher clamping force where required or faster actuation for throughput-focused cells. As a versatile workholding device, it supports chamfering, face milling and angled slotting without repeated part re-fixturing, reducing cycle complexity. Metav’s product selection philosophy ensures that such fixtures are accessible to workshops seeking industrial-grade performance with straightforward procurement and technical guidance. Contact Metav Werkzeuge for tailored application advice on the Vertex VUT-4QS machine vice — reach Metav by eMail at info@metav-werkzeuge.com or by phone on +49 2822 7131930 for guidance and local supply options Technical data Article number: VUT-4QS GTIN: 4061905093456 Manufacturer: Vertex eClass: 21020601 ETIM: EC002173 Facts Dimensions: 397 x 266 x 227 mm Height: 485 mm Opening: 0–104 mm Special features Material: Cast iron Type: Mechanical (Quick) Versions: Tiltable; Power or Quick Brand: Vertex FAQ What clamping range does the vice provide? The vice offers a clamping range of 0–104 mm, allowing secure holding of a wide variety of part sizes. Is the VUT-4QS suitable for use on CNC milling machines? Yes, the VUT-4QS machine vice is designed for milling and machining centre applications and provides a stable workholding solution for CNC operations. What are the construction materials and their benefits? The vice body is made from cast iron, which provides vibration damping, dimensional stability and enhanced repeatability under load. Can angled workpieces be clamped securely? The tiltable feature enables secure clamping at angles, expanding the range of machining tasks without bespoke fixtures. Which versions are available and how do they differ? The VUT-4QS is offered in Power and Quick variants; the Power version emphasises clamping force, while the Quick version prioritises faster actuation for throughput. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-104mm Vice With Quick-Adjust Mechanism, 800 kgf Clamp Force, 9.5 kg - Vertex
A compact, mechanically operated vice that combines 800 kgf clamping force with a 0–104 mm jaw opening and 0.01 mm repeatability delivers secure, consistent workholding for demanding machining tasks; order the vice directly via Metav Werkzeuge or consult our specialists for application advice. VQS-4 Mechanical vice with quick-adjustment — Vertex The VQS-4 is a mechanical vice with a quick-adjust mechanism, designed for secure workholding in milling, drilling and general workshop machining. Robust 800 kgf clamping force 0–104 mm adjustable jaw opening High repeatability with 0.01 mm precision Compact footprint: 105 x 422 x 72 mm Consistent, high-force clamping for accurate machining A vice with 800 kgf clamping capacity and a 0.01 mm repeatability delivers the control required for precision operations. The heavy clamping force reduces workpiece movement under load, improving tool life and surface finish, while the fine repeatability supports setups where dimensional consistency is critical. This combination of force and accuracy makes the device well suited to tasks that demand both rigidity and precision, such as finish milling or repetitive drilling operations. Faster setup through the quick-adjust mechanism The built-in quick-adjust function minimises idle time between jobs by allowing the jaw position to be changed rapidly without full disassembly. The compact format (105 x 422 x 72 mm) and moderate mass (9.5 kg) balance stability with manoeuvrability, enabling quicker repositioning on machine tables or benches. A mechanically driven design keeps operation straightforward and low-maintenance, which supports efficient workflows in busy shops and reduces cumulative setup time across repetitive production runs. Durable, workshop-ready design for reliable production Engineered as a mechanical vice, the unit offers a robust construction that emphasises long-term reliability and straightforward service. The combination of substantial clamping force and compact dimensions delivers secure workholding even where floor or table space is limited. For users requiring additional technical information or confirmation of suitability for specific machining processes, Metav Werkzeuge provides expert consultation and can supply supplementary technical data on request via email or telephone. Contact Metav Werkzeuge in Emmerich for a tailored quotation or technical consultation on the Vertex VQS-4 vice Technical data SKU: VQS-4 GTIN: 4061905087684 Brand: Vertex Machinery Works Co., Ltd. Product: Mechanical vice with quick adjustment Facts Opening range: 0–104 mm Clamping force: 800 kgf Accuracy / repeatability: 0.01 mm Weight: 9.5 kg Dimensions: 105 x 422 x 72 mm Special features Quick-adjust mechanism Mechanical operation Compact design High repeatability FAQ What clamping force does the vice provide? The VQS-4 vice provides a clamping force of 800 kgf, suitable for heavy workholding in common machining tasks. What is the usable jaw opening? The jaw opening ranges from 0 to 104 mm, giving flexibility for a variety of workpiece sizes. How precise is the vice in repeated setups? Repeatability is specified at 0.01 mm, ensuring consistent positioning across multiple setups with the VQS-4 vice. Is the vice suitable for use on milling and drilling machines? Yes, the mechanical design and high clamping force make the Vertex VQS-4 vice suitable for general milling and drilling applications where secure workholding is required. What are the physical dimensions and weight of the vice? The vice measures 105 x 422 x 72 mm and weighs 9.5 kg, offering a compact footprint with substantial stability. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-106mm Self-Centring Machine Vice With Swivel Base, 500 kgf Clamp Force, Cast Iron - Vertex
Benefit from the combination of 500 kgf clamping, cast iron rigidity and a compact 0–106 mm jaw opening for consistent clamping and rapid set-ups. Order the machine vice directly via Metav Werkzeuge or request tailored advice from our consultants. VCV-0611S Machine vice — self-centring, 500 kgf clamping | Vertex The VCV-0611S is a self-centring mechanical machine vice for workshop and production use, optionally supplied with a swivel base for flexible fixturing. Self-centring design for fast part alignment 500 kgf clamping force for secure hold Cast iron body for long-term rigidity Swivel base Ø200 mm for flexible positioning Faster set-up through self-centring alignment The self-centring mechanism reduces positioning time by aligning the jaws around the workpiece automatically, which improves throughput in batch and small-series production. The self-centring function is particularly beneficial when frequent part changes occur, as setup variability is minimised. With a jaw range of 0–106 mm, small to medium components can be clamped without additional fixtures, leading to fewer auxiliary operations and shorter cycle times. Secure hold and consistent clamping performance A clamping force of 500 kgf provides a reliable hold for milling and drilling operations, reducing the risk of workpiece movement under load. The vice’s mechanical actuation delivers repeatable force and stable gripping, which supports dimensional consistency across consecutive parts. The specified accuracy of 0.01 mm ensures fine positional control for precision machining tasks where repeatability matters. Durable construction for workshop environments Constructed from cast iron, the vice offers high rigidity and vibration damping, extending tool and machine life while improving surface finish. The robust build, combined with a gross weight of 11.1 kg, gives a stable base for machining without excessive mass. The vice is a mechanical type designed for everyday industrial use, requiring routine lubrication and inspection to maintain long-term operational reliability. Flexible mounting and practical dimensions An available swivel base with a Ø200×22 mm foot enables adaptable orientation on machine beds or workbenches, allowing efficient access for multi-face machining. The compact external dimensions of 185×61×80 mm make the unit suitable where space is limited yet a secure clamp is required. The combination of compact footprint and robust clamping capability supports versatile workshop layouts and reduces the need for multiple specialised fixtures. Contact Metav Werkzeuge for stock details and tailored supply options for the Vertex VCV-0611S, with delivery and technical advice available directly from our Emmerich facility Technical data Article number: VCV-0611S GTIN: 4061905087844 Manufacturer: Vertex Facts Dimensions: 185×61×80 mm Weight: 11.1 kg Jaw opening: 0–106 mm Clamping force: 500 kgf Accuracy: 0.01 mm Base diameter: Ø200×22 mm Special features Cast iron body Self-centring design Optional swivel base (with Drehbasis) Mechanical type eClass: 21020601 ETIM: EC002173 FAQ What materials can be machined while clamped in this vice? The VCV-0611S is built from cast iron and suitable for clamping a wide range of metals and engineering plastics; selection of cutting parameters should follow material recommendations. Is the swivel base included with the vice? The vice is offered with an optional swivel base; the product description indicates availability with a Drehbasis (swivel base) as a configurable feature. How does the self-centring function improve throughput? The self-centring mechanism centres the workpiece automatically between the jaws, reducing manual alignment time and improving repeatability for batch processes with the VCV-0611S. What mounting footprint is required for stable installation? The swivel base has a foot diameter of Ø200×22 mm, and the compact vice dimensions (185×61×80 mm) facilitate mounting on standard machine tables and benches. What maintenance is recommended to preserve accuracy? Regular cleaning of sliding surfaces, periodic lubrication of the lead screw and inspection of jaw faces will help maintain the specified 0.01 mm accuracy and prolong service life. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-106mm Self-Centring Machine Vice, 500 kgf Clamp Force, Cast Iron, 185x61x80mm - Vertex
The combination of a self-centring mechanism, cast iron construction and a high clamping force of 500 kgf provides reliable, vibration-damping hold for milling and drilling operations; excellent for repetitive production tasks. Order the VCV-0611 machine vice directly via Metav Werkzeuge or ask our consultants if needed. VCV-0611 machine vice by Vertex — Self-centring, mechanical vice with optional swivel base A VCV-0611 machine vice designed for secure, repeatable clamping in machining applications, available as a self-centring unit and optionally fitted with a swivel base for flexible setup. Self-centring design for quick workpiece alignment Cast-iron body for damping and stability Clamping opening 0–106 mm for versatile workpieces Secure, repeatable clamping for consistent machining quality The self-centring jaw arrangement delivers fast and uniform alignment of symmetrical workpieces, reducing setup time and minimising repositioning errors. Together with a clamping force of 500 kgf, the device ensures that components remain immobile under cutting loads, improving surface finish and tool life. The design is particularly suited to milling and drilling operations where consistent, repeatable holding is essential for batch production. The result is a measurable improvement in process reliability and throughput when the vice is integrated into a standard machining workflow. Robust construction that reduces vibration and improves accuracy Constructed from cast iron, the vice dampens vibrations generated during machining, which helps protect cutting edges and maintains dimensional integrity. At 5 kg and with compact dimensions of 185 x 61 x 80 mm, the unit offers a stable footprint without occupying excessive machine table space. The option of a swivel base expands clamping orientations, enabling angled setups without complex fixturing. This combination supports operators who require both rigidity and adaptability on manual mills, drilling machines or light CNC machines. Precision and adaptability for workshop and production use With an opening range of 0–106 mm and an indicated accuracy of 0.01 mm, the vice accommodates a broad variety of part sizes while supporting fine positional tolerance where needed. The mechanical actuation provides straightforward maintenance and predictable behaviour across long production runs. As a workholding solution, the device balances precision and durability, making it appropriate for metalworking shops, toolrooms and light manufacturing where dependable clamping and straightforward handling drive productivity gains. For an industrial-grade clamping solution from Vertex, contact Metav Werkzeuge to discuss availability and delivery from Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: VCV-0611 GTIN: 4061905084683 Manufacturer: Vertex Facts Material: Cast iron Clamping force: 500 kgf Opening range: 0–106 mm Accuracy: 0.01 mm Weight: 5 kg Dimensions: 185 x 61 x 80 mm Type: Mechanical eCl@ss: 21020601 ETIM: EC002173 Special features Self-centring design Optional swivel base FAQ What material is the vice made from and why does that matter? The vice is made from cast iron; this material provides damping properties and stability, which reduces vibration during machining and supports consistent surface quality. What is the clamping range and how flexible is it for different parts? The vice offers an opening range of 0–106 mm, allowing secure clamping of a wide variety of component sizes without additional jaws for many common tasks. Can the vice be used on milling machines and drilling machines? Yes, the mechanical design and 500 kgf clamping force make the vice suitable for both milling and drilling applications where rigid holding is required. How precise is the vice for repeatable positioning? The device is specified with an accuracy of 0.01 mm, providing the level of repeatability needed for precision workshop tasks and small-series production. Is a swivel base included and what is the benefit? An optional swivel base is available; it allows angled positioning of the workpiece, increasing flexibility for setups that require compound clamping orientations. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-110mm Machine Vice Mechanical 2,000 kgf Clamping Force, 394x246x133mm - Vertex
The combination of 2000 kgf clamping force and a 0–110 mm opening range ensures secure, repeatable clamping for demanding machining tasks; paired with a compact footprint and proven mechanical reliability, this vice supports steady production performance. Order the unit via Metav Werkzeuge or contact the consultants for tailored specification advice. VA-5 Machine vice by Vertex — mechanical vice with 2000 kgf clamping force VA-5 is a mechanical machine vice designed for secure workpiece clamping in milling and drilling operations across workshops and production environments. 2000 kgf clamping force Opening range 0–110 mm High precision: 0.01 mm accuracy Robust 30 kg construction Secure clamping for consistent machining results The vice delivers a 2000 kgf maximum clamping force, which translates into firm workpiece fixation during heavy milling or drilling cycles. This level of restraint reduces vibration and movement, resulting in fewer rejected parts and less rework. The mechanical actuation provides predictable behaviour under load, while the compact footprint keeps the system compatible with standard machine tables. Such characteristics focus on throughput stability and lower scrap rates, making the tool suitable for repetitive production and prototype workshops seeking reliable performance. Precision that shortens setup and improves accuracy An accuracy of 0.01 mm supports tight tolerances and repeatable setups; the vice’s geometry and jaw alignment are engineered to preserve parallelism across the clamping range. The 0–110 mm opening allows versatile part sizes to be accommodated without additional fixtures, reducing changeover time. Explaining the technical term: the stated accuracy indicates the maximum expected deviation in jaw alignment under normal operating conditions, helping to predict machining outcomes. For operations where dimensional conformity is essential, the precision-focused design directly contributes to process reliability and part quality. Durability and workshop-proven mechanical design Built as a mechanical vice, the construction emphasises straightforward, serviceable components that tolerate workshop environments. The substantial mass of approximately 30 kg contributes to stability during cutting, while the simple drive train minimises complex failure modes. This robust approach prioritises long-term uptime and predictable maintenance intervals rather than frequently replaced, sensitivity-prone electronics. The result is a tool that complements routine workshop practices and supports continuous production without unnecessary complication. Practical handling and integration in industrial workflows Attention to practical details ensures compatibility with existing machine setups: the vice’s dimensions of 394 x 246 x 133 mm fit common machine beds and allow straightforward clamping arrangements. Mounting and alignment are simplified by a familiar mechanical layout, which aids rapid installation and repeatable repositioning. For procurement and planning, the combination of high clamping force and compact size offers a balance between performance and space efficiency—useful for machining centres where fixture flexibility is required. The vice supports workflows that value secure holding and consistent part presentation to the tool. Contact Metav Werkzeuge to discuss whether the Vertex VA-5 machine vice with 2000 kgf clamping force meets the application requirements and to arrange supply from our Emmerich quality centre Technical data Article number: VA-5 GTIN: 4061905089947 Manufacturer: Vertex Type: Mechanisch eClass: 21020601 ETIM: EC002173 Core specifications Dimensions: 394 x 246 x 133 mm Weight: 30 kg Opening: 0–110 mm Clamping force: 2000 kgf Accuracy: 0.01 mm Special features Mechanical drive type SKU: VA-5 Category: Vertex FAQ What maximum clamping force does the VA-5 provide? The VA-5 machine vice delivers a clamping force of 2000 kgf, suitable for secure fixation during demanding milling and drilling operations. What is the usable opening range for workpieces? The vice accepts workpieces within a 0–110 mm opening range, enabling flexible clamping of various parts without extra adapters. How precise is the jaw alignment under load? The vice offers an accuracy of 0.01 mm, which indicates reliable parallelism and repeatable positioning for precision machining. Is the VA-5 suitable for installation on standard machine tables? Yes. With dimensions of 394 x 246 x 133 mm and a compact footprint, the VA-5 integrates with common machine beds and fixture layouts. What type of maintenance is required for this vice? Maintenance focuses on routine checks of drive components and lubrication; the mechanical design emphasises serviceability to keep downtime minimal. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-110mm Precision Angle Vice 360° Horizontal 45° Vertical, 15kg Load Capacity - Vertex
Taking advantage of 0.01 mm accuracy together with 360° horizontal and 45° vertical adjustability ensures precise, flexible clamping for complex set-ups; place an order via Metav Werkzeuge or consult the specialists for application advice. Vertex VUA-4 Precision Angle Vice — adjustable 360° horizontal & 45° vertical The Vertex VUA-4 precision angle vice is a compact clamping solution for machining and inspection tasks, combining high repeatability and multi-axis positioning for fixtures and toolroom benches. 360° horizontal rotation for flexible set-ups 45° vertical tilt for angled machining 0–110 mm opening for broad clamping range 0.01 mm accuracy for fine positional control 182 x 110 mm base for stable mounting Reliable precision for repeatable setups The vice provides reliable repeatability through its finely machined dovetail surfaces and adjustment mechanism, delivering an accuracy of 0.01 mm that supports tight tolerances in metrology and light machining applications. With a measurable opening range of 0–110 mm, the clamping device accommodates a wide variety of workpieces while the compact 182 x 110 mm base enables secure fixture mounting on small machine tables. These characteristics translate into fewer repositioning steps and improved throughput on precision tasks. Flexible positioning reduces setup time Built for multi-axis alignment, the vice offers 360° rotation horizontally and a 45° vertical tilt, allowing complex angular clamping without multiple fixtures. The combined adjustments simplify jigs and reduce manual re‑clamping, which enhances workflow efficiency in job shops and maintenance benches. The nominal maximum load of 15 kg together with the robust construction keeps the workpiece steady during light milling, drilling or inspection, improving surface finish and measurement reliability. Engineered for workshop durability Constructed to withstand everyday workshop conditions, the unit’s mass and build provide stability during operation and contribute to vibration damping. The measured 15 kg weight supports a stable centre of gravity, while the precision slide components are designed for long service life under regular use. This results in consistent clamping behaviour over many cycles and a predictable performance profile for production and repair tasks. Clear benefits for procurement and operators Specifying this vice in assembly drawings or tooling lists offers clear technical advantages: compact footprint, precise angular control and broad clamping capacity. The vice’s defined numeric specifications make it straightforward to compare with alternatives and justify integration into existing fixture systems. For buyers seeking dependable clamping with defined performance, this unit combines measurable accuracy with practical adjustability. Contact Metav Werkzeuge for detailed application guidance and to arrange supply of the Vertex VUA-4 precision angle vice for your workshop requirements Technical data Article number: VUA-4 GTIN: 4061905086458 Manufacturer: Vertex Machinery Works Co., Ltd. eClass: 21020601 ETIM: EC002173 Core dimensions and accuracy Weight: 15 kg Opening: 0–110 mm Base: 182 x 110 mm Max load: 15 kg Accuracy: 0.01 mm Features and applications 360° horizontal adjustment 45° vertical tilt Precision angle clamping for machining setups Compact base for stable mounting FAQ What is the maximum clamping width of this vice? The vice offers an opening range of 0–110 mm, allowing secure clamping of a variety of small to medium workpieces with the Vertex VUA-4. How accurate is the positioning when setting angles? Positioning and clamping repeatability are specified at 0.01 mm, providing the fine control required for precision inspection and light machining. Can the vice be used for angled milling operations? Yes, the combination of 360° horizontal rotation and 45° vertical tilt allows angled clamping suitable for many light milling and drilling set-ups. What is the recommended maximum load for stability? The vice has a rated maximum load of 15 kg; adherence to this limit helps maintain stable clamping and consistent accuracy. Is the base size suitable for small machine tables? The vice’s base measures 182 x 110 mm, offering a compact footprint that fits comfortably on small tables and fixtures. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

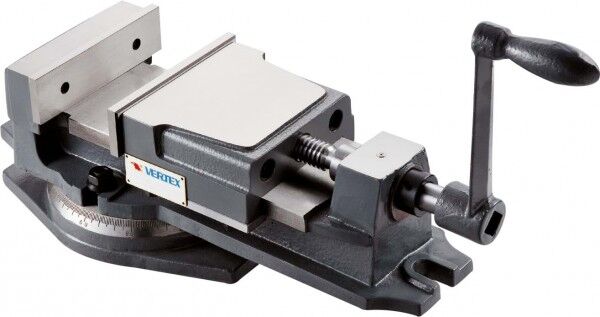

0-112mm Milling Vise 1000 Kgf Clamping Force 0.02mm Accuracy, 473x260x148mm - Vertex
Take advantage of the combination of robust mechanical clamping, reliable repeatability and a compact footprint for precise milling operations; order or discuss supply via Metav Werkzeuge for fast, dependable delivery from Emmerich. VK-6 Milling Vice (Mechanical) by Vertex — 0–112 mm opening, 1,000 kgf clamping force The VK-6 is a mechanical milling vice engineered for secure, repeatable clamping in milling and general machining tasks, suitable for toolrooms and production environments High clamping force 1,000 kgf Opening range 0–112 mm Precision accuracy 0.02 mm Compact dimensions 473 x 260 x 148 mm Stable clamping for consistent machining results The vice delivers a high clamping force of 1,000 kgf, which provides a firm hold during heavy cuts and aggressive feed rates. This mechanical force transmission reduces micro-movement between workpiece and table, helping to maintain tool engagement and minimise chatter. With a specified precision of 0.02 mm, the unit supports tasks that demand close tolerances; the effect is measurable improvements in surface finish and repeatable part geometry, making it suitable where consistent output is essential. Compact footprint that integrates into tight machine setups With compact dimensions 473 x 260 x 148 mm and a mass of 27 kg, the vice balances solidity with manageable size. The relatively low footprint eases placement on small to medium milling tables and reduces the need for extensive repositioning when changing fixtures. The unit’s weight contributes to vibration damping during machining cycles, which in turn supports more predictable cutting behaviour and longer tool life. Mechanical design focused on repeatability and versatility The mechanical operation of the vice provides straightforward maintenance and long-term serviceability. The opening range 0–112 mm accommodates a broad variety of workpiece widths without additional adapters, while the robust construction aims to preserve repeatable accuracy over many cycles. For workshops that prioritise dependable clamping over electronic complexity, this mechanical vice offers a direct, low-maintenance solution for daily production and prototyping work. Clear numeric specifications to support procurement decisions Key values such as 1,000 kgf clamping force, 0–112 mm opening and 0.02 mm accuracy make it simple to compare this vice against alternative models when selecting equipment for specific machining tasks. These figures indicate suitability for milling operations where mechanical stability and close tolerances are required. Alongside its practical dimensions and mass, the unit is positioned for use in industrial and educational workshops that require a balance of performance and ease of integration. For specification advice, availability or to place an order for the Vertex VK-6 Milling Vice, contact Metav Werkzeuge in Emmerich by email at info@metav-werkzeuge.com or by phone on +49 2822 7131930 — our consultants will confirm suitability for specific machine tables and lead times Technical Data Article number: VK-6 Type: Mechanical ECLASS: 21020601 GTIN: 4061905092916 Facts Opening range: 0–112 mm Dimensions (L x W x H): 473 x 260 x 148 mm Weight: 27 kg Clamping force: 1,000 kgf Accuracy: 0.02 mm Special features Product type: Milling vice Manufacturer: Vertex Images: technical drawing, detail and main photos available FAQ What maximum workpiece width can the vice accommodate? The VK-6 supports an opening range of 0–112 mm, allowing secure clamping of a wide variety of stock widths commonly encountered in milling operations. How precise is the clamping and how does that affect parts? With a declared accuracy of 0.02 mm, the vice from Vertex delivers repeatable positioning that helps maintain dimensional consistency across batches and reduces the need for rework. Is the vices' clamping force sufficient for heavy milling cuts? The 1,000 kgf clamping force is intended to provide robust holding power for demanding milling tasks; it helps keep the workpiece stable under higher cutting forces. Does the mechanical design require specialised maintenance? Maintenance for this mechanical vice is straightforward: periodic cleaning, lubrication of the lead and inspection of jaw faces typically suffice to maintain performance over time. Can the vice be used on smaller machine tables? The vice’s compact dimensions (473 x 260 x 148 mm) and 27 kg mass make it suitable for many small to medium milling tables, offering a balance between rigid clamping and manageable size. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-116 mm Drill And Milling Vise Three-Stage Adjustable Mechanical 1000 kgf Clamping Force - Vertex
Take advantage of the combination of high clamping force, precise repeatability and a compact footprint for reliable machining setups; the three-position adjustment and a 0–116 mm opening support versatile workholding. Order the drilling and milling vice directly via Metav Werkzeuge or ask our consultants if needed. Vertex VW-4 Drilling and Milling Vice — mechanical vice with three-stage adjustment and 1000 kgf clamping force A Vertex VW-4 drilling and milling vice designed for secure, repeatable clamping in drilling and milling operations Three-stage adjustable clamping 1000 kgf clamping force Opening range 0–116 mm Accuracy 0.01 mm, 32.7 kg weight Built for precision and steady machining The VW-4 is engineered to deliver consistent clamping force and minimal movement under load. With a rated clamping force of 1000 kgf and a mass of 32.7 kg, the unit provides a stable platform that reduces vibration and improves tool life during drilling and milling operations. The specified accuracy of 0.01 mm refers to repeatability in jaw positioning and alignment; this level of precision supports tight tolerance work and helps maintain dimensional conformity across small production runs. As a mechanically operated vice, it avoids electronic complexity while offering reliable, predictable behaviour in a workshop environment. Flexible setup for varied workpieces The three-position design offers practical flexibility: coarse, fine and locked settings allow quick adaptation to different stock sizes without sacrificing grip. The three-stage adjustable mechanism, combined with the opening range 0–116 mm, enables secure clamping of a wide spectrum of components, from small fixtures to larger billet sections. This configurability reduces machine idle time by simplifying workpiece changes and supports efficient fixturing in both single-station setups and nested production tasks. Technical teams benefit from clear, measurable parameters that make process planning straightforward. Robust mechanical construction for everyday use Constructed as a mechanical vice, the VW-4 focuses on durability and low maintenance. The straightforward mechanism is less sensitive to contamination than powered systems, so uptime is maximised in busy shops. Robust materials and a compact footprint make the vice well suited to bench mounting or direct table attachment, and the solid body mass enhances clamping stability. Routine checks are limited to lubrication and fastener inspection, keeping total cost of ownership manageable while ensuring dependable performance over time. Suitable for toolrooms and production support This vice is intended for workshops, toolrooms and light production environments that require reliable fixturing without specialised automation. Typical applications include through-hole drilling, face milling and secondary machining where repeatable positioning and strong jaw grip are essential. The unit’s clear technical parameters—opening 0–116 mm, accuracy 0.01 mm, 1000 kgf—allow process planners to specify it confidently within machining instructions and quality documentation. Supplied as a compact, three-stage clamping solution, it integrates easily into existing setups and supports consistent results. For secure, repeatable clamping choose the Vertex VW-4 from Metav Werkzeuge — contact Metav Werkzeuge for purchasing details or specialist advice via info@metav-werkzeuge.com or by phone to discuss workshop compatibility and delivery options Technical data SKU: VW-4 GTIN: 4061905091193 Manufacturer: Vertex Facts Weight: 32.7 kg Accuracy: 0.01 mm Clamping force: 1000 kgf Opening range: 0–116 mm Dimensions: 497 x 311 x 190 mm ECLASS: 21020601 ETIM: EC002173 Type: Mechanisch Special features Three-stage adjustable clamping Mechanical operation Compact bench/table mounting footprint Robust mass for vibration damping FAQ What materials and operations is this vice suitable for? The Vertex VW-4 drilling and milling vice VW-4 is designed for general clamping in drilling and milling operations and is suitable for a wide range of workshop materials where a mechanical vice is appropriate. How large a workpiece can the vice hold? The vice provides an opening range of 0–116 mm and a rated clamping force of 1000 kgf, allowing it to secure components within that span for machining and fixturing tasks. Does the vice require electrical installation or special maintenance? As a mechanical vice, the Vertex VW-4 requires no electrical connection; maintenance is limited to routine lubrication and inspection of moving parts to preserve accuracy 0.01 mm and consistent performance. Which industries or applications typically use this type of vice? Toolrooms, maintenance workshops and small to medium production cells commonly use the Vertex VW-4 for drilling, milling and secondary machining operations where repeatable clamping and robust stability are needed. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-120 mm Tilting Milling Vise 1600 Kgf Clamping Force 0.01mm Accuracy, 328x510x191mm - Vertex
Benefit from the combination of robust cast iron construction, 1600 kgf clamping force and a tiltable design for secure, flexible milling operations; order the milling vice directly via Metav Werkzeuge or consult our specialists if required. VWT-6A – Vertex mechanical tiltable milling vice with 0–120 mm opening and 1600 kgf clamping force A VWT-6A mechanical milling vice designed for secure workholding on milling machines and machine tables, offering precise clamping and flexible angled set-ups. Tiltable design for angled clamping 0–120 mm jaw opening range 1600 kgf maximum clamping force 0.01 mm achievable accuracy Robust cast iron construction Secure hold for demanding machining The vice delivers a high clamping force of 1600 kgf, which translates directly into stable cutting conditions and reduced vibration during milling. The heavy cast iron body provides mass and damping, improving surface finish and tool life in operations that demand constant contact between tool and workpiece. This stability reduces the need for frequent re-clamping, supporting uninterrupted production cycles and increasing throughput on the machine table. Consistent precision for repeatable results With an accuracy rating of 0.01 mm, this clamping device supports precise positioning and repeatability across multiple setups. The machined sliding surfaces and reliable screw mechanism ensure consistent jaw travel within the 0–120 mm opening range, so dimensions remain comparable part to part. For workshops where tolerances are critical, the vice enables measurable quality control and contributes to predictable downstream processes. Flexible positioning to expand capability The tiltable feature allows angled clamping without complex fixturing, enabling simple set-up changes for bevels, compound cuts or fixtures that require a slanted workpiece. This adaptability reduces fixture inventory and set-up time, making the vice suitable for small-batch production as well as prototype work. The mechanical design keeps adjustments straightforward, allowing operators to focus on machining strategy rather than time-consuming reconfiguration. Durable design and straightforward maintenance Built from cast iron with robust mechanical components, the device is designed for long service life under shop-floor conditions. The substantial mass (47 kg) and compact dimensions (328 x 510 x 191 mm) give a stable footprint without excessive space requirements. Routine maintenance focuses on keeping the screw and guideways clean and lubricated; the straightforward construction minimises downtime and keeps the vice in productive use for years. Practical choice for machine shops and fabrication This milling vice balances strength, precision and flexibility—qualities that support efficient workflows and reliable outcomes. The combination of mechanical simplicity and measurable accuracy makes it a practical investment for machine shops seeking improved clamping performance without complex automation. For operations where dependable hold and angled workholding are frequent requirements, the vice strengthens process reliability and reduces rework. For purchase advice or a technical consultation regarding the Vertex VWT-6A milling vice, please contact Metav Werkzeuge in Emmerich: info@metav-werkzeuge.com · +49 2822 7131930 Technical data Article number: VWT-6A GTIN: 4061905089961 ETIM: EC002173 Facts Opening range: 0–120 mm Dimensions: 328 x 510 x 191 mm (L x W x H) Weight: 47 kg Clamping force: 1600 kgf Accuracy: 0.01 mm Special features Material: cast iron Type: mechanical Product: tiltable milling vice Classification: eClass 21020601 FAQ What is the maximum jaw opening of the vice? The vice has a jaw opening range of 0–120 mm, suitable for a wide variety of workpiece sizes. How strong is the clamping force? The Vertex VWT-6A delivers a maximum clamping force of 1600 kgf, providing secure hold for milling operations. What level of accuracy can be expected? The device is specified with an accuracy of 0.01 mm, supporting repeatable setups and consistent part quality. Is the vice suitable for angled clamping tasks? Yes; the tiltable design allows angled clamping without additional fixturing, enabling flexibility for bevel and compound operations. What material is the vice made from and how does that help? The body is made from cast iron, which adds mass and vibration damping to improve surface finish and machining stability. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
0-120mm Adjustable Clamp U-Form Or Swivel, M20x7" Bolt - Vertex
Take advantage of the combination of adjustable height, compact footprint and reliable fastening for flexible fixture setups; order the clamp directly via Metav Werkzeuge or request application advice from our consultants. VCA-406 clamp — adjustable height, U‑shape or rotatable version by Vertex The VCA-406 clamp is a compact clamping solution for workshop fixtures and jigs, offering an adjustable height range and two mounting geometries for versatile positioning. Adjustable height 0–120 mm U‑shape or rotatable versions available Compact 155 × 58 × 55 mm footprint M20x7" bolt for secure fastening Flexible clamping for varied fixture requirements The clamp provides a clear benefit where variable work heights are common: its adjustable height from 0–120 mm enables rapid adaptation to different workpieces, reducing setup time and minimising interruptions. The availability in U‑shape or rotatable variants supports both fixed and articulated holding strategies, making it straightforward to integrate the component into bespoke jigs or existing fixture plates. This flexibility improves throughput by enabling one clamping unit to serve multiple tasks without additional tooling investments. Space-efficient installation that simplifies layouts With compact dimensions of 155 × 58 × 55 mm and a moderate mass of 4.2 kg, the device occupies little bench or fixture real estate while providing a stable anchoring point. The M20x7" bolt specification ensures compatibility with common fixture plates and threaded inserts, allowing secure mechanical fixation without specialised adapters. For workshop planners, the small footprint translates into denser tooling arrangements and easier access around the clamped workpiece, aiding both manual operations and automated sequences. Consistent positioning and durable everyday performance Designed for repeatable positioning, the clamp supports reliable clamping force and precision in repetitive operations. The option to select a rotatable head or a classic U‑shaped grip means the device can match specific clamping angles and accessibility demands. The Vertex pedigree behind the unit contributes to predictable behaviour under cyclic use, helping to standardise clamping points across a production run and reduce variation between set-ups. The VCA-406 therefore helps maintain process stability and reduces time spent on realignment. Contact Metav Werkzeuge in Emmerich for tailored advice on the Vertex VCA-406 clamp and to specify the version that best fits the application Technical data Article number: VCA-406 GTIN: 4061905094095 Manufacturer: Vertex Machinery Works Co., Ltd. Facts Dimensions: 155 × 58 × 55 mm Weight: 4.2 kg Adjustable height: 0–120 mm Special features Version: U‑shape or rotatable Bolt: M20x7" Eclass: 21049022 FAQ What height range does this clamp cover? The clamp offers an adjustable height range of 0–120 mm, allowing flexible positioning for different workpiece sizes. Which versions of the clamp are available? Available options include a U‑shape variant and a rotatable head version to suit different clamping angles and access requirements. What are the dimensions and weight of the clamp? The unit measures 155 × 58 × 55 mm and weighs 4.2 kg, designed for compact fixture integration. What fastening interface is used for mounting? Mounting is via an M20x7" bolt, compatible with standard threaded fixture plates and inserts for secure fixation. Is this clamp suitable for repetitive production use? Yes, the design focuses on repeatable positioning and stable clamping behaviour, supporting consistent results in cyclic operations. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
