1000-1200mm Micrometer Gauge Digital IP65, Friction Ratchet, Ø50mm Measuring Faces, ISO 17025 Calibrated - Microtech Metrology
€2,490.00
Product information "1000-1200mm Micrometer Gauge Digital IP65, Friction Ratchet, Ø50mm Measuring Faces, ISO 17025 Calibrated - Microtech Metrology"
Take advantage of traceable ISO 17025 calibration, robust IP65 protection and a wide 1,000–1,200 mm measuring range to ensure reliable external measurements of large components. The combination of high resolution and a consistent measuring force supports reproducible QC processes; order the instrument directly via Metav Werkzeuge or ask our consultants if needed.

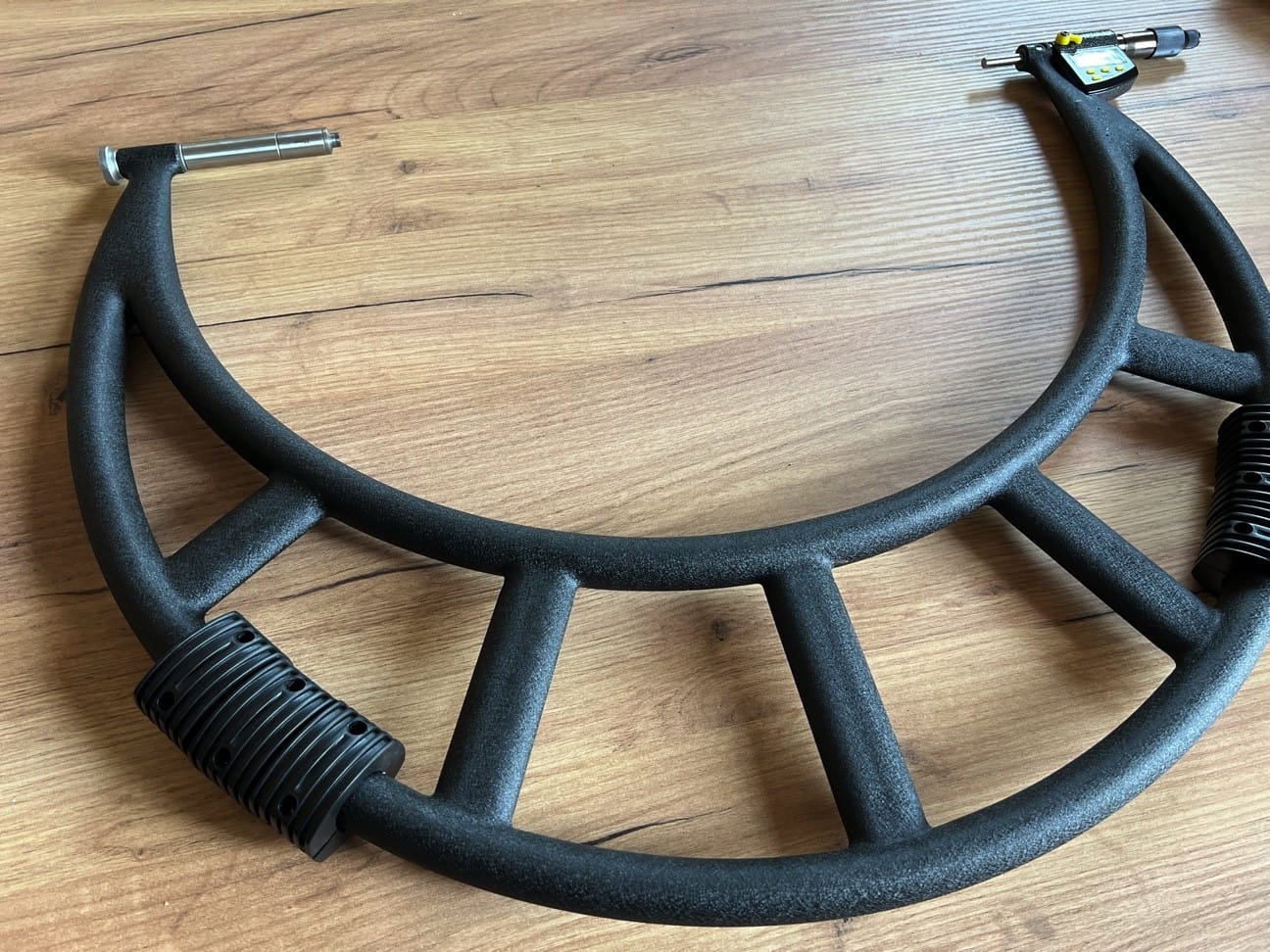

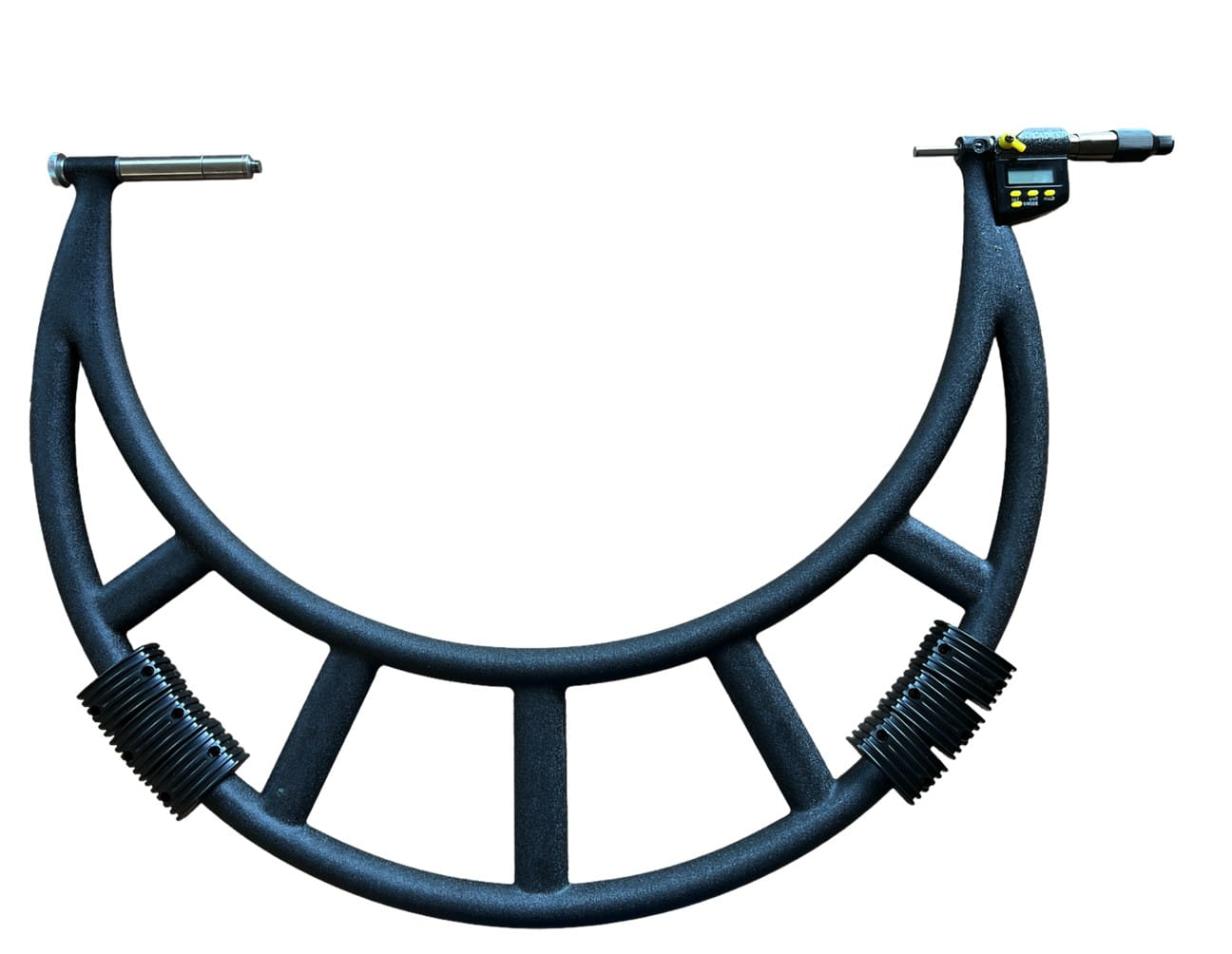

Outside Micrometer 110171201 — Digital, IP65, 1,000–1,200 mm (Microtech Metrology)
The Outside Micrometer 110171201 is a large-range digital micrometer designed for precise external measurements of shafts, housings and moulded parts in production and inspection environments.
- Large 1,000–1,200 mm measuring range
- IP65-rated digital micrometer head
- Delivered with ISO 17025 calibration certificate
- Ø50 mm hardened measuring faces
High-precision measurement with traceable calibration
This large-range instrument offers a resolution of 0.001 mm combined with an achieved accuracy of ±0.018 mm, providing the numerical basis for reliable pass/fail decisions in quality control. The supplied ISO 17025 calibration certificate documents metrological traceability and confirms that each micrometer meets accredited laboratory standards; this reduces uncertainty during audits and supports compliance with traceability requirements. The measurable precision is especially valuable where repeatable external dimension checks replace more time-consuming fixtures or gauges.
Stable contact and repeatable force across long spans
A 1,000–1,200 mm measuring range reduces the need for multiple smaller tools and speeds up inspection workflows for large components. The instrument’s Ø50 mm measuring faces deliver a stable contact area that lowers local deformation on the workpiece, while the integrated friction ratchet guarantees a repeatable measuring force for consistent readings. The substantial instrument mass (9.2 kg) and robust construction contribute to measurement stability across the full range, translating into fewer re-measurements and higher throughput on the shop floor.
Protected electronics and practical setup accessories
The digital readout is protected to IP65, so the micrometer head withstands water jets and general workshop dust — a practical advantage in machining and assembly environments. The unit features a digital readout for rapid, low-error reading and comes with setting rods included to facilitate quick zeroing and verification on-site. These features make routine checks faster and reduce operator error compared with analogue alternatives, while preserving the device’s long-term serviceability.
Where this micrometer fits into production and inspection
Designed for heavy engineering, jigs and large assemblies, the instrument is suited to measurement tasks in mould and tool making, shaft inspection and large-component metrology. By combining high resolution, accredited calibration and environmental protection, the device supports a rational measurement strategy that lowers inventory of specialised gauges and speeds quality decisions. Supply is handled via a European quality channel that emphasises traceability and reliable fulfilment.
Contact Metav Werkzeuge in Emmerich for tailored technical advice and to arrange delivery of the Microtech Metrology large-range digital micrometer with ISO 17025 certificate
Technical data
- Article number: 110171201
- GTIN: 4061905040405
- Manufacturer: Microtech Metrology
Core specifications
- Measuring range: 1,000–1,200 mm
- Resolution: 0.001 mm
- Accuracy (±): 0.018 mm
- Measuring face diameter: Ø50 mm
- Weight: 9.2 kg
- Protection class: IP65
Features
- Digital readout
- ISO 17025 calibration certificate included
- Friction ratchet
- Setting rods included
- IP65-rated micrometer head
FAQ
Is the instrument delivered calibrated? Yes. The micrometer is delivered with an ISO 17025 calibration certificate confirming traceability and accredited verification of the measuring performance.
What are the resolution and the stated accuracy? The digital readout offers a 0.001 mm resolution and the instrument’s documented accuracy is ±0.018 mm, suitable for precision control of large external dimensions.
What does IP65 protection mean for workshop use? IP65 indicates the digital head is dust-tight and protected against low-pressure water jets, making the micrometer resilient to coolant spray and dusty production environments.
Are setting rods included and what are they for? Setting rods are included to allow quick verification and zeroing of the measuring faces, simplifying calibration checks before measurements.
Which applications suit this large-range micrometer? The micrometer is intended for external measurements on large shafts, housings and moulded parts in machining, toolmaking and inspection departments where traceable, repeatable measurements are required.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
