160mm Precision Scratch Caliper T-Form, 100mm Stop, Hardened Chrome-Plated Steel, Delivered in Case - Metav IndustryLine

Benefit from a hardened special‑steel construction and a T‑form layout with a 100 mm stop for repeatable scribing and marking. The mechanical vernier with a fine‑adjustment spindle provides a 0.05 mm readability that supports consistent setup and faster job changeovers. Order the instrument directly via Metav Werkzeuge or consult our advisors for application support.

M201.140 Precision Scribing Caliper — 160 mm T‑form with 100 mm stop (Metav IndustryLine)

The M201.140 is a T‑form precision scribing caliper designed for layout and marking tasks in metalworking, jig production and toolroom set‑ups.

• T‑form design for precise scribing
• Hardened special steel, matt chrome finish
• Fine‑adjustment spindle for exact positioning

Repeatable marking with a T‑form layout for standard workshop tasks

The T‑form layout together with a robust bridge measuring 100 mm gives a stable contact point for repeated scribing and marking operations. Built from hardened special steel with a matt chrome finish, the instrument resists wear and retains a clear datum over many cycles. With a measuring range of 0–160 mm, the caliper falls into the Standard class of workshop calipers and thus offers the best compromise between reach, stiffness and one‑hand handling for everyday metalworking and machine‑shop tasks. The combination of a rigid T‑form and a defined stop shortens set‑up time when multiple identical marks are required.

Precision control and industrial‑grade readability for setup accuracy

A mechanical vernier with a reading of 0.05 mm gives industrial‑standard resolution for layout and control work; it is suited to production environments where quick visual confirmation is needed rather than submicron measurement. The integrated fine‑adjustment spindle enables gentle, controlled movements when positioning the scribing jaw, which reduces error introduced by manual thrust. For operations such as marking datum lines, transferring offsets to a workpiece or pre‑setting tools, this layout and control system increases throughput while maintaining reproducible results.

Easy interpretation and practical guidance for non‑specialists

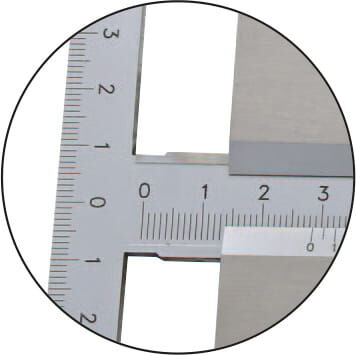

The analogue vernier is straightforward to use: the main scale gives the rough value and the vernier index refines it to 0.05 mm increments—sufficient for workshop layout and pre‑machining checks. The fine‑adjustment spindle facilitates single‑turn micro‑movements to align the scribe precisely before marking. For users less familiar with vernier calipers, this instrument combines familiar mechanical feel with clear graduations to reduce training time and to integrate smoothly into existing inspection routines.

Robust design reduces downtime and simplifies maintenance

Surface treatment and material selection emphasise longevity: the hardened body and matt chrome plating limit corrosion and reduce glare without affecting sliding accuracy. The simple mechanical construction is easy to clean and inspect; wear points can be checked visually and corrected through routine adjustment rather than replacement. Metav’s role as a European quality filter amplifies these benefits: consistent component selection and stock control mean reliably similar tools across the workshop fleet, which helps to standardise measurement practice and reduces calibration complexity.

Choose the Metav IndustryLine M201.140 T‑form precision scribing caliper for workshop‑ready accuracy and contact Metav Werkzeuge for application advice or specification support at info@metav-werkzeuge.com or +49 2822 7131930

Technical data

• Article number: M201.140
• GTIN: 4054469100708
• Customs tariff number: 90173000
• Category: Calipers
• Brand: Metav IndustryLine

Facts

• Measuring range: 0–160 mm
• Readability: 0.05 mm
• Bridge/stop: 100 mm
• Analog: mechanical vernier
• eClass: 21170344

Special features

• Material: special steel, hardened, matt chrome‑plated
• T‑form layout for scribing
• Fine‑adjustment spindle
• Mechanical construction for layout and marking tasks

FAQ

How precise is the M201.140 for typical workshop layout tasks?
The M201.140 precision scribing caliper by Metav IndustryLine provides a readability of 0.05 mm, which is the industrial standard for many marking and setup operations and supports reproducible layout work.

For which applications is the T‑form design most suitable?
The T‑form caliper is ideal for repeatable scribing and marking, fixture set‑up and tool pre‑setting where a stable reference and a defined bridge (100 mm stop) speed up repeated operations in the machine shop.

Does the M201.140 include fine‑adjustment for delicate positioning?
Yes—this caliper features a fine‑adjustment spindle that enables controlled micro‑movements for precise alignment of the scribing jaw before marking.

What materials and surface treatment are used in this instrument?
The instrument is manufactured from hardened special steel and finished with a matt chrome plating to improve wear resistance and reduce reflection during use.

Is the 160 mm range suitable for general mechanical workshops?
A 0–160 mm measuring range places this instrument in the Standard class, offering a practical balance of reach and stiffness for everyday metalworking and toolroom measurements.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
