Precision Scribing Caliper M201.143 – 400 mm T‑form, 160 mm stop (Metav IndustryLine)

The Precision Scribing Caliper M201.143 is an analogue, T‑form layout instrument designed for accurate scribing and dimensional control in toolrooms, fixture assembly and mould making across medium‑sized components.

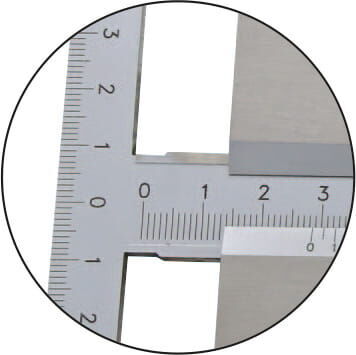

• Precision analogue readout 0.05 mm resolution
• Hardened special steel, matt chrome finish
• T‑form with 160 mm scribing stop
• Fine‑adjustment screw for controlled setting

Accurate layout for medium assemblies

The 400 mm measuring span classifies this instrument as a medium‑range caliper, offering the best compromise between reach and rigidity for workshop tasks such as fixture set‑up, housing checks and mould alignment. The analogue 0.05 mm graduation places the tool within the industrial standard for mechanical calipers, allowing reliable transfer of nominal dimensions during layout. The T‑shape geometry provides a stable datum plane and improved leverage when scribing along edges, which reduces motion-induced error compared with conventional straight‑jaw designs.

Controlled movement for repeatable marking

A dedicated fine‑adjustment screw ensures that the scriber or marking point can be positioned smoothly and held without backlash, preserving repeatability across multiple parts. The robust carriage glides on hardened guides and the matt chrome surface reduces glare while resisting shop wear. This combination of controlled feed and hardened contact surfaces reduces variation in successive marks, supporting faster downstream machining and quality checks — a direct efficiency gain for production workflows.

Built for shopfloor durability and clear handling

Constructed from hardened special steel with a matt‑chromed finish, the scribing caliper stands up to typical workshop environments where oils, chips and repeated handling occur. The T‑form configuration with a 160 mm stop converts into a practical layout tool for operations that need fixed offset scribing or repeat stops for patterns and multiple identical components. The analogue scale and solid frame make the instrument simple to maintain and straightforward to inspect during routine metrology audits.

Delivery and application notes that matter

The caliper is supplied in a transport case to protect the instrument during shipping and temporary storage; the case is designed for safe handling rather than long‑term bench storage. As an analogue medium‑range layout instrument it integrates readily into production and inspection routines where mechanical robustness and simple, verifiable readings are preferred. For workshop planners, this instrument reduces set‑up time for jigs and provides a durable solution for repeated marking tasks.

For detailed technical advice or to discuss suitability for specific fixtures, contact Metav Werkzeuge in Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 to request a tailored quotation based on the 400 mm T‑form precision caliper

Technical data

• SKU: M201.143
• GTIN: 4054469100753
• ECLASS: 21170344
• Tariff number: 90173000
• Manufacturer: Metav IndustryLine

Facts

• Measurement range: 0–400 mm
• Main stop / bridge: 160 mm
• Resolution / graduation: 0.05 mm
• Instrument type: analogue
• Weight: not specified due to data variance

Special features

• Material: special steel, hardened and matt chrome‑plated
• Design: T‑form layout caliper with scribing stop
• Adjustment: fine‑adjustment screw for precise setting
• Delivery: supplied in a transport case for protection during transit
• Bridge length: 160 mm

FAQ

What range does the caliper cover and for which applications is it suited?
The caliper covers 0–400 mm and is suited to medium‑range layout tasks such as fixture set‑up, mould and housing checks where a balance of reach and stiffness is required; the T‑form aids edge scribing.

What degree of accuracy can be expected from this analogue instrument?
With a 0.05 mm graduation the instrument meets the industrial standard for mechanical calipers, providing dependable repeatability for shopfloor layout and marking.

Is the caliper supplied ready for use and how is it protected in transit?
The tool is delivered in a protective transport case to safeguard the instrument during shipping; the case facilitates safe handling between storage and the workplace.

Which material and surface finish ensure the caliper's durability?
The frame is manufactured from hardened special steel with a matt chrome finish, offering resistance to wear and reduced surface glare for clear readings.

Does the caliper include any fine adjustment for precise scribing?
Yes — the unit features a fine‑adjustment screw that allows controlled positioning of the scribing point and secure clamping for repeat marks.
