50-160mm Internal Micrometer Fine-Reading 0.01mm Resolution, 12 Probes, Protective Case - Metav IndustryLine

Take advantage of precise inside measurement over the 50–160 mm range, the 0.01 mm analogue graduation and the high repeatability of ±0.005 mm to standardise bore inspections in workshop and production environments. Order the instrument directly via Metav Werkzeuge or consult the technical team for specification matching.

Internal Precision Bore Gauge 50–160 mm — 0.01 mm Graduation (Metav IndustryLine)

The Internal Precision Bore Gauge 50–160 mm is an analogue bore measuring set designed for accurate inspection of internal diameters in machining and maintenance applications

• 50–160 mm measuring range for bore inspection
• 0.01 mm graduation on analogue dial
• Repeatability ±0.005 mm for reliable results
• Matt‑chromed device holder for robust mounting

Reliable accuracy for routine quality control

The 0.01 mm dial graduation combined with a measured repeatability of ±0.005 mm delivers consistent results suited to workshop quality control and toolroom checks. The analogue readout is familiar to many inspectors and allows quick trend recognition during batch inspections; the fine graduation supports tolerance assessments that align with common engineering practice. Using a mechanically robust measuring concept ensures stable readings even during repetitive use, reducing rework and inspection variance.

Robust design that supports everyday measurement tasks

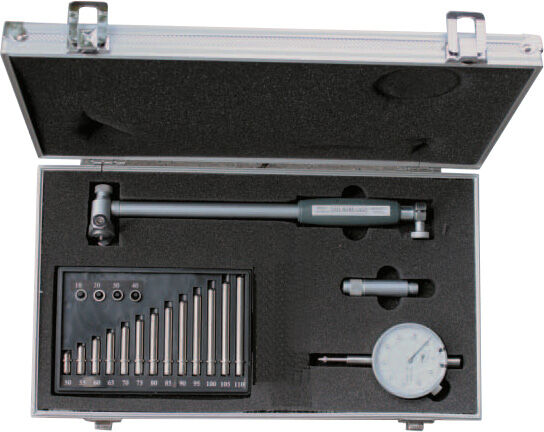

Built around a matt‑chrome device holder, the set is engineered for stable positioning and simple handling. The instrument includes 6 measuring pins and a measuring depth of 150 mm, permitting access into deep housings and larger bores within the 50–160 mm range. At approximately 1.35 kg, the set remains portable without sacrificing rigidity, and the included gauge shims (0.5, 1, 2 and 3 mm) facilitate quick calibration and reference checks on the shop floor. These features together shorten setup time and support repeatable measurement routines.

Practical integration into inspection workflows

This analogue bore gauge is intended for tasks such as incoming part inspection, maintenance checks and occasional process monitoring where a clear mechanical indication is preferred. The measuring range of 50–160 mm covers many common internal diameters for bearings, housings and sleeves, while the analogue dial provides an immediate visual indication of deviation from nominal. The set’s construction and measured repeatability make it a straightforward tool for technicians and quality personnel aiming to keep production within specified tolerances.

Choose the Metav IndustryLine internal bore gauge for dependable internal measurements and contact Metav Werkzeuge for tailored technical advice at info@metav-werkzeuge.com or +49 2822 7131930

Technical data

• Article number: M208.024
• GTIN: 4061905042300
• Brand: Metav IndustryLine
• Weight: 1.35 kg
• Material: matt‑chrome device holder

Numerical data

• Measuring range: 50–160 mm
• Graduation / reading: 0.01 mm
• Repeatability: 0.005 mm
• Measuring depth: 150 mm

Special features

• Analogue dial display, 0.01 mm graduation
• 6 measuring pins for bore contact
• Pass shims included: 0.5, 1, 2, 3 mm
• Category: Dial gauges

FAQ

What is the usable measuring range of the instrument?
The instrument covers internal diameters from 50 to 160 mm, making it suitable for medium‑sized bores.

What level of resolution and repeatability can be expected?
The analogue dial provides a 0.01 mm reading and the set demonstrates a repeatability of ±0.005 mm under consistent measuring conditions.

Are extension gauges or pins included for different diameters?
The set includes 6 measuring pins and pass shims (0.5, 1, 2, 3 mm) to adapt the gauge to the required internal diameters.

Is this instrument suitable for deep bores?
With a measuring depth of 150 mm, the gauge can reach into relatively deep housings and components within its measuring range.

Which applications is this set intended for?
The instrument is designed for workshop inspection, maintenance and incoming part checks where reliable analogue indication and repeatable internal measurements are required.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
