160-250mm Internal Precision Bore Gauge 0.01mm Resolution, 5-Point Probes, Supplied in Case - Metav IndustryLine

Take advantage of precise analogue reading, robust build and deep probing capability to streamline inside‑diameter inspection; order directly via Metav Werkzeuge or request specialist advice from the Metav team.

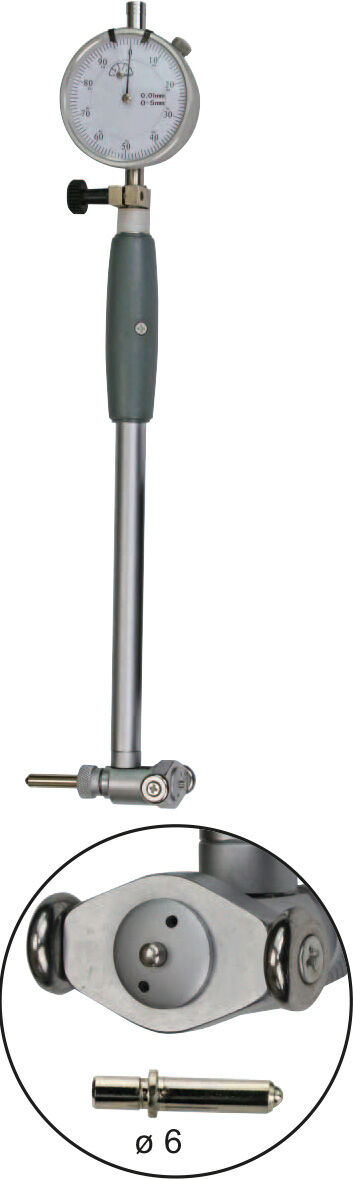

Internal fine-measuring instrument M208.025 — analogue internal gauge, 0.01 mm resolution (Metav IndustryLine)

The Internal fine-measuring instrument M208.025 is a compact analogue internal measurement stand for reliable inside‑diameter inspection in workshops and production quality control.

• Analogue reading with 0.01 mm resolution
• Measuring range 160–250 mm
• Repeatability ±0.005 mm
• Matt chrome device holder for stability

High‑precision analogue measurement for reliable quality control

This internal gauge combines a clear analogue indication with a fine resolution of 0.01 mm, delivering a measurable advantage for routine inspections and sample checks. The instrument’s documented repeatability of 0.005 mm ensures that repeated measurements remain consistent, which supports reproducible pass/fail decisions on the shop floor. Such technical consistency reduces rework and shortens inspection cycles, making the device a pragmatic choice for small series and batch control.

Robust design and probing depth for versatile workshop use

Built around a matt‑chrome device holder, the instrument provides mechanical stability during inside‑diameter probing; the assembly weight of 2.9 kg contributes to a steady measuring platform. The unit offers a measuring depth of 400 mm, allowing access to deeper bores and recessed features without auxiliary fixtures. Supplied probe extensions of 50 mm expand reach where required, while the set of gauge shims facilitates quick functional checks and setup. The overall design emphasises day‑to‑day durability and ease of handling in industrial environments.

Practical integration into inspection workflows

With a measuring span of 160–250 mm, the instrument sits in the standard workshop range for internal checks, supporting common bore sizes found in machining and assembly operations. The analogue dial is intuitive to read and robust against electrical interference, making it suitable for heavy‑duty surroundings where digital electronics may be less desirable. The configuration of probe pins and the included gauge shims enable rapid changeover between nominal diameters, reducing downtime and improving throughput for inspection routines.

For direct procurement or technical advice on integrating the Metav IndustryLine M208.025 into production, contact Metav Werkzeuge’s Emmerich team for personalised recommendations and delivery coordination.

Technical data

• Article number: M208.025
• GTIN: 4061905042706
• Type: analogue internal fine‑measuring instrument
• Measuring range: 160–250 mm
• Resolution: 0.01 mm
• Repeatability: 0.005 mm
• Measuring depth: 400 mm
• Weight: 2.9 kg
• Material: matt chrome‑plated device holder

Numerical data

• Measuring range minimum: 160 mm
• Measuring range maximum: 250 mm
• Measuring pins: 8
• Probe set configuration: 5× (160/170/180/190/200 ±1.4)
• Extensions: 50 mm
• Gauge shims: 0.5 / 1 / 2 / 3 / 6 mm

Special features

• Analogue dial indicator for clear visual reading
• Robust workshop design for repeated use
• Suitable for inside‑diameter inspection in production

FAQ

What measurement range does this instrument cover?
The Internal fine‑measuring instrument M208.025 covers the inside‑diameter range from 160 mm to 250 mm.

How fine is the instrument’s resolution and repeatability?
The device provides a resolution of 0.01 mm and a repeatability of 0.005 mm, which supports consistent shop‑floor inspection results.

Is the unit suitable for deep bores?
Yes; the instrument offers a measuring depth of 400 mm and includes 50 mm probe extensions to access recessed features.

Which components are included for setup and checks?
The instrument is supplied with a set of gauge shims (0.5, 1, 2, 3, 6 mm) and the specified probe configuration to facilitate setup and quick functional checks.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
