16 mm Depth Stop For Dial Indicator With Round Contact Face, 8 mm Shank - Metav IndustryLine

Take advantage of precise depth probing with a compact, robust accessory that ensures repeatable readings and straightforward integration into existing dial gauge setups. The round 16 mm contact face and standard 8 mm mounting shank combine for reliable contact and broad compatibility. Order the depth measuring stop directly via Metav Werkzeuge or consult our specialists for integration advice.

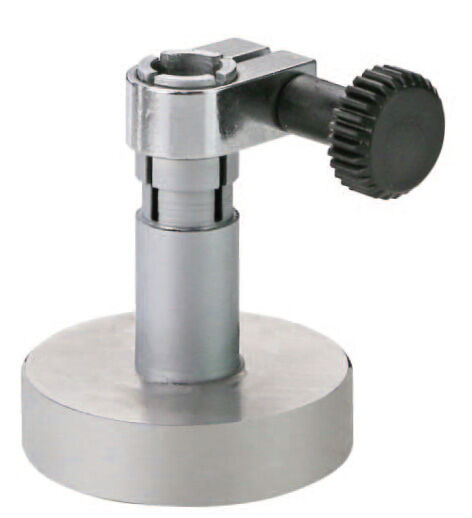

Depth measuring stop for dial gauge M208.062.1 — round 16 mm head, 8 mm shank (Metav IndustryLine)

Depth measuring stop for dial gauge M208.062.1 provides a compact probing solution for depth checks and stepped feature measurement in confined workspaces, designed as an accessory for workshop and inspection rigs

• Round contact face, 16 mm diameter
• 8 mm mounting shank for standard dial gauges
• Robust design for repeatable measurements
• Compact 45 mm height for confined spaces

Precise depth probing where space is limited

The accessory offers a 16 mm round contact surface that distributes contact force evenly, reducing local indentation and stabilising the probe point during measurement. Paired with an 8 mm mounting shank, the unit integrates with dial gauges that have the corresponding receiver, enabling repeatable readings across multiple checks. The short overall height and compact footprint make it particularly suitable for installations where lateral clearance is restricted, while the geometry supports secure seating on flat and lightly contoured surfaces.

Seamless compatibility and simple installation

Compatibility is a key advantage: the stop fits all dial gauges with an 8 mm mount, permitting rapid changeover between test fixtures without adapters. The standardised mounting diameter ensures a consistent interface with common indicator stems, so the accessory can be used as a permanent stop or a quick-fit probe for ad hoc inspections in the workshop. Its design focus on mechanical simplicity minimises sources of measurement error and shortens setup time during serial checks or occasional verification tasks.

Designed for reliable workshop and inspection use

Constructed for stable contact and low maintenance, the device supports frequent routine use in production and QA environments. The round contact face reduces lateral slip during engagement, improving measurement stability when probing steps or recesses. Low-maintenance operation combined with a compact form factor contributes to efficient workflows, as measurement tasks can be executed quickly without sacrificing consistency. The accessory complements dial gauge systems for operators seeking a pragmatic balance between precision and operational efficiency.

For precise depth probing and practical integration, request Metav Werkzeuge’s specialist advice or order the M208.062.1 depth measuring stop directly from our Emmerich stock.

Technical data

• Article number: M208.062.1
• GTIN: 4061905042737
• Description: Depth measuring stop for dial gauge, round, 16 mm head, Ø 8 mm shank
• Manufacturer: Metav IndustryLine

Facts

• Weight: 0.43 kg
• Overall height: 45 mm
• Contact face diameter: 16 mm
• Mounting shank: Ø 8 mm

Special features

• Round contact face
• Suitable for all dial gauges with 8 mm mounting
• Category: Measuring devices – accessory
• Compact design for confined spaces

FAQ

Is this stop compatible with all dial gauges?
The depth measuring stop is compatible with dial gauges that have an 8 mm mounting shank; the M208.062.1 is designed specifically for that standard interface.

What is the contact face diameter and why does it matter?
The contact face is 16 mm in diameter; the larger, round surface helps distribute contact force and improves stability for depth and step measurements.

Can the stop be used for stepped and recessed measurements?
Yes, the round contact face and compact geometry of the M208.062.1 are suited to probing steps, recesses and confined features where a stable reference is required.

How heavy is the accessory and is it suitable for fixture mounting?
At 0.43 kg the unit is compact yet substantial enough for secure fixture mounting and repeatable mechanical engagement.

Does the accessory require special adapters for installation?
No adapters are necessary when used with dial gauges that accept an 8 mm shank; the standard interface enables direct installation.
