4mm Gauge Insert Set Lengths 16/26/36mm Round Measuring Faces, Thread 2.5mm - Metav IndustryLine

A compact set of three precision contact tips with a Ø 4 mm rounded measuring face and standard 2.5 mm threaded mounting gives flexible probe reach for routine inspection and retrofit applications; order directly via Metav Werkzeuge or consult our advisers for compatibility and supply.

Measuring Contact Set M208.193 – contact tips for dial indicators, Ø 4 mm, 2.5 mm thread

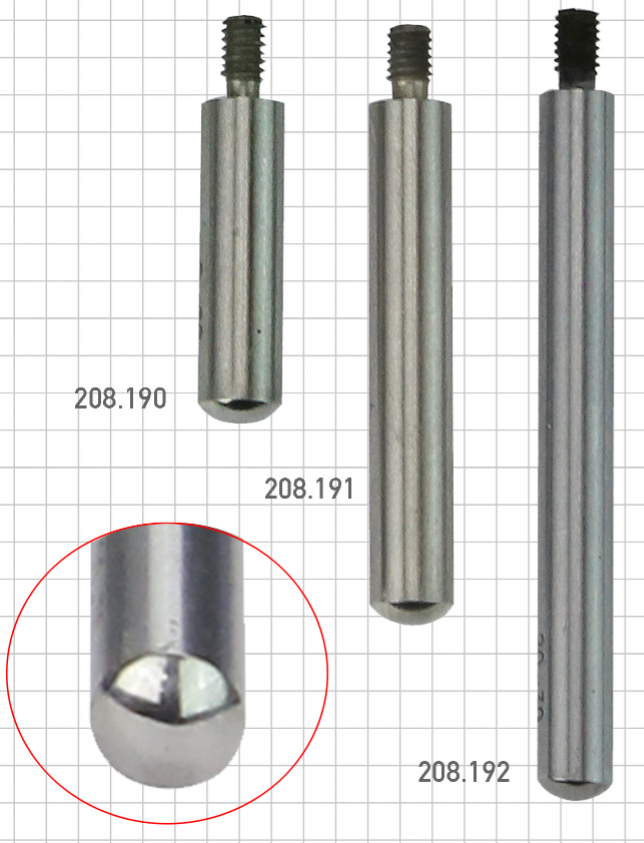

Measuring Contact Set M208.193 provides three rounded probe tips in different lengths for reliable contact with small and medium components when used with dial indicators

• Set of three precision contact tips
• Ø 4 mm rounded measuring face
• 2.5 mm threaded mounting
• Lengths 16 mm, 26 mm and 36 mm

Compact probe reach for reliable contact and repeatability

The set supplies three purpose‑chosen tip lengths that extend measuring capability without compromising handling. With a Ø 4 mm rounded measuring face the tips reduce local stress on workpieces and improve repeatability when compared with pointy probes; this is particularly useful for shallow contours and small radii. The configuration supports fast inspection cycles by offering immediate alternatives for different geometries, so measurement throughput is raised while maintaining consistent contact behaviour.

Secure mounting and quick changeover for efficient workflows

Designed for standard threaded spindles, the 2.5 mm thread allows direct replacement or upgrade of probe tips on most dial indicator stems. The package presents a set of three lengths (16 mm, 26 mm and 36 mm) so the correct reach can be selected without improvisation, reducing set‑up time and the risk of using unsuitable extensions. The kit’s low mass (approx. 0.1 kg total) keeps inertia low and prevents undue loading of delicate measuring instruments, supporting stable readings during repeated measurements.

Workshop practicality and trustworthy supply chain

This compact kit is aimed at bench and shop environments where small‑part inspection is frequent: the three tips cover common inspection needs from close‑tolerance components to slightly recessed features. Supplied as a coherent set, the pieces simplify inventory and procurement for maintenance and inspection teams. Backed by Metav’s commitment to making precision accessible, the set combines pragmatic design with availability from a European supplier that supports consistent replenishment and transparent order handling.

For secure fitting and to ensure the tips match a specific dial indicator stem, contact Metav Werkzeuge for tailored advice or to place an order – eMail: info@metav-werkzeuge.com · Tel: +49 2822 7131930

Technical data

• Article number: M208.193
• GTIN: 4061905450235
• Manufacturer: Metav IndustryLine

Facts

• Diameter: 4 mm
• Thread: 2.5 mm
• Weight: 0.1 kg
• Lengths: 16 mm, 26 mm, 36 mm
• Pieces per set: 3

Special features

• Measuring face: round
• Pack type: set
• Intended for: dial indicators
• Category: dial gauges

FAQ

Are these tips compatible with standard dial indicators?
The Measuring Contact Set M208.193 is designed for dial indicators with a 2.5 mm threaded stem and fits common manufacturers that use that thread size.

What lengths and faces are included in the set?
The set contains tips of 16 mm, 26 mm and 36 mm length, each with a rounded measuring face of Ø 4 mm for repeatable contact.

How many pieces are supplied and what is the total weight?
Three pieces are supplied per set; the complete set weighs approximately 0.1 kg.

Can these tips be used for delicate surfaces?
The rounded measuring face on the M208.193 contact tips minimises local pressure, making them suitable for measurements where surface marking must be avoided.

Is the set suitable for retrofitting existing indicators?
Yes, the 2.5 mm threaded mounting is a common standard, so the kit is suitable for retrofitting many dial indicators to extend probe reach and flexibility.
