20–40mm Digital External Probe 0.001mm Resolution, Rounded Tips, IP65, Supplied in Case - Metav IndustryLine

Take advantage of a combination of high-resolution measurement, robust IP65 protection and a protective transport case for reliable shop-floor inspection. The device’s fine 0.001 mm display and industrial sealing support fast, repeatable checks of bores, grooves and external diameters. Order the Digital External Probe M209.262 directly via Metav Werkzeuge or ask our consultants if needed.

Digital External Probe M209.262 — 20–40 mm range, 0.001 mm resolution (Metav IndustryLine)

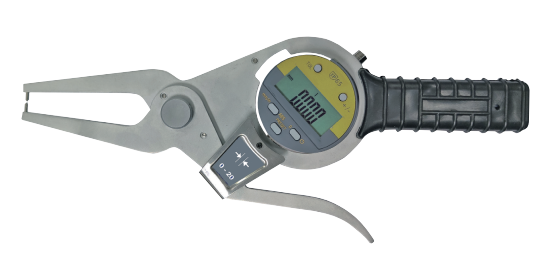

The Digital External Probe M209.262 is a compact precision probe for quick measurement of bores, grooves and external diameters in workshop and inspection environments.

• Rapid measurement of bores and grooves
• 0.001 mm resolution with mm/inch and tolerance keys
• IP65 rated for dust and splash protection
• Supplied in a protective transport case

Precision that speeds up quality control

This external probe delivers a 0.001 mm readout on a clear digital display, enabling fine discrimination where repeatable results matter. The instrument states an accuracy of ±0.03 mm, which positions it well for routine dimensional checks and comparative measurements on small components; the Ø3×6 rounded tips and a probe reach of 65 mm assist in accessing bores and recesses without damaging workpieces. By combining high resolution with robust error limits, inspection cycles become shorter and measurement-based decisions more reliable.

Built for the workshop — robust and serviceable

Designed for shop-floor use, the gauge carries an IP65 rating so it resists dust ingress and light splashing, maintaining functionality in harsher production settings. Despite its sturdy construction it remains portable and straightforward to handle — the unit weighs about 1.2 kg and is supplied in a transport case to protect sensitive components during storage and movement. This balance of durability and portability reduces downtime and preserves calibration between uses.

Clear operation and workflow advantages

The digital display includes a run bar and selectable mm/inch mode, plus dedicated preset, tolerance and +/- keys to integrate with inspection procedures. Quick switching and a visible tolerance indicator support fast go/no-go decisions at the machine or bench. Because the device is intended specifically for external measurements, setups for checking shafts, collars and turned bores are simplified, helping technicians finish standard tasks with fewer adjustments and less risk of transcription errors.

For a reliable supply and expert advice on the Metav IndustryLine Digital External Probe M209.262, contact Metav Werkzeuge for tailored ordering and technical guidance by phone or email.

Technical data

• Article number: M209.262
• GTIN: 4054469181622
• eClass: 27144044

Numbers / Core technical data

• Measurement range: 20–40 mm
• Resolution: 0.001 mm
• Accuracy: 0.03 mm
• Weight: 1.2 kg

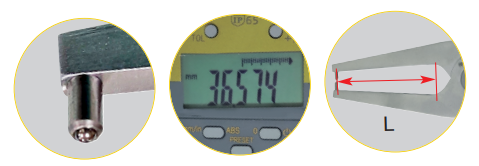

• Probe tip: Ø3×6 mm
• Probe reach / length: 65 mm
• Protection class: IP65

Special features / Versions

• Digital display with run bar and mm/inch mode
• 0/off, preset, tol and "+/-" keys
• Suitable for external measurements (shafts, collars, bores)
• Delivered in plastic or wooden transport case for protection
• Intended for quick measurement of bores, grooves and similar features
• Metav IndustryLine product

FAQ

What measurement range does this probe cover?
The probe covers a measurement range of 20–40 mm; the M209.262 is thus focused on small external diameters and similar tasks.

What resolution and accuracy can be expected?
The unit displays values at 0.001 mm resolution and specifies an accuracy of 0.03 mm, suitable for routine workshop inspection and comparative checks.

Is the display suitable for metric and imperial workflows?
Yes, the display supports mm/inch selection and includes preset and tolerance functions to streamline both metric and imperial inspection procedures.

Can the probe be used on the shop floor?
With an IP65 rating and a protective transport case, the probe is designed for demanding workshop conditions while remaining portable and easy to protect.

What kinds of measurements is the probe intended for?
Designed for external measurements, it is particularly suited to shafts, collars, turned diameters, bores and grooves where a rounded probe tip and compact reach are advantageous.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
