20 mm Digital Depth Gauge With 16 mm Anvil, 1.5 mm Probe, Preset And Reversible Measuring Direction, 0.01 mm Resolution - Metav IndustryLine

Benefit from precise, compact depth measurement with the combination of a 0.01 mm display resolution and ±0.02 mm accuracy for reliable quality control in small bores and recesses; the built‑in preset and reversible measuring direction speed up repetitive tasks. Order the Digital Depth Gauge 20 mm, stop 16 mm with measuring pin Ø1.5 mm directly via Metav Werkzeuge or ask our consultants if needed.

Digital Depth Gauge 20 mm, stop 16 mm with measuring pin Ø1.5 mm — digital depth gauge, 0.02 mm accuracy (Metav IndustryLine)

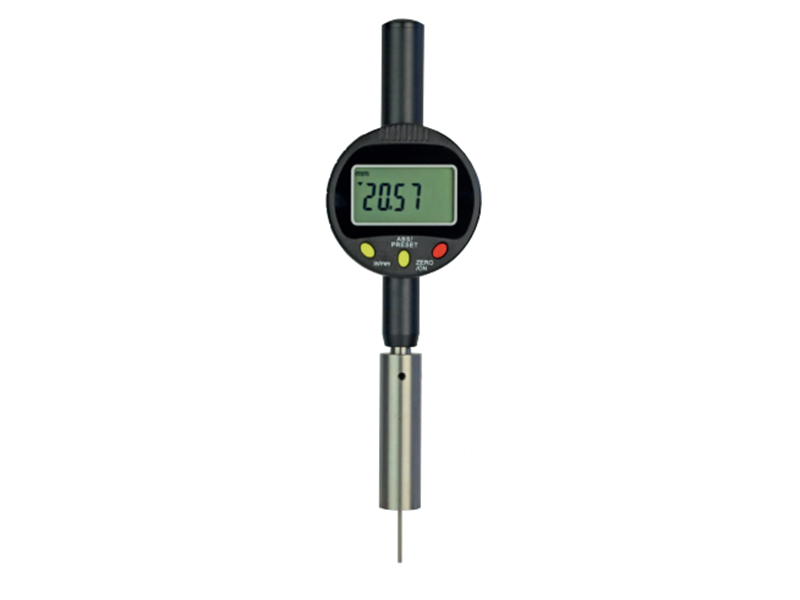

The Digital Depth Gauge 20 mm, stop 16 mm with measuring pin Ø1.5 mm is a compact digital instrument for fast, repeatable depth measurements in fine mechanical work, quality control and small component assembly.

• Digital display with 0.01 mm resolution
• Measurement accuracy ±0.02 mm industrial grade
• Preset function and reversible measuring direction
• Compact micro range: 0–20 mm depth gauge

Precision where small depths determine quality

The instrument offers a display resolution of 0.01 mm and an operational accuracy of ±0.02 mm, delivering measurably better repeatability than coarse gauges. This level of precision reduces rework and rejects by clarifying whether a bore or counterbore meets specification. The numerical values are industry-relevant and comparable, enabling straightforward integration into existing inspection routines. As a compact, digital depth instrument, it replaces manual estimation and speeds up decision-making at the bench.

Designed for efficient, repeatable measurements

Equipped with a preset mode and reversible measuring direction, the device supports rapid series checks and avoids time lost to re-zeroing or awkward probe orientations. The measuring pin Ø1.5 mm × 20 mm provides access into narrow holes and recesses while a stop Ø16 mm secures positioning on shoulders or flanges. These features transform a single measurement into a reproducible process: set the preset, seat the stop, and read the depth — consistent results with fewer handling steps.

Compact class and workshop advantages

Classified in the micro range (measuring range up to 100 mm) and tailored to depths up to 20 mm, the gauge is particularly suited to watchmaking, small-parts machining and precise assembly work where space is limited but accuracy is critical. At approximately 0.62 kg, the instrument balances stability and portability for bench work and mobile inspection rounds. The digital readout minimises interpretation errors and supports quicker throughput in inspection sequences, improving overall workshop efficiency.

For dependable micro‑depth measurement from Metav IndustryLine, contact Metav Werkzeuge for availability and technical guidance at info@metav-werkzeuge.com or call +49 2822 7131930

Technical data

• Article number: M301.053.3
• GTIN: 4054469184593
• Manufacturer: Metav IndustryLine
• Digital: yes
• Weight: 0.62 kg
• Display resolution: 0.01 mm
• Accuracy: ±0.02 mm
• Measuring range: 0–20 mm
• Measuring probe: Ø1.5 × 20 mm

Facts

• Measuring range max: 20 mm
• Resolution (display): 0.01 mm
• Accuracy (typical): 0.02 mm
• Probe diameter: 1.5 mm
• Probe length: 20 mm
• Weight: 0.62 kg

Special features

• Preset function
• Reversible measuring direction
• Stop Ø16 mm
• Compact micro range instrument
• Category: digital depth gauge / dial gauges

FAQ

What is the measuring range of this depth gauge?
The measuring range is 0–20 mm for the Digital Depth Gauge 20 mm, stop 16 mm with measuring pin Ø1.5 mm (Metav IndustryLine, SKU M301.053.3).

How fine is the displayed reading?
The digital readout shows steps of 0.01 mm, giving clear numeric feedback for small-depth inspections on the Digital Depth Gauge 20 mm.

What accuracy can be expected in routine use?
Typical operational accuracy is ±0.02 mm for the Digital Depth Gauge 20 mm, which is suitable for standard industrial quality control tasks.

Is the probe suitable for narrow bores?
Yes, the measuring probe is Ø1.5 mm × 20 mm, designed to reach into small bores and recesses while maintaining measurement stability.

Which features support repeatability in series measurements?
The preset mode and reversible measuring direction enable fast re-zeroing and consistent orientation, improving repeatability for batch checks with the Digital Depth Gauge 20 mm.
