150mm Digital Micrometer With Six Interchangeable Anvils 0.001mm Resolution, Ratchet, Plastic Case - Metav IndustryLine

High-resolution 1 µm readout together with six interchangeable measuring anvils and a ratchet stop deliver consistently reproducible results for workshop and laboratory quality control. Order the Digital Micrometer M302.024.C directly via Metav Werkzeuge or ask our consultants if needed

Digital Micrometer M302.024.C — 0–150 mm, 0.001 mm resolution (Metav IndustryLine)

A Digital Micrometer M302.024.C designed for accurate external measurement of components across general machining and inspection tasks, supplied with six changeable anvils for flexible application

• 1 µm display resolution
• Six interchangeable measuring anvils
• Ratchet stop for constant measuring force
• Digital display with ABS/INC and unit button

Accurate measurement for consistent quality assurance

The instrument provides a 1 µm display resolution with a spindle pitch of 0.5 mm, enabling fine incremental control and reliable dimensional checks. With a specified accuracy of ±0.011 mm and a matt chrome-plated measuring drum, this micrometer supports traceable repeatability in routine inspections and process control. The combination of fine resolution and mechanical design reduces measurement uncertainty, making it suitable for precise external measurements in production monitoring and acceptance testing.

Repeatable processes and digital integration for efficient workflows

Equipped with six interchangeable measuring anvils, the tool adapts quickly to different part geometries, cutting set‑up times and minimising fixture work. The integrated ratchet stop ensures a constant measuring force, reducing operator-induced variance and increasing throughput in serial measuring tasks. For automated data capture, the micrometer offers RB 4.1 data output, which facilitates connection to SPC systems and digital documentation—supporting quality records without manual transcription and improving auditability.

Practical design that supports everyday workshop use

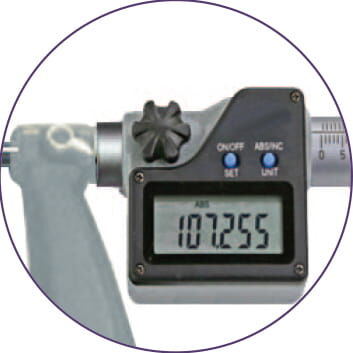

The handheld instrument balances robustness and ergonomics: hardened measuring faces provide wear resistance, while the matt chrome-plated drum gives a non-reflective surface for comfortable reading. The digital display includes ON/OFF/SET, ABS/INC and UNIT functions for quick zeroing and switching between units, and the adjustable setting gauges (25 / 50 / 75 / 100 / 125 mm) allow convenient checks across typical reference points. Together these features make the device reliable for both bench inspection and integration into established metrology routines, offering craftsmen and inspectors an intuitive yet technically capable tool.

For tailored advice on integrating the Metav IndustryLine digital micrometer into existing inspection processes or for questions about data output and measuring anvils, contact Metav Werkzeuge for a technical consultation and supply options

Technical Data

• Article number: M302.024.C
• GTIN: 4054469151700
• Label: Digital-Mikrometer, 0 - 150 mm mit 6 auswechselbaren Ambossen, Ablesung 0,001 mm
• Category path: Messgeräte › Messschrauben
• Manufacturer: Metav IndustryLine

Facts

• Measuring range: 0–150 mm
• Resolution: 0.001 mm (1 µm)
• Accuracy: 0.011 mm
• Weight: 1.8 kg
• Spindle pitch: 0.5 mm
• Measuring spindle diameter: 8 mm
• Setting gauges: 25 / 50 / 75 / 100 / 125 mm

Special features

• Six interchangeable measuring anvils
• Ratchet stop for uniform measuring force
• Digital display with ON/OFF/SET, ABS/INC and UNIT
• Data output: RB 4.1
• Hardened measuring faces
• Matt chrome-plated measuring drum
• Norm: Werksnorm
• Digital operation enabled

FAQ

What accuracy can be expected from the micrometer?
The Metav IndustryLine digital micrometer achieves an accuracy of approximately ±0.011 mm and a display resolution of 0.001 mm, suitable for high‑precision workshop checks.

Can the device connect to data-collection systems?
Yes, the micrometer includes an RB 4.1 data output that supports digital transfer of measured values into SPC or inspection software.

Are the measuring faces durable for daily use?
Hardened measuring faces and a matt chrome-plated drum provide wear resistance and reliable performance under repeated use.

How do the interchangeable anvils improve workflow?
Six interchangeable measuring anvils allow quick adaptation to different part geometries, reducing setup time and avoiding repeated clamping adjustments.

Is there a ratchet or similar feature to ensure consistent force?
A ratchet stop is incorporated to deliver a constant measuring force, minimising operator influence on results.
