95mm Limit Plug Gauge H7, Hardened Gauge Steel, DIN 2245 - Metav IndustryLine

Taking advantage of a DIN 2245-compliant design and an H7 tolerance, this limit plug gauge combines measured repeatability with robust, hardened-gauge-steel construction to support reliable bore inspection. Order the limit plug gauge directly via Metav Werkzeuge or consult our specialists for application advice.

Limit plug gauge, 95.0 mm (H7) — Metav IndustryLine

A limit plug gauge 95.0 mm H7 engineered for go/no-go verification of cylindrical bores in production environments and quality inspection.

• DIN 2245 compliant plug design
• Hardened gauge steel for durability
• H7 tolerance for precise bore checks

Repeatable acceptance testing for production control

A go/no-go plug of this configuration is intended to deliver clear, unambiguous results during acceptance routines. Built to DIN 2245, the design provides a defined reference form for bore inspection; the incorporated H7 tolerance ensures the gauge corresponds to the nominal acceptance band used across machining and inspection processes. The result is a straightforward pass/fail decision that reduces interpretation time, supports uniform sampling plans and helps maintain stable process control on the shop floor. The practical outcome is fewer false rejections and faster throughput in routine checks.

Durable construction that lowers maintenance needs

Constructed from hardened gauge steel, the component resists wear under repeated use and keeps the measuring boundary stable over many cycles. The hardened material offers long-term dimensional stability, which minimises the frequency of replacement and supports a consistent inspection capability. In addition, the standardised limit form simplifies handling and storage procedures, reducing downtime associated with rework and verification of worn gauges. The emphasis here is on robust performance and low life‑cycle effort for production environments.

Clear traceability and simple procurement

Identification and traceability are supported by the provided article information and product coding, enabling integration into inventory and quality systems. The compact specification—nominal 95.0 mm diameter with the H7 fit class—permits consistent documentation in inspection plans and measurement protocols. Procurement is simplified via the Metav IndustryLine channel, which combines central European distribution with comprehensive product filtering; this supports reliable supply and reduces administrative effort for repeat purchases.

For procurement or application support for the Metav IndustryLine limit plug gauge (SKU M314.095), contact Metav Werkzeuge for expert guidance and dependable delivery from Emmerich.

Technical data

• Article number: M314.095
• GTIN: 4054469121925
• ECLASS: 21170218
• Material: hardened gauge steel
• Standard: DIN 2245
• Diameter: 95.0 mm
• Tolerance: H7
• Customs tariff number: 90173000

Facts

• Nominal diameter: 95.0 mm
• Tolerance class: H7
• Standard: DIN 2245
• GTIN: 4054469121925

Special features

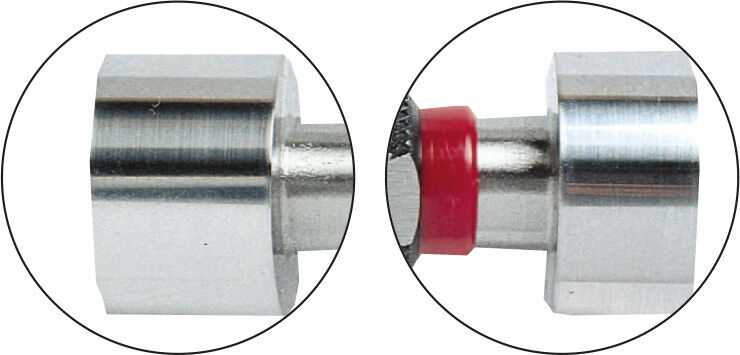

• Limit plug design for go/no-go verification
• Hardened gauge steel for wear resistance
• Intended for bore inspection and acceptance testing
• Category: Gauges / Measuring pins

FAQ

What inspection tasks is this limit plug gauge suited for?
The limit plug gauge is suited for go/no-go verification of cylindrical bores where a 95.0 mm nominal diameter with H7 tolerance is specified; it is commonly used in production checks and final acceptance routines.

Is the gauge material indicated?
The product is made from hardened gauge steel, providing abrasion resistance and stable contact geometry under repeated use.

Which standard does this gauge comply with?
Compliance with DIN 2245 is specified for the construction and limit form of the plug, ensuring compatibility with established inspection practices.

Does the gauge allow unambiguous pass/fail decisions?
Yes, the limit plug form offers a clear go/no-go result within the defined H7 tolerance band, which simplifies acceptance testing.

How is the product identified for inventory and ordering?
The item is listed under Metav IndustryLine with article number M314.095 and GTIN 4054469121925 for consistent tracking in procurement and quality systems.
