M3–12 Thread Gauge Ring Set GO, Right-Hand, Hardened Gauge Steel, DIN 13 6g, in Case - Metav IndustryLine

Take advantage of a compact inspection solution that combines hardened gauge steel construction, DIN 13, 6g conformity and a practical M3–M12 range for rapid go/no‑go checks; order the set via Metav Werkzeuge or consult the Metav advisers for batch requirements and calibration options.

Limit thread ring gauge set M3–M12 (GO) by Metav IndustryLine — hardened gauge steel, DIN 13, 6g

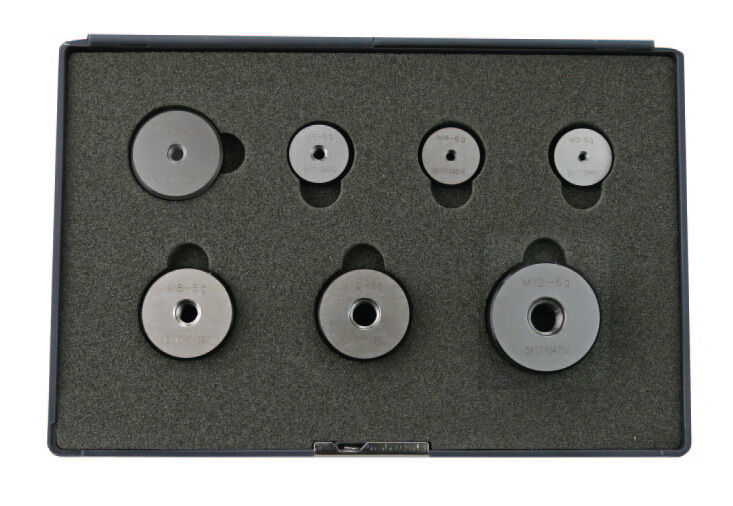

The limit thread ring gauge set M3–M12 (GO) is a precision inspection kit for fast verification of metric ISO external threads in production and workshop quality control.

• Hardened gauge steel construction
• Set covers M3–M12 metric threads
• Manufactured to DIN 13, 6g tolerance
• Compact 7-piece GO ring gauge set

Faster, reliable go/no‑go decisions on the shop floor

A purpose‑built GO gauge delivers an immediate binary result: pass or fail. By using a limit ring gauge set conforming to DIN 13, 6g, inspection cycles are shortened and operator variation is reduced. This translates into smoother production flow and fewer rework loops, because parts that pass the GO check meet the specified maximum material condition for the external thread. The compact design and grouped sizes allow rapid sequential checks without tool changes, supporting lean inspection routines and keeping throughput steady.

Built for durability and repeatable accuracy

Constructed from hardened gauge steel, the gauges resist wear and preserve their measuring edge under frequent use, which sustains measurement confidence over time. The material choice and heat treatment provide a stable contact surface, so the set maintains a consistent fit with mating threads and limits measurement drift. For production environments where abrasion and repeated handling are typical, this robustness reduces replacement frequency and supports predictable maintenance cycles.

Practical size range for general engineering applications

Covering the common metric thread sizes from M3 to M12, the seven gauges in the set match typical fastener ranges in machinery, fixtures and small assemblies. The collection is therefore suitable for general workshop quality control as well as first‑article inspection in smaller production runs. Each gauge is intended to verify external metric ISO standard threads with right‑hand orientation, so the set integrates straightforwardly into established inspection protocols without additional tooling.

For enquiries about volume supply, calibration certificates or tailored sets, contact Metav Werkzeuge in Emmerich — their specialists can advise on lead times and delivery options to match production needs.

Technical Data

• Article number: M315.100.N
• GTIN: 4061905047831
• Manufacturer: Metav IndustryLine
• Material: Hardened gauge steel
• Standard: DIN 13, 6g

Facts

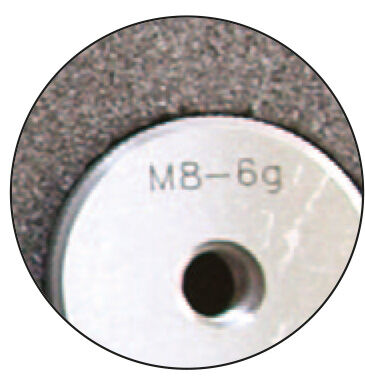

• Sizes: M3, 4, 5, 6, 8, 10, 12
• Pieces per set: 7
• Weight: 0.49 kg
• Tariff number: 90173000

Special features

• GO (limit) ring gauges for external threads
• Right‑hand metric ISO standard threads
• Compact set for quick sequential checks
• Hardened construction for wear resistance

FAQ

What is checked with this gauge set and which thread form is intended?
The Limit thread ring gauge set M3–M12 (GO) by Metav IndustryLine is intended to verify external metric ISO threads using GO limit gauges for right‑hand threads; it confirms whether an external thread meets the maximum material condition.

Does the set comply with recognised standards?
Yes — the gauges are made to DIN 13, 6g, ensuring compatibility with standard engineering tolerances and straightforward integration into quality assurance procedures.

Which materials are the gauges made from and how does this affect service life?
The set is manufactured from hardened gauge steel, which offers high wear resistance and consistent contact geometry, prolonging service life in regular inspection tasks.

Is this set suitable for both workshop checks and incoming inspection?
The 7‑piece range (M3–M12) covers common fastener sizes, making the set suitable for routine workshop checks and small to medium scope incoming inspections where metric ISO threads are used.
