500µm Surface Comparison Plates Set For Vertical Milling 6-Piece Ra 500–16 µm, Grade AA - Metav IndustryLine

Take advantage of accurate, standardised reference grades and a compact, workshop‑friendly form factor to speed up surface‑finish decisions and reduce rework. Choose the six‑grade vertical milling surface comparison set for consistent visual and tactile checks; order directly via Metav Werkzeuge or consult our specialists if required.

Surface Comparison Plates "Vertical Milling" – 6‑piece set, Ra 0.4–12.5 µm | Metav IndustryLine

A Surface Comparison Plate "Vertical Milling" set for rapid verification of surface roughness on milled components and routine shop‑floor quality checks

• Six reference grades 12.5–0.4 µm Ra
• Purpose‑designed for vertical milling inspections
• Compact set for workshop quality control

Rapid, measurable assessment of surface finish

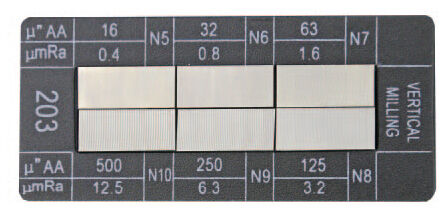

The set offers a clear scale of reference grades that represent common milling finishes, from coarse to fine. With nominal Ra values of 12.5, 6.3, 3.2, 1.6, 0.8 and 0.4 µm, the plates allow immediate visual and tactile comparison against workpieces, accelerating decision‑making in production and inspection. The defined steps correspond to industry recognitions (AA grades 500 / 250 / 125 / 63 / 32 / 16), providing a reproducible baseline for acceptance criteria and reducing subjective judgement during surface checks.

Practical design for everyday workshop use

Designed for routine use in machining environments, the comparators are intended for direct application in vertical milling contexts. The robust, compact format suits bench‑top or portable inspection workflows, keeping handling time to a minimum. Because the set groups the most commonly required roughness levels, it streamlines in‑process control and incoming inspection alike, supporting faster throughput and fewer call‑backs. The low overall mass supports easy storage and quick deployment at the machine or inspection station.

How the plates support quality assurance processes

Use the plates for side‑by‑side comparison to confirm that finishing operations meet specified roughness bands, or to check the effect of cutter geometry and feed/speed adjustments after test cuts. The collection is a pragmatic complement to profilometers where fast, on‑the‑spot decisions are needed: the plates provide an immediate reference that helps avoid unnecessary measurement cycles and supports consistent workmanship across teams. For formal documentation, these reference plates serve as a visual standard in quality reports and operator training.

Contact Metav Werkzeuge for technical advice or to request this Metav IndustryLine surface comparison set; e‑mail info@metav-werkzeuge.com or call +49 2822 7131930

Technical data

• Article number: M318.036.3
• GTIN: 4054469146294
• Tariff code: 90173000
• Manufacturer: Metav IndustryLine

Facts

• Pieces per set: 6
• Nominal Ra (µm): 12.5; 6.3; 3.2; 1.6; 0.8; 0.4
• AA grades: 500; 250; 125; 63; 32; 16
• Weight: 0.2 kg

Special features

• Application: surface comparison for vertical milling
• Package type: set for workshop reference
• Use: visual and tactile finish assessment
• Category: inspection gauges / comparators

FAQ

What roughness grades are included in the set?
The Surface Comparison Plates "Vertical Milling" include reference Ra grades of 12.5, 6.3, 3.2, 1.6, 0.8 and 0.4 µm (AA 500 / 250 / 125 / 63 / 32 / 16) and are supplied as the Metav IndustryLine set M318.036.3.

How should the plates be used for inspection?
The Metav IndustryLine Surface Comparison Plates M318.036.3 are intended for side‑by‑side visual and tactile comparison against milled components to verify surface finish quickly on the shop floor.

Are the plates supplied with a calibration certificate?
The Surface Comparison Plates "Vertical Milling" (M318.036.3) are delivered as a reference set for inspection; they are provided without an ISO 17025 calibration certificate.

Which applications suit this comparator set best?
The Metav IndustryLine set M318.036.3 is optimised for vertical milling finish checks, routine quality control, incoming inspection and operator training where immediate surface assessment is required.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
