7,09–10,01 mm Test Pin Set, 90 Pieces, Three-Point Selection 7,1–10 mm, 0,1 mm Steps, Special Steel, Case

Take advantage of the combination of precise dimensional coverage, robust construction and clear traceability to speed up inspection workflows and reduce rework. The 90-piece gauge pin set is supplied in a transport case and includes a dedicated pin holder for organised handling. Order the gauge pin set directly via Metav Werkzeuge or consult our technical team for application advice.

M318.529 Gauge Pin Set — 90-piece, 7.09–10.01 mm, special steel (Metav IndustryLine)

The M318.529 Gauge Pin Set is a precision test-pin kit for dimensional inspection, calibration and GO/NO‑GO checking in production and quality control environments

• 90-piece set, 7.09–10.01 mm range
• Special steel construction for long life
• Supplied with a pin holder for organisation

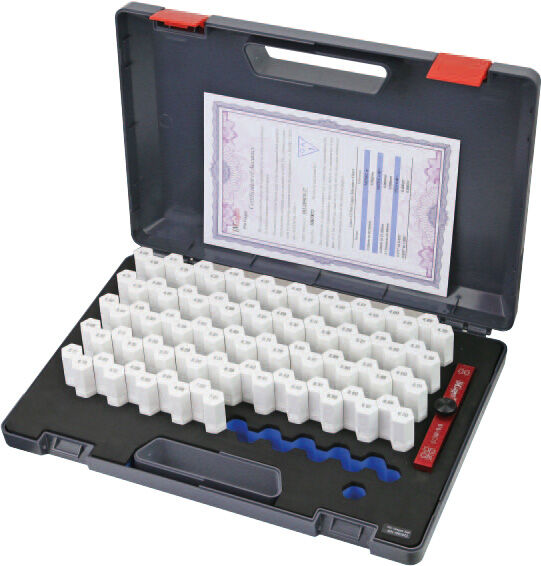

• Transport case for secure storage and transport

Faster, repeatable inspection with lab-grade accuracy

The set delivers a ±0.004 mm accuracy, offering a reliable baseline for pass/fail assessments and calibration tasks. With a comprehensive 7.09–10.01 mm measuring span available in small steps, routine checks become quicker and less error-prone. The precise sizing of the pins reduces setup time for gauging operations and supports consistent results across multiple operators, helping to cut down on rework and inspection cycles.

Built for daily workshop use and durability

Manufactured from special steel, the pins resist wear and maintain dimensional stability under regular use. The kit includes a dedicated pin holder that keeps individual gauges organised and a sturdy transport case to protect the contents during handling and storage. These features combine to preserve accuracy over time and make the set suitable for both the shop floor and the calibration bench.

Clear increments and traceable tolerances for quality control

Pins are supplied in 0.1 mm increments, enabling fine-grained measurement steps without ambiguity. The set also contains three-part offset variants (‑0.01 / 0 / +0.01) for defined tolerance checks, which simplifies GO/NO‑GO schemes and fitting trials. This deliberate configuration supports efficient quality plans and makes documentation straightforward when logging conformity against specified tolerances.

Streamline inventory and rely on a European quality filter

The compact kit format—90 pieces in a single set—reduces catalogue complexity and simplifies stock management. Supplied by Metav IndustryLine via Metav Werkzeuge, the product benefits from centralised quality control and a dependable logistics flow from Emmerich, which helps to safeguard supply reliability for production-critical measuring tools. This combination of supply assurance and measured performance supports robust manufacturing routines.

Contact Metav Werkzeuge for tailored advice on integrating the Metav IndustryLine gauge pin set into existing inspection procedures; call +49 2822 7131930 or email info@metav-werkzeuge.com for detailed technical support and ordering.

Technical data

• Article number: M318.529
• GTIN: 4054469156156
• Material: Special steel
• Pieces per set: 90
• Measuring range: 7.09–10.01 mm
• Step size: 0.1 mm
• Accuracy: ±0.004 mm
• Weight: 5.6 kg
• Tariff code: 90173000

Core dimensions

• Range 7.09–10.01 mm
• Step 0.1 mm
• Accuracy ±0.004 mm
• Weight 5.6 kg

Features & applications

• Includes pin holder
• Supplied in transport case
• Three-part tolerance variants (‑0.01 / 0 / +0.01)
• Set type: Gauge pins / test pins
• Suitable for inspection, calibration and GO/NO‑GO checks

FAQ

What tolerance can be expected from this gauge pin set?
The M318.529 gauge pin set is specified with an accuracy of ±0.004 mm, providing tight, repeatable tolerances for inspection and calibration tasks.

Is the set complete for standard dimensional checks in the 7–10 mm range?
Yes, the 90-piece configuration covers the 7.09–10.01 mm span in 0.1 mm increments, including offset variants for defined tolerance checks.

What material are the pins made from and how does that affect wear?
Pins are made of special steel, chosen for dimensional stability and wear resistance to maintain long-term accuracy under regular use.

Does the delivery include organisation and transport aids?
The kit is supplied with a dedicated pin holder and a robust transport case to secure and organise the pins during storage and handling.

Can this set be used for GO/NO‑GO checking and calibration trials?
Yes, the configuration with 0.1 mm increments and three-part tolerances (‑0.01 / 0 / +0.01) is well suited for GO/NO‑GO schemes and calibration workflows.
