Measuring pin holder M318.563 — holder for 5.0–14.0 mm pins with 'Good' / 'Reject' marking (Metav IndustryLine)

The Measuring pin holder M318.563 is a compact gauge accessory for mounting measuring pins from 5.0–14.0 mm, designed for rapid visual sorting and integration into inspection setups.

• Secure mounting for 5.0–14.0 mm pins

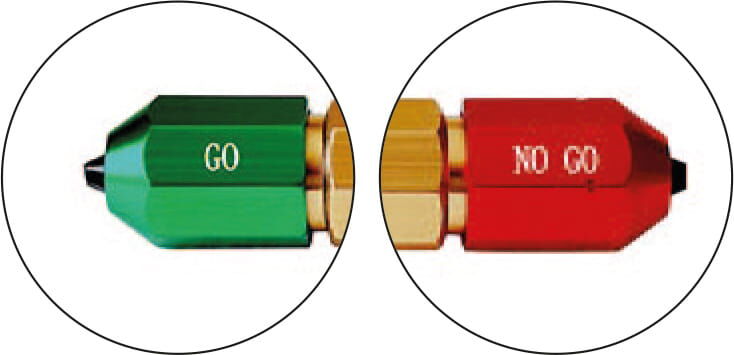

• Clear 'Good' and 'Reject' visual markings
• Compact 145 mm length for tight spaces
• Lightweight 0.1 kg for easy fixture use

Faster, more reliable visual inspection and sorting

This holder converts a single measuring pin into an immediate pass/fail indicator, reducing handling time and human error during routine checks. Fitted for 5.0–14.0 mm pins, the unit provides consistent seating and visible status via the 'Good' / 'Reject' marking, which supports quick decision-making on the shop floor. By standardising the visual cue, the holder improves throughput and lowers the risk of rework without altering existing measurement methods.

Practical integration into gauges and fixtures

With a 145 mm overall length and a 0.1 kg weight, the holder is designed for easy positioning in compact fixtures or mobile inspection rigs. Its form factor supports repeatable placement, helping maintain repeatability in comparative checks and go/no‑go workflows. The compact dimensions make it suitable where space is limited, while the lightweight nature simplifies manual handling and reduces inertia in automated feeders.

Proven supply reliability and traceable quality

The product is part of the Metav IndustryLine, benefitting from Metav’s European distribution and quality filter based in Emmerich. Metav combines broad product availability with sector expertise to ensure reliable supply for production and service workshops; the company’s track record of thousands of professional customers underlines this. For technical clarifications or configuration options relating to inspection integration, Metav’s consultants can provide targeted guidance to match the holder to measurement routines.

Contact Metav Werkzeuge for tailored advice and fast delivery from our Emmerich stock — our team will confirm suitability of the Metav IndustryLine measuring pin holder M318.563 for the intended inspection setup

Technical Data

• Article number: M318.563
• GTIN: 4054469167145
• Label: Measuring pin holder, for measuring pins 5 - 14 mm with "Good" and "Reject" marking
• Manufacturer: Metav IndustryLine

Facts

• Length: 145 mm
• Weight: 0.1 kg
• Tariff number: 90173000

Special features

• Suitable for measuring pins 5.0–14.0 mm
• Distinct 'Good' and 'Reject' visual marking for pass/fail sorting
• Categories: Measuring pins; Gauges

FAQ

Which pin diameters fit this holder?
The measuring pin holder M318.563 accepts measuring pins from 5.0–14.0 mm, allowing use with a broad range of standard gauge pins.

How does the 'Good' / 'Reject' marking work in practice?
The clear 'Good' / 'Reject' marking on the holder provides an immediate visual cue during inspection runs, supporting fast sorting without additional tools.

Can the holder be integrated into existing fixtures or test rigs?
Yes. The holder’s 145 mm length and 0.1 kg weight make it suitable for mounting in compact fixtures, jigs or mobile inspection stations where repeatable pin seating is required.

What identifiers should be used when ordering or referencing the product?
Reference article number M318.563 and GTIN 4054469167145 for precise identification of the Metav IndustryLine measuring pin holder.
