Stable workholding with precision v‑blocks and machine vises
Practical for positioning and alignment in metalworking, precision v-blocks, prisms and machine vises secure cylindrical and prismatic parts for machining and metrology, enabling repeatable, deformation‑free clamping that improves measurement reliability and reduces setup time. Designed for use on granite plates, optical benches and coordinate measuring machines, these solutions support high‑accuracy tasks such as turning, milling, drilling and grinding by maintaining component geometry even under varying temperatures. Built from distortion‑free materials and with finely lapped contact faces, they ensure micrometre‑level stability for roundness, runout and layout checks.
70 mm V-Block Pair With Clamping Strap, 90° Cut Angle, DIN 876/0 - Metav IndustryLine
Take advantage of the 70 mm contact width, robust special steel construction and the precise 90° seating that together deliver repeatable support for cylindrical workpieces; order the prism pairs directly via Metav Werkzeuge or contact our consultants for application advice. Prism pairs with clamping bracket M318.263 — 70 mm precision support, special steel construction A Prism pairs with clamping bracket M318.263 designed to support and locate cylindrical shafts and round components during inspection, measuring and light machining operations 70 mm precision support 90° cut angle for exact seating DIN 876/0 standard compliance Suitable for shafts Ø5–32 mm Stable seating for repeatable measurement results The prism set provides a stable V-seat that keeps round parts centred with minimal lateral play. The machined V-profile and the 90° cut angle ensure consistent contact geometry, which reduces measurement scatter when rotating or indexing a shaft. With a rated accuracy of 0.008 mm, the assembly is suitable where reproducible positioning matters for quality control or setup tasks. The moderate mass and rigid geometry contribute to vibration damping during manual handling, supporting reliable readings from calipers or dial gauges. Robust materials and standardised interfaces for workshop use Manufactured from special steel, the prisms are hardened and finished to withstand repeated clamping cycles and routine workshop environments. Compliance with DIN 876/0 signals compatibility with established metrology practices and facilitates interchangeability in inspection jigs. The integrated clamping bracket secures the workpiece without additional fixtures, simplifying set-up times and reducing handling steps. With a compact footprint of 70 × 63 × 45 mm (L×W×H) and a mass of 3.1 kg, the unit balances portability with the profile stiffness needed for small- to medium-sized shafts. Practical integration into inspection and machining workflows The prism pair is aimed at machine shops, inspection benches and fixture-building applications where cylindrical components from Ø5 to Ø32 mm must be supported or rotated. The concise geometry makes it suitable for assembly into multi-point supports, rotary stages or simple test rigs. For measurement tasks, the prism provides a dependable datum for inside and outside gauge checks; when used together with a caliper or comparator it reduces fixturing time and improves throughput. For tailored applications, Metav Werkzeuge’s technical team can advise on mounting orientations and clamping sequences to match production requirements. Choose the Metav IndustryLine prism pairs M318.263 for concise shaft support and standardised accuracy — contact Metav Werkzeuge in Emmerich for advice and rapid supply Technical Data Article number: M318.263 GTIN: 4054469128634 eClass: 21160304 Norm: DIN 876/0 Facts Dimensions (L×W×H): 70 x 63 x 45 mm Weight: 3.1 kg Accuracy: 0.008 mm Suitable shaft diameter: Ø 5–32 mm Special features Material: Special steel Cut angle: 90° Clamping bracket included Category: Jaw vice | Prisms FAQ What range of shaft diameters can these prisms support? The prism pairs support shafts from Ø 5 mm up to Ø 32 mm, providing centred seating for a wide range of small to medium cylindrical parts. Is the accuracy of 0.008 mm sufficient for inspection work? An accuracy of 0.008 mm offers reproducible seating for routine inspection and setup; for submicron laboratory needs, specialised high‑precision supports would be recommended. Can the prism pairs be used directly with calipers and comparators? Yes, the prism geometry and clamping bracket are designed for integration with calipers and dial or digital comparators during dimensional checks. What advantages does the special steel construction provide? The special steel offers improved wear resistance and dimensional stability during repeated clamping cycles, helping to maintain seating geometry over time. Does the unit conform to any standards that ease integration in fixtures? The product is made to DIN 876/0 which supports compatibility with existing metrology workflows and fixture designs. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
70mm V-Block Pair With Clamping Strap, 70 x 45 x 40 mm, 90° Cut Angle, DIN 876/0 - Metav IndustryLine
Robust support and accurate repeatability make this prism pair an efficient choice for cylindrical inspection: special steel construction, compliance with DIN 876/0 and a seating geometry with a 90° cut angle ensure stable clamping for shafts from Ø5 to 25 mm; order directly via Metav Werkzeuge or consult their specialists for specification advice. Prism pair with clamping bracket, 70 mm — compact clamping prisms with 90° seating and special steel construction The Prism pair with clamping bracket, 70 mm is a compact clamping aid designed for secure support and repeatable measurement of cylindrical components in inspection, workshop and fixture applications. 90° seating angle for precise cylinder support DIN 876/0 accuracy class Special steel construction for long service life Suited to shafts Ø5–25 mm Stable, measurable support that reduces handling error A precision-engineered prism set provides a defined contact geometry for cylindrical parts; the 90° cut angle centres shafts reliably and reduces lateral movement during inspection. Built to the DIN 876/0 class and specified with an empirical accuracy of 0.008 mm, the blocks deliver repeatable seating that aids fast, comparable checks across multiple parts. For inspection benches and short-run quality control, this level of geometric definition limits operator-induced variance and supports stricter tolerance adherence without complex fixturing. Designed for workshop durability and fixture integration Manufactured from special steel, the prism blocks combine wear resistance with the rigidity required for repeatable results. The compact footprint of 70 x 45 x 40 mm and a mass of 1.8 kg give sufficient profile stiffness for bench use while remaining easy to reposition. The integrated clamping bracket secures the shafts without excessive compression, preserving surface finish and ensuring stable contact for subsequent optical or mechanical measurement. This balance of stiffness and manageability makes the set suitable for both handheld checks and incorporation into simple measuring fixtures. Practical benefits for measurement routines and process control The prism pair simplifies diameter verification and setup tasks: suited to shafts Ø5–25 mm, it supports quick caliper and micrometre checks as well as repeatable referencing for go/no-go testing. By reducing repositioning uncertainty, throughput improves and scrap caused by inconsistent fixturing drops. The product works especially well where a compact, deterministic support is needed for machining set-up, incoming inspection or final checks — a pragmatic addition that enhances measurement reliability without requiring elaborate jigs. Technical advisory support is available from Metav if integration into specific workflows is required. Choose the Metav IndustryLine prism pair when precise, repeatable shaft support and DIN‑class conformity matter most — contact Metav Werkzeuge for purchasing or application guidance from their Emmerich technical team. Technical data Article number: M318.262 GTIN: 4054469128627 Dimensions (L×W×H): 70 x 45 x 40 mm Weight: 1.8 kg Material: Special steel Standard: DIN 876/0 Accuracy: 0.008 mm Suited shaft range: Ø5–25 mm Cut angle: 90° Core specifications Accuracy: 0.008 mm Dimensions: 70 x 45 x 40 mm Weight: 1.8 kg Shaft range: Ø5–25 mm GTIN: 4054469128627 Special features Pair of prisms with clamping bracket Special steel construction 90° seating geometry Designed for cylindrical inspection and clamping Category: prism / clamping accessory FAQ What diameter range is suitable for these prism blocks? The prism pair with clamping bracket is suited to shafts from Ø5 to 25 mm and provides stable seating for caliper- or micrometre-based diameter checks. How precise are the prism faces and what standard applies? The prism set meets DIN 876/0 with an indicated accuracy of 0.008 mm, delivering the repeatability expected for workshop inspection tasks. Can the prism pair be used in a fixture or jigs? Yes, the compact geometry (70 x 45 x 40 mm) and clamping bracket make the blocks straightforward to integrate into simple fixtures or modular test rigs. What material are the prisms made from and what are the benefits? Manufactured from special steel, the prisms combine surface durability with the stiffness required for repeatable contact and long service life under routine use. Which article number should be referenced when ordering or enquiring? Refer to article M318.262 (Prism pair with clamping bracket, Metav IndustryLine) when ordering or specifying the product. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
73 mm Sinus Angle Grinding/Inspection Vise With Quick Adjustment, 45° Prisms - Metav IndustryLine
Take advantage of the combination of repeatable accuracy, compact 73 mm jaw width and rapid quick-adjust setup to streamline grinding and inspection operations. Order this vice directly via Metav Werkzeuge or consult our specialists for application advice. Sinus grinding and inspection vice (Class II) — 73 mm jaws, quick adjustment — Metav IndustryLine The Sinus grinding and inspection vice is a precision clamping instrument designed for angled and cylindrical work in toolrooms, surface-grinding stations and inspection benches. 73 mm jaw width for compact stability Quick fine-adjustment mechanism for fast set-ups 45° tilt for angled clamping operations Horizontally and vertically ground prisms for cylinders Precision where measurement counts Built for reproducible results, this vice delivers accuracy 0.005 mm across typical setup conditions and a squareness specification of 0.01 mm, corresponding to its Class II designation. The design balances reach and stiffness: a 73 mm jaw width and 35 mm jaw height yield a stable contact area that reduces deflection during dressing or surface passes. These metrics support reliable workpiece positioning when verifying form or runout on grinders and inspection fixtures, translating laboratory-level repeatability into everyday shop-floor performance. Faster setups and secure clamping for complex geometries The integrated quick adjustment speeds initial positioning and reduces non-productive time between cycles. For cylindrical components the vice includes horizontally and vertically ground prisms, which centre round stock and prevent lateral movement during machining or measurement. The 45° inclination expands the range of accessible orientations without additional fixturing, so angled faces and seating surfaces can be checked or ground in the same clamping sequence. Together these features improve throughput while keeping alignment consistent. Robust design for workshop resilience With a mass of 6.6 kg and an overall length of 190 mm, the construction offers inherent damping and a compact footprint for bench or machine mounting. A maximum clamping span of 100 mm accommodates a wide range of components while maintaining the stiffness needed for precision tasks. The vice’s geometry and Class II tolerance make it suitable for metrology tasks, toolroom maintenance and finishing operations where traceable repeatability and straightforward handling are required. For specification support or to arrange supply of the Metav IndustryLine sinus vice, contact Metav Werkzeuge in Emmerich for technical guidance and rapid delivery from our European stock: +49 2822 7131930 or info@metav-werkzeuge.com Technical data Article number: M318.353 GTIN: 4054469128948 Manufacturer: Metav IndustryLine Numbers / Facts Weight: 6.6 kg Length: 190 mm Jaw width: 73 mm Jaw height: 35 mm Clamping span: 100 mm Accuracy: 0.005 mm Squareness: 0.01 mm Special features Inclination angle: 45° Quick adjustment mechanism Horizontally and vertically ground prisms Class II designation eClass: 21020601 ETIM: EC002173 Tariff number: 90173000 FAQ What accuracy can be expected from this vice? The vice achieves an accuracy of 0.005 mm with squareness rated at 0.01 mm, consistent with its Class II specification for precise grinding and inspection tasks. Is the vice suitable for cylindrical components? Yes. The vice features horizontally and vertically ground prisms that support secure, centred clamping of round stock during measurement and finishing. How large is the clamping capacity? The maximum clamping span is 100 mm, while the compact 73 mm jaw width offers a stiff clamping interface for smaller workpieces. Does the design support angled setups? The vice provides a 45° inclination, enabling angled clamping without additional fixtures and simplifying multi-orientation inspection sequences. Who supplies and supports this product? The vice is part of the Metav IndustryLine portfolio (SKU M318.353); Metav Werkzeuge can advise on integration and delivery from their Emmerich location. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
73 mm Vise With Quick Adjustment And Horizontal/Vertical V-Grooves, 100 mm Jaw Capacity - Metav IndustryLine
Benefit from quick-adjust positioning, prismatic jaw faces and a compact, stable design that delivers repeatable clamping for small and medium components. Order the bench vice directly via Metav Werkzeuge or consult our specialists for application advice. Bench vice with quick adjustment, 73 mm prismatic jaws (Metav IndustryLine) A Bench vice with quick adjustment engineered for secure, repeatable clamping of shafts and flat parts, featuring horizontally and vertically ground prism faces for reliable seating. Quick-adjust mechanism for fast positioning 73 mm prismatic jaws, hardened and ground 100 mm clamping range for versatile use Robust 3.9 kg body with precise squareness Faster setup, steady production The integrated quick-adjust mechanism reduces setup time by allowing the movable jaw to be positioned close to the workpiece before final tightening. With a 73 mm jaw width and a 100 mm clamping range, the vice is designed for efficient handling of components common in machine and tool rooms. Faster positioning translates into measurable time savings on repetitive tasks, improving throughput without compromising holding force. The compact footprint and overall length of 190 mm aid accessibility at machine benches and workstations. Consistent alignment thanks to prismatic jaw faces The jaw faces are finished with horizontally and vertically ground prisms, which promote secure seating of cylindrical workpieces and precise alignment of flat parts. Manufactured to a squareness tolerance of 0.01 mm and an indicated accuracy value of 0.005, the vice supports tasks where orientation and repeatability matter. The prismatic geometry reduces lateral slip and helps maintain concentricity during machining or inspection, making it suitable for fixture work and small-series production where repeatable results are required. Compact design for workshop versatility Weighing 3.9 kg and with a total length of 190 mm, this vice combines mobility with stability for bench-level operations. The construction supports frequent repositioning on multiple machines or benches while still delivering the rigidity expected in routine metalworking and assembly. Supplied under Metav IndustryLine as SKU M318.343, the tool integrates well into standard workshop workflows and is particularly useful where quick part changes and reliable seating are needed. Contact Metav Werkzeuge in Emmerich for tailored advice and to discuss the Metav IndustryLine bench vice M318.343 for workshop or production use — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical data SKU: M318.343 GTIN: 4054469128900 EClass: 21020601 ETIM: EC002173 Tariff number: 90173000 Dimensions & performance Length: 190 mm Jaw width: 73 mm Jaw height: 35 mm Clamping range: 100 mm Weight: 3.9 kg Squareness tolerance: 0.01 mm Accuracy: 0.005 Special features & applications Quick-adjust mechanism Horizontally and vertically ground prism faces Suitable for clamping cylindrical and flat workpieces Category: Bench vice | Prismatic FAQ What is the clamping range of this vice? The clamping range is 100 mm for the Metav IndustryLine bench vice M318.343, suited to small and medium components. Do the jaws have prismatic faces for cylindrical parts? Yes, the jaw faces are finished with horizontally and vertically ground prisms to support secure seating of shafts and round workpieces. How precise is the squareness of the vice? The vice is produced to a squareness tolerance of 0.01 mm, supporting repeatable alignment in workshop use. What advantage does the quick-adjust provide? Quick-adjust allows the movable jaw to be pre-positioned rapidly, reducing setup time before final clamping and increasing throughput in repetitive tasks. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
75mm V-Block Pair With 90° Cut And Base, Hardened Special Steel, DIN 876/0 - Metav IndustryLine
Take advantage of a compact jig that combines hardened special steel construction with a true 90° V-surface and fine repeatability for reliable seating of cylindrical components; order the prism pair directly via Metav Werkzeuge or consult our specialists for application support. Prism Pair M318.251 – 90° hardened special steel, 75 mm The Prism Pair M318.251 is a precision V-support pair designed for stable locating and inspection of cylindrical workpieces in clamping and measuring setups. Hardened special steel construction Precision 90° V-surface for consistent seating Suitable for shafts Ø5–40 mm Accurate seating for cylindrical inspection The pair provides a 90° V-surface machined to DIN 876/0 tolerances, delivering an accuracy of 0.008 mm that supports repeatable positioning in quality control and set-up operations. The precision V-profile concentrates contact lines on the workpiece so that run-out and concentricity checks become more reliable; this means fewer measurement variations and a lower risk of rework when integrating the prisms into inspection fixtures. The hardened special steel body resists deformation under moderate clamping loads, preserving the seating geometry over prolonged use. Stable, transportable geometry for workshop use Each prism measures 75 x 40 x 40 mm (L x W x H) and weighs 1.6 kg, giving a balance of mass and handling convenience that suits both bench-top inspection and intermittent machining support. The compact block design provides a low centre of gravity and a firm base for bench vices or fixture plates; the inherent stiffness reduces bounce and micro‑movement during manual operations. The robust finish and hardened core extend service life in a production environment while simplifying routine set-ups and repeat measurements. Workflow compatibility and practical benefits Designed as a standard support for cylindrical parts, the pair accepts shafts from Ø5–40 mm, making it versatile across small to medium-diameter components commonly found in toolmaking and production lines. The geometric stability facilitates quick referencing during adjustment, speeding up fixturing and reducing idle machine time. Integration with common clamping devices and measuring sequences is straightforward: the prisms act as a deterministic datum for run-out checks, alignment and visual inspection, offering a pragmatic combination of precision and operational efficiency. Speak to Metav Werkzeuge's technical team to specify how the M318.251 prism pair can be integrated into the production or inspection workflow and to arrange supply from Emmerich. Technical data Article number: M318.251 GTIN: 4054469128542 Customs tariff number: 90172039 Core technical data Dimensions: 75 x 40 x 40 mm (L x W x H) Weight: 1.6 kg Accuracy: 0.008 mm Suitable for shafts: Ø5–40 mm Special features Material: Special steel, hardened Angle: 90° V-surface Standard: DIN 876/0 FAQ What shaft diameters are supported by these prisms? The prism pair M318.251 supports shafts in the range Ø5–40 mm, providing stable contact for inspection and clamping tasks. What tolerance can be expected when using these prisms? The M318.251 is manufactured to DIN 876/0 specifications with an indicated accuracy of 0.008 mm for repeatable seating and measurement support. What material are the prisms made from and how are they treated? The prisms are produced from special steel and are hardened, offering wear resistance and long-term dimensional stability. Can these prisms be used in both inspection and machining set-ups? Yes, the blocks are intended for use in both inspection fixtures and as supports in clamping arrangements where precise seating of cylindrical parts is required. What are the physical dimensions and item code for ordering? Dimensions are 75 x 40 x 40 mm (L x W x H); the article number is M318.251 and the GTIN is 4054469128542. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
75x35x30 mm V-Block Pair 90° Hardened Special Steel DIN 876/0 - Metav IndustryLine
Take advantage of proven precision and robust construction for repeatable shaft support in inspection and setup tasks; the hardened special steel and DIN 876/0 compliance ensure durable, measurable performance. Order the Prismenpaare M318.271 directly via Metav Werkzeuge or consult the team for application advice. Prismenpaare M318.271 — precision prism pair for shaft support, hardened special steel, 90° V-faces The Prismenpaare M318.271 is a compact, factory-manufactured prism pair designed to support and centre cylindrical workpieces during measurement, inspection and light machining tasks. Its 90° V-shaped seating provides stable lateral support for shafts and rods, while the hardened construction resists wear in repeated use. Hardened special steel construction Precision 90° V-faces, ground finish Complies with DIN 876/0 standard Supports shafts Ø5–40 mm Stable support for cylindrical components that improves measurement consistency These support prisms deliver a defined contact geometry that reduces wobble and alignment errors when checking round parts. The 90° V-faces are precision-ground to give repeatable seating, which translates directly into more reliable measurement readouts when using calipers or micrometres. Because the contact surfaces are hardened and wear-resistant, the seating geometry remains consistent over many cycles, reducing the need for frequent recalibration and ensuring long-term reproducibility in quality control routines. Material and standardisation that suit industrial inspection workflows Manufactured from hardened special steel, the prisms combine surface hardness with dimensional stability to withstand shop-floor handling. Compliance with DIN 876/0 provides an industry-recognised baseline for geometry and finish, supporting conformity assessments and inspection protocols. The result is a component that integrates smoothly into routine metrology setups, improving throughput by lowering the incidence of measurement-related rework and ambiguous results. Designed for practical handling and versatile use in workshops The prisms are intended for shaft support in the range Ø5–40 mm, offering a practical span for many engineering and maintenance applications. Their compact form factor simplifies placement in vises, benches and inspection fixtures while maintaining the stiffness required for short-run measurements. The product’s construction makes it suitable for repeated positioning and bench use without introducing significant setup time, thereby supporting efficient workshop workflows and predictable inspection outcomes. Contact Metav Werkzeuge today to discuss suitability for specific shaft sizes or inspection setups and arrange purchase from Metav IndustryLine via Metav Werkzeuge GmbH Technical data Article number: M318.271 GTIN: 4054469128696 Label: Prismenpaare, 75x35x30 mm, 90° 1,1 kg Facts Accuracy: 0.008 mm Tariff number: 90172039 eClass: 21160304 Special features Material: hardened special steel Standard: DIN 876/0 Suitable for calipers: shaft Ø5–40 mm Category: Prisms for workholding and measurement FAQ What is the intended use of the prism pair? The prism pair is designed to support and centre cylindrical workpieces during measurement and inspection; it provides stable 90° V-contact for shafts and rods. Which shaft diameters are supported by this prism pair? The prisms support shafts in the Ø5–40 mm range, making them suitable for many routine inspection and setup tasks. How does the material affect long-term performance? Hardened special steel offers wear resistance and dimensional stability, so the seating geometry remains reliable across repeated use. Is the product compliant with any standards? Yes, the prism pair is made to meet DIN 876/0, ensuring standardised geometry and finish for inspection use. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
75x40x30 mm Precision Gauge V-Block Pair, 90° Accuracy 0.016 mm, Hardened Special Steel DIN 876/1 - Metav IndustryLine
Take advantage of the 90° alignment with 0.016 mm accuracy combined with a hardened special steel construction and DIN 876/1 conformity to improve setup reproducibility and inspection throughput. Order the prism pair directly via Metav Werkzeuge or consult our specialists for application advice. Prism pair M318.281 — cast, 90° accuracy 0.016 mm (Metav IndustryLine) The Prism pair M318.281 is a cast angle-prism set for supporting and aligning cylindrical components during inspection, setup and clamping operations. 90° alignment with 0.016 mm accuracy Hardened special steel for dimensional stability Compliant with DIN 876/1 standard Supports shafts Ø5–40 mm for inspections Accuracy that speeds up inspection and set-up The cast prisms are designed to provide a repeatable datum for cylindrical parts, with a declared angular precision of 90° and a positional tolerance of 0.016 mm. This level of control reduces the need for repeated checks and shortens setup time during batch inspections. The declared accuracy is a measurable performance parameter that supports consistent referencing and reliable alignment in production and quality control tasks, turning uncertainty into a verifiable result. Robust construction for stable measurement support Manufactured in hardened special steel, the pair offers high stiffness and resistance to local deformation, which preserves geometry under routine handling. Compliance with DIN 876/1 ensures the geometry and finishing meet recognised workshop standards, aiding interchangeability and predictable behaviour on the bench. The cast design provides a broad contact surface that dampens small positional errors, making the set particularly suitable where dimensional stability and contact integrity are essential. Practical benefits for workshop and inspection workflows By providing a stable support for cylindrical components, the prisms simplify repeatable clamping and improve the efficiency of measurement processes. The geometry is optimised for shaft support in the Ø5–40 mm range, enabling quick positioning for caliper checks and visual inspection. Traceable manufacturing and consistent geometry help reduce rework and support a smoother workflow between machining and quality assurance departments, reinforcing operational confidence in routine tasks. Contact Metav Werkzeuge today for a specification review or a tailored quotation for the prism pair M318.281 — our consultants in Emmerich will advise on integration with existing inspection workflows Technical data Article number: M318.281 GTIN: 4054469128733 ECLASS: 21160304 Customs tariff number: 90172039 Manufacturer: Metav IndustryLine Facts Dimensions: 75 x 40 x 30 mm (L x W x H) Accuracy: 0.016 mm Suitable for shafts: Ø5–40 mm Special features Material: Special steel, hardened Construction: Cast prism pair Standard: DIN 876/1 Application: Stable support and alignment of cylindrical components FAQ What positional accuracy can be expected from these prisms? The prisms provide a declared positional accuracy of 0.016 mm at a true 90° datum, ensuring precise alignment for inspection and setup tasks with the prism pair M318.281. Which shaft diameters are compatible with the prism geometry? The geometry is optimised for supporting shafts in the Ø5–40 mm range, making the set suitable for small to medium cylindrical components during measurement and clamping. What material and standard apply to these prisms? The set is made from hardened special steel and is manufactured to DIN 876/1, which governs geometry and production quality for this class of workholding prisms. Are these prisms suitable for routine workshop use or only for metrology labs? Designed for robust workshop use, the prisms combine a cast construction with hardened steel to withstand regular handling while maintaining the precision required for quality control operations. How does this prism pair affect measurement repeatability? By providing a stable and reproducible datum, the prism pair M318.281 improves repeatability across successive set-ups, reducing measurement scatter and saving time on rechecks Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
75x40x30 mm Vee Prism Pair Cast Special Steel Hardened 90° Accuracy 0.064 mm DIN 876/2 - Metav IndustryLine
Take advantage of the combination of 90° accuracy (0.064 mm), hardened special steel construction and compact dimensions for reliable support and repeatable inspection results. Order the prism pair directly via Metav Werkzeuge or consult our technical team for integration advice. Prism Pair M318.291 — Cast inspection prism, 75×40×30 mm, 90° accuracy 0.064 mm The Prism Pair M318.291 is a cast, hardened steel support prism designed for precise positioning and inspection of cylindrical parts in measurement and machining setups Hardened special steel construction 90° precision: 0.064 mm tolerance Compact 75×40×30 mm dimensions Suitable for shafts Ø5–40 mm Stable 90° support for cylindrical inspection The prism pair provides a precise 90° seating for round parts, enabling angular reference and secure support during visual inspection, measurement or light machining operations. With an angular tolerance of 0.064 mm, the set reduces alignment error when checking runout or perpendicularity, which directly improves the reliability of comparative measurements. This performance is particularly useful in quality-control routines where a consistent datum is required for successive components. Durable construction for repeatable setups Manufactured in hardened special steel and produced as a cast pair, the units combine rigidity with wear resistance for long-term stability. Compliance with DIN 876/2 signals an established workmanship standard that supports reproducible seating geometry over many cycles. The robust build minimises micro-movements under light clamping forces, so fixtures and test jigs retain their reference points and reduce rework caused by inconsistent supports. Compact footprint, easy integration in the workshop At 75×40×30 mm, this prism pair occupies minimal bench space while still offering secure support for shafts and rollers. Compatibility with precision measuring tools is direct: the prisms are suitable for shafts Ø5–40 mm and work well with a precision caliper or gauge when checking diameters, concentricity and runout. The small size allows quick repositioning in test benches or inspection fixtures and supports streamlined measurement flows in mixed-production environments. For procurement or technical guidance on the Metav IndustryLine prism pair M318.291, contact Metav Werkzeuge in Emmerich for tailored advice—email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: M318.291 GTIN: 4054469128771 ECLASS: 21160304 Facts Accuracy: 0.064 mm Dimensions: 75×40×30 mm Zolltarifnummer: 90172039 Norm: DIN 876/2 Special features Cast construction for geometric stability Material: hardened special steel Application: support and inspection of cylindrical parts Suitable for shafts Ø5–40 mm Category: Vice | Prisms FAQ What is the angular accuracy of this prism pair? The prism pair M318.291 from Metav IndustryLine guarantees a 90° seating with an angular tolerance of 0.064 mm, suitable for precision inspection and alignment tasks. Which shaft diameters are supported by these prisms? These prisms are designed for cylindrical parts and are suitable for shafts Ø5–40 mm, providing stable seating for caliper or gauge measurements. What material and standard apply to the product? The set is produced from hardened special steel and manufactured in accordance with DIN 876/2, ensuring durability and consistent geometry. Can the prism pair be used for runout and concentricity checks? Yes. The stable 90° seating and compact footprint make the prism pair M318.291 appropriate for runout, concentricity and comparative diameter checks when used with a precision caliper or dial gauge. Is the prism pair suitable for fixture and jig use in a production environment? Its cast, hardened construction and standard-compliant geometry make it well suited to repeatable fixture applications and routine inspection layouts in workshops and small production lines. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

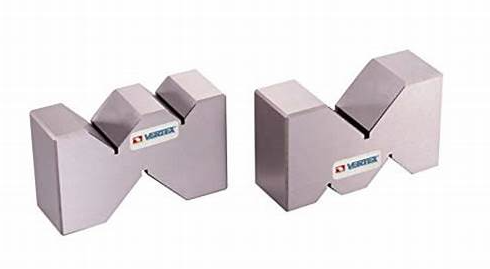

Dreifach-Prismen-Paare
Dreifach-Prismen-Paare von Metav IndustryLine sind eine hervorragende Ergänzung zu Ihrer Qualitätssicherung. Ihre Bestelloptionen: Genauigkeit: 0,02 geeignet für: Welle Ø5-33mm, Welle Ø6-45mm, Welle Ø8-60mm, Welle Ø8-75mm Jetzt einfach und schnell Dreifach-Prismen-Paare mit 3 Einschnittwinkel je 90⁰ online bestellen. Technische Übersicht: Hersteller: Metav IndustryLine Bezeichnung: Dreifach-Prismen-Paare Material: Spezialstahl, gehärtet Genauigkeit: 0,02 mm Abmessung: 100x33x52 bis 75x24x35 Geeignet für: Welle Ø5-33mm oder Welle Ø8-75mm je nach Ausführung Die technischen Daten beziehen sich auf alle Varianten und können je nach Ausführung variieren.
Dreifach-Prismen-Paare
Dreifach-Prismen-Paare von Metav IndustryLine sind eine hervorragende Ergänzung zu Ihrer Qualitätssicherung. Ihre Bestelloptionen: Genauigkeit: 0,02 geeignet für: Welle Ø5-33mm, Welle Ø6-45mm, Welle Ø8-60mm, Welle Ø8-75mm Jetzt einfach und schnell Dreifach-Prismen-Paare mit 3 Einschnittwinkel je 90⁰ online bestellen. Technische Übersicht: Hersteller: Metav IndustryLine Bezeichnung: Dreifach-Prismen-Paare Material: Spezialstahl, gehärtet Genauigkeit: 0,02 mm Abmessung: 100x33x52 bis 75x24x35 Geeignet für: Welle Ø5-33mm oder Welle Ø8-75mm je nach Ausführung Die technischen Daten beziehen sich auf alle Varianten und können je nach Ausführung variieren.
Dreifach-Prismen-Paare
Dreifach-Prismen-Paare von Metav IndustryLine sind eine hervorragende Ergänzung zu Ihrer Qualitätssicherung. Ihre Bestelloptionen: Genauigkeit: 0,02 geeignet für: Welle Ø5-33mm, Welle Ø6-45mm, Welle Ø8-60mm, Welle Ø8-75mm Jetzt einfach und schnell Dreifach-Prismen-Paare mit 3 Einschnittwinkel je 90⁰ online bestellen. Technische Übersicht: Hersteller: Metav IndustryLine Bezeichnung: Dreifach-Prismen-Paare Material: Spezialstahl, gehärtet Genauigkeit: 0,02 mm Abmessung: 100x33x52 bis 75x24x35 Geeignet für: Welle Ø5-33mm oder Welle Ø8-75mm je nach Ausführung Die technischen Daten beziehen sich auf alle Varianten und können je nach Ausführung variieren.
Increase measurement reliability with precision vices and prisms
Precision vices and prisms (also referred to as metrology vices, measuring vices, v‑blocks and prism pairs) provide the mechanical foundation for repeatable, deformation‑free workpiece positioning in quality control and shopfloor metrology. Designed for use on granite plates, optical measuring stations or 3D coordinate measuring machines, these tools ensure that even the most sensitive measuring instruments deliver valid results by preventing slippage, distortion or stress in the workpiece.
How they work and where they are essential
Precision vices clamp components without inducing stress, while prism pairs centre and support cylindrical and rotationally symmetric parts such as shafts and pins. Machined from hardened, stainless gauge steel and finished with finely lapped faces, measuring vices feature construction that prevents the movable jaw from lifting; prism pairs are supplied as matched units to DIN 874, guaranteeing identical height and true centre‑line seating. Variants with integrated clamping straps or switchable magnetic prisms add flexibility for run‑out, position and scribing checks.
Tangible benefits that speed up production and reduce uncertainty
- Micrometre‑level accuracy: engineered surfaces and matched prism pairs eliminate systematic height errors.
- Stable, deformation‑free clamping: prevents measurement scatter caused by part movement or stress.
- Reduced setup and repeat times: repeatable positioning lowers effective cycle time during series inspections.
- Environmental robustness: choice of low‑distortion materials and lap‑finished surfaces maintains geometry across temperature variations.
- Versatile application: suitable for coordinate measuring machines, optical benches and manual inspection on granite plates.
Metav as your precision partner for workshop and industrial metrology
Metav combines longstanding technical expertise with a curated assortment for industry and trade, making it the pragmatic choice for buyers seeking consistent quality. From Emmerich, Metav supplies a broad range of measuring accessories and stands as a single‑source solution to reduce supplier complexity. With decades of specialist experience and a proven customer base, Metav positions its metrology vices and prisms as reliable elements for traceable quality control.
FAQ
How do precision vices and prisms improve measurement accuracy?
Precision vices and prisms provide a mechanically stable reference for the workpiece; by eliminating movement and deformation they ensure that the measured geometry reflects the part, not fixturing errors.
Are prism pairs matched to any standard?
Prism pairs are supplied as pairwise ground units in accordance with DIN 874, which guarantees identical heights and reliable centring for cylindrical parts.
What materials and surface finish are used for measuring vices?
Measuring vices are typically made from hardened, stainless gauge steel with all faces ground square and parallel and with finely lapped contact surfaces to avoid marking and to secure dimensional stability.
Can these vices and prisms be used on coordinate measuring machines and optical benches?
Yes. The design and materials of precision vices and prisms make them suitable for use on granite plates, optical measuring stations and 3D coordinate measuring machines, where repeatability and low measurement uncertainty are required.
