0-150mm Outside Micrometer Set Ratchet Stop, ISO 17025 Calibrated Certificate Included - Microtech Metrology
€399.00
Product information "0-150mm Outside Micrometer Set Ratchet Stop, ISO 17025 Calibrated Certificate Included - Microtech Metrology"
Take advantage of laboratory‑grade calibration together with a ratchet stop and fine resolution for reproducible measurements; the six‑piece configuration covers 0–150 mm for everyday workshop and inspection tasks. Order the set directly via Metav Werkzeuge or consult our specialists for application advice.

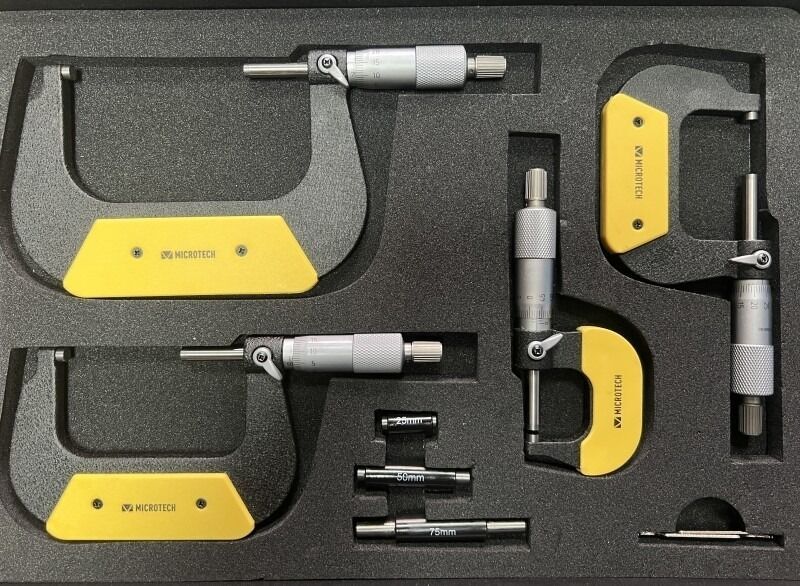

Microtech outside micrometer set (Certi Met) — ratchet stop & ISO 17025 calibrated
The Microtech outside micrometer set (Certi Met) is a calibrated, high‑accuracy instrument group designed for dimensional inspection and workshop measurement across a standard 0–150 mm span.
- Ratchet stop for consistent measuring
- Calibrated to ISO 17025 with certificate
- Six-piece range 0–150 mm
- Resolution 0.01 mm for precise readings
Laboratory traceability and measurable benefits
The set is supplied with an ISO 17025 calibration certificate, which ensures traceability and comparable results across batches and locations — a crucial requirement for quality control and incoming inspection. With an analogue resolution of 0.01 mm and a design optimised for high accuracy, the instruments deliver repeatable dimensional data; the calibration certificate documents performance and reduces uncertainty in routine checks. This combination supports faster decision making in production control and simplifies conformity records.
A practical set for the daily workshop routine
Classified as a standard measuring solution (0–150 mm), the six individual instruments provide good coverage for common components while maintaining comfortable handling and stiffness. The set format eliminates the need to swap between single tools during a shift, speeding up inspection cycles and reducing handling errors. The analogue dials and clear graduations enable rapid readings for serial inspections, while the six‑piece set layout keeps measurement tasks efficient on the shop floor and in maintenance applications.
How design features improve measurement reliability
The integrated ratchet stop prevents over‑tightening and equalises applied measuring force, cutting operator‑induced variance. The anvil Ø6.5 mm diameter provides a stable contact area appropriate for many turned and milled surfaces, while the outside micrometer geometry supports consistent external diameter and thickness checks. Analogue operation is straightforward and robust under workshop conditions; routine care — gentle cleaning and occasional lubrication of the spindle — preserves accuracy and extends service life.
From technical precision to operational confidence
Combining certified calibration, a consistent measuring interface and workshop‑oriented range, this set bridges laboratory precision and practical utility. The documented calibration removes guesswork during audits and the analogue construction minimises electronic failure modes in harsh environments. For procurement and quality teams the result is a measurable reduction in rework and fewer measurement disputes across suppliers and internal production steps.
Contact Metav Werkzeuge in Emmerich to discuss specification matching or to secure the ISO 17025‑calibrated Certi Met micrometer set for immediate integration into inspection workflows
Technical Data
- Article number: 110110151
- GTIN: 4061905458927
- Manufacturer: Microtech Metrology
Facts
- Measuring range: 0–150 mm
- Resolution / reading: 0.01 mm
- Pieces per set: 6
- Anvil diameter: Ø6.5 mm
Special features
- Ratchet stop micrometer head
- ISO 17025 calibration certificate included
- Analogue outside micrometer design
- Supplied as a calibrated set
FAQ
Are these micrometers delivered with traceable calibration?
Yes. The Microtech outside micrometer set is supplied with an ISO 17025 calibration certificate, ensuring traceability for quality records.
What measuring range does the set cover?
The set covers a combined range of 0–150 mm across six instruments, suitable for standard workshop and production checks.
What resolution and accuracy can be expected?
Readings are at 0.01 mm resolution; calibration documentation specifies the verified performance parameters for each instrument.
Does the set include a ratchet stop?
Yes. Each micrometer features a ratchet stop to ensure consistent measuring force and reduce operator variation.
Is the design suitable for shop‑floor use?
The analogue, robust construction and the anvil Ø6.5 mm contact area make the set well suited to workshop environments and routine inspection tasks.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
