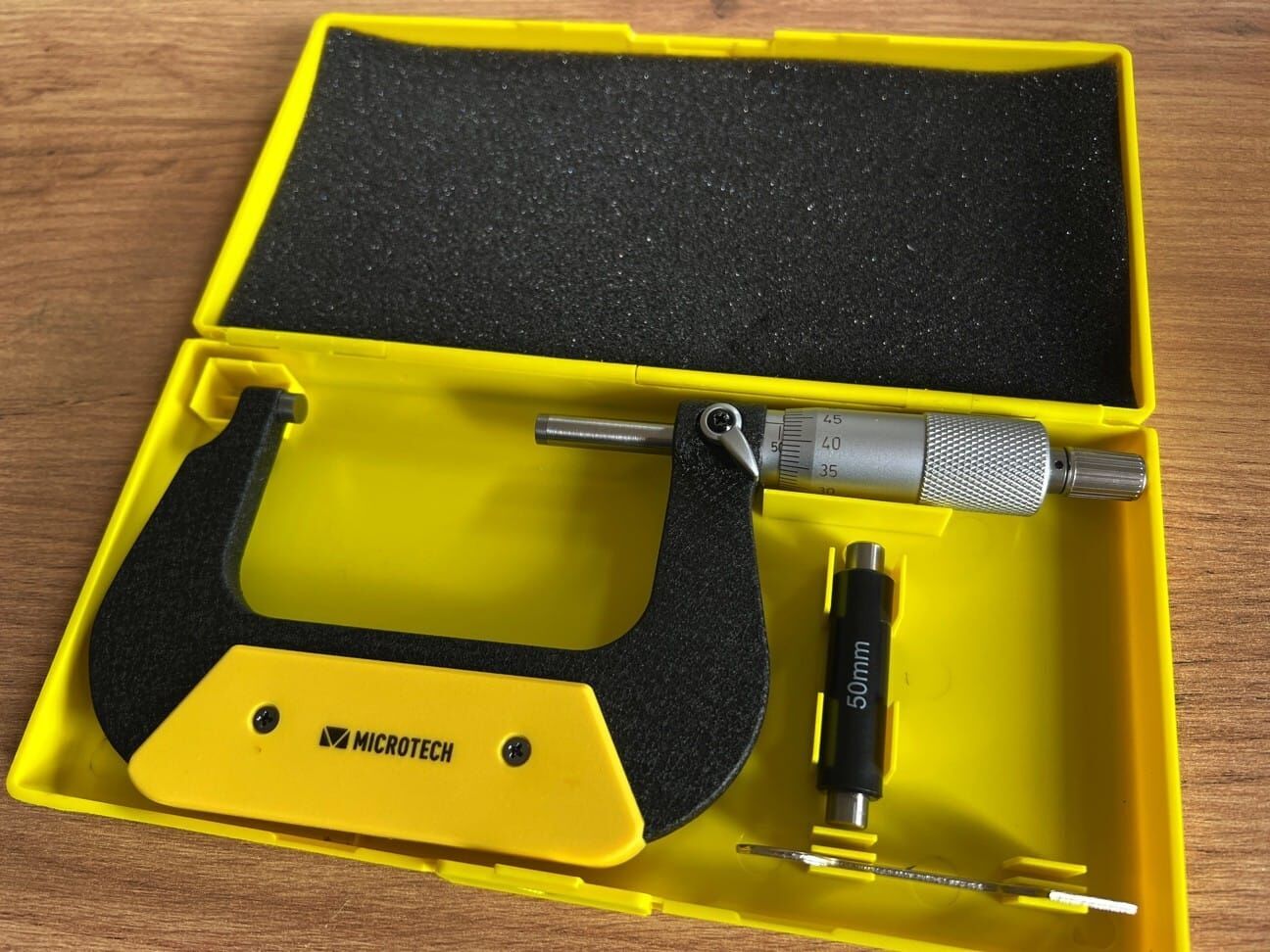

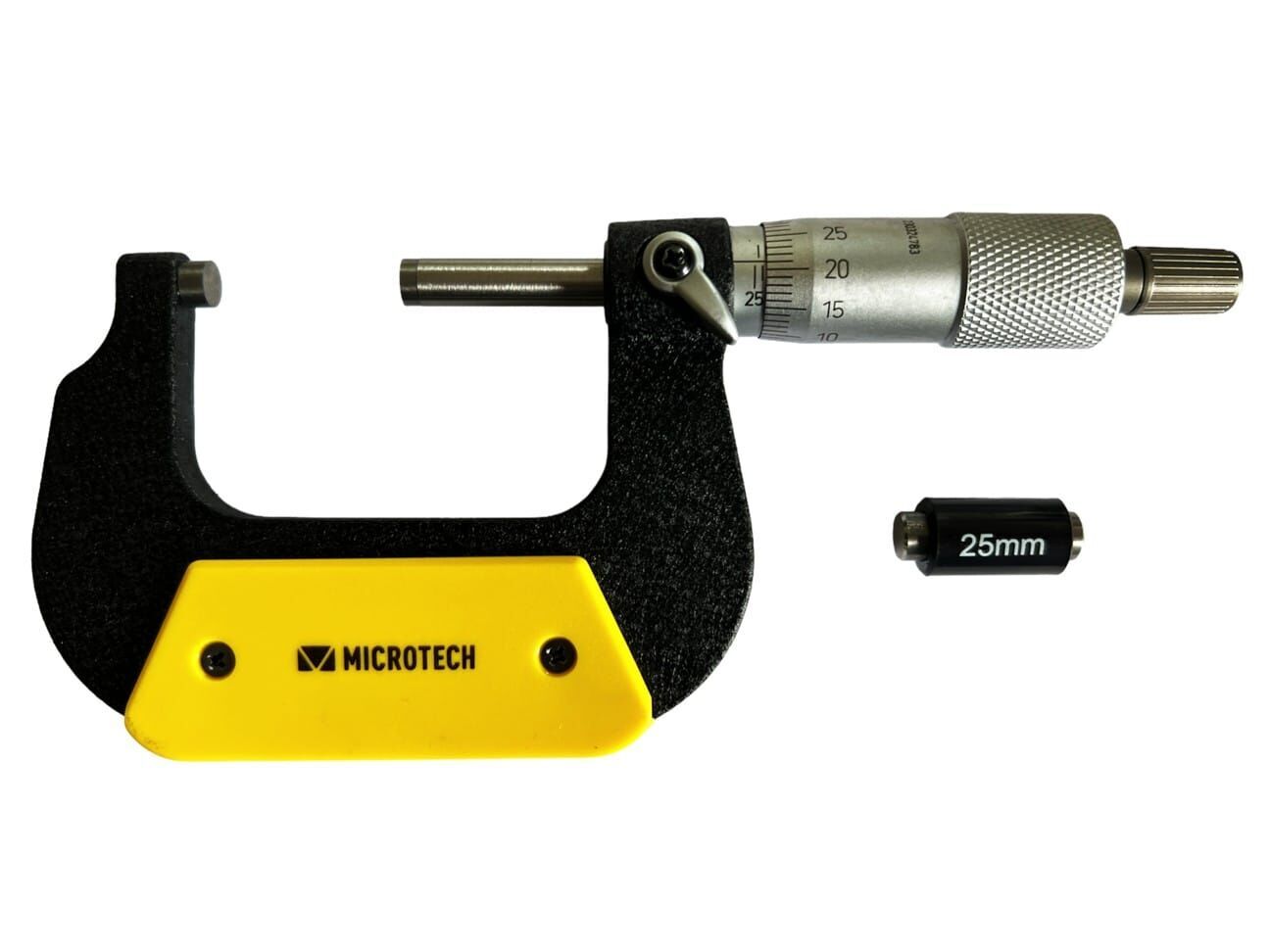

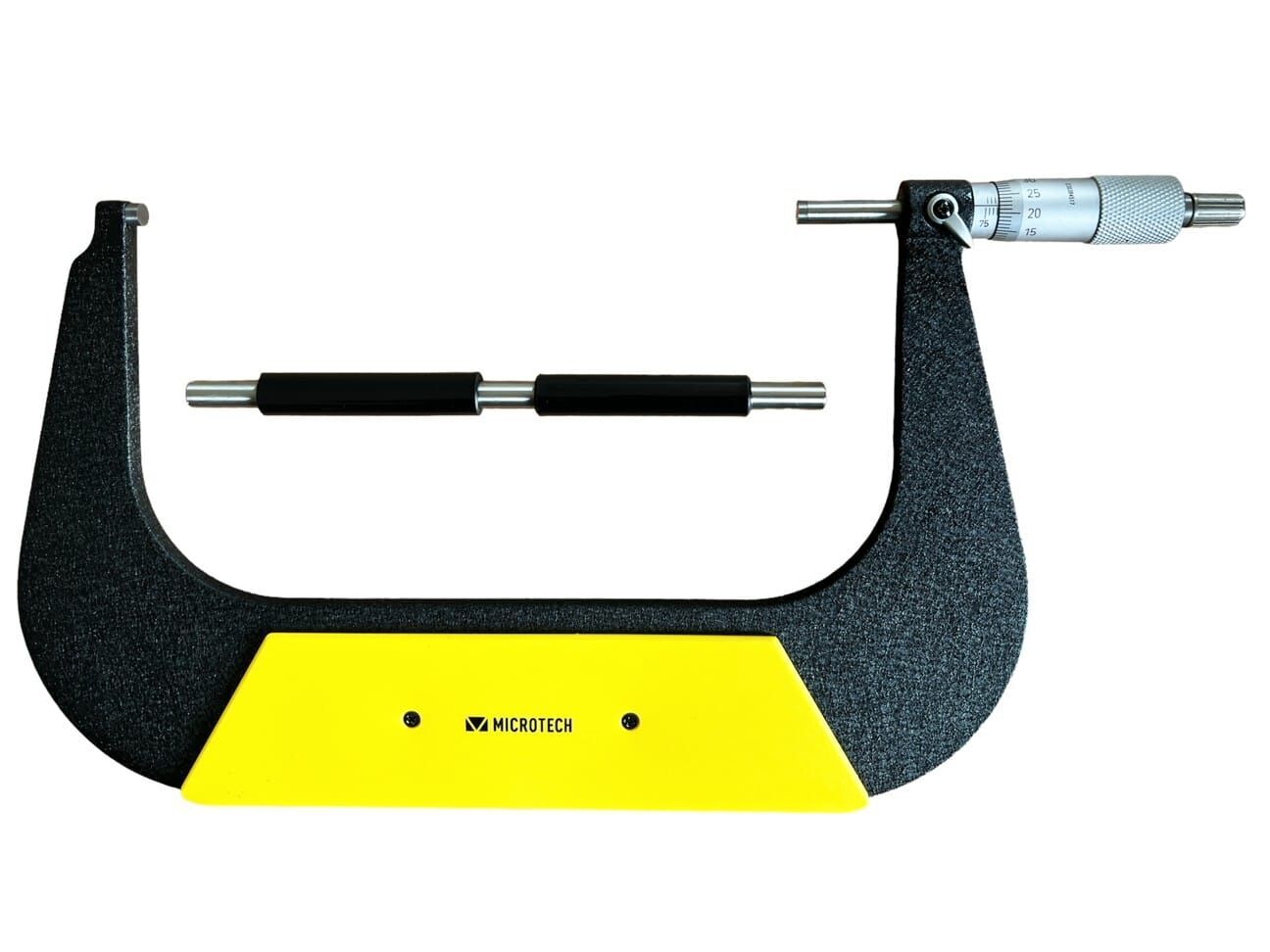

60-75mm Micrometer With Ratchet Stop 0.01mm Resolution ISO 17025 Calibrated - Microtech Metrology
€65.00
Product information "60-75mm Micrometer With Ratchet Stop 0.01mm Resolution ISO 17025 Calibrated - Microtech Metrology"
Benefit from factory ISO 17025 calibration, ±0.003 mm accuracy and a ratchet stop for reproducible contact force — ideal for precise external measurements in inspection and production. Order the instrument directly via Metav Werkzeuge or consult our specialists for integration advice.
Microtech Metrology Micrometer 110110751 — analogue, 60–75 mm range
The Microtech Metrology Micrometer 110110751 is an analogue external micrometer designed for workshop and laboratory use, offering traceable calibration and consistent measuring performance for dimensional control tasks.
- Analogue micrometer with friction thimble
- Ratchet stop for repeatable measuring
- ISO 17025 calibrated with certificate
Verified precision for traceable measurements
The instrument is supplied ISO 17025 calibrated with a calibration certificate, which ensures the results are traceable and accepted in formal quality processes. The combination of a fine graduation and a low measurement uncertainty supports reliable decision‑making: the device achieves an accuracy of ±0.003 mm, which reduces uncertainty in inspection results and shortens corrective cycles in production. This formal calibration replaces the need for immediate in‑house verification and speeds up initial deployment.
Consistent contact force for repeatable readings
Equipped with a ratchet stop and a friction thimble micrometer head, the micrometer ensures that the measuring force remains constant from measurement to measurement. The mechanical design minimises operator influence and delivers reproducible contact pressure, which is particularly important when comparing serial components. The anvil Ø6.5 mm provides a stable seating surface for shafts and cylindrical parts, so readings remain consistent across multiple operators and shifts.
Clear analogue handling for practical inspection tasks
The analogue scale, combined with a readable graduation, offers an intuitive handling experience for routine checks and workshop use. The instrument features a 0.01 mm graduation for straightforward interpretation while the mechanical construction supports fast, tactile adjustment during repetitive monitoring. For environments that favour immediate, robust readout without electronic interfaces, this analogue solution balances ease of use with the precision required for standardised quality control.
Built for workshop endurance and quick integration
The robust mechanical construction and simple maintenance make the micrometer well suited to production floors and inspection benches. The device’s repeatability and calibration status reduce downtime for verification and facilitate direct inclusion into measurement routines. Where documentation is required, the supplied ISO 17025 calibration certificate serves as formal evidence of compliance for audits and supplier acceptance.
For a traceably calibrated micrometer and expert procurement support, contact Metav Werkzeuge to arrange delivery from Emmerich and request the accompanying ISO 17025 certificate.
Technical data
- Article number: 110110751
- GTIN: 4061905459139
- Brand: Microtech Metrology
Facts
- Measuring range: 60–75 mm
- Resolution (graduation): 0.01 mm
- Accuracy: ±0.003 mm
- Anvil diameter: Ø6.5 mm
Special features
- Analogue micrometer for external measurements
- Friction thimble micrometer head
- Ratchet stop for consistent measuring force
- ISO 17025 calibration supplied with certificate
- Model type: External micrometer
FAQ
Is the micrometer delivered with a calibration certificate?
Yes. The Microtech Metrology micrometer 110110751 is delivered fully calibrated under ISO 17025 and includes a calibration certificate.
What measuring range does the instrument cover?
The micrometer covers a measuring span of 60–75 mm, suitable for mid‑range external dimensions.
What is the indicated accuracy and resolution?
The instrument provides a resolution of 0.01 mm and an accuracy of ±0.003 mm, appropriate for precise workshop and inspection tasks.
How does the ratchet stop improve measurements?
The ratchet stop limits the applied measuring force, ensuring repeatable contact pressure; this reduces operator‑induced variability and improves reproducibility of the readings.
Is this micrometer suitable for production use or only for the laboratory?
Designed for both environments, the micrometer combines rugged mechanical design with traceable calibration, making it suitable for production quality control and laboratory measurements.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine; tool@microtech.tools
