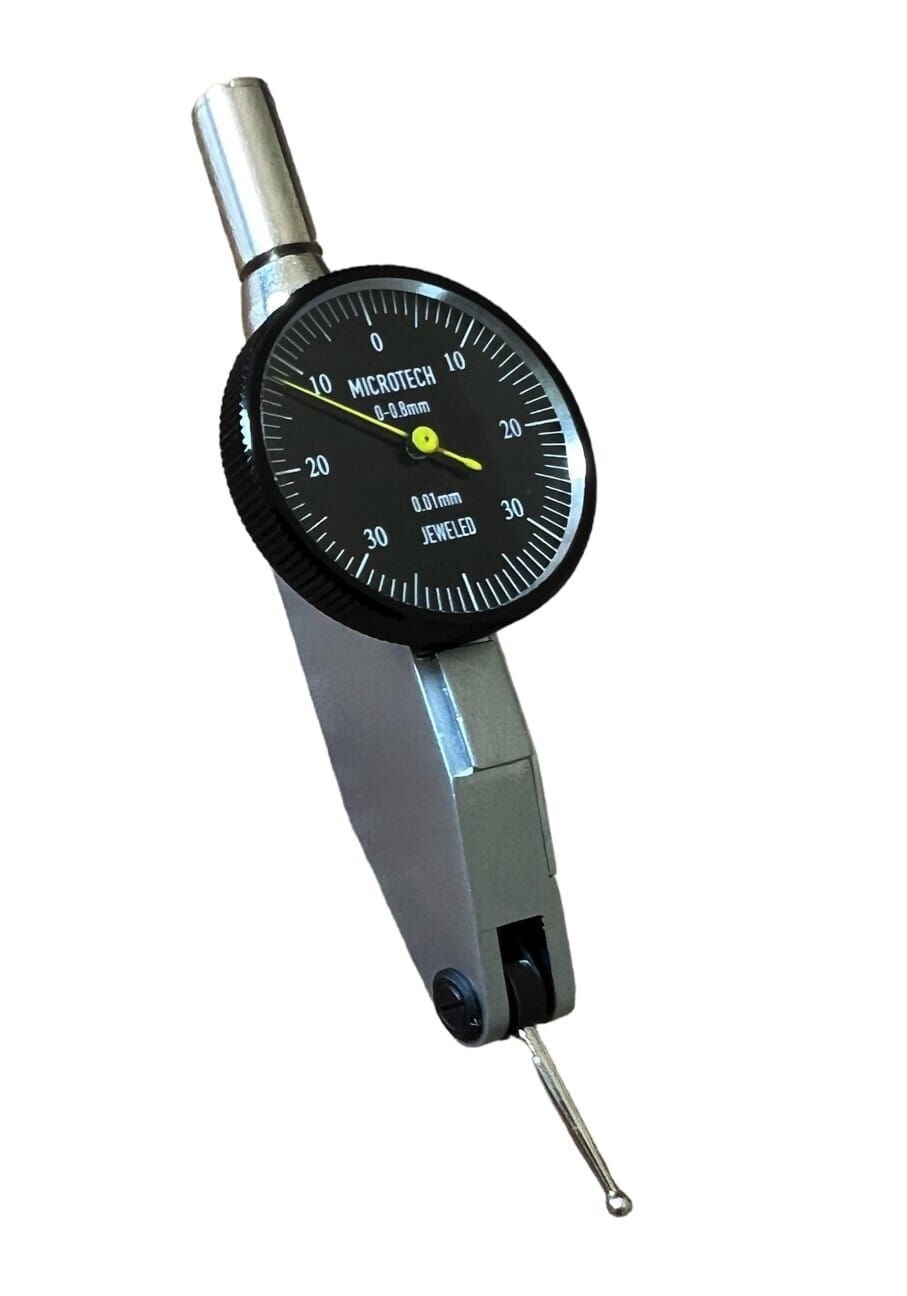

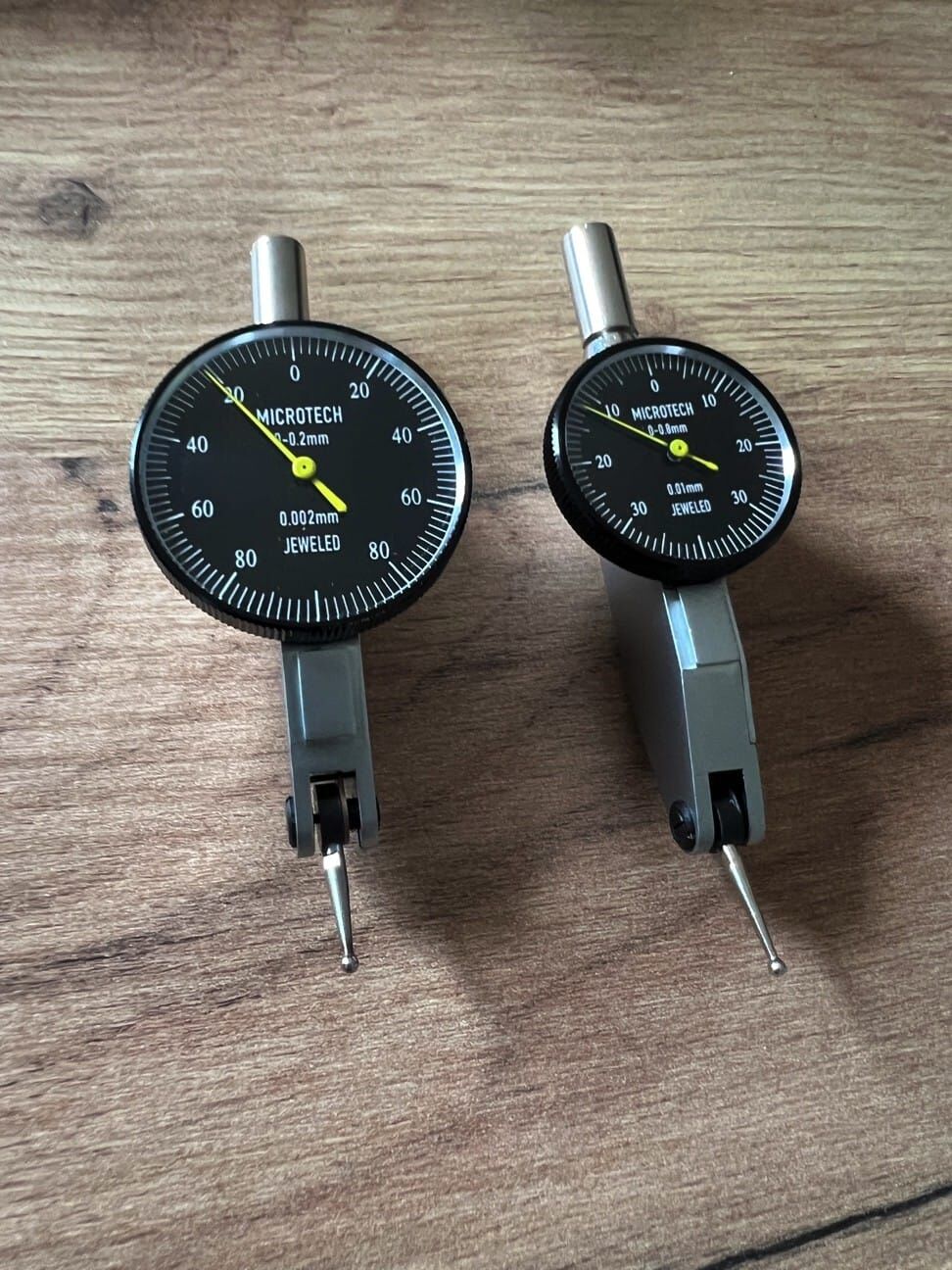

Microtech Metrology lever-type dial test indicator — 0.01 mm resolution, 0–0.8 mm range

The Microtech Metrology lever dial test indicator is a compact analogue instrument designed for precise deflection measurement in fine mechanical and inspection tasks, ideal for bench testing, jig set-up and small‑part quality control.

• ISO 17025 calibrated with certificate included
• Resolution 0.01 mm for fine readings
• Compact 32 mm dial and pivoted stylus
• Low measuring force 0.1–0.18 N for delicate parts

Precision in the smallest increments for repeatable checks

This lever indicator delivers 0.01 mm resolution across a measuring span of 0–0.8 mm, making it suitable where tiny displacements must be detected reliably. The analogue dial with a 32 mm diameter provides a clear, fast visual reference for run‑out and alignment work; the instrument’s low measuring force (0.1–0.18 N) reduces influence on soft or lightweight components. Because the mechanism is tip‑bearing, contact repeatability is improved for micro‑motions and delicate probes, which supports consistent results during process verification and short inspection loops.

Ready for audit and production: traceable calibration and dependable performance

Delivered fully calibrated in accordance with ISO 17025, the instrument arrives with a calibration certificate, enabling immediate use in quality control processes that require documented traceability. This calibration status simplifies incoming inspection and audit procedures and reduces preparation time before first use. The combination of a certified calibration and a compact lever mechanism makes the unit a practical choice for laboratories and workshops seeking verified measurement data without lengthy setup or external reconditioning.

Ergonomic layout and application benefits that reduce cycle time

A compact form factor and a pivoted stylus geometry support rapid positioning in tight fixtures and narrow bores, while the modest probe dimension (taster 12.8 mm) eases access to confined features. The instrument’s quick visual feedback shortens inspection cycles and minimises handling errors during repetitive checks. For tasks such as small‑part inspection, fixture set‑up or comparative checks against master gauges, this indicator enhances throughput by delivering unambiguous read‑outs with minimal operator influence.

Contact Metav Werkzeuge for ordering the ISO 17025‑calibrated Microtech Metrology lever indicator from stock and for tailored advice on integrating this instrument into existing inspection routines.

Technical data

• Article number: 120131080
• GTIN: 4061905453342
• Manufacturer: Microtech Metrology

Data

• Measuring range: 0–0.8 mm
• Resolution: 0.01 mm
• Dial diameter: 32 mm
• Measuring force: 0.1–0.18 N
• Probe (taster): 12.8 mm
• Display type: analogue
• Accuracy: 0.01 mm
• SKU: 120131080

Special features

• ISO 17025 calibration and certificate included
• Tip / pivoted stylus bearing
• Compact design for tight access
• Low measuring force for delicate components

FAQ

Is the instrument supplied calibrated and traceable?
Yes. The lever‑type dial test indicator is supplied fully calibrated to ISO 17025 standards and includes a calibration certificate for traceability.

What measurement span and resolution does the indicator offer?
The instrument covers a measuring range of 0–0.8 mm with a resolution of 0.01 mm, suitable for fine displacement and run‑out checks.

Can the indicator be used on delicate or soft materials?
Yes. With a measuring force between 0.1 and 0.18 N and a pivoted stylus, the indicator is appropriate for inspections where low contact force is required to avoid part deformation.

Is the dial easy to read in a busy workshop environment?
The 32 mm dial provides a clear analogue display for quick visual assessment during setup and repetitive inspections.

What applications are typical for this type of instrument?
Typical uses include bench inspection, jig and fixture set‑up, comparative checks on small components and run‑out measurement in fine mechanical production.
