12x20x10mm Block for Guide Rail, M4 T-Slot, S45C Steel, Set of 4 - Vertex
€32.49
Product information "12x20x10mm Block for Guide Rail, M4 T-Slot, S45C Steel, Set of 4 - Vertex"
Take advantage of a compact, robust guide-rail block that combines precise dimensions, machinable S45C steel and a threaded M4 fixing for reliable fixture assembly; order components directly via Metav Werkzeuge or request specialist advice from the consultants.

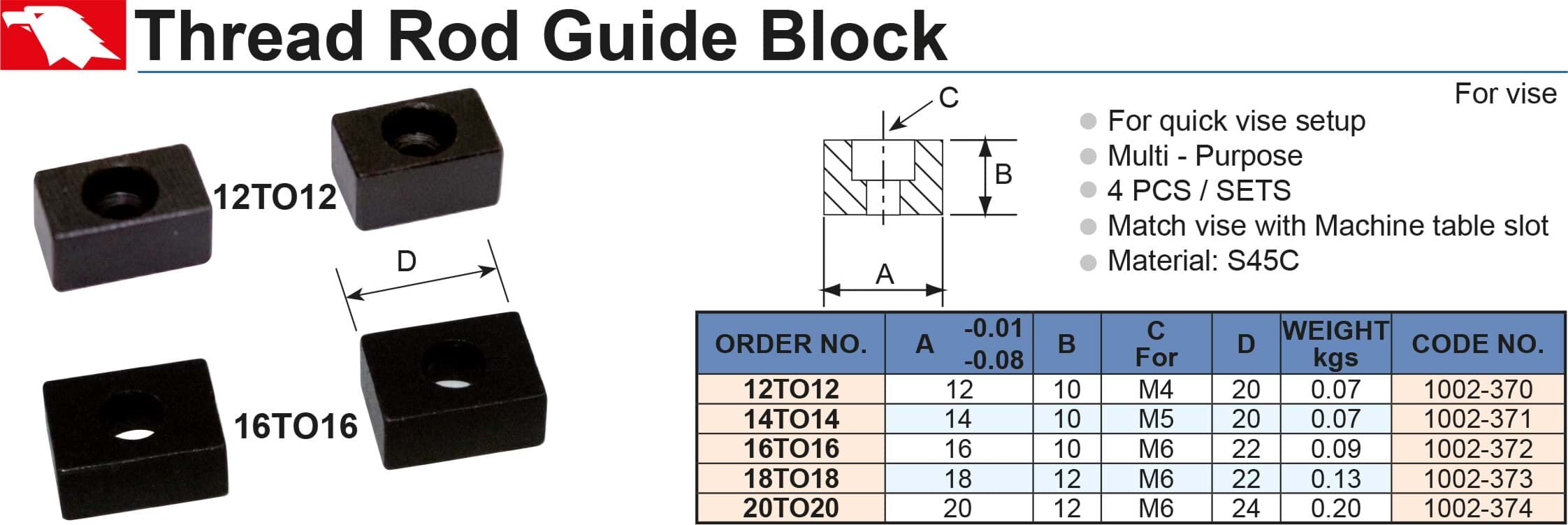

Block 12TO12 – Guide-rail block, compact 12 × 20 × 10 mm (Vertex)
A Block 12TO12 engineered as a compact guide-rail block for precise positioning and secure mounting in fixtures and small-scale assemblies
- Compact dimensions 12 x 20 x 10 mm
- Machined from S45C structural steel
- Threaded T-slot M4 for secure mounting
- Supplied as a set of 4 components
Precise alignment in minimal space
The compact 12 x 20 x 10 mm footprint delivers accurate positioning where space is restricted, ensuring consistent alignment without bulky hardware. Manufactured from S45C, a medium-carbon steel known for its machinability and strength, the component provides a stable base for repetitive operations and light assembly tasks. The design focuses on dimensional consistency and precision, reducing set-up time and minimising the need for frequent re-adjustments in jigs and fixtures.
Secure fixing and straightforward integration
A threaded T‑slot with M4 engagement enables direct, vibration-resistant fastening to standard guide rails and carrier plates. Supplied as a set of 4, the components simplify procurement for multi-point installations and replace worn blocks in matched groups to maintain parallelism. At 0.07 kg per block the low mass aids handling and keeps dynamic loads low, which benefits automated or semi-automated setups where minimised moving mass improves cycle stability.
Robust performance for workshop use
Designed for everyday workshop and light industrial environments, the block combines a machinable base material with a finish suitable for sliding and clamping applications on guide rail systems. The construction balances wear resistance with the ability to be reworked or adapted on conventional machine tools, supporting long service life and straightforward maintenance. The Vertex provenance signals consistent production standards, while compatibility with common mounting conventions keeps integration predictable and efficient.
For technical clarification or to discuss suitability of Vertex components for specific fixtures, contact Metav Werkzeuge for expert guidance via email at info@metav-werkzeuge.com or by phone on +49 2822 7131930
Technical data
- Article number: 12TO12
- GTIN: 4061905084003
- eClass: 23300402
Core specifications
- Dimensions: 12 x 20 x 10 mm
- Weight: 0.07 kg
- Mounting thread: M4 T-slot
- Pieces per set: 4
Materials & features
- Material: S45C
- Intended use: for guide rail applications
- Supply configuration: set of 4
- Manufacturer: Vertex
FAQ
What is the primary application of this block?
The Vertex Block 12TO12 is intended as a compact guide‑rail block for positioning and secure mounting in fixtures, jigs and small assemblies.
Is the block sold individually or as a set?
The component is supplied as a set of 4, allowing immediate multi-point installation or matched replacements.
Which material is used and what are the benefits?
Made from S45C, the block offers a balance of machinability and tensile strength, making it suitable for workshop machining and rework if required.
Which thread and mounting standard does it use?
The block features a threaded T‑slot with M4 engagement, compatible with common guide‑rail fastening practices.
Can the block be used on non-ferrous rails such as aluminium?
The Vertex Block 12TO12 is primarily specified by material and thread; compatibility with aluminium or other rail materials depends on the assembly design and is typically achievable with appropriate fasteners and surface treatments.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
