M8x1.25 Thread Clamp Screw 75mm, Zinc Plated - Vertex
€2.14
Product information "M8x1.25 Thread Clamp Screw 75mm, Zinc Plated - Vertex"
The combination of fine-thread accuracy, compact length and very low weight ensures reliable clamping performance in confined assemblies; the M8 x 1.25 thread and 75 mm length provide a predictable fit and consistent clamp force. Order the clamping screw directly via Metav Werkzeuge or ask our consultants for assistance.
Clamping Screw 1323M by Vertex – M8 x 1.25 thread, 75 mm length
the Clamping Screw 1323M is designed for secure fixture and jig assembly in workshop and industrial clamping applications
- M8 x 1.25 thread precision
- 75 mm overall length
- Lightweight 23 g for easy handling
Secure clamping that keeps setups stable
A compact clamping element can make a measurable difference to process reliability. The clamping screw here combines a standard M8 x 1.25 metric thread with a defined length to deliver consistent engagement in threaded holes or tapped clamping plates. For production jigs and short-reach fixtures this reduces play and repeatability issues, resulting in fewer set-up adjustments and less downtime. The practical benefit is a steadier machining or assembly process and predictable component location during processing.
Thread and length explained for compatibility
The fine pitch M8 x 1.25 thread offers a balance between holding strength and fine adjustment; it engages more gradually than coarse alternatives, allowing precise tightening without overshoot. The 75 mm overall length gives sufficient reach for many clamping configurations while avoiding unnecessary protrusion that could interfere with tooling or adjacent parts. Specifying a standard metric thread simplifies procurement and inventory management, especially when multiple fixtures share the same fasteners.
Benefits at the bench and on the line
In workshop environments where multiple clamping points are required, the low mass of the fastener makes handling and rapid assembly easier. At just 23 g, these screws are simple to position during repetitive operations and reduce operator fatigue when compared with heavier alternatives. The consistent geometry supports modular fixture systems and quick-change setups, helping to maintain throughput while protecting finished tolerances.
Robust use cases and quality expectations
Supplied under the Vertex name, this clamping hardware suits general fixture assembly, small machine guards and toolholding adaptors where a reliable threaded connection is needed. While the specification here focuses on geometry and weight, the practical outcome is improved process control: fewer reworks, faster cycle starts and a tidy parts list for purchasing. Where higher-level material or coating specifications are required, refer to the manufacturer’s technical documentation for confirmation.
Choose Vertex clamping hardware for dependable fixture performance and contact Metav Werkzeuge for tailored advice or to secure the 1323M for your next project through our Emmerich quality filter

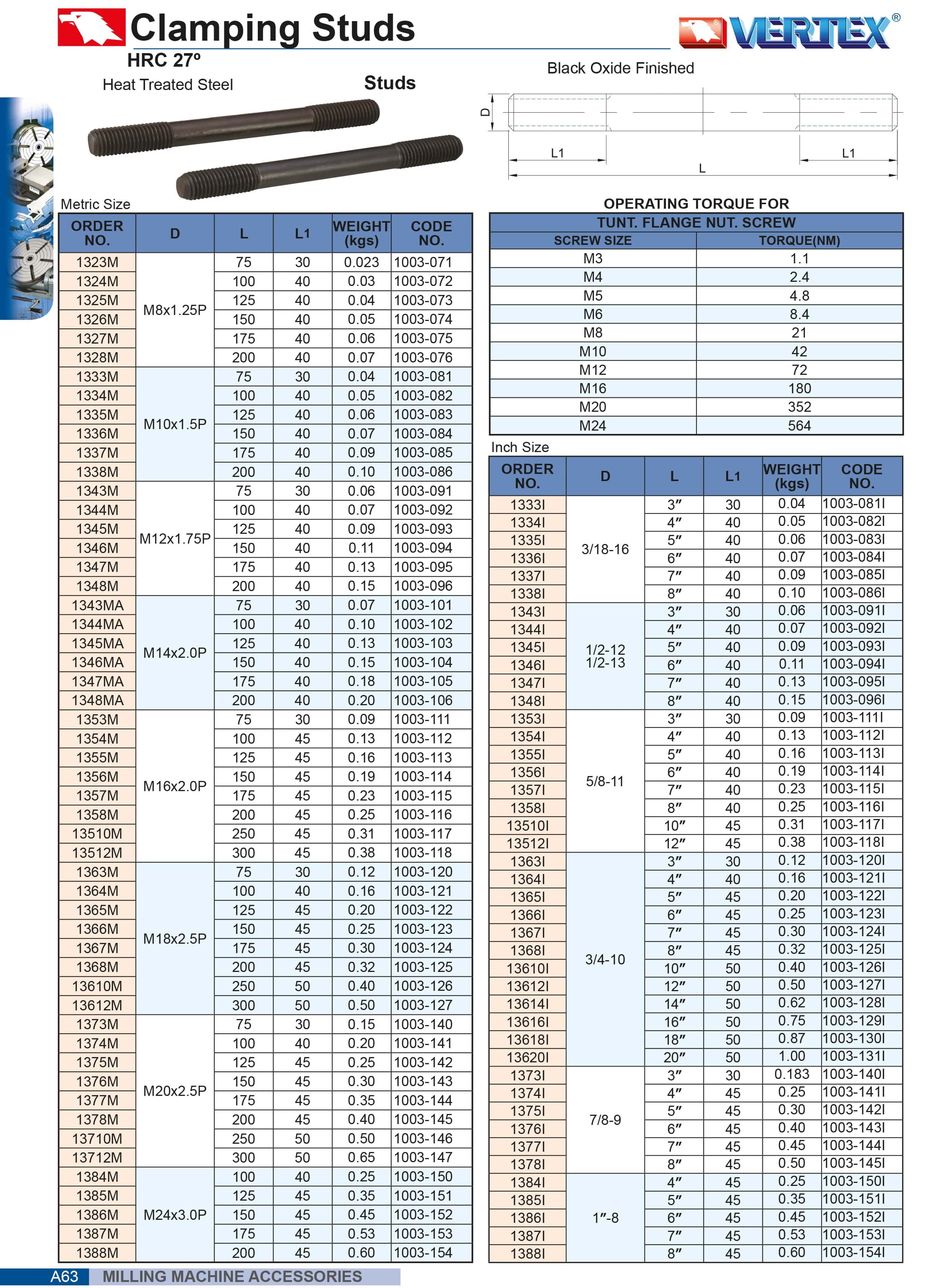

Technical data
- SKU: 1323M
- GTIN: 4061905084010
- Manufacturer: Vertex
Facts

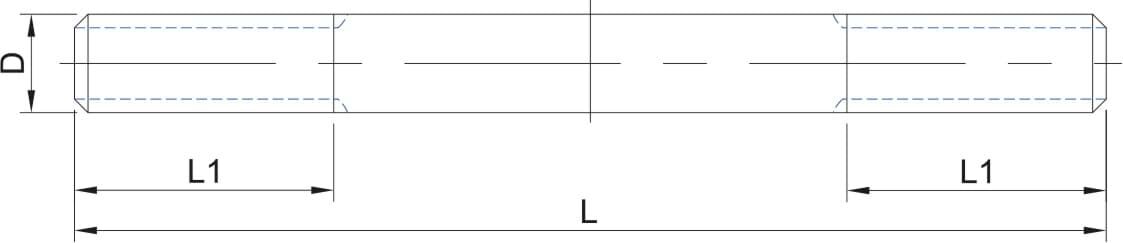

- Length: 75 mm
- Thread: M8 x 1.25P
- Weight: 0.023 kg
Special features
- Intended for clamping applications
- Compact form for confined spaces
- Standard metric thread for broad compatibility
FAQ
What thread standard does this clamping screw use?
The clamping screw is specified with an M8 x 1.25 metric thread, suitable for standard tapped holes and common clamping plates.
What is the overall length and is it suitable for short-reach fixtures?
Length is 75 mm, which is designed for short to medium reach applications such as jigs and compact fixtures.
Is the material or coating specified for this product?
Material and coating are not specified in the available data; consult Vertex technical documentation for confirmed material and surface treatment details.
Can this fastener be used in modular fixture systems?
Yes. The standard metric thread and compact length make the screw appropriate for modular fixtures and repeatable clamping setups.
What identifiers help with ordering and traceability?
Use SKU 1323M and GTIN 4061905084010 for ordering and inventory tracking
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
