100mm Thickness Gauge With Dial Indicator, 0.07mm Accuracy, ISO 17025 Calibrated - Microtech Metrology
€1,190.00
Product information "100mm Thickness Gauge With Dial Indicator, 0.07mm Accuracy, ISO 17025 Calibrated - Microtech Metrology"
Take advantage of precise analogue measurement, a compact 0–100 mm range and a 400 mm measuring depth for versatile inspection tasks; the delivery includes an ISO 17025 calibration certificate. Order the thickness gauge directly via Metav Werkzeuge or ask our consultants if needed.

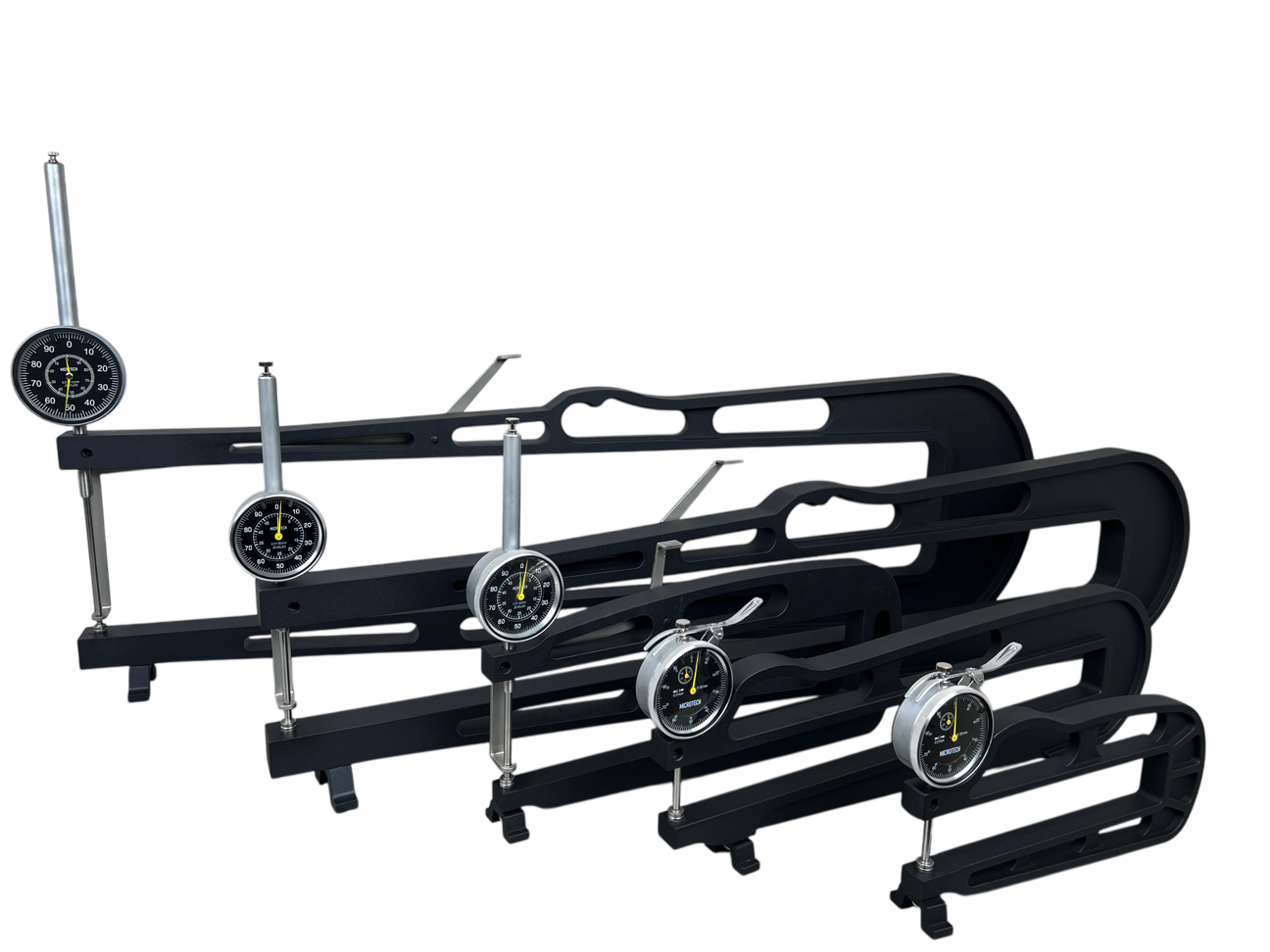

Thickness gauge with analogue dial indicator – 0–100 mm, Microtech Metrology
A thickness gauge that combines an analogue dial indicator with a 400 mm measuring depth for reliable thickness control in workshop and laboratory environments
- Analogue dial, 0.01 mm resolution
- Measuring range 0–100 mm
- 400 mm measuring depth for deep checks
- Delivered calibrated with ISO 17025 certificate
Consistent, traceable thickness checks for production control
A compact measuring instrument delivers consistent readings for routine quality checks and setup tasks. The analogue dial offers a clear, continuous display with a 0.01 mm reading which supports repeatable decisions on part acceptance and process adjustment. With a stated accuracy of ±0.07 mm, this tool is suitable for general workshop metrology and inspection where robust, easily interpreted results are required. The moderate range avoids unnecessary bulk while covering common thicknesses in sheet, plate and small component inspection.
Built for straightforward workshop use and durable handling
Engineered for practical operation, the instrument’s mechanics favour simple maintenance and long-term stability. The construction permits reliable contact measurement across the full 0–100 mm range and the extended 400 mm measuring depth allows checks on thicker assemblies or parts with recessed measuring faces. The analogue design reduces dependence on batteries and electronics, offering a low-maintenance alternative for environments where durability and uptime matter most. Clear mechanical feedback supports fast decisions during set‑up and routine checks.
ISO 17025 calibration for audit-ready documentation
Delivered with a full ISO 17025 calibration certificate, the device meets traceability requirements for controlled processes and audit trails. This formal calibration documents conformity to international laboratory procedures and simplifies integration into quality systems where documented measurement uncertainty and traceability are mandatory. The certificate provides reassurance for internal quality assurance and external audits, enabling confident measurement traceability without additional in‑house calibration steps.
For ISO‑traceable thickness control and practical workshop reliability, contact Metav Werkzeuge to discuss the Microtech Metrology calibrated thickness gauge or to request ordering advice.
Technical data
- Article number: 137100401
- GTIN: 4061905046247
- Manufacturer: Microtech Metrology
- Calibration: ISO 17025 certificate included
Facts
- Measuring range: 0–100 mm
- Measuring depth: 400 mm
- Reading resolution: 0.01 mm
- Stated accuracy: ±0.07 mm
- Display type: analogue dial
Special features
- Analogue dial indicator for continuous reading
- Delivered fully calibrated (ISO 17025)
- Suitable for workshop and laboratory inspection
- Category: dial gauges
FAQ
How accurate is the instrument for typical workshop use?
The stated accuracy of the thickness gauge is ±0.07 mm, with a reading resolution of 0.01 mm, which makes it suitable for routine inspection and setup tasks where that tolerance meets process requirements.
Is calibration documentation supplied with the device?
Yes, the thickness gauge from Microtech Metrology is delivered with an ISO 17025 calibration certificate, providing traceable documentation for audits and quality records.
What does the 400 mm measuring depth mean in practice?
The 400 mm measuring depth indicates the maximum distance from the instrument’s reference face to the contact point that can be measured reliably, allowing checks on deeper or recessed features without additional fixtures.
Can this gauge be used in a production environment without batteries?
The analogue dial design does not require batteries for basic readings, offering reliable, low‑maintenance operation well suited to continuous production use.
Which typical tasks is this instrument intended for?
The instrument targets thickness and clearance checks, incoming material inspection and set‑up measurement tasks in both workshop and laboratory settings where a compact, calibrated mechanical gauge is preferred.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
