20x24x12mm Block for Guide Rail M6 T-Slot, S45C Steel Set of 4 - Vertex

Compact, robust and ready for repetitive workshop use: the block combines a proven medium‑carbon S45C construction with precise 20 × 24 × 12 mm dimensions to secure guide rails reliably. Supplied as a set of 4, the item supports M6 T‑slot mounting and keeps fixtures consistent across production runs. Order the block directly via Metav Werkzeuge or ask our consultants for tailored advice.

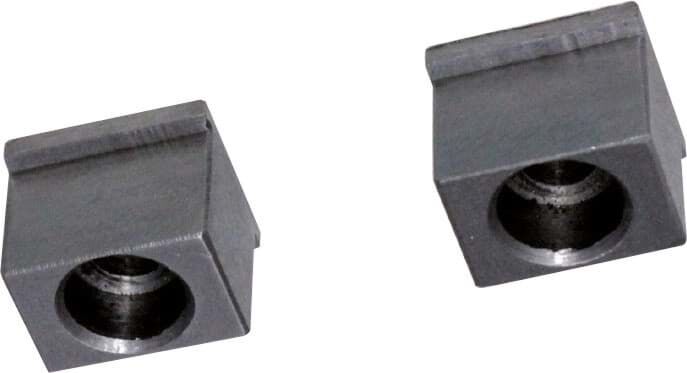

Block for guide rail — compact mounting block with M6 T‑slot and S45C construction

Block for guide rail designed to stabilise and position guide rails in workshop and production fixtures, suitable for use where compact, repeatable mounting is required

• Solid S45C medium‑carbon steel
• Compact 20 × 24 × 12 mm footprint
• Fits M6 T‑slot mounting
• Supplied as a set of 4 pieces

Consistent positioning for repetitive assembly and machining

The mounting element delivers a straightforward way to reproduce alignment across multiple setups. Thanks to the 20 × 24 × 12 mm footprint, the component fits into tight fixture arrangements while maintaining a defined clamping surface, reducing rework and downtime. When used in repetitive production, the compact form factor shortens setup time and supports process stability, which improves overall throughput and predictable output quality.

Durable material for everyday workshop demands

Manufactured from S45C, the block offers a balance between machinability and strength that is well suited to workshop conditions. S45C is a medium‑carbon steel grade that withstands the mechanical stresses of clamping and positioning without excessive brittleness. The material choice reduces wear under normal load cycles and enables local machining or finishing if adaptation to a custom fixture is required, extending the component’s service life within a busy production environment.

Simple integration with standard T‑slot systems

Designed for M6 T‑slot attachment, the block integrates directly into common guide‑rail fixtures and clamping tables. The M6 T‑slot compatibility allows straightforward bolting without additional adapters, simplifying parts procurement and inventory management. Supplied as a set of 4, the package supports multi‑point mounting strategies and ensures uniform contact across the rail length, improving straightness and load distribution during operation.

Practical choice for shops and small‑series production

As a compact mounting solution, the block suits metalworking shops, toolrooms and small‑series production where precision must be affordable and repeatable. The item’s modest dimensions and clear technical specification reduce ambiguity during component selection, while the reliable construction supports a range of fixture requirements. For procurement teams, the concise specification eases comparison and rapid decision‑making when standardisation is a priority.

For availability and expert guidance on specifying this Vertex block for specific fixtures, contact Metav Werkzeuge in Emmerich and request assistance from our consultants to match the component to production requirements.

Technical data

• Article number: 20TO20
• GTIN: 4061905093227
• ECLASS: 23300402

Facts

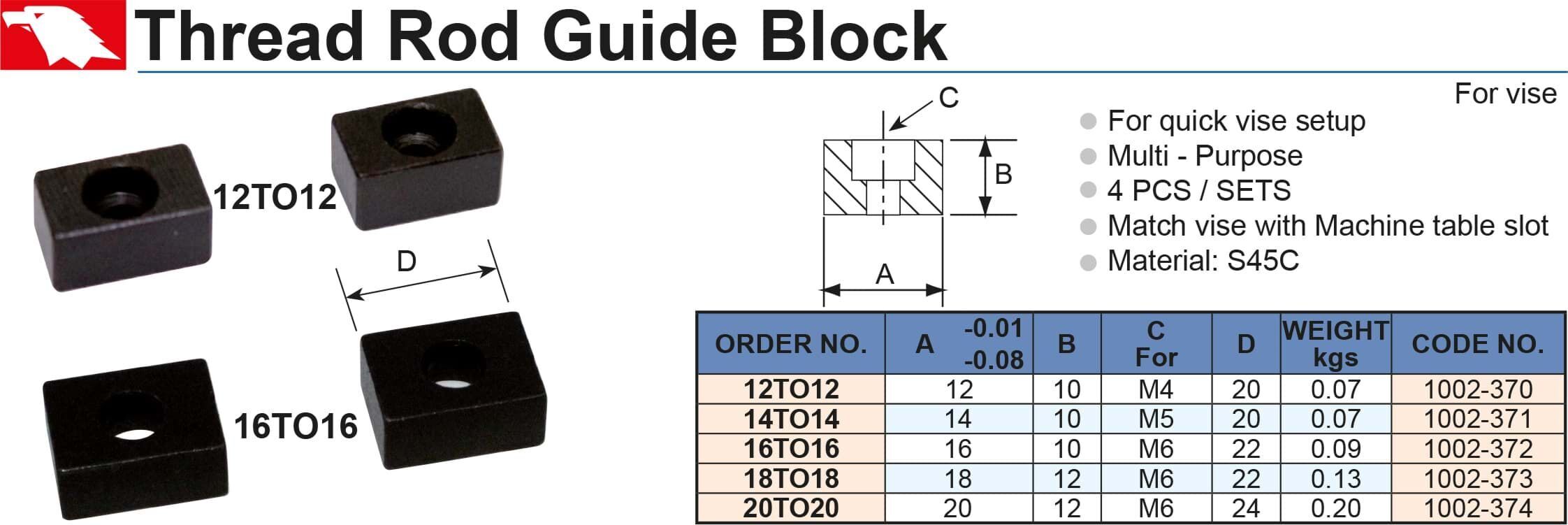

• Dimensions: 20 × 24 × 12 mm
• Weight: 0.2 kg
• T‑slot: M6
• Pieces per set: 4

Versions / Special features

• Material: S45C
• Product type: Block for guide rail
• Supplied as set: true
• Manufacturer brand: Vertex

FAQ

What are the exact dimensions of the block?
The block measures 20 × 24 × 12 mm, providing a compact footprint suitable for tight fixture designs.

Is the block supplied as single pieces or in sets?
The article is supplied as a set of 4 pieces, delivered together for multi‑point mounting and consistent installation.

Which material is used for the block and what does it mean for durability?
The component is made from S45C, a medium‑carbon steel grade; this gives a robust balance of strength and machinability for routine clamping tasks.

Does the block fit standard T‑slot sizes?
Yes, the block is designed for an M6 T‑slot connection, enabling direct integration into common T‑slot tables and guide‑rail fixtures.

What is the manufacturer and SKU for ordering?
The product is manufactured by Vertex and listed under SKU 20TO20, suitable for direct procurement through standard channels.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
