108mm Vertical Clamp 1,200N Closing Force, Zinc Coated, Heavy-Duty Arm - Kukamet

Taking advantage of a massive holding arm, a galvanised finish and a compact 108 mm reach, this clamp delivers reliable clamping with minimal installation space; benefit from up to 1,200 N clamping force and a holding capacity of 1,400 N for secure fixture work. Order the Vertikalspanner 213 directly via Metav Werkzeuge or consult our advisors for application advice.

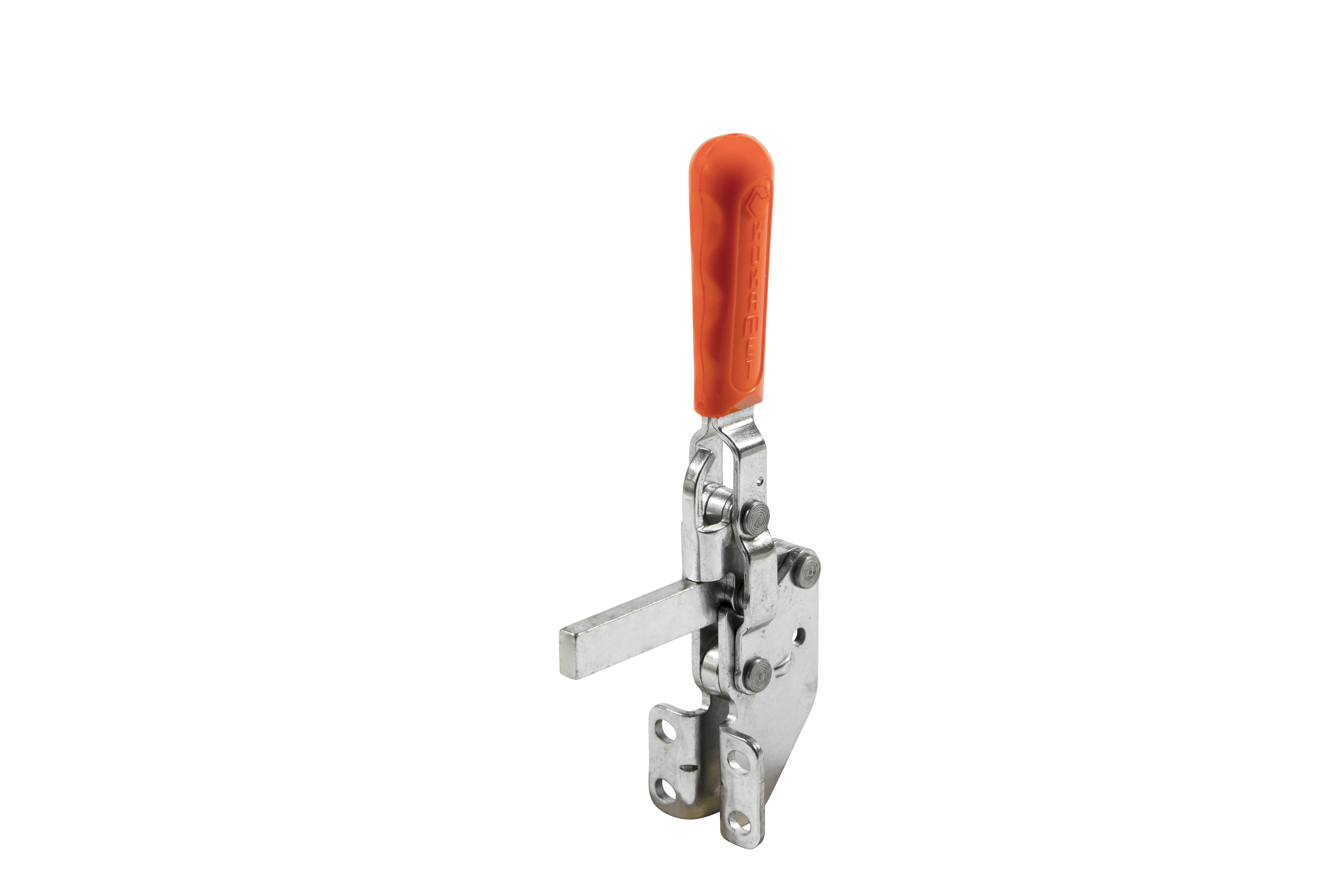

Vertikalspanner 213 – vertical clamp with massive holding arm and galvanised finish

The Vertikalspanner 213 is a vertical clamp designed for secure workholding in jigs and fixtures, combining a robust holding arm with a compact footprint for light to medium industrial applications.

• Massive holding arm, 108 mm reach
• Galvanised steel construction
• Up to 1,200 N clamping force
• Angle-foot mounting for stable fit

Secure clamping despite limited space

The compact design places a massive holding arm on a short 108 mm extension, allowing a high clamping force in constrained setups. With a rated 1,200 N clamping force and a 1,400 N holding capacity, the device offers a reliable safety margin for repetitive clamping tasks. The sturdy, low-profile body is suited to fixture plates and small jigs where vertical clearance is restricted; this results in efficient use of table space while maintaining repeatable clamping results. Explaining the numbers: 1,200 N refers to the operational clamping force generated by the lever, while the 1,400 N figure provides the maximum holding capability under static conditions.

Built to last in work environments

A galvanised finish protects the clamp from corrosion and shop-floor wear, extending service intervals and reducing replacement rates. The robust construction and the choice of surface treatment mean less downtime and lower total cost of ownership for routine production and maintenance tasks. The presence of a solid-arm design improves mechanical stiffness during clamping cycles, which translates into more consistent part positioning and fewer rejects — a clear efficiency benefit for batch production and assembly work.

Fast integration into fixtures and machines

Fitted with an angle-foot mounting, the clamp can be secured to flat plates or angled brackets quickly, enabling straightforward retrofitting into existing fixtures. The simple mounting concept reduces setup time and facilitates rapid changeovers between jobs. Owing to its lightweight construction at approximately 0.266 kg, the clamp is easy to handle during assembly yet stiff enough for repetitive operation, supporting both manual and semi-automated workstations without adding unnecessary mass to the fixture.

Efficient choice for everyday workshop needs

As a compact vertical clamp, it provides a pragmatic balance between performance and economy. The uncomplicated lever mechanism demands little maintenance and is intuitive for operators, helping to speed up clamping cycles and reduce human error. In combination with a galvanised surface and the massive arm, the clamp offers a dependable solution for manufacturers and trades seeking robust, long-lived fixturing components that keep production flowing.

Contact Metav Werkzeuge today for tailored advice on integrating the Kukamet Vertikalspanner 213 into existing fixtures and to ensure the clamp matches specific application requirements

Technical data

• SKU: 213-2-D-C2
• GTIN: 8680731501889
• Model: Vertikalspanner 213
• Manufacturer: Kukamet
• eClass: 21041717
• ETIM: EC011973

Core specifications

• Arm length: 108 mm
• Clamping force (max): 1,200 N
• Holding force (max): 1,400 N
• Weight: 0.266 kg

Features & versions

• Galvanised finish
• Massive holding arm
• Angle-foot mounting
• Fastening type: Winkelfuß

FAQ

What clamping and holding forces does the clamp provide?
The Vertikalspanner 213 by Kukamet delivers a clamping force of up to 1,200 N and a holding capacity of 1,400 N, ensuring secure fixation for repetitive tasks.

Which materials is the clamp suitable for in fixture assemblies?
The Kukamet Vertikalspanner 213 is intended for use with typical fixture materials such as steel and aluminium plates; its galvanised finish adds corrosion resistance for mixed-material environments.

How is the clamp mounted in a jig or fixture?
Mounting is performed via the angle-foot bracket (Winkelfuß), allowing the Vertikalspanner 213 to be fixed to flat or angled fixture plates for quick integration.

Is the clamp easy to replace or reposition on a fixture plate?
Yes, the compact format and lightweight construction of the Vertikalspanner 213 support fast repositioning and simple replacement during setup changes.

Does the clamp require special maintenance?
Routine inspection and occasional lubrication of the lever mechanism keep the Kukamet vertical clamp operating reliably; the galvanised finish reduces corrosion-related maintenance.
