111mm Vertical Clamp 2,000N Closing Force, Zinc Coated Heavy-Duty Arm, Angle Base - Kukamet

Order the 213 Vertical clamp for reliable, repeatable workholding thanks to its galvanised construction, compact 111 mm arm and high holding capacity; order the clamp directly via Metav Werkzeuge or consult the specialists for fixture integration.

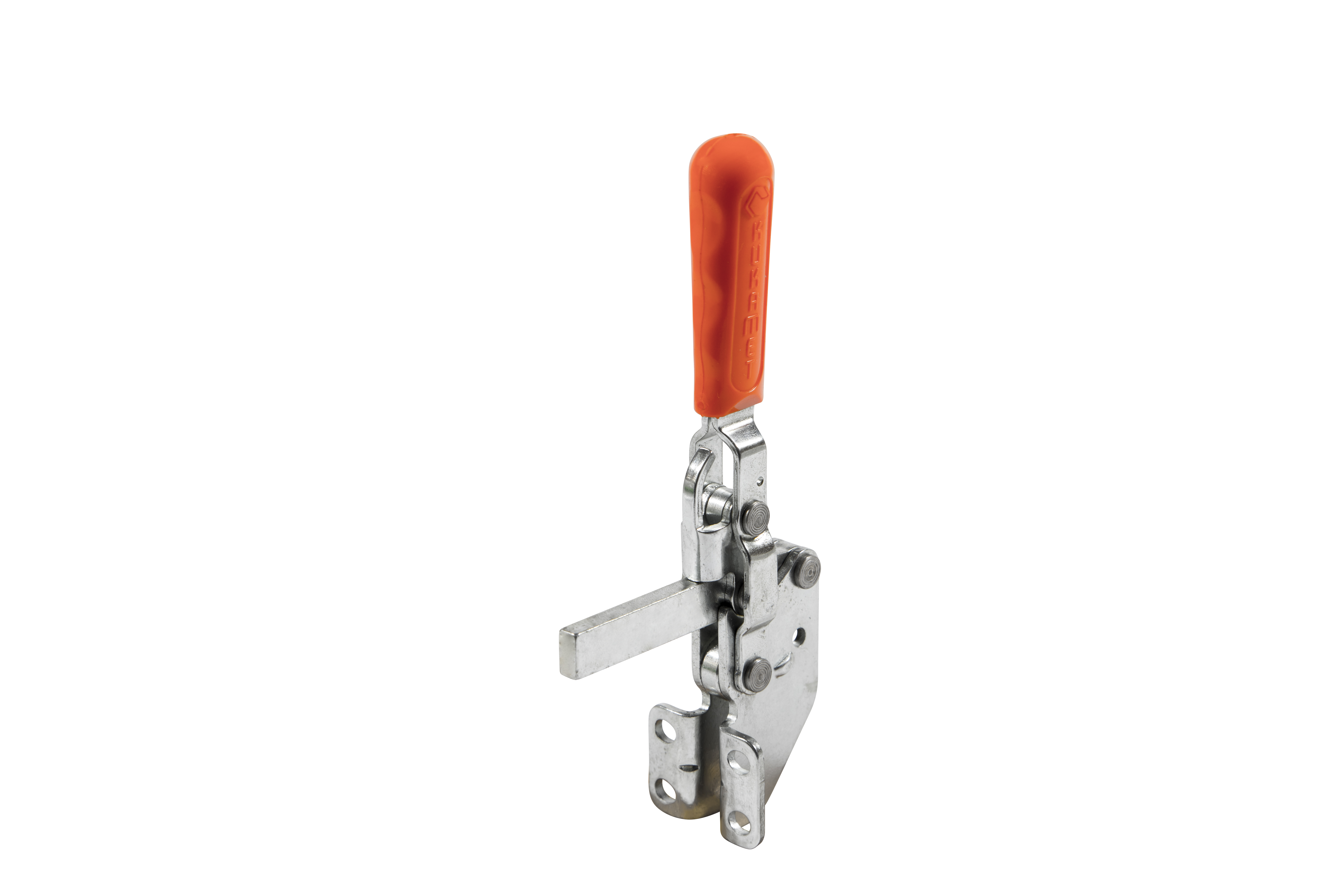

213 Vertical clamp by Kukamet — galvanised, 2,500 N holding force

The 213 Vertical clamp is a lever-type workholding device intended for fixtures and jigs, offering a sturdy clamping arm and angle-foot mounting for secure positioning in production and assembly environments

• Robust massive holding arm
• Angle-foot mounting for stable fit
• Galvanised finish resists corrosion
• 2,500 N maximum holding force

Consistent, measurable holding for production use

The 213 Vertical clamp is engineered to deliver consistent clamping results: a 2,500 N maximum holding force combined with a 2,000 N maximum pressing force provides clearly defined limits for fixture design and process planning. These figures make it straightforward to select the clamp where repeatable retention under load is required, reducing the risk of part movement during machining or assembly. The clamping concept is lever-actuated, which converts operator input into reliable force transmission and keeps cycle times short.

Compact construction that fits into tight fixtures

A compact arm length of 111 mm and a total unit weight of 0.468 kg allow integration into dense tool layouts without excessive mass or bulk. The Galvanised finish protects the component against workshop humidity and coolant splash, extending service life and preserving appearance. The Sturdy clamping arm construction minimises flex under load, improving repeatability and cutting down on rework caused by micro-movement in the fixture. The reduced footprint makes the clamp suitable for both manual jigs and automated clamping stations.

Fast installation and dependable alignment

Fitted with an Angle-foot mounting, the clamp locates cleanly on flat fixture plates and ensures a stable, moment-resistant attachment point. The lever clamp mechanism offers an intuitive positive action and visible engagement, which supports process control and operator confidence. Installation requires only standard fastening hardware to the angle foot, enabling rapid retrofit into existing tooling. The simple mechanical design minimises maintenance requirements and keeps ownership straightforward.

Designed for workshop reliability and supply-chain confidence

Produced by Kukamet and supplied via Metav Werkzeuge, the vertical clamp is part of a practical selection of clamping elements that balance robustness with accessibility. The galvanised material and solid construction make the clamp a low-complexity, high-value component for production lines where downtime and variability must be reduced. Metav’s logistics from Emmerich provide consistent availability for small-batch and large-scale orders, supporting predictable lead times for maintenance and fixture build projects.

Contact Metav Werkzeuge to discuss how the Kukamet 213 Vertical clamp (SKU 213-3-D-C2) fits into existing fixtures, and request tailored advice from the Emmerich-based specialists at +49 2822 7131930 or info@metav-werkzeuge.com

Technical Data

• Article number: 213-3-D-C2
• GTIN: 8680731501964
• Manufacturer: Kukamet
• eClass: 21041717
• ETIM: EC011973

Facts

• Weight: 0.468 kg
• Arm length: 111 mm
• Max pressing force: 2,000 N
• Max holding force: 2,500 N

Special features

• Angle-foot mounting
• Massive holding arm
• Galvanised material
• Lever-type clamp (lever clamp)

FAQ

What maximum holding and pressing forces does the clamp provide? The Kukamet 213 vertical clamp achieves a maximum holding force of 2,500 N and a maximum pressing force of 2,000 N (SKU 213-3-D-C2), providing defined limits for fixture design.

Is the clamp suitable for humid or coolant-exposed environments? Yes; the galvanised finish on the 213 Vertical clamp offers corrosion resistance suitable for workshop conditions with occasional coolant splash or elevated humidity.

How is the clamp mounted to a fixture plate? The unit uses an angle-foot mounting that secures to a flat plate with standard fasteners, enabling stable positioning and simple retrofit into jigs and fixtures.

What are the main benefits of the clamp's arm and overall size? The robust arm construction and compact 111 mm footprint limit flex and save space in dense tool layouts, while the overall weight of 0.468 kg keeps the fixture mass low.

Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
