218.5mm Vertical Clamp With Angle Foot, Massive Holding Arm, 4.5kN Thrust 5kN Holding Force, Galvanised - Kukamet

Take advantage of a robust clamping solution with a massive holding arm, galvanised corrosion protection and a 5,000 N maximum holding force for secure fixture set-ups; order directly via Metav Werkzeuge or consult our specialists for application advice.

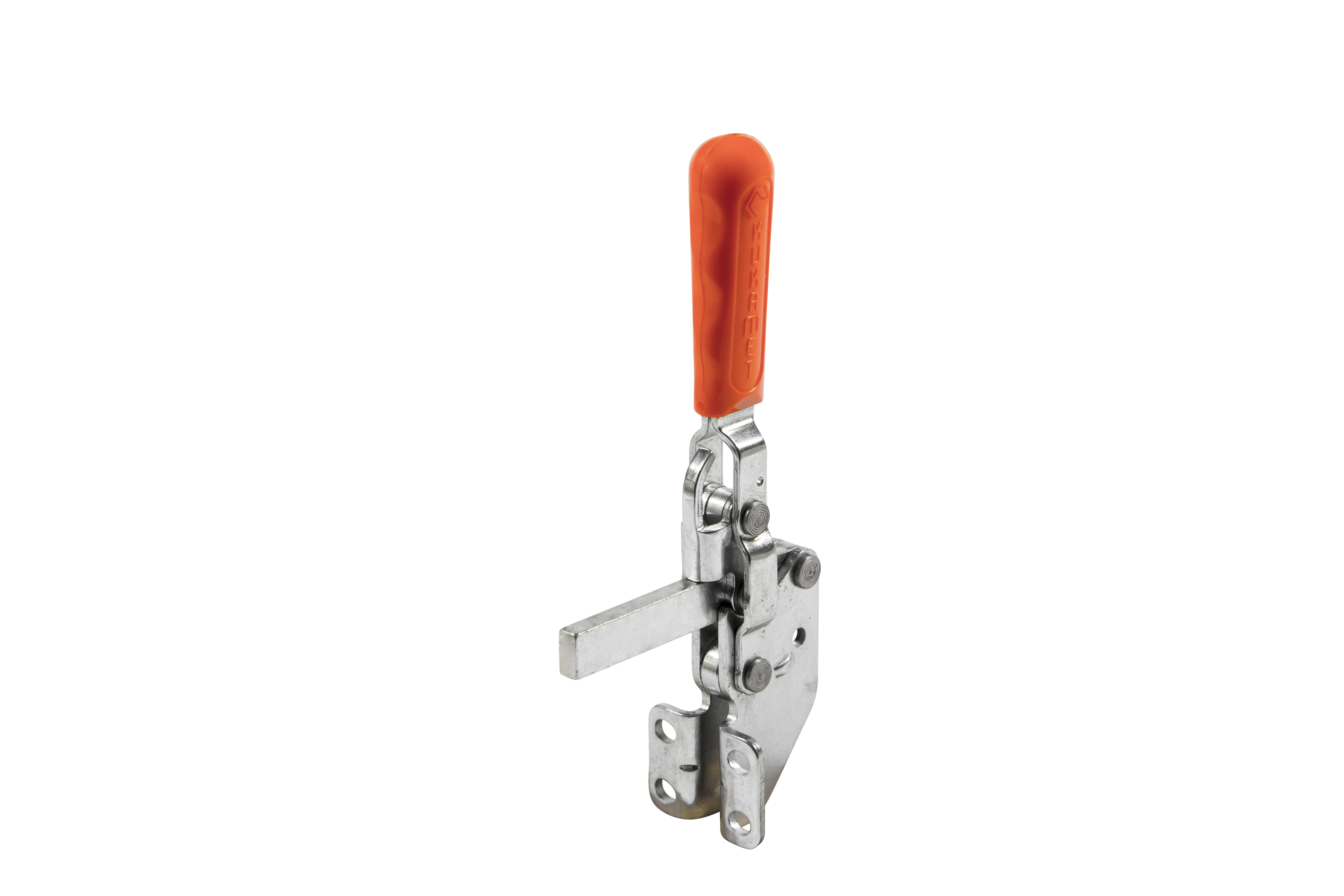

213 vertical clamp by Kukamet — massive holding arm, 5,000 N holding force

The 213 vertical clamp is a compact vertical clamping device designed for workshop jigs and fixture tables, offering a long reach and reliable repeatability for small- to medium-scale production tasks.

• Massive holding arm for stable clamping
• 218.5 mm arm reach for deep applications
• Galvanised steel construction for corrosion resistance
• 5,000 N maximum holding force

Secure clamping for repeatable production quality

The clamp is engineered for consistent, repeatable holding: the 5,000 N maximum holding force and a separate 4,500 N pressing capacity ensure workpieces remain stable during machining and assembly. The heavy-duty arm provides mechanical advantage for lever-actuated locking, reducing the chance of part movement under cutting forces. For operators transitioning from manual setups, the device’s straightforward function reduces setup time and contributes to predictable cycle times on the shop floor. The combination of defined clamping forces and rigid construction supports quality control and reduces rework.

Flexible installation and clear specifications for fixture design

Mounting is via an angle foot, enabling secure attachment to t-slotted tables, plates or custom subplates; the 218.5 mm arm length extends reach into deeper jigs while keeping the overall footprint compact. The nominal mass of 1.836 kg balances robustness with ease of handling during fixture assembly. Numeric values such as arm reach and rated forces are provided to aid CAD layout and strength calculations during fixture design, allowing planners to position clamps with adequate spacing to avoid deformation or interference in multi-clamp assemblies.

Durable finish and low-maintenance operation for workshop conditions

A galvanised surface finish protects components from corrosion in industrial environments and minimises surface wear during repetitive use. The heavy holding arm is designed for mechanical resilience, reducing sensitivity to knocks and frequent actuation. Maintenance is primarily visual inspection and light lubrication at pivot points; this straightforward care routine keeps downtime low and supports long service life, making the clamp a practical choice for maintenance shops, toolrooms and small production lines.

For reliable delivery from our Emmerich stock and application support for Kukamet clamping solutions — contact Metav Werkzeuge for tailored advice on integrating the robust 213 vertical clamp into existing fixture systems: phone +49 2822 7131930 or email info@metav-werkzeuge.com

Technical data

• Article number: 213-5-D-C3
• GTIN: 8680731502138
• Brand: Kukamet
• Material finish: Galvanised
• Category: Clamping

Facts

• Arm length: 218.5 mm
• Holding force max: 5,000 N
• Pressing force max: 4,500 N
• Weight: 1.836 kg
• SKU: 213-5-D-C3

Special features

• Mounting: Angle foot
• Massive holding arm
• Compact vertical clamp design
• Suitable for workshop and jig fixtures

FAQ

What clamping force can be expected from this clamp?
The Kukamet 213 vertical clamp offers a maximum holding force of 5,000 N with a separate pressing capacity rated to 4,500 N for secure fixture retention.

How is the clamp mounted to a fixture plate?
Mounting is via the angle foot configuration, allowing the clamp to be bolted to t-slot tables, base plates or bespoke subplates for stable installation.

Is the surface finish suitable for industrial environments?
Yes, the galvanised finish on the 213 vertical clamp provides corrosion resistance suited to typical workshop and production environments.

What is the reach of the clamping arm and how does that affect layout planning?
The arm reach is 218.5 mm, which should be considered when spacing multiple clamps to avoid interference and to ensure even distribution of clamping forces.
