1500N Vertical Clamp With 5000N Holding Arm, Safety Lock, 100° Angle - Kukamet

Take advantage of the robust 5,000 N holding arm, the integrated safety lock and a compact horizontal foot for stable mounting — a combination that secures workpieces reliably while keeping setup time short. Order directly via Metav Werkzeuge or contact our advisors for fixture planning and integration advice.

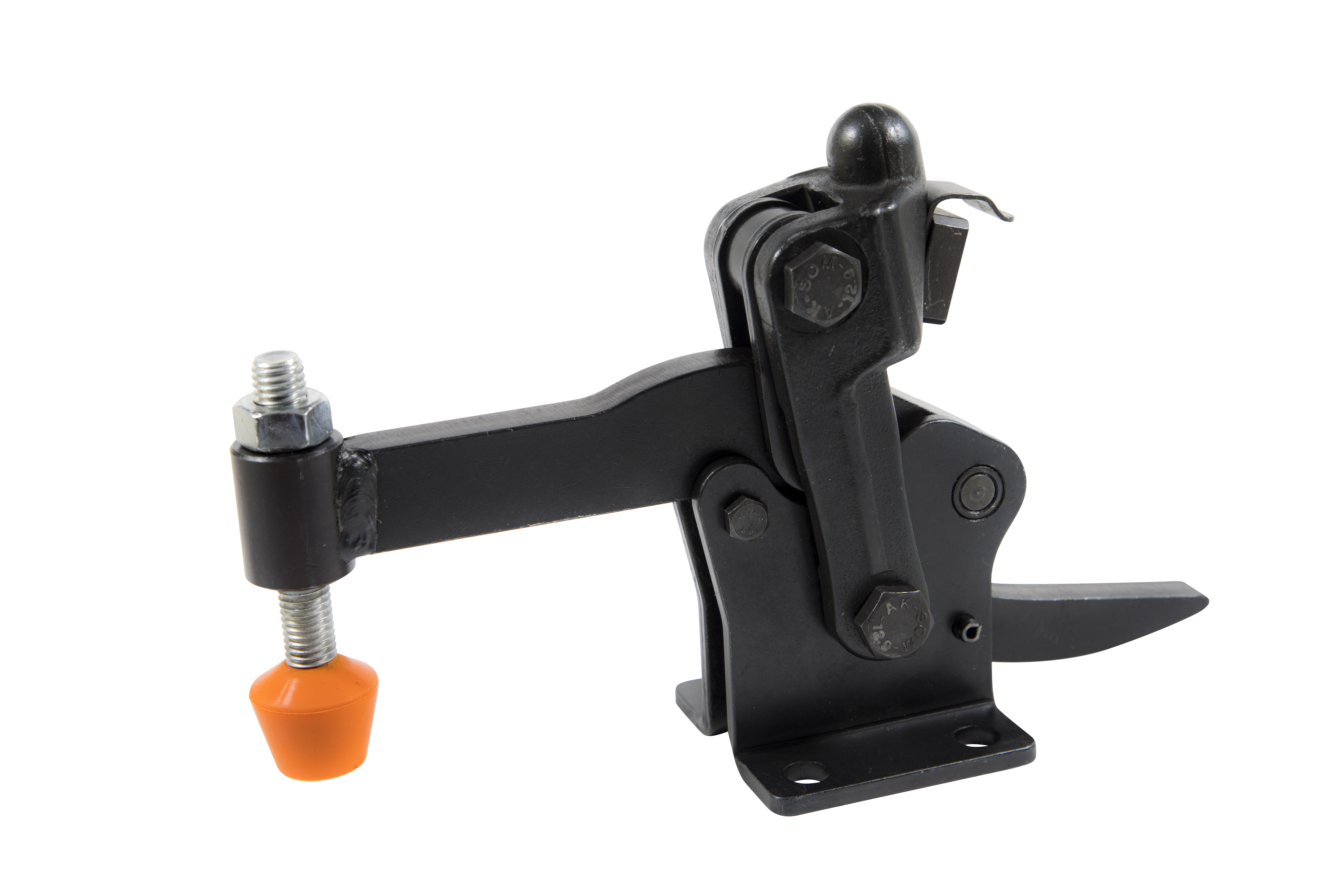

Vertical toggle clamp 221 by Kukamet — 5,000 N holding arm, 1,500 N clamping force

The Vertical toggle clamp 221 is a compact vertical clamping solution designed for fixtures and jigs where high holding force and secure locking are essential for repeatable production.

• Robust holding arm with 5,000 N force
• Integrated safety lock for secure clamping
• Horizontal foot for stable mounting
• Clamping force up to 1,500 N

Consistent clamping for reliable production

The clamp delivers high holding performance through a dedicated holding arm rated at 5,000 N, combined with a maximum clamping force of 1,500 N, which reduces the risk of workpiece movement during machining or assembly. The integrated safety lock prevents unintended release of the lever, lowering the likelihood of set-up errors and scrap. These measured performance values translate directly into fewer interruptions on the shop floor and improved process reliability for small-batch and medium-volume workflows.

Compact integration reduces setup time

Designed with a horizontal foot for simple installation, the device fits into standard fixture plates and modular jigs without demanding additional mounting complexity. The body features a black oxide finish that gives basic corrosion resistance while maintaining a low visual impact in production cells. With a compact mass of 1.31 kg and a working angle of 100°, the clamp allows close-packed arrangements on pallets and reduces interference with neighbouring tools, enhancing layout flexibility and faster changeovers.

Suitable for diverse fixtures and practical workbenches

This toggle-style clamp is engineered for workshops, subassembly lines and engineering labs that require dependable vertical clamping in a modest footprint. The lever mechanism, inspired by classic toggle clamps, ensures positive force transmission and simple manual operation, helping operators position and secure parts swiftly. Sourcing through Metav Werkzeuge gives access to consistent stock levels and technical advice from a partner experienced in supplying precision tools and fixture elements for industry and trade.

Contact Metav Werkzeuge today to discuss fixture compatibility, request the SKU 221-4-C-L for order processing or obtain tailored advice by phone or e‑mail: +49 2822 7131930 / info@metav-werkzeuge.com

Technical data

• Article number: 221-4-C-L
• GTIN: 8682843520390
• EClass: 21041717
• ETIM: EC011973

Facts

• Clamping force: 1,500 N
• Holding force: 5,000 N
• Weight: 1.31 kg
• Working angle: 100°

Special features

• Mounting type: horizontal foot
• Safety lock: integrated
• Finish: black oxide
• Product type: vertical toggle clamp

FAQ

What is the maximum holding force of this clamp? The clamp offers a holding arm rated at 5,000 N and a clamping force up to 1,500 N for secure fixation.

Is the safety lock suitable for automated cells? The integrated safety lock on the Vertical toggle clamp 221 secures the lever mechanically; for full automation, assess integration with safeguarding and control systems.

How is the clamp mounted to a fixture plate? Mounting is via the horizontal foot; the design allows bolting to standard fixture plates and modular bases for stable installation.

What finish does the device have and how does it perform in shop environments? The clamp comes with a black oxide finish that offers basic corrosion protection and a discreet appearance suited to workshop use.

Which SKU should be referenced when ordering or requesting data sheets? Use SKU 221-4-C-L for ordering, stock checks and when requesting detailed documentation.

Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
