150mm Vertical Clamp Holding Arm 6000N, 2000N Clamping Force - Kukamet

Benefit from the combination of a 6,000 N holding arm, a 2,000 N maximum clamping force and a compact horizontal-foot mount for secure, space-saving workholding; order directly via Metav Werkzeuge or consult the team for integration advice.

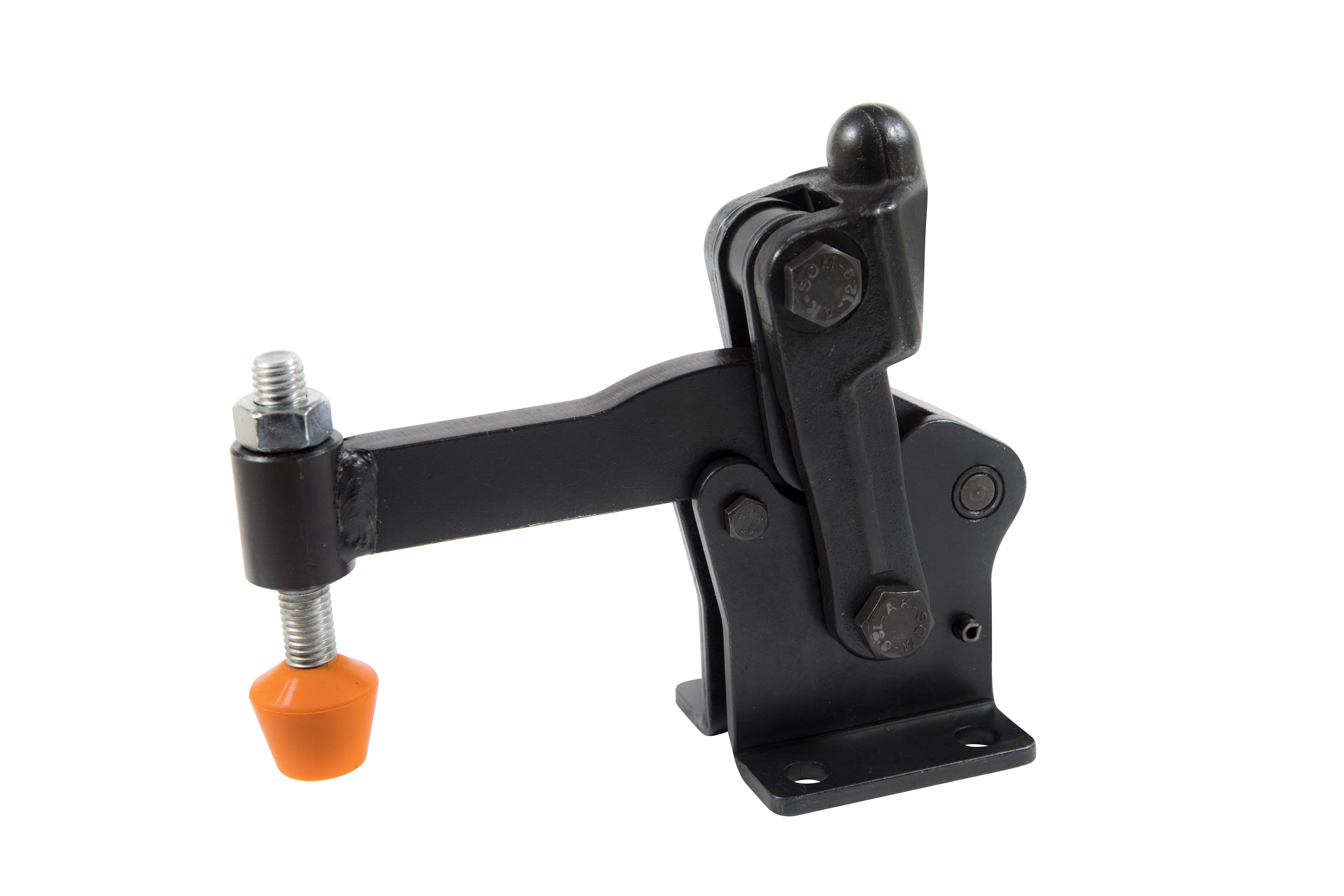

Kukamet 221 Vertical Clamp – 6,000 N holding arm, horizontal-foot mount

A Kukamet 221 vertical clamp engineered for repeatable, high-force fixtures where robust holding and compact installation are essential

• High 6,000 N holding force
• Max clamping force 2,000 N
• Horizontal-foot mounting design
• Blackened finish for workshop durability
• Robust 2.14 kg construction

Secure, high-force clamping for repeatable setups

The vertical clamp delivers a dependable combination of holding arm strength and controlled clamping force: the arm provides up to 6,000 N of holding capacity while the mechanism exerts a peak 2,000 N clamping force. This distinction means fixtures remain immobile under machining loads while the applied clamp pressure protects components from deformation. For production lines and jigs where repeatability is critical, that separation between holding and clamping performance reduces setup time and lowers scrap rates. The result is a measurable improvement in process consistency and throughput.

Space-efficient mounting that adapts to tight fixtures

Designed with a horizontal-foot mounting arrangement, the clamp fits into low-profile and constrained fixtures without obstructing tool paths. The mounting concept simplifies retrofitting to existing plates and pallets and enables closer part-to-tool clearances, which can be decisive in compact machining centres or assembly jigs. Because the unit occupies minimal vertical space, designers can prioritise accessibility and tool clearance while still benefiting from a high-holding capability that maintains component stability during machining or testing.

Durable finish and solid build for everyday workshop use

Constructed with a blackened finish, the clamp is protected against mild corrosion and surface wear while minimising glare at the workbench. The solid mass—approximately 2.14 kg—provides a reassuring feeling of robustness and reduces transmitted vibration at the contact points, which supports more accurate machining and longer service life. The surface treatment and construction together mean lower maintenance intervals and fewer replacements, supporting a more predictable total cost of ownership in busy shop environments.

Predictable integration and straightforward operation

With a lever-style actuation familiar to shop personnel, the clamp integrates quickly into standard tooling concepts and fixture plates. Its mechanical simplicity ensures predictable behaviour under load and makes inspection and routine checks straightforward. Documentation supplied with the unit enables correct torque and mounting specifications to be applied, helping to avoid misalignment and premature wear. For technical queries or bespoke fixture adaptations, Metav Werkzeuge’s consultative support is available to assist with selection and fitment.

Contact Metav Werkzeuge today for tailored advice on integrating the Kukamet 221 vertical clamp into the fixture system and secure reliable, high-force workholding for production or prototyping.

Technical Data

• Article number: 221-6-C
• GTIN: 8682843520420
• ETIM: EC011973

Facts

• Weight: 2.14 kg
• Max clamping force: 2,000 N
• Max holding force: 6,000 N
• Angle: 120°

Special features

• Material: blackened finish
• Mounting: horizontal-foot
• Category: clamp
• Manufacturer: Kukamet

FAQ

What are the maximum clamping and holding forces?
The Kukamet 221 vertical clamp (SKU 221-6-C) provides a maximum clamping force of 2,000 N and a holding-arm capacity of 6,000 N.

How is the clamp mounted to a fixture plate?
The unit uses a horizontal-foot mounting arrangement designed for low-profile attachment to fixture plates and pallets.

Is the finish suitable for workshop environments?
The clamp’s blackened finish offers enhanced surface protection and reduced glare, making the device well suited to standard workshop conditions.

Will the clamp fit into compact or tight fixtures?
Yes; the horizontal-foot design and compact profile are intended for installations where vertical space is limited.

Who to contact for technical integration or special requirements?
For assistance integrating the Kukamet 221 vertical clamp into a specific fixture or application, contact Metav Werkzeuge for expert guidance.
